Erskine Hydraulic Pallet Forks | Fork Size 48” & 60” | 10–20 GPM | For Skid Steer

Erskine Hydraulic Pallet Forks | Fork Size 48” & 60” | 10–20 GPM | For Skid Steer

Regular price $4,795.00
Regular price Sale price $4,795.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Fork Length: 48" or 60" options for versatile load handling.
  • Hydraulic Flow: 10–20 GPM standard flow for skid steers.
  • Load Capacity: 5,500 lb rating at 24" load center.
  • Operating Weight: 505–545 lb depending on fork size.
  • Compatibility: Universal skid steer mounting for quick attachment.
View full details

Product Description

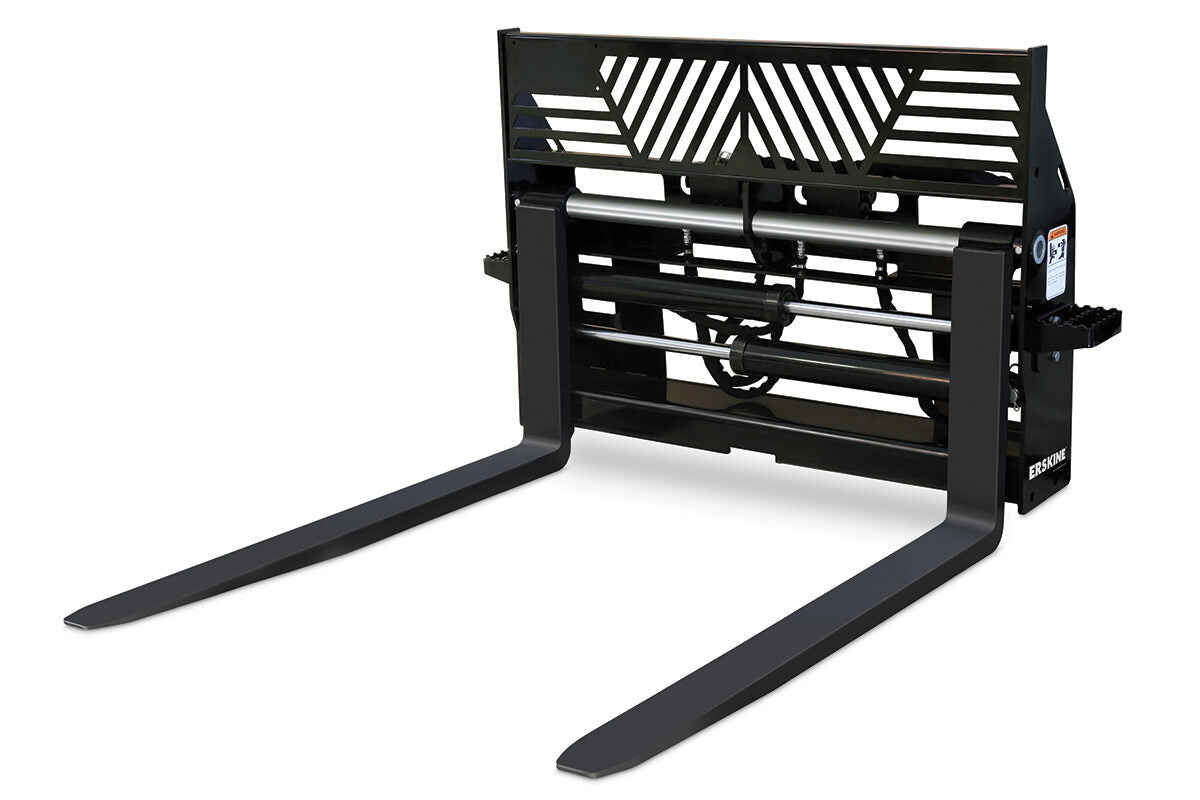

Erskine Hydraulic Pallet Forks | Fork Size 48” & 60” | 10–20 GPM | For Skid Steer

DESCRIPTION

The Erskine Hydraulic Pallet Forks deliver unmatched efficiency and operator convenience for heavy-duty material handling. Designed with hydraulic power adjustment, these forks allow operators to change fork width without leaving the cab, ensuring faster workflow and reduced downtime. Available in 48-inch and 60-inch fork lengths, they provide a 5,500 lb load rating at 24-inch load center, making them ideal for demanding construction, agricultural, and industrial applications. With synchronized fork movement, operators achieve precise, even adjustments, while bolt-on access steps enhance safety and accessibility. Built with heavy-duty construction and universal skid steer compatibility, these pallet forks are engineered for durability, versatility, and superior performance in any environment.

Key Features

  • Hydraulic fork adjustment Change fork width seamlessly from the operator’s seat for maximum efficiency.
  • Synchronized fork movement Ensures both forks move evenly, reducing manual effort and improving precision.
  • Heavy-duty load rating Handles up to 5,500 lb at 24” load center, perfect for industrial and agricultural use.
  • Universal skid steer mount Compatible with all major skid steer brands for quick, tool-free installation.
  • 48” and 60” fork options Choose the right size to match your machine and application requirements.
  • Bolt-on access steps Provides safe and convenient entry and exit for operators.
  • Durable steel construction Built with high-grade materials for long-lasting strength and reliability.
  • Compact frame design Optimized for maneuverability in tight spaces without sacrificing lifting capacity.
  • Operator-friendly controls Hydraulic adjustments are smooth, responsive, and easy to manage.
  • Enhanced productivity Reduce downtime with quick fork width changes during material handling.
  • Precision engineering Designed for consistent performance under heavy workloads.
  • Factory-installed couplers Standard flow attachments available for seamless hydraulic integration.
  • Low maintenance design Simplified structure reduces service needs and increases uptime.
  • Safety-focused features Wide steps and stable frame improve operator confidence and workplace safety.
  • Versatile applications Ideal for construction sites, warehouses, farms, and industrial operations.

Detailed Specifications

Specification 48” Model (900708) 60” Model (900709)
Operating Weight 505 lb 545 lb
Frame Width 45.5” 45.5”
Frame Width with Steps 54” 54”
Fork Length 48” 60”
Overall Height 35.5” 35.5”
Overall Length 59.25” 71.25”
Capacity at 24” Load Center 5,500 lb 5,500 lb
Minimum Fork Width 8.5” 8.5”
Maximum Fork Width 42.75” 42.75”
Mounting Type Universal Universal
Hydraulic Flow Range 10–20 GPM 10–20 GPM
Coupler Options Factory Installed Factory Installed
Construction Material High-Grade Steel High-Grade Steel
Applications Skid Steers, Loaders Skid Steers, Loaders
