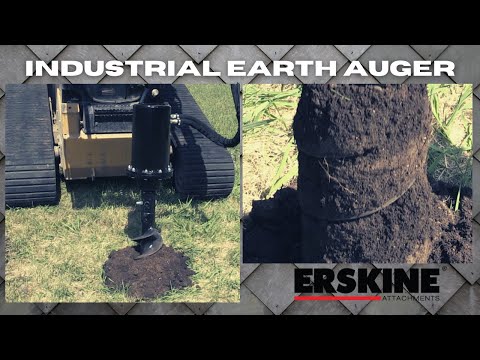

ERSKINE INDUSTRIAL EARTH AUGER | 15PD TO 55 PD MODEL | 12-60 GPM HYDRAULIC FLOW | FOR SKID STEER

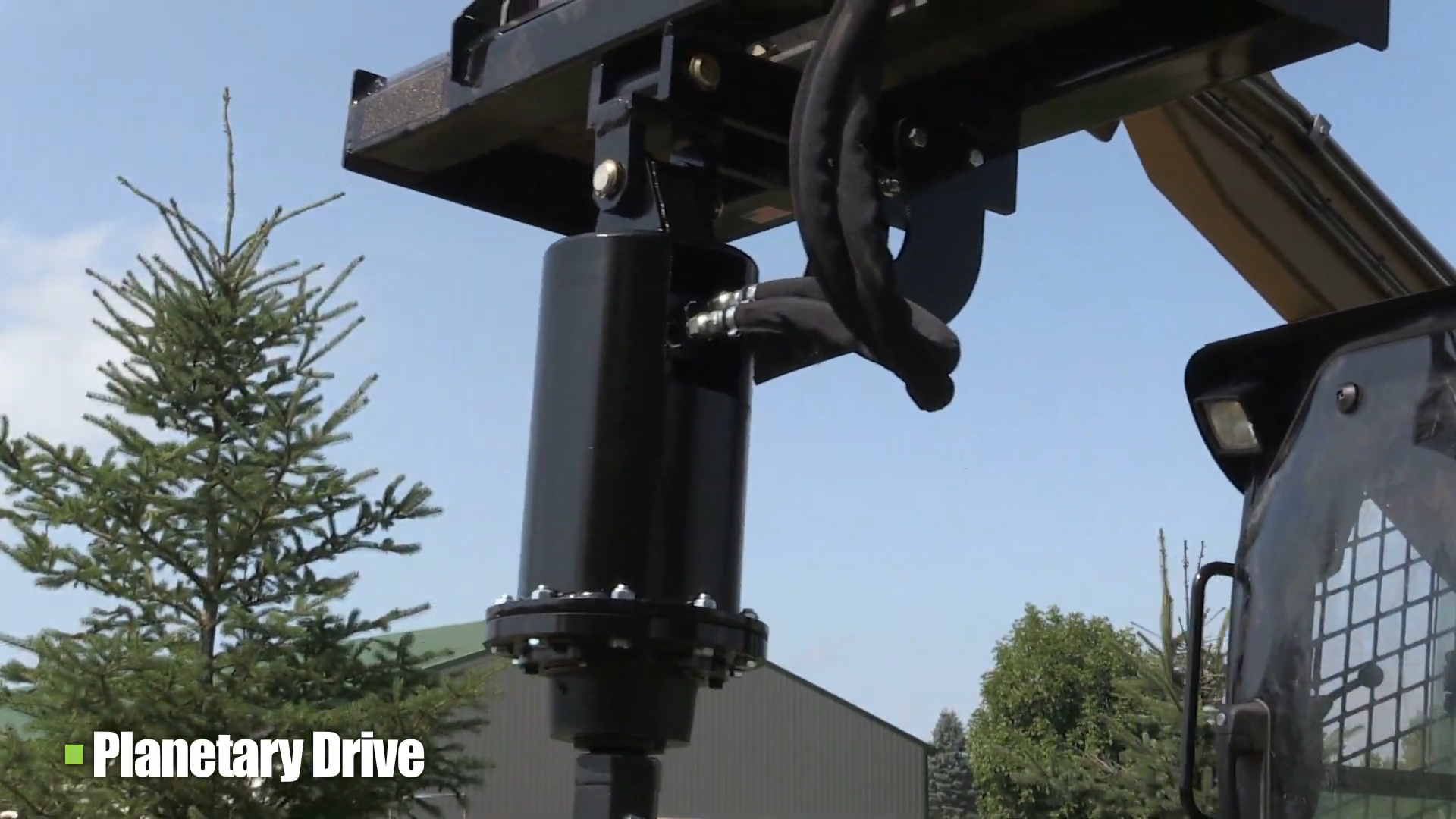

• Planetary gear drive for lower maintenance costs
• Available in 2”, 2.5” hex, or 2-9/16” round drive shafts
• Drills vertical or angled holes
• Self-cleaning

Erskine Industrial Earth Auger models:

Models and Part Numbers

15PD
Part Number (2" Hex): 900750
Part Number (2 9/16" Round): 900754

19PD
Part Number (2" Hex): 900751
Part Number (2 9/16" Round): 900755

40PD
Part Number (2" Hex): 901201
Part Number (2.5" Hex): 901202

45PD
Part Number (2" Hex): 901203
Part Number (2.5" Hex): 901204

55PD
Part Number (2" Hex): 901205
Part Number (2.5" Hex): 901206

Specifications

Maximum Diameter:
15PD: 30”
19PD: 36”
40PD, 45PD, 55PD: 48”

Hydraulic Flow:

Minimum:
15PD: 12 GPM
19PD: 15 GPM
40PD: 20 GPM
45PD: 25 GPM
55PD: 30 GPM

Maximum:
15PD: 20 GPM
19PD: 30 GPM
40PD: 40 GPM
45PD: 45 GPM
55PD: 60 GPM

Maximum Continuous psi:
15PD: 3,500 psi
19PD: 3,250 psi
40PD, 45PD, 55PD: 4,500 psi

Options
Factory Installed Couplers
High Flow Couplers (Not available for 15PD and 19PD)
Bits
Standard Duty Bits: 4", 6", 8", 9", 10", 12", 15", 16", 18", 20", 24", 30", 36"
Heavy-Duty Bits: 6", 8", 9", 10", 12", 15", 16", 18", 20", 24", 30", 36", 42", 48"
Rock Style Bits: 4", 6", 9", 12", 16", 18", 20", 24", 30", 36"
Tree Style Bits: 18", 24", 30", 36", 42", 48"

Adapters and Extensions

Adapters:
2” Hex Output Shaft 2-9/16” Round Collar Opening
2” Hex Output Shaft 2” Round Collar Opening
2-9/16” Round Output Shaft 2” Hex Collar Opening
2-9/16” Round Output Shaft 2” Round Collar Opening
2” Round Output Shaft 2” Hex Collar Opening
2” Round Output Shaft 2-9/16” Round Collar Opening
2” Hex Output Shaft 2-1/2” Hex Collar Opening

Fixed Length Extensions:
2” Hex: 12”, 24”, 48”, 72”
2-9/16” Round: 12”, 24”, 48”, 72”

Variable Length Extensions:
2” Hex: 12”, 24”, 48”, 72”
2-9/16” Round: 12”, 24”, 48”, 72”

Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.

Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

Product Brochure

Manual
