Product Description
Erskine Industrial Hydraulic Power Unit Series | PTO Range 30-75 HP | 11-Gauge Steel Reservoir | For Tractor
DESCRIPTION

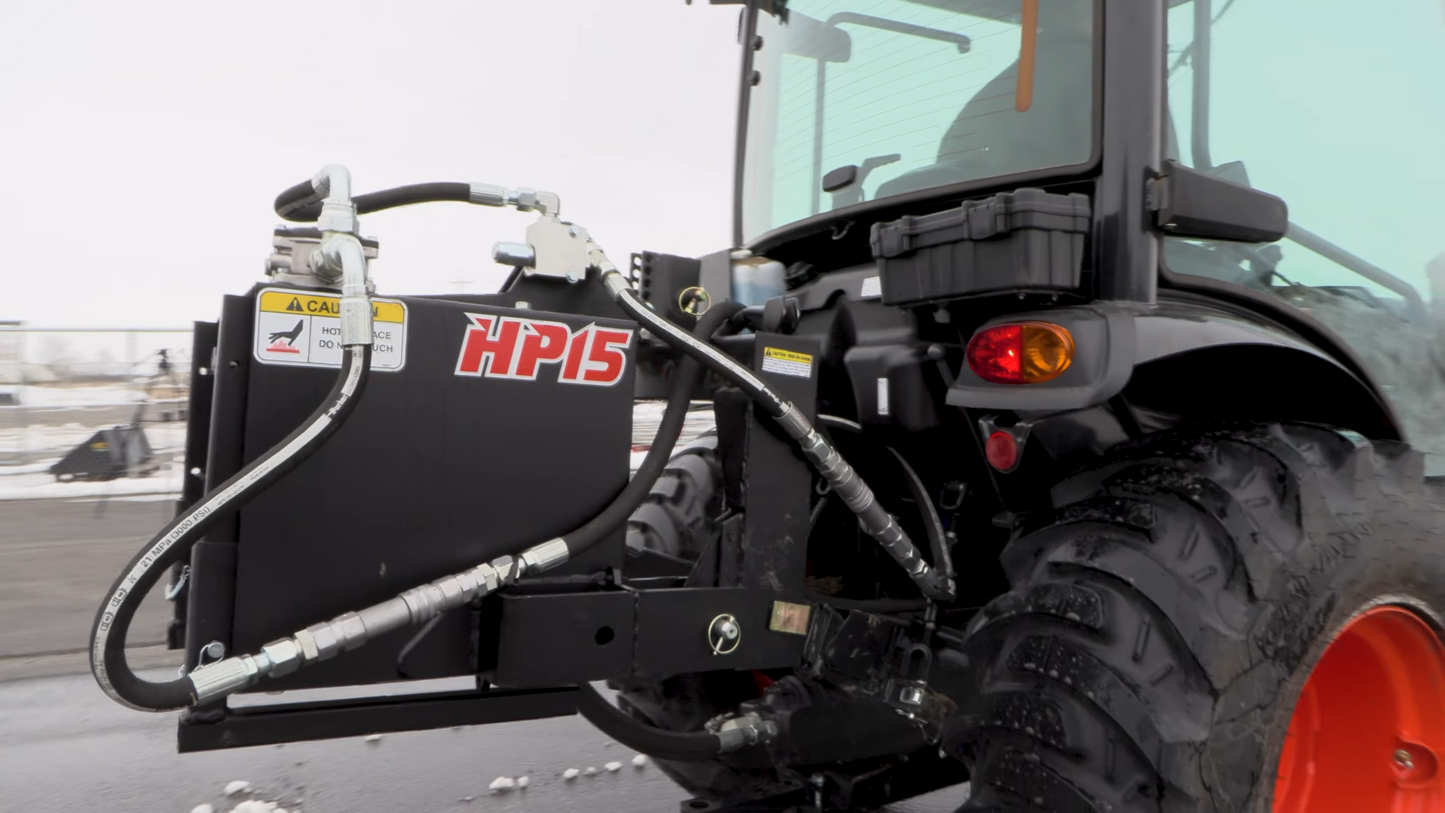

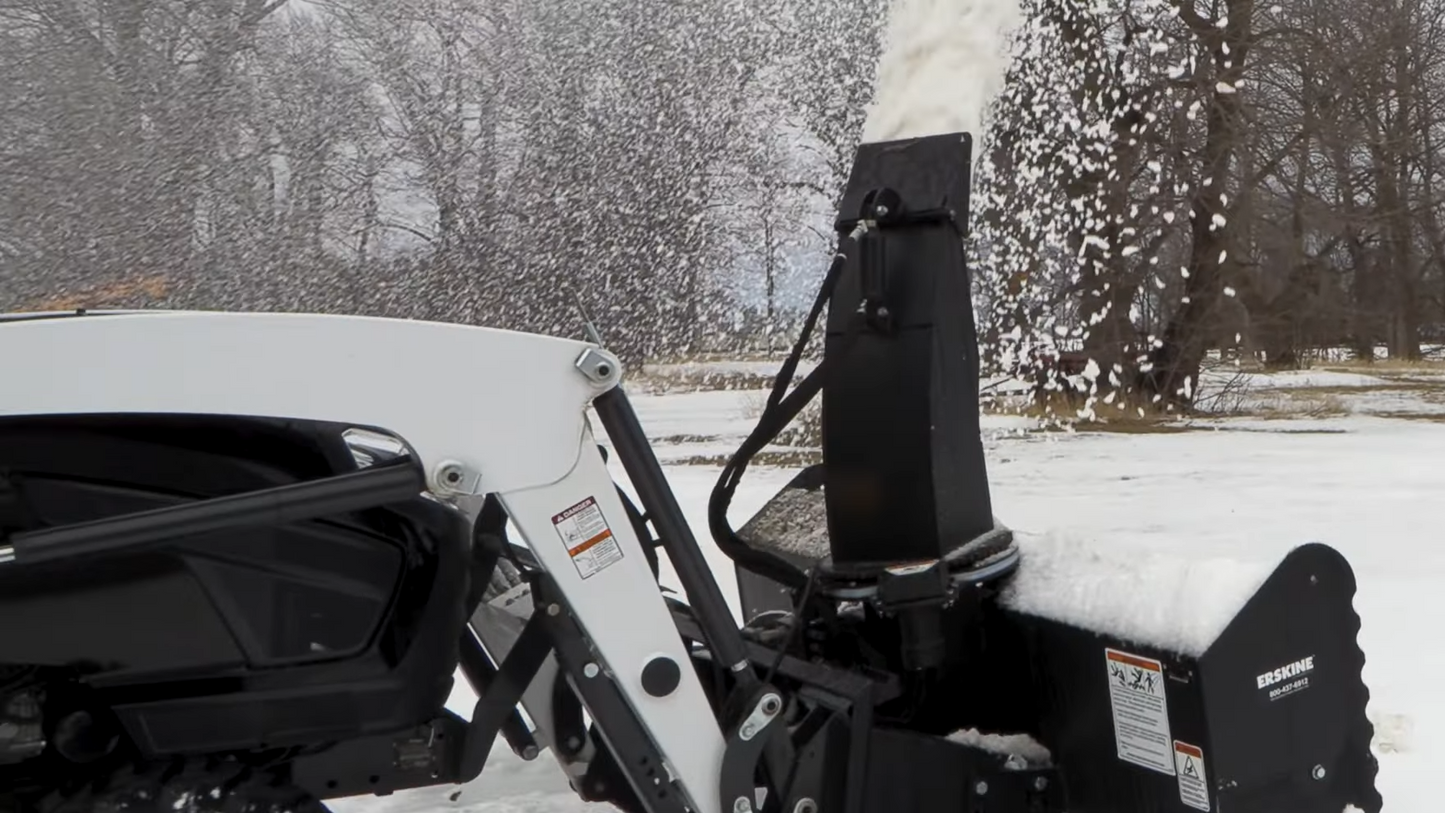

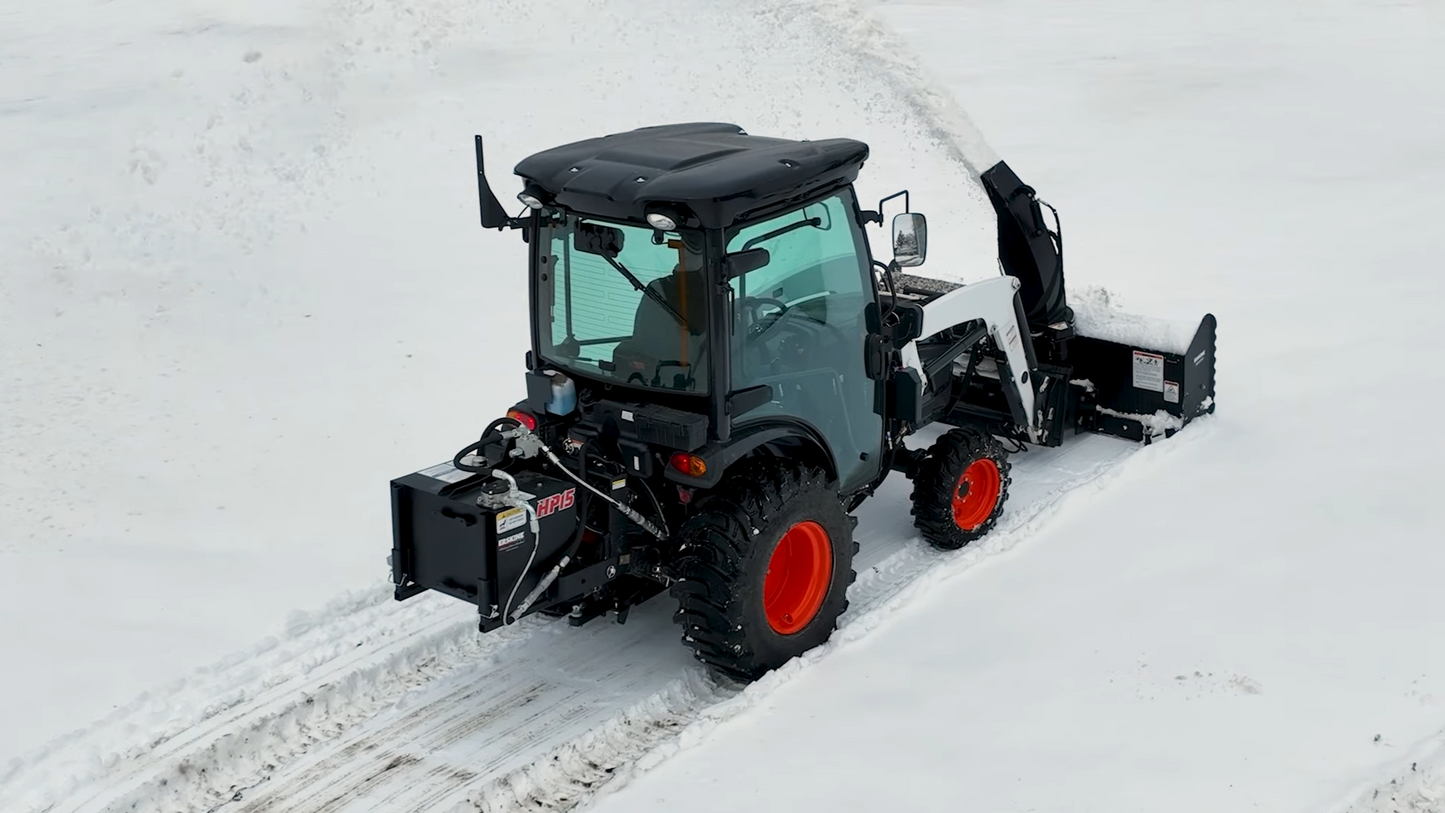

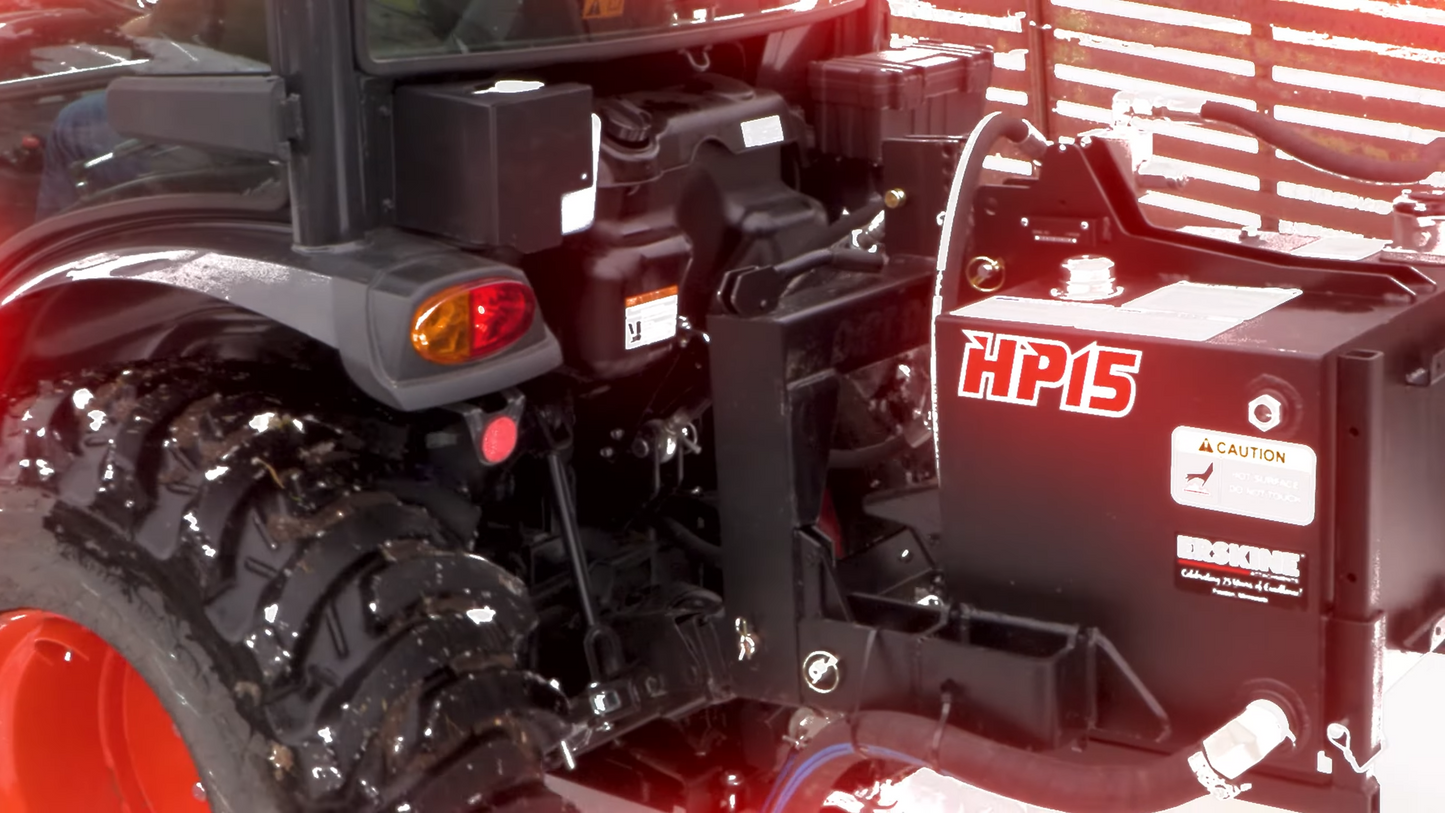

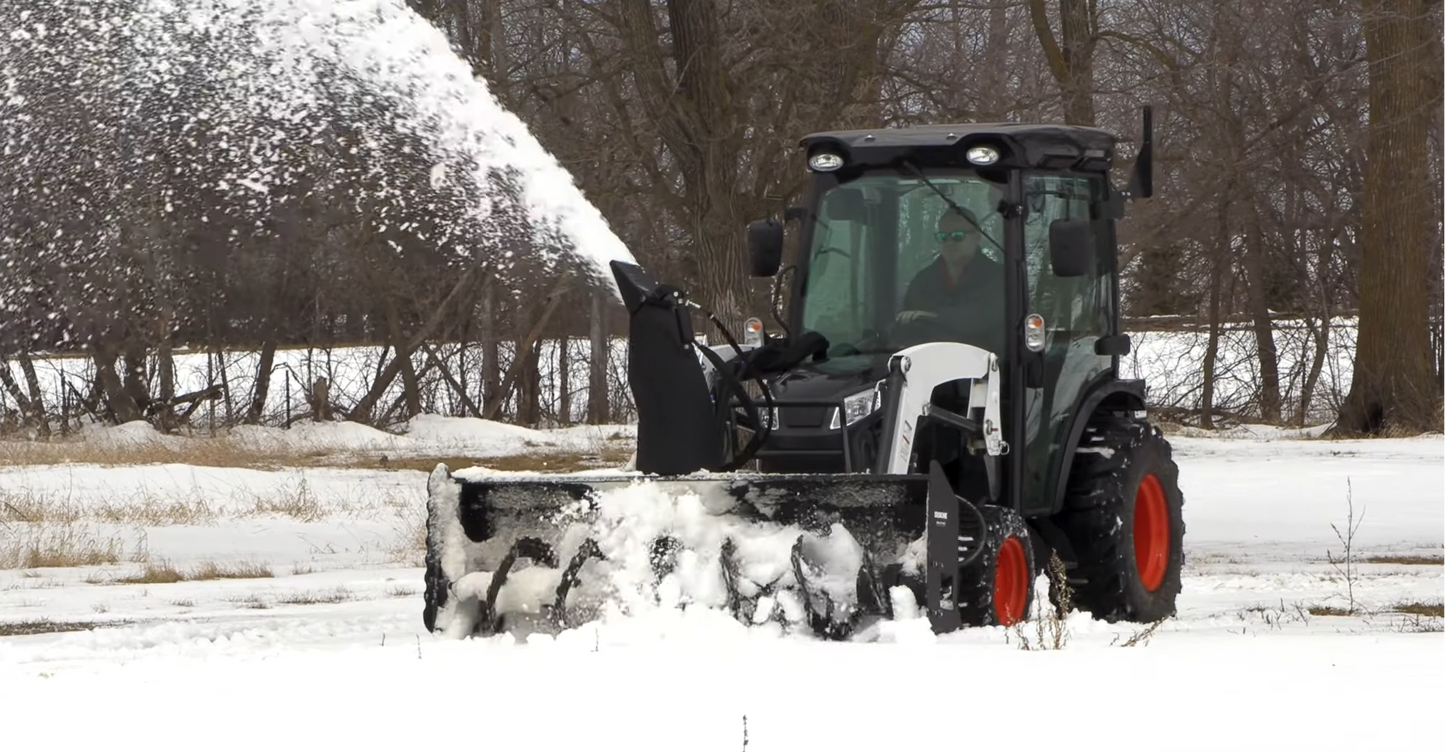

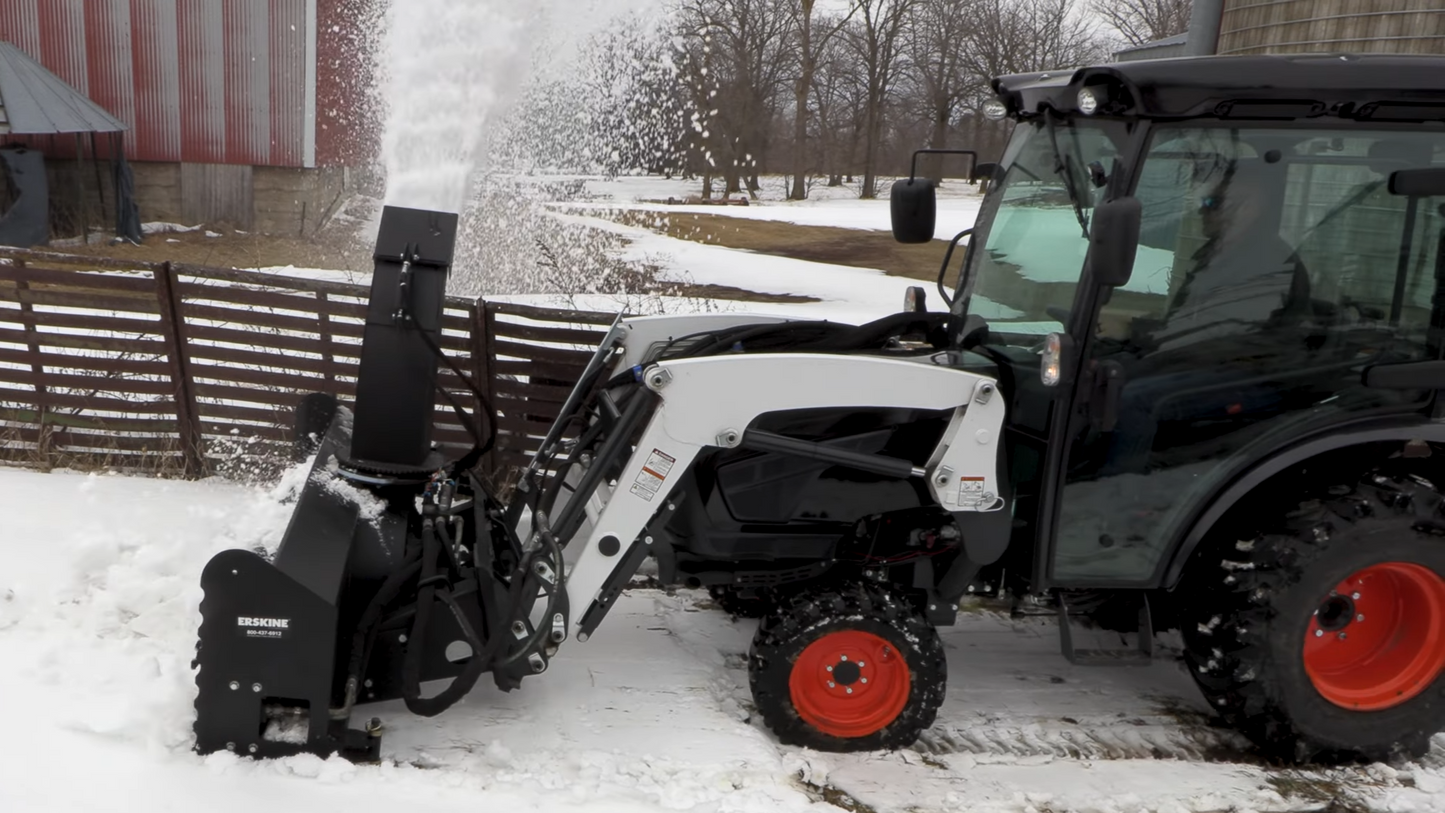

The 3-Point Auxiliary Hydraulic Unit is an essential upgrade for tractors needing enhanced hydraulic power to run demanding attachments. Built for versatility, this self-contained unit provides ample hydraulic flow and pressure, allowing you to operate various front loader attachments efficiently. The system’s high-pressure hydraulic pump and built-in pressure relief valve ensure a steady performance, even under tough conditions, enhancing the value and capability of your tractor.

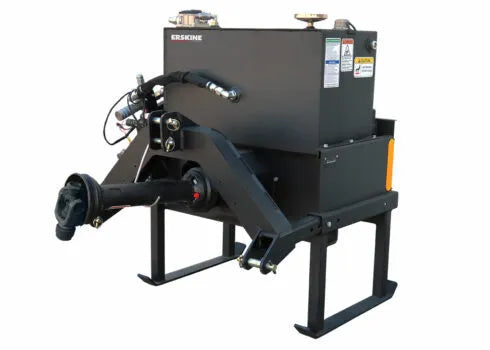

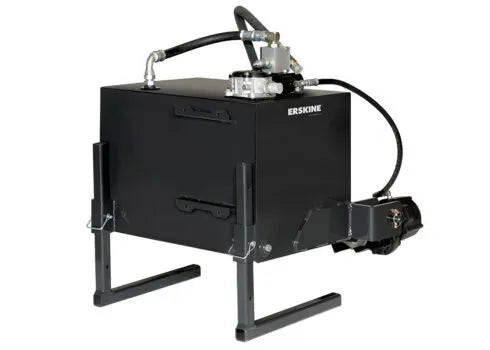

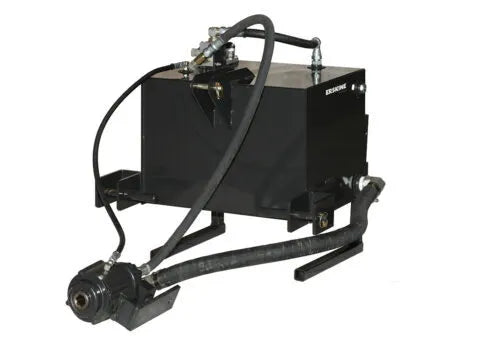

This heavy-duty hydraulic unit is designed for durability, with 11-gauge steel construction and an industrial-grade planetary gearbox. Available in three models—HP15, HP20, and HP24—this unit accommodates a range of PTO horsepower and is compatible with Cat I and II hitch categories. It includes essential features like built-in mounting brackets for an optional oil cooler and a convenient sight gauge for monitoring oil levels, making maintenance quick and easy.
Key Features
- Hydraulic Power: Provides hydraulic power to operate front loader attachments

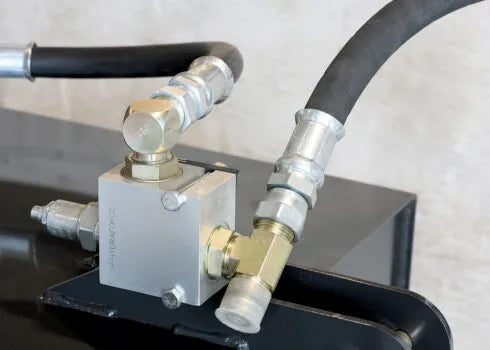

- High Pressure: Equipped with a 3,000 psi pressure relief valve
- Durable Tank: Built with an 11-gauge steel reservoir

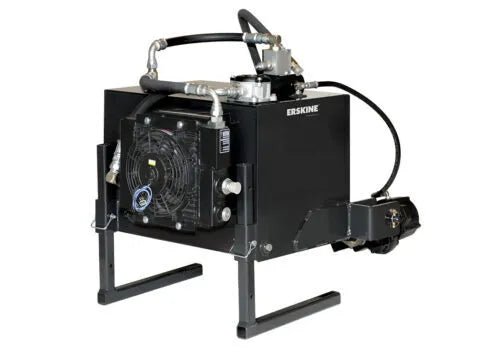

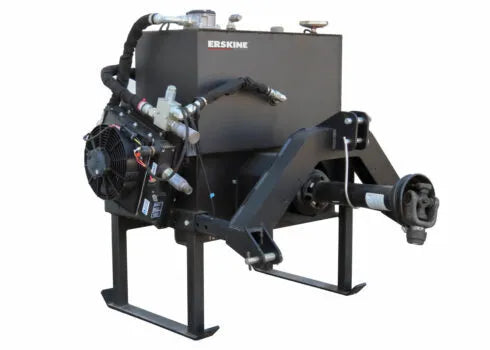

- Mounting Brackets: Ready for optional oil cooler installation
- Sight Gauge: Allows for easy oil level checks
- High GPM Output: Delivers sufficient GPM to support a range of attachments
- Industrial Gearbox: Ensures durability with a planetary gearbox design
- Enhanced Versatility: Expands tractor capabilities across tasks
- Smooth Operation: Runs attachments smoothly, increasing productivity
- Efficient Filtration: Includes a 10-micron in-line return filter for clean operation
Detailed Specifications
| Feature | HP15 | HP20 | HP24 |
|---|---|---|---|
| Part Number | 900900 | 900901 | 900902 |
| PTO Range | 30-43 HP | 44-53 HP | 54-75 HP |
| GPM/psi | 15 @ 3,000 | 20 @ 3,000 | 24 @ 3,000 |
| PTO Input | 540 RPM at pump | 540 RPM at pump | 540 RPM at pump |
| Hitch Category | Cat. I & II | Cat. I & II | Cat. I & II |
| Planetary Gear Box | Industrial | Industrial | Industrial |
| Gear Pump | High pressure | High pressure | High pressure |
| Reservoir Capacity | 25 gallons | 25 gallons | 25 gallons |
| In-line Return Filter | 10 micron | 10 micron | 10 micron |
| Tank Construction | 11 gauge steel | 11 gauge steel | 11 gauge steel |
| Shipping Weight | 350 lb | 350 lb | 350 lb |
