Product Description
Erskine Industrial Log, Brush & Rock Grapple | 72" & 84" Model | With Flat Faced Couplers | For Skid Steer
DESCRIPTION
Built for Heavy-Duty Performance
The Erskine Industrial Log, Brush & Rock Grapple is engineered to tackle the toughest tasks with powerful skid steers. Its design prioritizes exceptional strength, allowing operators to handle massive loads effortlessly. With gusseted teeth, reinforced construction, and robust 3,000 lb cylinders, this grapple stands out as one of the most durable tools for log, brush, and rock handling.
Versatile & Reliable for Demanding Applications
This grapple offers unmatched versatility, enabling it to easily manage logs, rocks, brush, and other challenging materials. With unique curved and gusseted teeth, it glides over the ground, performing root raking, clearing, and lifting without damaging the surface. Built for efficiency, the grapple’s replaceable teeth tips and tighter-closing jaws provide precise and reliable control, making it an essential attachment for demanding construction and landscaping projects.
Key Features
- Gusseted Teeth: Adds strength between teeth for enhanced durability
- Dual Cylinders: Equipped with two 3,000 lb hydraulic cylinders for maximum power
- Replaceable Teeth Tips: Extends the lifespan and maintenance ease of the grapple
- Enhanced Grip: Closes tighter than conventional grapples, improving material handling
- Curved Teeth Design: Protects the ground while raking and cleaning for versatile usage
- Heavy-Duty Construction: Built with T-1 steel for long-lasting performance
- Root Rake Capability: Effective at clearing brush and large debris
- Wide Application Range: Suitable for handling logs, rocks, demolition debris, and more
- High-Capacity Opening: Handles large materials with an impressive 48" max opening
- Easy Compatibility: Works seamlessly with skid steers equipped with flat-faced couplers
Detailed Specifications
| Specification | Details |
|---|---|
| Model (72”) | Part Number: 900592 |
| Shipping Weight | 1,100 lb. |
| Operating Weight | 1,050 lb. |
| Width | 74.13” |
| Width Between Teeth (Upper) | 12” |
| Width Between Teeth (Lower) | 10.53” |
| Height (Closed) | 37.74” |
| Height (Open) | 53.58” |
| Max Opening | 48” |
| Upper Teeth Count | 8 |
| Lower Teeth Count | 7 |
| Hydraulic Cylinders | 3" x 8" (2) |
| Steel Type | T-1 |
| Specification | Details |
|---|---|
| Model (84”) | Part Number: 900594 |
| Shipping Weight | 1,250 lb. |
| Operating Weight | 1,200 lb. |
| Width | 86.13” |
| Width Between Teeth (Upper) | 12” |
| Width Between Teeth (Lower) | 10.53” |
| Height (Closed) | 37.74” |
| Height (Open) | 53.58” |
| Max Opening | 48” |
| Upper Teeth Count | 9 |
| Lower Teeth Count | 8 |
| Hydraulic Cylinders | 3" x 8" (2) |
| Steel Type | T-1 |
In Package
- Industrial Log, Brush & Rock Grapple (chosen model: 72” or 84”)
- Pre-installed flat-faced couplers
- User manual with installation and maintenance guidelines
Available Options
- Grapple Sizes: Available in 72" and 84" widths for different operational needs
- Replaceable Parts: Option for replaceable teeth tips to extend product life
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

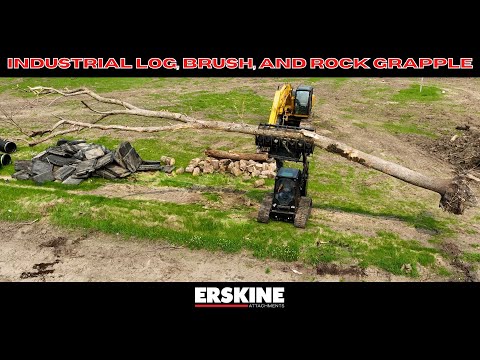

Videos
