FAE | DML/HY & DML/HY/VT Forestry Mulcher | Model 75 To 125 | Width 31″ To 49″ | Shreds Up to 4.7" Inches Diameter | Machine Size 5 To 13 Ton | For Excavators

FAE | DML/HY & DML/HY/VT Forestry Mulcher | Model 75 To 125 | Width 31″ To 49″ | Shreds Up to 4.7" Inches Diameter | Machine Size 5 To 13 Ton | For Excavators

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • For 5–13 Ton Excavators Ideal for a wide range of machines boosts fleet versatility and field efficiency.
  • Shreds Material Up to Ø 12 cm Clears thick branches and brush with consistent finish control.
  • Fixed Tooth Rotor Design with BL/MINI Blades Built for precision and low maintenance in rough terrain.
  • VT Motor (DML/HY/VT) Automatically adjusts torque for optimal hydraulic performance and fuel savings.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

FAE | DML/HY & DML/HY/VT Forestry Mulcher | Model 75 To 125 | Width 31″ To 49″ | Shreds Up to 4.7" Inches Diameter | Machine Size 5 To 13 Ton | For Excavators

DESCRIPTION

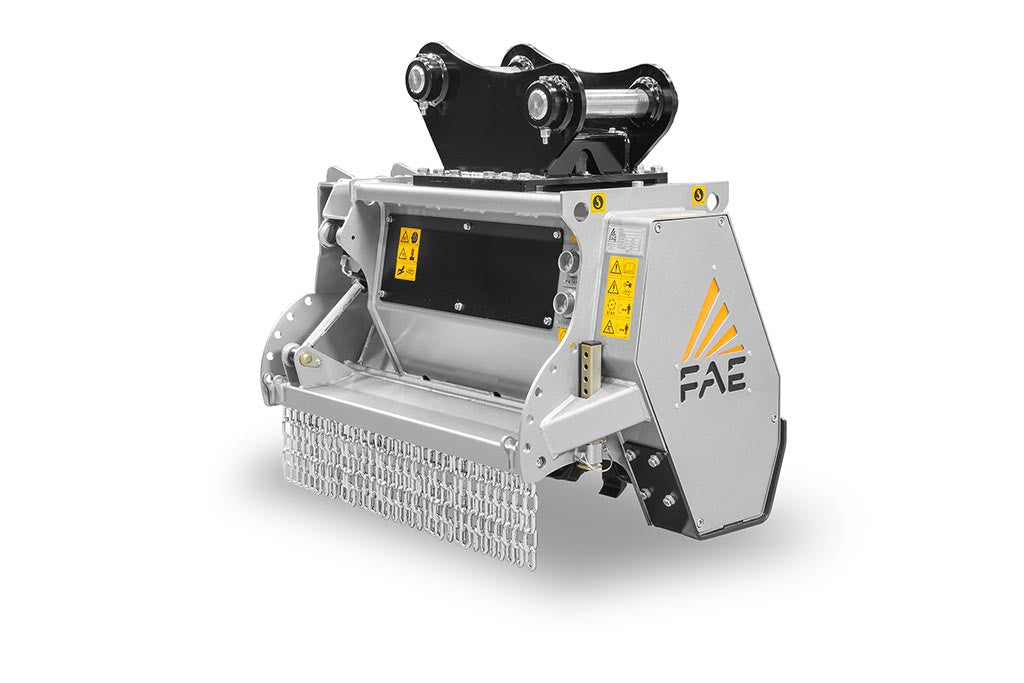

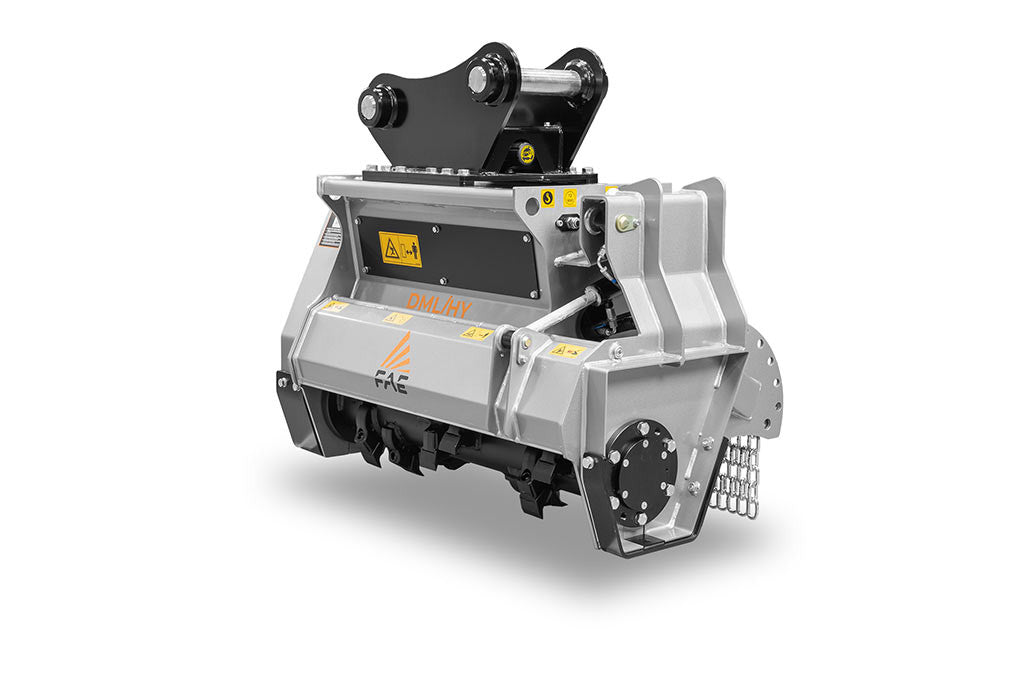

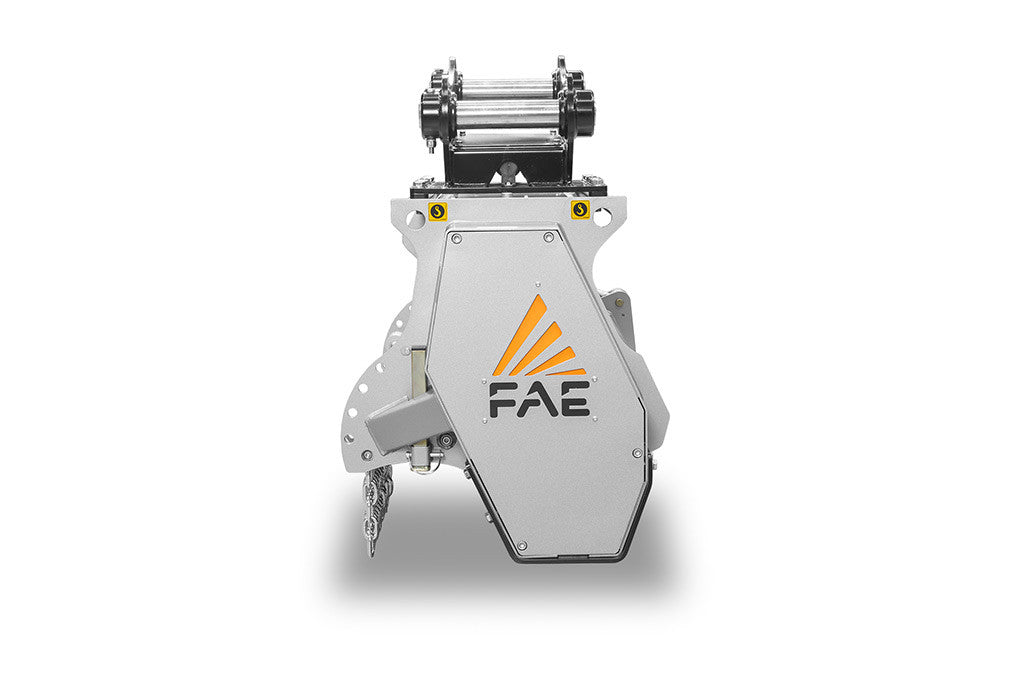

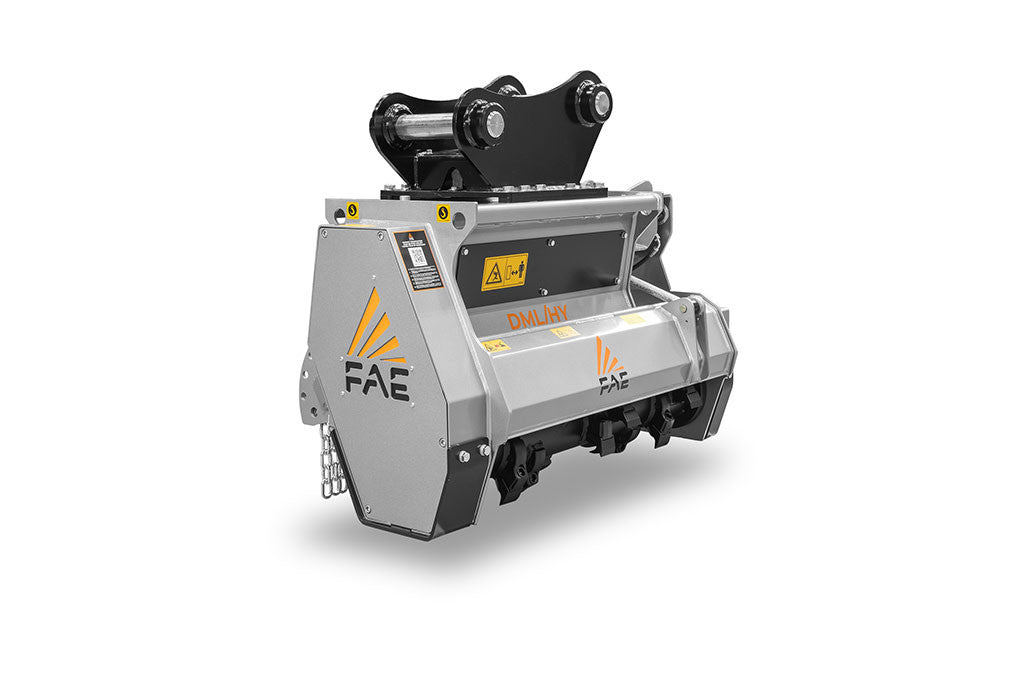

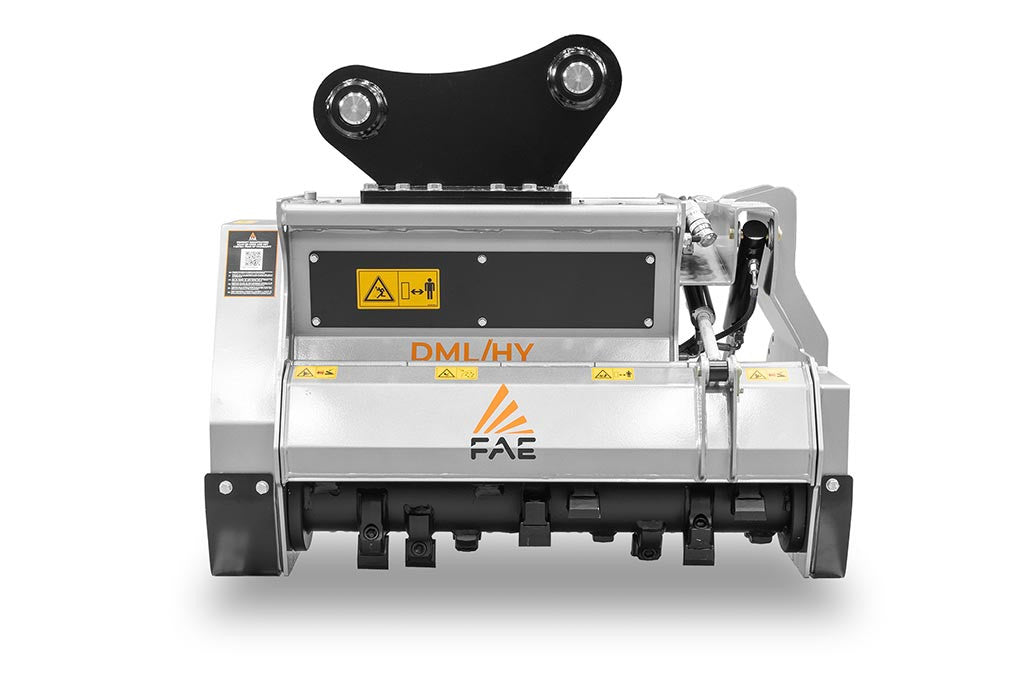

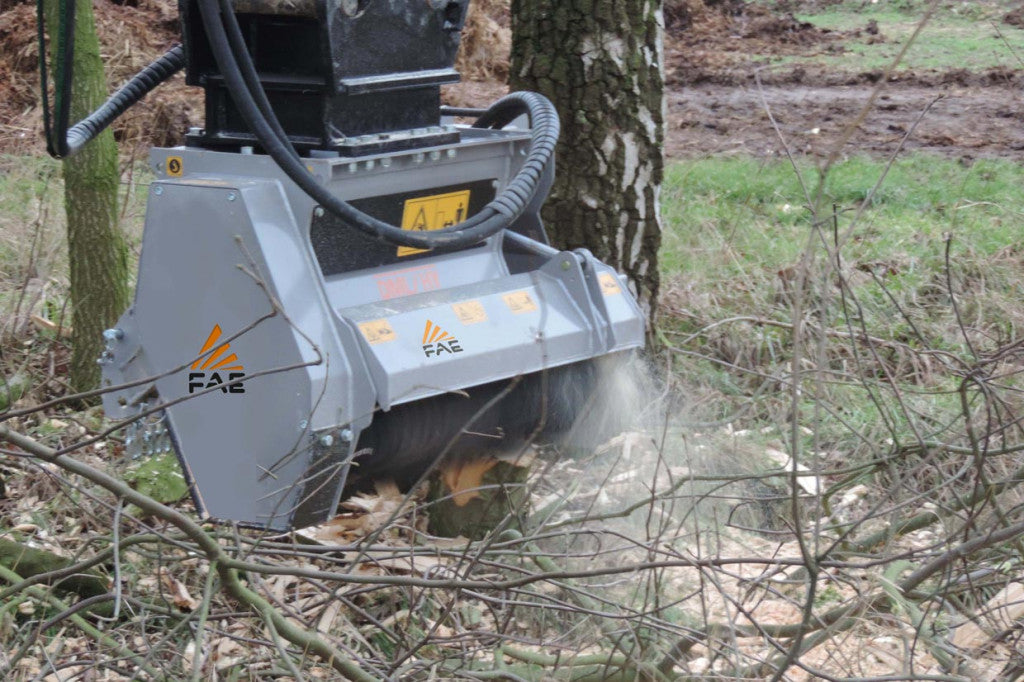

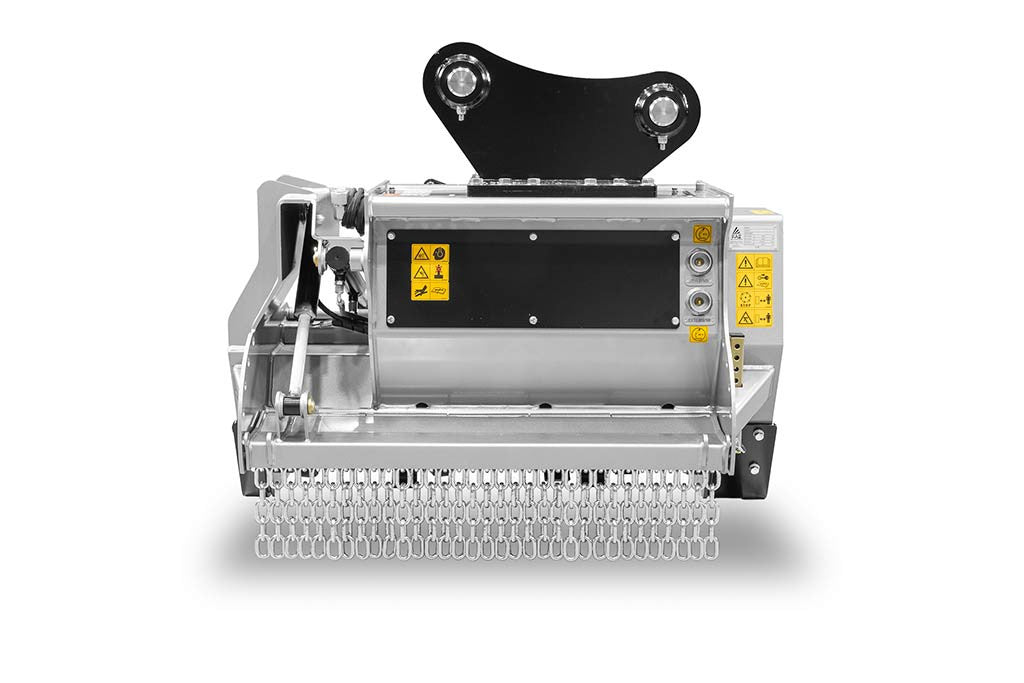

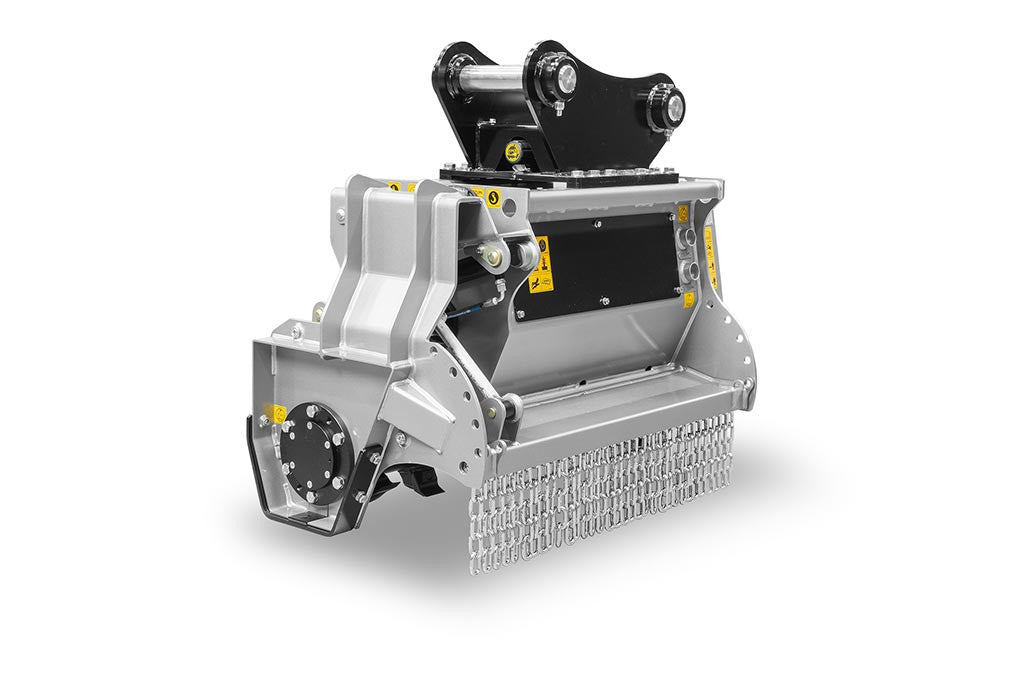

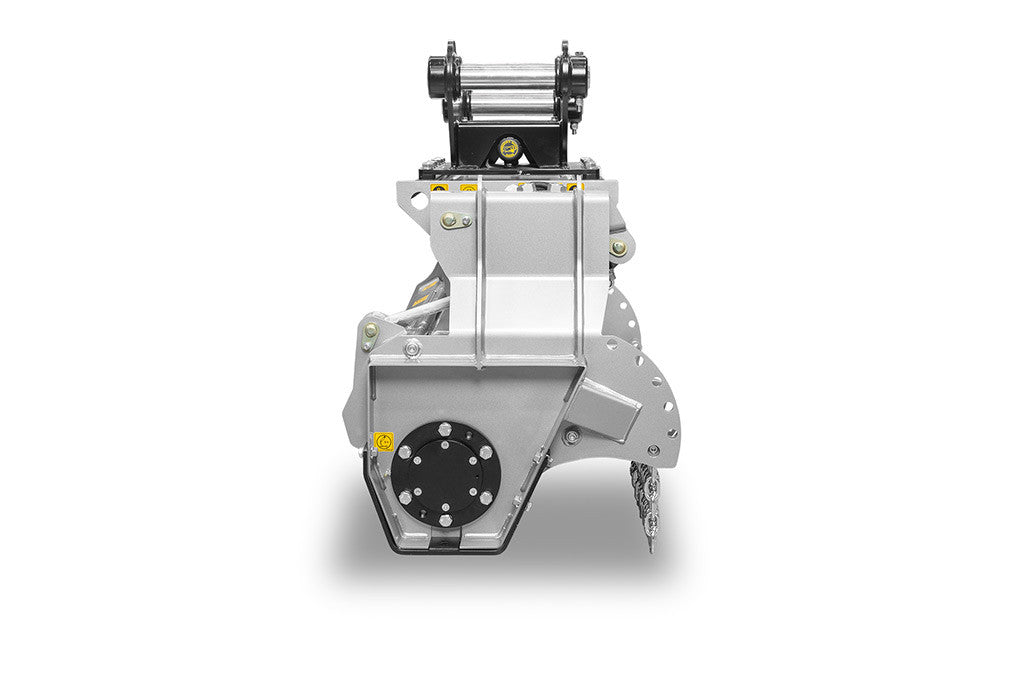

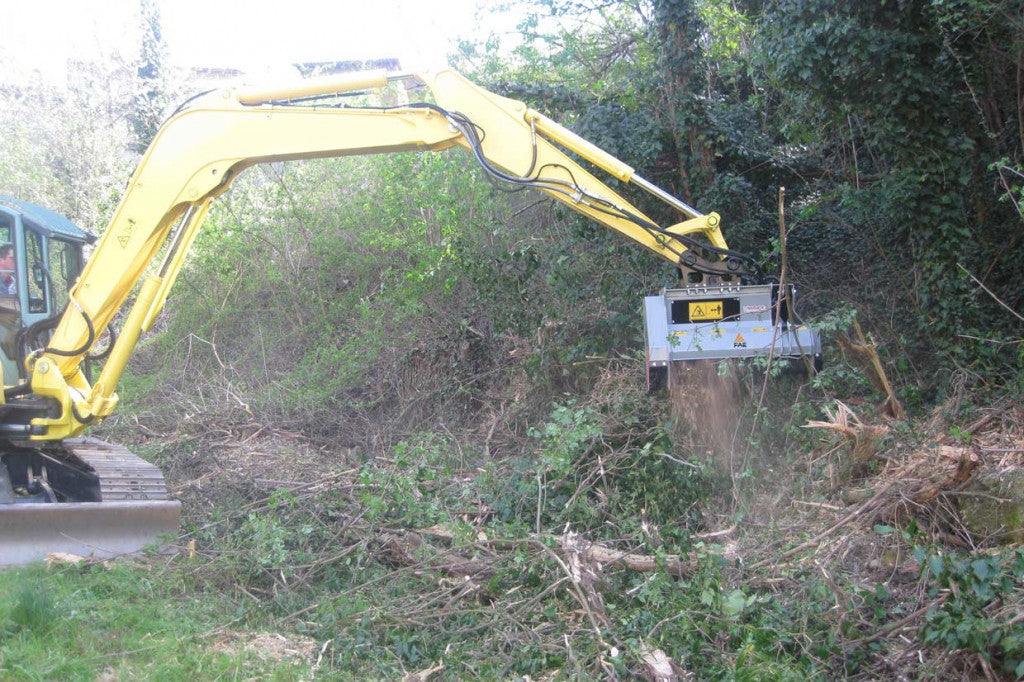

Powerful, compact, and built for precision FAE DML/HY Forestry Mulchers are engineered to meet the demands of professionals managing vegetation in forestry, environmental restoration, and land development. Designed for excavators weighing 5 to 13 tons, this mulching head delivers consistent results when handling trees, shrubs, and overgrowth up to 12 cm in diameter.

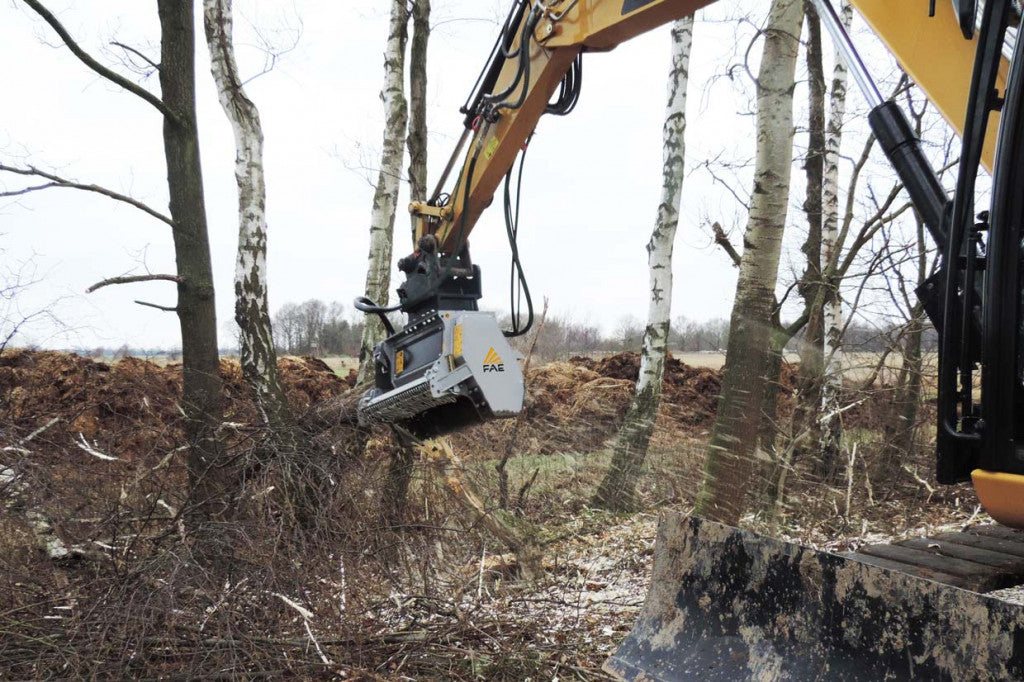

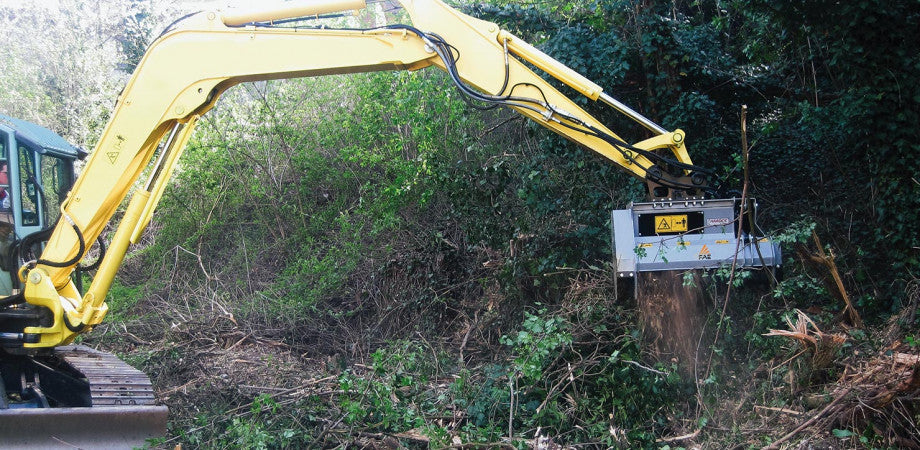

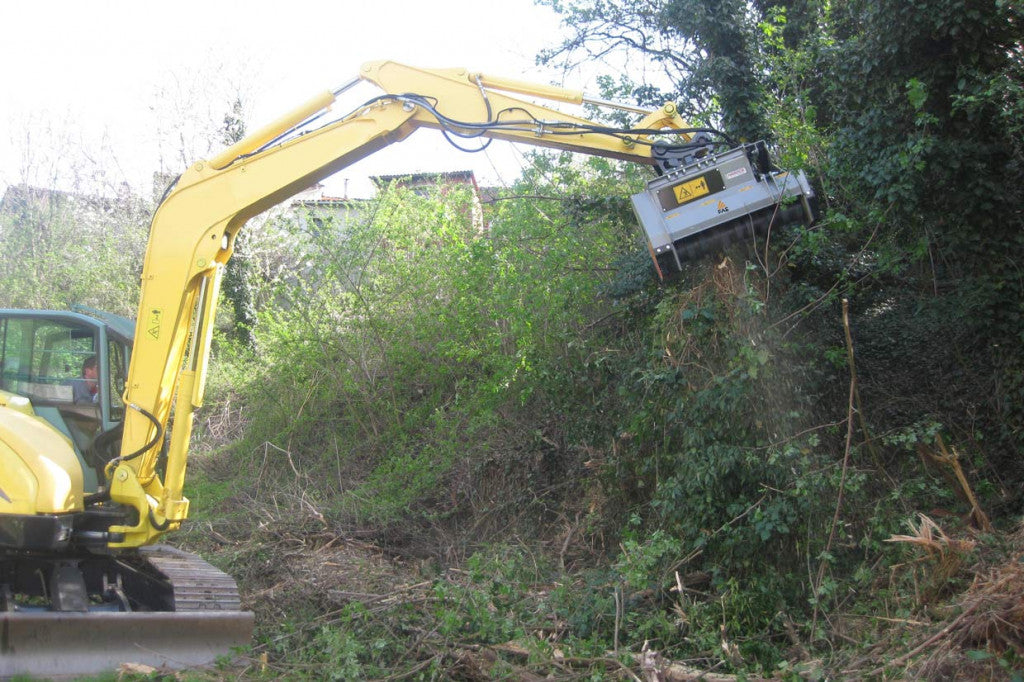

Whether you're shaping wildlife habitats or maintaining wooded areas, the DML/HY’s fixed tooth rotor delivers efficient shredding with minimal vibration. The DML/HY/VT variant adds a variable torque motor for automatic performance optimization. The unit's dual hood configuration allows for flexible mulching from both ground-level vegetation and standing material ideal when operating in either direction.

From dust-resistant enclosures to interchangeable forged steel rotor shafts, every feature is tailored for durability and operator confidence. Equip it with BL/MINI blades or C/3/MINI teeth and you’ll mulch smarter, longer, and safer.

Key Features

  • For 5–13 Ton Excavators Ideal for a wide range of machines boosts fleet versatility and field efficiency.
  • Shreds Material Up to Ø 12 cm Clears thick branches and brush with consistent finish control.
  • Fixed Tooth Rotor Design with BL/MINI Blades Built for precision and low maintenance in rough terrain.
  • VT Motor (DML/HY/VT) Automatically adjusts torque for optimal hydraulic performance and fuel savings.
  • Hydraulic Flow Range 50–200 L/min / Pressure 180–350 Bar Broad operating envelope for flexible excavator matching.
  • Dual Hood System (Manual or Hydraulic) Allows shredding of both standing and ground vegetation.
  • Enclosed, Dust-Resistant Frame Protects internal components for longer service life.
  • Interchangeable Rotor Shaft and Blade Options Customize based on terrain and material density.
  • Welded Counter Blades and Flow Control Valve Reduce final mulch size and safeguard hydraulic motor from cavitation.
  • Options Include Diverter Valves, Hydraulic Hoods, Custom Brackets Modular upgrades to match any operational need.

Detailed Specifications

Specification DML/HY 75 DML/HY 100 DML/HY 125
Flow (L/min) 50–200 50–200 50–200
Pressure (bar) 180–350 180–350 180–350
Excavator Weight (t) 5–13 5–13 5–13
Width (mm) 800 1000 1240
Width (in) 31" 39" 49"
Weight (kg) ~415 ~445 ~515
Rotor Ø (mm) 300 300 300
Max Cut Ø (mm) 120 120 120
BL/MINI Blades 16 20 26



Specification DML/HY/VT 75* DML/HY/VT 100* DML/HY/VT 125*
Flow (L/min) 80–135 80–135 80–135
Pressure (bar) 180–350 180–350 180–350
Excavator Weight (t) 5–13 5–13 5–13
Width (mm) 800 1000 1240
Width (in) 31" 39" 49"
Weight (kg) ~420 ~450 ~520
Rotor Ø (mm) 300 300 300
Max Cut Ø (mm) 120 120 120
BL/MINI Blades 16 20 26
