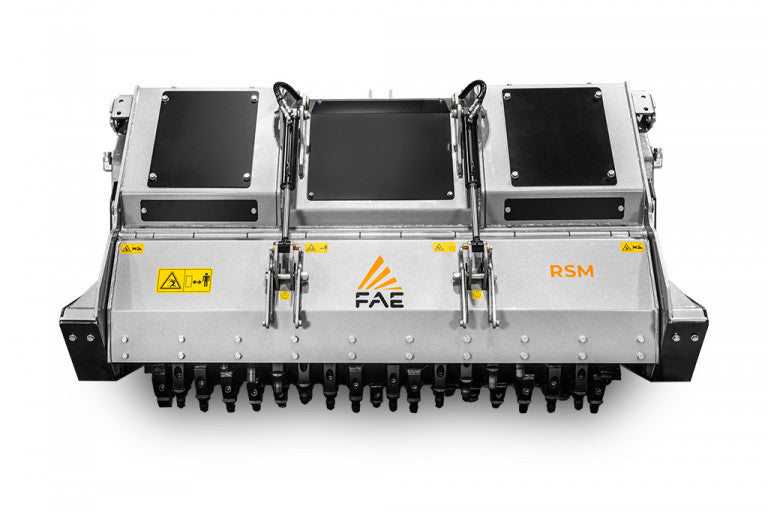

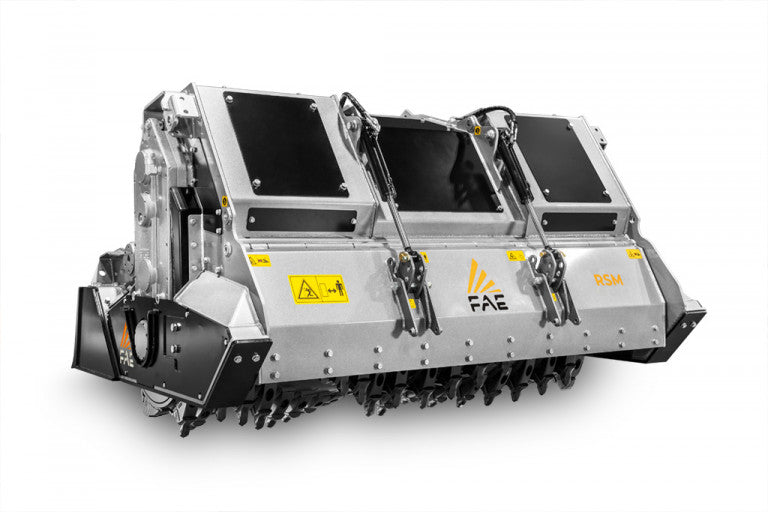

FAE | RSM Stone Crusher | Model 200 To 225 | Width 81.9" To 91.3" | Crushes Stone Up to 20 Inches, 16 Inches Deep | Horsepower 200 To 360 HP | For Tractors

FAE | RSM Stone Crusher | Model 200 To 225 | Width 81.9" To 91.3" | Crushes Stone Up to 20 Inches, 16 Inches Deep | Horsepower 200 To 360 HP | For Tractors

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Engineered for Power Compatible with 200 to 360 horsepower tractors, with 1000 RPM PTO.
  • Crush Rock & Slabs up to 20" Diameter Designed to process large boulders and surface rock with ease.
  • Deep Soil Engagement Up to 16" Depth Prepares land thoroughly for agricultural planting or structural groundwork.
  • Wide 82" to 91.3" Working Width Maximize coverage and efficiency in fewer passes across the field.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

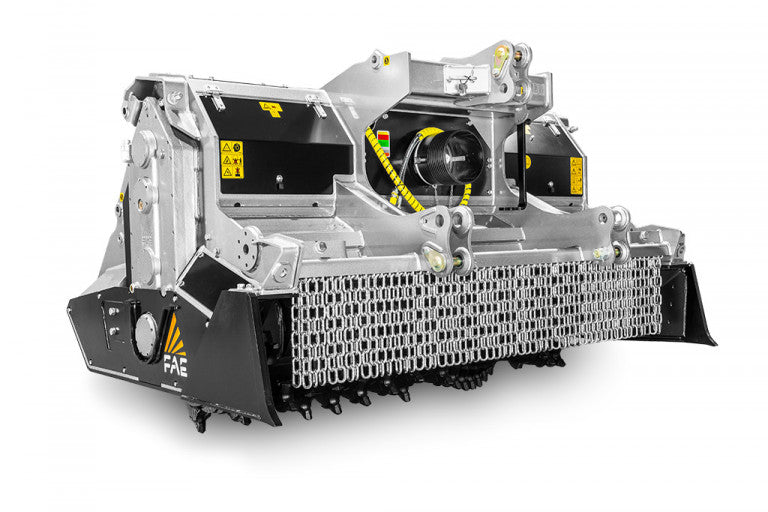

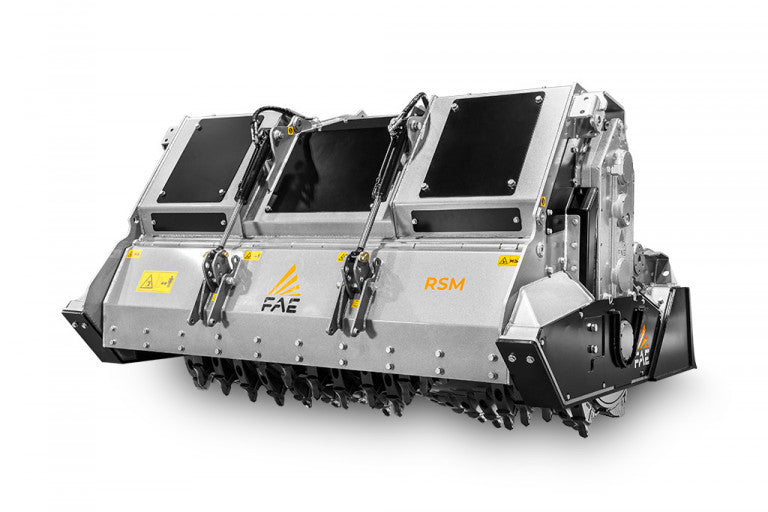

FAE | RSM Stone Crusher | Model 200 To 225 | Width 81.9" To 91.3" | Crushes Stone Up to 20 Inches, 16 Inches Deep | Horsepower 200 To 360 HP | For Tractors

DESCRIPTION

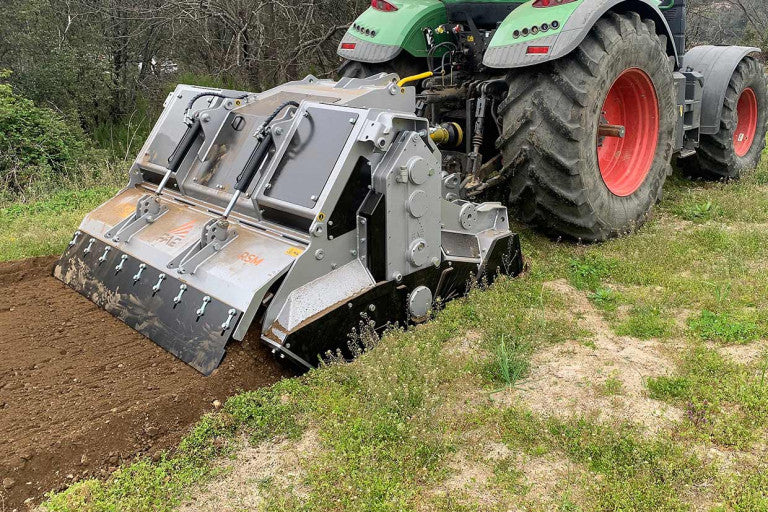

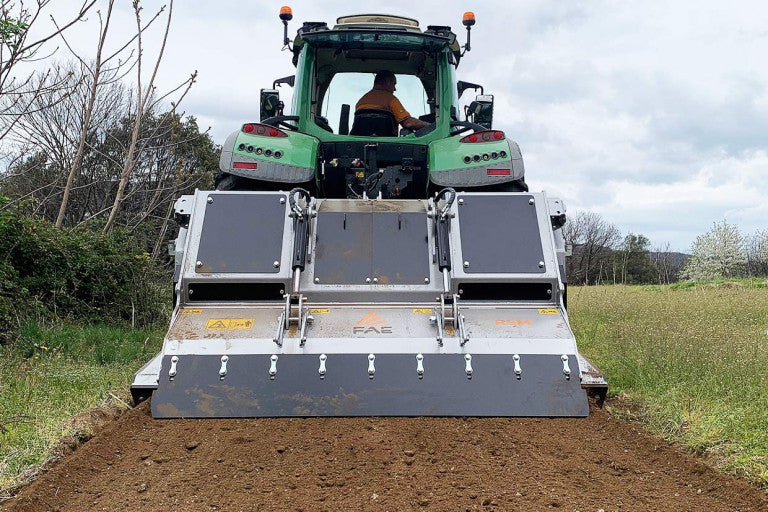

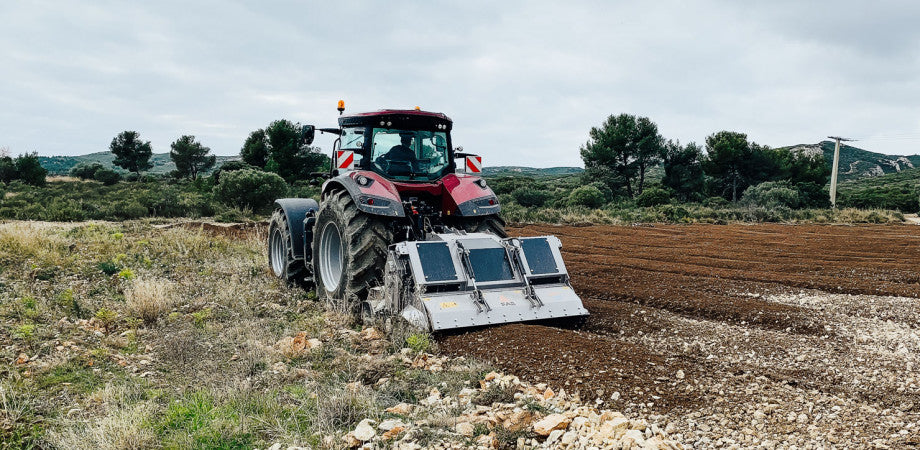

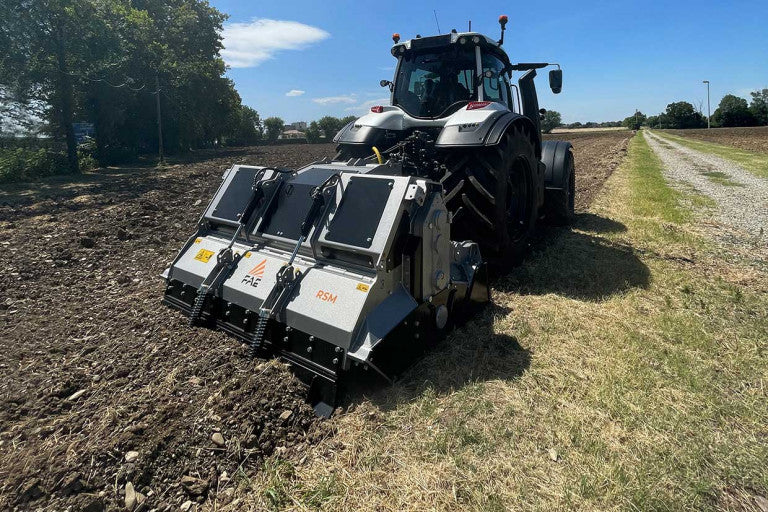

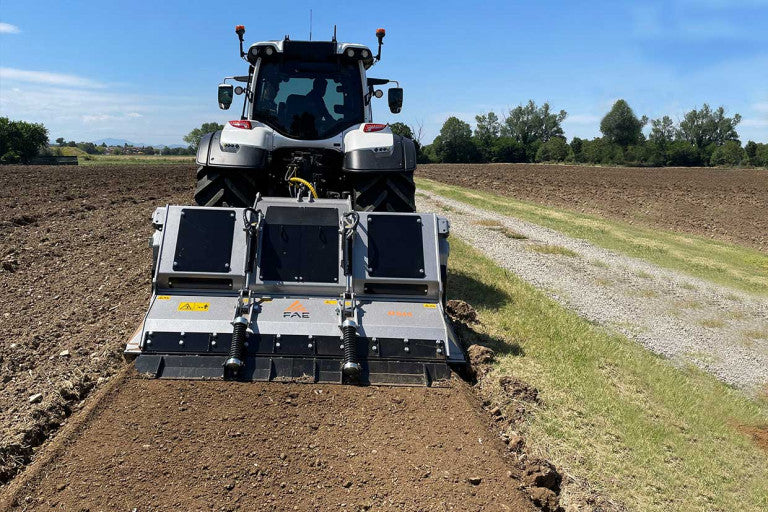

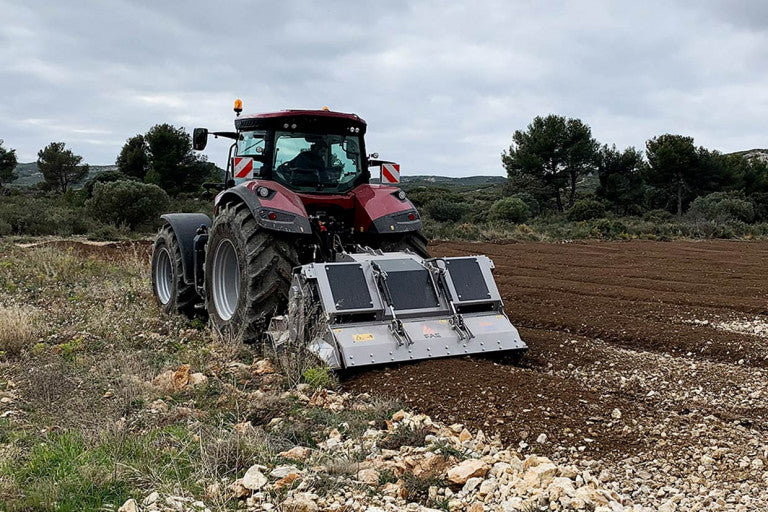

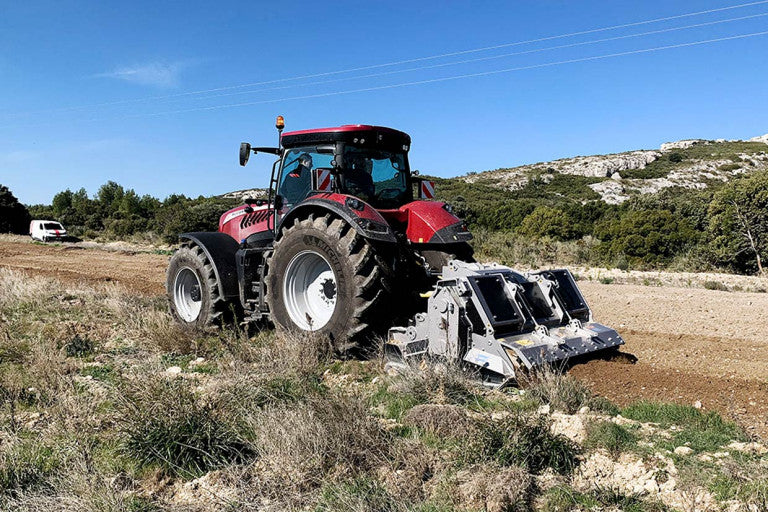

When the terrain fights back, bring out the stone crusher that was built to win. The FAE RSM and RSM/HP Series are engineered for the most demanding land-clearing, agricultural reclamation, and rock-crushing applications. Designed for tractors from 200 to 360 HP, these machines tackle the impossible crushing rock slabs and stones up to 50 cm (20") in diameter, and working soil to depths of up to 40 cm (16").

The wide intake opening funnels massive material directly into the rotor, maintaining high productivity across rough, rocky landscapes. Choose between two advanced rotor designs Rotor G for aggressive surface work or Rotor R for deeper cuts in low-rock-content soils both with interchangeable wear-resistant teeth for total customization.

From vineyard restoration to converting neglected terrain into high-yield farmland, the RSM is a rugged performer built to last. Its Hardox®-reinforced frame, hydraulic rear hood, and gear-driven side transmissions with oil cooling (on RSM/HP models) offer unmatched durability and ease of maintenance in even the harshest operating conditions.

Key Features

  • Crush Rock & Slabs up to 20" Diameter Designed to process large boulders and surface rock with ease.
  • Deep Soil Engagement Up to 16" Depth Prepares land thoroughly for agricultural planting or structural groundwork.
  • Wide 82" to 91.3" Working Width Maximize coverage and efficiency in fewer passes across the field.
  • Engineered for Power Compatible with 200 to 360 horsepower tractors, with 1000 RPM PTO.
  • Smart Rotor Options (G or R) Choose from aggressive G/3 teeth for rock, or R/65 picks for lighter-duty surfaces each with multiple tooth types for different terrains.
  • Hardox® Construction for Longevity Internal guards, soles, skids, and blades are all made from interchangeable Hardox® steel for extreme resistance to wear.

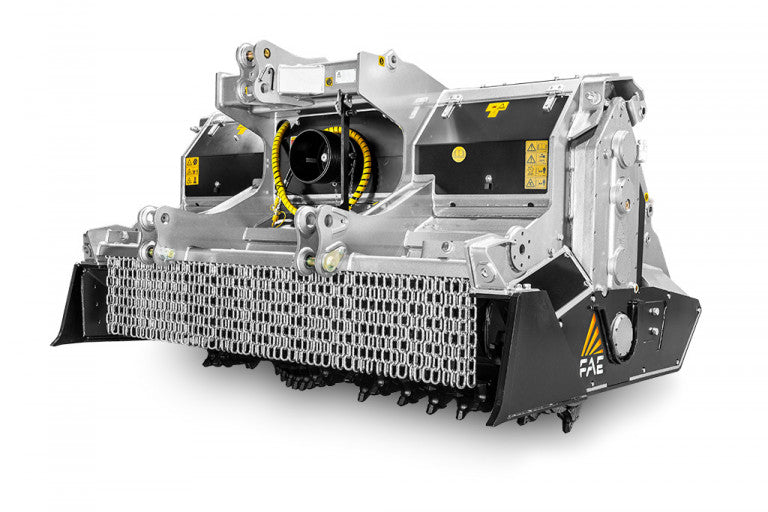

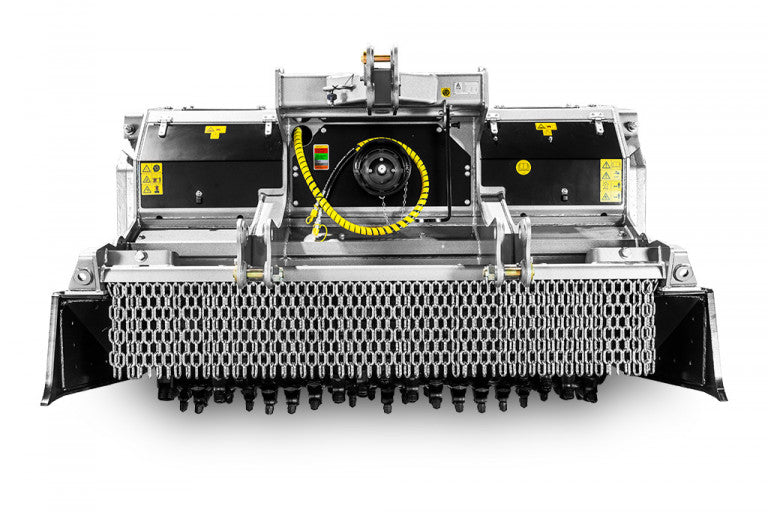

  • Optional Rear Grid & Dosing Blade Achieve ideal material sizing and distribution for clean, even results.

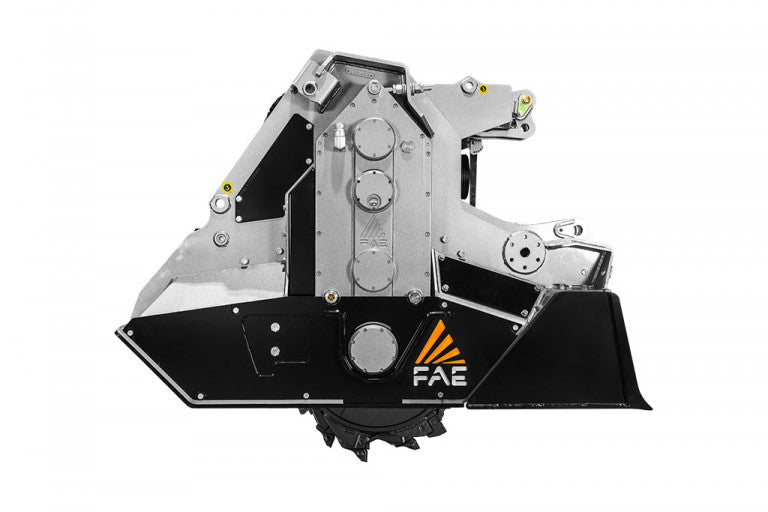

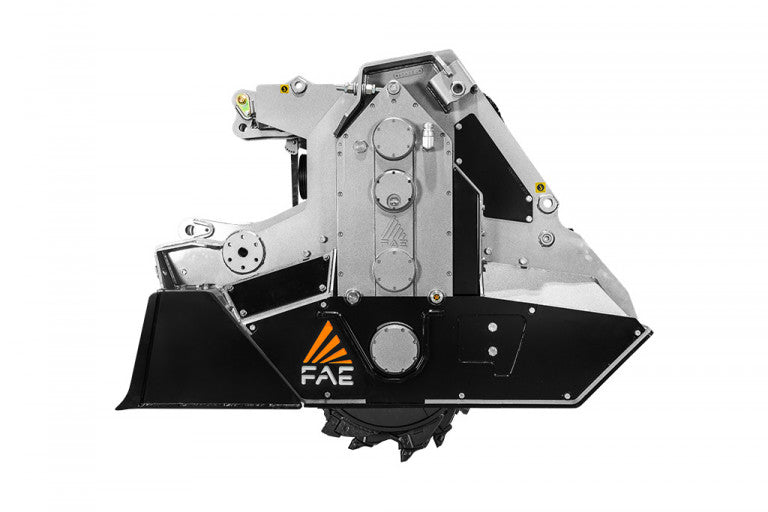

  • Side Gearbox with Oil Cooling (RSM/HP) Improved longevity and efficiency under heavy-duty workloads.

Detailed Specifications

Model RSM-200 RSM-225 RSM/HP-200 RSM/HP-225
Tractor Power (HP) 200–300 220–300 300–360 300–360
PTO Speed (RPM) 1000 1000 1000 1000
Working Width (mm/in) 2080 / 82" 2320 / 91.3" 2080 / 82" 2320 / 91.3"
Total Width (mm/in) 2490 / 98" 2730 / 107.5" 2490 / 98" 2730 / 107.5"
Weight (kg/lbs) 5160 / 11,380 lbs 5590 / 12,330 lbs 5160 / 11,380 lbs 5590 / 12,330 lbs
Rotor Diameter (mm) 940 (G) / 915 (R) 940 (G) / 915 (R) 940 (G) / 915 (R) 940 (G) / 915 (R)
Max Working Depth (mm/in) 400 / 15.7" max 400 / 15.7" max 400 / 15.7" max 400 / 15.7" max
Max Stone Diameter (mm/in) 500 / 20" 500 / 20" 500 / 20" 500 / 20"
Rotor Tooth Count (R/65) 158 176 158 176
