FAE | STCH Stone Crusher | Models 200 To 250 | Widths 82" To 100" | Fixed-Tooth Rotor | Crushed Rock Depth 10" | Horsepower 280 To 400 HP | For Tractors

FAE | STCH Stone Crusher | Models 200 To 250 | Widths 82" To 100" | Fixed-Tooth Rotor | Crushed Rock Depth 10" | Horsepower 280 To 400 HP | For Tractors

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Built for the Most Powerful Tractors Compatible with 280 To 400 HP tractors and PTO at 1000 RPM for unmatched crushing torque.
  • Crush Boulders Up to 20" Diameter Designed to handle the largest stones found in agricultural fields, construction zones, and rocky terrain.
  • Work Up to 10" Deep Tills and crushes simultaneously for optimal soil prep no need for a second pass.
  • Hydraulic Counter-Blade from the Cab Adjust the material size in real time without leaving your seat maximize control, reduce downtime.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

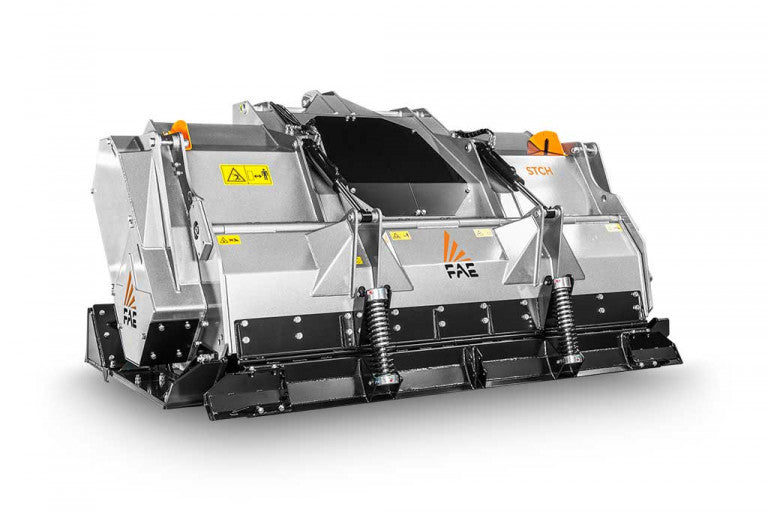

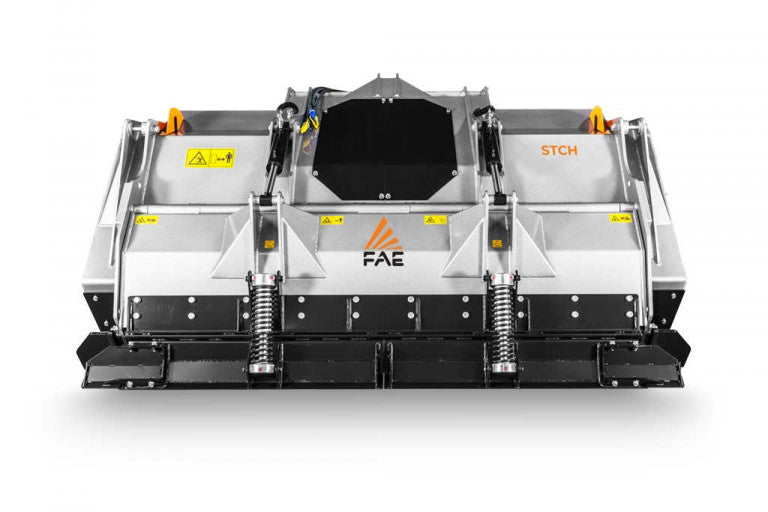

FAE | STCH Stone Crusher | Models 200 To 250 | Widths 82" To 100" | Fixed-Tooth Rotor | Crushed Rock Depth 10" | Horsepower 280 To 400 HP | For Tractors

DESCRIPTION

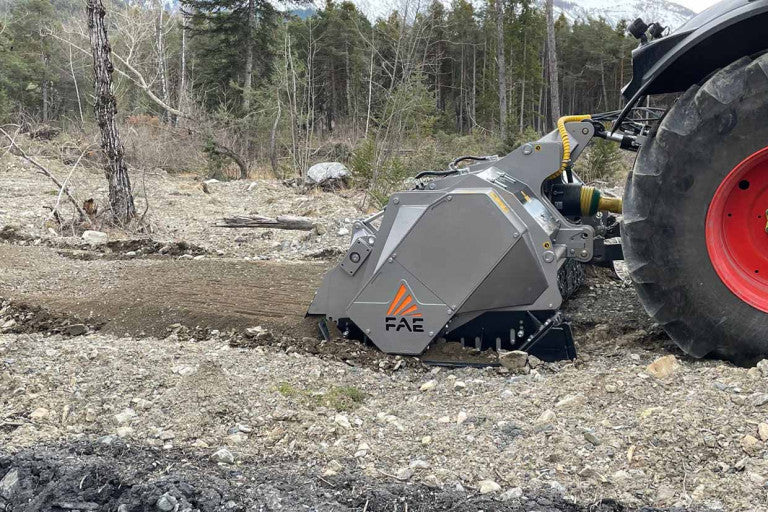

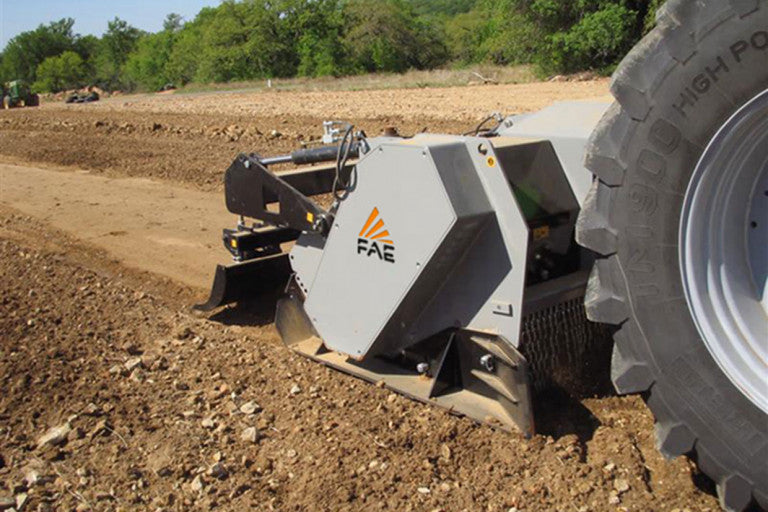

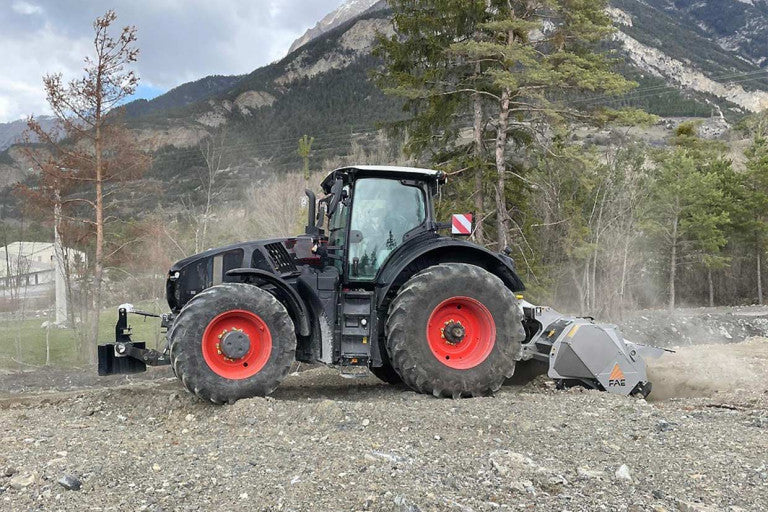

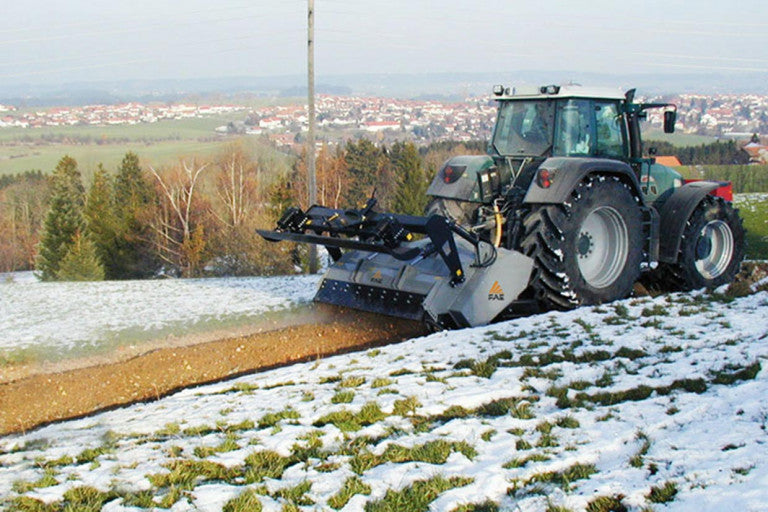

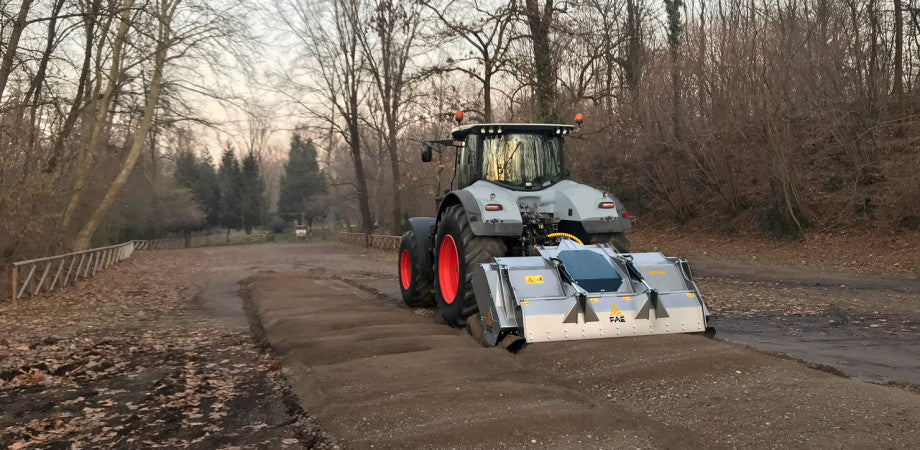

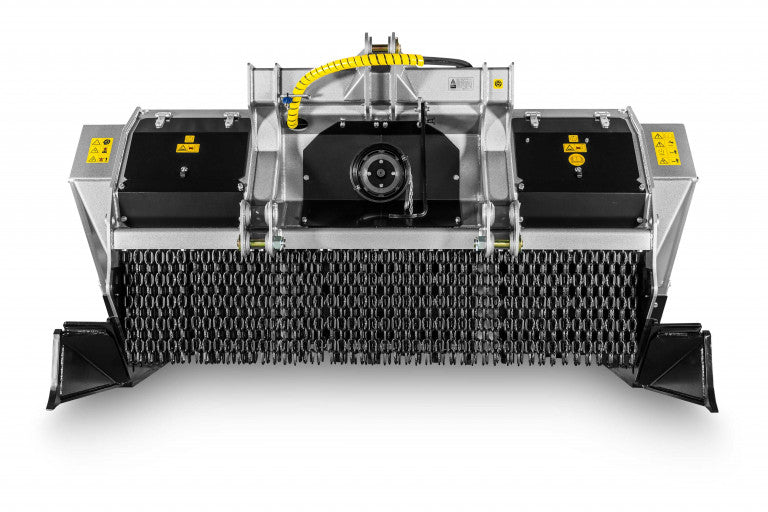

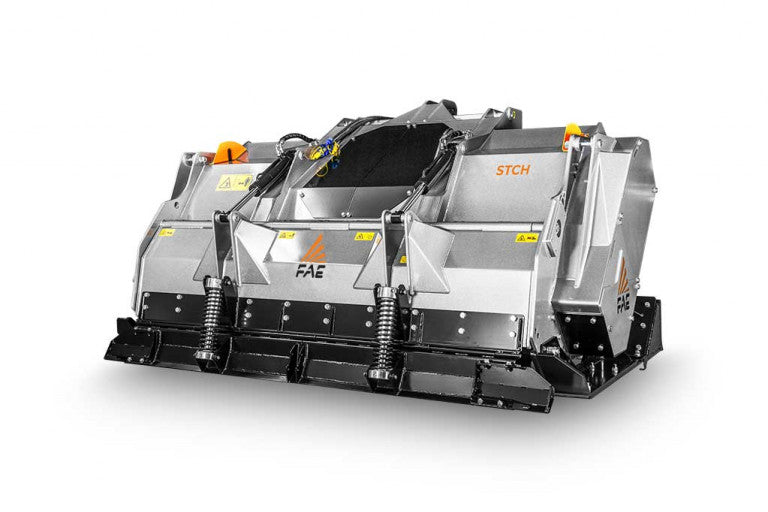

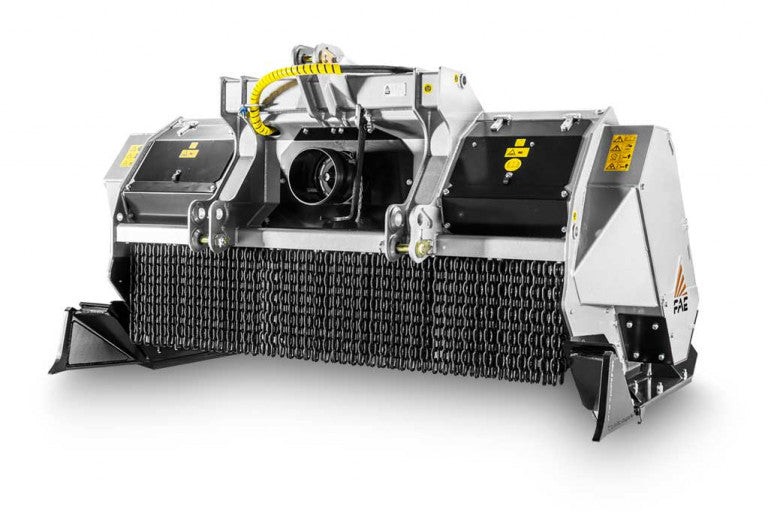

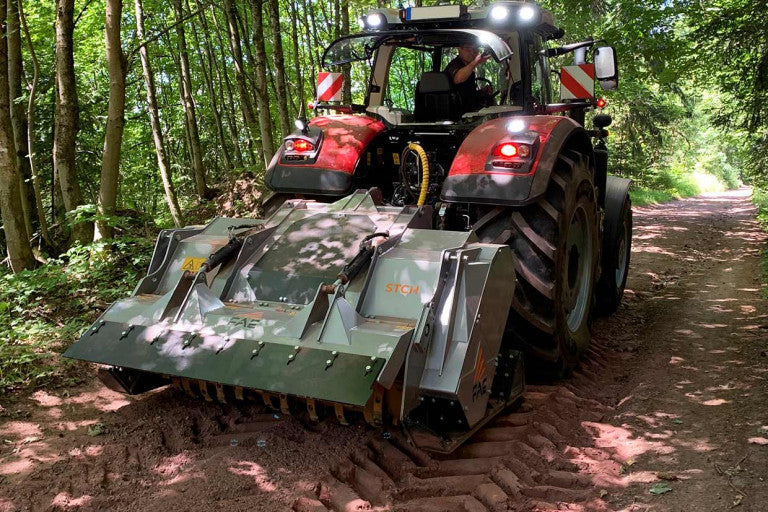

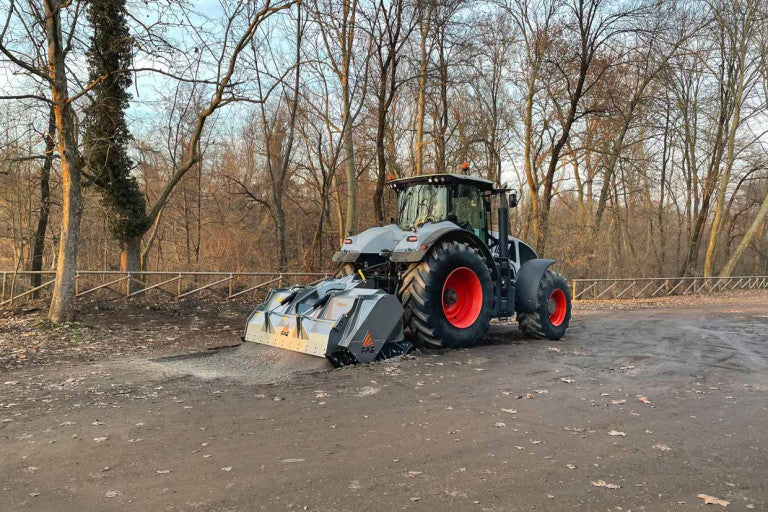

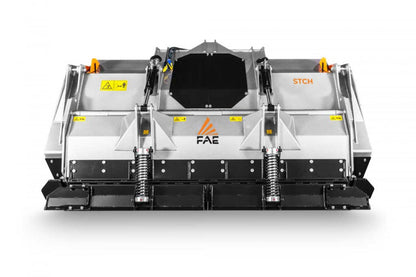

Built for professionals who tame the toughest terrain, the FAE STCH Series Stone Crushers are your go-to solution for aggressive rock crushing in agricultural, forestry, and land development applications. Engineered for tractors from 280 to 400 horsepower, the STCH series turns fields littered with large stones into finely crushed, ready-to-plant soil.

With the capacity to crush stones up to 50 cm (20") in diameter and work to depths of 25 cm (10"), this machine handles the kind of fieldwork most implements fear. Available in three working widths 200 cm, 225 cm, and 250 cm the STCH series offers scalability for mid- to large-scale operations, from orchard maintenance to full-scale land reclamation.

Every detail is designed to maximize durability, operator control, and productivity. From its adjustable hydraulic counter-blade, which lets you fine-tune material sizing from the tractor cab, to wear-resistant Hardox® steel construction, the STCH performs relentlessly under pressure. A hydraulic rear hood, oversized intake opening, and customizable tooth systems make this crusher as smart as it is strong.

Key Features

  • Crush Boulders Up to 20" Diameter Designed to handle the largest stones found in agricultural fields, construction zones, and rocky terrain.
  • Work Up to 10" Deep Tills and crushes simultaneously for optimal soil prep no need for a second pass.
  • Built for the Most Powerful Tractors Compatible with 280 To 400 HP tractors and PTO at 1000 RPM for unmatched crushing torque.
  • Hydraulic Counter-Blade from the Cab Adjust the material size in real time without leaving your seat maximize control, reduce downtime.
  • Extreme-Duty Hardox® Construction Includes interchangeable internal guards, soles, skids, and side plates to extend life in high-wear environments.
  • Oversized Material Inlet Allows large surface rocks to enter the chamber, increasing throughput and minimizing clogging.

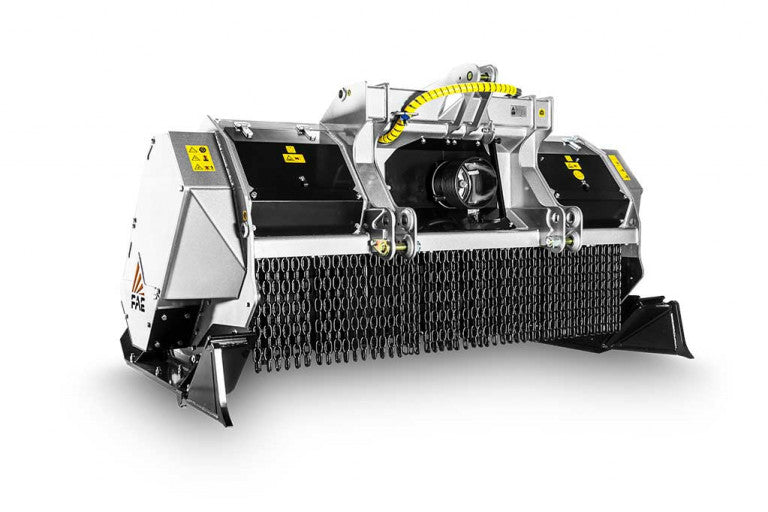

  • Full Rotor Customization Choose from STC/3, STC/3/HD, and STC/3/FP teeth to match your job’s rock hardness and desired finish.
  • Available in 3 Widths Choose the right size for your land-clearing projects from 82" to 100" working width.

Detailed Specifications

Model STCH-200 STCH-225 STCH-250
Tractor Power (HP) 280–400 280–400 280–400
PTO Speed (RPM) 1000 1000 1000
Working Width (mm/in) 2080 / 82" 2320 / 91.3" 2560 / 100.8"
Total Width (mm/in) 2566 / 101" 2806 / 110.5" 3046 / 119.9"
Weight (kg/lbs) 4850 / 10,692 lbs 5050 / 11,133 lbs 5250 / 11,574 lbs
Rotor Diameter (mm/in) 700 / 27.6" 700 / 27.6" 700 / 27.6"
Max Stone Diameter (mm/in) 500 / 20" 500 / 20" 500 / 20"
Max Working Depth (mm/in) 250 / 10" 250 / 10" 250 / 10"
Tooth Configuration (STC/3 + HD + FP) 50 + 4 + 4 56 + 4 + 4 62 + 4 + 4
