Product Description
FAE | STCL & STCL/DT Stone Crusher | Models 100 to 200 | Width 43.7" To 81.5" | Crushes Stone Up to 6" Inches Deep | Horsepower 70–150 HP | For Tractors
DESCRIPTION

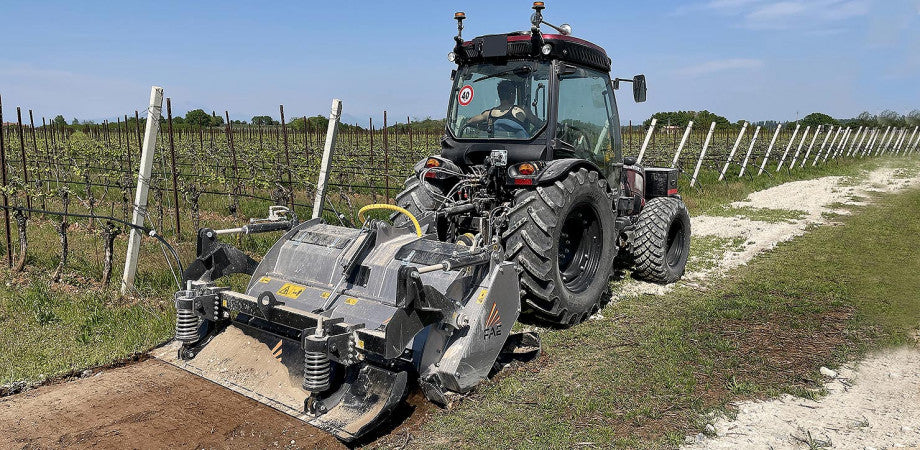

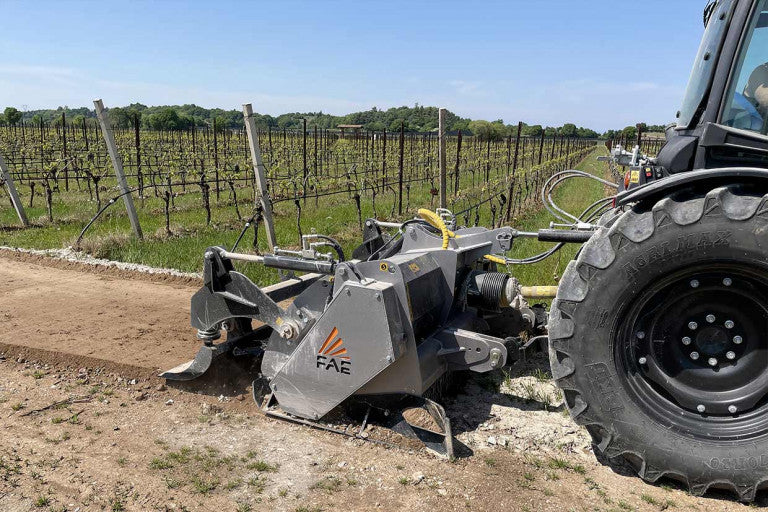

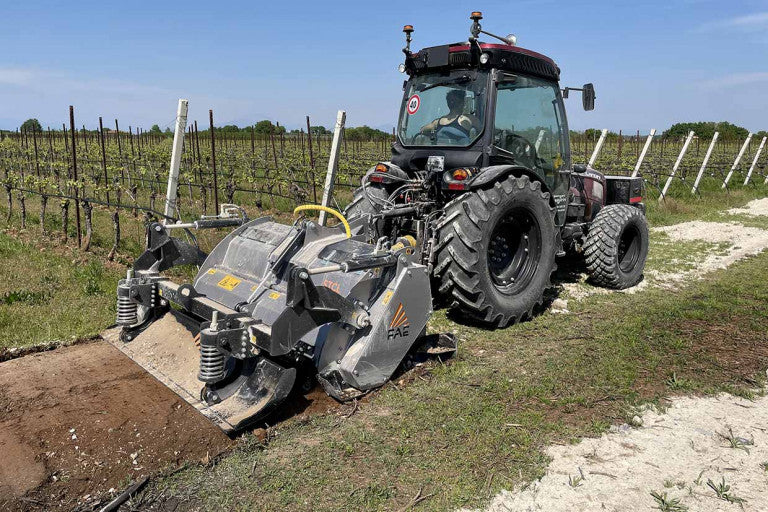

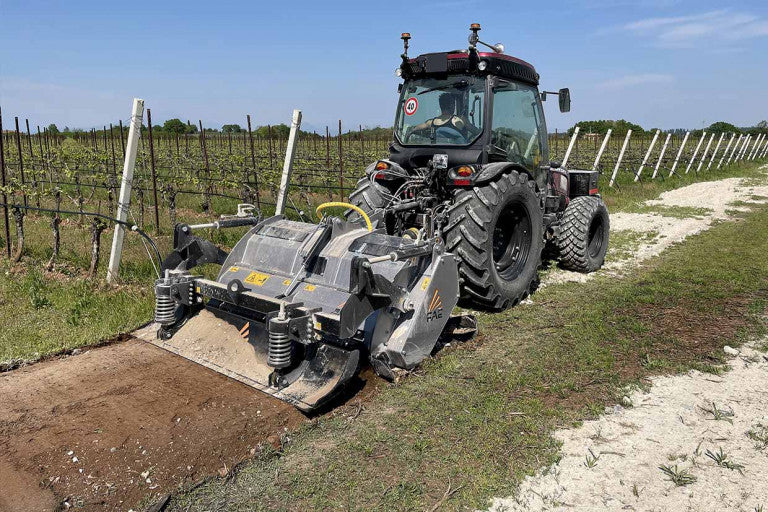

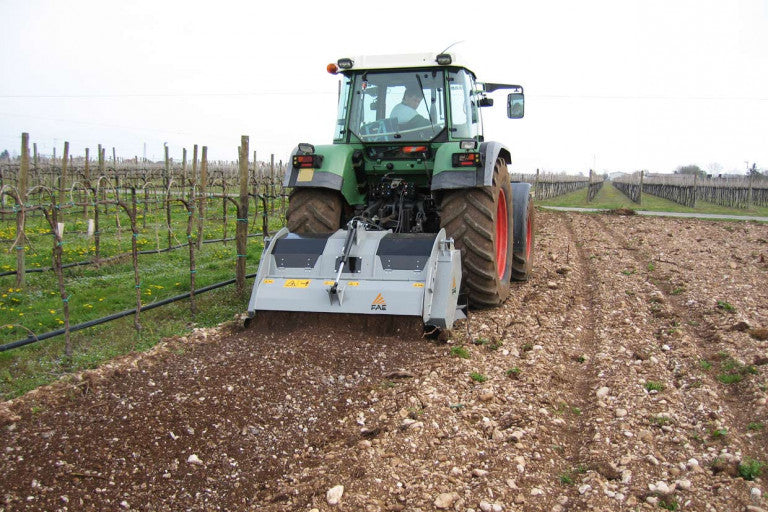

Crush stones, reclaim land, and enhance your agricultural productivity with the FAE STCL Series Stone Crushers precision-engineered for tractors between 70 and 150 horsepower. Whether you’re restoring vineyards, reclaiming farmland, or building trails, the STCL series is your go-to solution for high-performance rock crushing in compact spaces.

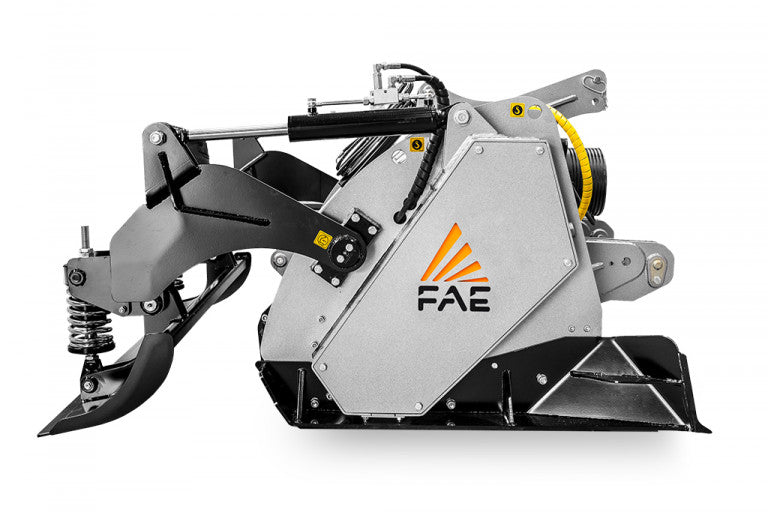

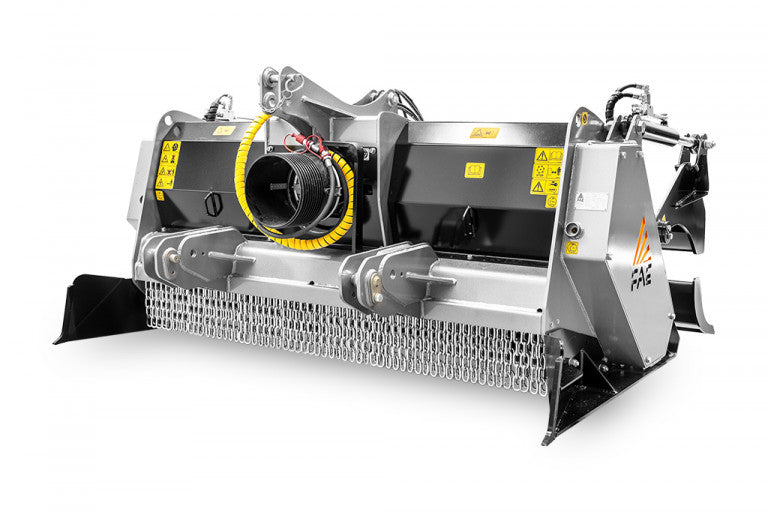

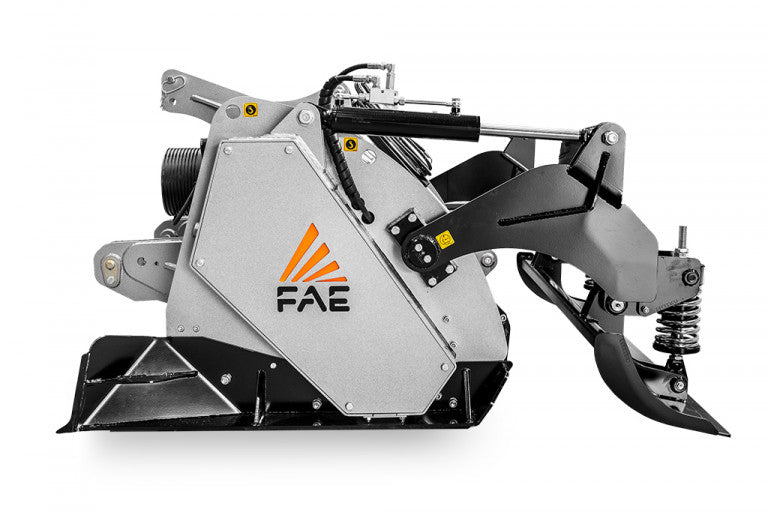

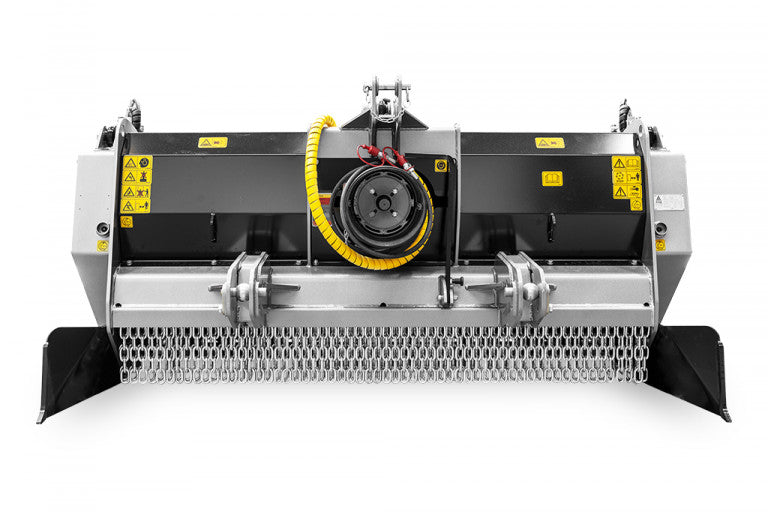

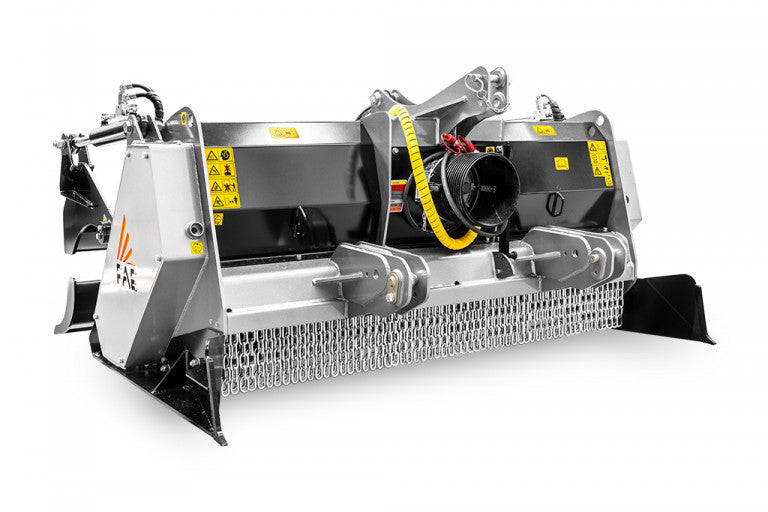

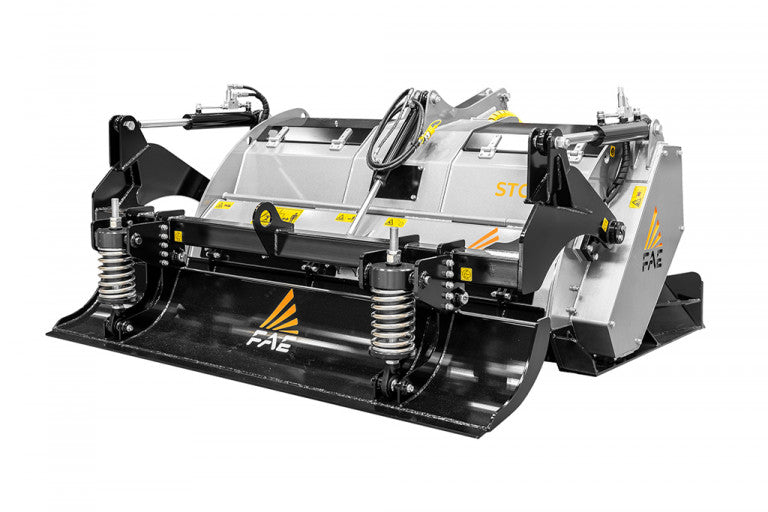

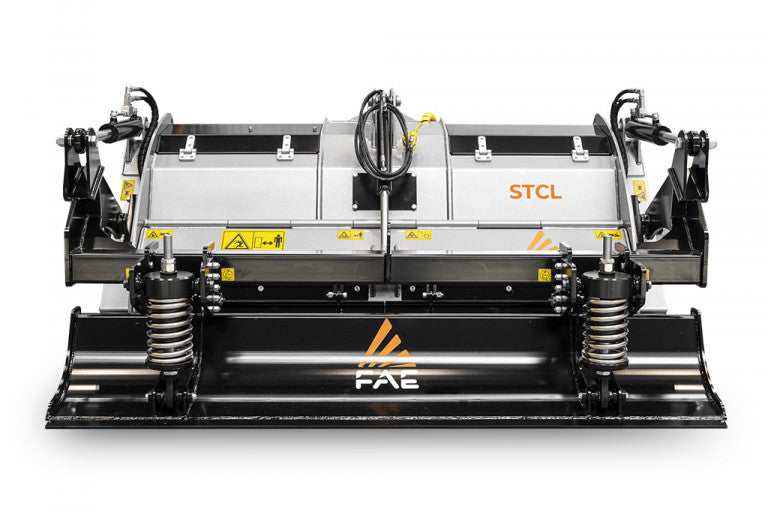

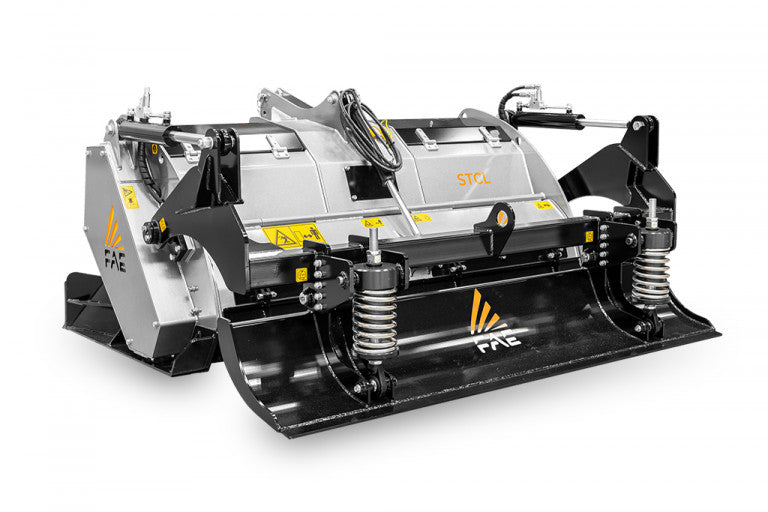

The STCL line is FAE’s most compact and versatile stone crusher range. Lightweight and easy to maneuver, these machines are ideal for orchards, vineyards, and tight terrains where rocks frequently surface due to soil erosion. With a fixed-tooth rotor, adjustable Hardox® counter-blades, and a hydraulically controlled rear door, you get complete control over the output size and uniformity of crushed material.
Designed for both 540 and 1000 RPM PTO speeds (depending on model), each crusher comes equipped with wear-resistant internal plates, penetration skids, and a freewheel gearbox for smooth and durable operation. The Poly-Chain® belt transmission and forged steel rotor shafts ensure years of reliable service no matter the soil or stone type.
Key Features
- PTO-Powered Stone Crushing for 70–150 HP Tractors: Works with 540 or 1000 RPM PTO systems, depending on model, offering flexibility across a wide range of tractor sizes
- Crushing Depth Up to 15 cm (6"): Effectively crush stones and rocks up to 15 cm in diameter, even in challenging terrain
- Compact & Lightweight Design: Ideal for vineyards, orchards, and tight working areas where maneuverability is critical
- Hydraulic Rear Door: Adjustable from the cab to regulate material flow and ensure consistent output
- Hardox® Adjustable Counter-Blades: Fine-tune the final product size while resisting wear from abrasive materials
- Fixed Tooth Rotor with STCL/3 Teeth: Spiraled layout ensures continuous, even crushing for consistent performance
- Wear-Resistant Body & Skids: FCP wear plates, reinforced side guards, and penetration skids extend machine lifespan
- Freewheel Gearbox & PTO Shaft with Cam Clutch: Protects your tractor and transmission system during intense work
- Multiple Width Options: Six model sizes from 43.7" to 81.5" fit a variety of job types and tractor classes
Detailed Specifications
| Specification | STCL-100 | STCL-125 | STCL-150 |
|---|---|---|---|
| HP Range | 70–120* | 80–120* | 90–120* |
| PTO RPM | 540–1000 | 540–1000 | 540–1000 |
| Working Width (mm/in) | 1110 mm / 43.7" | 1350 mm / 53.1" | 1590 mm / 62.6" |
| Total Width (mm/in) | 1414 mm / 55.7" | 1654 mm / 65.1" | 1894 mm / 74.5" |
| Weight (kg/lbs) | 1230 kg / 2711 lbs | 1280 kg / 2822 lbs | 1440 kg / 3175 lbs |
| Max Stone Diameter (mm/in) | 150 mm / 6" | 150 mm / 6" | 150 mm / 6" |
| Max Working Depth (mm/in) | 150 mm / 6" | 150 mm / 6" | 150 mm / 6" |
| Teeth (STCL/3 + Side Scrapers) | 22 + 4 | 26 + 4 | 32 + 4 |
| Specification | STCL-175 | STCL/DT-175 | STCL/DT-200 |
|---|---|---|---|
| HP Range | 100–120* | 100–150 | 120–150 |
| PTO RPM | 540–1000 | 1000 | 1000 |
| Working Width (mm/in) | 1830 mm / 72" | 1830 mm / 72" | 2070 mm / 81.5" |
| Total Width (mm/in) | 2134 mm / 84" | 2134 mm / 84" | 2374 mm / 93.5" |
| Weight (kg/lbs) | 1570 kg / 3461 lbs | 1600 kg / 3527 lbs | 1750 kg / 3858 lbs |
| Max Stone Diameter (mm/in) | 150 mm / 6" | 150 mm / 6" | 150 mm / 6" |
| Max Working Depth (mm/in) | 150 mm / 6" | 150 mm / 6" | 150 mm / 6" |
| Teeth (STCL/3 + Side Scrapers) | 38 + 4 | 38 + 4 | 42 + 4 |
Manuals & Documents
Technical data sheet
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

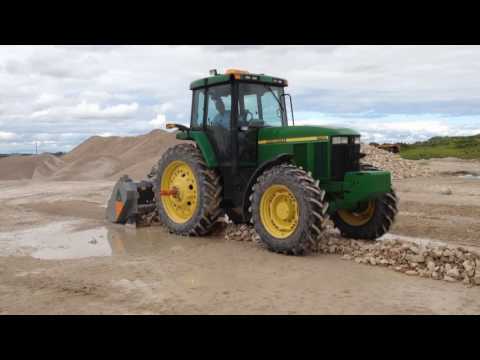

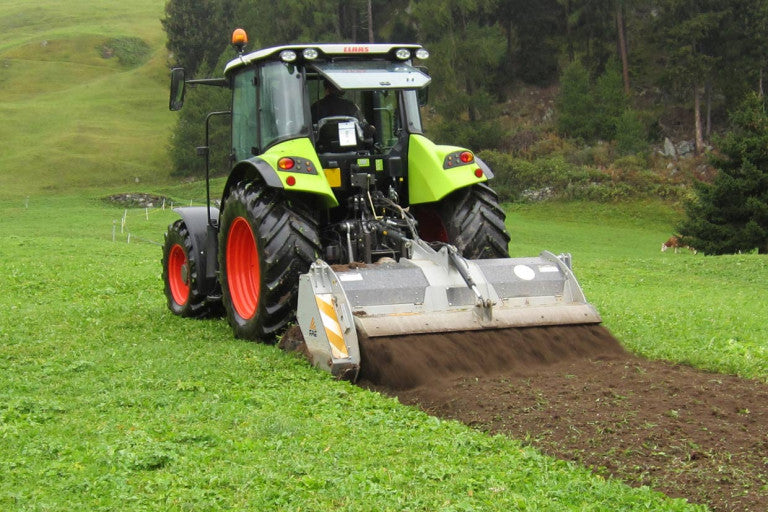

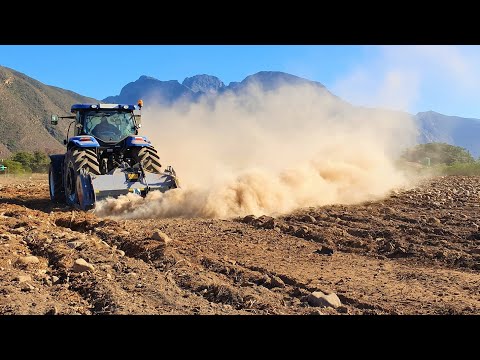

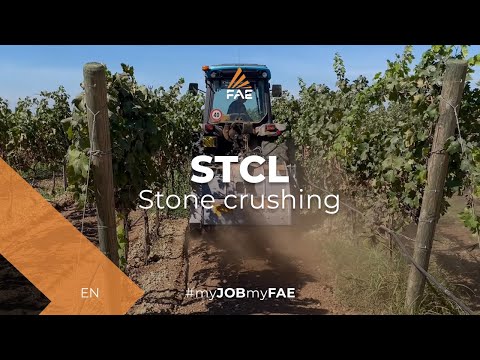

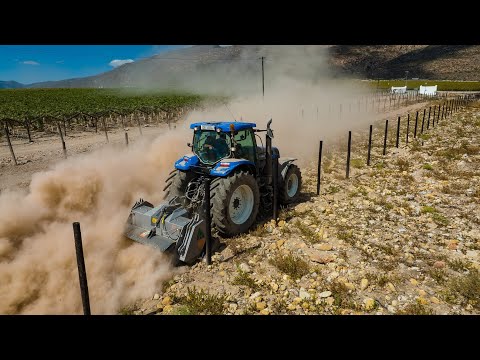

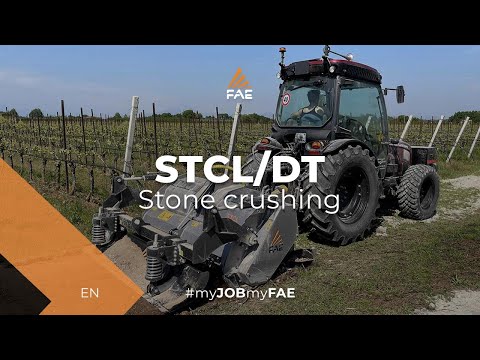

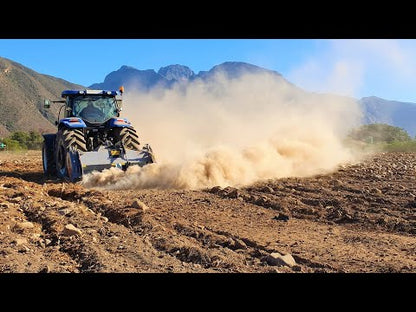

Videos
