Product Description
FAE | STCM & STCM/HP Stone Crusher | Models 125 To 225 | Widths 52.7" to 90.7" | Crushes Stone Up to 11.8" Inches | Horsepower 80 To 280 HP | For Tractors
DESCRIPTION

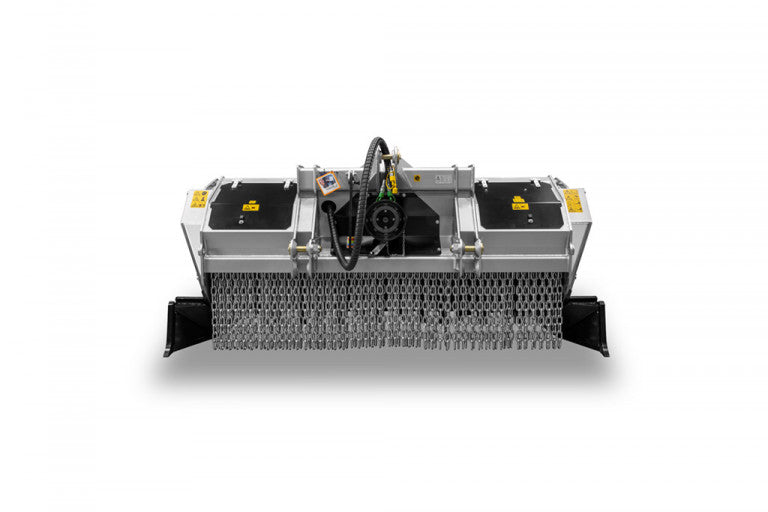

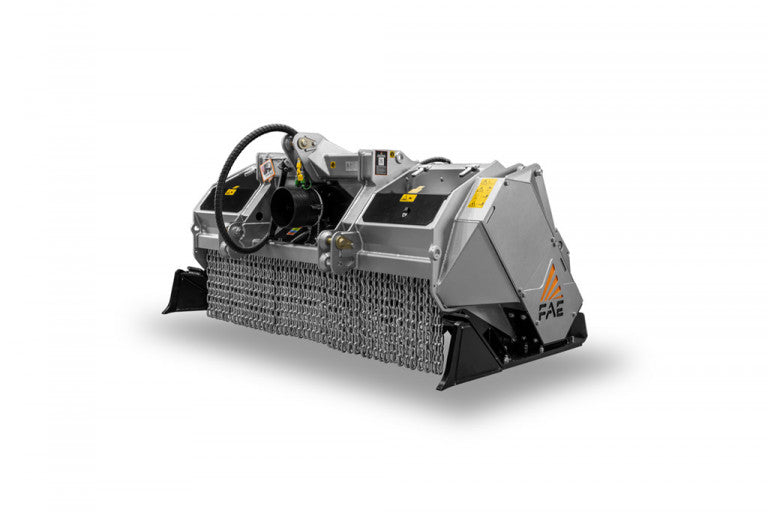

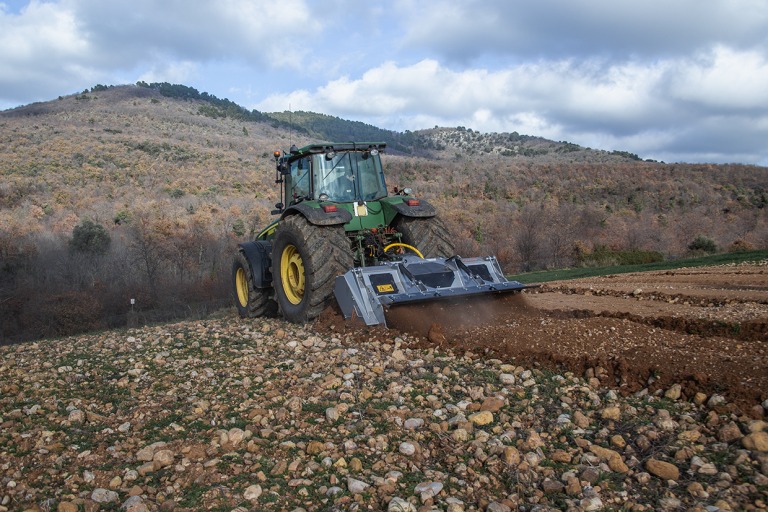

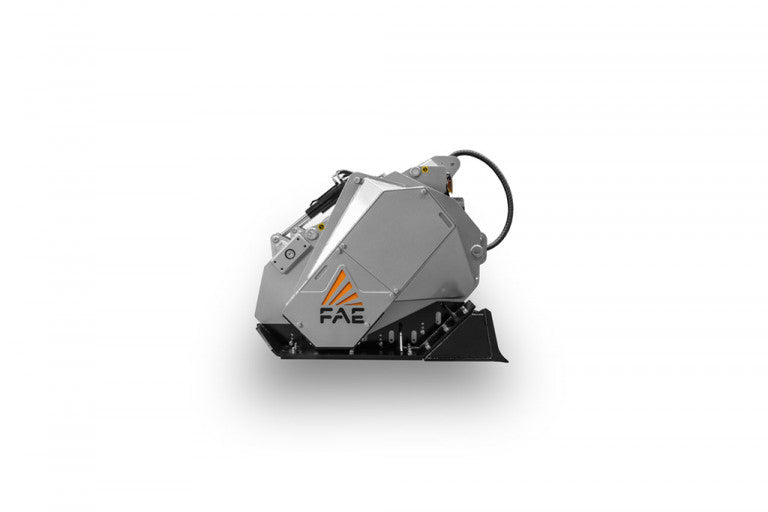

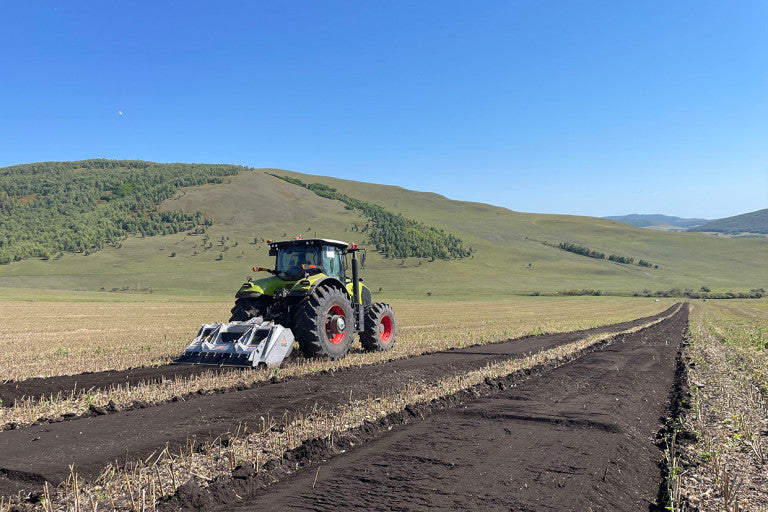

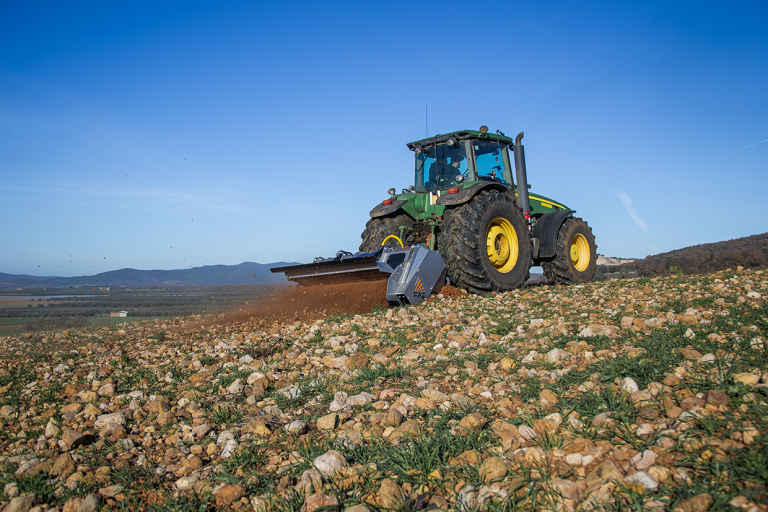

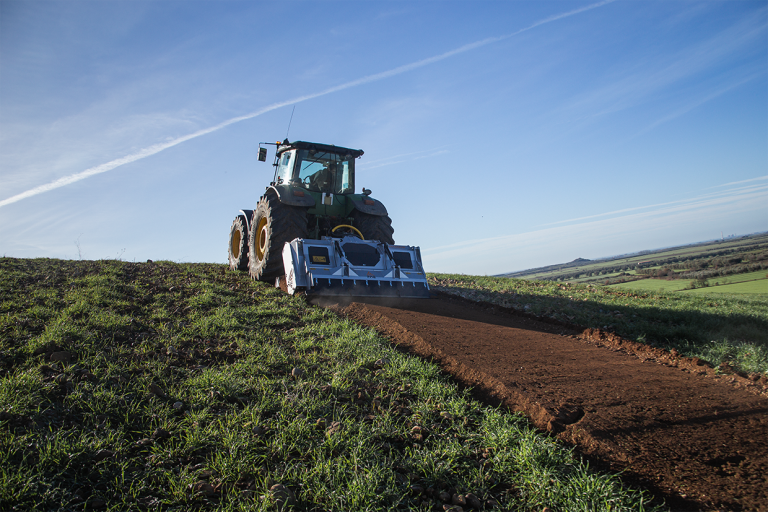

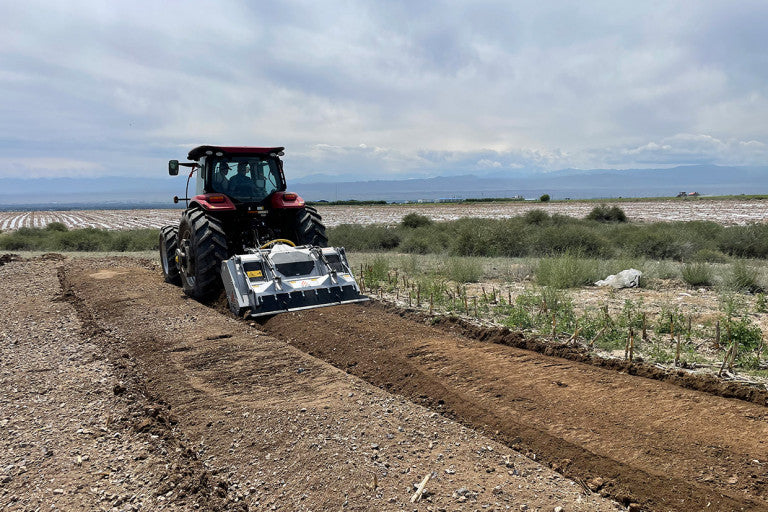

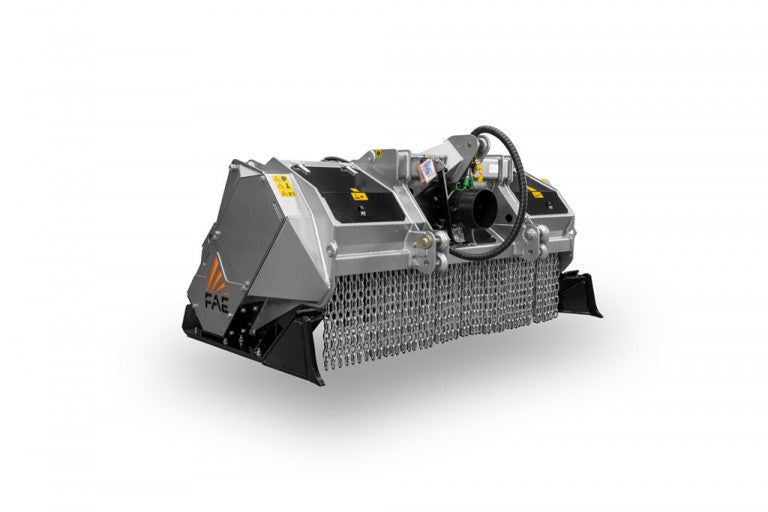

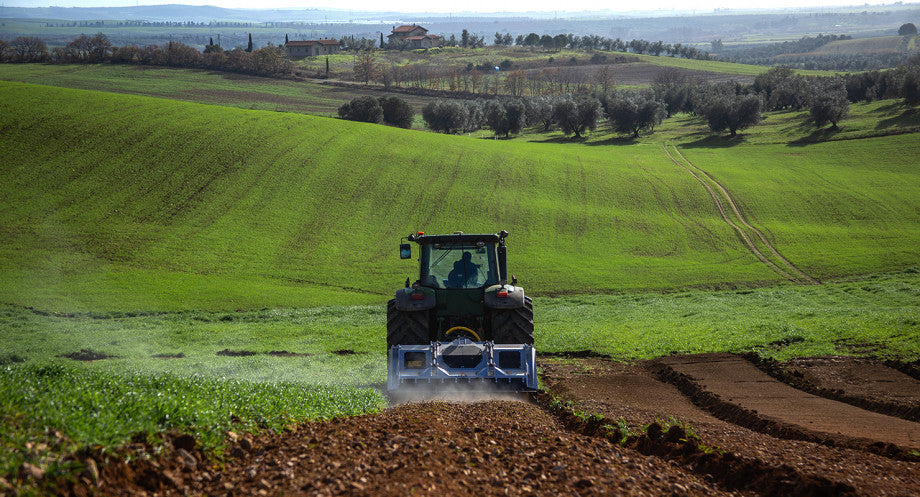

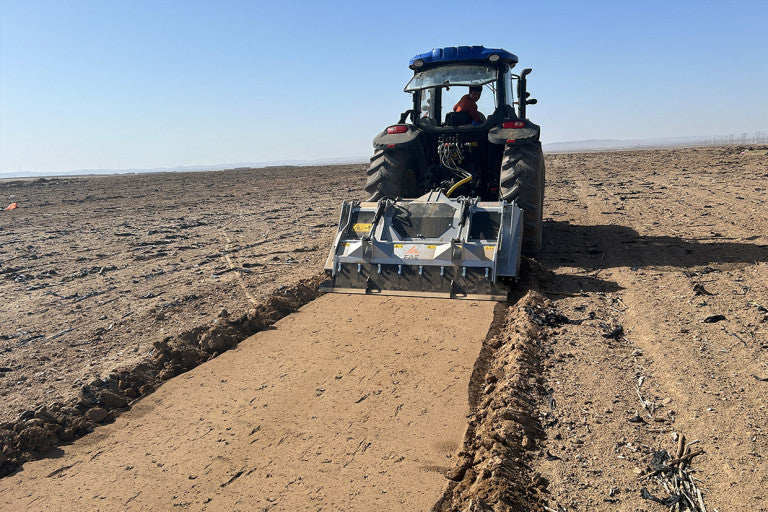

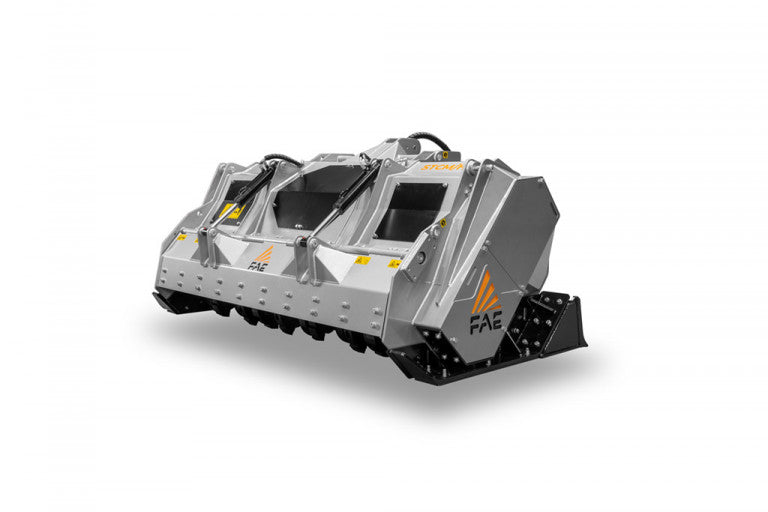

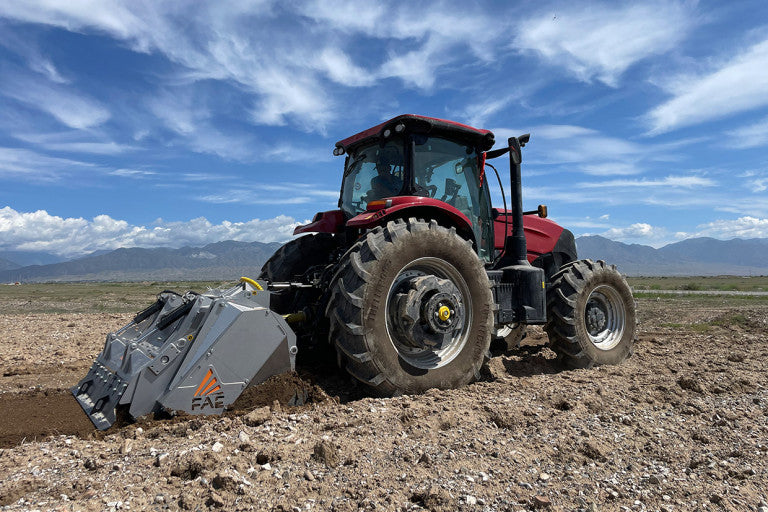

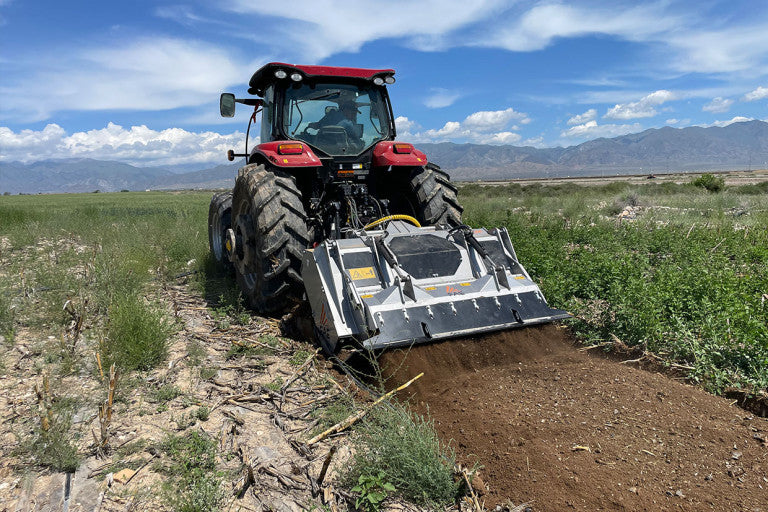

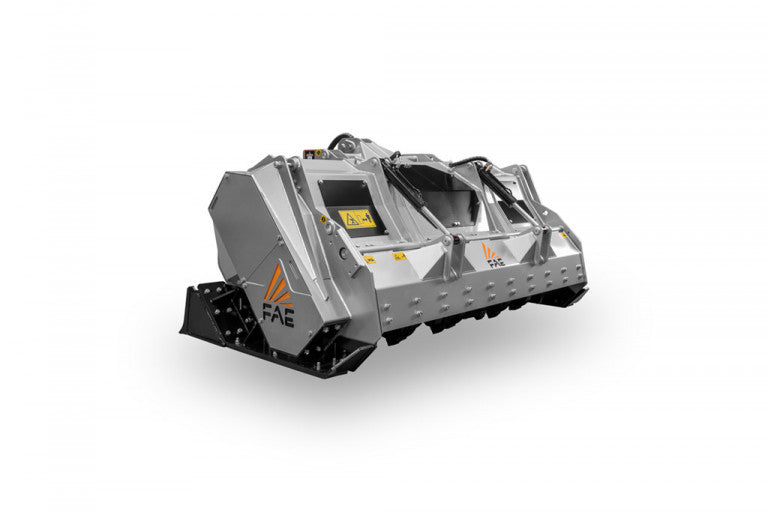

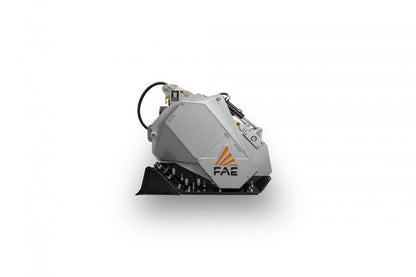

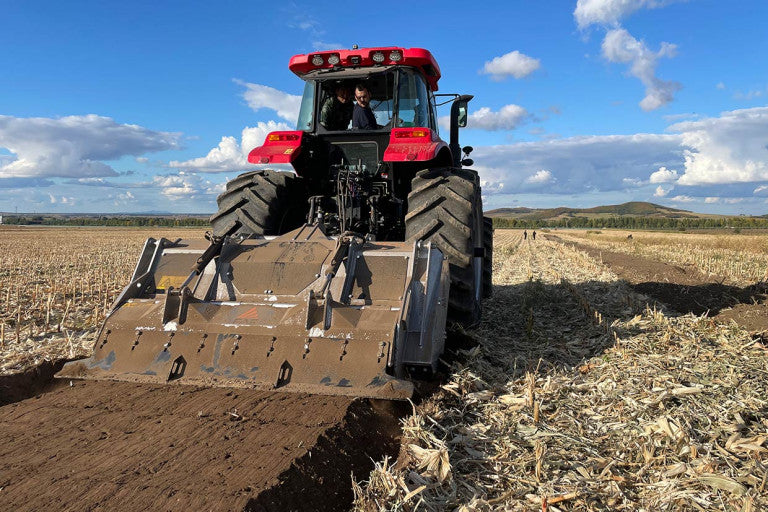

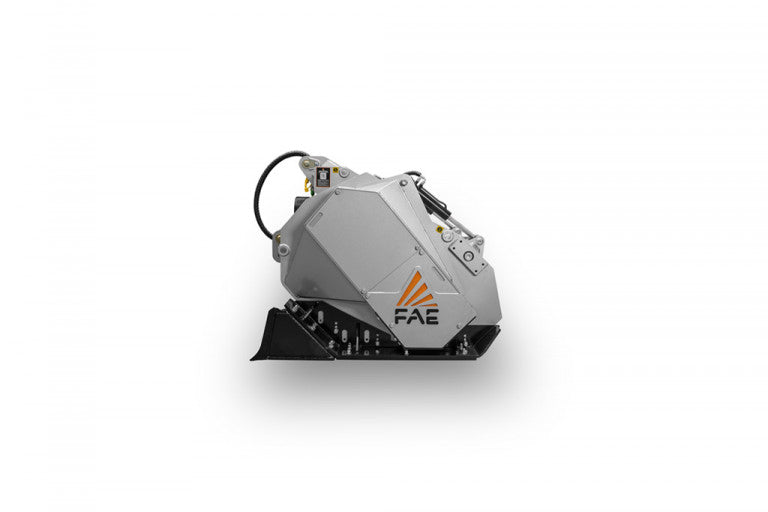

Engineered for power, precision, and durability, the FAE STCM Series Stone Crusher is the ultimate land management tool for professional operators working in agricultural reclamation, land development, and heavy-duty rock crushing. Designed for tractors from 80 to 280 horsepower, this rugged implement crushes stones up to 30 cm (12 inches) in diameter and works at depths of up to 20 cm (8 inches) making it a top choice for demanding applications like vineyard restoration, forestry prep, or clearing rocky pastures.
The STCM’s fixed-tooth rotor paired with multiple tooth options (including heavy-duty and full-profile configurations) offers unmatched crushing efficiency. Whether you’re reclaiming farmland or prepping soil for planting, the STCM ensures consistent material size with its hydraulic rear hood and adjustable Hardox® counter-blades. Available in single or dual transmission configurations, with working widths ranging from 1340 mm to 2304 mm (52.7" to 90.7"), this series is ready to conquer the most challenging terrains.
Built with interchangeable wear-resistant Hardox® steel plates, penetration skids, and bolt-on rotor protection, the STCM is optimized for ease of maintenance, long-term performance, and adaptability to varied conditions.
Key Features
- Heavy-Duty Stone Crushing Crush rocks up to 12" in diameter with ease perfect for field restoration, trail building, or deep tilling.
- Wide Compatibility for Tractors Designed for tractors from 80 to 280 HP, with models tailored for both mid-size and high-horsepower machines.
- Precision Depth Control Adjustable Hardox® counter-blades and hydraulic rear hood allow you to control the final material size and depth (up to 20 cm / 8").
- Built Tough for Extreme Use Hardox®-clad frame, interchangeable wear plates, and penetration skids built for rough terrain and high-impact jobs.
- Multiple Tooth Options Choose from standard STC/3, heavy-duty STC/3/HD, or full-profile STC/3/FP teeth depending on your crushing needs.
- Versatile Transmission Choices Available in both single and dual transmission versions with 540 or 1000 RPM PTO compatibility.
- Efficient Width Coverage Ranging from 1340 mm to 2304 mm, ideal for both tight orchards and wide open fields.
Detailed Specifications
| Specification | STCM-125 | STCM-150 | STCM-175 | STCM-200 |
|---|---|---|---|---|
| Tractor Power (HP) | 80–110 | 150–220 | 160–220 | 170–220 |
| PTO RPM | 540–1000 | 1000 | 1000 | 1000 |
| Working Width (mm/in) | 1340 / 52.7" | 1584 / 62.4" | 1824 / 71.8" | 2064 / 81.3" |
| Total Width (mm/in) | 1760 / 69.3" | 2020 / 79.5" | 2260 / 89" | 2500 / 98.4" |
| Weight (kg/lbs) | 1850 / 4078 lbs | 3000 / 6614 lbs | 3250 / 7165 lbs | 3550 / 7826 lbs |
| Rotor Diameter (mm/in) | 550 / 21.6" | 550 / 21.6" | 550 / 21.6" | 550 / 21.6" |
| Max Stone Diameter (mm/in) | 300 / 12" | 300 / 12" | 300 / 12" | 300 / 12" |
| Max Working Depth (mm/in) | 200 / 7.9" | 200 / 7.9" | 200 / 7.9" | 200 / 7.9" |
| Tooth Configuration (STC/3 + HD) | 26 + 4 | 32 + 4 | 38 + 4 | 42 + 4 |

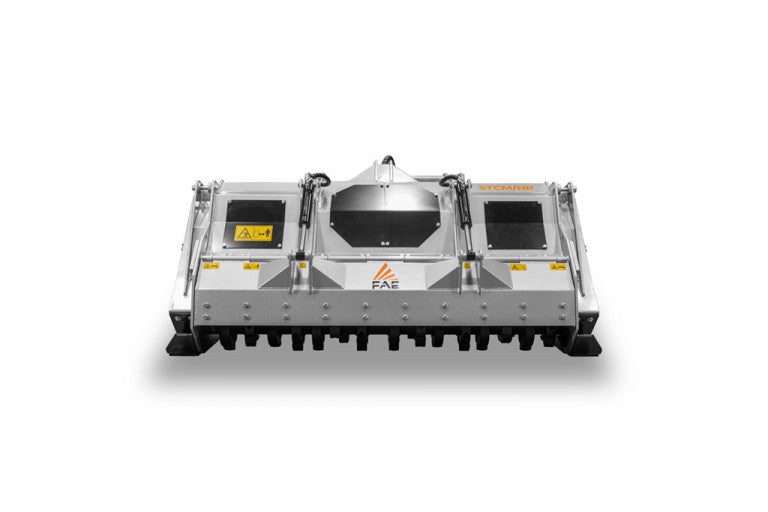

| Specification | STCM-225 | STCM/HP200 | STCM/HP225 |
|---|---|---|---|
| Tractor Power (HP) | 180–220 | 200–280 | 200–280 |
| PTO RPM | 1000 | 1000 | 1000 |
| Working Width (mm/in) | 2304 / 90.7" | 2064 / 81.3" | 2304 / 90.7" |
| Total Width (mm/in) | 2740 / 107.9" | 2500 / 98.4" | 2740 / 107.9" |
| Weight (kg/lbs) | 3800 / 8377 lbs | 3600 / 7937 lbs | 3840 / 8466 lbs |
| Rotor Diameter (mm/in) | 550 / 21.6" | 550 / 21.6" | 550 / 21.6" |
| Max Stone Diameter (mm/in) | 300 / 12" | 300 / 12" | 300 / 12" |
| Max Working Depth (mm/in) | 200 / 7.9" | 200 / 7.9" | 200 / 7.9" |
| Tooth Configuration (STC/3 + HD) | 48 + 4 | 42 + 4 | 48 + 4 |
Manuals & Documents
Technical data sheet
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

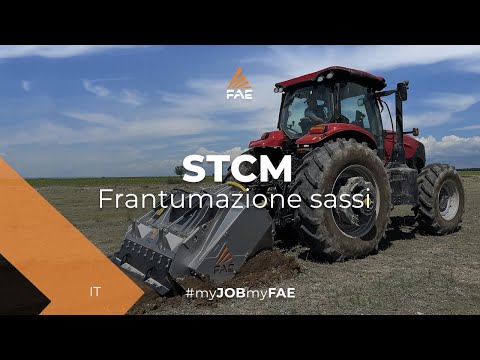

Videos
