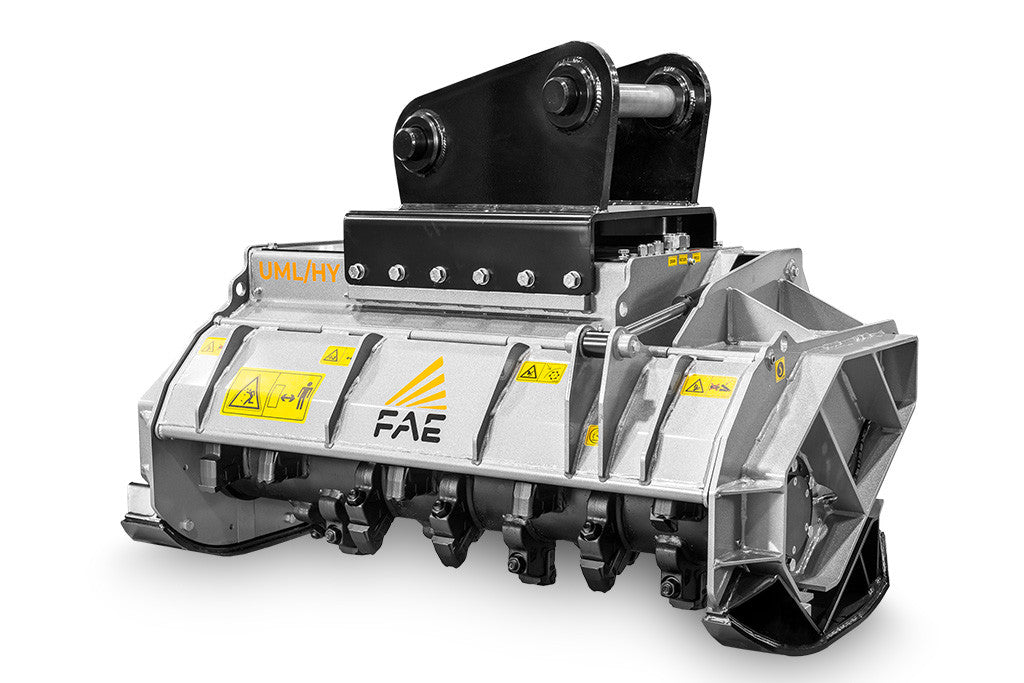

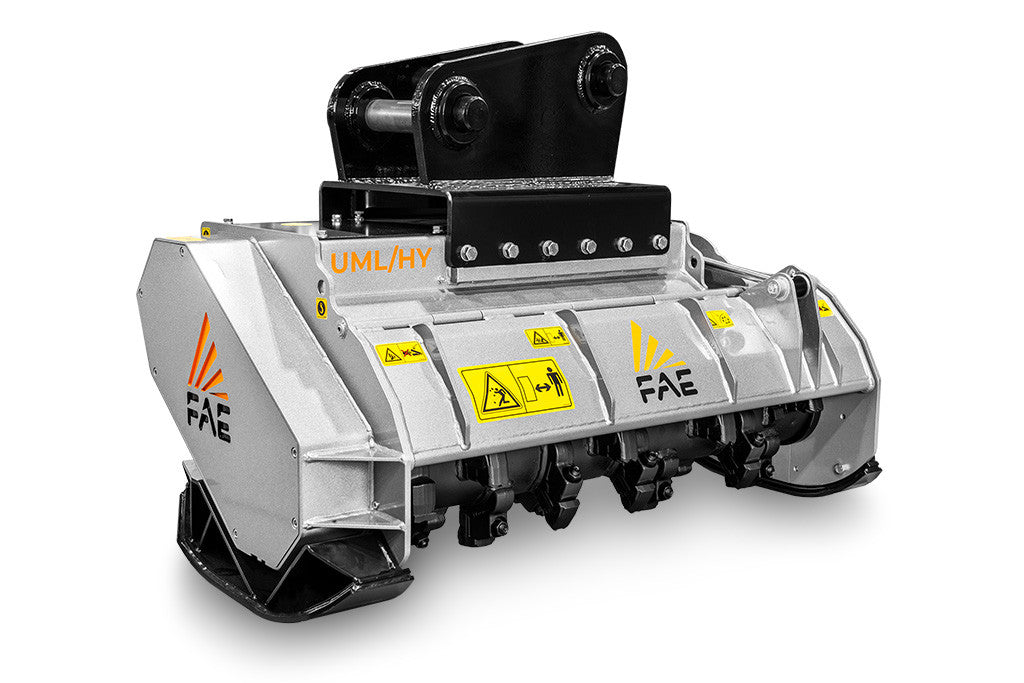

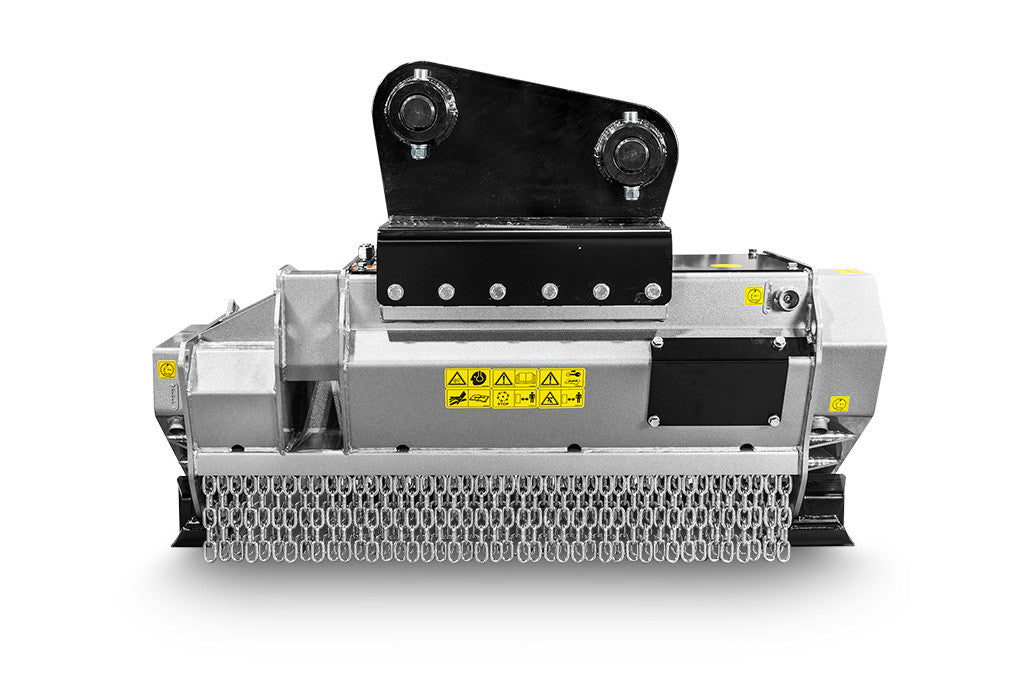

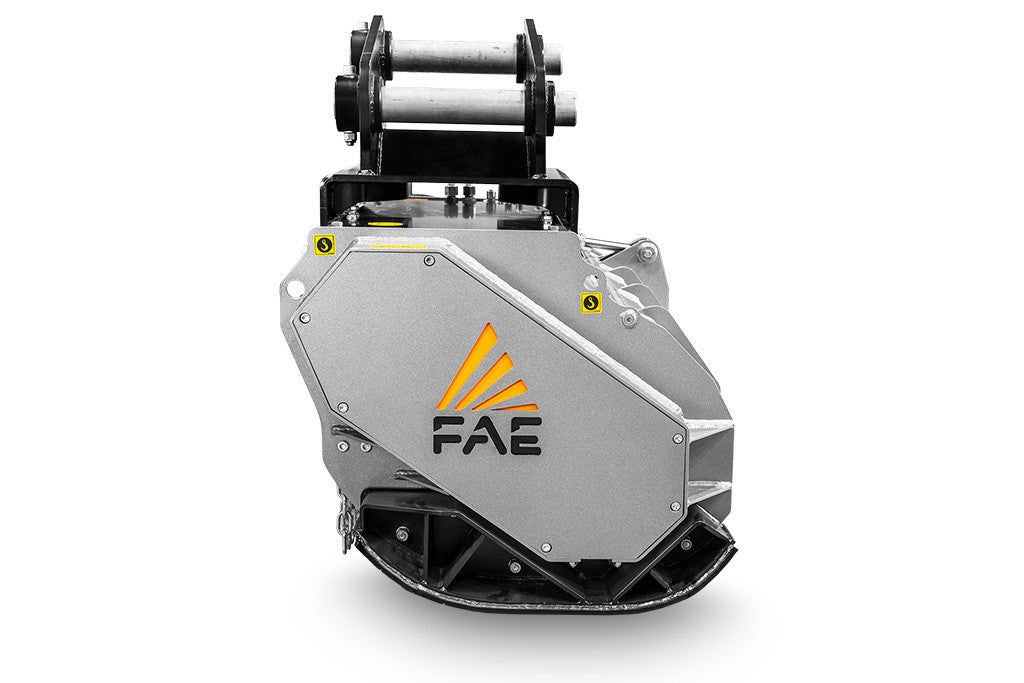

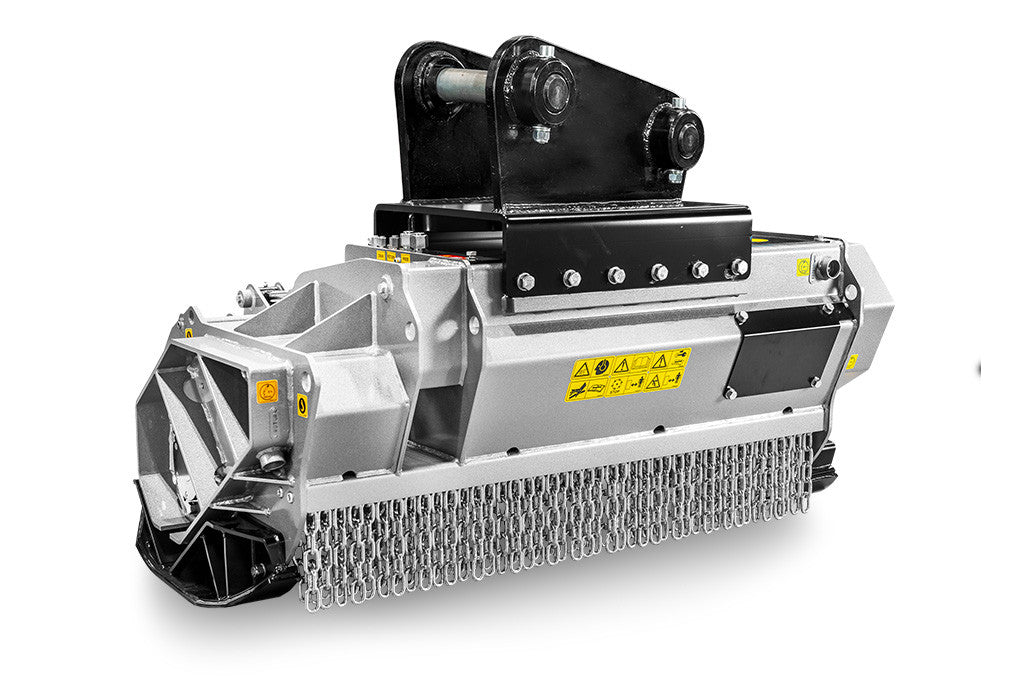

FAE | UML/HY, UML/HY/VT & UML/HY/SONIC Forestry Mulcher | Models 100 To 150 | Width 43.4" to 62.3" Inches | Machine Size 7 To 15 Ton | For Excavators

DESCRIPTION

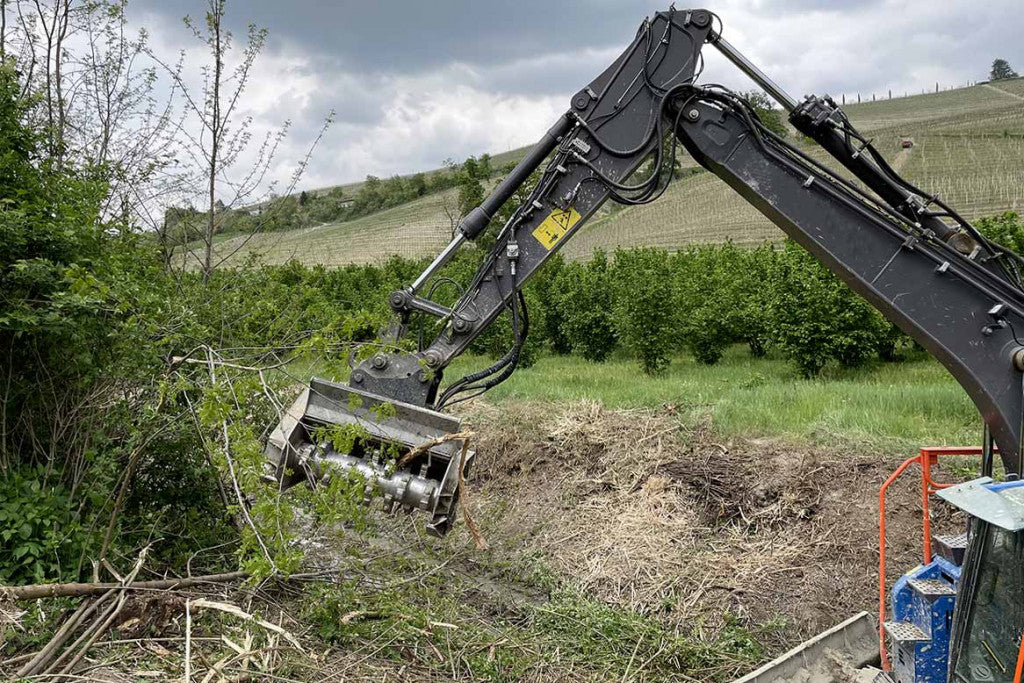

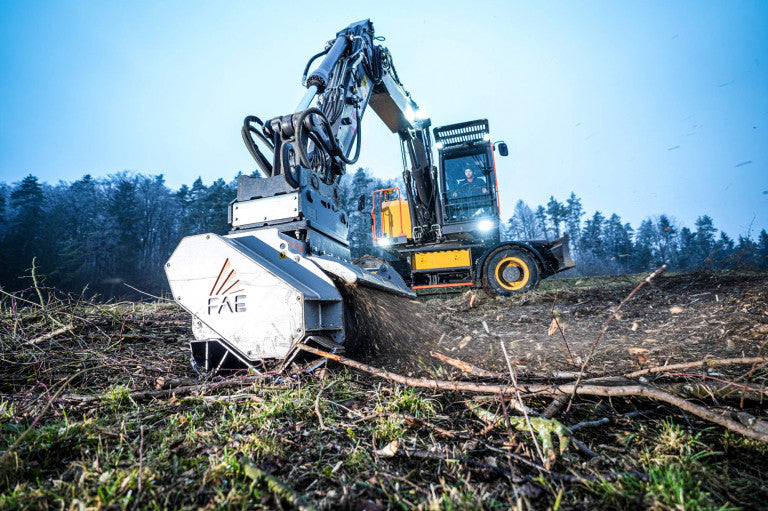

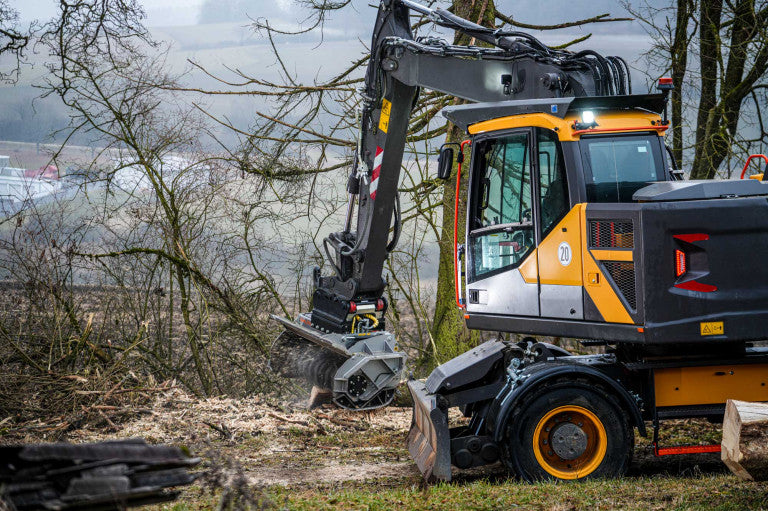

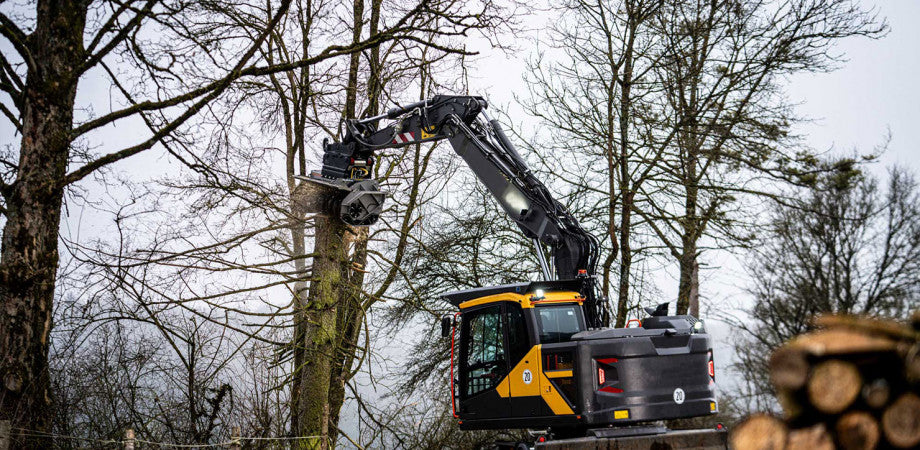

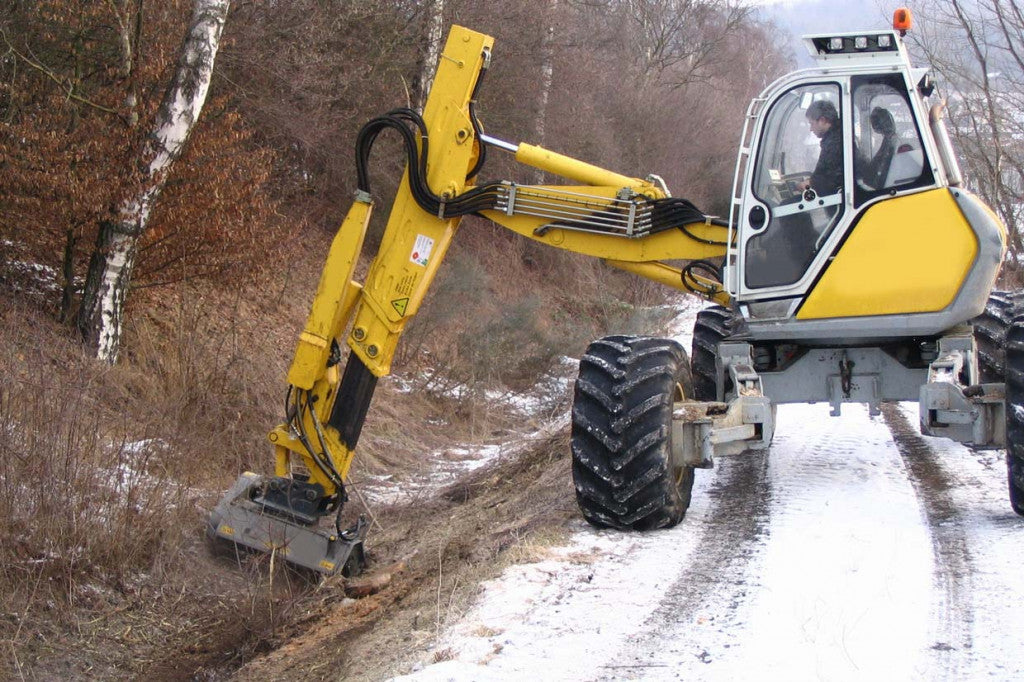

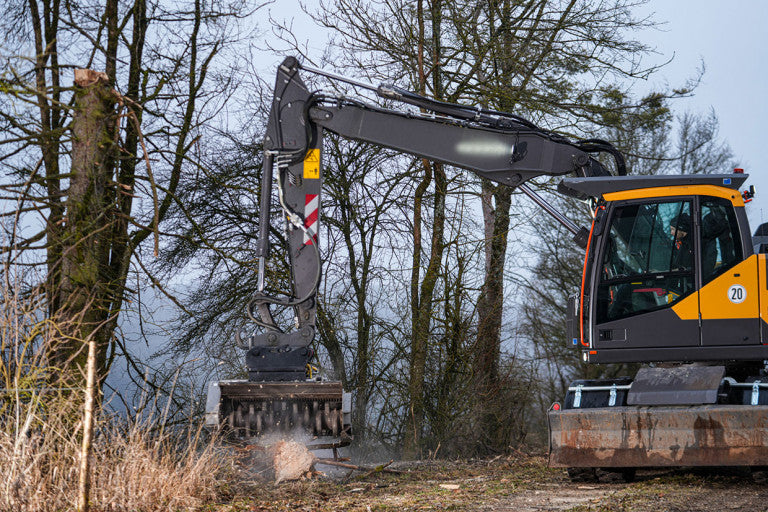

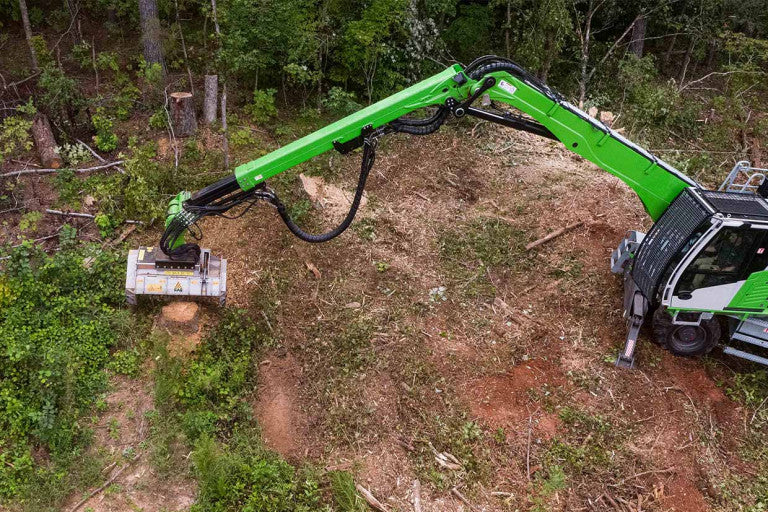

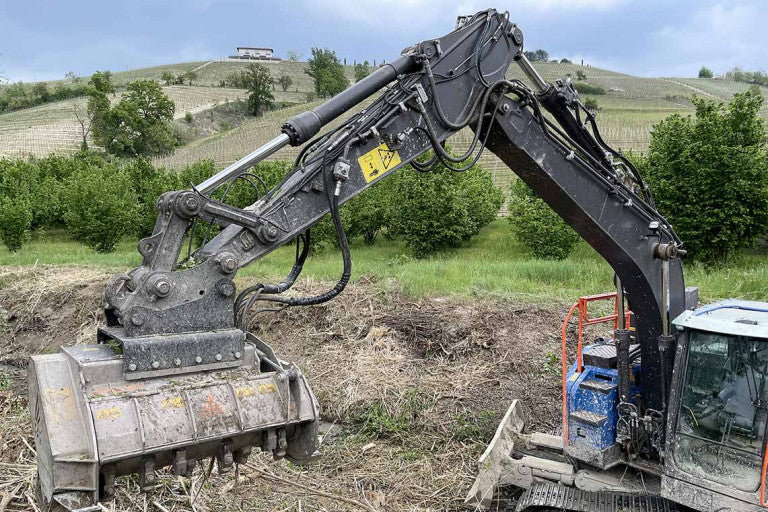

The FAE UML/HY Forestry Mulcher Series is purpose-built for professionals who demand performance, reliability, and adaptability on every job. Designed for 7–15 ton excavators, these heavy-duty mulchers are ideal for forestry maintenance, roadside clearing, and land reclamation handling thick vegetation, brush, and even hardwood up to 15 cm (6”) in diameter.

With three powerful configurations Standard UML/HY, Variable Torque UML/HY/VT, and the intelligent UML/HY/SONIC you can tailor the machine to your specific hydraulic system and terrain. From the robust fixed tooth rotor to the protective enclosed motor design, every model is engineered for maximum durability in extreme environments.

Looking for raw performance? The VT models feature automatic variable torque, increasing mulching efficiency by up to 50%. Need smart automation? The SONIC models use adaptive hydraulics to optimize flow, torque, and RPM in real time.

No matter the conditions, FAE’s UML/HY series turns your excavator into a professional land-clearing powerhouse.

Key Features

• Compatible with 9–15 Ton Excavators Engineered for mid-size carriers used in forestry, roadside, pipeline, and land-clearing applications.
• Hydraulic Flow Range: 90–170 L/min Optimized for a wide spectrum of hydraulic systems to ensure consistent and powerful performance.
• High Operating Pressure: 180–350 bar Delivers robust shredding force to tackle dense vegetation, saplings, and small trees.
• Available in 3 Working Widths: 43.4", 52.8", and 62.3" Allows precise sizing to match jobsite needs and carrier dimensions.
• Heavy-Duty Rotor: 425 mm (16.7") Diameter High-inertia rotor ensures aggressive mulching action and durability in all terrain types.
• Max Shredding Capacity: 150 mm (5.9") Efficiently mulches thick brush and small trees with speed and reliability.
• Advanced Rotor Designs Choose from high-performance Fixed Tooth Rotors or Bite Limiter Rotors (VT & SONIC models) for increased cutting speed and reduced power demand.
• Multiple Tooth Configurations Equipped with C/3 teeth with side scrapers or I-type tools, customizable based on soil, stone, or woody material.
• Sonic Technology (SONIC Models) Real-time hydraulic control system adjusts to load and flow, maximizing efficiency and productivity up to 50%.

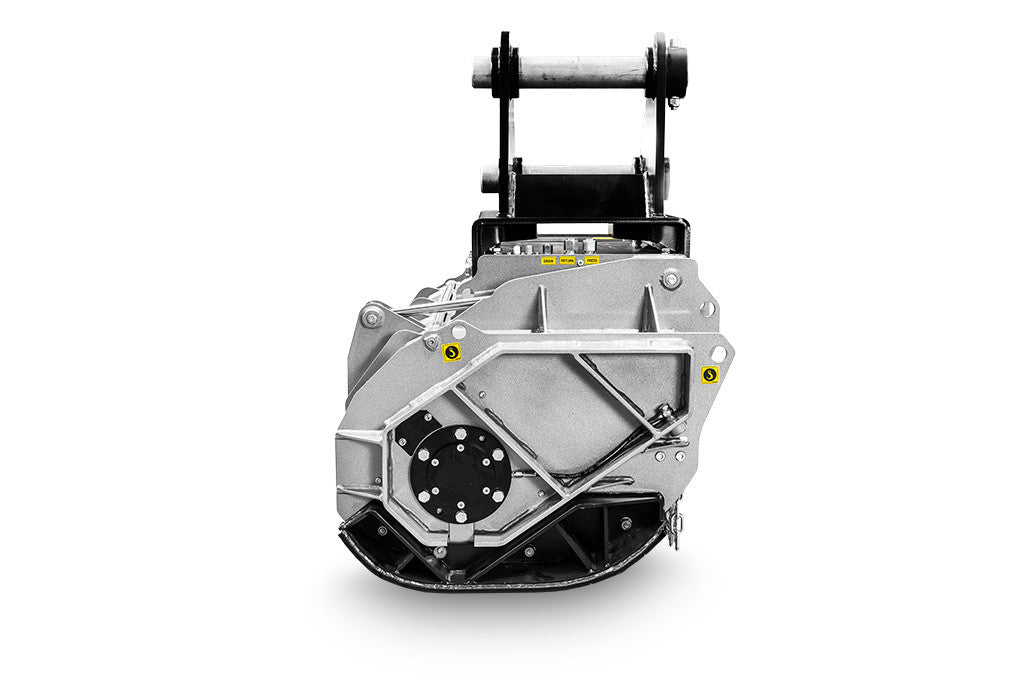

• Built to Endure Features include an enclosed hydraulic motor for impact protection, adjustable rear hood for fine mulch control, forged rotor shafts, reinforced body, and interchangeable wear parts for long-term durability.

Detailed Specifications

UML/HY Series

UML/HY/VT Series

UML/HY/SONIC Series

Manuals & Documents

Technical data sheet

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information neededabout products and parts you can’t find!
