Product Description
Faresin USA Big Range Series Telehandler | Model FT-9345 | Lift Height 44′ 7″ | Capacity 9,259 lbs | 75 HP Engine | For Construction & Agriculture
DESCRIPTION

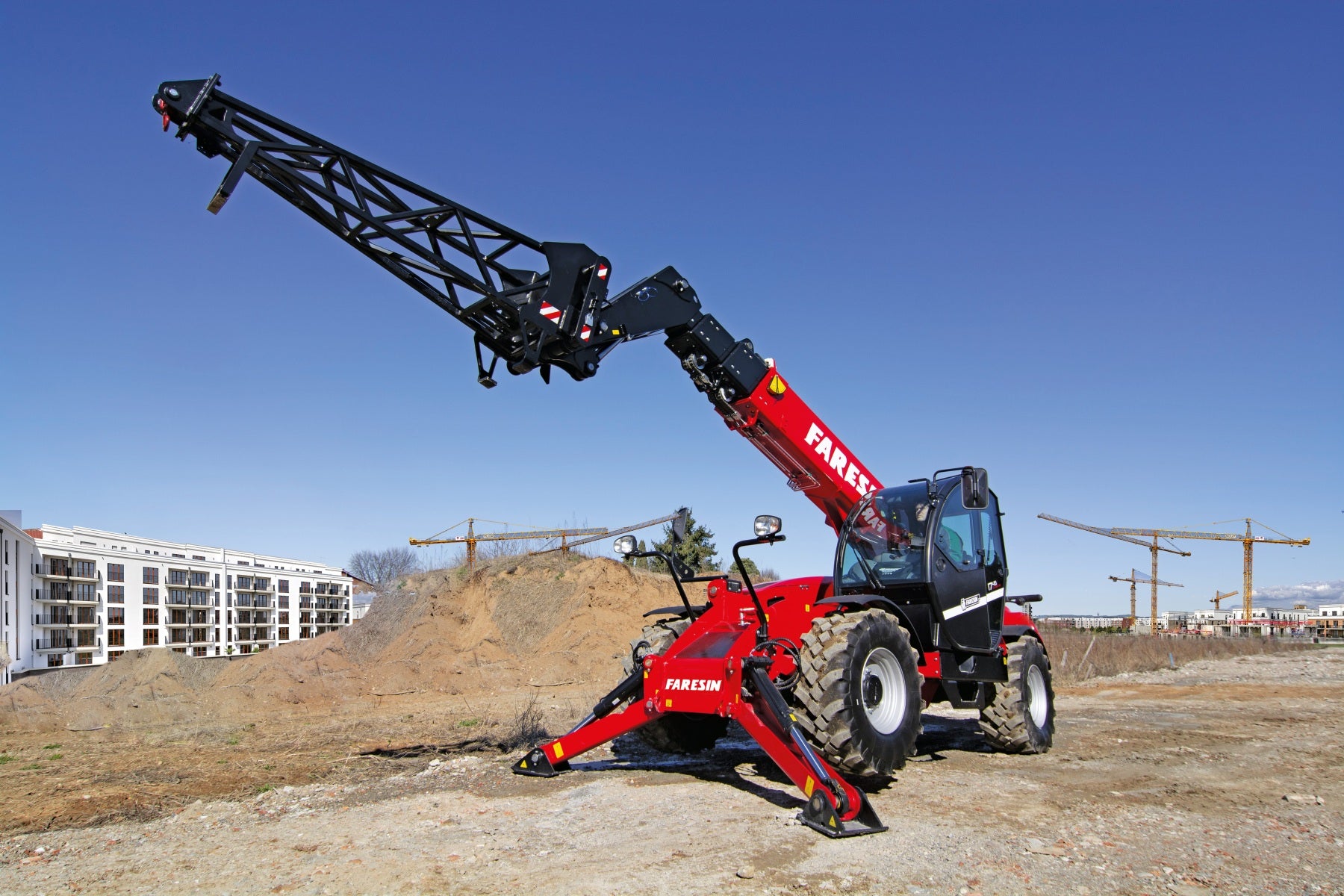

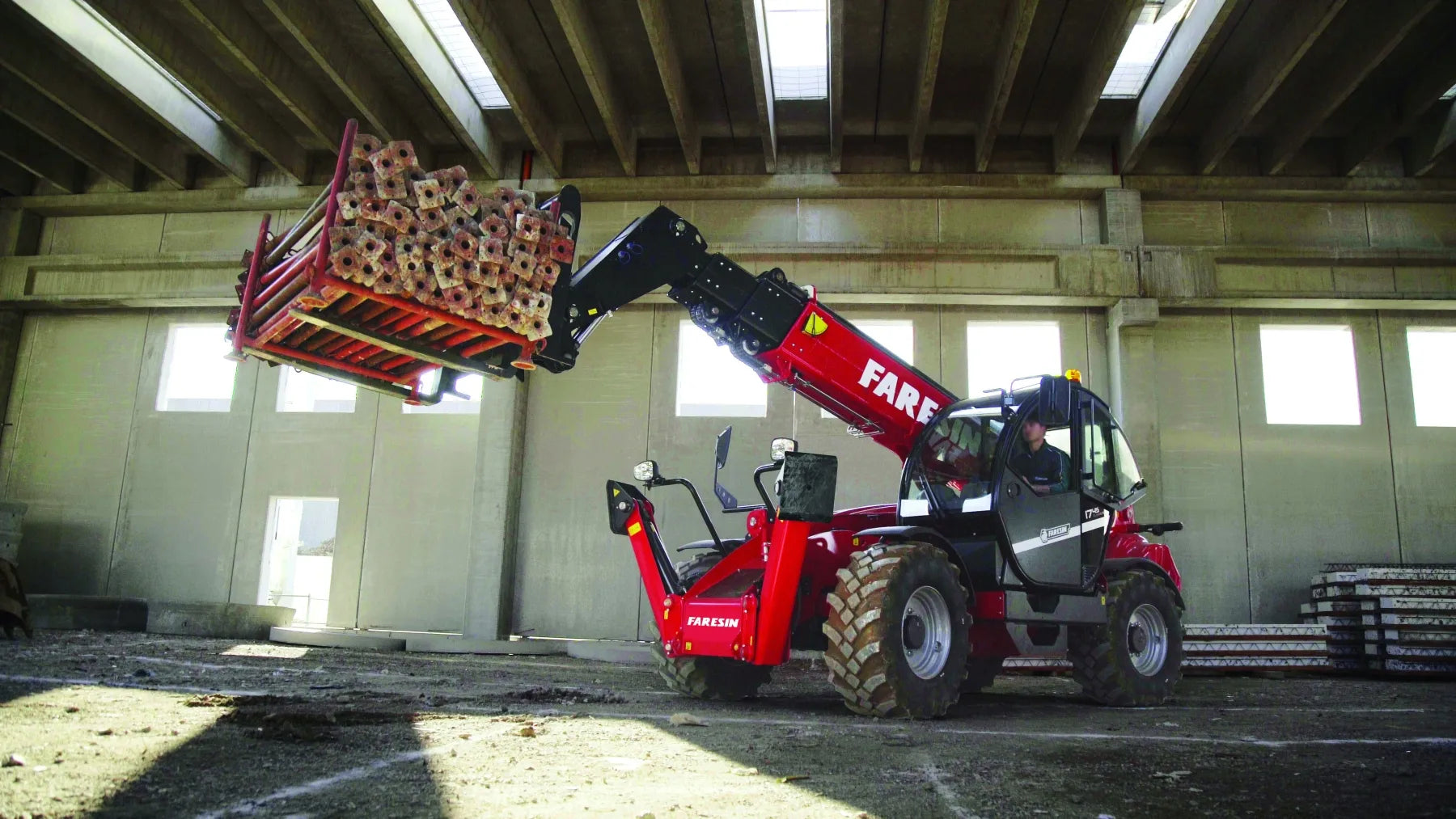

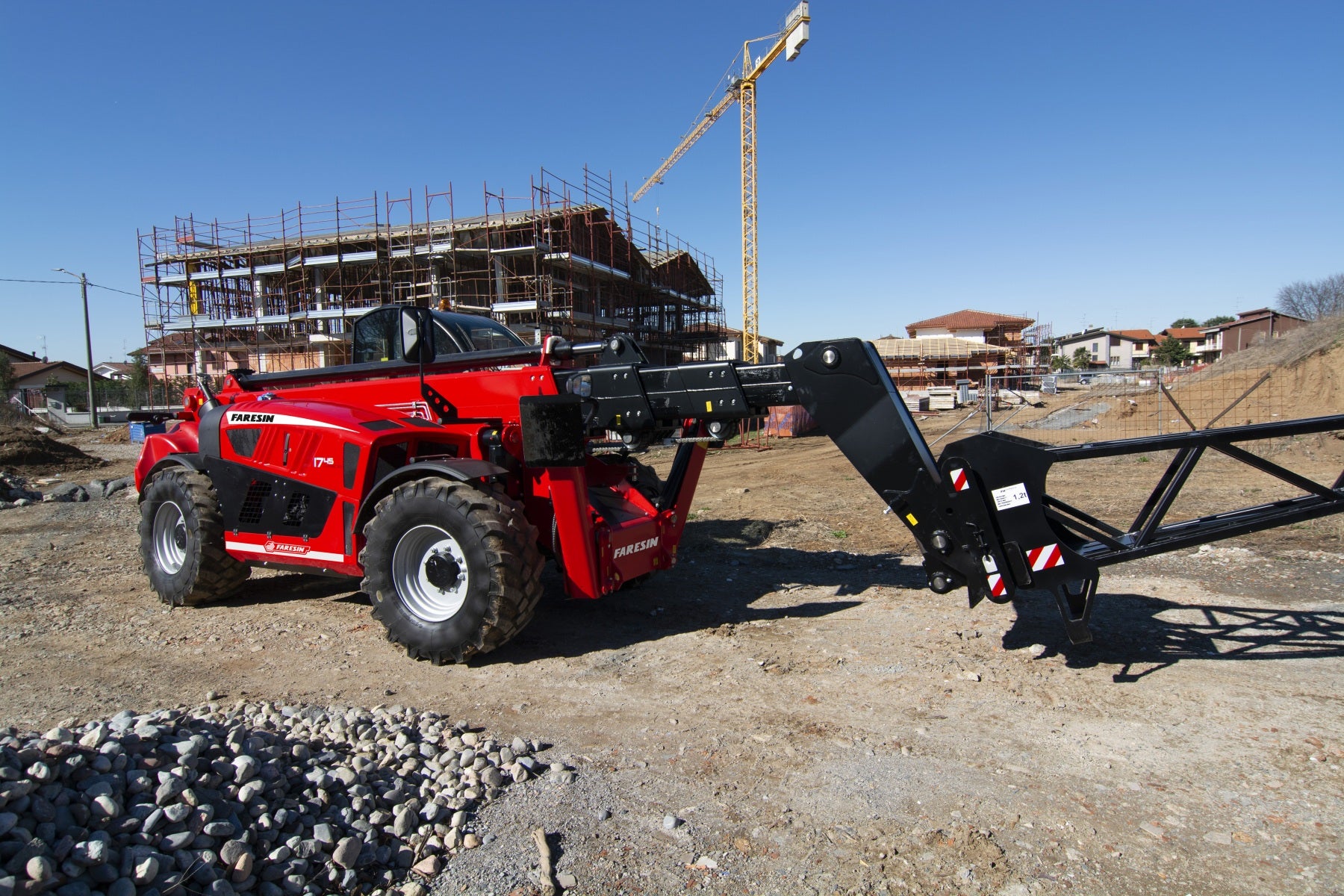

The Faresin USA FT-9345 Telehandler from the Big Range Series is engineered for construction and agricultural applications, delivering unmatched lifting capacity, reach, and versatility. With a maximum lift height of 44′ 7″ and a load capacity of 9,259 lbs, this telehandler ensures superior performance on demanding job sites. Powered by a Stage V compliant Deutz engine with 75 HP, it combines strength with eco-friendly efficiency. The advanced hydrostatic transmission, hydraulic gear pump, and 31.7 GPM flow rate provide smooth, responsive operation. Featuring a spacious Queen Cab with 360° visibility, ergonomic controls, and integrated diagnostics, operators benefit from comfort and safety during long shifts. Whether handling materials, lifting loads, or supporting construction tasks, the FT-9345 delivers power, precision, and reliability for maximum productivity.
Key Features
- High lifting capacity Handles up to 9,259 lbs for heavy-duty material handling.
- Extended lift height Reaches 44′ 7″, ideal for tall structures and construction sites.
- Long horizontal outreach 31′ 9″ reach ensures flexibility in tight spaces.

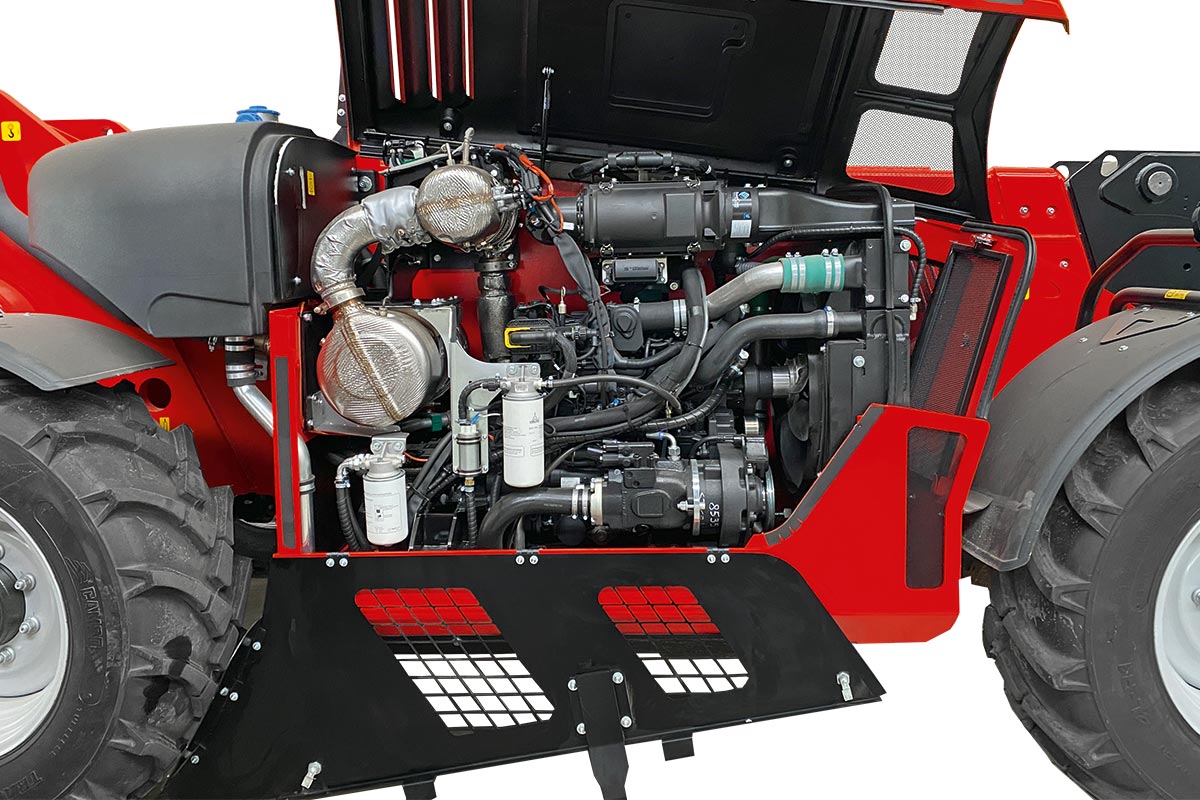

- Stage V compliant engine 75 HP Deutz engine offers eco-friendly, fuel-efficient performance.
- Hydrostatic transmission Provides smooth, responsive travel with advanced control.
- Hydraulic gear pump Delivers 31.7 GPM flow at 3,335 psi for powerful hydraulic functions.
- Compact turning radius 13′ 10″ radius enhances maneuverability on job sites.

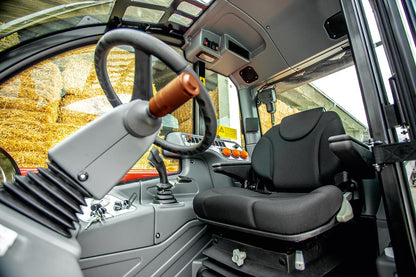

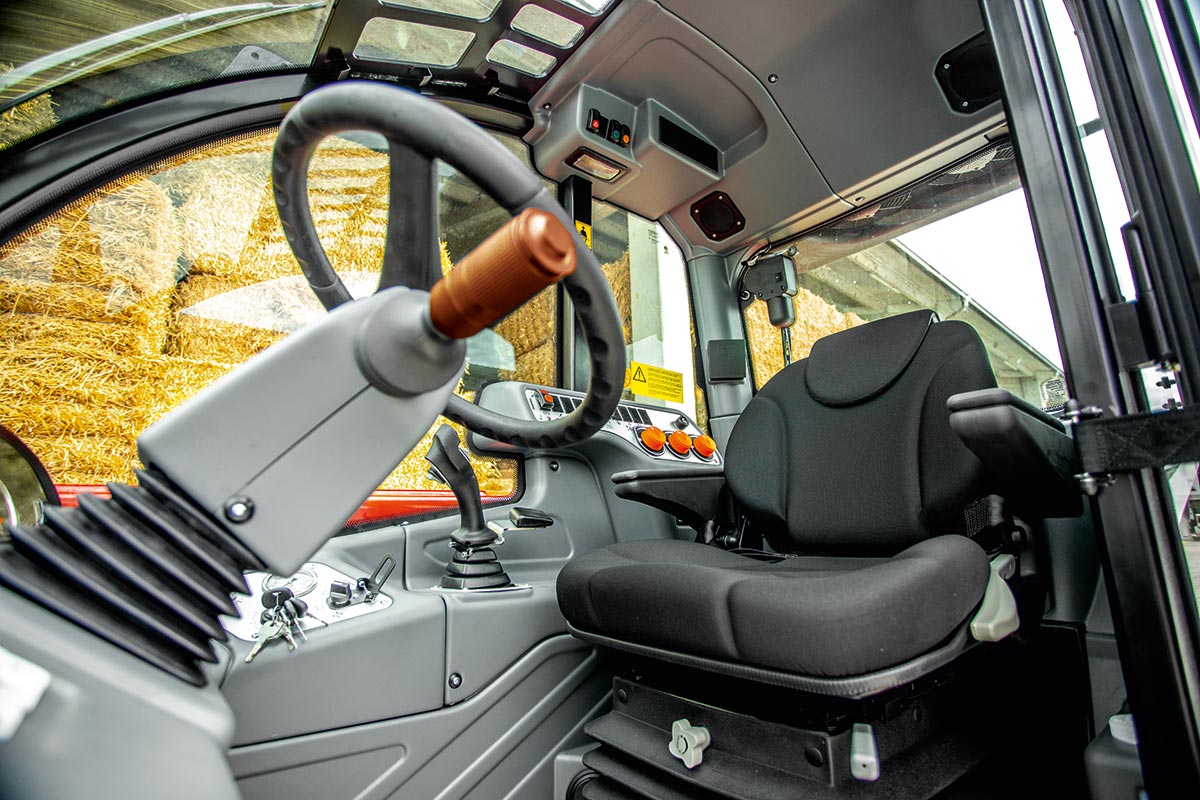

- Queen Cab comfort Spacious cab with superior ergonomics, heating, and ventilation.
- 360° visibility cab Ensures operator safety and precision during long shifts.
- Advanced joystick control Dual-roller joystick with integrated FNR for seamless operation.
- Electro-proportional spool Guarantees reliable auxiliary hydraulic services.
- Durable wheel design Equipped with 405/70 20 wheels for stability and traction.
- Safety compliance ROPS and FOPS-certified cab ensures maximum operator protection.
- Efficient cooling system Increased radiant surface area for better heat dissipation.
- Multi-steering modes 4-wheel drive with 3 steering options for versatile maneuvering.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | FT-9345 |
| Series | Big Range |
| Max Capacity | 9,259 lbs |
| Max Lift Height | 44′ 7″ |
| Horizontal Outreach | 31′ 9″ |
| Swinging Angle | 144° |
| Boom Sections | 2 |
| Machine Weight | 24,250 lbs |
| Engine | Deutz 75 HP (Stage V compliant) |
| Transmission | Hydrostatic, single gear |
| Hydraulic Flow Rate | 31.7 GPM @ 3,335 psi |
| Turning Radius | 13′ 10″ |
| Top Speed | 15.5 mph |
| Wheel Size | 405/70 20 |
| Height | 8′ 3″ |
| Width | 7′ 7″ |
| Length | 20′ 10″ |
| Cab Features | Queen Cab, 360° visibility, ergonomic design |
| Safety Standards | ROPS & FOPS compliant |
