Product Description
Farm King Back-saver Grain Auger | Model 1080 | Size 10" x 80' | Weight 3,622 Lbs | PTO Horsepower 65 HP | For Tractors
DESCRIPTION

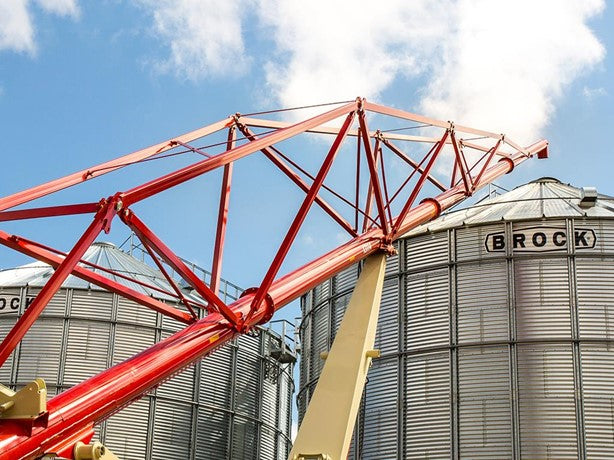

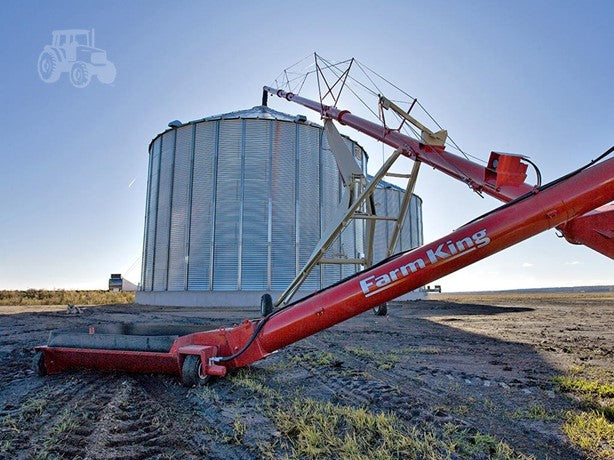

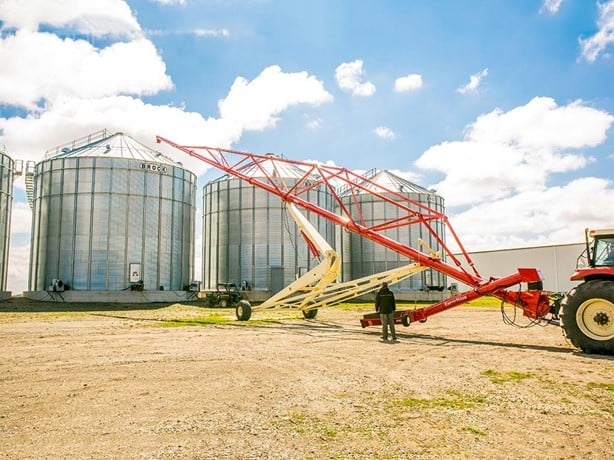

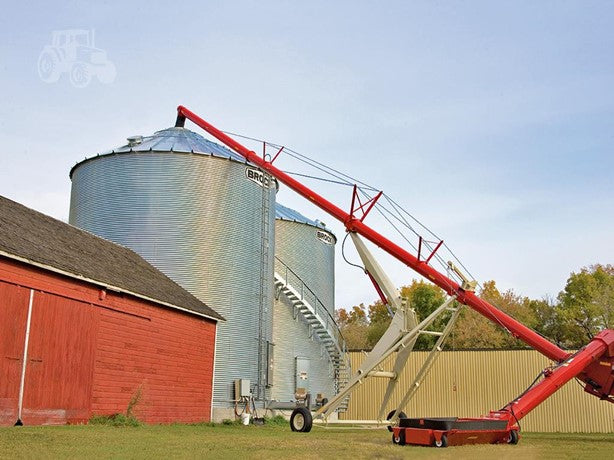

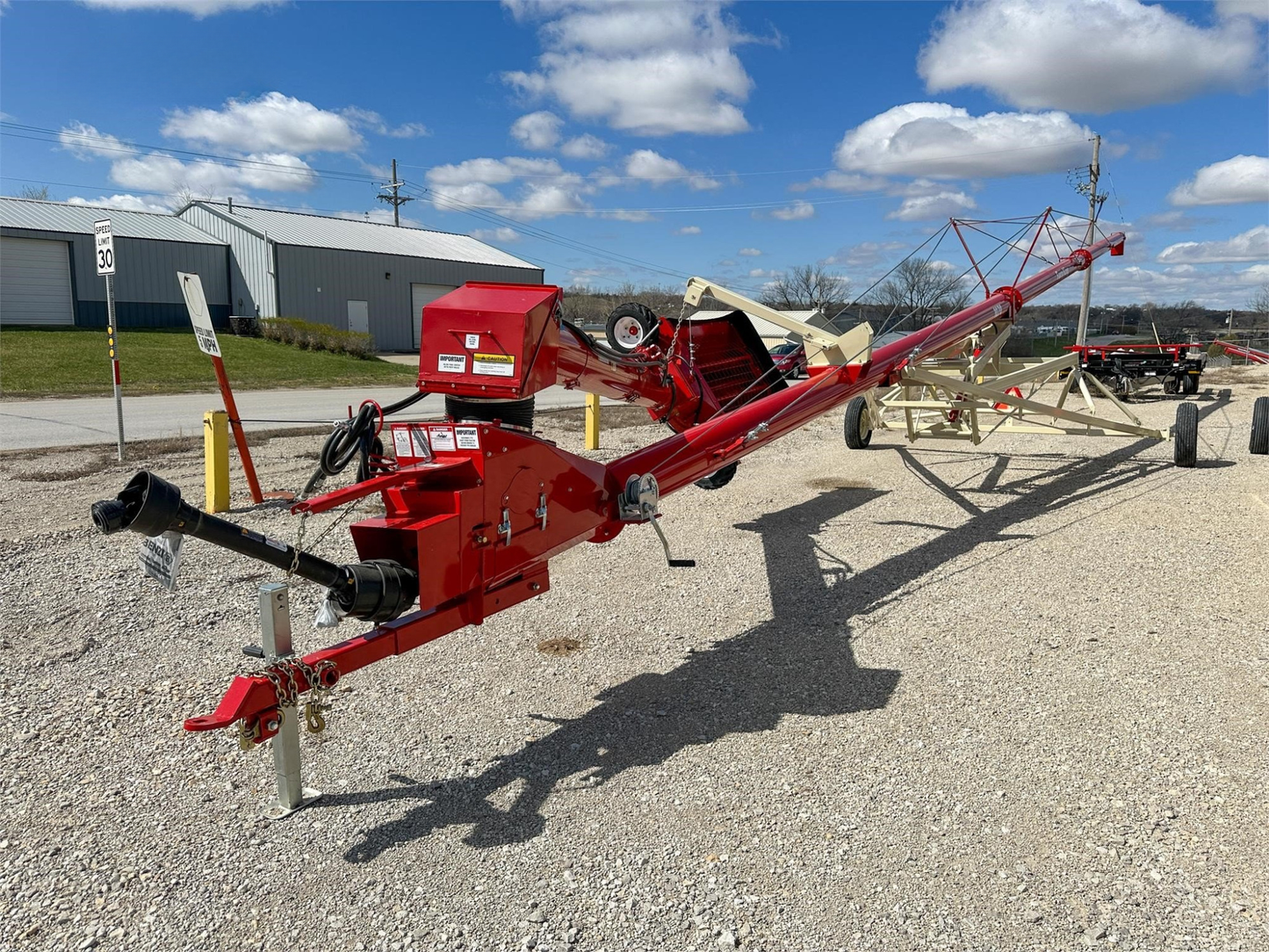

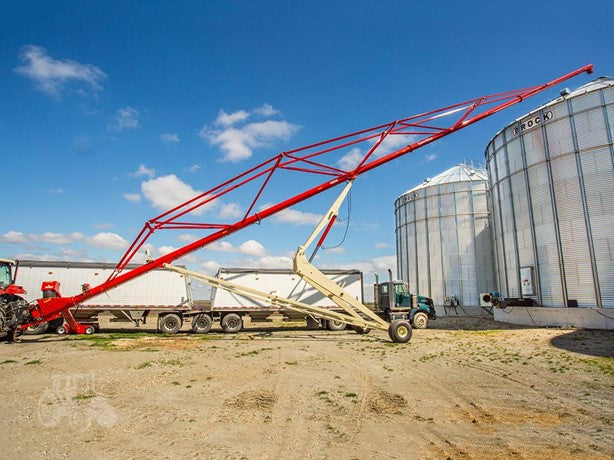

The Farm King BackSaver Auger is designed to meet your grain handling needs efficiently and reliably. With a unique scissor lift undercarriage, it offers smooth and easy operation. Available in various lengths and diameters, it’s perfect for getting closer to grain bins and ensuring stability with steel cables and solid bridging.
Key Features
| Measurement | Details |
|---|---|
| Wheel Track | 12' |
| A, Height - Lowest | 13' 6" |
| A, Height - Half Way | 34' 3" |
| A, Height - Highest | 55' |
| B, Forward Reach - Lowest | 45' 7" |
| B, Forward Reach - Half Way | 41' 10" |
| B, Forward Reach - Highest | 34' 9" |

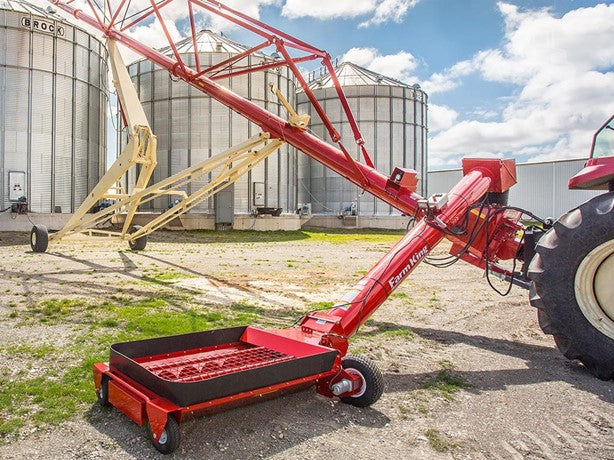

- Self-leveling Hopper: Stays level regardless of auger height, perfect for uneven terrain.

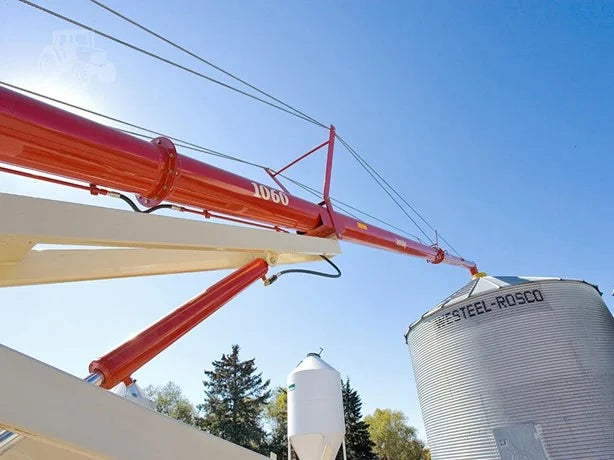

- Hydraulic Cylinders: Heavy-duty cylinders hold the auger at a 44° angle when fully extended, changing to 5° in transport mode.
- Hydraulic Controls: Auger-mounted controls for lifting, transporting, and positioning the auger and hopper with ease.
- Adjustable Light: Lighting kit available on 16" models to provide illumination during nighttime operations.

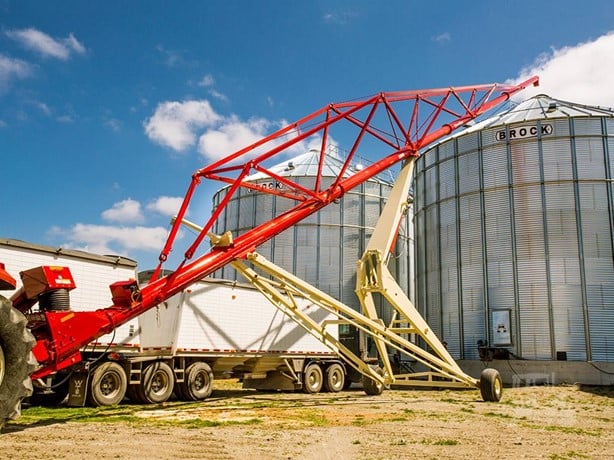

- Sturdy Undercarriage: Exclusive scissor lift design requiring less hydraulic pressure and ensuring stability.
- Dual Spool Valve: Optional valve for hydraulic operation of the intake hopper winch and mover using two remote valves.
- Hydraulic Winch: Lifts the hopper into place for transport, standard on model 16104 and optional on other models.
- Hydraulic Drive Wheels: Standard on model 16104, optional on others for precise positioning of the intake hopper.
- Hydraulic Hopper Mover: Standard on model 16104, optional on other models for easy positioning of the swing away hopper.
Detailed Specifications
| Specification | Details |
|---|---|
| Size | 10" x 80' |
| Tubing | 12 gauge |
| Flighting | 7 gauge (Measured from centre of flighting strip) |
| Flighting Shaft | 11 gauge, 2 3/8" diameter |
| Undercarriage | 3" x 3" x 1/8" square tube |
| Lift Arms | 2" x 5" x 3/16" tube |
| Bridging | 3/8" cable on 50' and 60' models, 1/2" cable on 70' and 80' models |
| Wheels and Hubs | 15" with 5 bolt automotive type hubs and bearings |
| Swing Auger Drive | Two internal gearboxes (PTO driven), sprocket and chain |
| Hopper Dimensions | 43-1/2" x 60" |
| Standard Hopper Height from Ground | 15-1/4" at heel end, 14-1/4" at other end |
| Multi-flighting Hopper Height from Ground | 11-3/4" at both ends |
| Tractor Requirements - Min PTO hp (with 540 RPM PTO) | 65 hp |
| Tractor Requirements - Approx. Hydraulic Requirements for Lift | 1000 PSI |
| Hitch Weight | 3622 lb |
