Product Description
Farm King Back-saver Grain Auger | Model 13114 | Size 13" x 114' | PTO Horsepower 165 Hp | For Tractors
DESCRIPTION

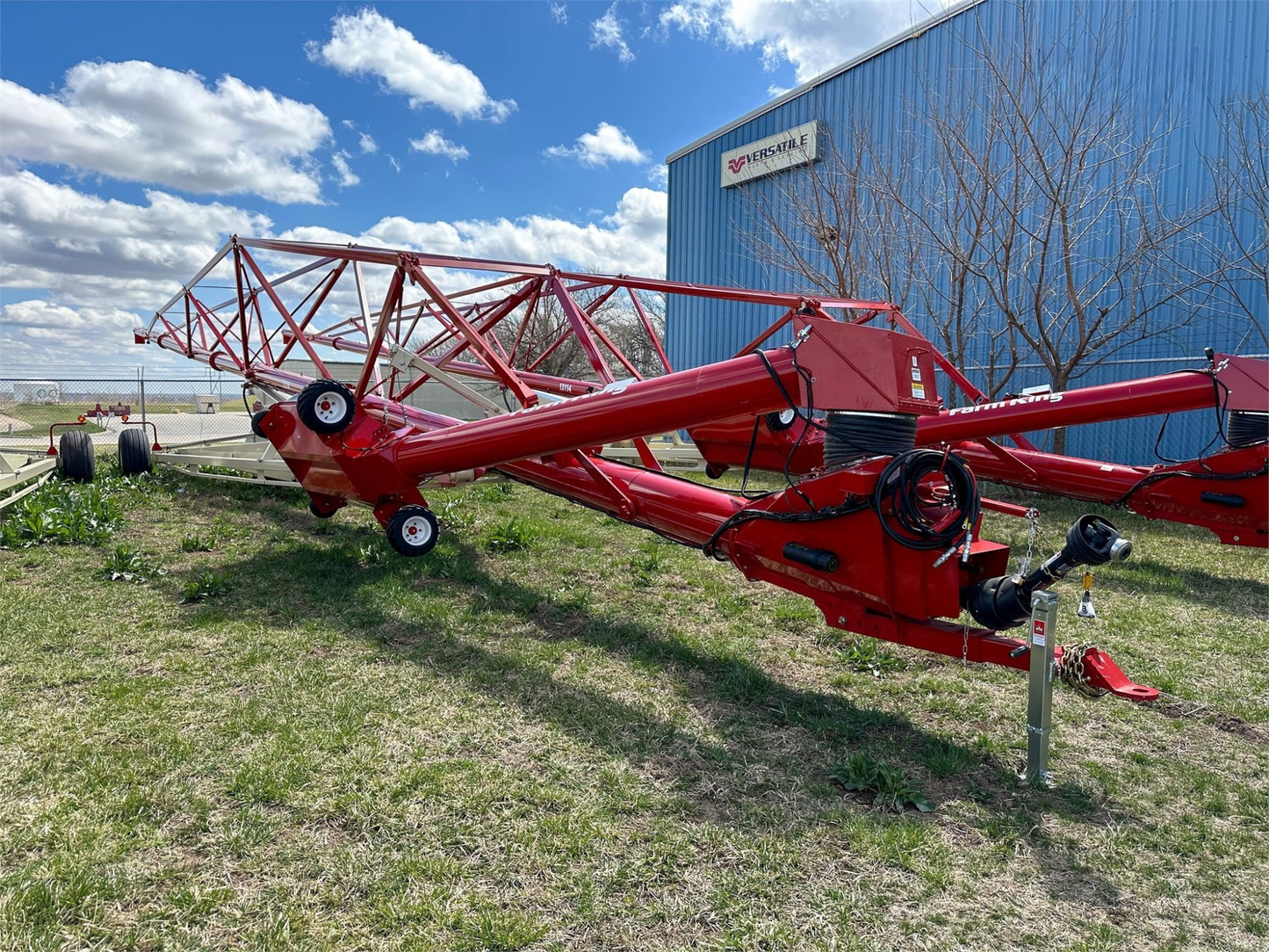

The Farm King 13114 Back-Saver Auger is a well-designed solution for efficient grain handling, building on over four decades of expertise. The unique scissor lift undercarriage ensures smooth operation and makes it easy to get closer to grain bins. The hydraulics can be locked in place with a safety ball valve lever for added stability. The steel cables and solid bridging provide peace of mind even in windy conditions, and the auger can be transported easily with a maximum height of 15'.
Available in lengths from 50’ to 114’ and in 10”, 13”, and 16” diameter tubing, the BackSaver Auger meets a wide range of grain handling needs. It requires 40 Hp to 175 Hp for optimal performance, depending on the model and auger dimensions.
Key Features
| Measurement | Details |
|---|---|
| Wheel Track | 14' 6" |
| A, Height - Lowest | 10' 9" |
| A, Height - Half Way | 42' 8" |
| A, Height - Highest | 78' |
| B, Forward Reach - Lowest | 63' 6" |
| B, Forward Reach - Half Way | 58' 2" |
| B, Forward Reach - Highest | 47' 2" |
- Scissor Lift Design: Ensures smooth operation and ease of use across all BackSaver models.

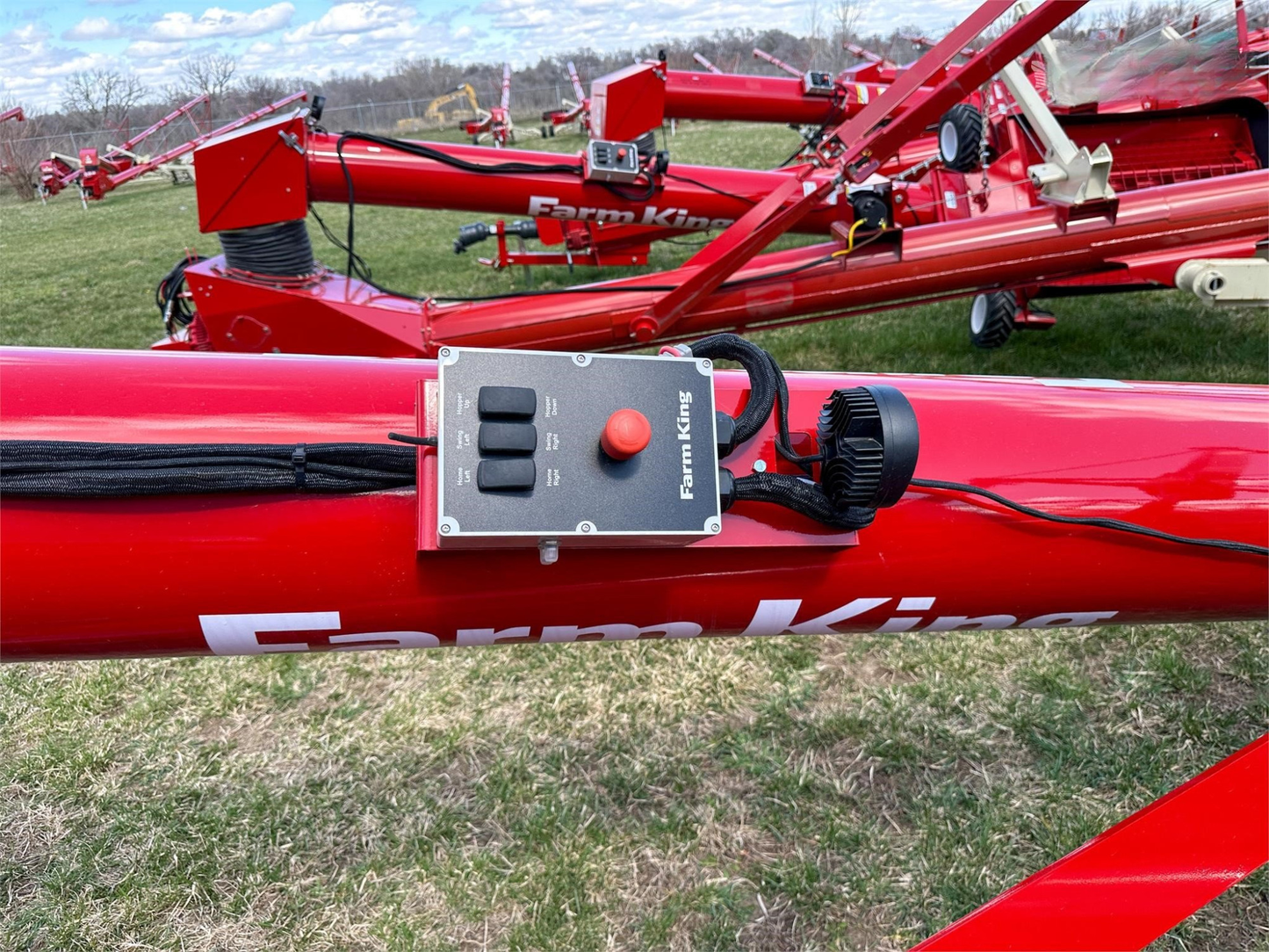

- Hydraulic Controls: Facilitates easy lifting, transporting, and positioning of the auger and hopper.
- Self-leveling Hopper: Remains level on uneven terrain, reducing unnecessary down pressure.
- Adjustable Lighting Kit: Available on 16" models for optimal visibility during nighttime operations.
- Sturdy Undercarriage: Requires less hydraulic pressure and maintains stability.
- Dual Spool Valve: Optional for hydraulic operation of the intake hopper winch and mover.
- Hydraulic Winch: Lifts the hopper into place for transport, standard on model 16104, optional on other models.
- Hydraulic Drive Wheels: Standard on model 16104, providing precise positioning of the intake hopper.
- Hydraulic Hopper Mover: Adds a powerful hydraulic motor for easy positioning, standard on model 16104.

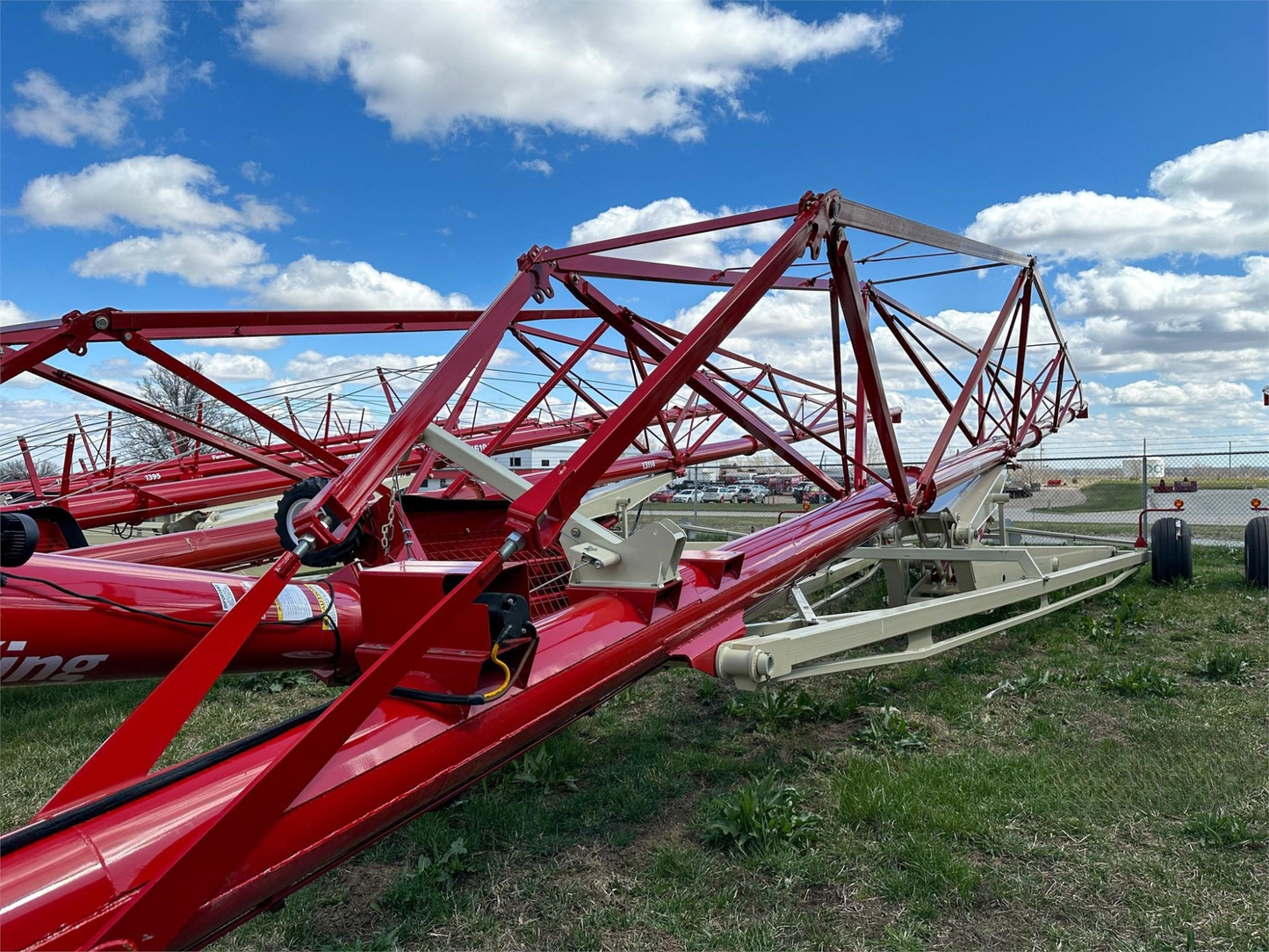

- Steel Bridging and Cables: Ensures stability during operation under windy conditions.
- The Farm King 13114 BackSaver Auger combines practicality, economy, and dependability, making it a trusted choice for grain handling operations.
Detailed Specifications
| Specification | Details |
|---|---|
| Size | 13" x 114' |
| Tubing | 12 gauge |
| Flighting | 1/4" flighting in swing-away and main auger |
| Flighting Shaft | 11 gauge, 2 3/8" diameter |
| Undercarriage | 5" x 5" x 1/4" square tube |
| Lift Arms | 1/4" formed tubing upper, 7 gauge lower |
| Bridging | Steel tube trussing |
| Wheels and Hubs | 6 bolt hubs, 11 L x 15 x 8 ply |
| Swing Auger Drive | Two internal gearboxes (PTO driven), sprocket and chain |

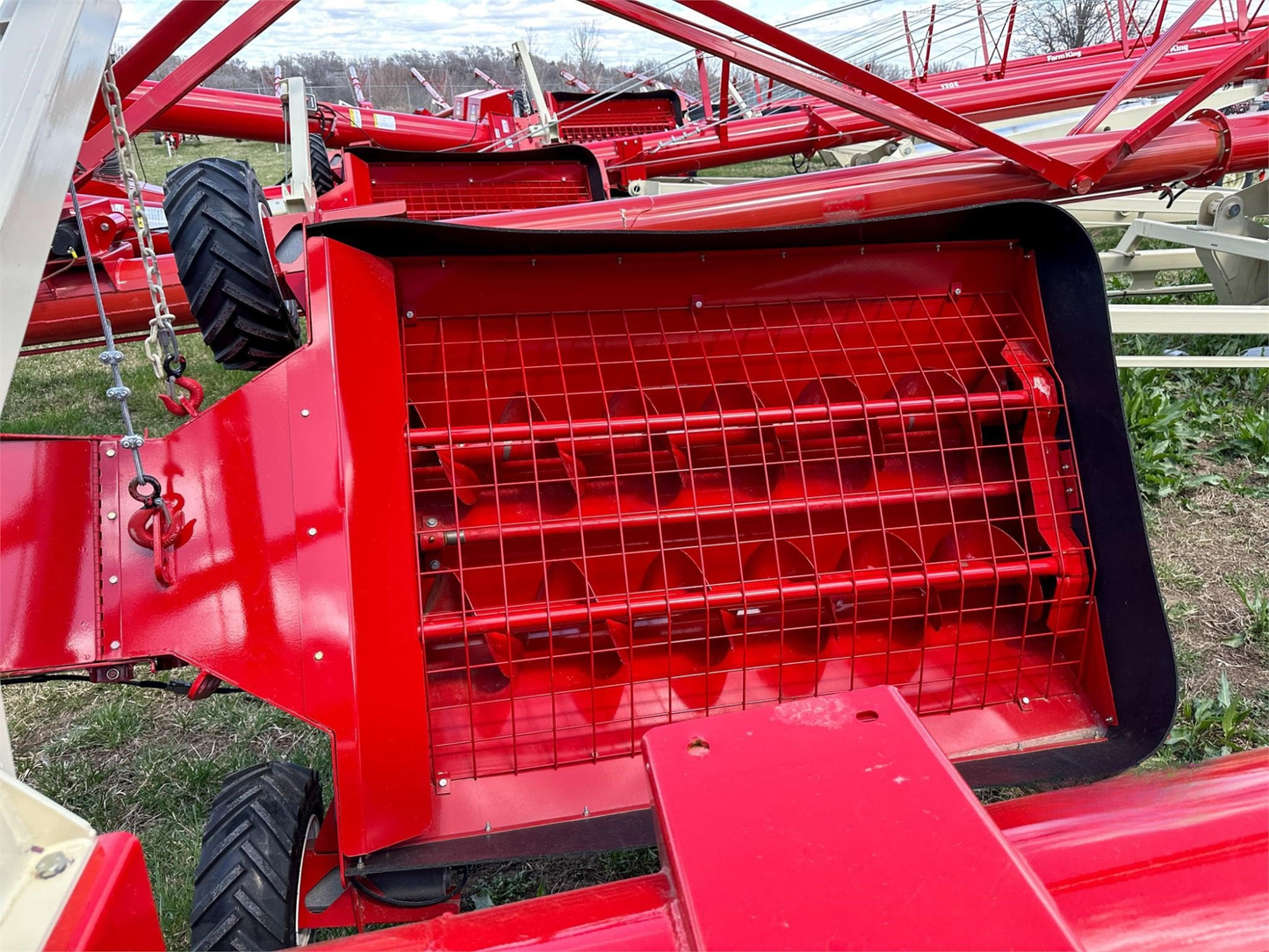

| Hopper Dimensions | 43-1/2" x 60" |
| Standard Hopper Height from Ground | 16-3/4" at heel end, 16-1/4" at other end |
| Multi-flighting Hopper Height from Ground | 12-3/4" at both ends |
| Tractor Requirements - Min PTO hp (with 540 RPM PTO) | 165 hp |
| Tractor Requirements - Approx. Hydraulic Requirements for Lift | 1700 PSI |
| Hitch Weight | 2700 lb |
| Weight | 15,500 lb |
