Product Description
Farm King Back-saver Grain Auger | Model 1370 | Size 13" x 70' | PTO Horsepower 80 Hp | For Tractors
DESCRIPTION
The Farm King 1370 BackSaver Auger is designed with over four decades of expertise in grain handling. Featuring a unique scissor lift undercarriage, it provides smooth and easy operation, allowing farmers to get closer to grain bins and ensuring stability with steel cables and solid bridging.
Key Features
| Measurement | Details |
|---|---|
| Wheel Track | 12' |
| A, Height - Lowest | 13' 7" |
| A, Height - Half Way | 31' 9" |
| A, Height - Highest | 50' |
| B, Forward Reach - Lowest | 36' 11" |
| B, Forward Reach - Half Way | 33' |
| B, Forward Reach - Highest | 27' 5" |

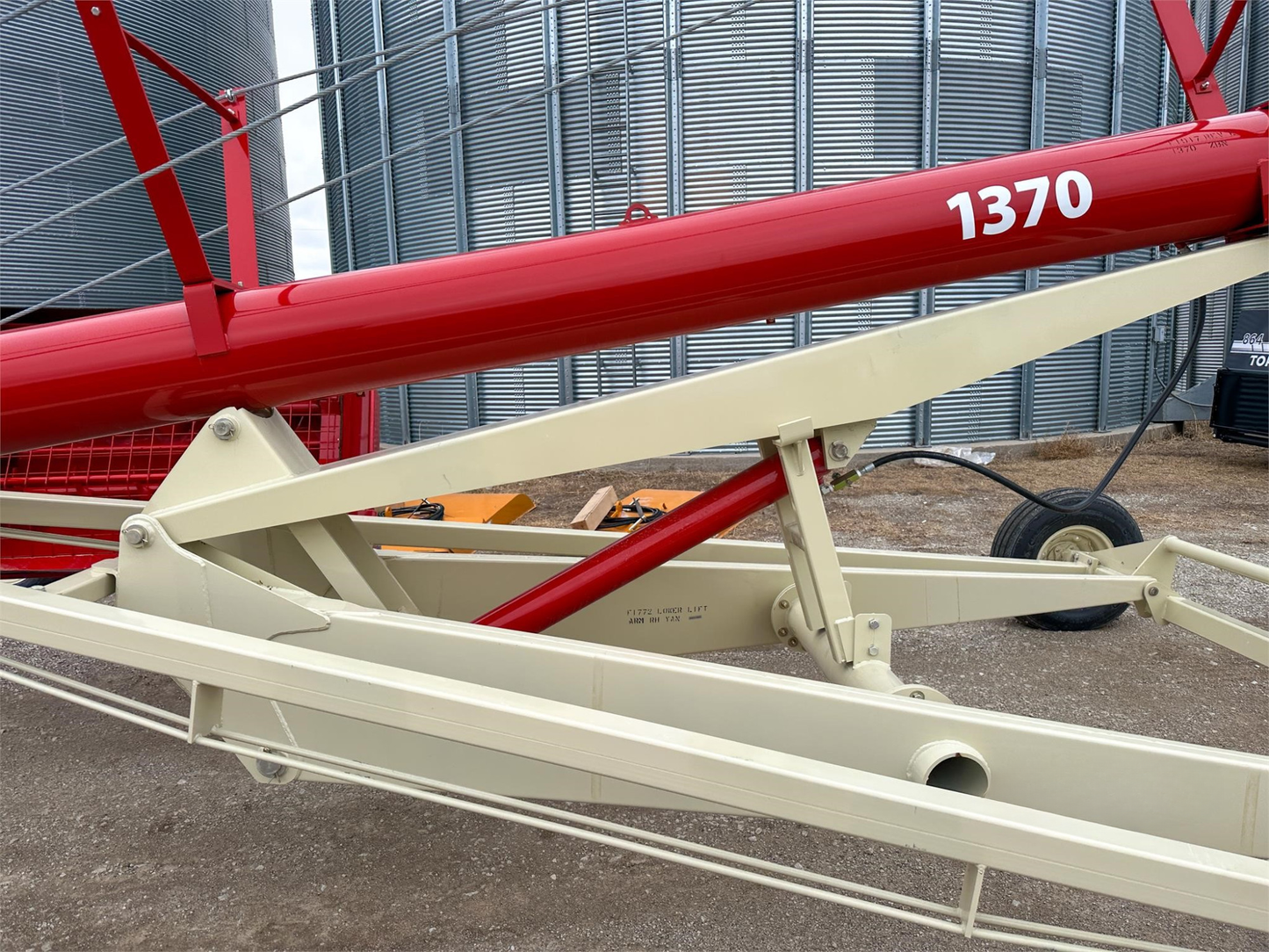

- Scissor Lift Design: Available on all BackSaver models for easy and smooth operation.
- Hydraulic Controls: Auger-mounted controls for lifting, transporting, and positioning with ease.

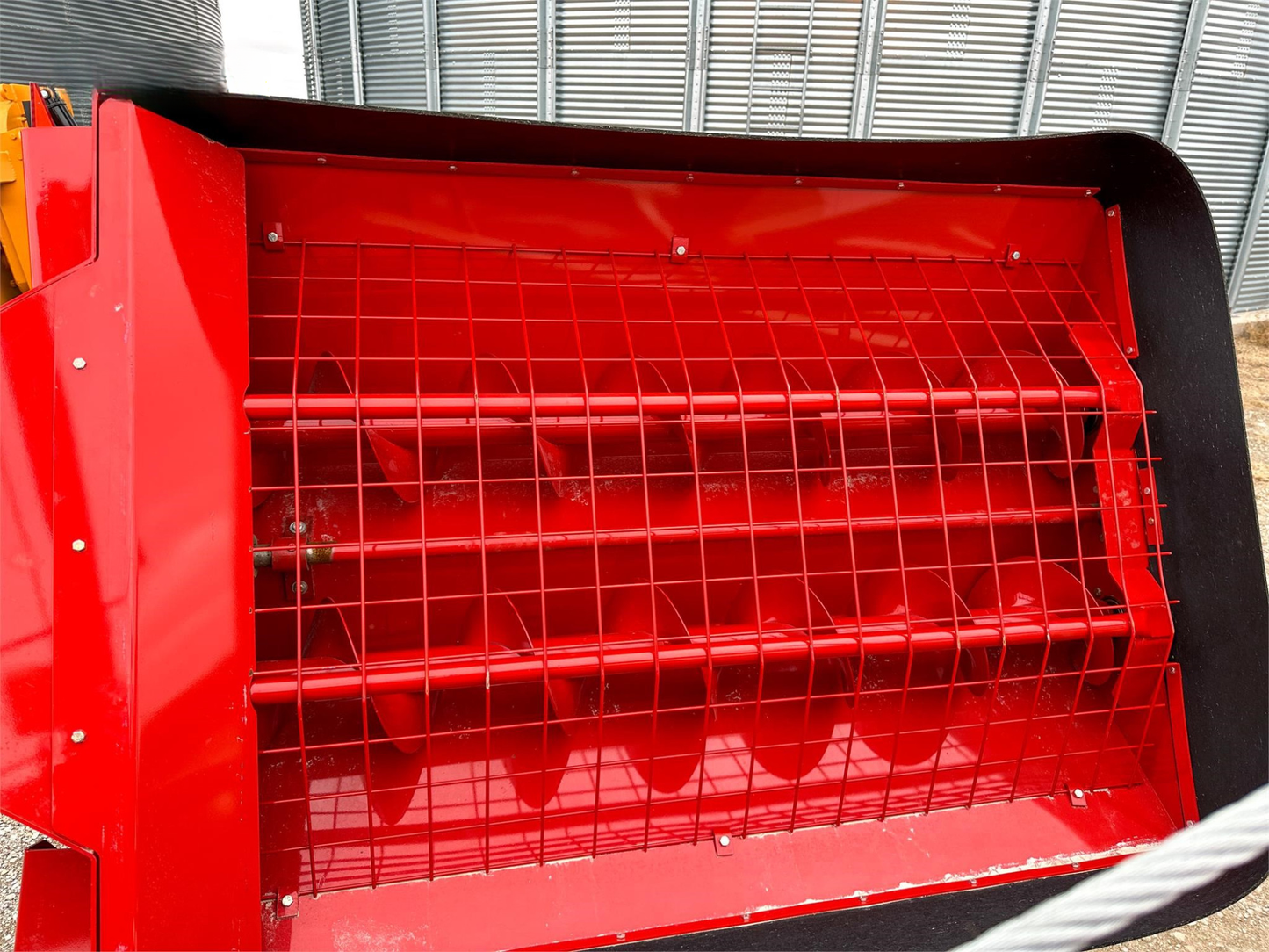

- Self-leveling Hopper: Stays level on uneven terrain, reducing down pressure on parts.
- Adjustable Lighting Kit: Available on 16" models for optimal visibility during nighttime operations.

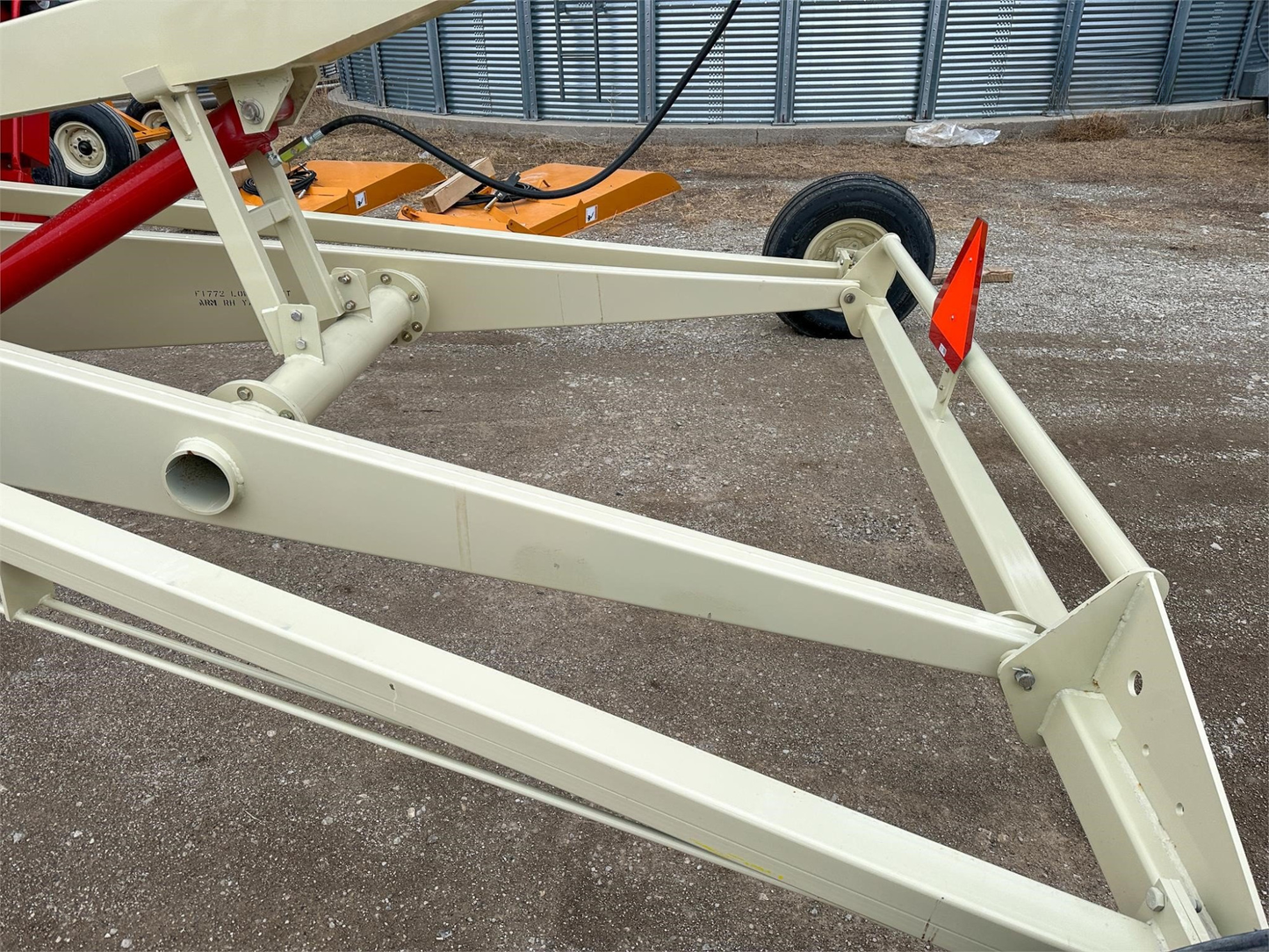

- Sturdy Undercarriage: Scissor lift design requiring less hydraulic pressure and maintaining stability.
- Dual Spool Valve: Optional for hydraulic operation of the intake hopper winch and mover.
- Hydraulic Winch: Lifts the hopper into place for transport.
- Hydraulic Drive Wheels: Standard on model 16104 for precise positioning.
- Hydraulic Hopper Mover: Adds a powerful motor for easy positioning, standard on model 16104.
Models Available:
- 10" and 13" Models: Practical and dependable with tubing sizes from 50' to 114'.
- 16" Model: Designed for handling large quantities of grain with ease.
With lengths ranging from 50’ to 114’ and tubing diameters of 10”, 13”, and 16”, the Farm King BackSaver Auger meets a variety of grain handling needs with peak operation horsepower ranging from 40 Hp to 175 Hp.
Detailed Specifications
| Specification | Details |
|---|---|
| Size | 13" x 70' |
| Tubing | 12 gauge |
| Flighting | 1/4" flighting in swing-away and main auger |
| Flighting Shaft | 11 gauge, 3" diameter |
| Undercarriage | 70' - 3-1/2" x 3-1/2" x 3/16" square tube; 85' and 95' - 4" x 4" x 1/4" square tube |
| Lift Arms | 1/4" formed tubing upper, 7 gauge lower |
| Bridging | 1/2" cable |
| Wheels and Hubs | 15" with 6 bolt automotive type hubs and bearings |

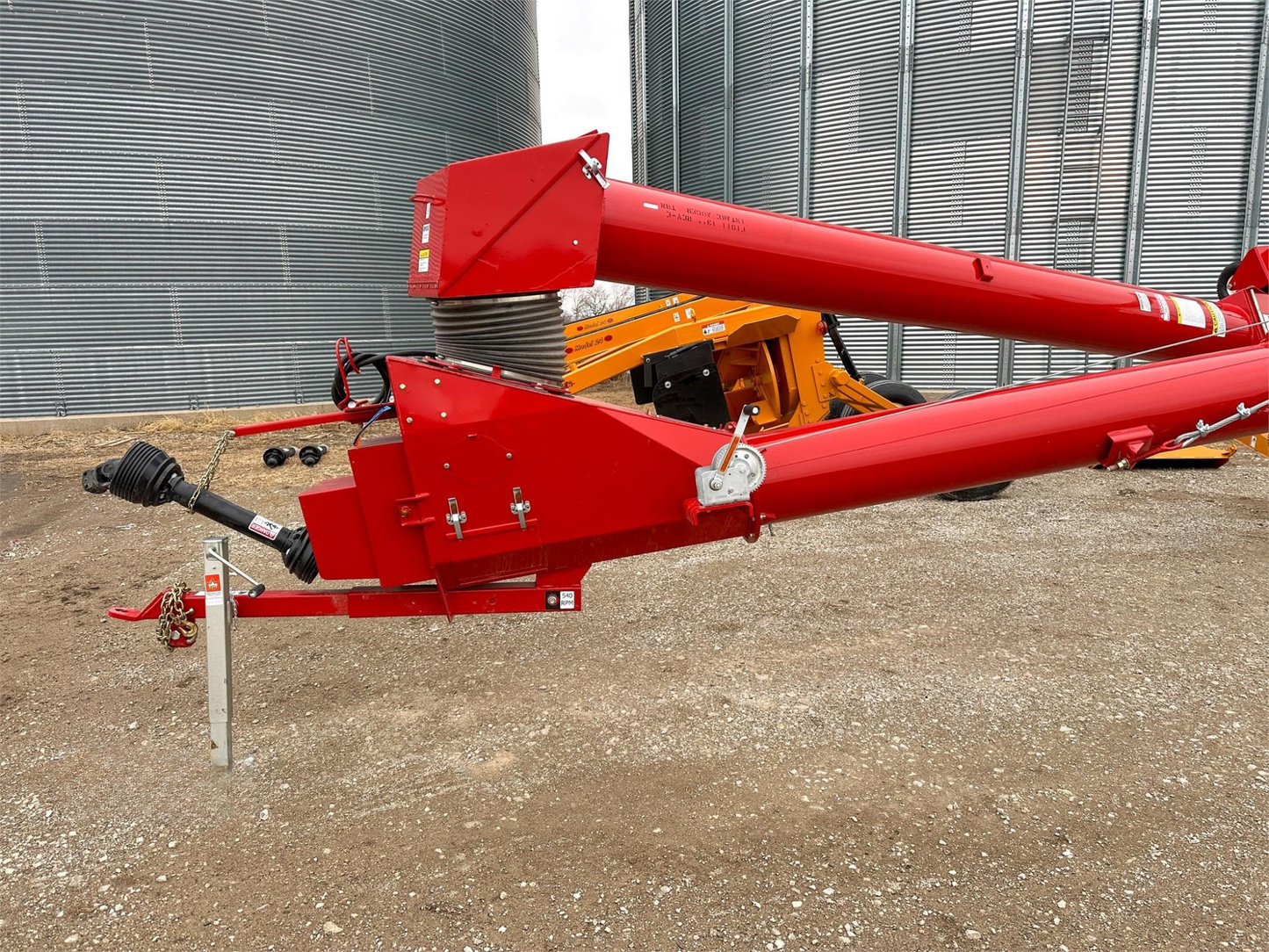

| Swing Auger Drive | Two internal gearboxes (PTO driven), sprocket and chain |
| Hopper Dimensions | 43-1/2" x 60" |
| Standard Hopper Height from Ground | 16-3/4" at heel end, 16-1/4" at other end |
| Multi-flighting Hopper Height from Ground | 12-3/4" at both ends |
| Tractor Requirements - Min PTO hp (with 540 RPM PTO) | 80 hp |
| Tractor Requirements - Approx. Hydraulic Requirements for Lift | 1200 PSI |
| Hitch Weight | 1140 lb |
| Weight | 5175 lb |
