Product Description
Farm King Back-saver Grain Auger | Model 1395 | Size 13" x 95' | PTO Horsepower 100 Hp | For Tractors
DESCRIPTION

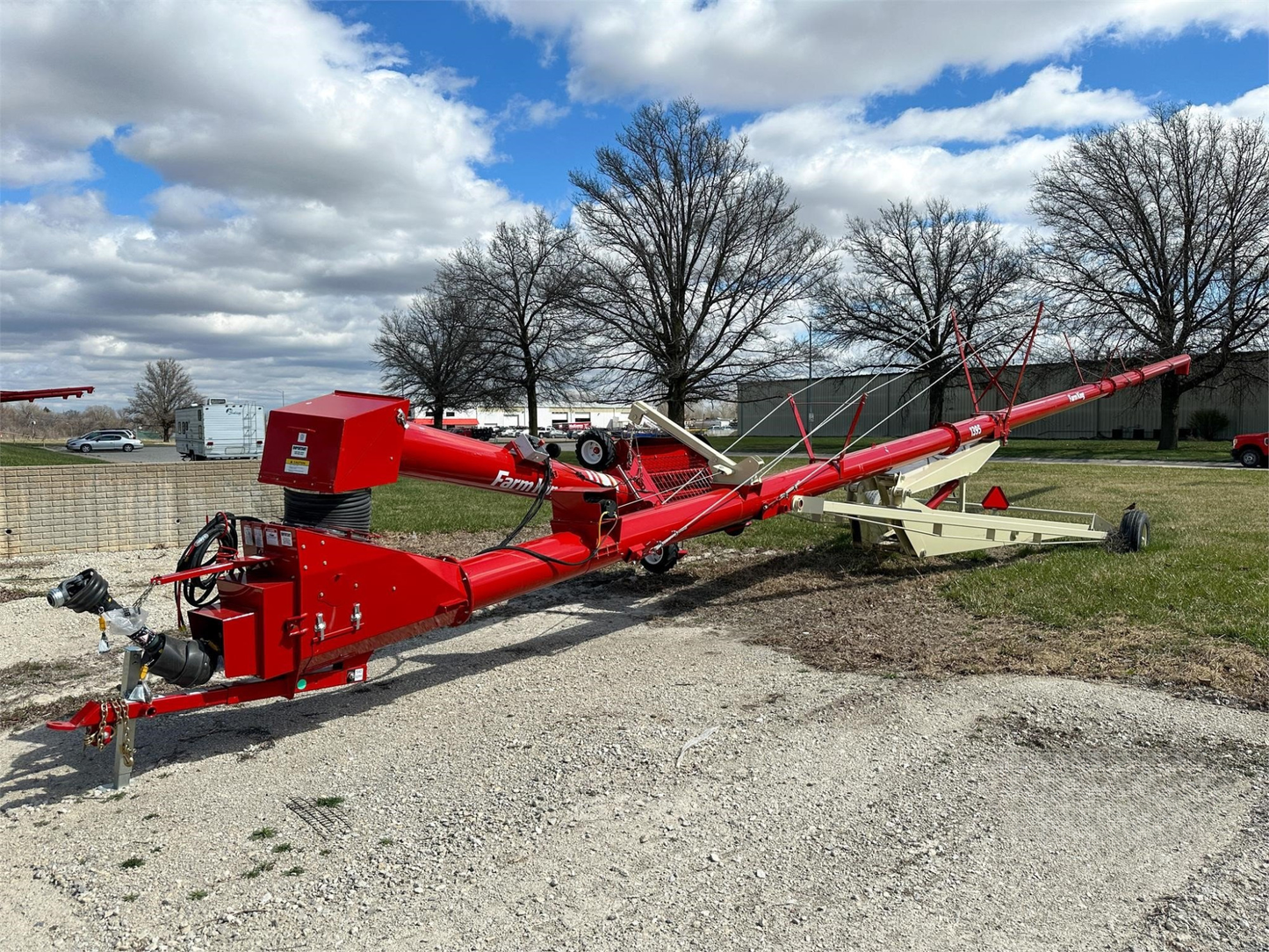

The Farm King 1395 BackSaver Auger is designed by experts who understand the complexities of grain handling. Over the past four decades, this flagship product has proven to be dependable and efficient. The unique scissor lift undercarriage ensures smooth operation and ease of use, allowing farmers to get closer to grain bins. The auger's hydraulics can be locked in place with a safety ball valve lever, ensuring stability and peace of mind.
With steel cables and solid bridging, the 13” x 114’ auger remains stable, even in windy conditions. Transport is made easy with a maximum height of 15'. The BackSaver Auger is available in lengths from 50’ to 114’ and in 10”, 13”, and 16” diameter tubing, making it suitable for a variety of grain handling needs. It requires between 40 Hp and 175 Hp for peak operation, depending on the model.
Key Features
| Measurement | Details |
|---|---|
| Wheel Track | 12' |
| A, Height - Lowest | 14' 8" |
| A, Height - Half Way | 40' 6" |
| A, Height - Highest | 66' 4" |
| B, Forward Reach - Lowest | 55' 4" |
| B, Forward Reach - Half Way | 48' 3" |
| B, Forward Reach - Highest | 38' 9" |

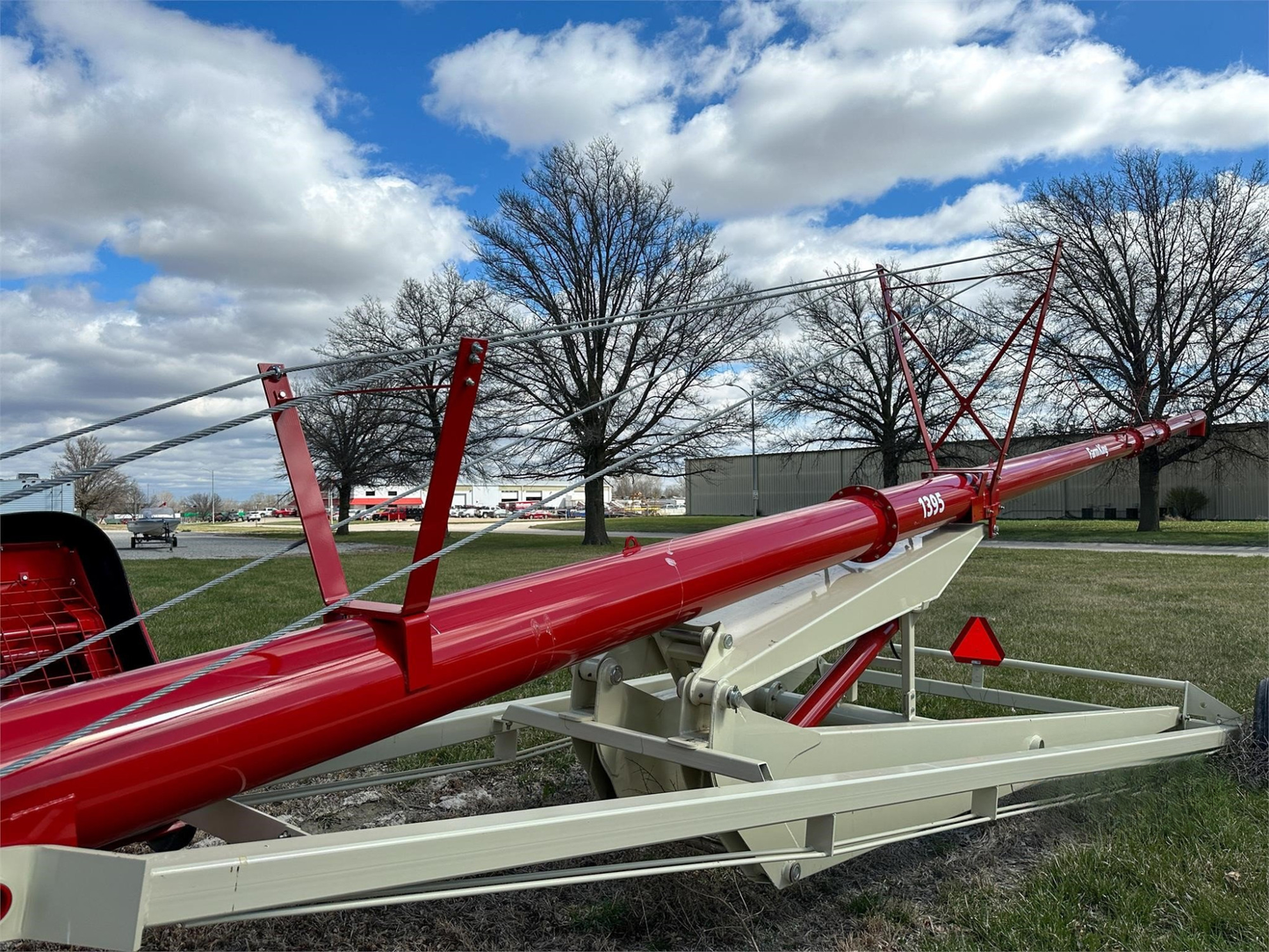

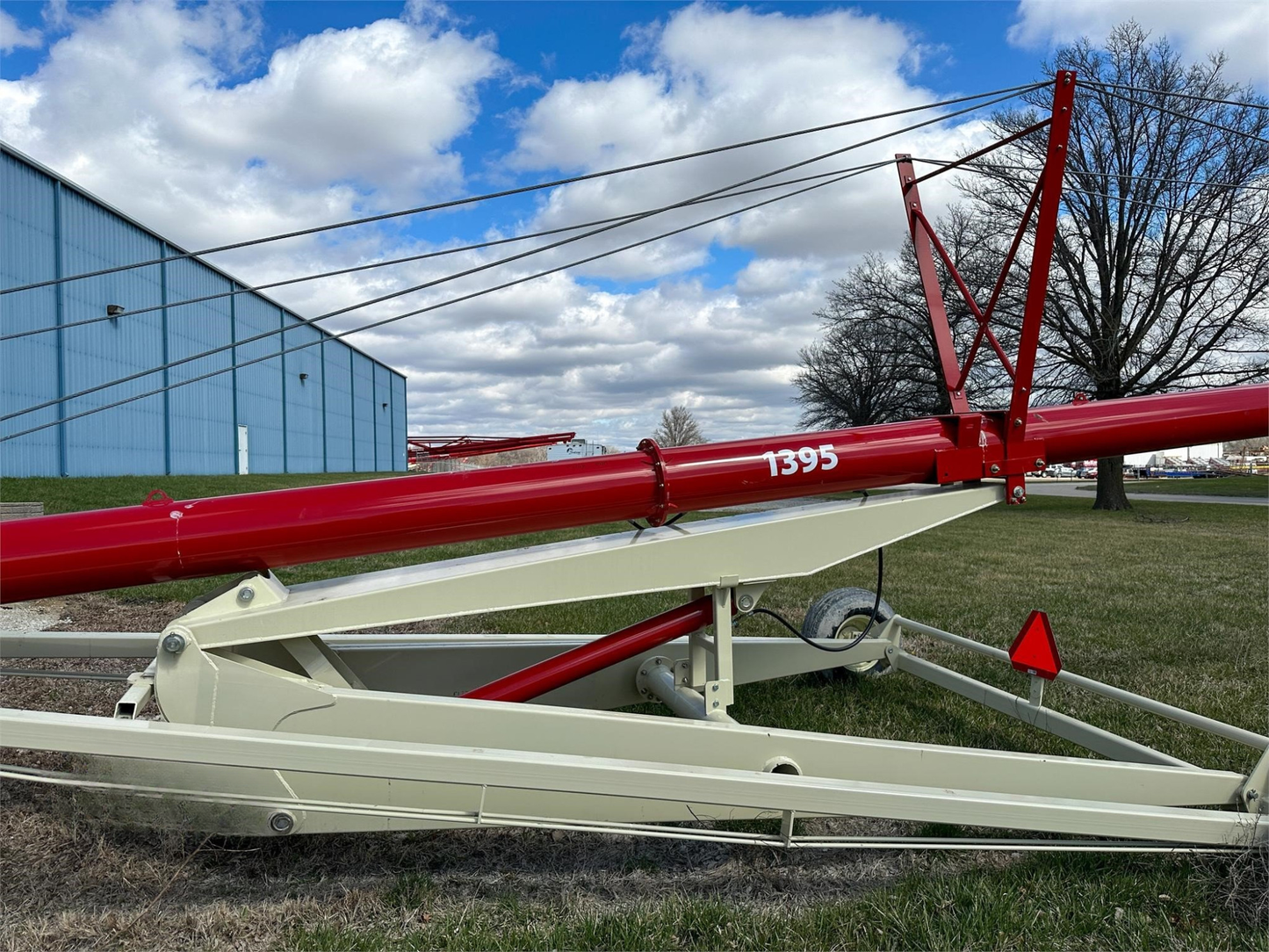

- Scissor Lift Design: Ensures smooth operation and ease of use across all BackSaver models.

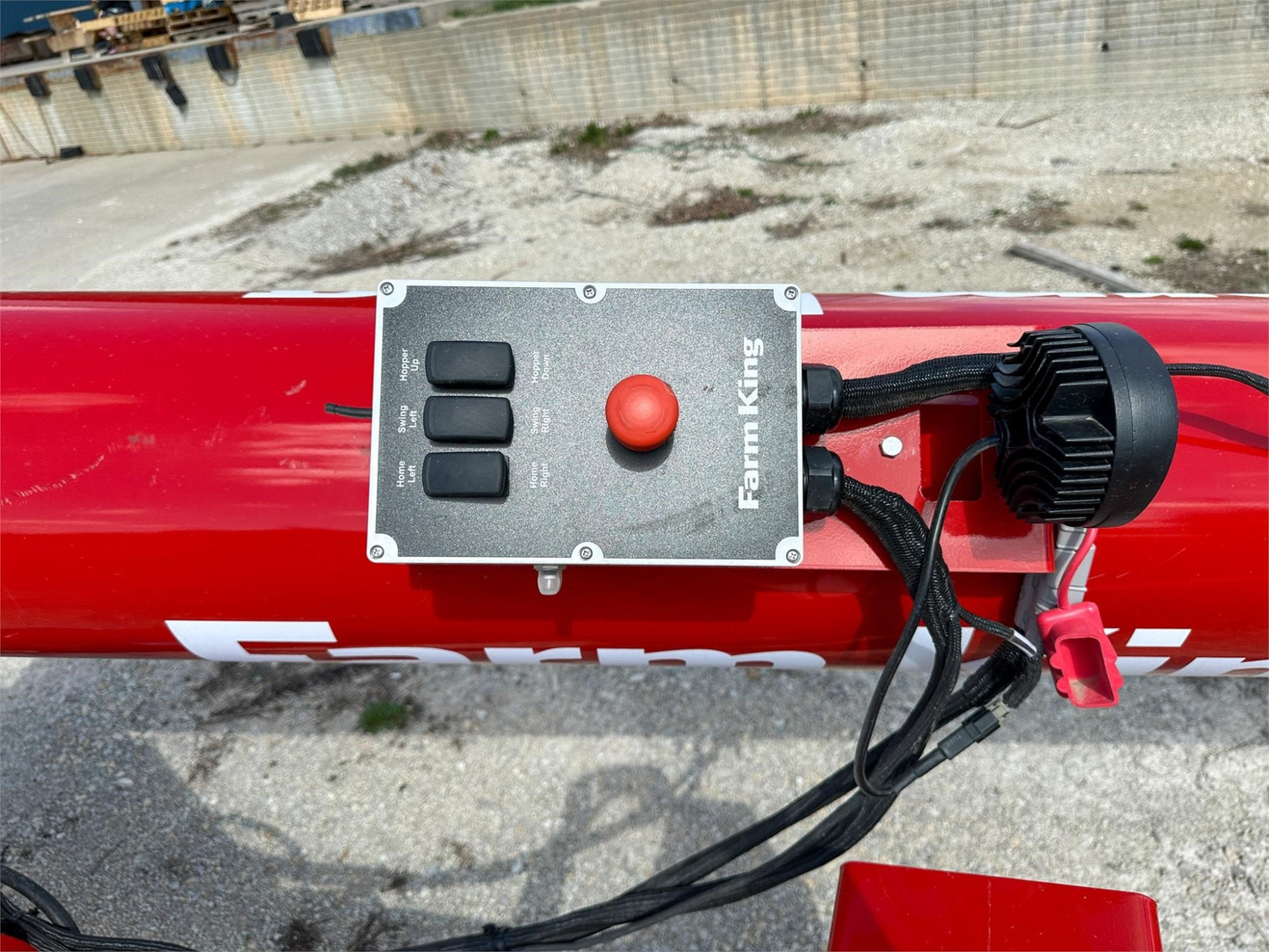

- Hydraulic Controls: Facilitates easy lifting, transporting, and positioning of the auger and hopper.
- Self-leveling Hopper: Remains level on uneven terrain, reducing unnecessary down pressure.
- Adjustable Lighting Kit: Available on 16" models for optimal visibility during nighttime operations.
- Sturdy Undercarriage: Requires less hydraulic pressure and maintains stability.
- Dual Spool Valve: Optional for hydraulic operation of the intake hopper winch and mover.
- Hydraulic Winch: Lifts the hopper into place for transport, standard on model 16104, optional on other models.
- Hydraulic Drive Wheels: Standard on model 16104, providing precise positioning of the intake hopper.
- Hydraulic Hopper Mover: Adds a powerful hydraulic motor for easy positioning, standard on model 16104.
- 10' Extension: Included for added reach and flexibility.
- Steel Bridging and Cables: Ensures stability during operation under windy conditions.
The Farm King BackSaver Auger combines practicality, economy, and dependability, making it a preferred choice for grain handling operations.
Detailed Specifications
| Specification | Details |
|---|---|
| Size | 13" x 95' |
| Tubing | 12 gauge |
| Flighting | 1/4" flighting in swing-away and main auger |
| Flighting Shaft | 11 gauge, 2 3/8" diameter |
| Undercarriage | 70' - 3 1/2" x 3 1/2" x 3/16" square tube; 85' and 95' - 4" x 4" x 1/4" square tube |
| Lift Arms | 1/4" formed tubing upper, 7 gauge lower |
| Bridging | 1/2" cable |
| Wheels and Hubs | 15" with 6 bolt automotive type hubs and bearings |

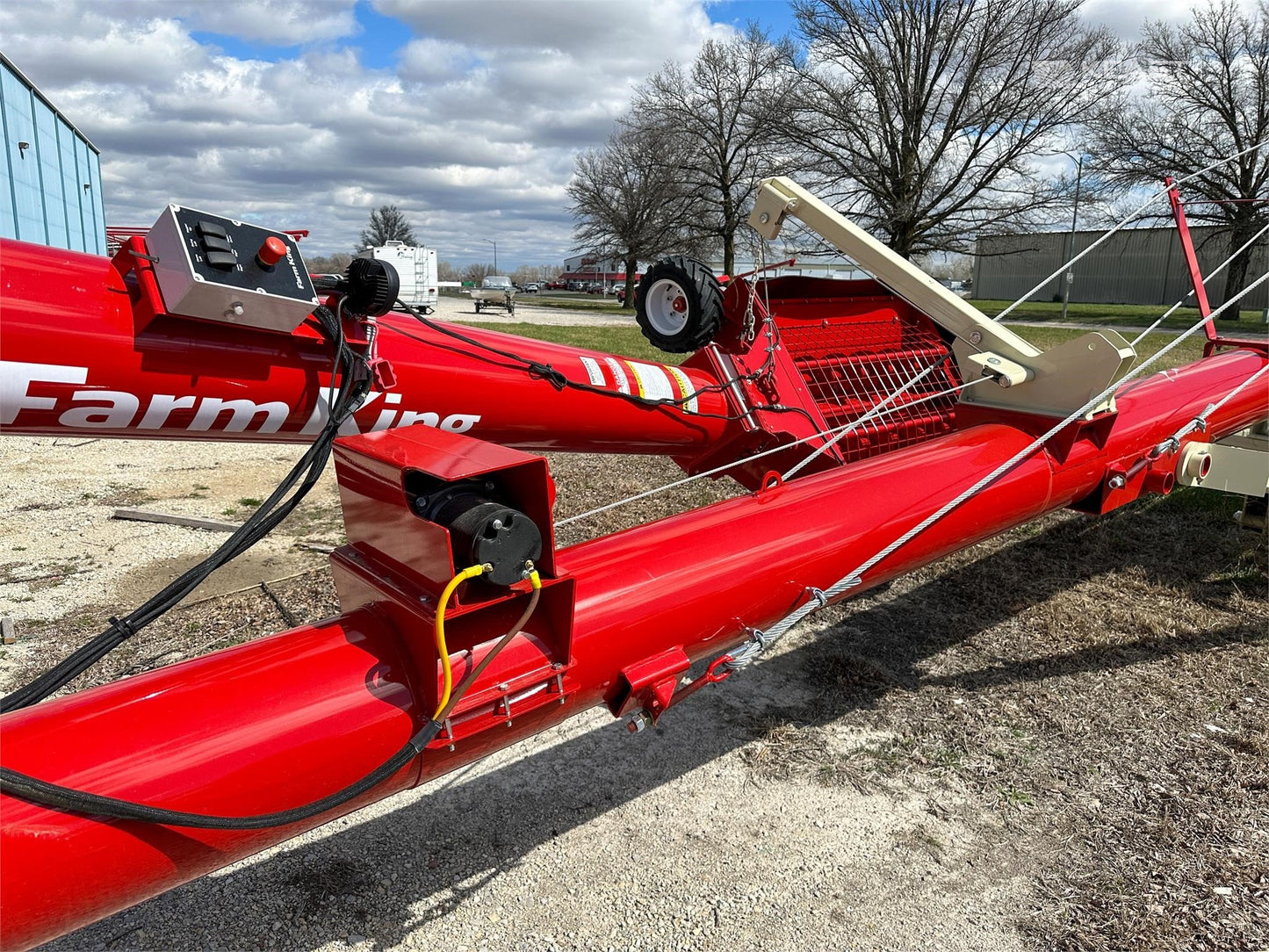

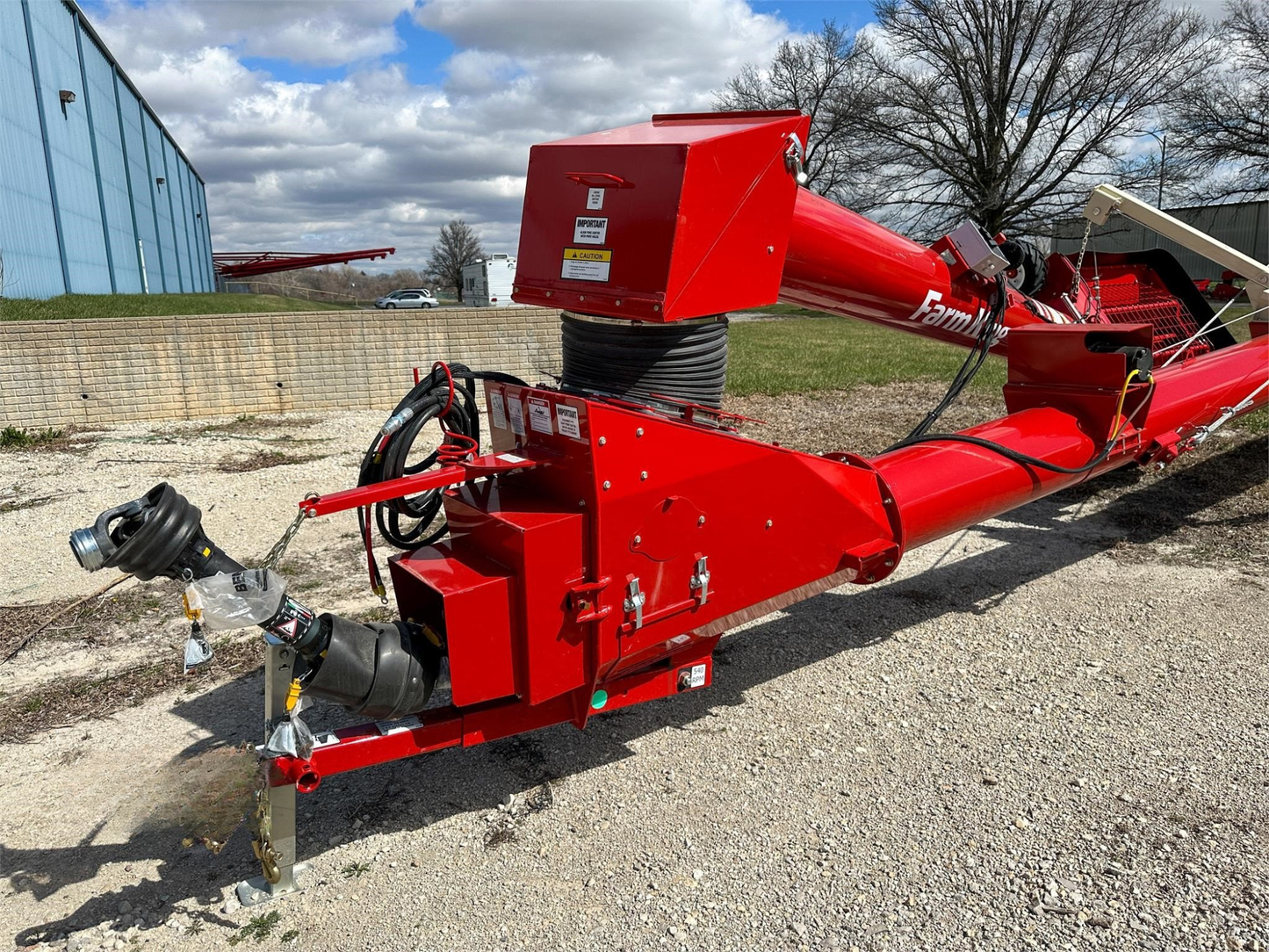

| Swing Auger Drive | Two internal gearboxes (PTO driven), sprocket and chain |
| Hopper Dimensions | 43-1/2" x 60" |
| Standard Hopper Height from Ground | 16-3/4" at heel end, 16-1/4" at other end |
| Multi-flighting Hopper Height from Ground | 12-3/4" at both ends |
| Tractor Requirements - Min PTO hp (with 540 RPM PTO) | 100 hp |
| Tractor Requirements - Approx. Hydraulic Requirements for Lift | 1200 PSI |
| Weight | 6683 lb |
