Product Description

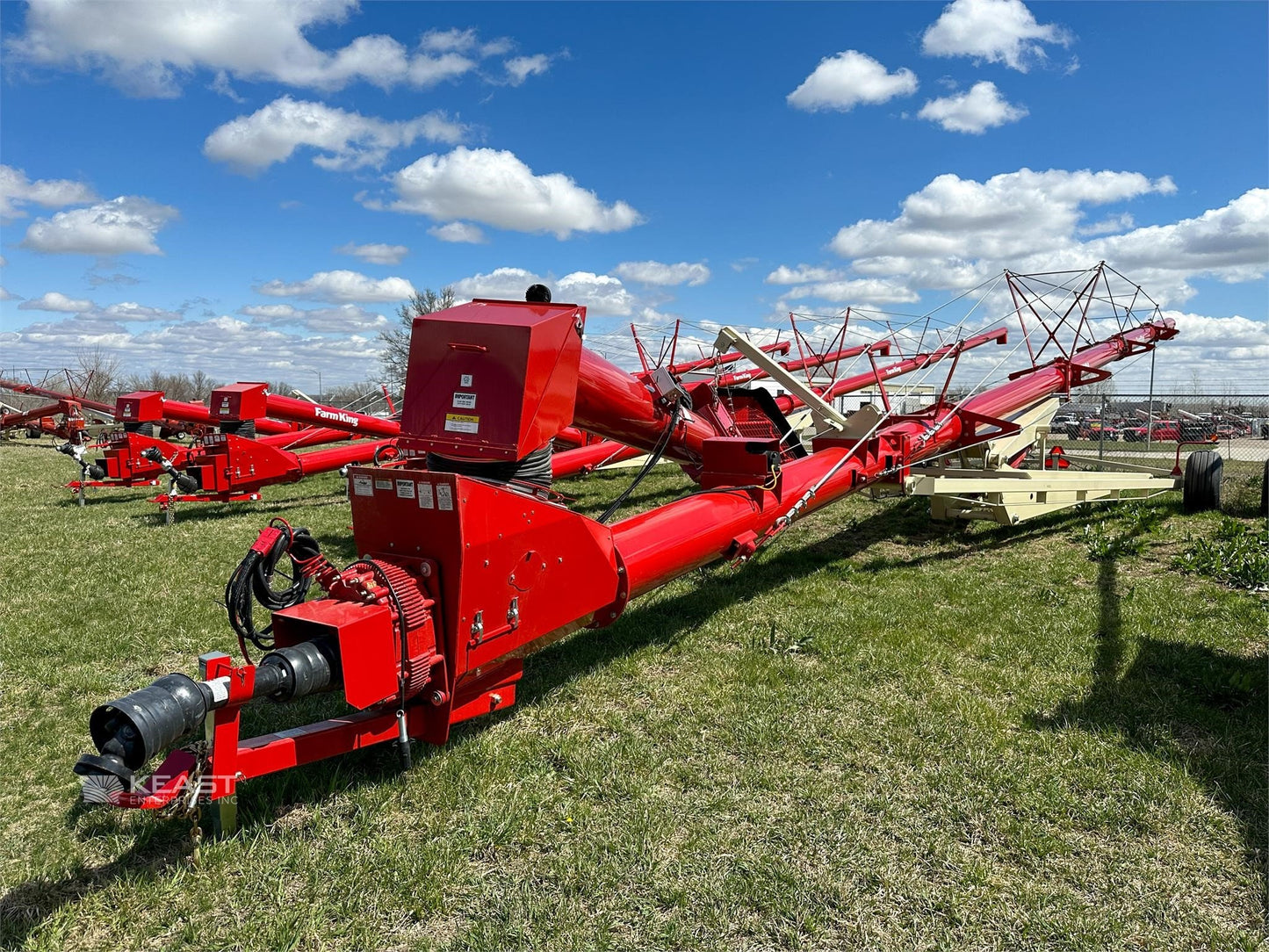

Farm King Back-saver Grain Auger | Model 16104 | Size 16" x 104' | PTO Horsepower 175 Hp | For Tractors
DESCRIPTION
The Farm King 16104 BackSaver Auger is engineered with one goal in mind: to move more grain, faster, and with less hassle. With a massive 16" diameter and 104' length, this high-capacity auger delivers unmatched performance for large-scale grain operations. Designed for tractors with a minimum of 175 HP PTO, it's the powerhouse you need to streamline your harvest season and get the job done right.
Trusted by farmers for over 40 years, the BackSaver series features a patented scissor-lift undercarriage, ensuring smooth lift operation and rock-solid stability even in windy conditions. With hydraulically operated components, a self-leveling intake hopper, and optional adjustable lighting, the 16104 doesn’t just work hard it works smart, letting you load quickly and safely, day or night.
Whether you're filling bins, loading trucks, or transferring grain between silos, the 16104 is built for high-volume productivity, all while reducing manual labor. Dependable, durable, and designed by people who understand the real demands of harvest season this auger earns its place in every professional farming operation.
Key Features
- High-Capacity 16" Diameter: Moves large grain volumes quickly to cut loading times.
- 104' Length Reach: Ideal for filling larger grain bins or crossing wide gaps.

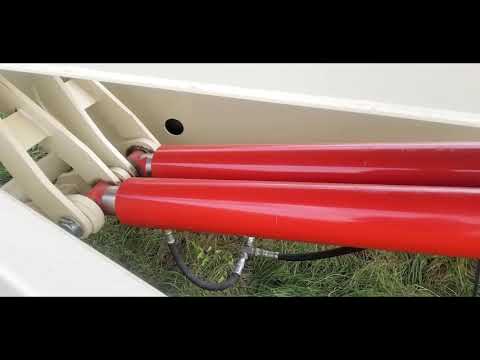

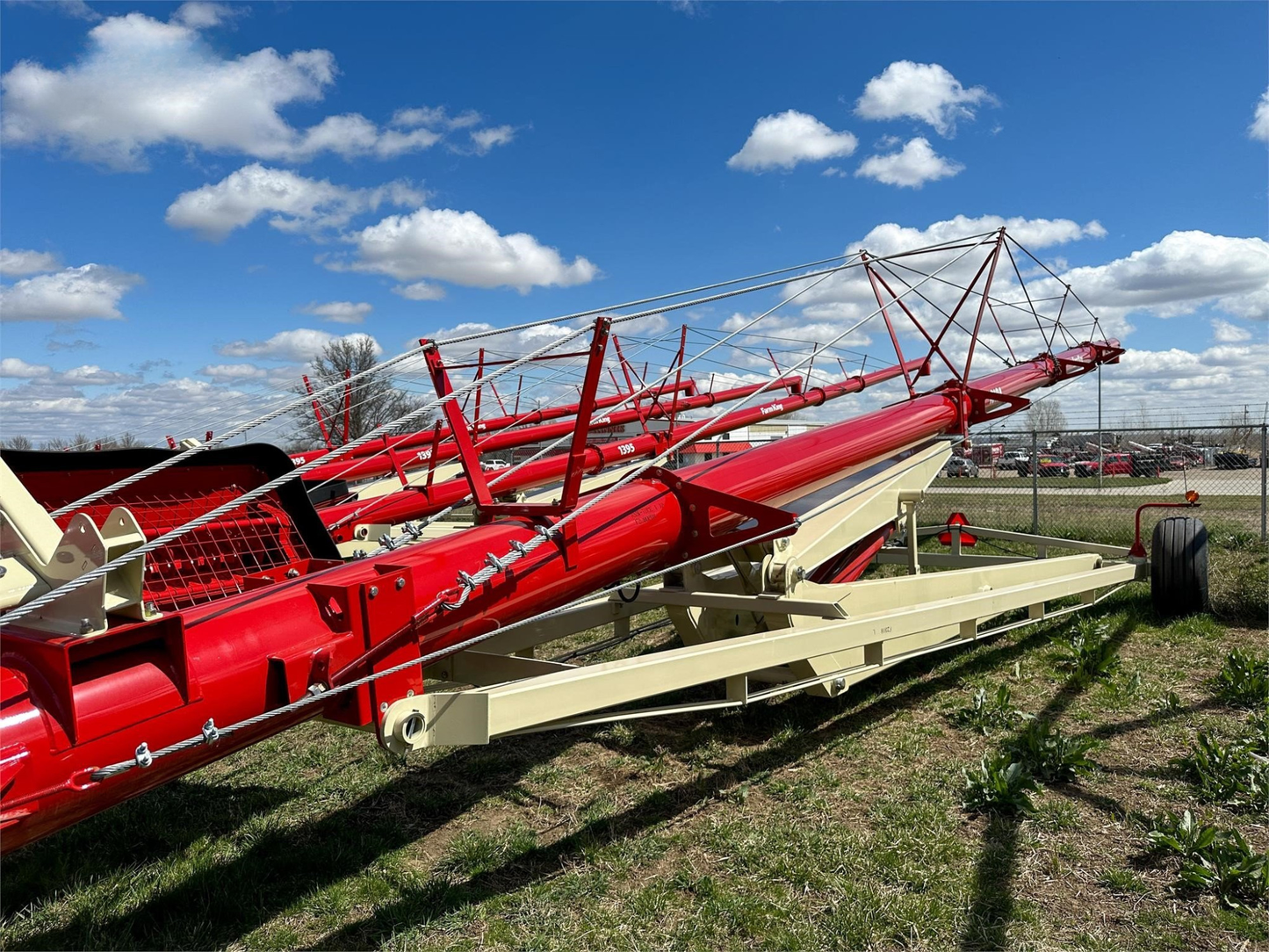

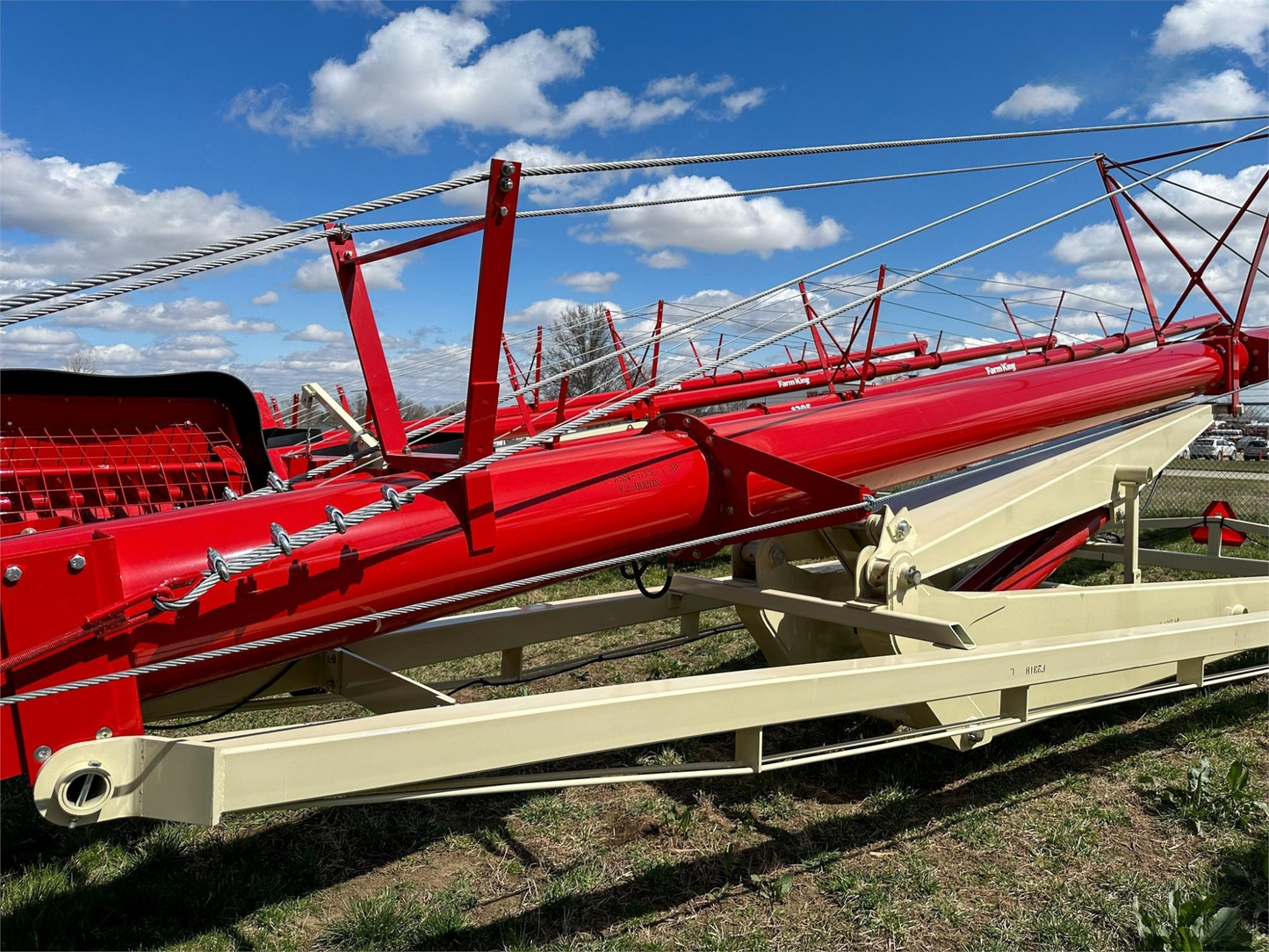

- Scissor Lift Undercarriage: Exclusive Farm King design offers stable and smooth vertical lift.
- PTO-Driven Power: Requires just Horsepower 175 HP PTO, making it compatible with most high-horsepower tractors.

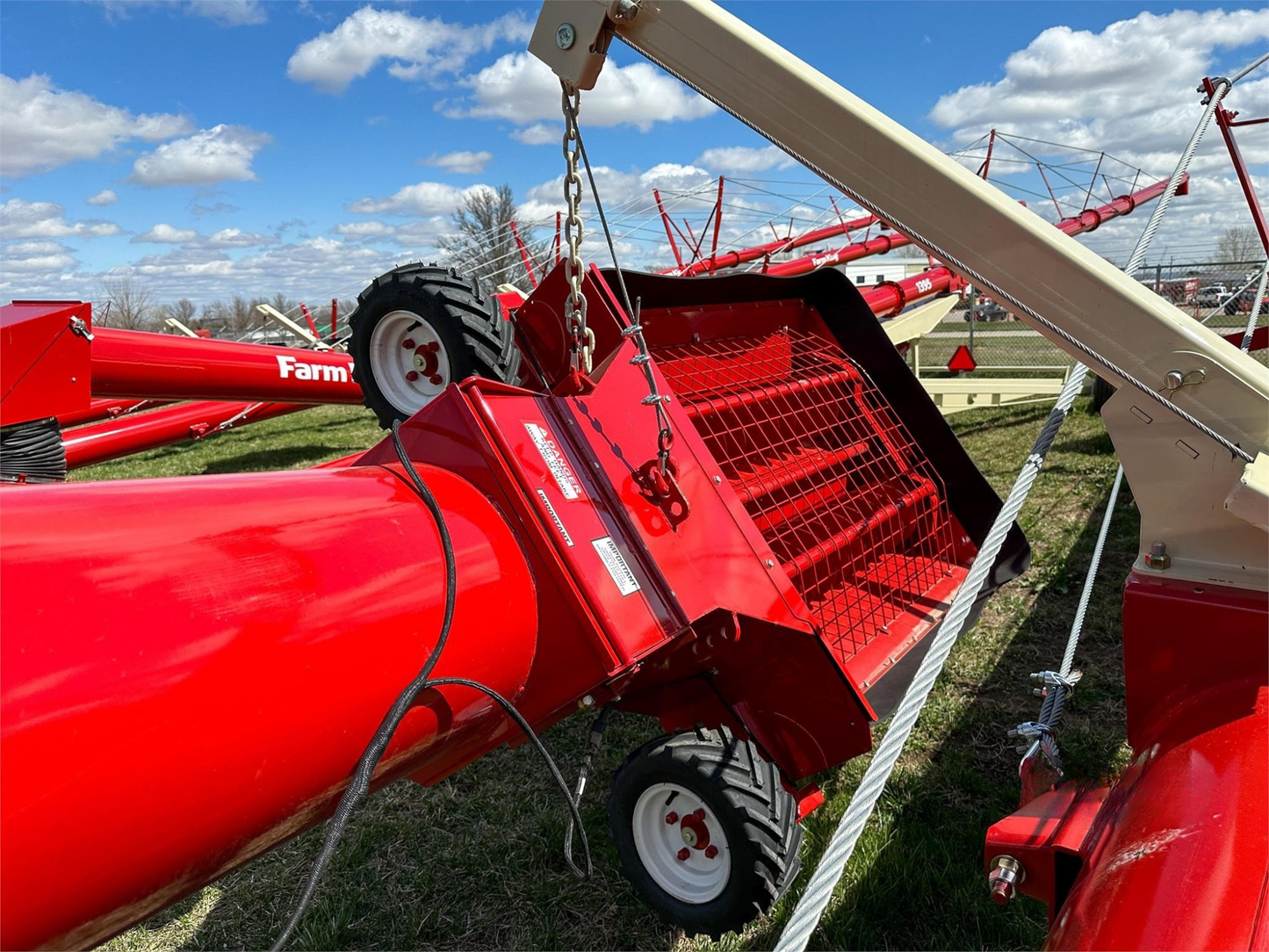

- Self-Leveling Hopper: Stays level on uneven terrain to reduce wear and improve grain flow.

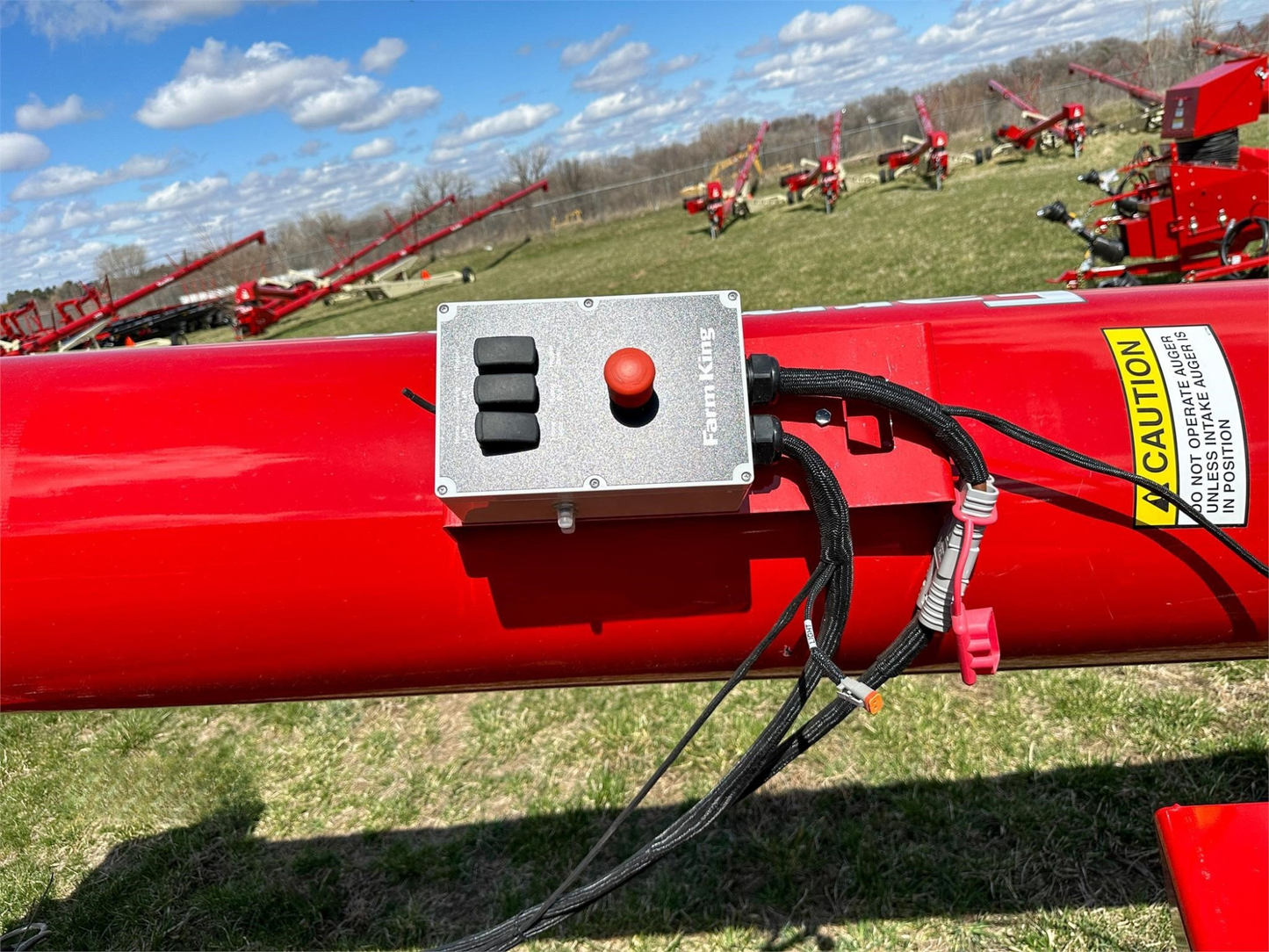

- Hydraulic Controls: Simplifies lifting, positioning, and hopper movement — less physical labor.

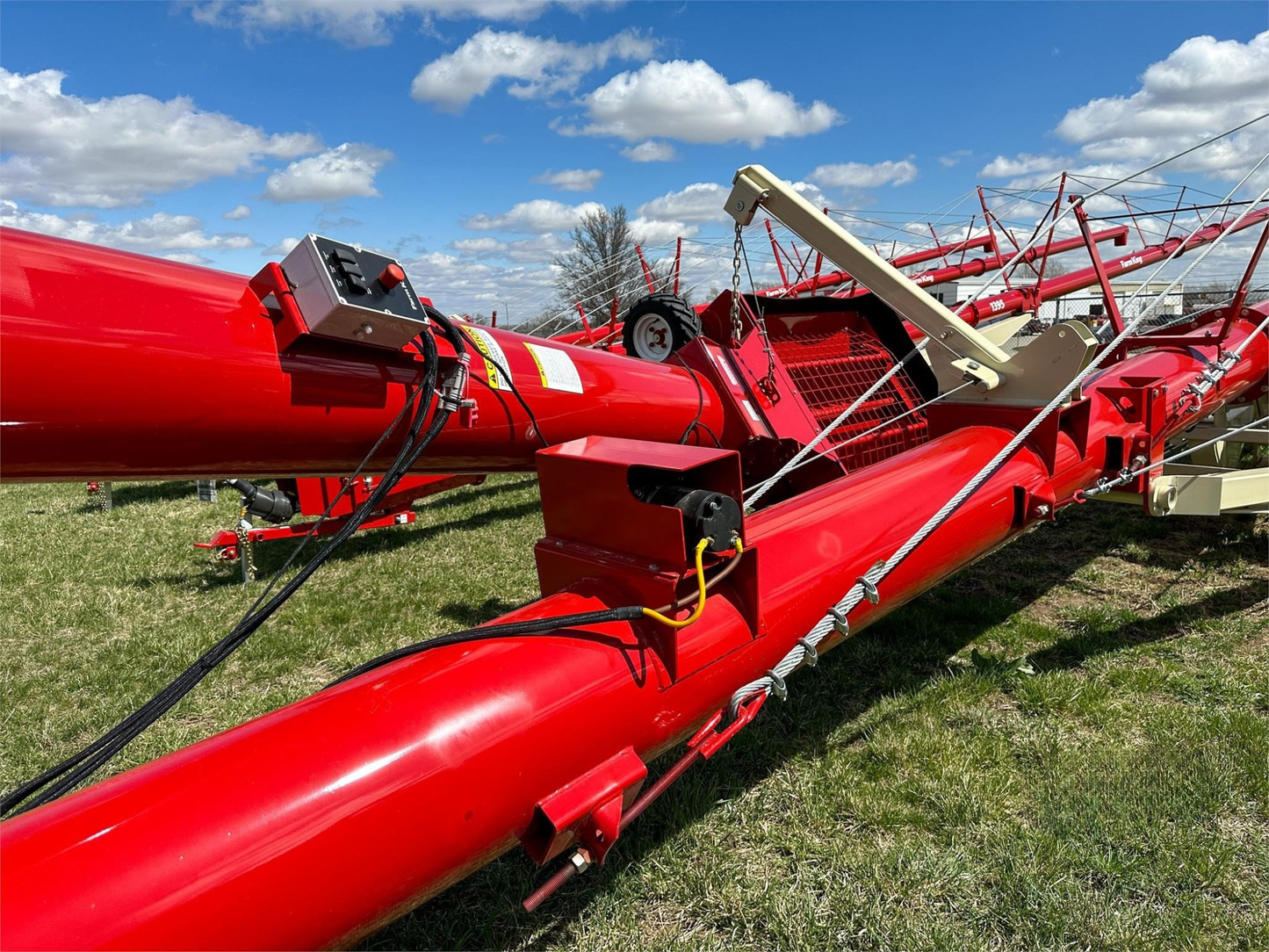

- Hydraulic Hopper Mover: Standard on the 16104 for effortless hopper adjustment.
- Hydraulic Winch Included: Raises the hopper into transport position quickly and safely.
- Lighting Kit Available: Illuminate your workspace with dual-light visibility for after-hours operation.
- Solid Steel Bridging & Cables: Reinforced construction ensures stability in high wind and rough conditions.
- Heavy-Duty Flighting: 1/4" thick auger and swing flighting handles heavy, damp crop loads with ease.
- Flexible, High-Quality Spout: Precision unloading for bins and trucks with minimal grain loss.
- Wide Undercarriage Footprint: 14’ 6” track width provides excellent balance on all terrains.
- Transport-Ready Design: Folds down to a 15' max height for easy relocation.
- Dual Spool Valve Option: For enhanced control of winch and hopper via hydraulics.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | Farm King 16104 BackSaver Grain Auger |
| Compatibility | For Tractors (175 HP PTO Minimum) |
| Drive Type | PTO Driven (1000 RPM) |
| Tubing Size | 16" Diameter x 104' Length |
| Flighting Thickness | 1/4" (Main & Swing Auger) |
| Flighting Shaft | 11 ga., 3.5" Diameter |
| Auger Tubing Gauges | Sections 1 & 2: 10 ga; 3–5: 11 ga |
| Undercarriage Material | 5" x 5" x 1/4" Square Tube Steel |
| Lift Arms | 1/4" Formed Tubing |
| Bridging Cables | Upper: 3/4" Cable; Side: 1/2" Cable |
| Wheel Track Width | 14' 6" |
| Wheel Hubs & Tires | 8-Bolt Hubs, 16.5L x 16.1, 10 Ply |
| Hydraulic Requirements | 1500 PSI |
| Hopper Dimensions (W x L x H) | 48" x 60" x 13.5" |
| Hopper Ground Clearance | 13.5" (Multi-flighting) |
| Forward Reach (Lowest – Highest) | 57' 8" to 36' 1" |
| Height Range (Lowest – Highest) | 14' 10" to 77' 4" |
| Transport Height (Max) | 15' |
| Hitch Weight | 2,700 lbs |
| Total Weight | 13,000 lbs |
