Product Description
Farm King Back-saver Grain Auger | Model Y-1385TMR | Size 13" x 85' | PTO Horsepower 90 Hp | For Tractors
DESCRIPTION

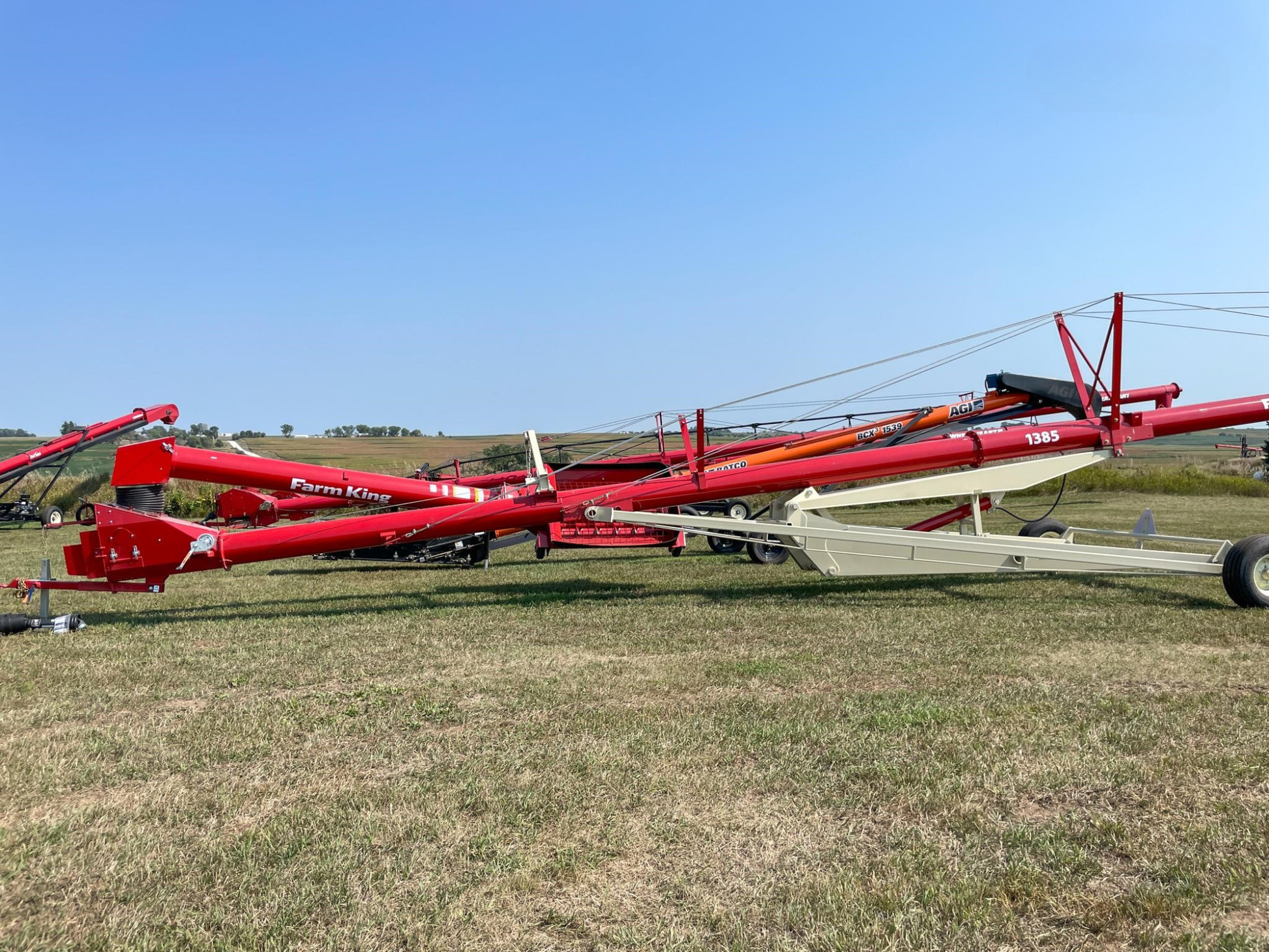

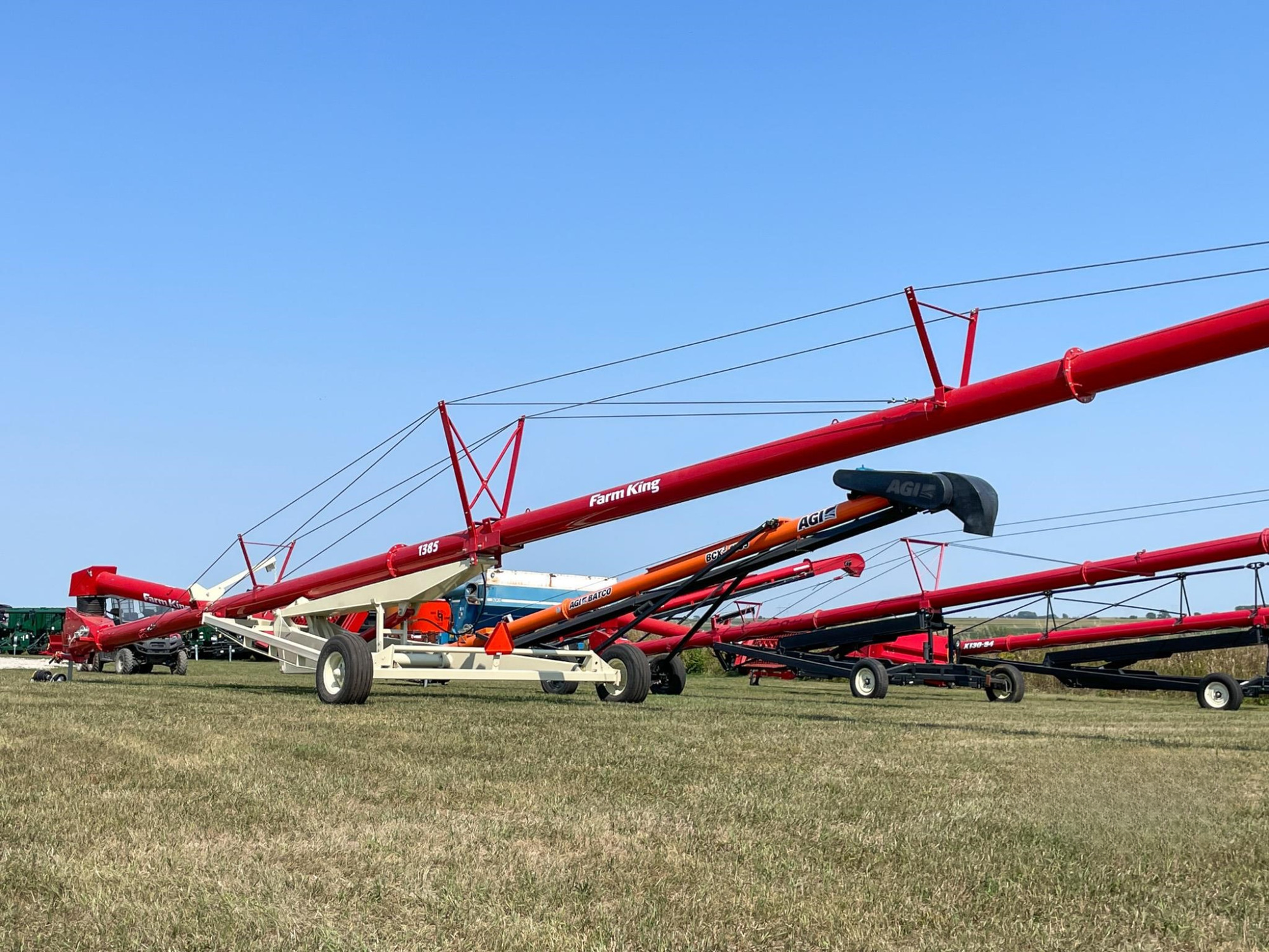

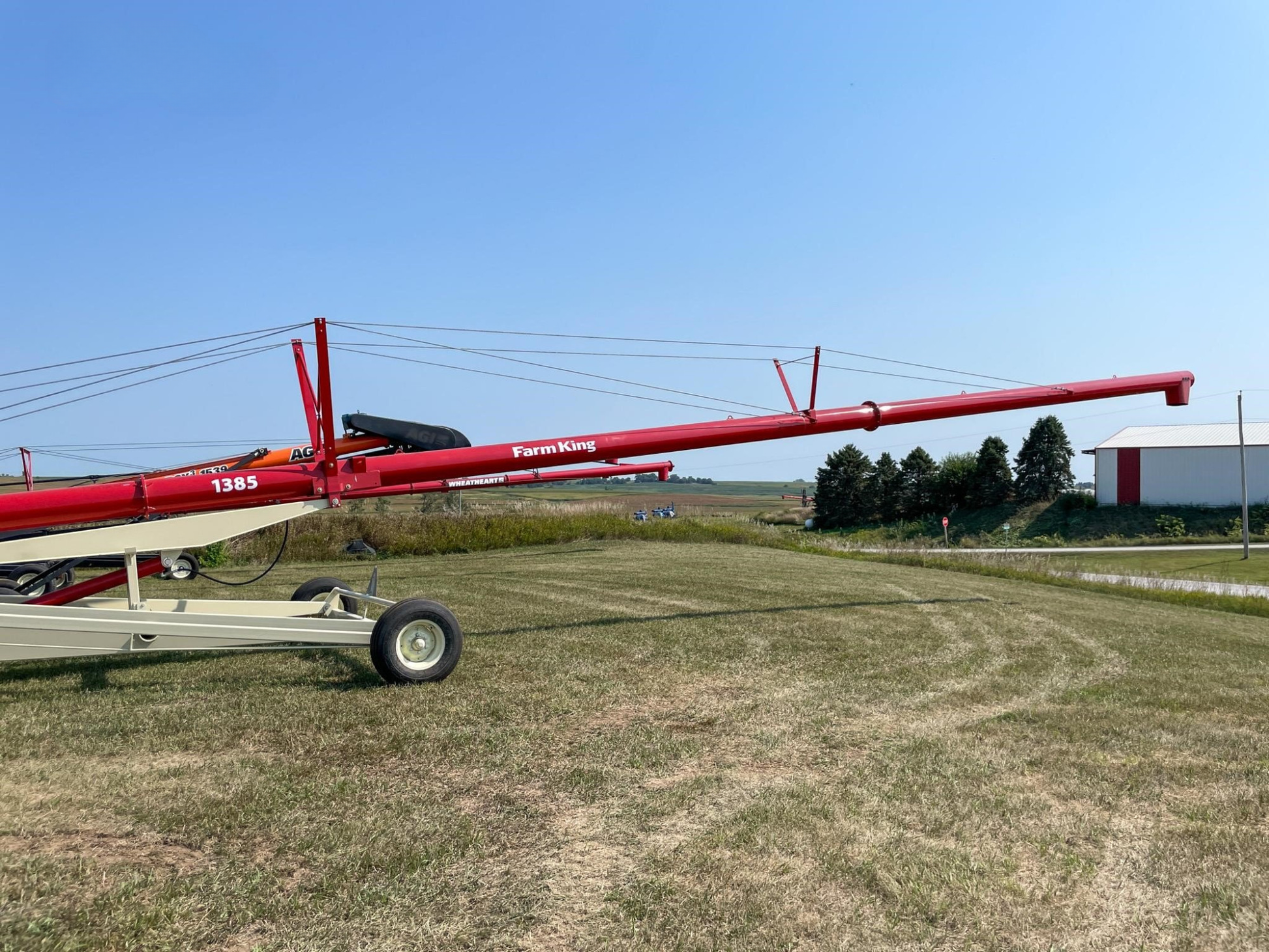

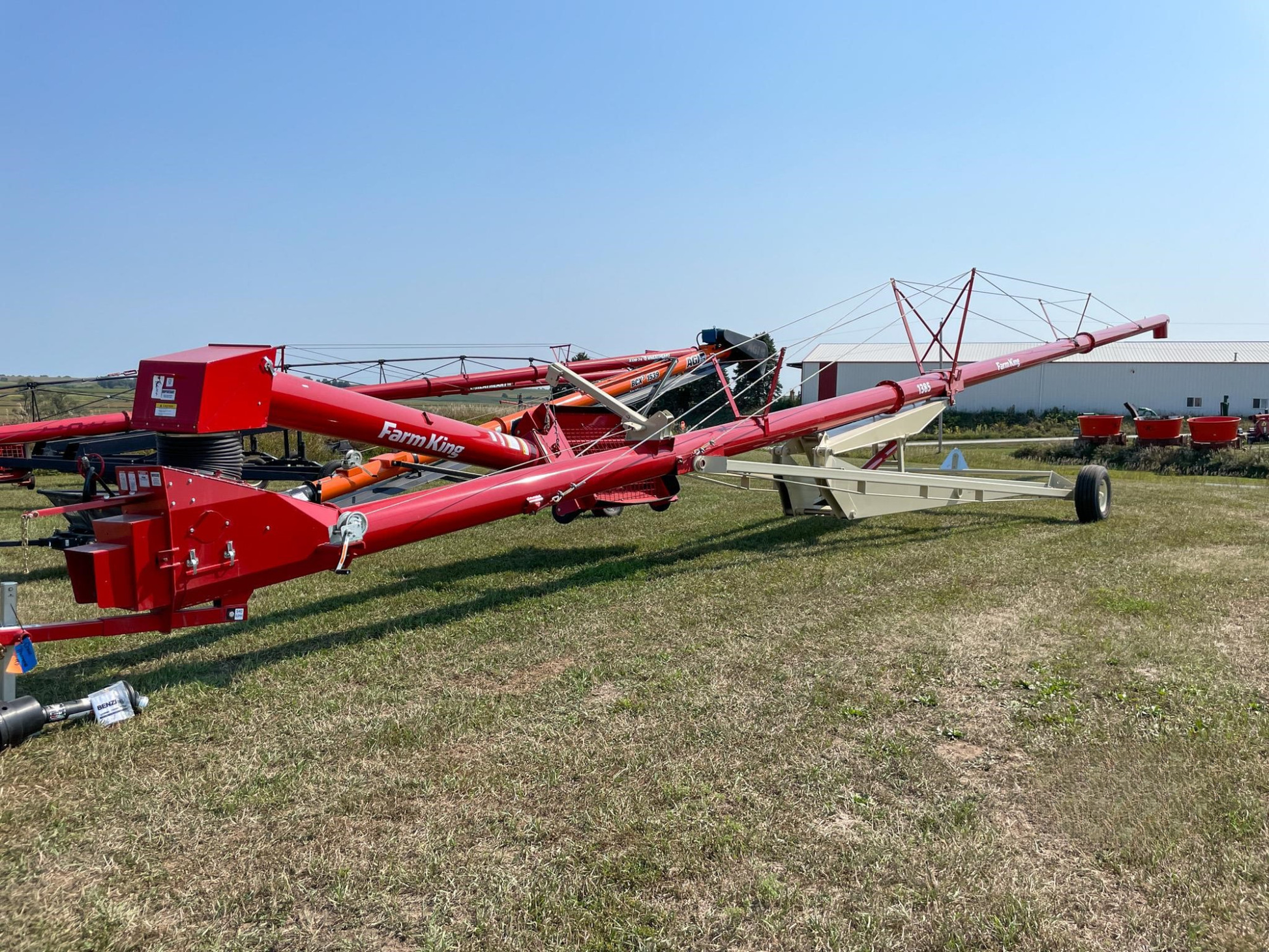

The Farm King 1385 BackSaver Auger is designed with decades of expertise in grain handling. Featuring a unique scissor lift undercarriage, it offers smooth and easy operation. This design is available on all BackSaver models, allowing farmers to get closer to grain bins and lock the auger lift hydraulics in place using a safety ball valve lever. The steel bridging and cables ensure stability and peace of mind during operation, even under windy conditions.
Key Features
| Measurement | Details |
|---|---|
| Wheel Track | 12' |
| A, Height - Lowest | 13' 8" |
| A, Height - Half Way | 36' 6" |
| A, Height - Highest | 59' 6" |
| B, Forward Reach - Lowest | 45' 4" |
| B, Forward Reach - Half Way | 39' 8" |
| B, Forward Reach - Highest | 31' 10" |
- Scissor Lift Design: Ensures smooth and easy operation for all BackSaver models.
- Hydraulic Controls: Allows for easy lifting, transporting, and positioning of the auger and hopper.

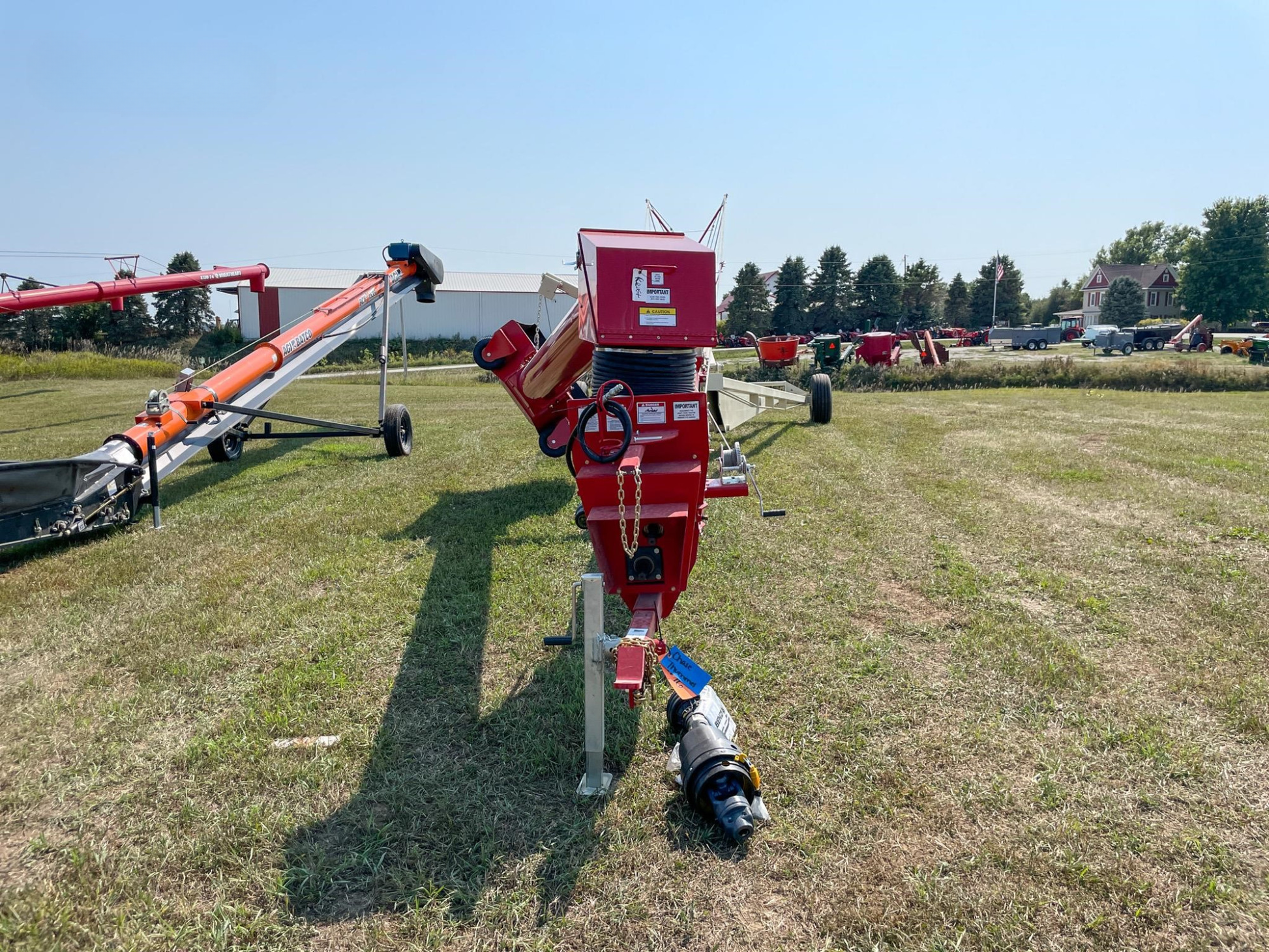

- Self-leveling Hopper: Stays level on uneven terrain, reducing down pressure on parts.
- Adjustable Lighting Kit: Available on 16" models for optimal visibility during nighttime operations.
- Sturdy Undercarriage: Requires less hydraulic pressure and maintains stability.
- Dual Spool Valve: Optional for hydraulic operation of the intake hopper winch and mover.
- Hydraulic Winch: Lifts the hopper into place for transport.
- Hydraulic Drive Wheels: Standard on model 16104 for precise positioning.
- Hydraulic Hopper Mover: Adds a powerful motor for easy positioning, standard on model 16104.
Models Available:
- 10" and 13" Models: Practical and dependable with tubing sizes from 50' to 114'.
- 16" Model: Designed for handling large quantities of grain with ease.
With lengths ranging from 50’ to 114’ and tubing diameters of 10”, 13”, and 16”, the Farm King BackSaver Auger meets a variety of grain handling needs with peak operation horsepower ranging from 40 Hp to 175 Hp.
Detailed Specifications
| Specification | Details |
|---|---|
| Size | 13" x 85' |
| Tubing | 12 gauge |
| Flighting | 1/4" flighting in swing-away and main auger |
| Flighting Shaft | 11 gauge, 3" diameter |
| Undercarriage | 70' - 3 1/2" x 3 1/2" x 3/16" square tube; 85' and 95' - 4" x 4" x 1/4" square tube |
| Lift Arms | 1/4" formed tubing upper, 7 gauge lower |
| Bridging | 1/2" cable |
| Wheels and Hubs | 15" with 6 bolt automotive type hubs and bearings |

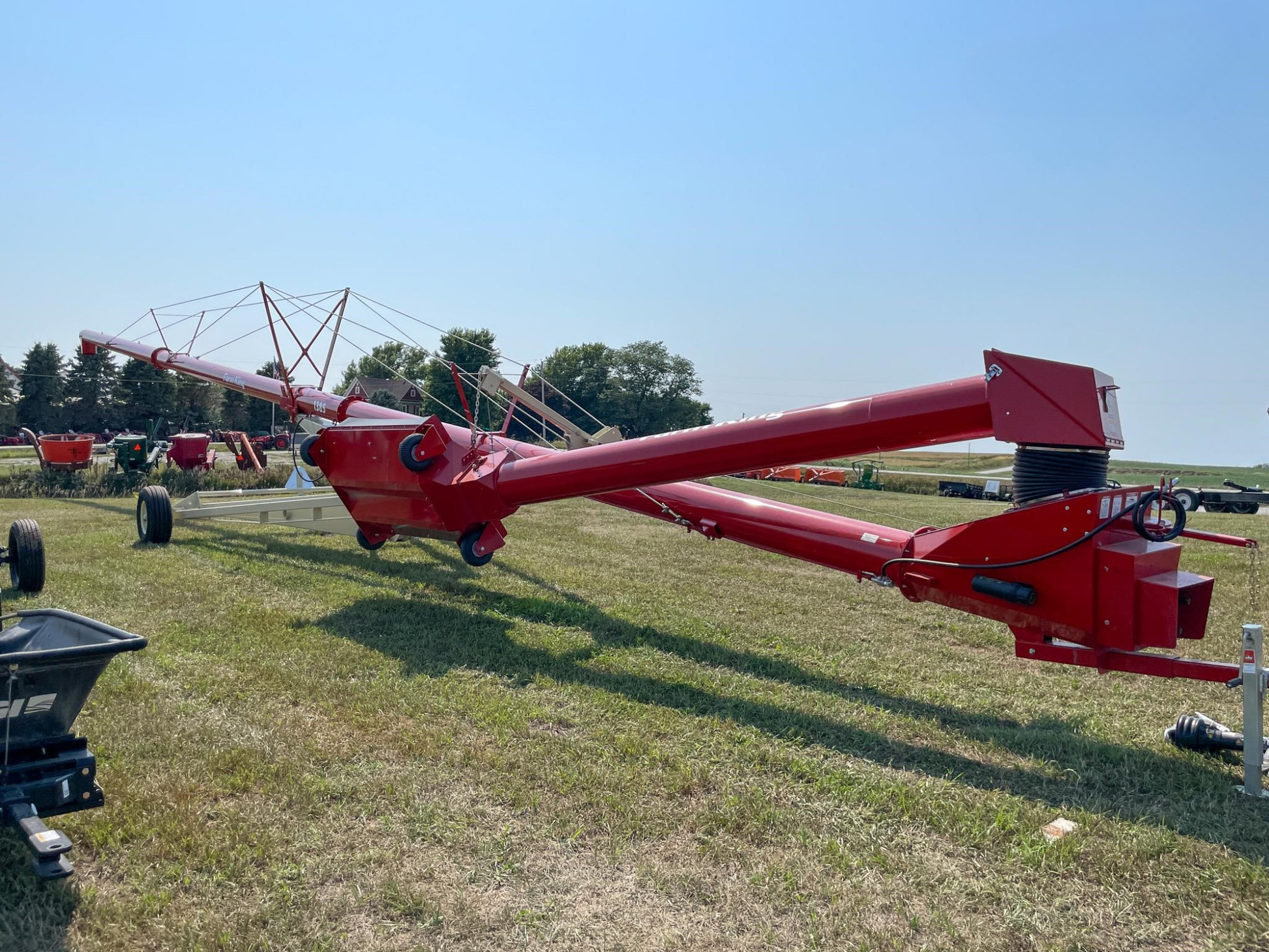

| Swing Auger Drive | Two internal gearboxes (PTO driven), sprocket and chain |
| Hopper Dimensions | 43-1/2" x 60" |
| Standard Hopper Height from Ground | 16-3/4" at heel end, 16-1/4" at other end |
| Multi-flighting Hopper Height from Ground | 12-3/4" at both ends |
| Tractor Requirements - Min PTO hp (with 540 RPM PTO) | 90 hp |
| Tractor Requirements - Approx. Hydraulic Requirements for Lift | 1200 PSI |
| Hitch Weight | 1270 lb |
| Weight | 6381 lb |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

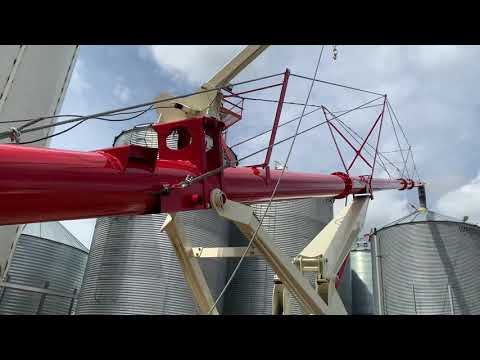

Video
