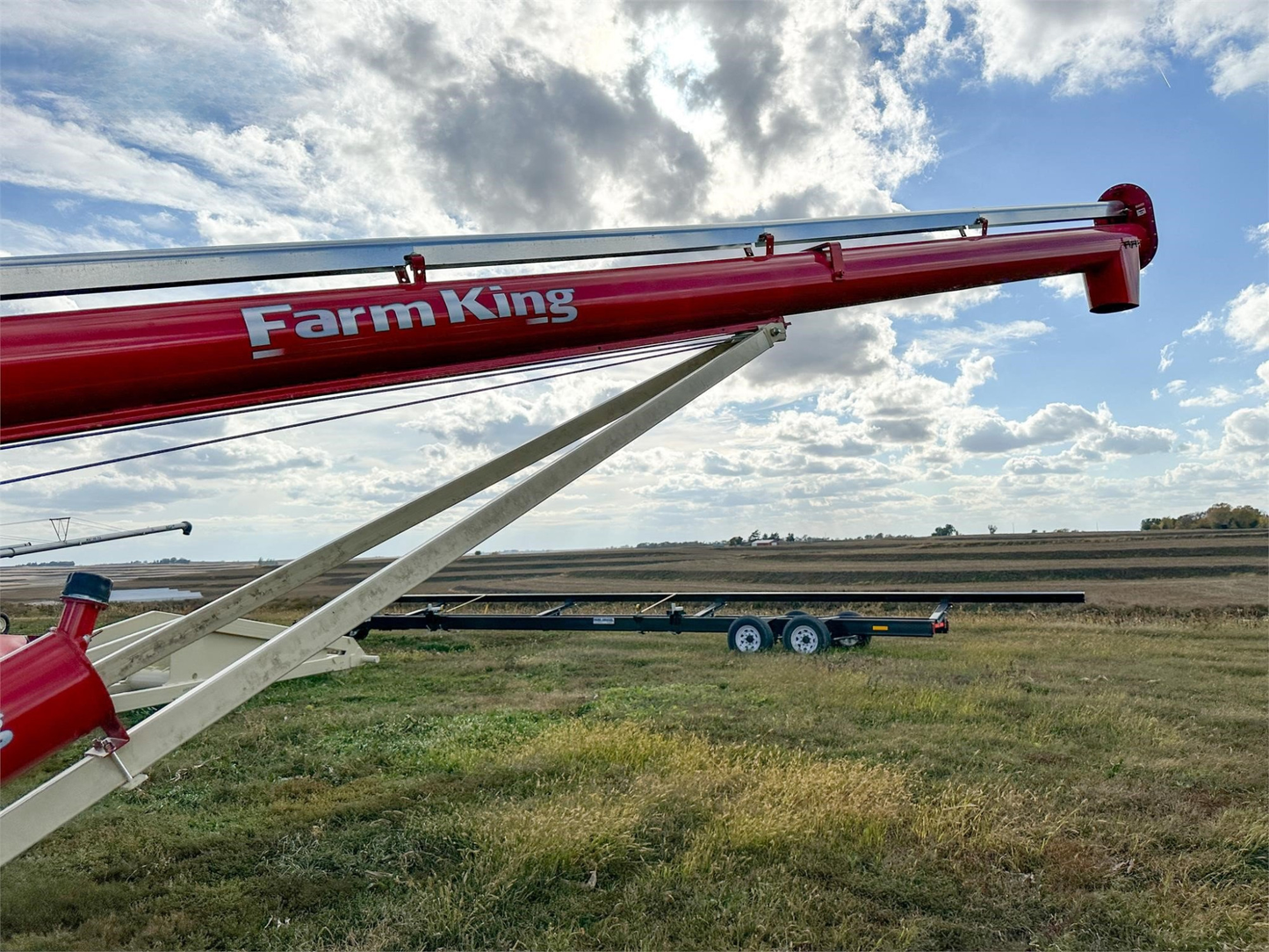

Farm King Conventional Auger CX Series | Model CX2-1041 | Tube Width 10" | Recommended Horsepower 28 HP | For Tractors
Farm King Conventional Auger CX Series | Model CX2-1041 | Tube Width 10" | Recommended Horsepower 28 HP | For Tractors
Regular price
$13,306.65
Regular price
Sale price
$13,306.65
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

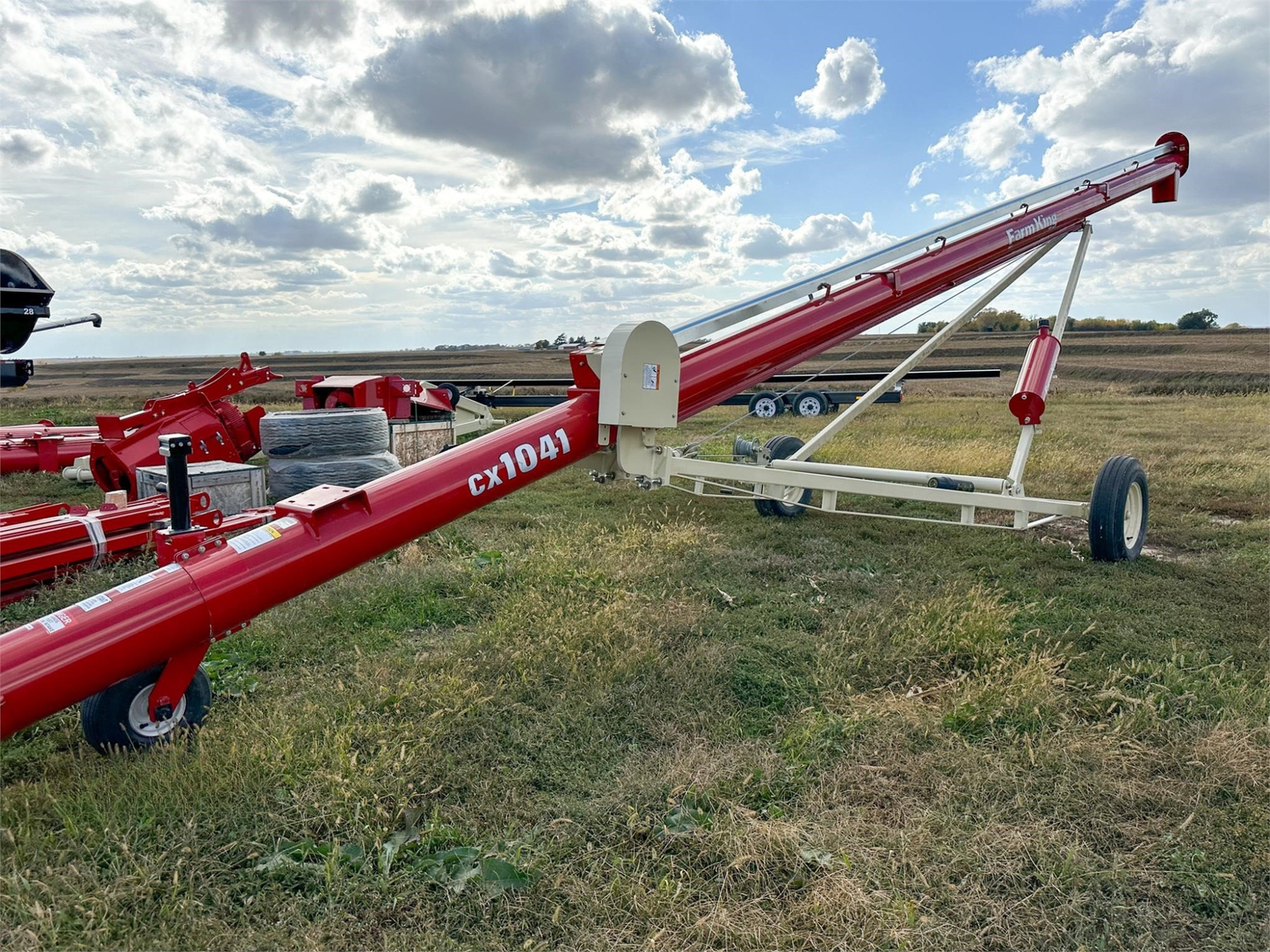

Farm King Conventional Auger CX Series | Model CX2-1041 | Tube Width 10" | Recommended Horsepower 28 HP | For Tractors
DESCRIPTION
The new CX2 Series of Conventional Augers from Farm King is available in lengths of 41', 51', and 61', with 8" and 10" diameters. This series features several enhancements for improved serviceability and stability, along with an expanded list of options.
What’s New:

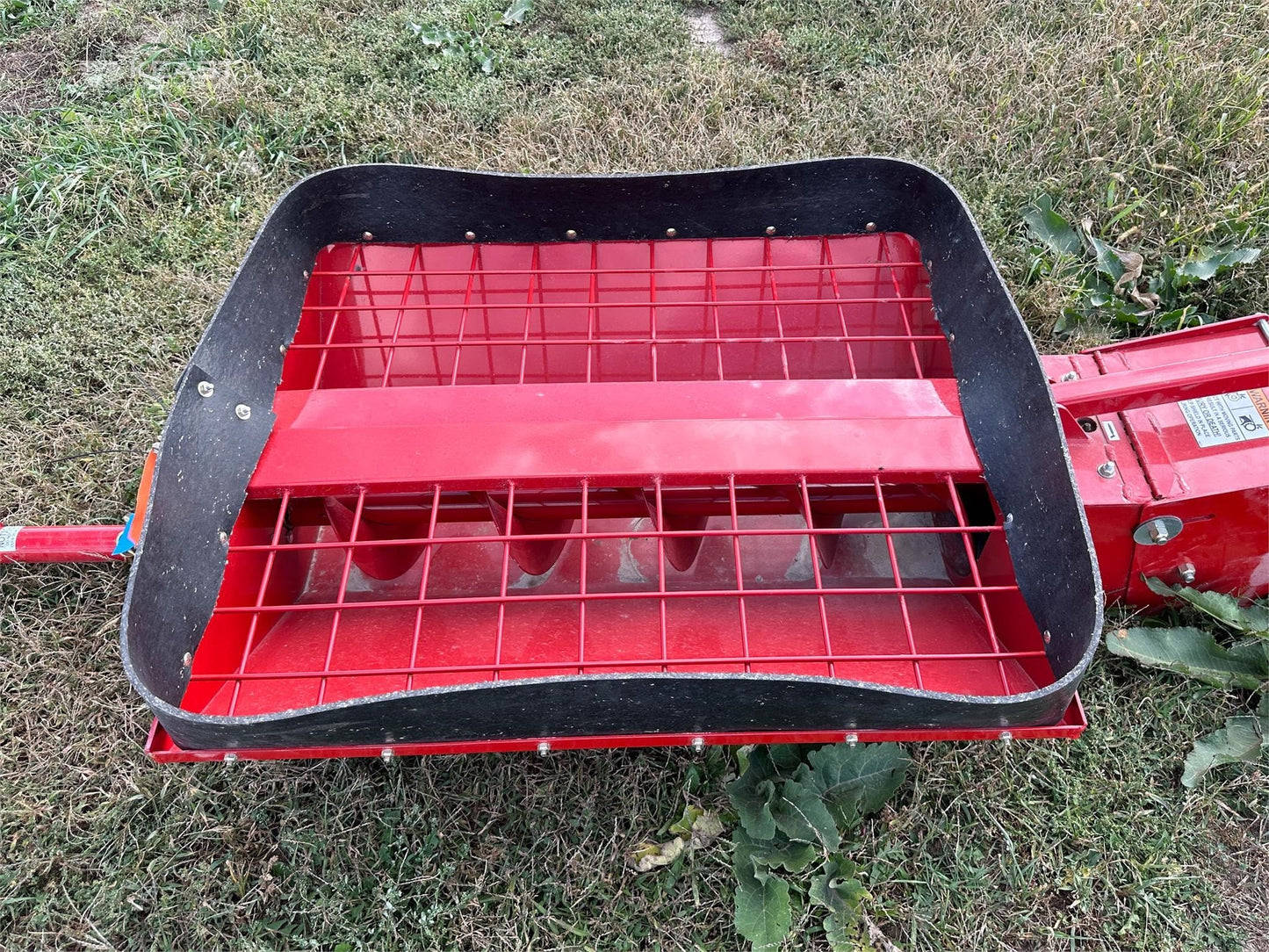

- 24" Auger Intake: Increased capacity.
- Strengthened Winch Brackets: Keeps auger centered and true.
- Improved Engine Mount: Ensures perfect belt tension when engaged.
- Pedestal Style Control Panel: Allows user to walk in the direction of travel, includes an armrest.
- Battery Hold Down Strap: Secures battery during transport.
- Warranty: Covers 1st year parts & labor and 2nd year parts only.
Key Features

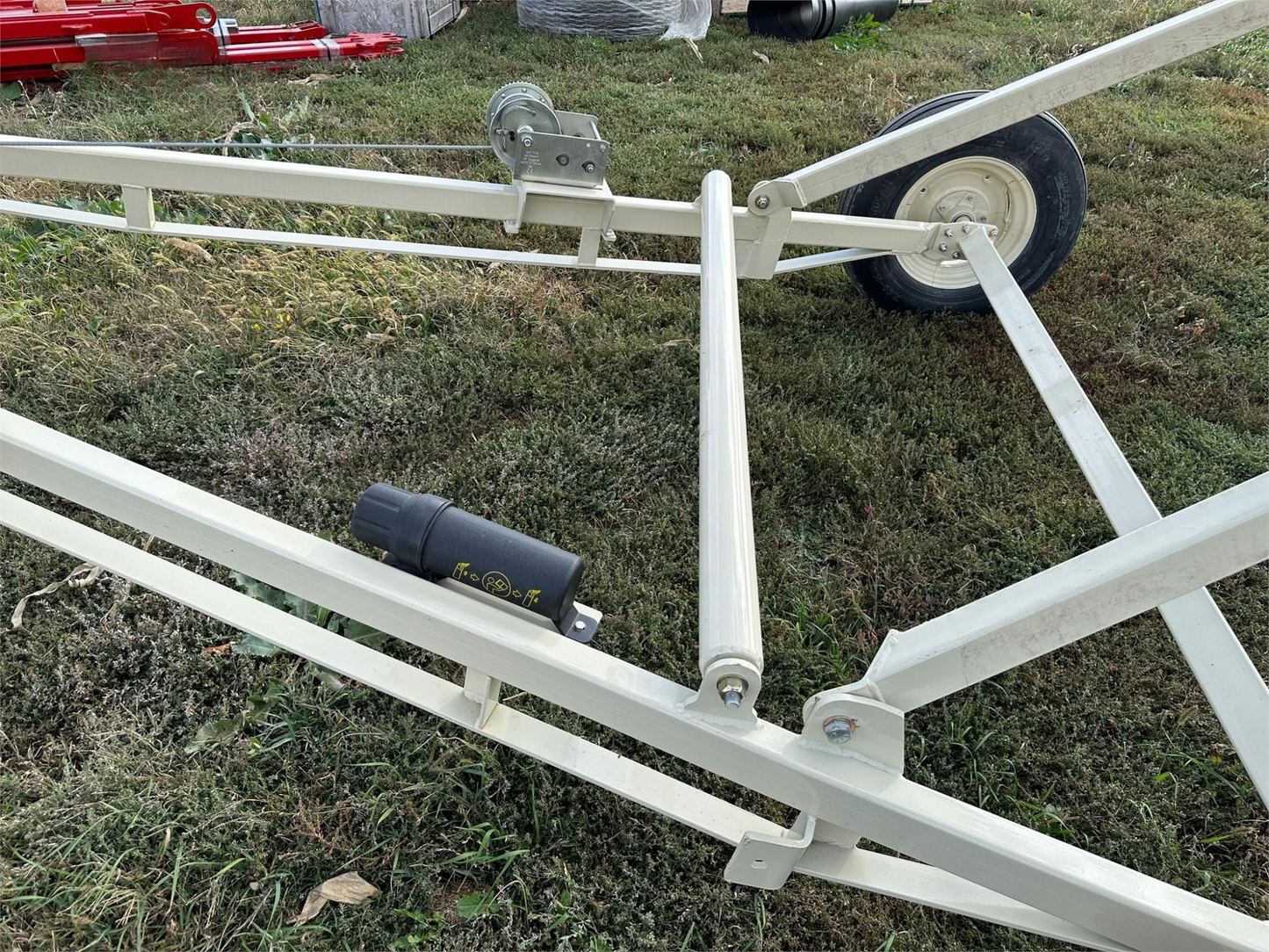

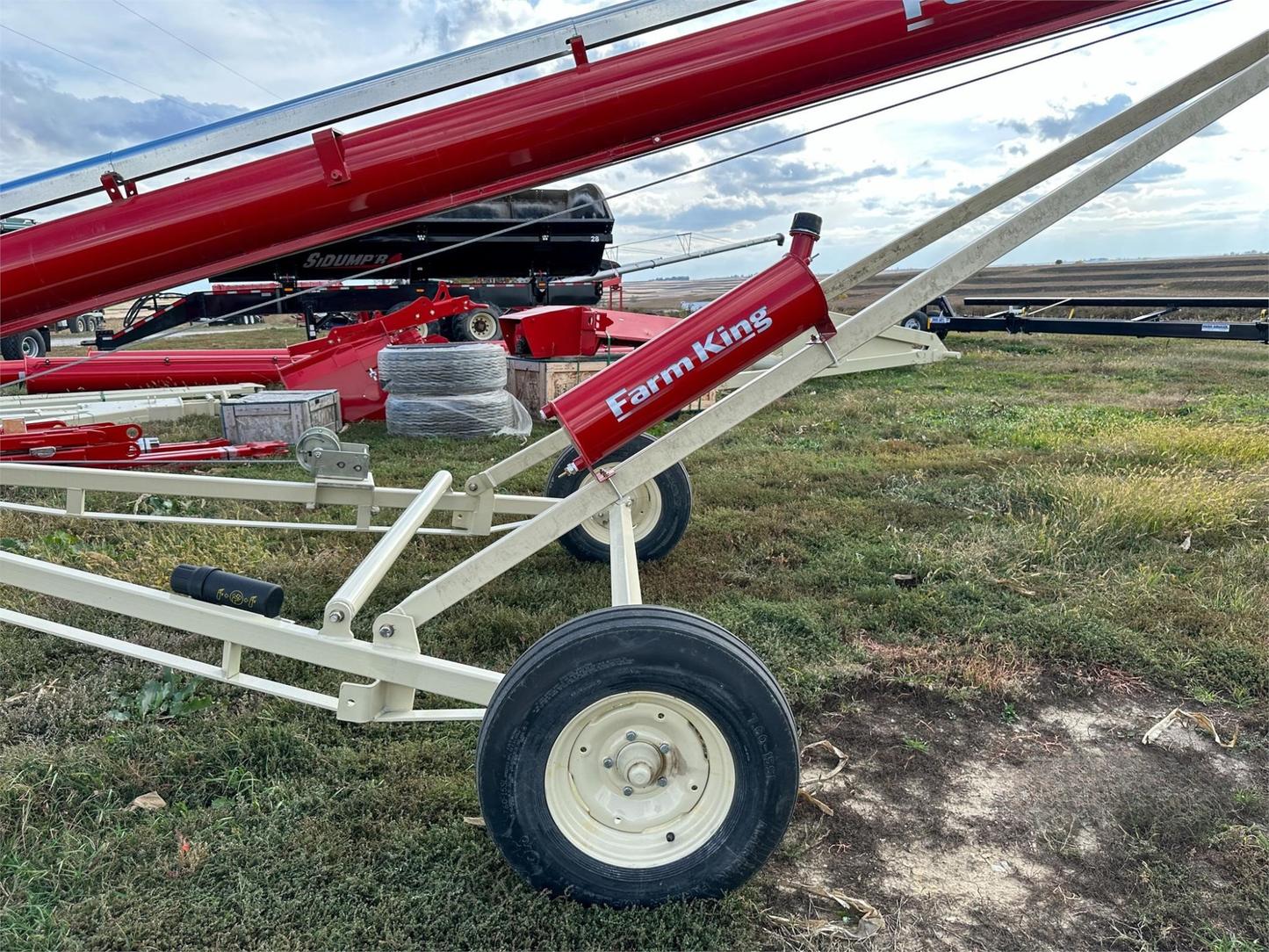

- Undercarriage: Wide stance for improved stability, constructed with square tubes.
- Top Drive: Housed in a sealed grease bath, resistant to heat, dust, debris, and moisture.

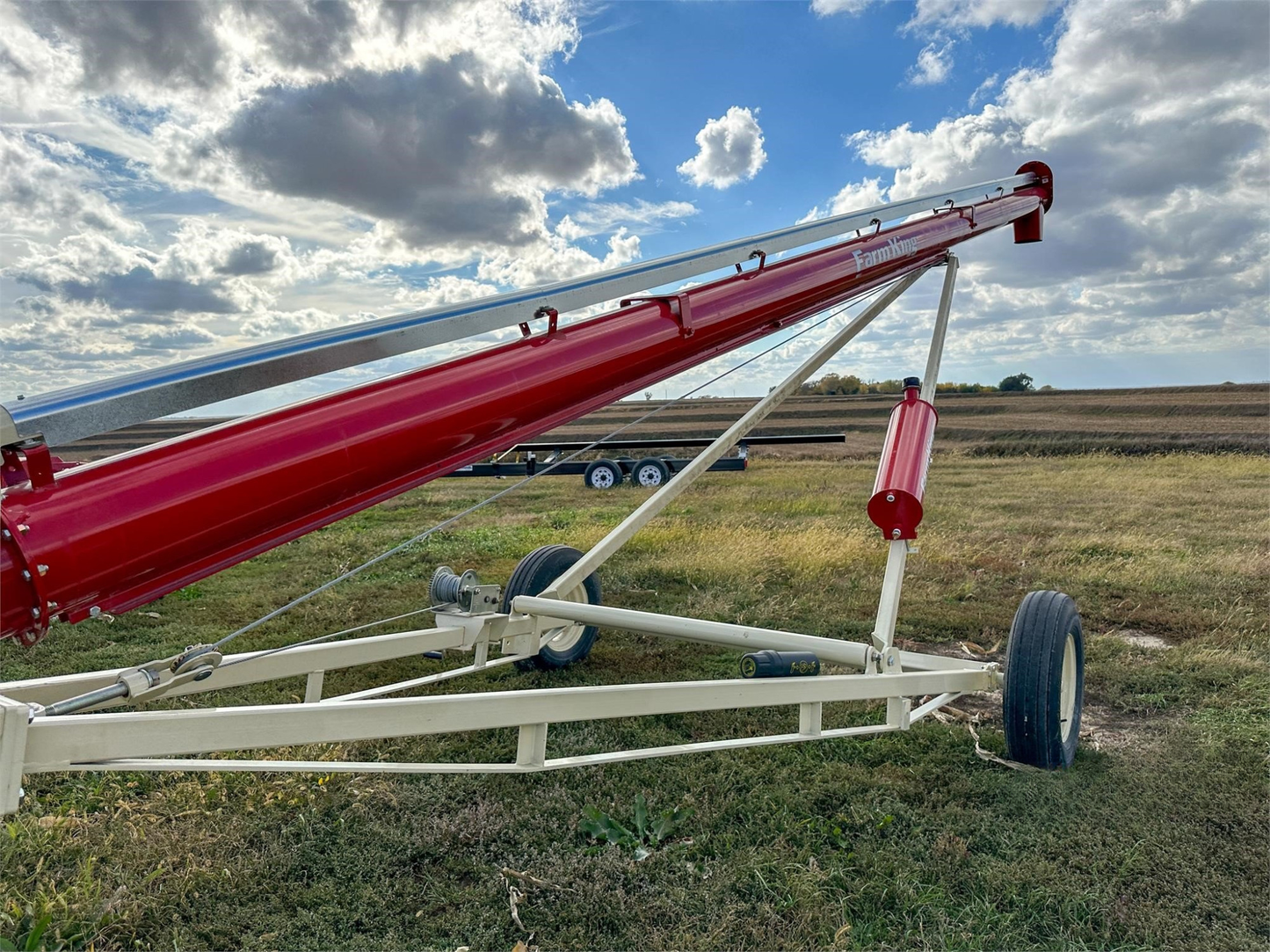

- Transport: Sturdy, lightweight assembly for easy transport; hydraulic lift for increased turning radius.
- Engine Mount: No moving parts for easy setup; belt guard system for perfect belt tension.
- Intake: Supported by a wooden, self-lubricating bushing, maintenance-free.
- Wheel Spindles: Bolt-on style for easy setup and replacement.
Detailed Specifications
| Specification | Details |
|---|---|
| Tube Width | 10" |
| Tube Length | 41' |
| Wheel Track | 8' 9" |
| Belt Drives | Triple |
| Tube Gauge | 12 |
| Flighting Gauge | 7 |
| Flighting Shaft Diameter | 2-3/8" |
| Flighting Shaft Gauge | 11 gauge |
| Drive Line | 1-3/8" |
| Gasoline - Motor Pulley | 3-1/2" |
| Gasoline - Fuel Tank Capacity | 6.5 gal |
| Motor Pulley (Tube-Mount Electric) | 3-3/4" |
| Recommended HP | 28 hp |
| Electric Motor HP | 10 hp |
