Farm King Conventional Auger | Model 1036 | Tube Length 36' | Wheel track 6' 6" | Electric Horsepower 17 HP | For Tractors

Product Description

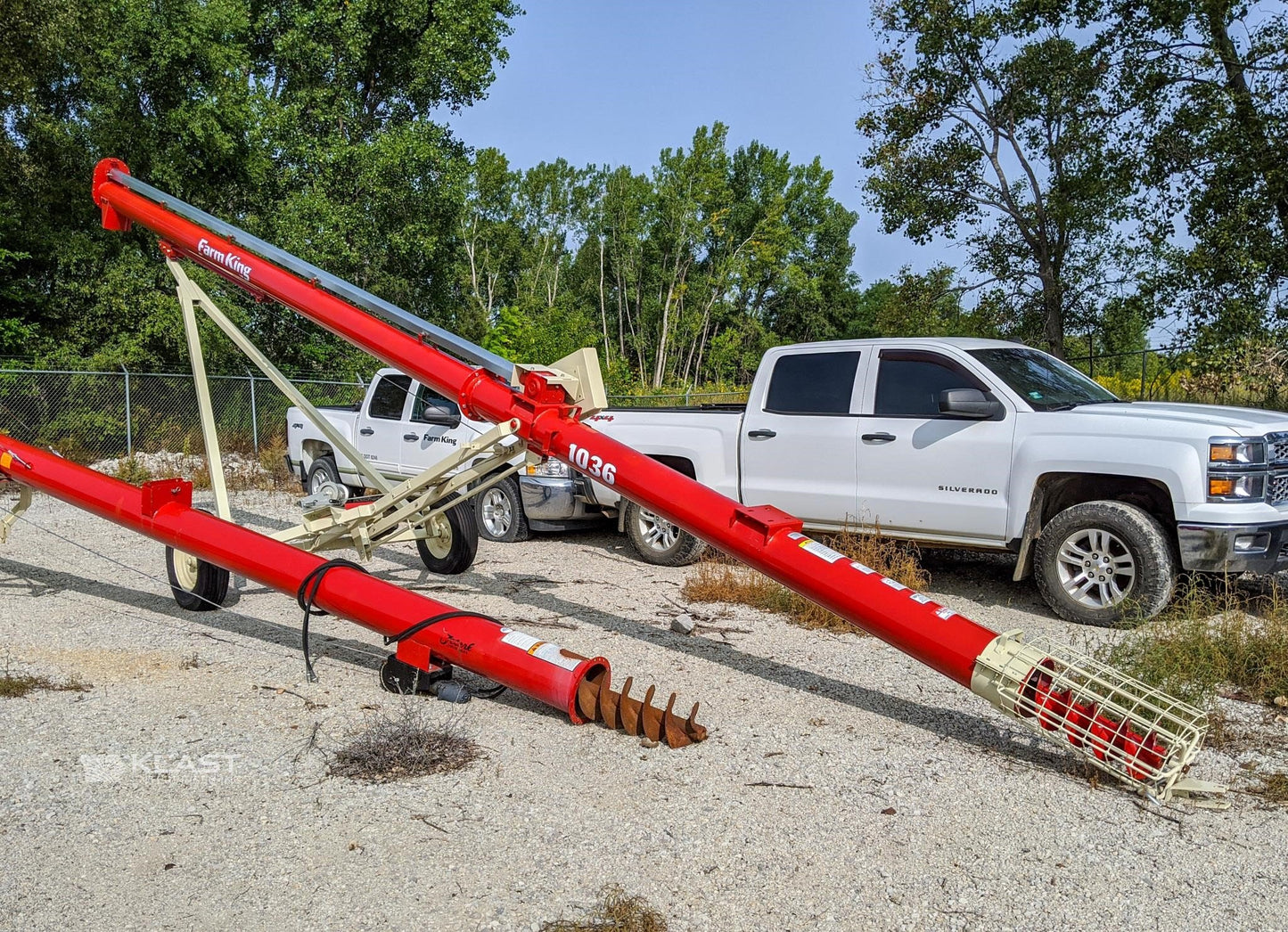

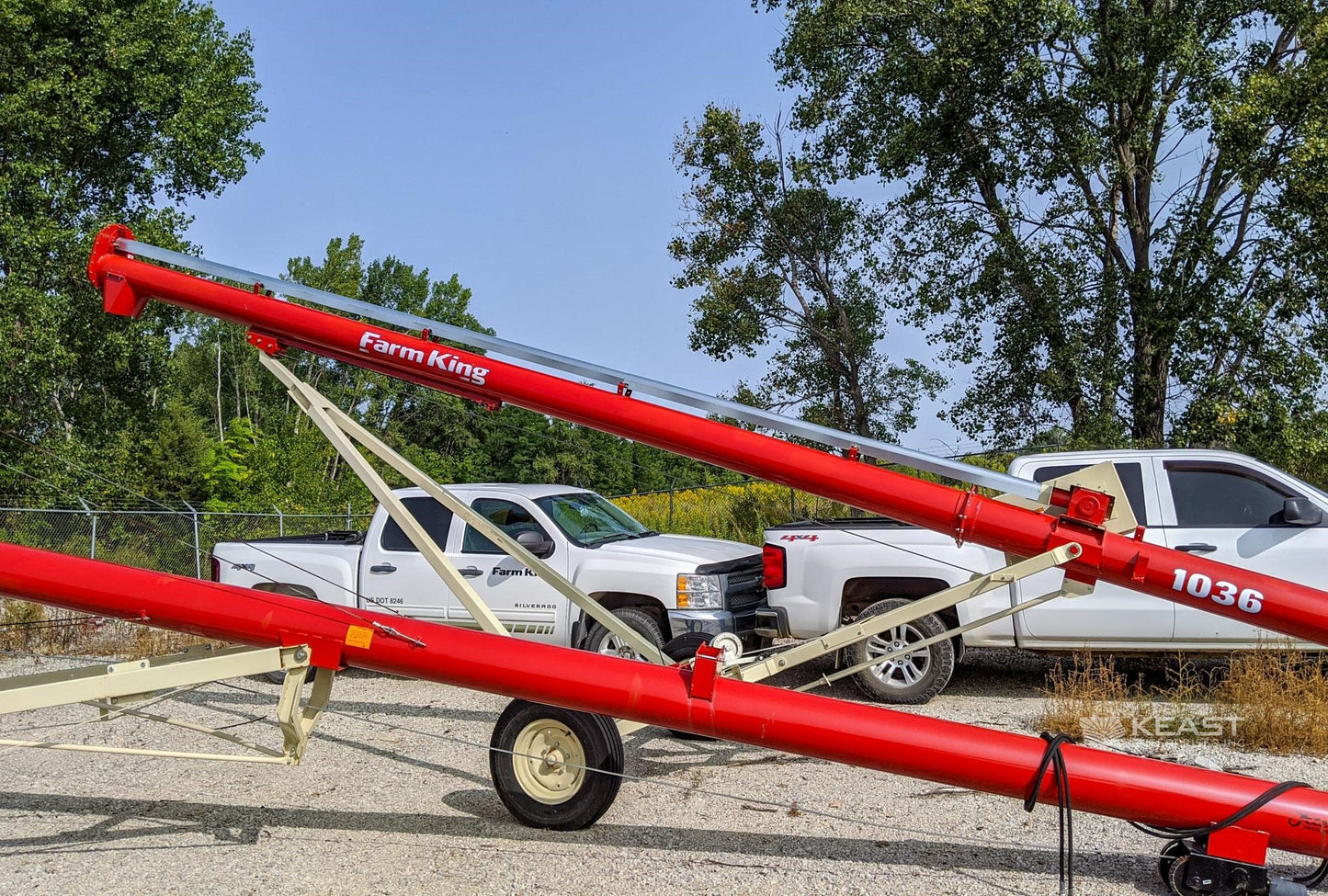

Farm King Conventional Auger | Model 1036 | Tube Length 36' | Wheel track 6' 6" | Electric Horsepower 17 HP | For Tractors

DESCRIPTION

The Farm King 1036 Conventional Auger/Truck Loader is designed for efficiency and durability, featuring left- or right-side drive positioning to reach deeper into bins. The high-quality gearbox ensures smooth operation with less power, made with ductile casting, quality oil seals, ball bearings, and casehardened, forged gears. Available in 8", 10", and 13" models with an optional reverse shift gearbox.

Key Features

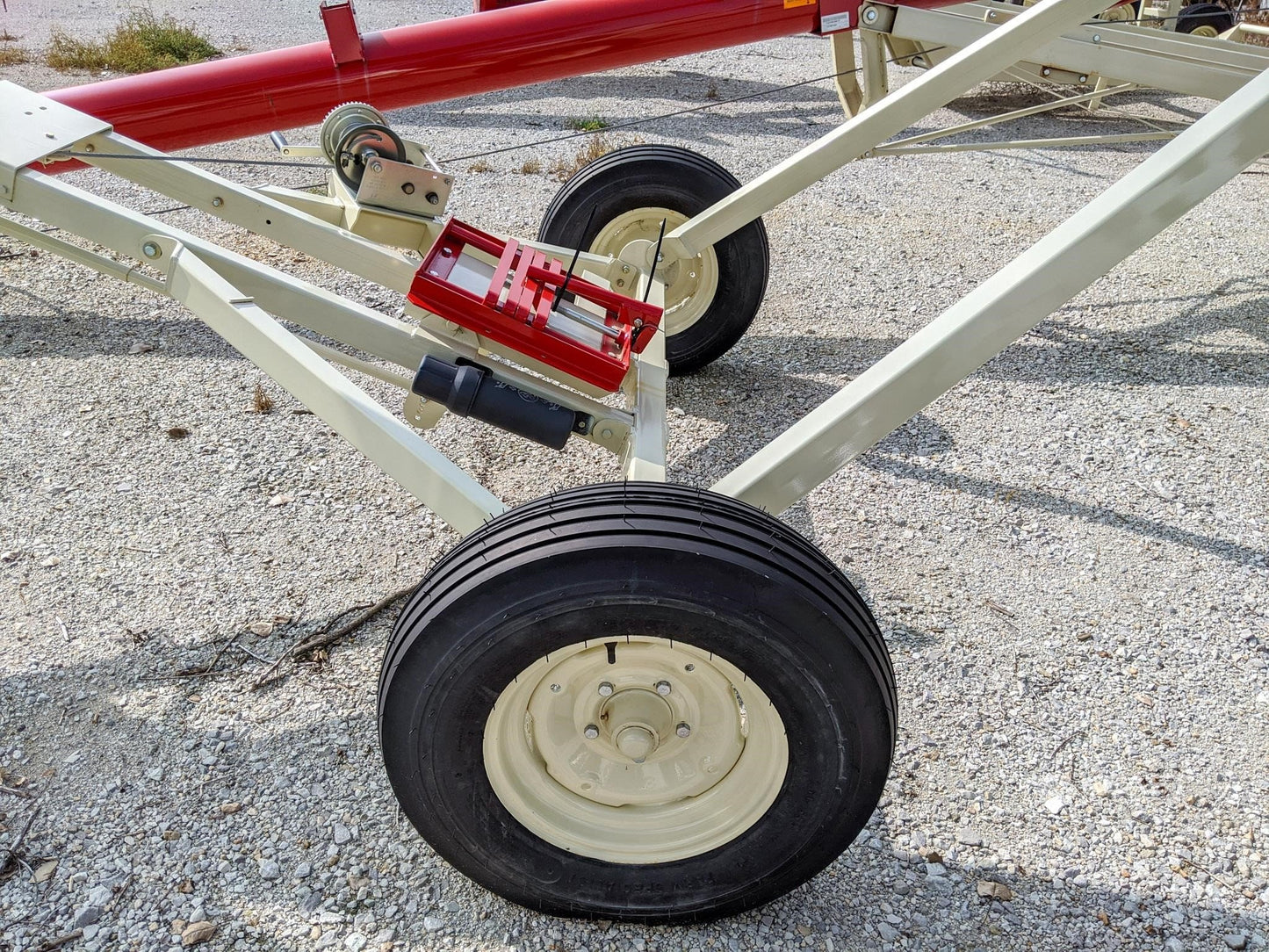

• Undercarriage:

  • Wide stance for improved stability.

  • Constructed with square tubes for enhanced strength and durability.

  • Automotive-type hubs and bearings for ease of handling.

  • Reliable safety clutch winches included.

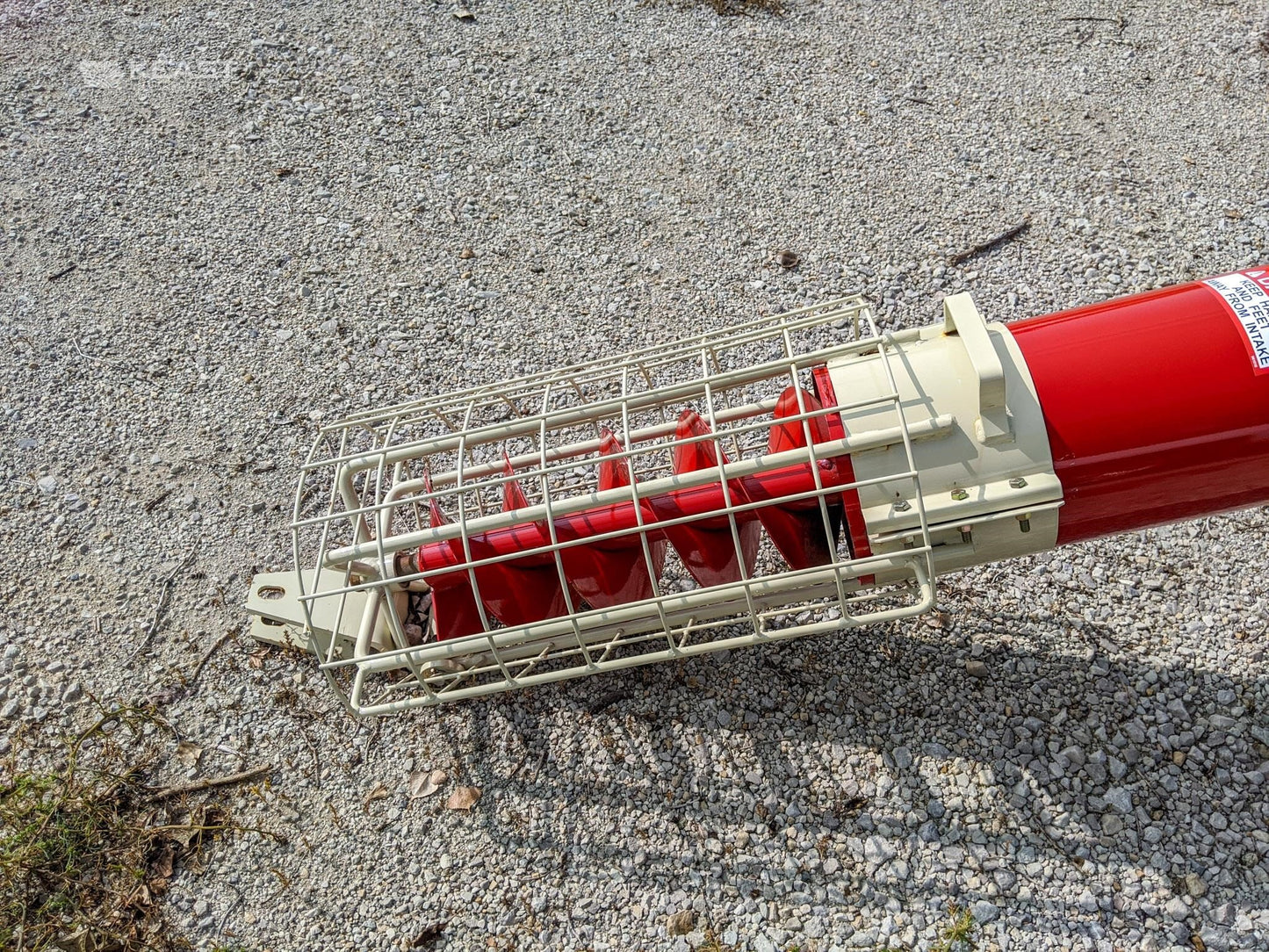

• Intake:

  • Double flighting intake increases grain flow.

  • Narrow safety guard and removable clevis hitch for better access to bins with small auger ports.

• Top Drive:

  • Housed in a sealed oil bath with a chain-tightener.

  • Resistant to heat, dust, debris, and moisture for reduced maintenance and longer chain and sprocket life.

• Drive Options:

  • Direct PTO, belt-drive PTO, gas engine drive, and electric motor drive with belt or direct drive.

• Roller Chain:

  • #60 roller chain for most 8" models.

  • #80 roller chain for 10" and 13" models.

• Engine Mount:

  • Self-leveling motor mount and self-tensioning belt system for belt-drive engine models.

  • Includes belt guards and reliable safety clutch winches.
