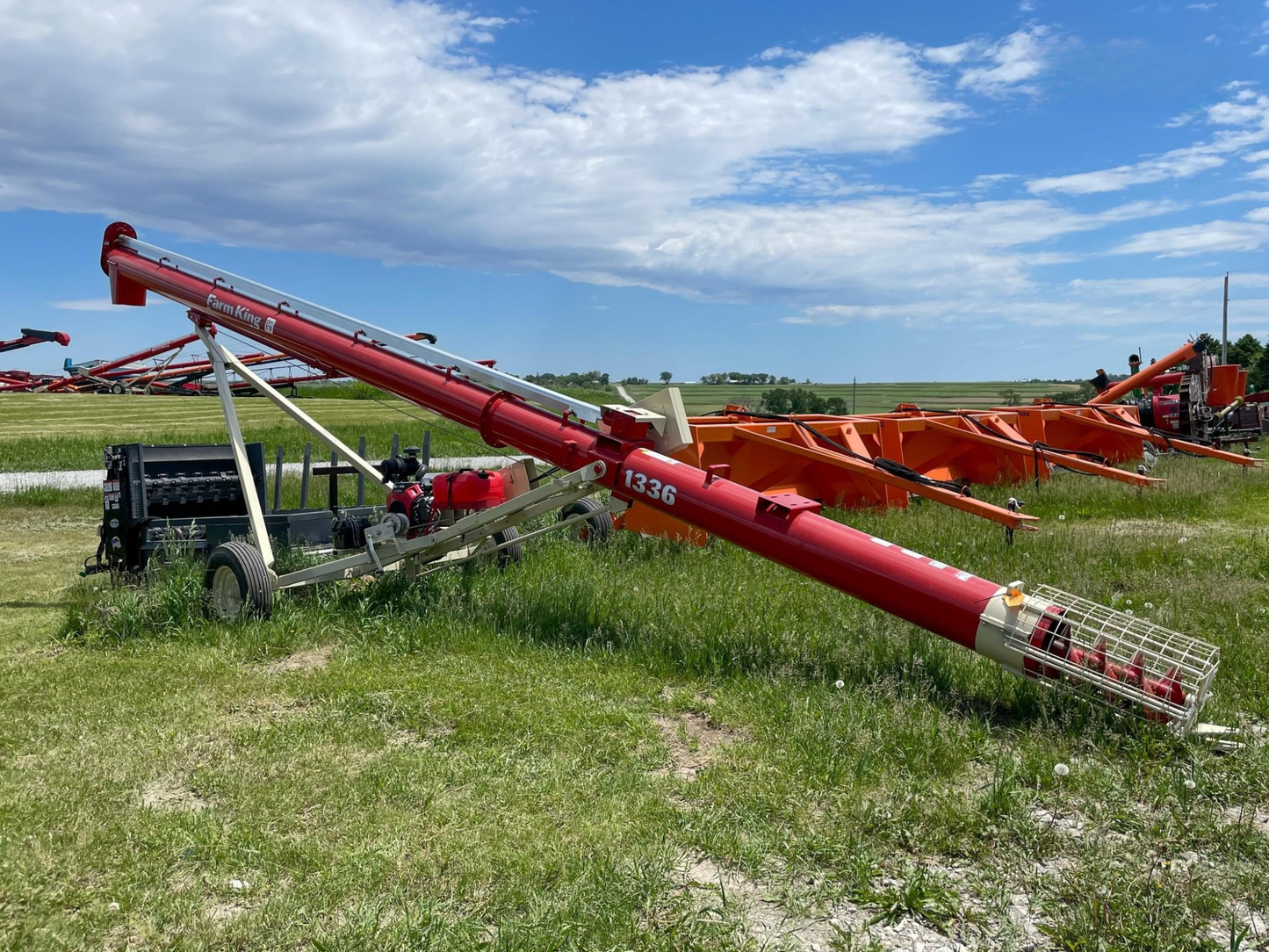

Farm King Conventional Auger | Model 1336 | Tube Width 13" | Electric Horsepower 22 HP | For Tractors
Farm King Conventional Auger | Model 1336 | Tube Width 13" | Electric Horsepower 22 HP | For Tractors
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Farm King Conventional Auger | Model 1336 | Tube Width 13" | Electric Horsepower 22 HP | For Tractors
DESCRIPTION
Elevate your grain handling efficiency with the Farm King Conventional Auger Model 1336, engineered to meet the demands of modern farming. Designed specifically for tractors, this robust 13-inch tube auger combines durability with versatility to streamline your grain transfer process.
Whether you’re filling bins or loading trucks, the Farm King 1336 delivers smooth, reliable performance with its powerful 22 HP electric motor option and multiple drive configurations. The sealed oil bath top drive protects internal components from dust, moisture, and heat, drastically reducing maintenance needs and prolonging operational life.
Farmers seeking stable and easy maneuverability will appreciate the wide stance undercarriage built with reinforced square tubes and automotive-grade hubs and bearings. Plus, the innovative double flighting intake system enhances grain flow, ensuring faster unloading times and less clogging.
Ideal for farmers and contractors requiring a durable, versatile, and easy-to-use auger that adapts seamlessly to varying bin sizes and tractor capabilities, the Farm King 1336 is your trusted partner for efficient grain handling season after season.
Key Features
- Powerful 22 HP Electric Motor tailored for tractors, delivering consistent and energy-efficient grain transfer.
- 13-Inch Tube Width designed for large capacity grain handling, maximizing throughput and efficiency.
- Versatile Gearbox Options with left- or right-side drives, enabling deeper bin access and flexible positioning.
- Durable Sealed Oil Bath Top Drive protects chains and sprockets from dust, heat, and moisture, minimizing maintenance.
- Double Flighting Intake System improves grain flow, reduces clogging, and speeds up unloading.
- Wide Stance Undercarriage made with rugged square tubes ensures exceptional stability during operation.
- Automotive-Type Hubs and Bearings offer smooth, effortless maneuvering in the field.
- Removable Clevis Hitch and Narrow Safety Guard provide enhanced access to tight bin openings.
- Multiple Drive Options: Choose between direct PTO, belt-drive PTO, gas engine, or electric motor to match your tractor setup.
- Self-Leveling Motor Mount with self-tensioning belt system improves engine stability and belt life on belt-driven models.
- Reliable Safety Clutch Winches included for safe and controlled auger positioning.
- Heavy-Duty Roller Chain (#80 chain for 13" models) built to withstand rigorous use and ensure durability.
- Robust Construction with 12-gauge tube thickness for long-lasting strength.
- Optimized Flighting and Shaft Dimensions (1/4" flighting, 2-3/8" shaft) ensure efficient grain movement.
- Compact Wheel Track of 7'5" balances mobility and stability for ease of transport and operation.
Detailed Specifications
| Specification | Details |
|---|---|
| Tube Width | 13 inches |
| Tube Length | 36 feet |
| Wheel Track | 7' 5" |
| Tube Gauge (Top/Bottom) | 12 gauge / 12 gauge |
| Flighting Thickness | 1/4 inch |
| Flighting Shaft Diameter | 2-3/8 inches |
| Drive Line Diameter | 1-1/2 inches |
| Electric Horsepower (1725 RPM) | 22 HP |
| Gasoline Horsepower (3450 RPM) | 30 HP (optional) |
| Belt Pulley (Electric) | 6" / 3 1/2" (direct) |
| Belt Drives | Triple |
| Roller Chain Type | #80 (for 13" models) |
| Gearbox | Left- or right-side drive |
| Undercarriage Material | Square Tubes (Steel) |
| Weight (Approximate) | (Varies by configuration) |
