Product Description
Farm King Disc Mowers | Model MDN-5 | Working width 7' | Weight 992 Lbs | Horsepower 40 HP | For Tractors
DESCRIPTION

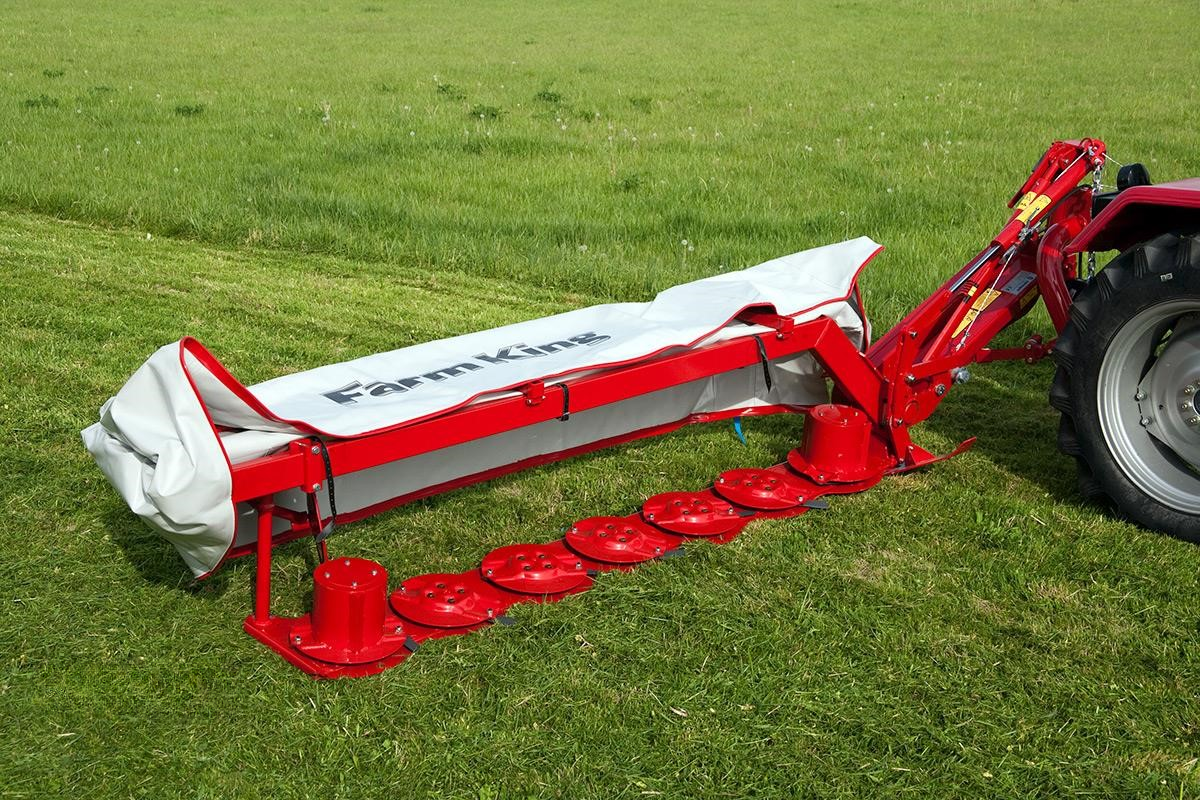

The Farm King MDN-5 Disc Mower is a powerful, 3-point hitch hay cutting solution engineered for farmers who demand both performance and reliability. Designed for tractors with 40 horsepower or more, this 7-foot disc mower is ideal for hay operations, pasture maintenance, and forage production. Built with premium steel and precision gear components, the MDN-5 delivers long-lasting durability and dependable performance in the field.
With free-swinging 15-inch discs rotating at a sharp 3000 RPM, this mower delivers clean, consistent cuts even in thick, tangled grass. The user-friendly hydraulic lift system allows for effortless transition between cutting and transport modes, all from the seat of your tractor.
Easy access to the cutting discs and blades makes maintenance a breeze just remove six bolts to service your machine and get back to work fast. Whether you're running a small farm or managing large fields, the MDN-5 is built to boost your productivity without compromise.
Key Features
- 7-Foot Working Width: Cut more in less time with an efficient 7' swath, ideal for small to medium hayfields.
- Heavy-Duty Construction: Built with top-grade steel and gear components for maximum durability in rugged conditions.
- Free-Swinging Blades: 15" discs with 4" blades and 3" overlap deliver clean, precise cuts at 3000 RPM.
- Simple Blade Access: Maintenance made easy remove just six bolts for access to disc assemblies.

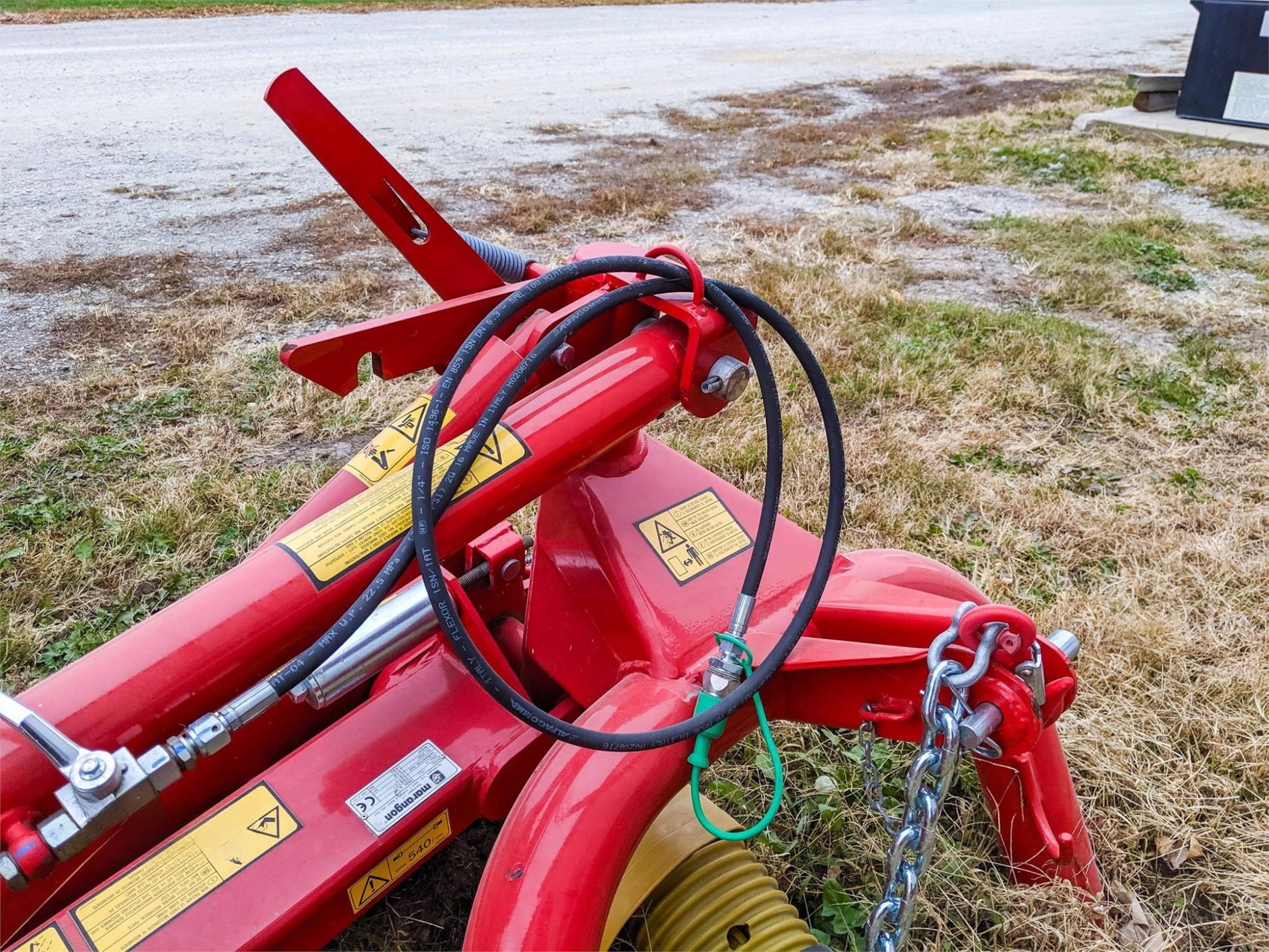

- Hydraulic Lift Control: Single-acting cylinder lets you lift and lower the mower directly from the tractor seat.
- Automatic Locking Transport Mode: Switch to transport safely and effortlessly with a rope-pull locking release.
- Cat. I/II 3-Point Hitch Compatible: Seamless attachment to a wide range of compact and utility tractors.
- Efficient PTO Operation: Runs at standard 540 RPM PTO, ensuring compatibility with most farm tractors.
- Cone Disc Swath Shaping: Built-in end cone discs help shape and cleanly lay out cut material.
- Low Tractor Power Requirement: Operates efficiently on tractors as small as 40 HP, maximizing fuel economy.
- Compact, Lightweight Design: At only 992 lbs, it’s easy to maneuver and transport.
- Minimal Ground Pressure: Perfect for sensitive pasture or forage crops reduces compaction.
- Built for Hay & Forage Crops: Ideal for alfalfa, timothy, clover, ryegrass, and more.
- Time-Saving Setup: Get mowing quickly with intuitive setup and fast attachment process.
- Trusted Brand: Manufactured by Farm King, a name known for dependable agricultural equipment.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | MDN-5 |
| Mower Type | 3-Point Hitch (Cat. I / II) |
| Working Width | 7' (2.10 m) |
| Number of Discs / Blades | 5 / 10 |
| Blade Overlap | 3" (7.6 cm) |
| Blade Length | 4" (10.2 cm) |
| Disc Diameter | 15" (38.1 cm) |
| Blade Rotation Speed | 3000 RPM at 540 PTO |
| Power Requirements | 40 HP (30 kW) Tractor Minimum |
| Hydraulics | Single-Acting Cylinder |
| Transport Lock | Automatic, Rope-Release |
| PTO Speed | 540 RPM |
| Weight | 992 lbs (450 kg) |
| Swath Formation Aids | Dual Cone End Discs |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

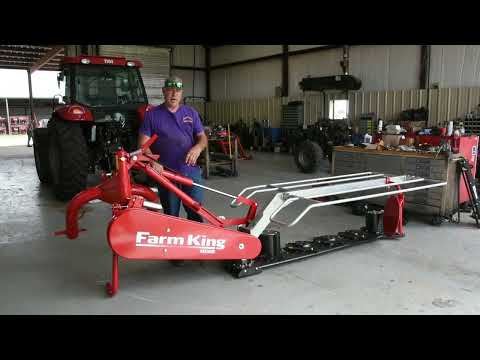

Videos
