Farm King Grader Blades/Box Scrapers Series 155 | Model C10155/F6692/F6694 | Working Width 10' | High Carbon Steel | Horsepower 150 HP | For Tractors

Product Description

Farm King Blades/Box Scrapers Series 155 | Model C10155/F6692/F6694 | Working Width 10' | High Carbon Steel | Horsepower 150 HP | For Tractors

DESCRIPTION

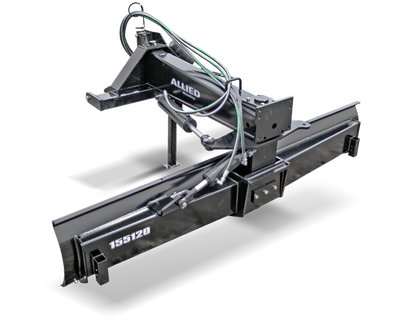

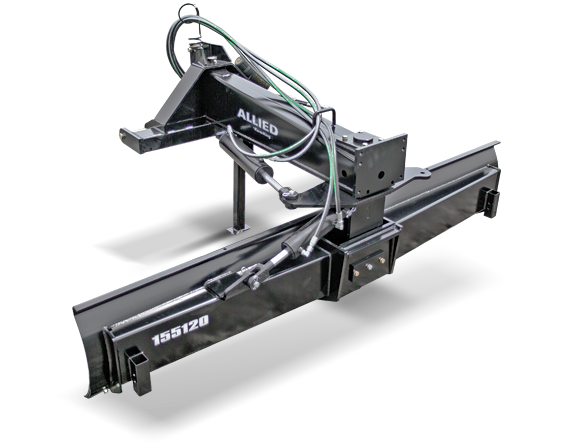

The FARM KING Series 155 Grader Blade (Part #: C10155/F6692/F6694) is a heavy-duty, hydraulically adjustable blade attachment designed for high-powered agricultural tractors up to 150 HP. With a 10-foot working width and robust construction, this blade is ideal for grading, leveling, ditching, and road maintenance across large farm operations and rural properties.

Built for precision and durability, the Series 155 features hydraulic tilt, offset, and angle adjustments, allowing operators to fine-tune blade positioning from the cab. The cutting edge is made from high-carbon steel (½" x 6") for long-lasting performance in tough soil and gravel conditions. Compatible with Category II and III 3-point hitches, this plug-and-play attachment is available in multiple widths (8', 9', 10', and 12') to suit various operational needs.

Key Features

• Model Number: C10155/F6692/F6694 Complete configuration of the Series 155 grader blade with hydraulic controls and 10' working width.
• Working Width: 10 Feet Covers a wide grading area for efficient land management and road maintenance.
• Blade Position: Hydraulic Tilt, Angle & Offset Allows in-cab control of blade position for precise grading on varied terrain.
• Adjustment Blade: Multi-Angle Adjustment Blade can be angled 30° left or right, with 5 forward and 5 reverse positions for versatile operation.
• Cutting Edge: High-Carbon Steel Cutting Edge ½" x 6" blade edge resists wear and maintains sharpness in abrasive conditions.
• Plug-and-Play: Design Quick and easy hookup to compatible tractors no complex setup required.
• Compatibility: Category II & III Hitch Compatibility Fits a wide range of mid- to high-powered tractors with standard 3-point hitch systems.
• Horsepower: Built for 150 HP Tractors Engineered to handle the demands of large-scale agricultural equipment.
• Adjustable Widths: Available Widths Offered in 8', 9', 10', and 12' models to match specific field or road requirements.

Precision Engineering:

• Pivot Point: Specially designed with tight tolerance to minimize metal-on-metal wear and enhance longevity.

Adjustment:

• Manual Tilt Adjustment (45 Series): Tilts the blade up to 15°. Sideshift feature moves the blade up to 12" off-center.

• Tilt Adjustment (30 and 60 Series): Adjusted via the 3-Point Hitch.

Cutting Edge:

• Reversible and Replaceable: Ensures extended usability and efficiency.

Standard Equipment:

• Quick Hitch Compatibility: Allows for easy and quick attachment.

• Parking Stand: Included as standard equipment for convenient storage and setup.

The Farm King C10155 is a versatile and robust tractor attachment, designed to handle a variety of agricultural tasks with precision and durability.

Detailed Specifications

Manuals & Documents

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!

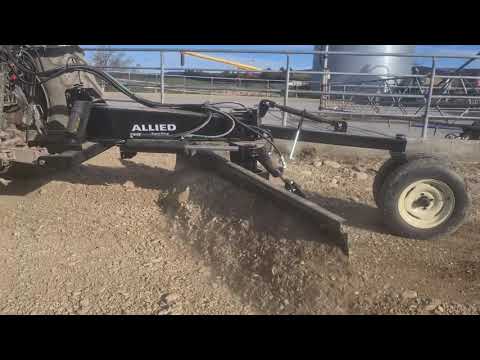

Video
