Farm King

Farm King Square Bale Carrier | Model 4480-XD | Width 13’ 10” | Hydraulic Pressure 3000 Psi | For Tractors

Farm King Square Bale Carrier | Model 4480-XD | Width 13’ 10” | Hydraulic Pressure 3000 Psi | For Tractors

$74,212.95
$74,212.95
Sale Sold out
Customizable
Fast
24/7 Support
  • Width 13’ 10” (4.2 m)
  • 4"x8" beams for heavy loads
  • Eight bolt heavy-duty wheels
  • Operating Hydraulic Pressure 3000 psi (20685 kPa) (207 bar)
View full details

Product Description

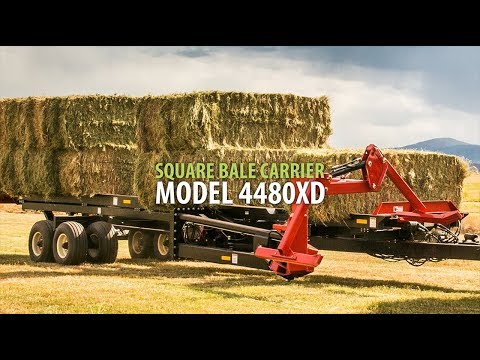

Farm King Square Bale Carrier | Model 4480-XD | Width 13’ 10”  | Hydraulic Pressure 3000 Psi  | For Tractors

DESCRIPTION

The Farm King 4480XD Square Bale Carrier has been refined through years of on-farm testing, offering simplified operation and an intuitive display. It improves capacity by picking 9 4'x4', 18 3'x4', and 24 3'x3' bales per load. With full customization options and a quarter turn feature, it can be tailored to suit your operation’s needs.

Key Features

  • Structure:

    • Heavy-duty undercarriage and 4" x 8" beams for heavy loads.

    • Eight bolt heavy-duty wheels with tandem walking beam axles for stability.

  • Unloading:

    • Innovative design for quick unloading; tilt rear deck to unload bales and return to neutral position.

    • Bales are pushed to the back and the process is repeated.

  • Stacking:

    • Tight rows to prevent prolonged exposure to surface moisture.

    • Strings are not touching the ground.

  • Reduced Stress:

    • Graphite coating on beams for minimal effort when sliding bales.

  • Bale Pusher:

    • Two hydraulic motors move bales rearward.

    • Automatically shifts to 'low' power if resistance is sensed for five seconds.

    • Sensor alerts operator if a bale won't move, counting revolutions for efficient measurement.

  • Chain:

    • Recessed chain beneath beams to minimize bale stress and string breakage.

  • Hydraulics:

    • Automatically adjusts hydraulic configuration based on the tractor's system.

    • Compatible with open-center, closed-center, or load-sensing closed-center hydraulic systems.

  • Carrier Arm:

    • Reinforced arm enhances structural integrity.

    • Hydraulic hoses and electronic sensors positioned to avoid damage.

Control System:

  • Hand-Held Control and System Monitor:

    • Hand-held control activates pickup arm, initializes sequence, operates pusher and tilt deck.

    • Monitor adjusts hydraulic operation to match tractor and features auto mode, calibrate, diagnostic, and manual modes.

  • 1/4 Turn Feature:

    • Allows placement of bales for storage or transport on/off strings with minimal effort.

Detailed Specifications

Specification Details
Overall Length 42’ 8” (13 m)
Usable Deck Length 34’ (10.36 m)
Overall Width 13’ 10” (4.2 m)
Width (Without Loading Arm) 10’ 2” (3.1 m)
Transport Width 10’ 2” (3.1 m)
Overall Height 15’ 10” (4.8 m)
Tipping Frame Height (Raised) 15’ 10” (4.8 m)
Rotate Arm Height (Lift Arm Fully Raised) 15’ 7” (4.75 m)
Weight (empty) 9485 lb. (4302 kg) (approx.)
Hitch Weight (empty) 1950 lb. (884 kg) (approx.)
Hitch Weight (maximum) 7500 lb. (3402 kg) (approx.)
Tires Eight 12.5L x 15 - Load Range F
Hubs 8 Bolt Heavy Duty
Hub Spindle / Tire Capacity 8000 lb. (3630 kg) @ 90 psi
Hydraulic Flow (closed or open center) 25 US gpm (80 lpm) @ 3000 psi
Maximum Hydraulic Pressure 3500 psi (24132.5 kPa) (241 bar)
Operating Hydraulic Pressure 3000 psi (20685 kPa) (207 bar)
Hydraulic Motors (Pusher) Dual 22.2 cu. in.
Lift Cylinder 4” diameter x 18” stroke
Clamp Cylinder 3” diameter x 16” stroke
Rotate Cylinder 3” diameter x 16” stroke
Tilt Cylinders 3.5” diameter x 36” stroke
Electrical 12V (Internal Fuse Protection)
Maximum Load 25,000 lb. (11,300 kg)
Bale Length 8’ (2.4 m)
48” x 48” (122 x 122 cm) Bales 9 Bales (single row on carrier) / 8 Bales (single row with 1/4 turn)
32” x 35” (81 x 90 cm) Bales 24 Bales (double row on carrier) / 20 Bales (double row with 1/4 turn)
36” x 48” (91 x 122 cm) Bales 18 Bales (double row on carrier) / 10 Bales (single row with 1/4 turn)
