Farm King | Triplex Finishing Mower | Model TRX Series | Cutting Width 11' To 16' Feet | Horsepower 55 To 65 HP | For Tractor
Farm King | Triplex Finishing Mower | Model TRX Series | Cutting Width 11' To 16' Feet | Horsepower 55 To 65 HP | For Tractor
Regular price
$25,250.00
Regular price
Sale price
$25,250.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Farm King | Triplex Finishing Mower | Model TRX Series | Cutting Width 11' To 16' Feet | Horsepower 55 To 65 HP | For Tractor
DESCRIPTION
When you demand a smooth, professional-grade cut across large fields, parks, sports turf, or estates, the Farm King Triplex Finishing Mower delivers unmatched performance, durability, and clean results every time.
Designed with three independent floating decks and nine high-velocity blades, this mower follows every contour of the terrain to produce a consistent, manicured finish. Whether you're maintaining turf on athletic grounds or trimming expansive agricultural landscapes, the TRX11, TRX13, and TRX16 offer cutting widths of 11', 13'6", and 16' respectively, each engineered for maximum ground coverage and operator efficiency.
With hydraulic lift systems, ultra-durable 7-gauge steel construction, and exceptional blade overlap (up to 2-5/8"), the Triplex series ensures minimal maintenance and maximum output. Compatible with tractors rated between 55–65 HP, it's the ideal finishing mower for professional landscapers, municipalities, groundskeepers, and high-acreage property owners.
Key Features
- Professional-Grade Finish: Delivers a crisp, uniform cut for lawns, sports turf, and large acreage.
- Floating Deck Design: Each of the three decks floats independently, ensuring an even cut over rolling or uneven terrain.
- Wide Cutting Widths: Available in 11', 13'6", and 16' models to suit varying land sizes.
- High Blade Overlap: Up to 2-5/8" blade overlap to eliminate uncut strips and ensure full coverage.
- Robust Build Quality: Constructed with 7-gauge steel decks and reinforced framing for long-term durability.

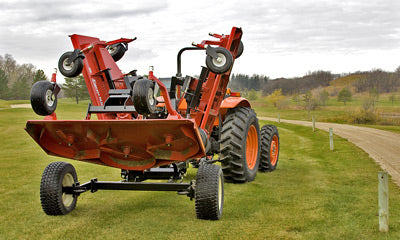

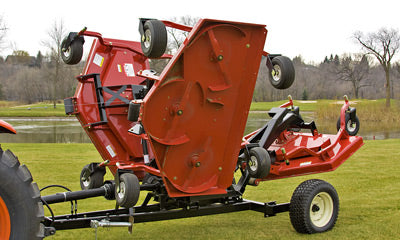

- Hydraulic Lift System: Easily fold the wings for safe and compact road transport (widths as narrow as 92").
- High-Speed Blade Tip: Generates powerful vacuum lift for a clean and precise cut, up to 18,737 ft/min.
- Flexible Hitch Options: Comes standard with a cast clevis hitch, with optional 2-5/16" ball hitch for towing versatility.
- Low Maintenance Driveline: Features a Series 4 CV joint on the main and Series 2 on wings for smoother performance.
- Customizable Cutting Heights: Adjustable from 1.5" to 4.5" to meet the needs of various turf conditions.
- Optimized Wing Flex: Wing decks flex 40° up and 10° down, hugging ground contours with ease.
- Heavy-Duty Bearings: Uses tapered roller bearings in spindles for extended life and reliable operation.
- Transport-Ready: Folds hydraulically for compact transportation — fits within most road width limits.
- Stable Ride Tires: Equipped with 8–12 turf tires and large frame tires for balanced, turf-friendly movement.
- Proven Track Record: Backed by over 15 years of engineering excellence from Farm King, a trusted name in agricultural equipment.
Detailed Specifications
| Model | TRX11 |
|---|---|
| Cutting Width | 11' (132") |
| Recommended Tractor HP | 55 HP |
| Number of Blades | 9 (3 per deck) |
| Blade Tip Speed | 15,485 ft/min |
| Blade Overlap | 6" |
| Cutting Height Range | 1.5" – 4.5" |
| Wing Flex | 40° up / 10° down |
| Deck Construction | 10 Ga. (center), 7 Ga. (wings) |
| Driveline (Main/Wings) | Series 4 CV / Series 2 |
| Hydraulic Lift | Yes |
| Transport Width | Approx. 92" |
| Transport Height / Length | 74” / 186” |
| Weight | 3,380 lbs |
| Deck Tires | 8 (15x6x6) |
| Main Frame Tires | 2 (27x10.5x15) |
| Hitch Type | Cast Clevis (Standard) |
| Gearbox Rating | 120 HP (divider), 30 HP (wings) |
| Model | TRX13 |
|---|---|
| Cutting Width | 13'6" (162") |
| Recommended Tractor HP | 55 HP |
| Number of Blades | 9 (3 per deck) |
| Blade Tip Speed | 15,829 ft/min |
| Blade Overlap | 2-5/8" |
| Cutting Height Range | 1.5" – 4.5" |
| Wing Flex | 40° up / 10° down |
| Deck Construction | 7 Ga. |
| Driveline (Main/Wings) | Series 4 CV / Series 2 |
| Hydraulic Lift | Yes |
| Transport Width | Approx. 96" |
| Transport Height / Length | 87” / 189” |
| Weight | 3,820 lbs |
| Deck Tires | 10 (15x6x6) |
| Main Frame Tires | 2 (27x10.5x15) |
| Hitch Type | Cast Clevis (Standard) |
| Gearbox Rating | 120 HP (divider), 30 HP (wings) |
| Model | TRX16 |
|---|---|
| Cutting Width | 16' (192") |
| Recommended Tractor HP | 65 HP |
| Number of Blades | 9 (3 per deck) |
| Blade Tip Speed | 18,737 ft/min |
| Blade Overlap | 2-5/8" |
| Cutting Height Range | 1.5" – 4.5" |
| Wing Flex | 40° up / 10° down |
| Deck Construction | 7 Ga. |
| Driveline (Main/Wings) | Series 4 CV / Series 2 |
| Hydraulic Lift | Yes |
| Transport Width | Approx. 102" |
| Transport Height / Length | 105” / 206” |
| Weight | 4,270 lbs |
| Deck Tires | 12 (15x6x6) |
| Main Frame Tires | 2 (27x10.5x15) |
| Hitch Type | Cast Clevis (Standard) |
| Gearbox Rating | 120 HP (divider), 30 HP (wings) |
Manuals & Documents
Product Brochure
Product Manual
Product Specification
