FARM-MAXX

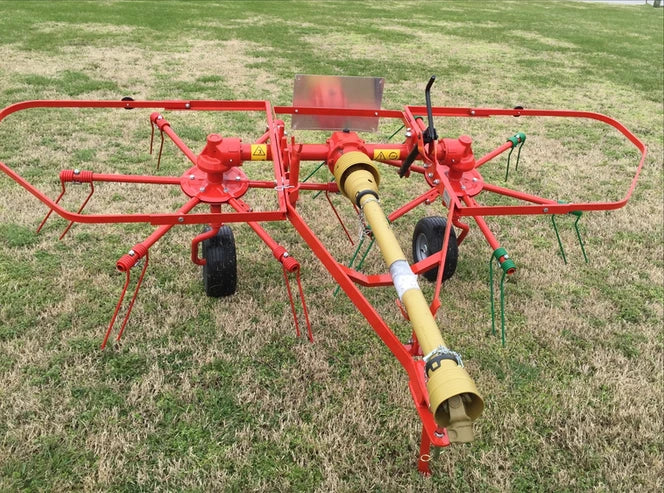

FARM-MAXX FHT Series 110" and 212" Pull Type Hay Tedder | 20-25HP | For Tractor

FARM-MAXX FHT Series 110" and 212" Pull Type Hay Tedder | 20-25HP | For Tractor

Regular price $2,156.25
Regular price Sale price $2,156.25
Sale Sold out
Customizable
Fast
24/7 Support
  • Robust Performance: Engineered for reliability and efficient hay tedding.
  • Super Balloon Tires: Provides excellent stability and smooth operation in uneven fields.
  • Oil Bath Gearbox: Ensures durability and low-maintenance operation.
  • Heavy-Duty Frame: Built to withstand demanding agricultural conditions.
  • Flexible Mounting Options: Available in pull type or 3-point hitch configurations.
  • Standard Double U-Joints: Ensures efficient power transfer from the tractor.
View full details

Product Description

FARM-MAXX FHT Series 110" and 212" Pull Type Hay Tedder | 20-25HP | For Tractor

DESCRIPTION

The Farm-Maxx FHT Series Hay Tedders are designed to deliver exceptional performance while maintaining affordability. Whether you’re preparing hay for baling or spreading crops for aeration, this tedder provides reliable and efficient operation. Its super heavy-duty frame and oil bath gearbox ensure longevity and reduced maintenance needs, making it an excellent investment for any hay operation.

With super balloon tires, the tedder remains stable even in uneven or challenging terrains, and the double U-joints guarantee smooth power transfer. The FHT Series offers the flexibility of pull-type hitches, making it compatible with a wide range of tractors.

Key Features

  • Durable Construction: Built with a super heavy-duty frame for tough applications.
  • Efficient Power Transmission: Equipped with double U-joints and a PTO shaft with a standard clutch.
  • Easy Transport and Storage: Compact transport dimensions allow for easy movement and storage.
  • Wide Working Widths: Ranges from 110 inches to 17 feet 8 inches to suit various field sizes.
  • Low Maintenance: Oil bath gearbox ensures smooth operation with minimal upkeep.

Detailed Specifications

Feature FHT-540-H FHT-280-PT
SKU UNI-FAR-FHT-540-H UNI-FAR-FHT-280-PT
Weight 1213 lbs 408 lbs
Model FHT-540-H FHT-280-PT
Rotor RPM 4 -
PTO Speed 540 RPM 540 RPM
Horsepower Recommended 25 HP Minimum (18.6 KW) 20 HP Minimum (14.9 KW)
Width - Working 17' 8" 110" (279 cm)
Height - Transport 11' 7" 4' 11"
Width - Transport 9' 4" 5' 8"
PTO Shaft Not Included Included
Hitch Connection Type Pull Type Hitch Pull Type Hitch
Color Red Red



Specification FHT-540-H FHT-280-PT
SKU UNI-FAR-FHT-540-H UNI-FAR-FHT-280-PT
Weight 1213 lbs 408 lbs
Identifier FAR-2977 FAR-7112
Model FHT-540-H FHT-280-PT
Rotor RPM 4 -
PTO Speed 540 RPM 540 RPM
Horsepower Recommended 25 HP Minimum (18.6 KW) 20 HP Minimum (14.9 KW)
Width - Working 17’ 8" 110" (279 cm)
Height - Transport 11’ 7" 4’ 11"
Width - Transport 9’-4" 5’-8"
PTO Shaft - Included
Hitch Connection Type Pull Type Hitch Pull Type Hitch
Color Red Red
Manufacturer Farm-Maxx Farm-Maxx

In Package

  • Farm-Maxx FHT Series Hay Tedder (selected model).
  • PTO shaft (for FHT-280-PT only).
  • Operator’s manual for setup and maintenance instructions.
