Farm-Maxx Gear Drive Rotary Tillers | Working Width 36"-90" | Horsepower 15-125+ HP | For Tractor
DESCRIPTION
The Farm-Maxx Gear Drive Rotary Tillers are designed for robust soil preparation, catering to the needs of landscapers, farmers, and gardeners alike. Available in 36" to 84" widths, these rotary tillers are compatible with compact and full-size tractors with 15-70 HP.

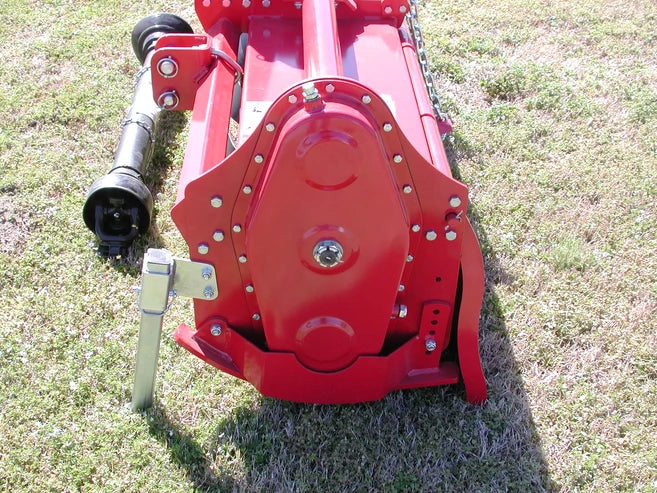

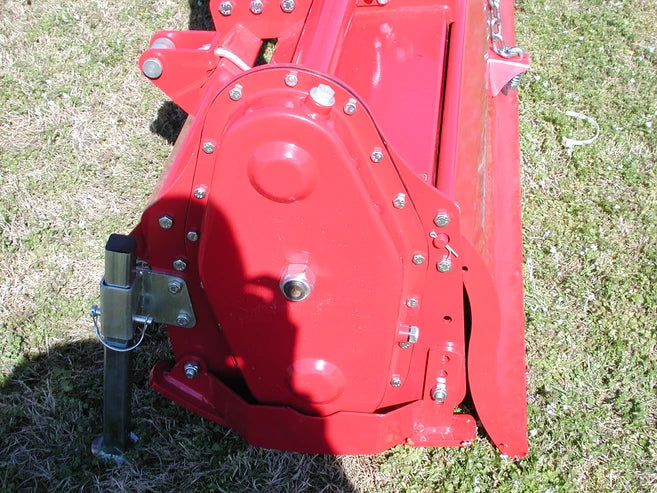

Equipped with gear-driven systems and boron steel tines, these tillers deliver reliable and efficient performance, even in tough soil conditions. The adjustable features, including skids, hitch links, and drag boards, make them versatile and easy to operate on varied terrain.
Built for durability, these rotary tillers feature heavy-duty zinc-plated components, oil level sight glass, and replaceable skid shoes for minimal maintenance. Quick hitch compatibility ensures easy and secure tractor attachment, saving time and effort during setup.
Key Features
- Multiple Widths: Choose from 36", 48", 60", 65", 72", and 84" models to meet your tilling requirements.
- Heavy-Duty Construction: Reinforced drag boards, gear drive system, and boron steel tines for long-lasting performance.

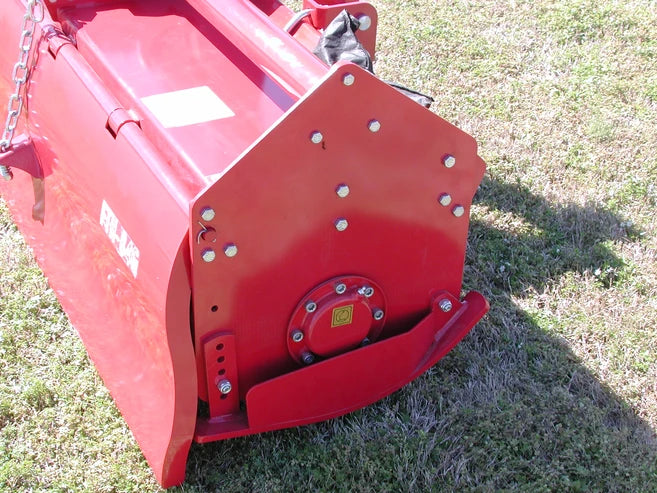

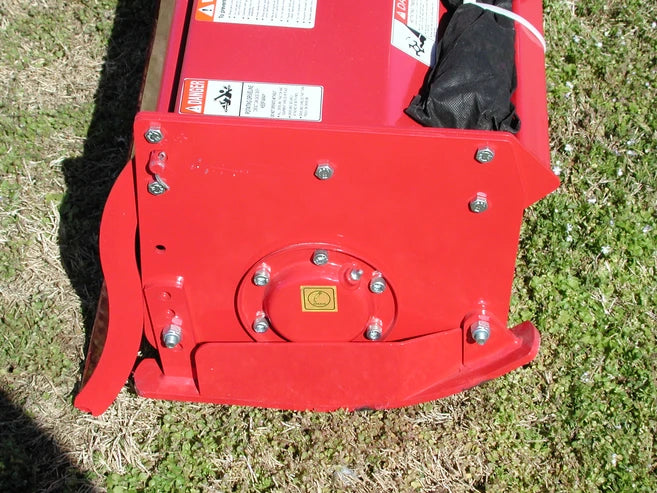

- Adjustable Skids: Control tilling depth up to 8 inches for precision soil preparation.
- Slip Clutch Protection: Safeguards the driveline and enhances the lifespan of the PTO shaft.

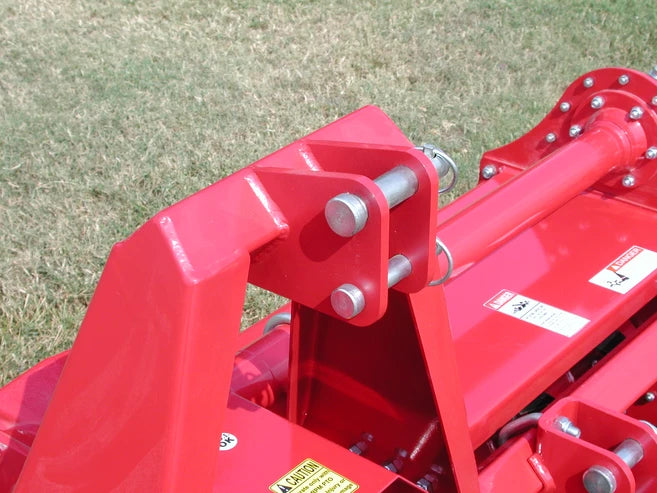

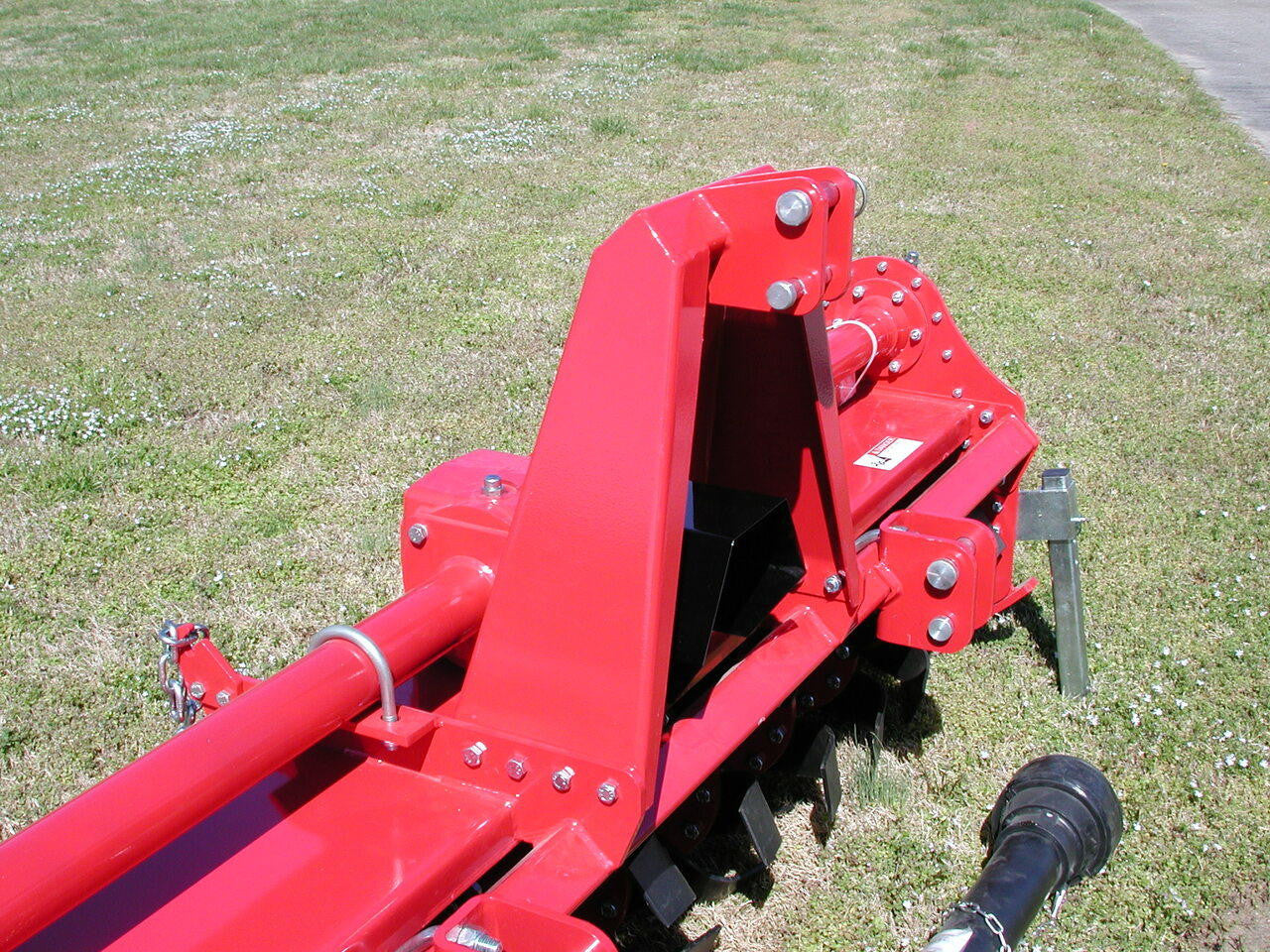

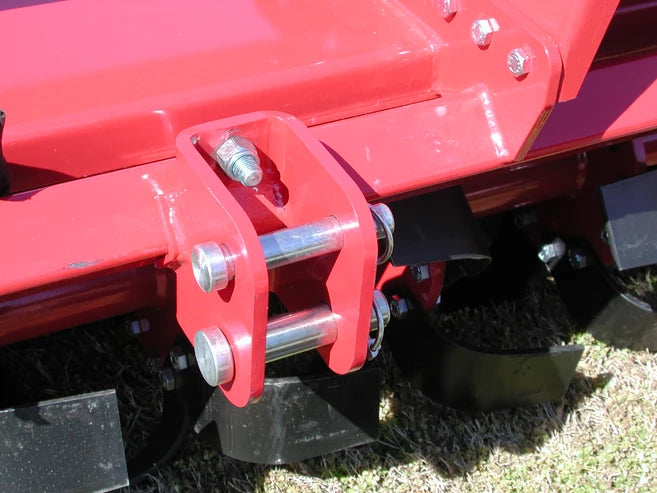

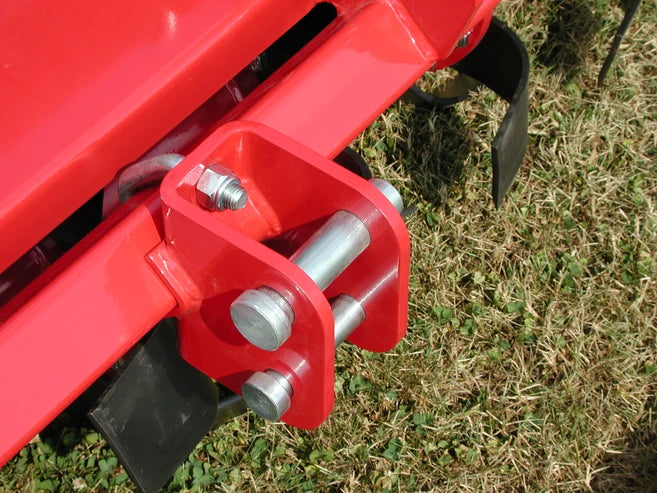

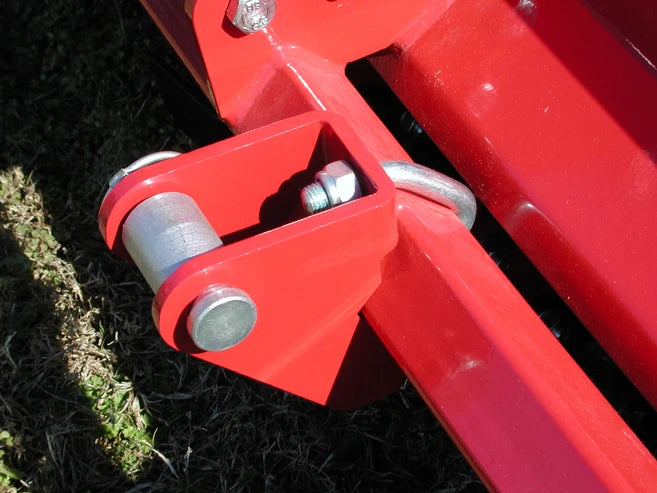

- Quick Hitch Compatibility: Easy attachment to tractors with Category 1, 3-point hitches.
- Efficient Soil Preparation: Reverse tine rotation and six tines per flange ensure even and thorough tilling.
Detailed Specifications
FTL Series — Light-Duty Rotary Tillers
| Feature | FTL-36G | FTL-48G |
|---|---|---|
| SKU | UNI-FAR-FTL-36G | UNI-FAR-FTL-48G |
| Weight | 392 lbs | 505 lbs |
| Recommended HP | 15–25 HP | 25–35 HP |
| Overall Width | 42″ (107 cm) | 48″ (122 cm) |
| Working Width | 36″ (91 cm) | 48″ (122 cm) |
| Side Shift | 4″ (10 cm) | 4″ (10 cm) |
| Tines / Rods | 24 total, 6 blades/flange, 4 flanges | 36 total, 6 blades/flange, 6 flanges |
| Tilling Depth | Up to 7″ (18 cm) | Up to 7″ (18 cm) |
FTM Series — Medium-Duty Rotary Tillers
| Feature | FTM-65G | FTM-72G |
|---|---|---|
| SKU | UNI-FAR-FTM-65G | UNI-FAR-FTM-72G |
| Weight | 715 lbs | 803 lbs |
| Recommended HP | 30–55 HP | 30–55 HP |
| Overall Width | 65″ (165 cm) | 72″ (183 cm) |
| Working Width | 65″ (165 cm) | 72″ (183 cm) |
| Side Shift | 4″ (10 cm) | 4″ (10 cm) |
| Tines / Rods | 48 total, 6 blades/flange, 8 flanges | 54 total, 6 blades/flange, 9 flanges |
| Tilling Depth | Up to 8″ (20 cm) | Up to 8″ (20 cm) |
FTH & FVH Series — Heavy-Duty Rotary Tillers
| Feature | FTH-84G | FVH-90G |
|---|---|---|
| SKU | UNI-FAR-FTH-84G | N/A |
| Weight | 1,150 lbs | 1,350 lbs (est.) |
| Recommended HP | Up to 70 HP | 65–125 HP |
| Overall Width | 90″ (229 cm) | 96″ (approx.) |
| Working Width | 84″ (213 cm) | 90″ |
| Side Shift | 4″ (10 cm) | Adjustable depth skids |
| Tines / Rods | 54 total, 6 blades/flange, 9 flanges | 54 forged, hardened steel tines |
| Tilling Depth | Up to 8″ (20 cm) | Up to 9″ |
| PTO Protection | N/A | Series 8 shaft with slip clutch |
| Hitch Compatibility | Category 1 & 2 | Category 2 & 3 |
| Transmission | Chain drive | Oil-bath gear drive |
| Frame Construction | Reinforced steel | Reinforced steel, powder-coated |

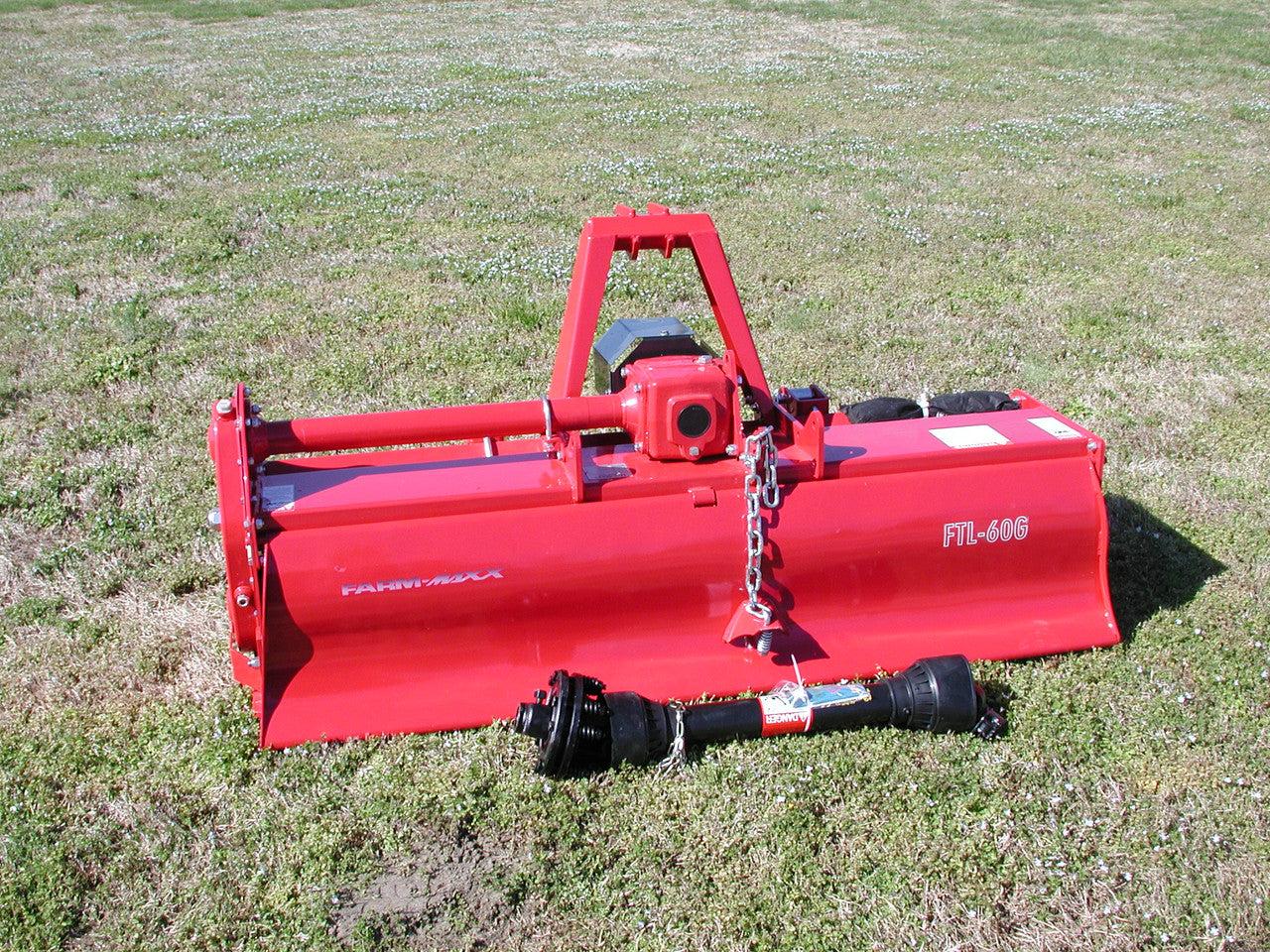

Medium-Duty Rotary Tiller
| Feature | FTL-60G | FTM-56G |
|---|---|---|
| SKU | UNI-FAR-FTL-60G | UNI-FAR-FTM-56G |
| Weight | 551 lbs | Data not provided |
| Recommended HP | 25–40 HP | Estimated 25–45 HP |
| Overall Width | 60″ (152 cm) | 56″ (142 cm) |
| Working Width | 60″ (152 cm) | 56″ (142 cm) |
| Side Shift | N/A | 4″ (10 cm) |
| Tines / Rods | 42 total, 6 blades/flange, 7 flanges | Estimated 42–48 total, 7–8 flanges |
| Tilling Depth | Up to 7″ (18 cm) | Up to 8″ (20 cm) |
