Product Description
Farm-Maxx High Capacity/High Clearance Pull Type Rake | Model HCWR | 30HP | For TractorMODEL HCWR FOR TRACTOR
DESCRIPTION
The Farm-Maxx High Capacity / High Clearance Pull Type Rake is designed for professional-grade raking applications, offering durability, precision, and efficiency. With options for 8-wheel (HCWR-8) and 10-wheel (HCWR-10) models, this rake is ideal for creating clean windrows in high-capacity fields.
Equipped with C85 steel teeth and hydraulic folding raking arms, the HCWR series provides excellent performance in even the toughest conditions. Its independent rake wheel arms allow for easy ground pressure adjustments without tools, while the low-maintenance design with a powder-coated finish ensures long-term reliability.
Both models feature 15" tires, which allow for higher ground speeds and enhanced maneuverability. With dual-sided raking capabilities and an optional center hydraulically actuated kicker wheel, the HCWR series is versatile enough to handle various field conditions and materials.
Key Features
- Efficient Design: High clearance and 15" tires ensure maximum raking performance and ease of transport.
- Adjustable Ground Pressure: Patented spring system allows easy adjustment of wheel ground pressure without tools.
- Hydraulic Arms: Folding raking arms provide quick transitions between work and transport modes.
- Durable Construction: Built with a thick-walled square tube frame and powder-coated finish for long-lasting use.
- Customizable Windrows: Adjustable windrow width system for tailored material handling.
- Optional Kicker Wheel: Adds a central rake wheel for enhanced windrow quality.
Detailed Specifications
| Feature | HCWR-8 | HCWR-10 |
|---|---|---|
| SKU | UNI-FAR-HCWR-8 | UNI-FAR-HCWR-10 |
| Weight | 1,387 lbs | 1,704 lbs |
| Model | HCWR-8 | HCWR-10 |
| Horsepower Recommended | 30 HP Minimum (22.4 kW) | 30 HP Minimum (22.4 kW) |
| Width - Working | 18’-5" (5.6 m) | 21’-8" (6.6 m) |
| Width - Transport | 9’-2" (2.8 m) | 9’-2" (2.8 m) |
| Hitch Connection Type | Pull Type Hitch | Pull Type Hitch |
| Wheel Diameter | 55" (140 cm) | 55" (140 cm) |
| Teeth | 40 per wheel, 7 mm diameter | 40 per wheel, 7 mm diameter |
| Color | Red | Red |

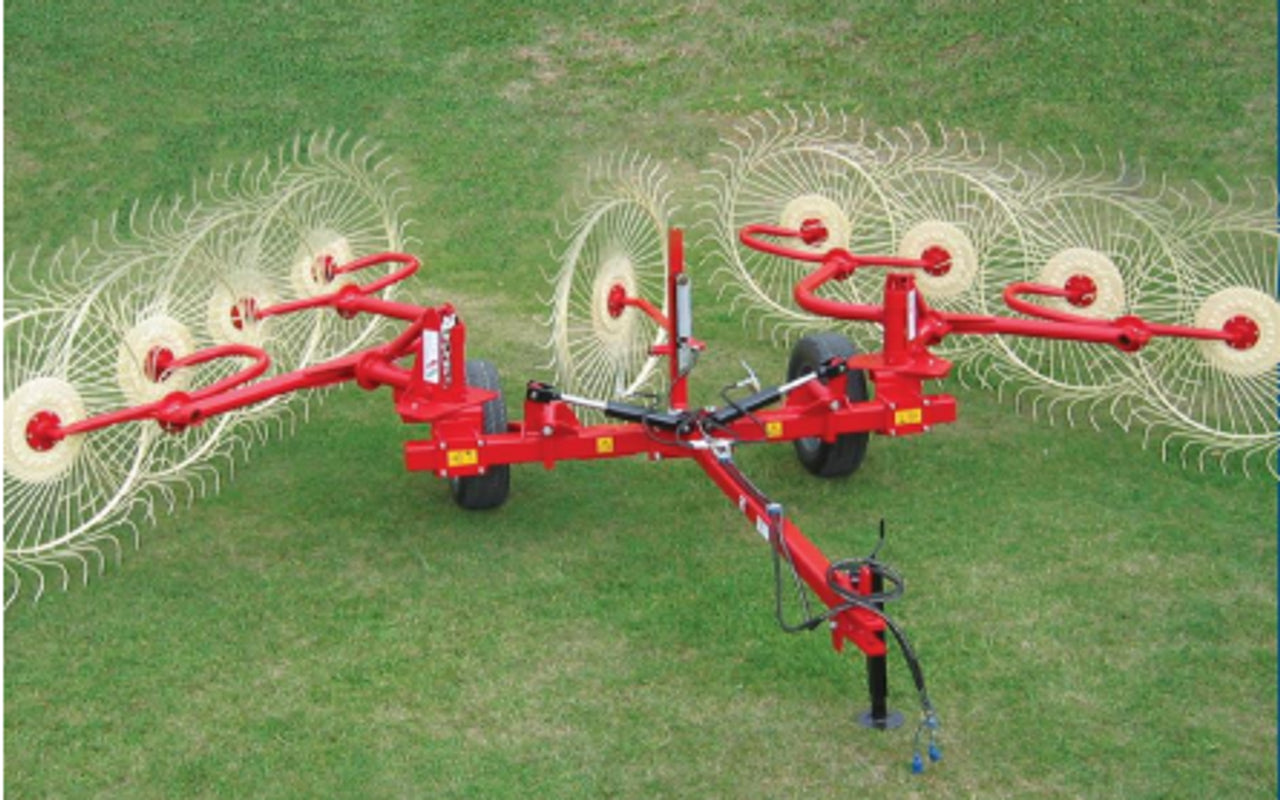

Farm-Maxx High Capacity, High Clearance,Pull Type 8-Wheel Rake Model HCWR-8
| Specification | Value |
|---|---|
| SKU | UNI-FAR-HCWR-8 |
| Weight | 1387 lbs |
| Identifier | FAR-4187 |
| Model | HCWR-8 |
| Product Video | Watch Here |
| Horsepower Recommended | 30 HP Minimum (22.4 KW) |
| Width - Working | 18’-5" (5.6 m) |
| Width - Transport | 9’-2" (2.8 m) |
| Hitch Connection Type | Pull Type Hitch |
| Wheel(s) / Tire(s) | 8 @ 55" (140 cm) Diameter |
| Teeth | 40 Teeth per Wheel; 7 mm Diameter |
| Color | Red |
| Manufacturer | Farm-Maxx |

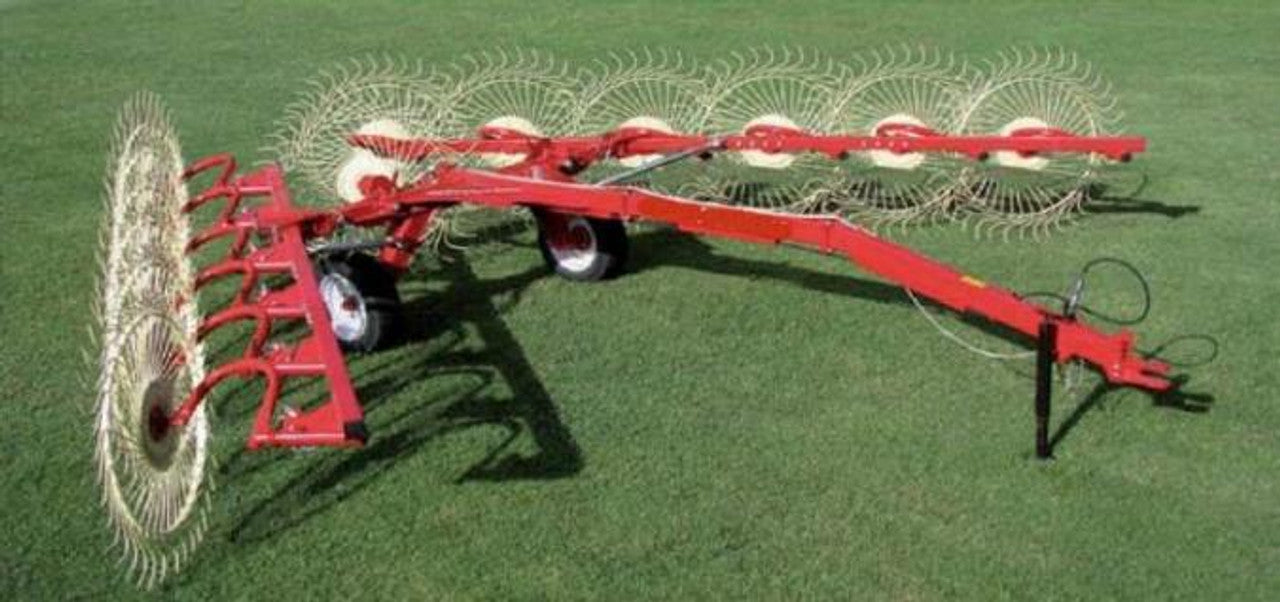

Farm-Maxx High Capacity, High Clearance, Pull Type 10-Wheel Rake Model HCWR-10
| Specification | Value |
|---|---|
| SKU | UNI-FAR-HCWR-10 |
| Weight | 1704 lbs |
| Identifier | FAR-6905 |
| Model | HCWR-10 |
| Product Video | Watch Here |
| Horsepower Recommended | 30 HP Minimum (22.4 KW) |
| Width - Working | 21’-8" (6.6 m) |
| Width - Transport | 9’-2" (2.8 m) |
| Hitch Connection Type | Pull Type Hitch |
| Wheel(s) / Tire(s) | 10 @ 55" (140 cm) Diameter |
| Teeth | 40 Teeth per Wheel; 7 mm Diameter |
| Color | Red |
| Manufacturer | Farm-Maxx |
In Package
- Farm-Maxx Pull Type Rake (selected model: HCWR-8 or HCWR-10)
- Hydraulic folding arms
- Adjustable independent rake wheel arms
- Owner’s manual
