Product Description
Farm-Maxx Heavy Duty Gear Drive Rotary Tiller | FHH Series | 8 & 10’ Tiller | Working Width 102" & 122" inches | Horsepower 90-140 HP | For Tractors
DESCRIPTION
When it comes to durability, performance, and versatility, the FHH Series Heavy-Duty Rotary Tillers deliver unmatched results. Designed for intensive agricultural applications, these tillers offer precision and efficiency to farmers and landowners looking to prepare their fields with minimal effort and maximum output. With high-quality construction and user-friendly features, the FHH-100 and FHH-120 models excel in both reliability and productivity.
Why Choose the FHH Series Rotary Tillers?
The FHH-100 and FHH-120 models are engineered to provide unmatched efficiency in even the most challenging conditions. With their wide working width, durable components, and advanced features, they are designed to save time and effort while delivering professional-quality results. Whether you’re a farmer, landscaper, or contractor, these rotary tillers are built to exceed your expectations.
Key Features
-
Massive Working Width
- FHH-100: 102 inches
- FHH-120: 122 inches These tillers cover large areas in a single pass, reducing time and effort spent on tilling operations.
- Exceptional Power Requirement: Designed to handle tractors with 90-140 HP (FHH-100) and 100-160 HP (FHH-120), ensuring compatibility with heavy-duty machines for high-performance operations.
- Six Tines Per Flange: Equipped with a C/L Type blade configuration, the tillers break up soil thoroughly, providing a fine finish and maximum wear life.
- Heavy-Duty Gear Drive Transmission: A robust and reliable gear drive system ensures steady power transfer and smooth tilling even in demanding soil conditions.
- Adjustable Working Depth: With a maximum working depth of 10 inches, these tillers can handle various soil types and meet your specific tilling needs.
- Slip Clutch PTO Driveline Protection: Protects the tiller and tractor against unexpected overloads or mechanical stress, ensuring consistent and reliable operation.
- Category II & III Quick Hitch Compatibility: These tillers come with flexible hitch compatibility, allowing easy attachment to a wide range of tractors.
- Reinforced Rotor Tubes: Featuring a 4 1/2-inch rotor tube diameter, they ensure durability and stability while providing excellent soil mixing results.
- Powder-Coated Finish: Resistant to rust and wear, the finish ensures these tillers remain in top-notch condition even after prolonged use in rugged environments.
-
High Blade Capacity
- FHH-100: 60 tines
- FHH-120: 72 tines The high number of blades per model maximizes soil pulverization and guarantees efficient operation across large fields.
Detailed Specifications
| Specification | FHH-100 | FHH-120 |
|---|---|---|
| Overall Length (in.) | 110" | 130" |
| Overall Width (in.) | 47" | 47" |
| Overall Height (in.) | 55" | 55" |
| Working Width (in.) | 102" | 122" |
| Tractor HP | 90-120 HP | 100-140 HP |
| 3-Point Hitch | Cat II, Cat III Quick Hitch | Cat II, Cat III Quick Hitch |
| No. of Tines (C/L Type) | 60 | 72 |
| Side Transmission Type | Gear | Gear |
| Max Working Depth (in.) | 10" | 10" |
| Rotor Tube Diameter (in.) | 4 1/2" | 4 1/2" |
| PTO Shaft | PTO w/ Slip Clutch | PTO w/ Slip Clutch |
| Weight (lb) | 2,339 lbs | 2,573 lbs |
Manual & Documents
General Warranty Info:
-
Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

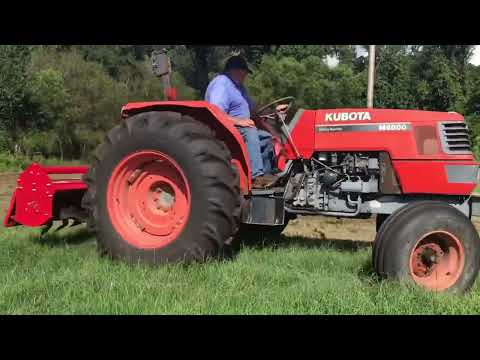

Videos
