Product Description
Farmer Helper | Heavy Duty Flail Mower | Model EFGC Series | Width 41" To 77" | Horsepower 20 To 65 HP | For Tractors
DESCRIPTION
Elevate your groundskeeping expertise with the Farmer-Helper EFGC Series (Heavy Duty) Flail Mower the ultimate powerhouse for all your lawn care demands! Perfect for maintaining an orchard, nursery, vineyard, greenhouse, or garden, this high-performance mower features rapid blade tip speed and interchangeable blades to conquer even the most challenging tasks with ease.
Designed for those who settle for nothing less than the best, the EFGC Series is engineered to tackle dense areas and cut through wooded material up to 3 inches in diameter. This heavy-duty mower is specifically tailored for acreages larger than 15 acres, delivering unbeatable performance and impeccable results every time.
Say farewell to untidy cuts and scattered debris during operation. The state-of-the-art flail mower technology guarantees precision cutting, producing finely chopped grass clippings and minimizing the risk of damage. Ideal for maintaining parks or mowing highways, this mower is the go-to choice for professionals and dedicated groundskeepers alike. Don’t wait invest in the Farmer-Helper EFGC Series Flail Mower today and experience the ultimate transformation in your lawn care capabilities!
Key Features
- Cutting Width: 41" to 77" for versatile coverage on small to large acreage.
- Tractor Compatibility: Designed for 20 To 65 HP tractors with Category I 3-point hitch.

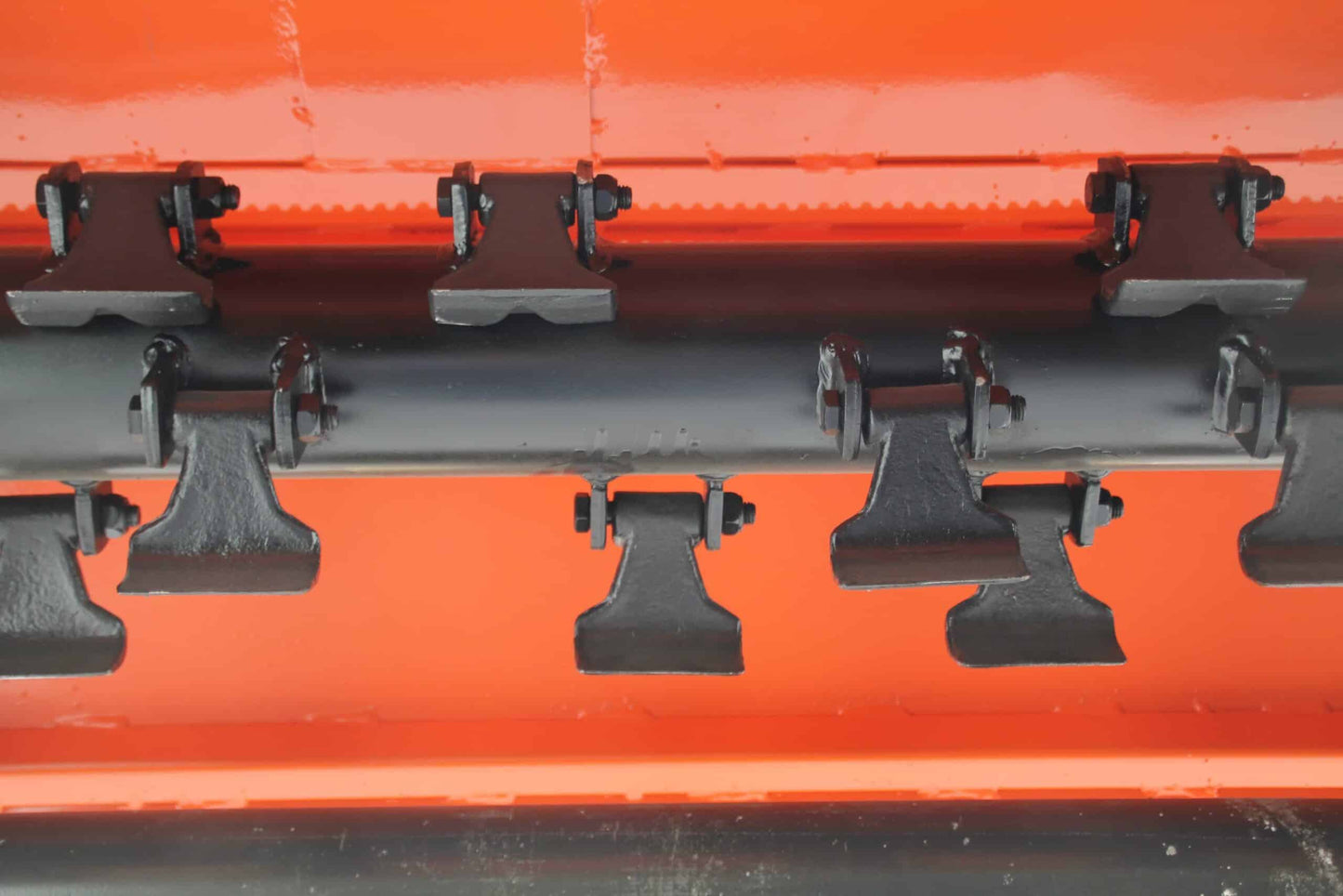

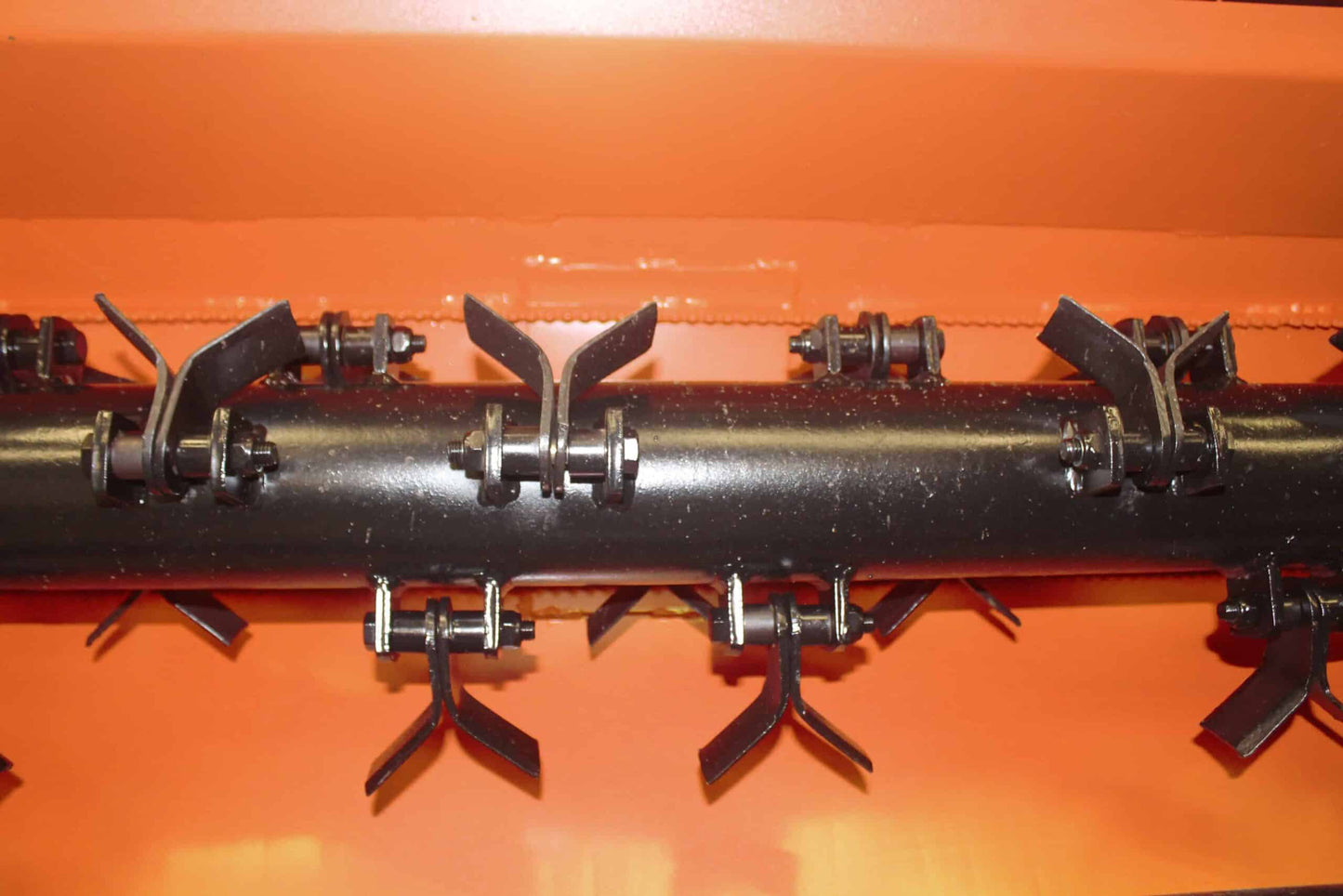

- Heavy-Duty Hammer Blades: 27 oz forged steel hammers pulverize material up to 3" thick.
- Rotor Speed: High-speed 2,300 RPM rotor ensures fine, even mulch and clean cuts.

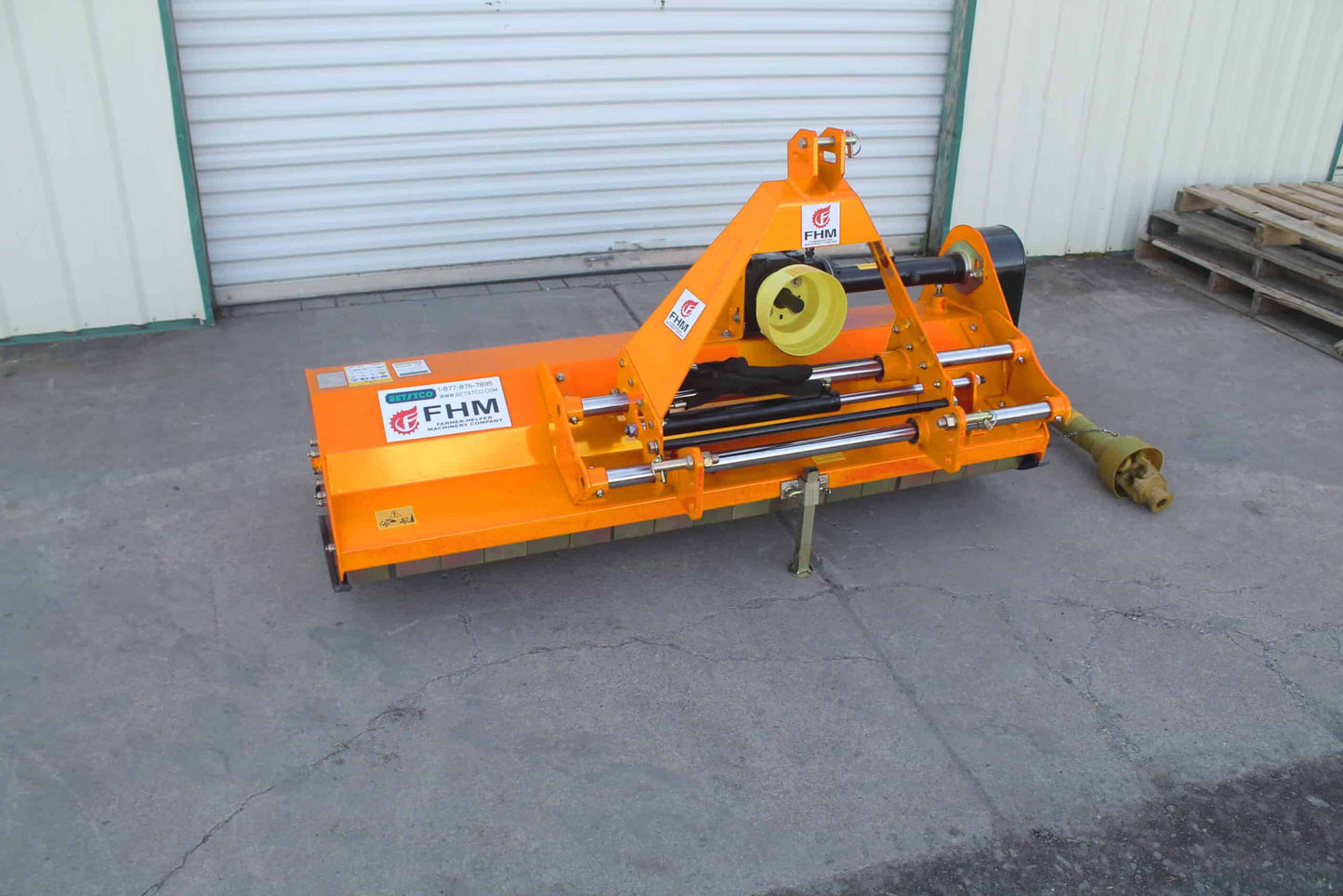

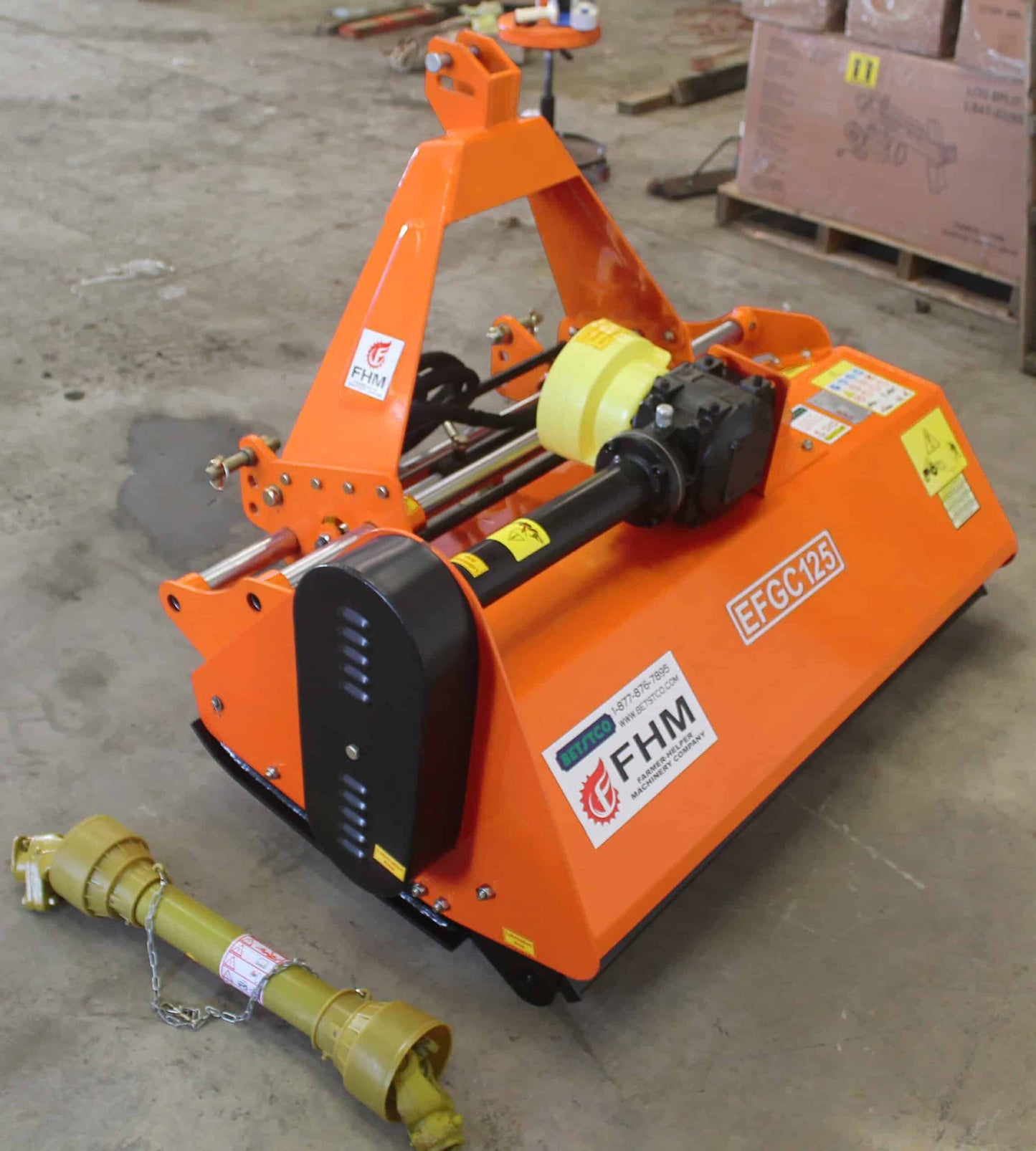

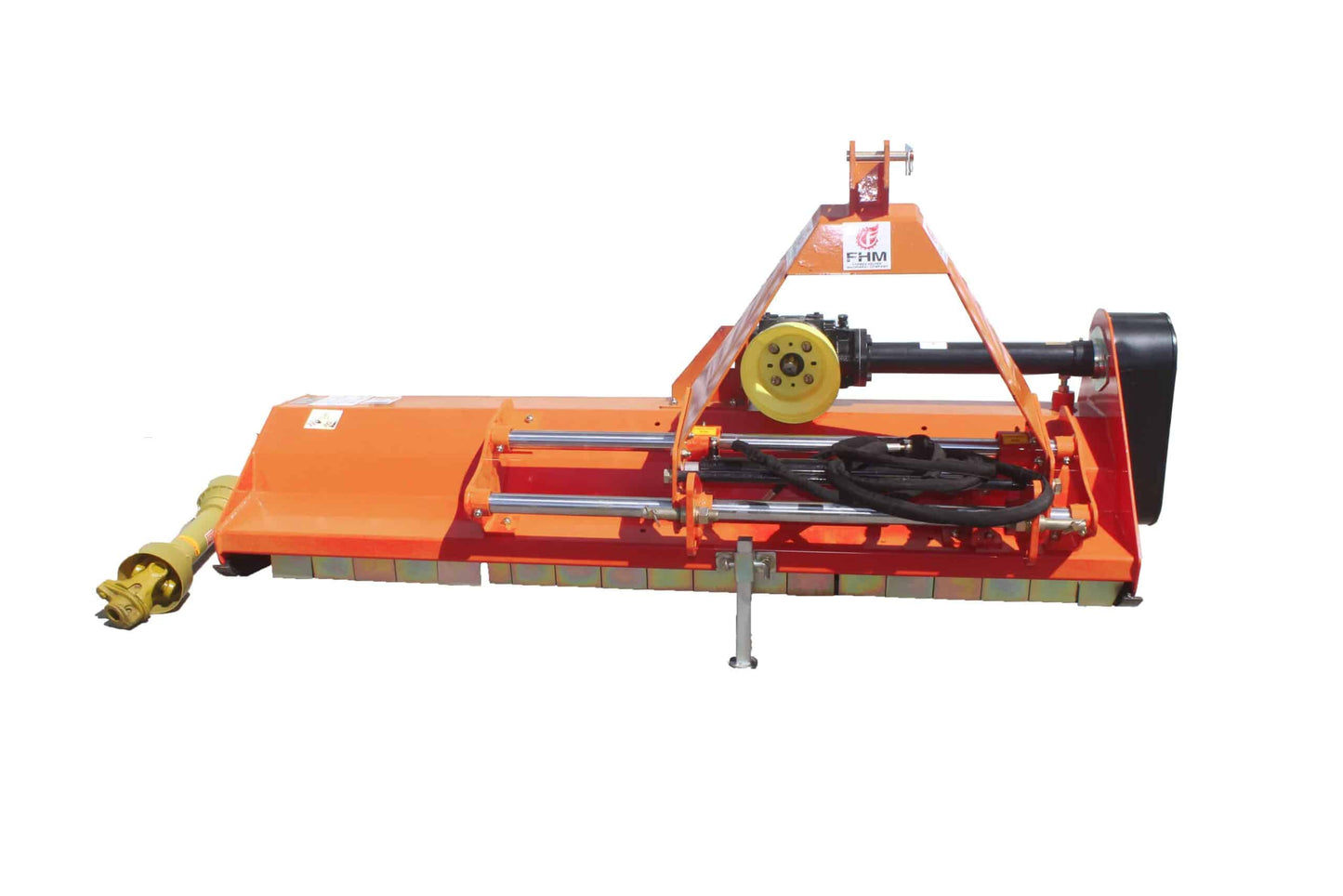

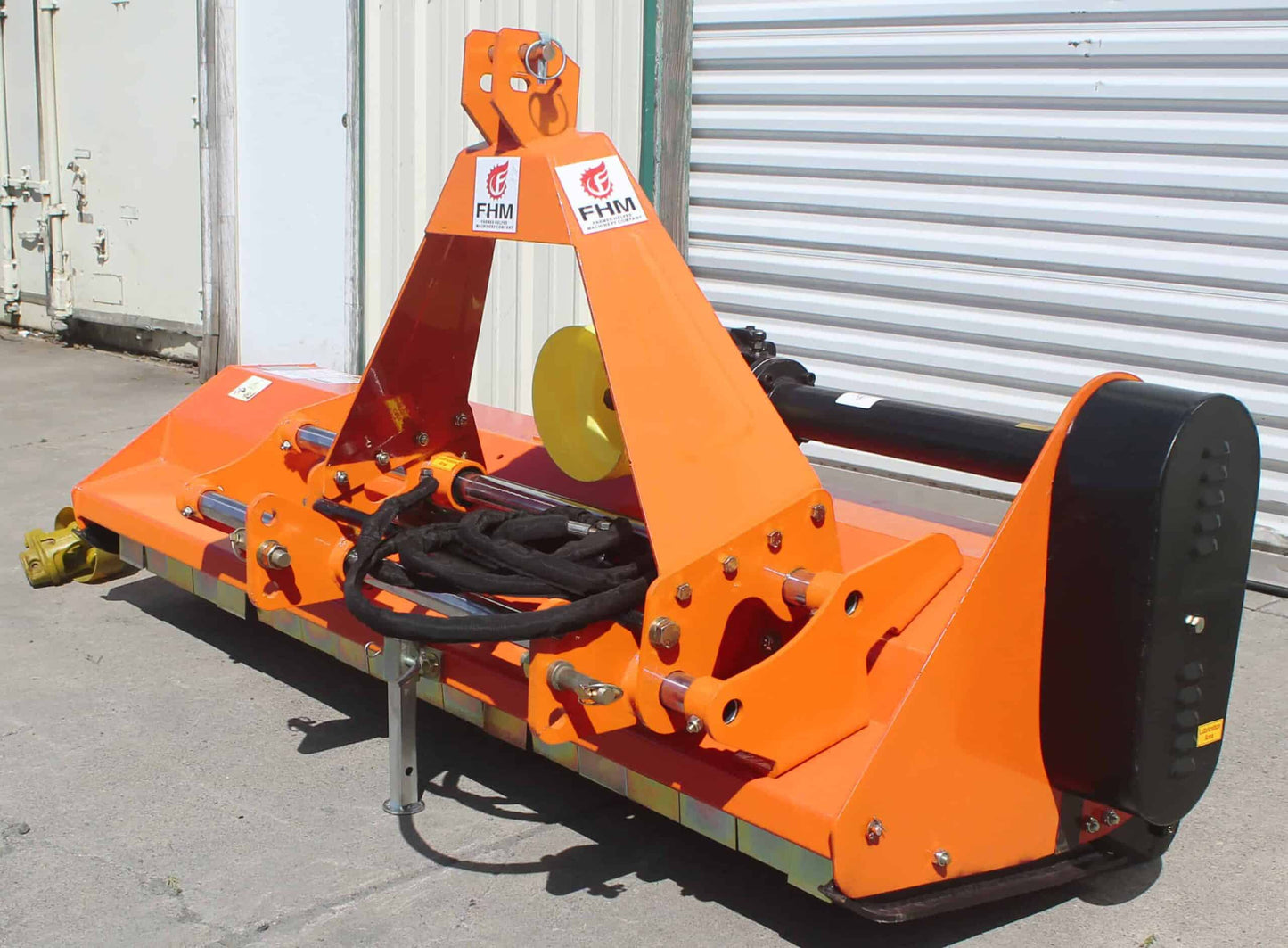

- Hydraulic Offset Option: Available on 48" and larger models for easier fence-line and edge mowing.
- Multiple Belt Drive: 2 to 4 belts depending on model provide smooth, consistent power transfer.
- Adjustable Cutting Height: 0" to 6" with adjustable rear roller and skids for tailored mowing results
- Robust Construction: 4mm housing and 1/4" side plates for long-lasting durability in rugged conditions
- Balanced Rotor: Reduces vibration, extends bearing life, and improves overall mowing smoothness.
- Rotor Swing Diameter: 14.5" with overlapping blades for dense, thorough cutting coverage.
- Cast Steel Blade Mounts: Superior strength for high-impact mowing in dense vegetation.

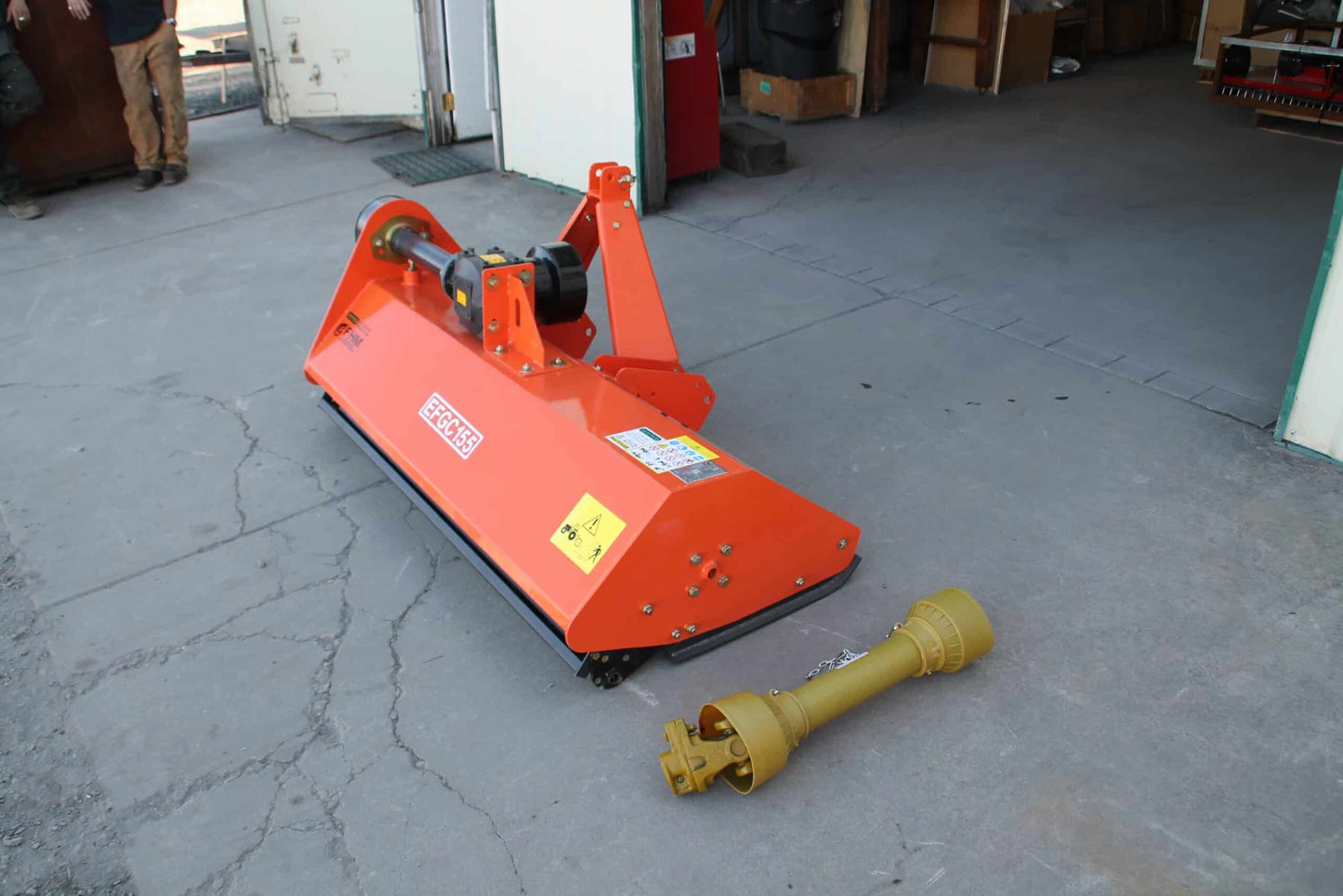

- PTO Shaft Included: Shear-bolt protected, 6-spline shaft with Series 4 & 5 connection based on model.
- Offset Mounting: Right-side offset from 19" to 51.5" helps maneuver around trees, buildings, and trails.
- Finish: Powder-coated for superior rust resistance and professional appearance.
- Ideal Use: Perfect for orchards, vineyards, roadside mowing, pastures, and general land clearing.
Detailed Specifications

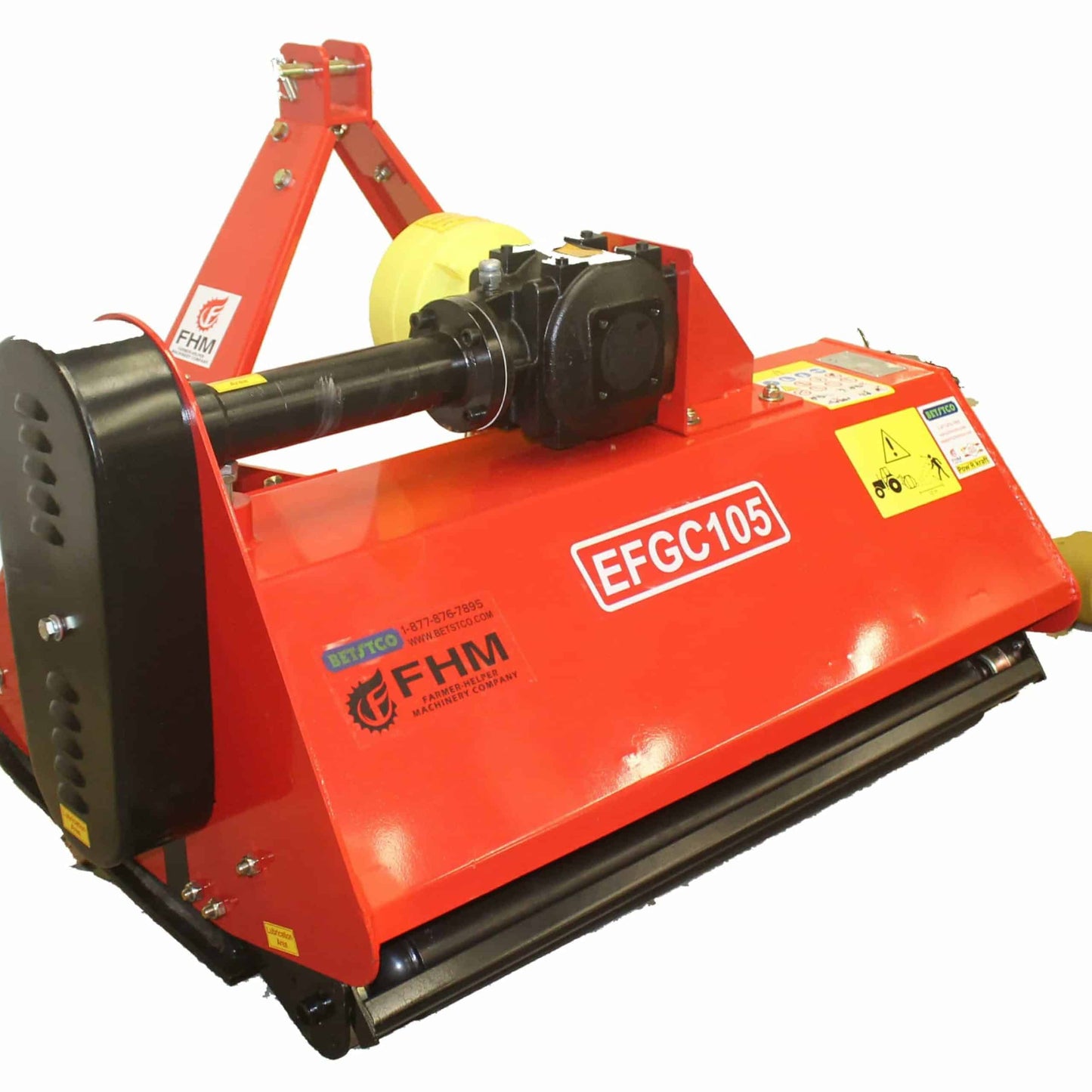

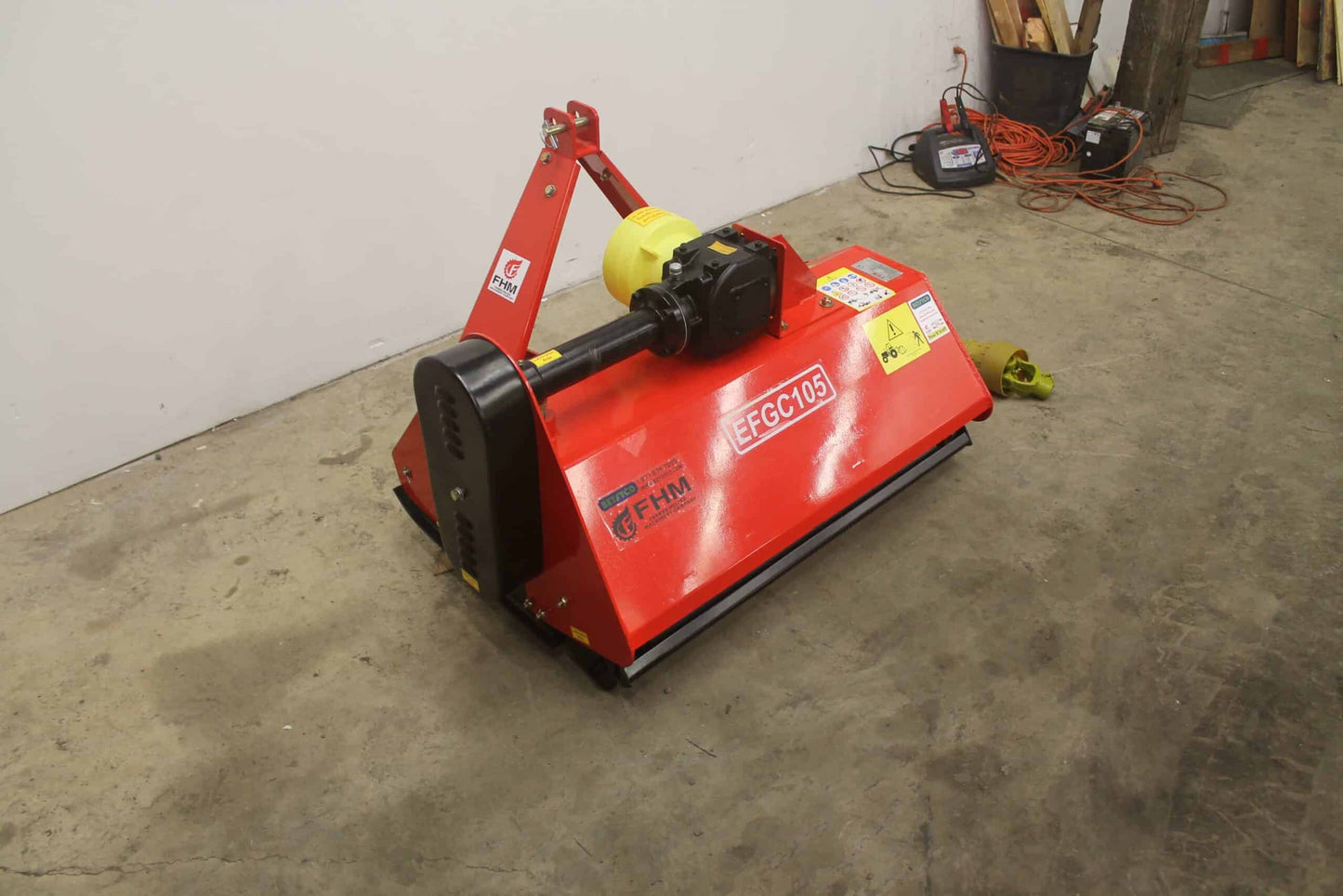

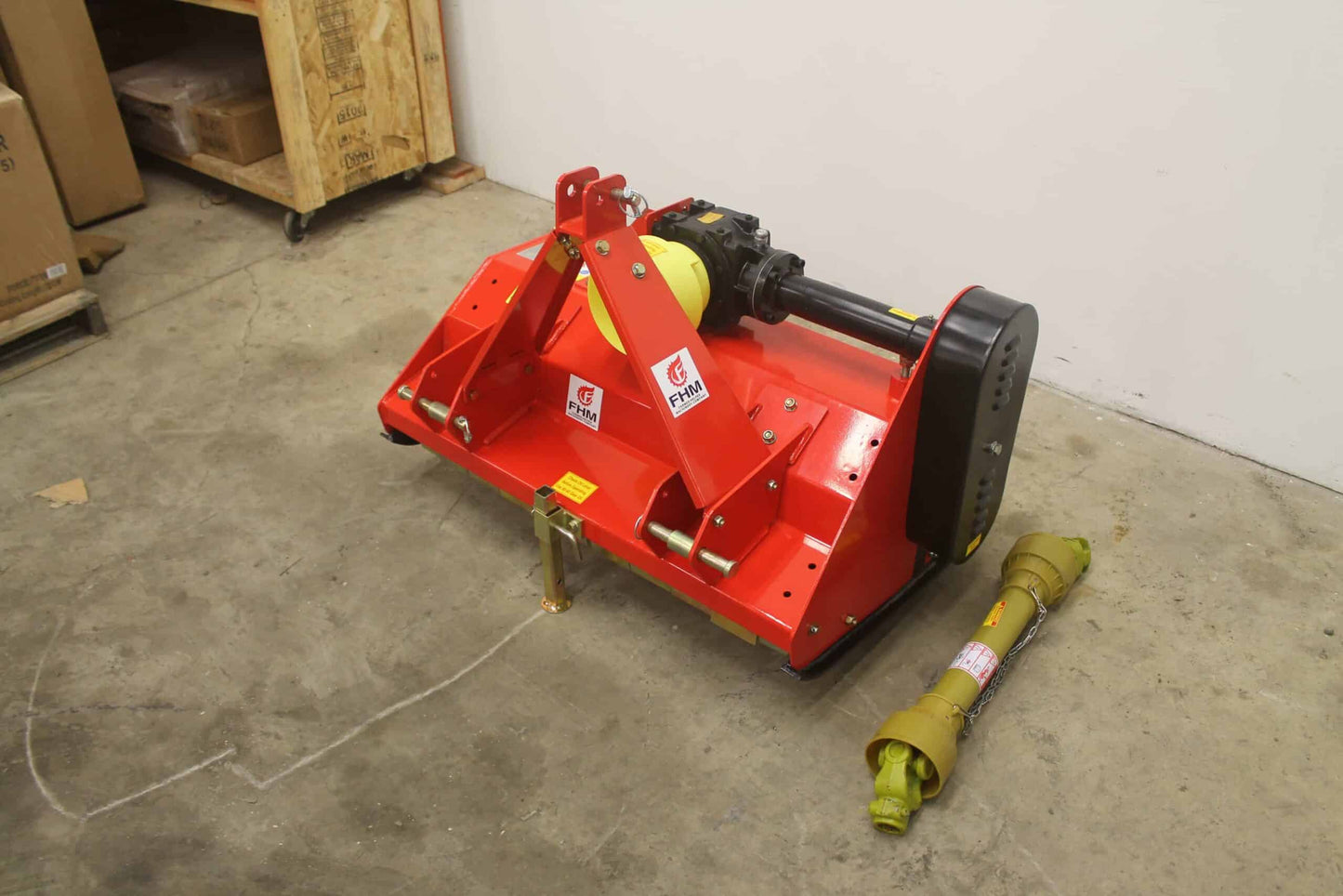

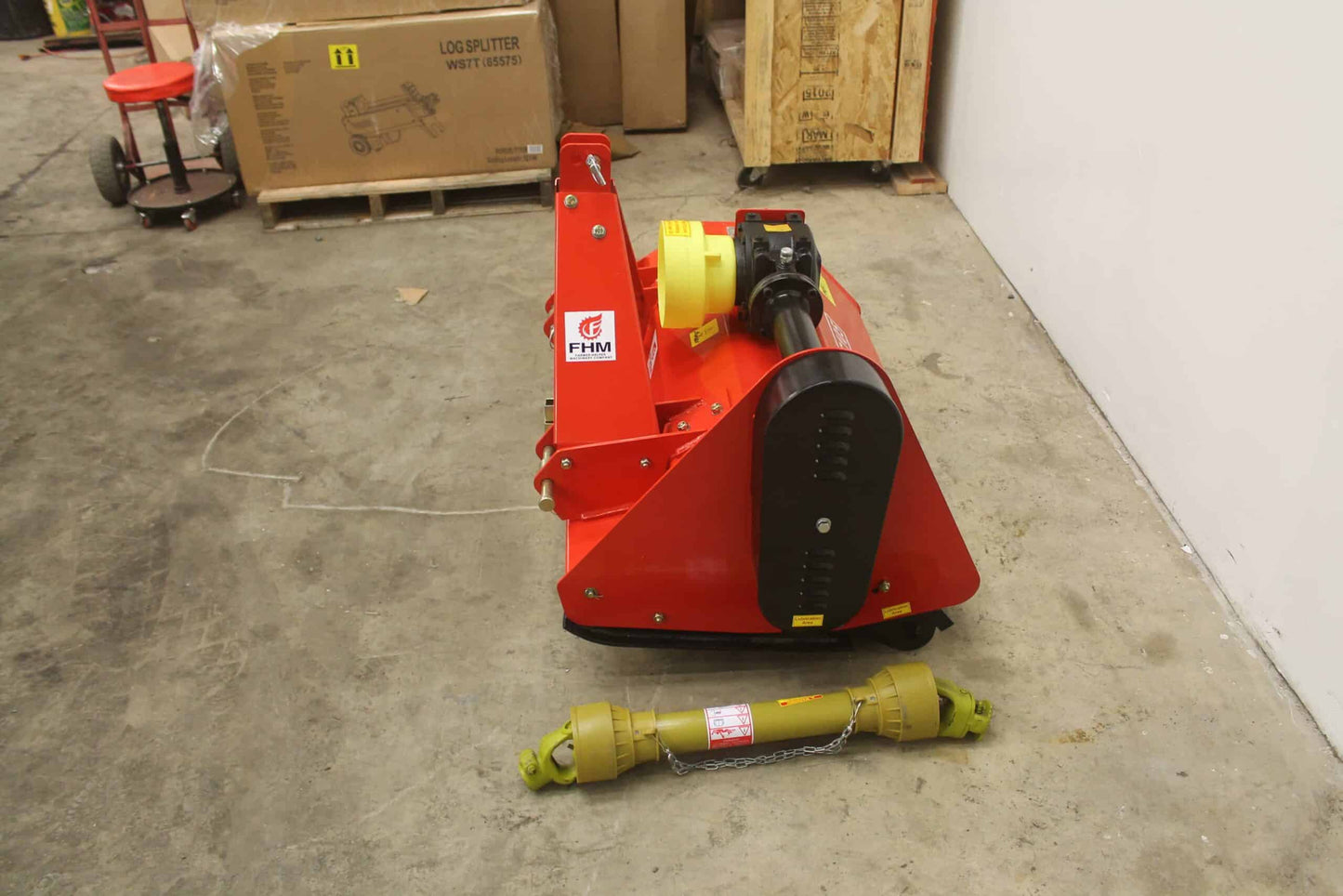

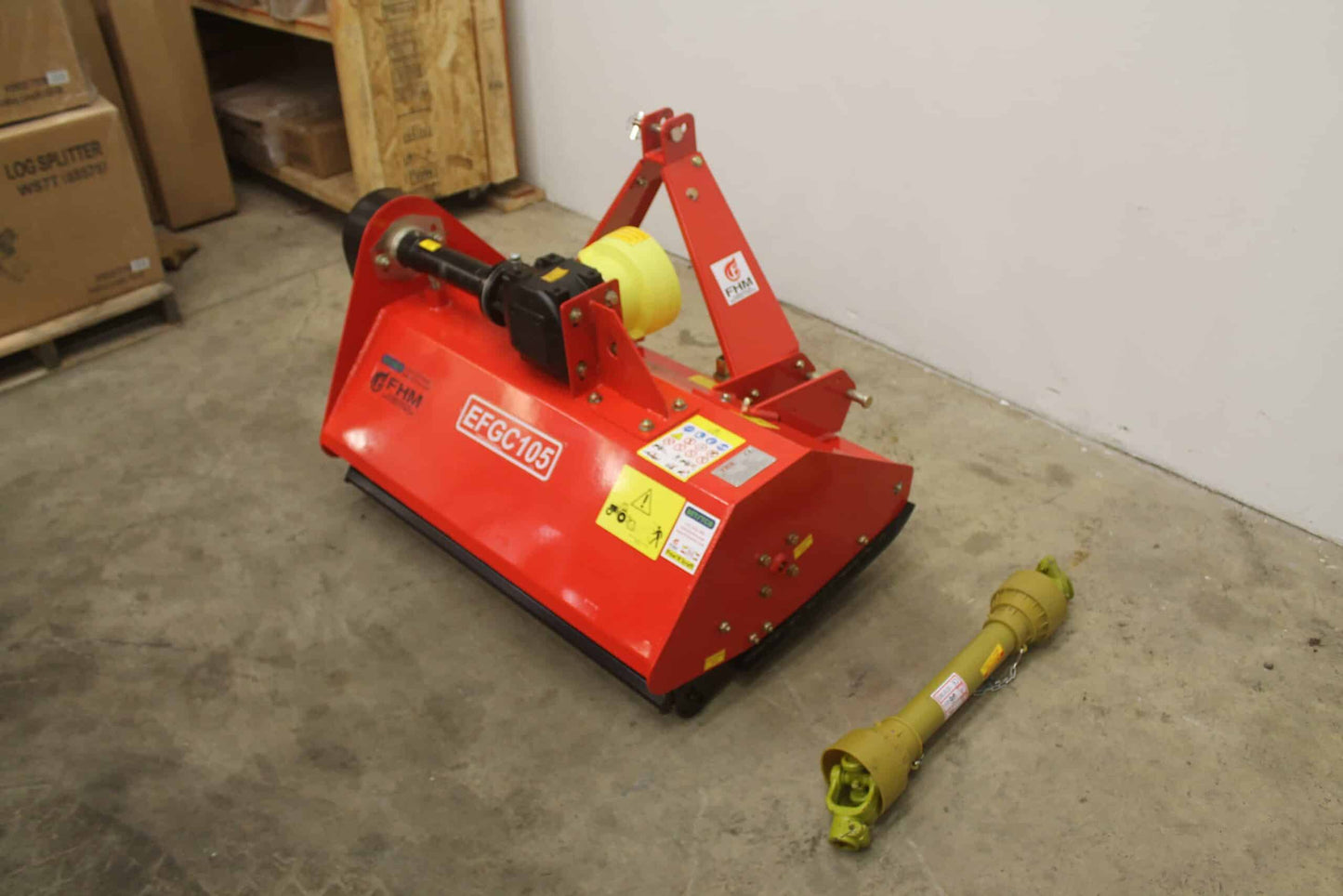

| Feature | FH-EFGC105 |
|---|---|
| Working Width | 41" |
| Overall Width | 47" |
| Min. HP Requirement | 20 HP |
| Gear Box Rating | 65 HP |
| Hammer Blades | 16 |
| Weight | 540 lbs |
| Offset Right of Center | 19" or 23.25" |
| Number of Belts | 2 |
| Rotor Diameter | 4" |
| 3pt Connection Width | Series 4 Quick Connect, 6-Spline |
| Crated Weight | 570 lbs |

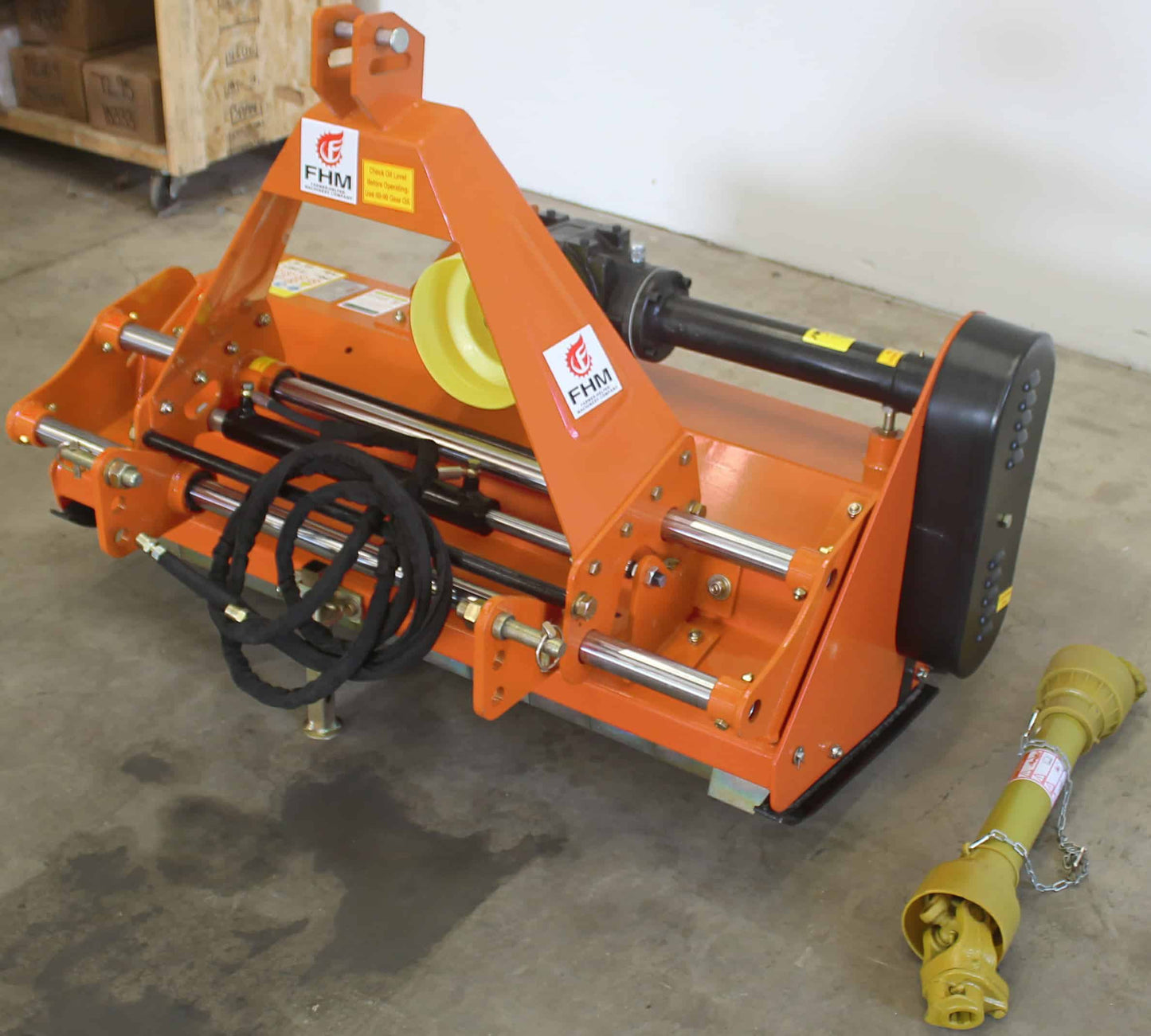

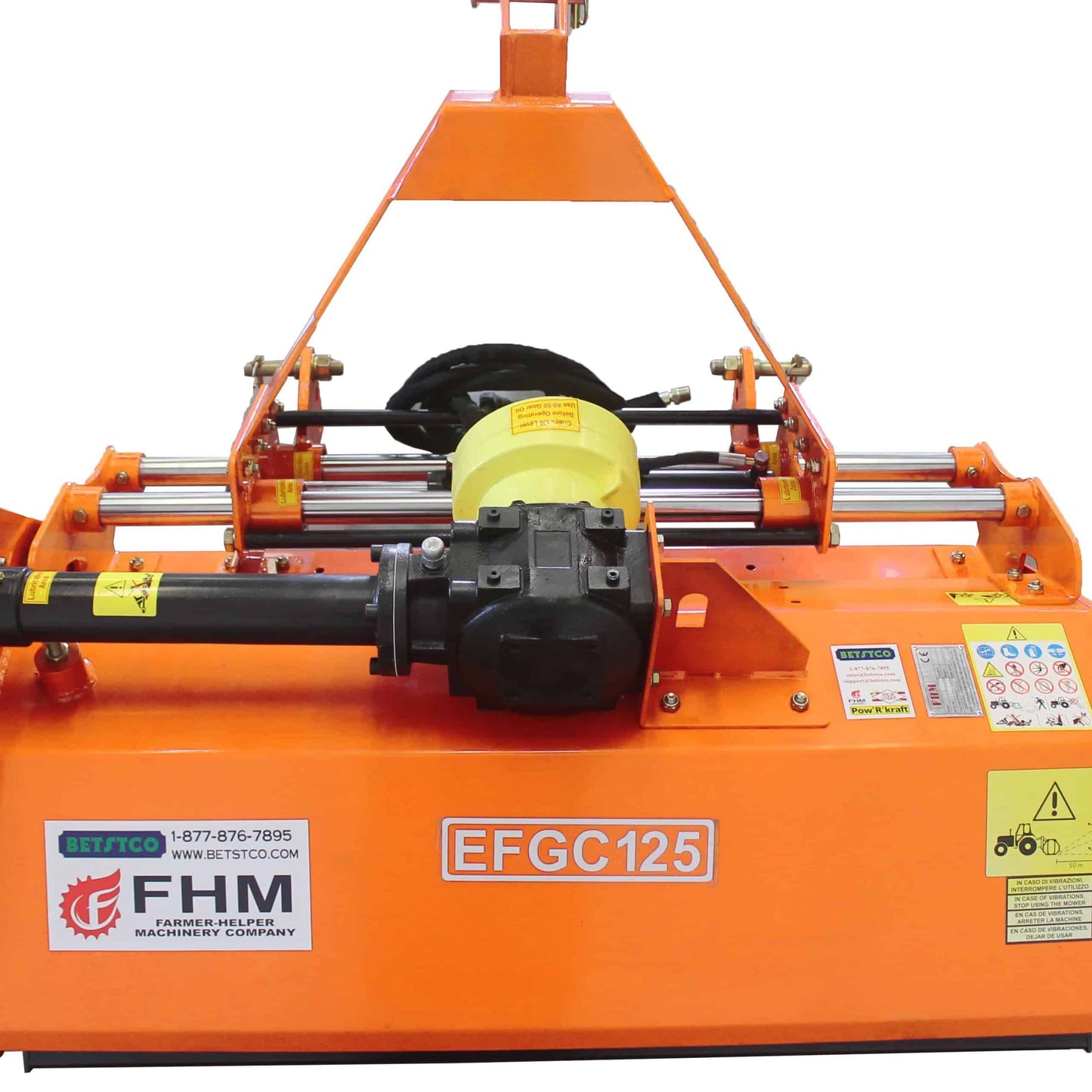

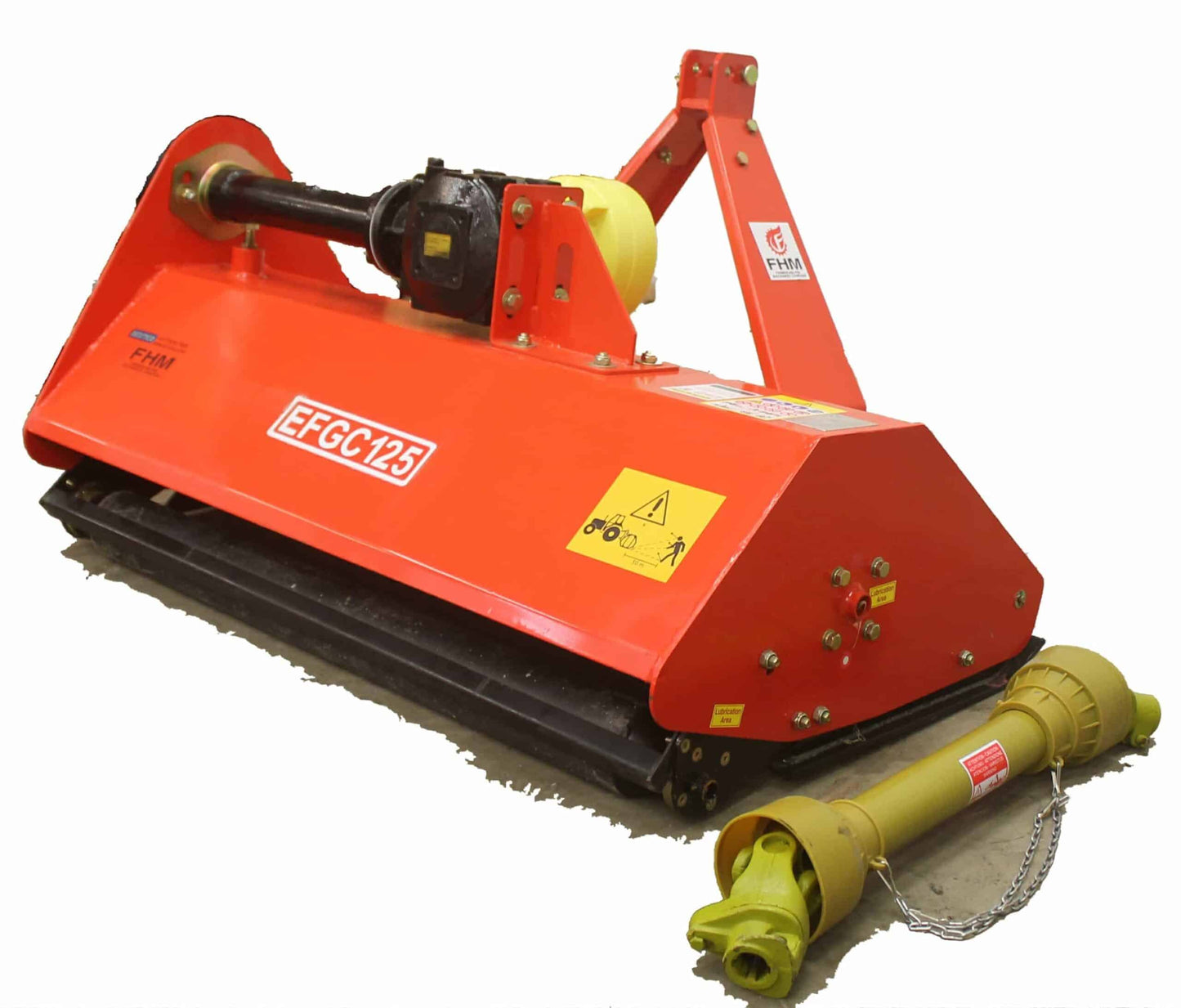

| Feature | FH-EFGC125 |
|---|---|
| Working Width | 48" |
| Overall Width | 54" |
| Min. HP Requirement | 22 HP |
| Gear Box Rating | 65 HP |
| Hammer Blades | 20 |
| Weight | 600 lbs |
| Offset Right of Center | 23.50" or 27.75" |
| Number of Belts | 2 |
| Rotor Diameter | 4" |
| 3pt Connection Width | Series 4 Quick Connect, 6-Spline |
| Crated Weight | 635 lbs |

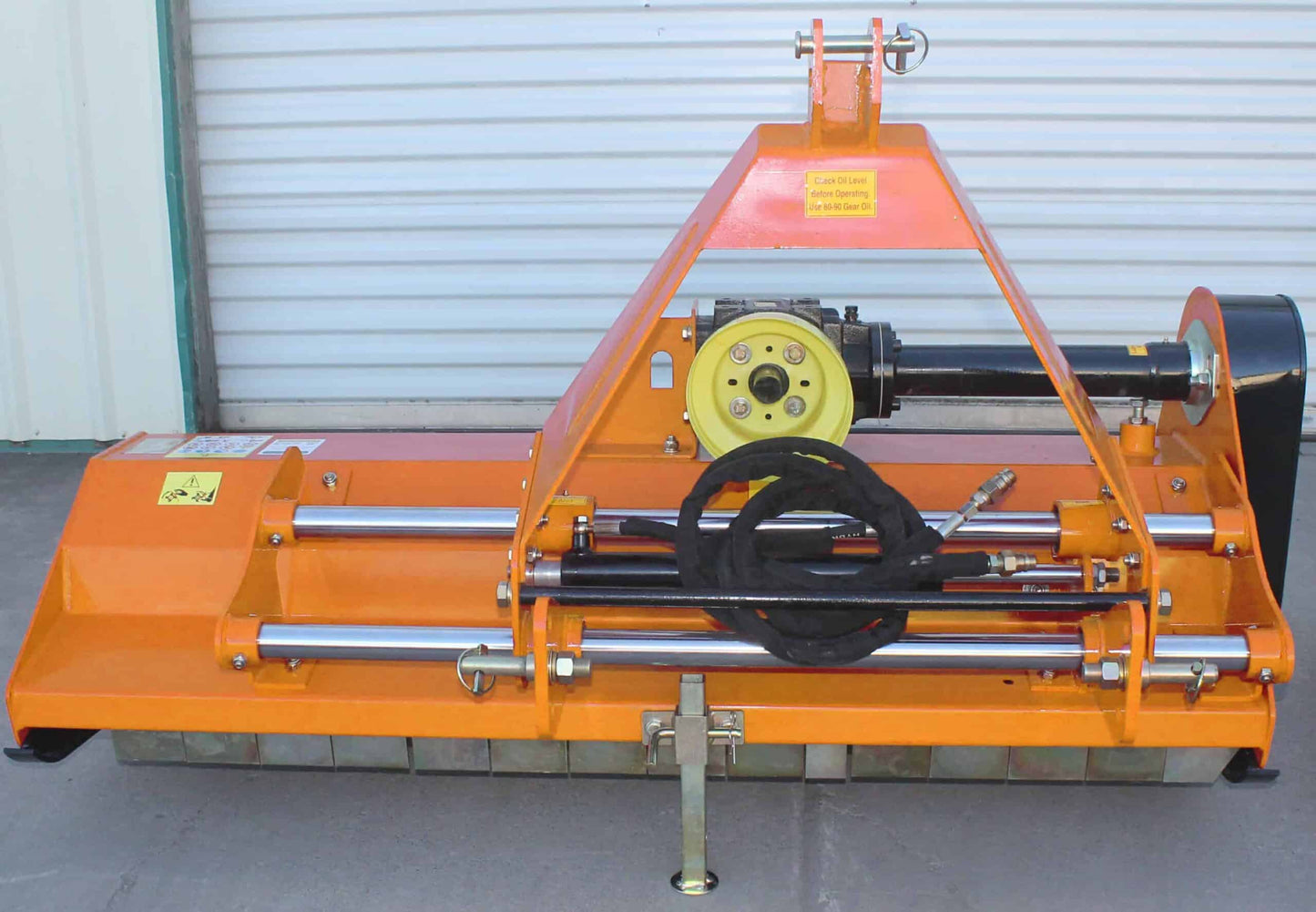

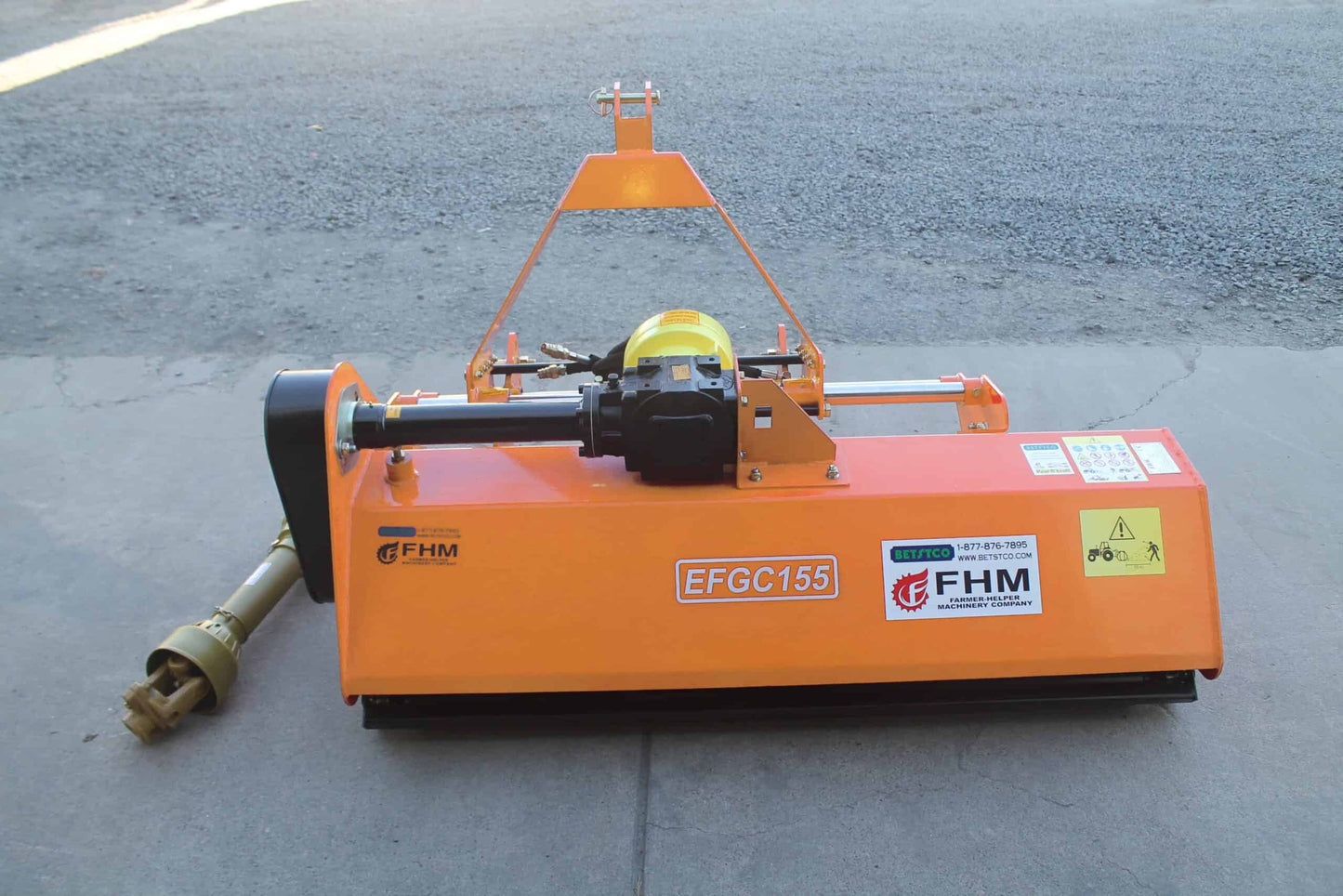

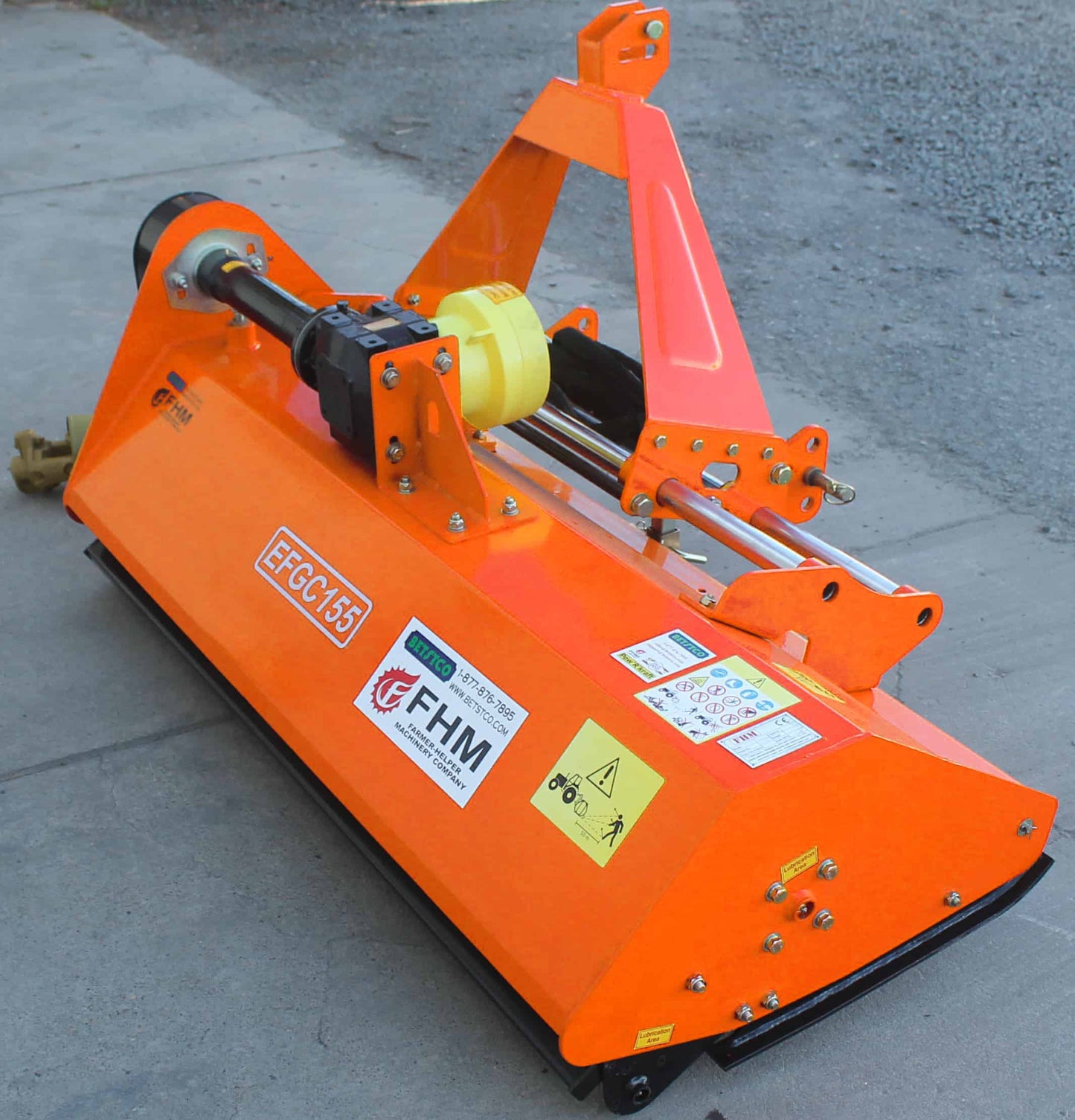

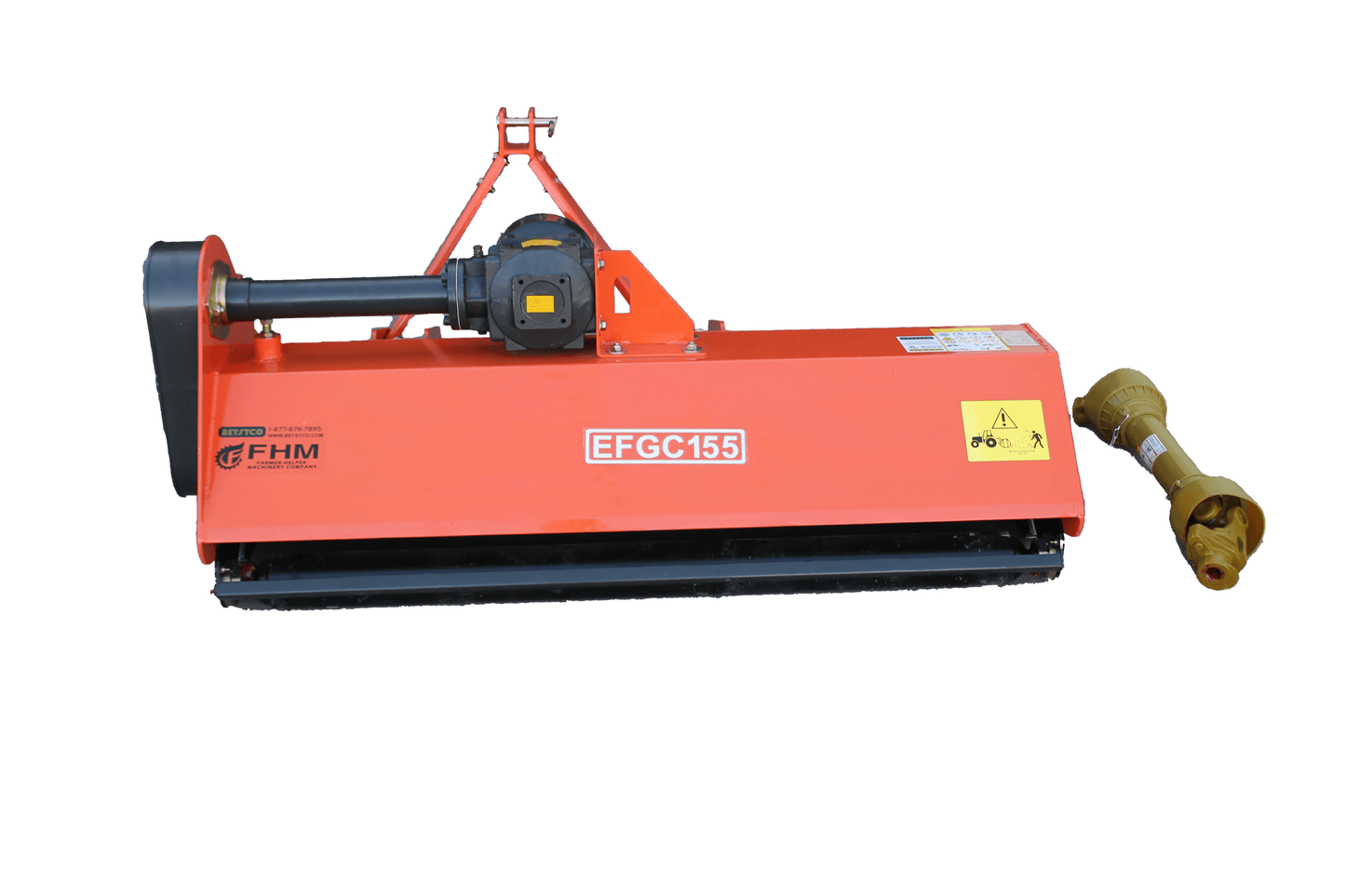

| Feature | FH-EFGC155 |
|---|---|
| Working Width | 60" |
| Overall Width | 67" |
| Min. HP Requirement | 25 HP |
| Gear Box Rating | 65 HP |
| Hammer Blades | 24 |
| Weight | 720 lbs |
| Offset Right of Center | 35.25" or 39.50" |
| Number of Belts | 3 |
| Rotor Diameter | 4" |
| 3pt Connection Width | Series 5 Quick Connect, 6-Spline |
| Crated Weight | 755 lbs |

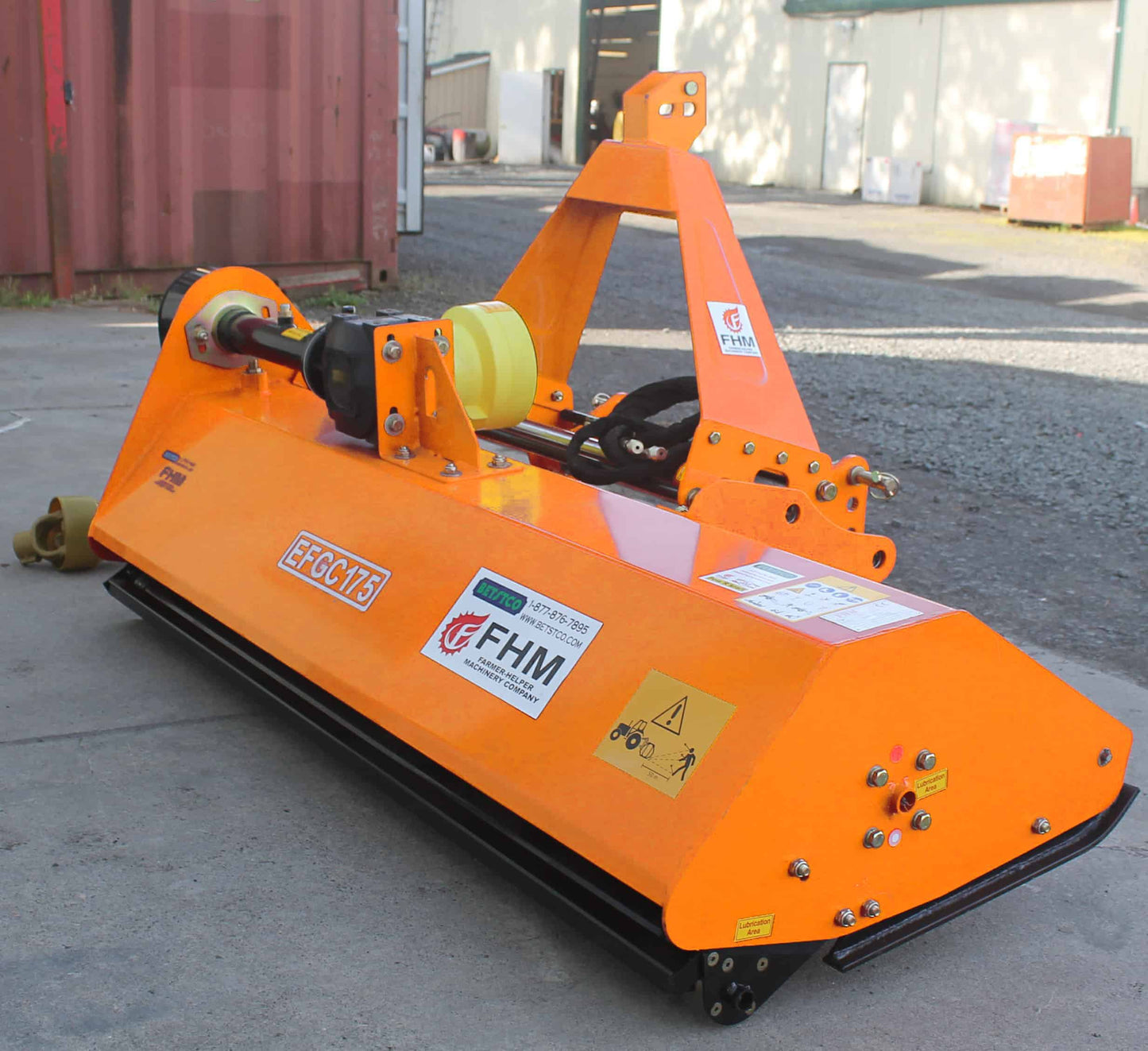

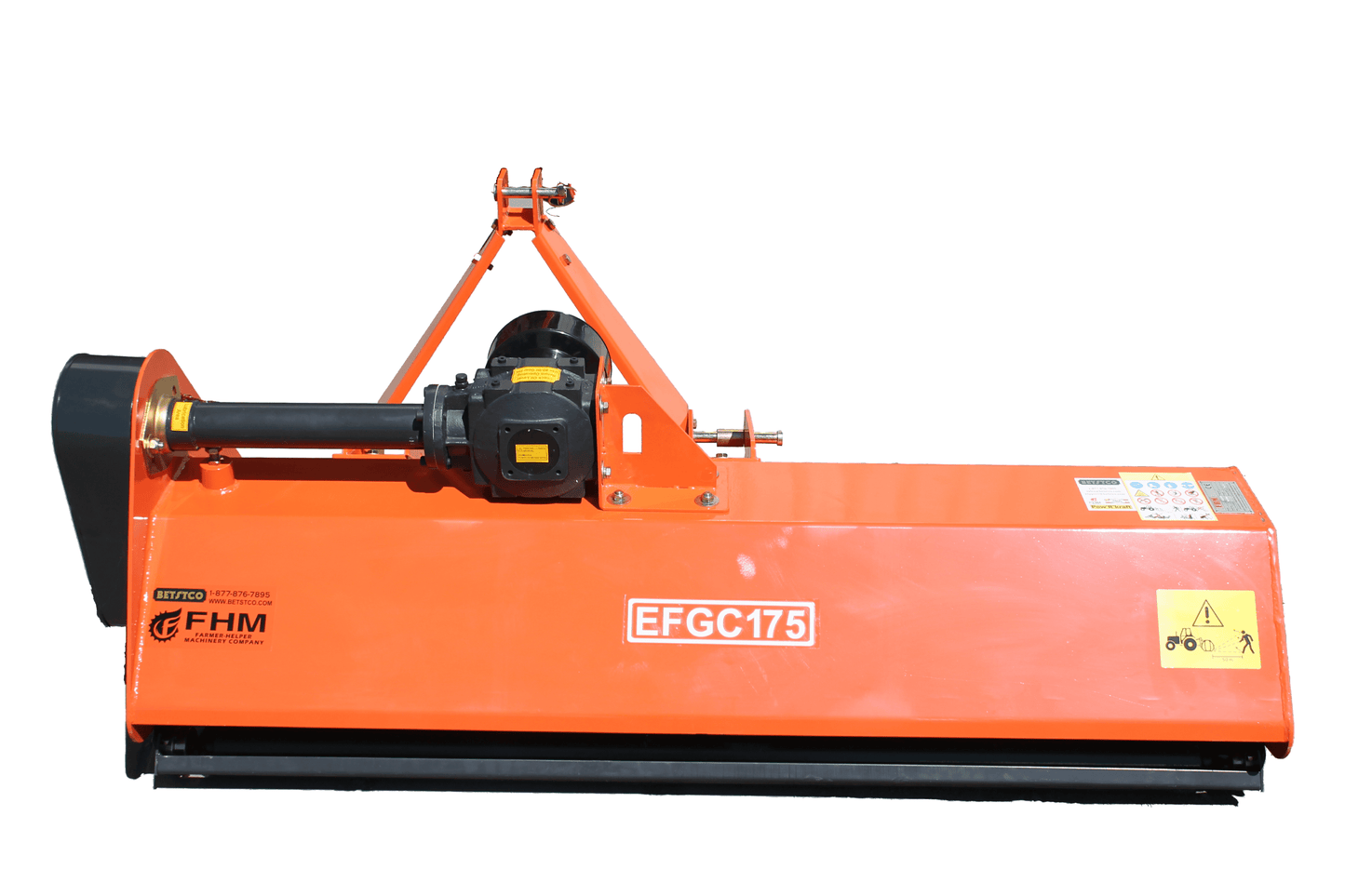

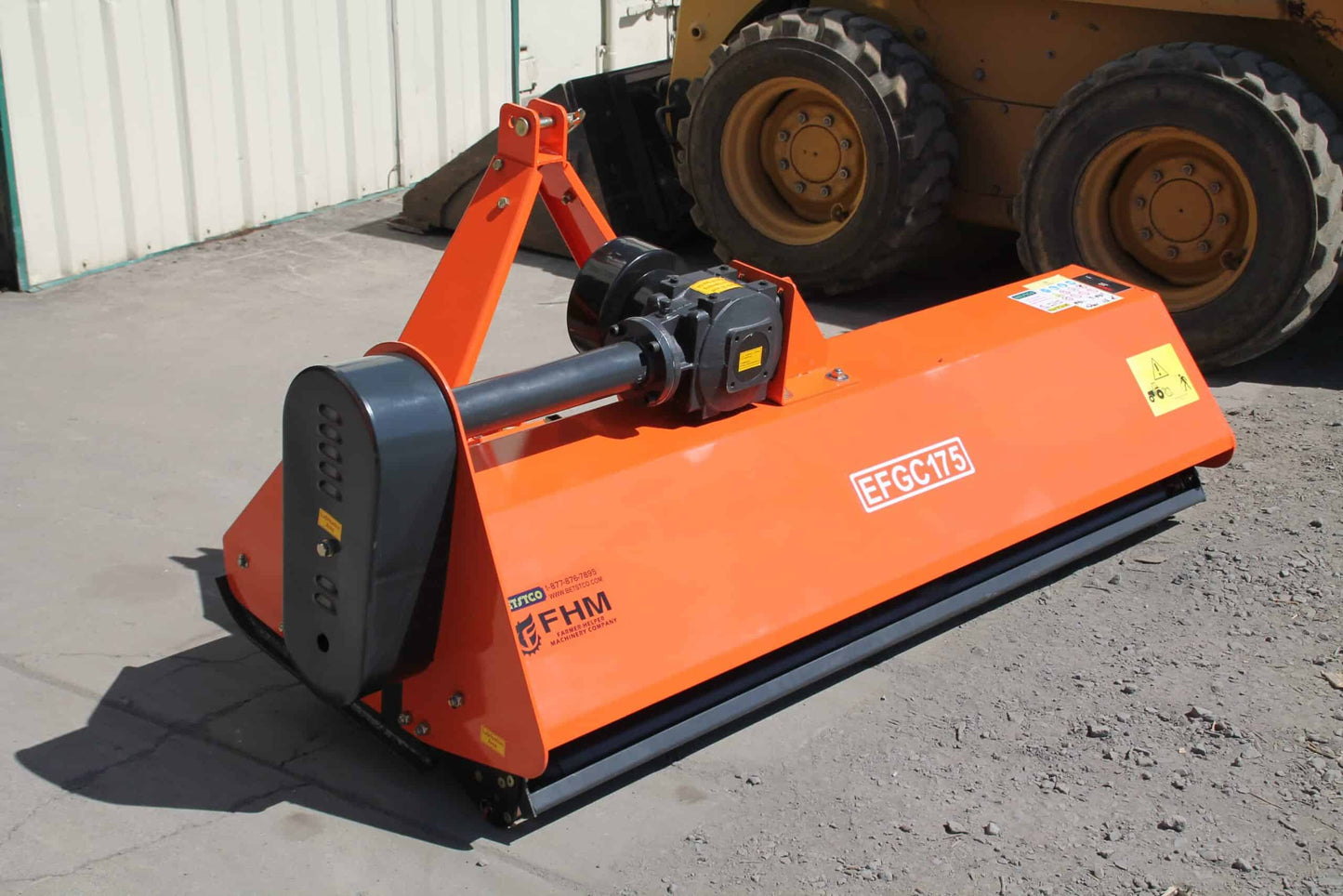

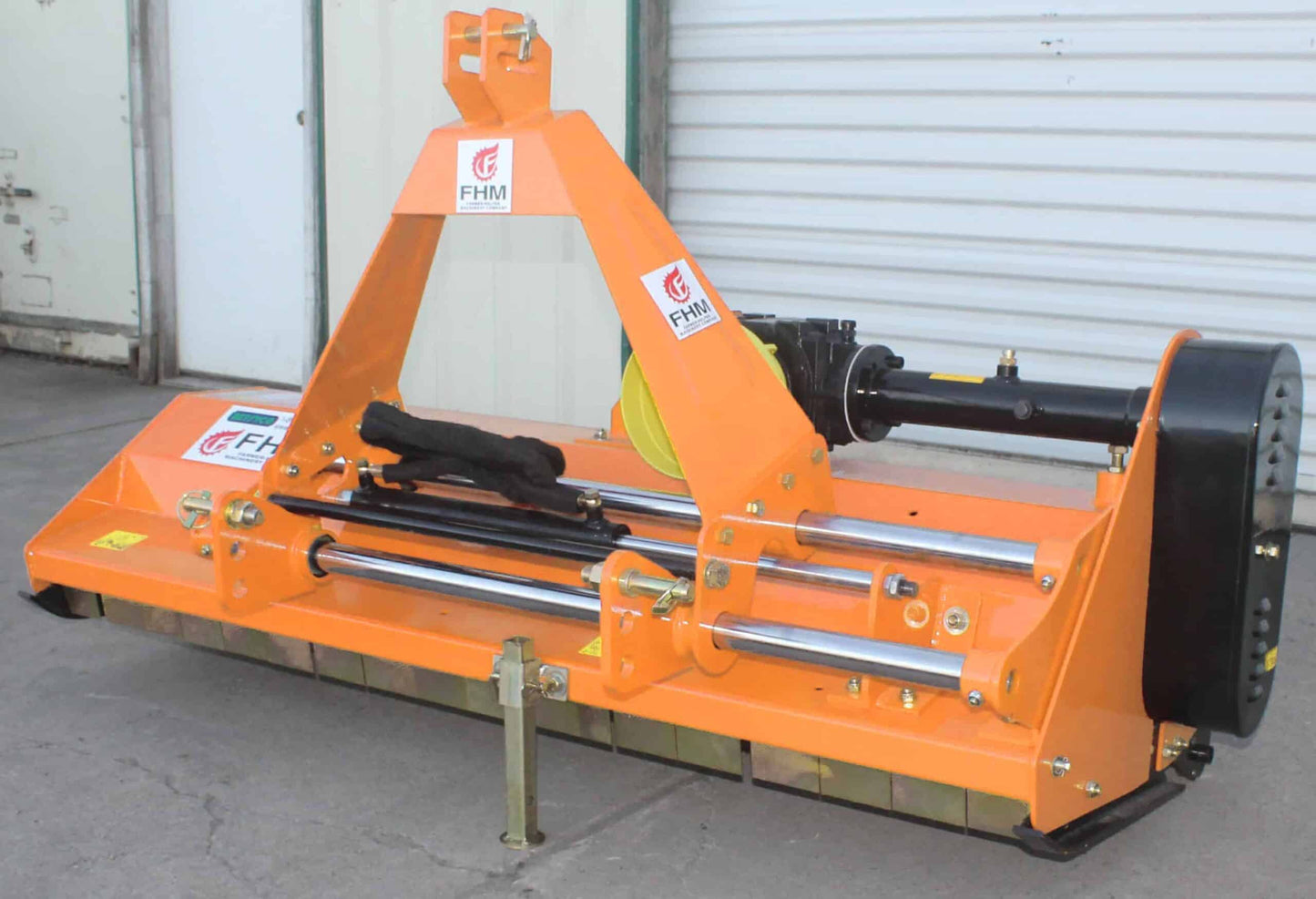

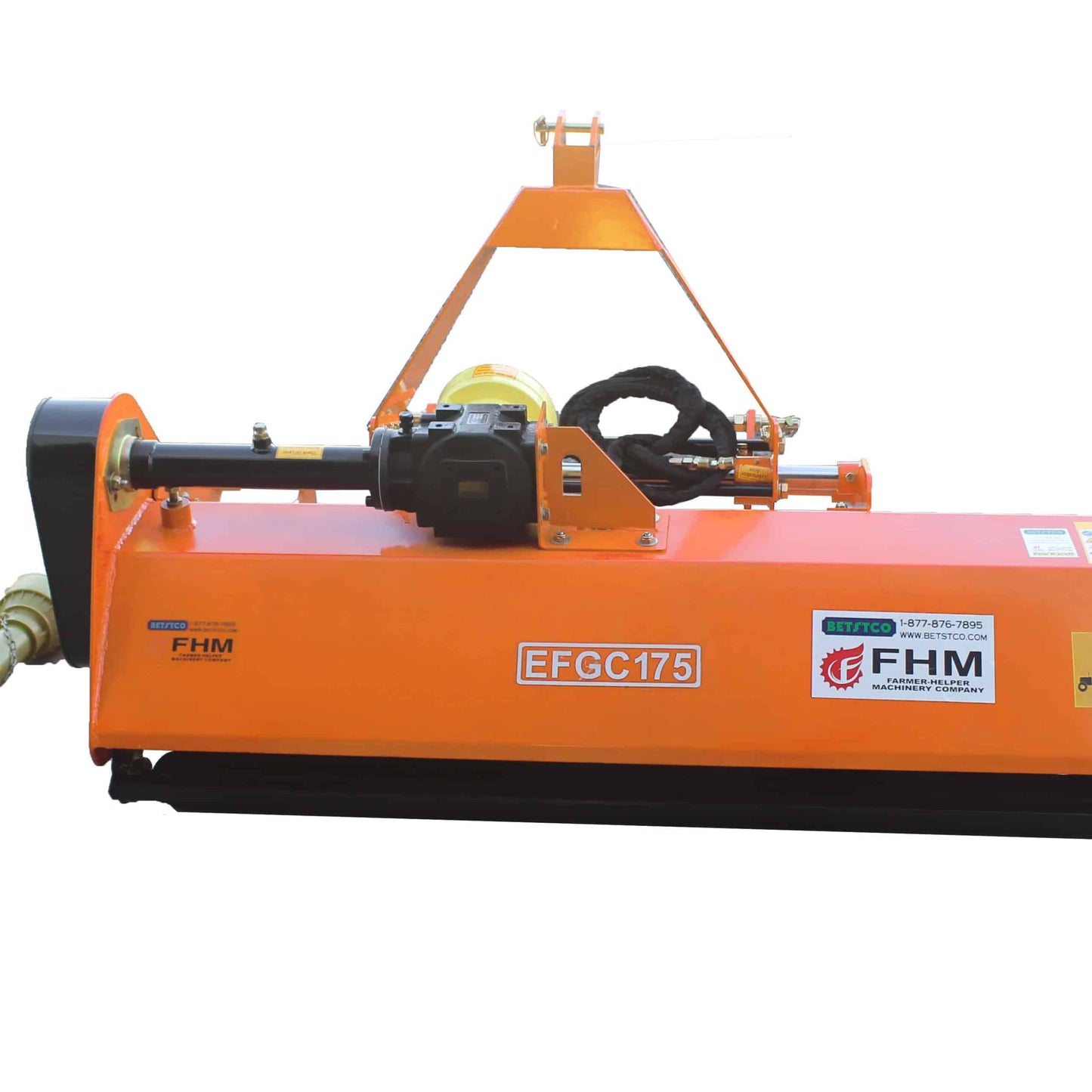

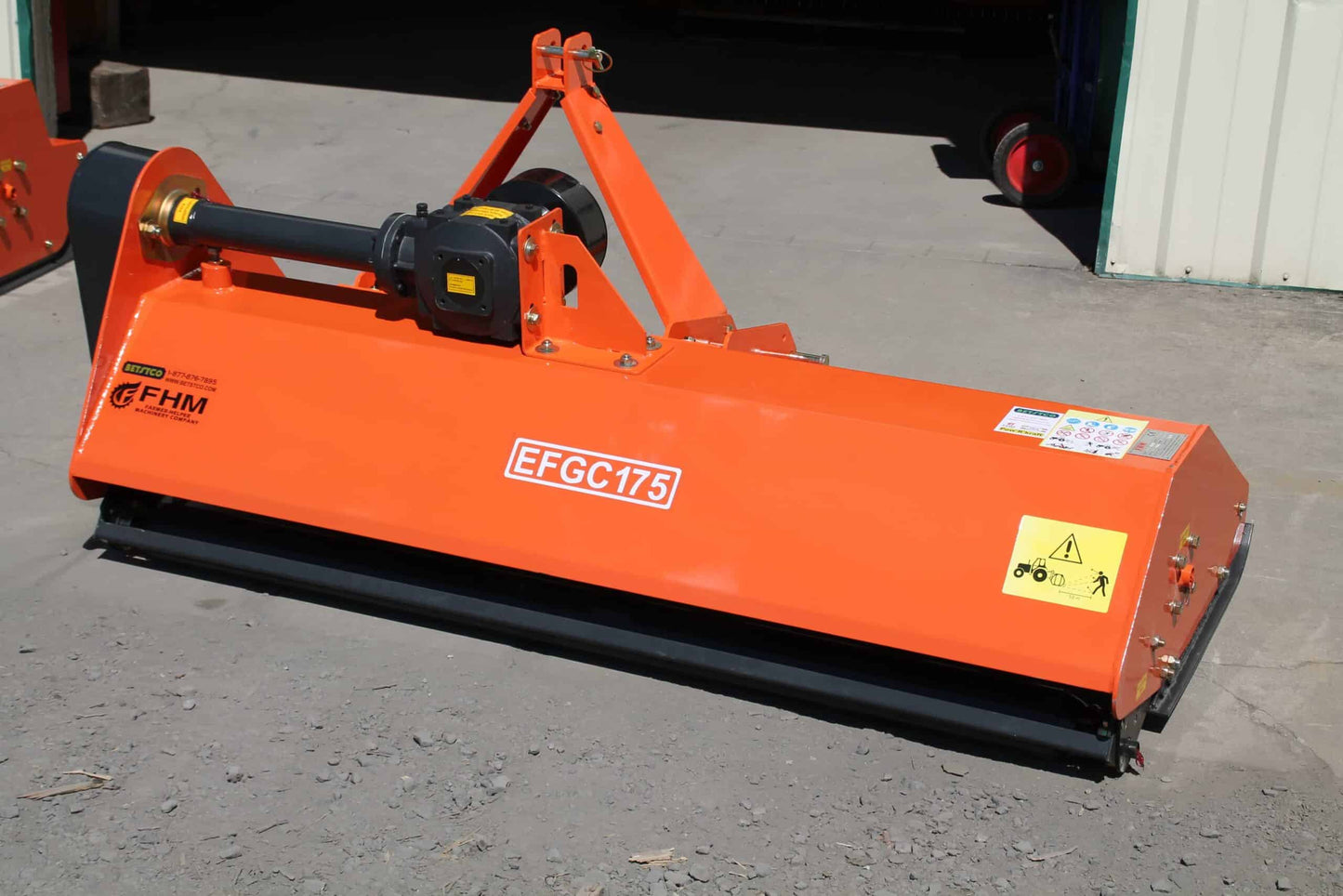

| Feature | FH-EFGC175 |
|---|---|
| Working Width | 68" |
| Overall Width | 75" |
| Min. HP Requirement | 30 HP |
| Gear Box Rating | 65 HP |
| Hammer Blades | 28 |
| Weight | 740 lbs |
| Offset Right of Center | 43.25" or 47.50" |
| Number of Belts | 4 |
| Rotor Diameter | 4" |
| 3pt Connection Width | Series 5 Quick Connect, 6-Spline |
| Crated Weight | 790 lbs |

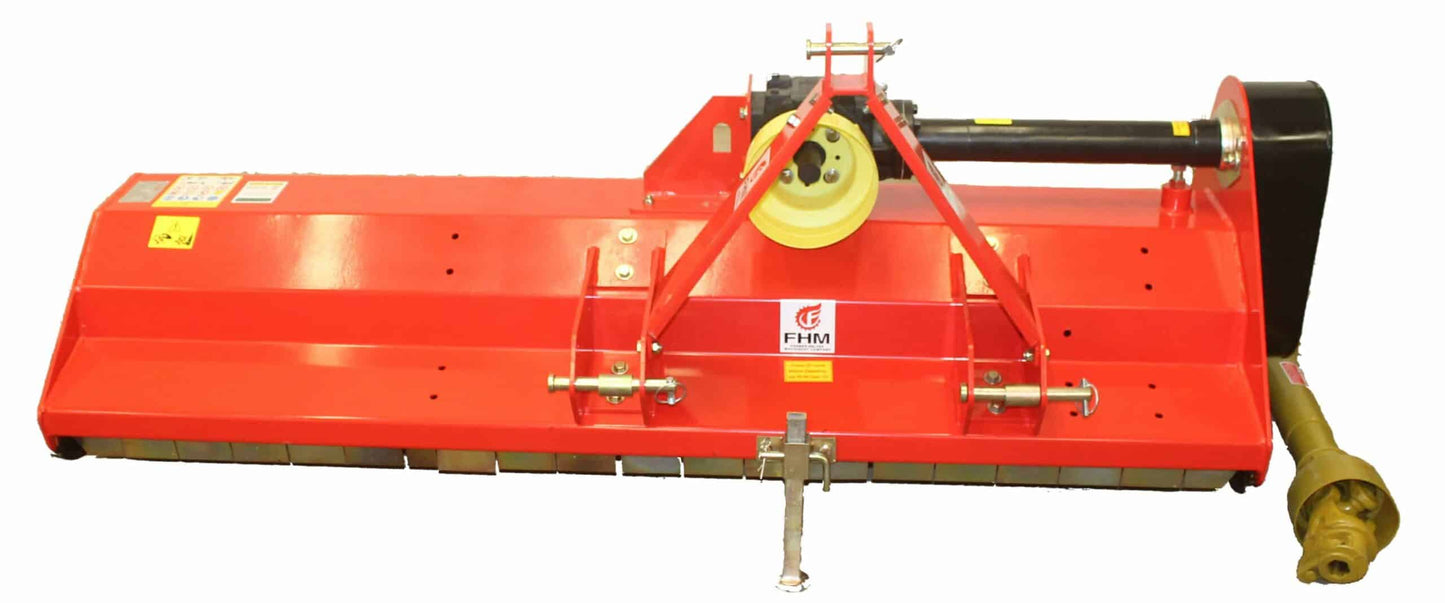

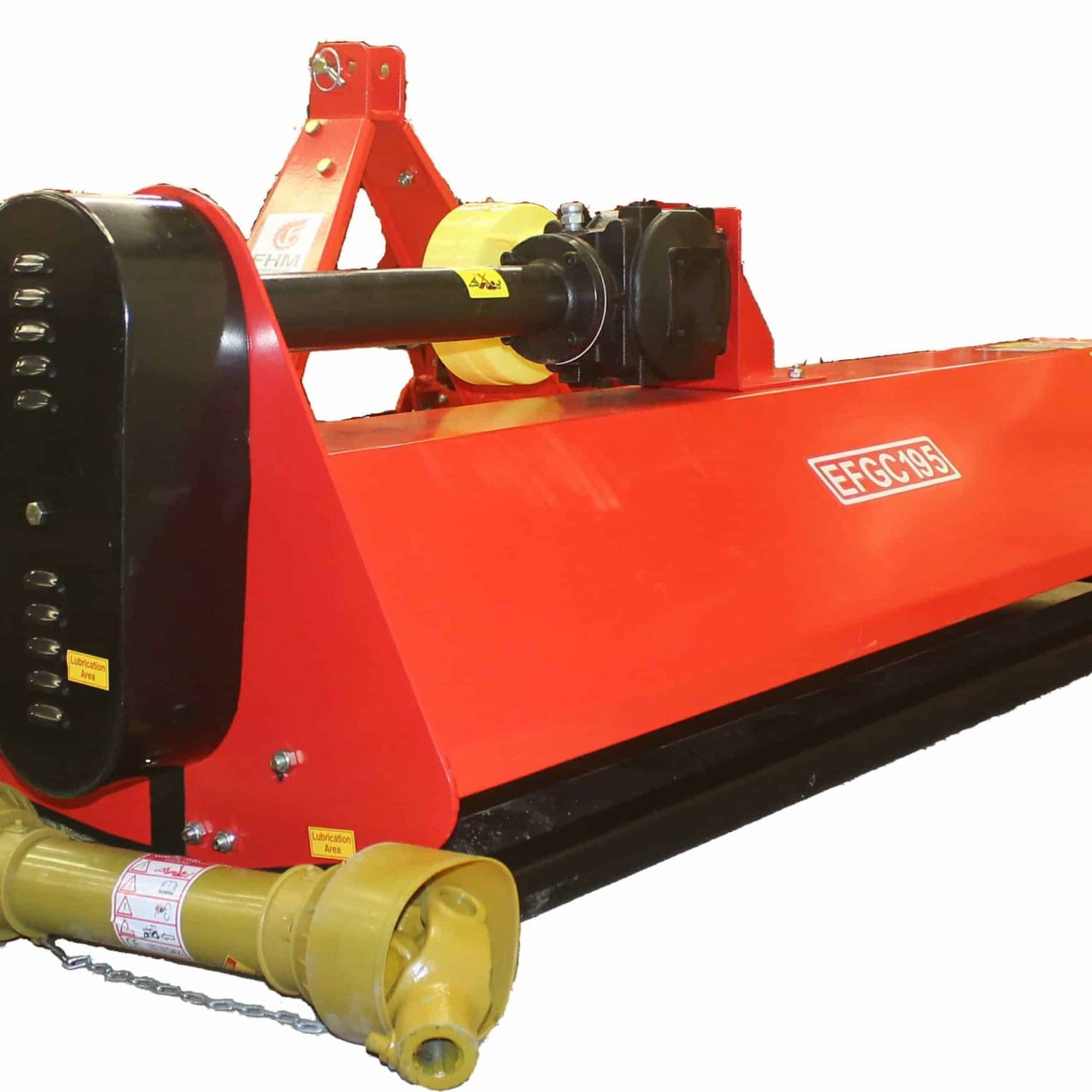

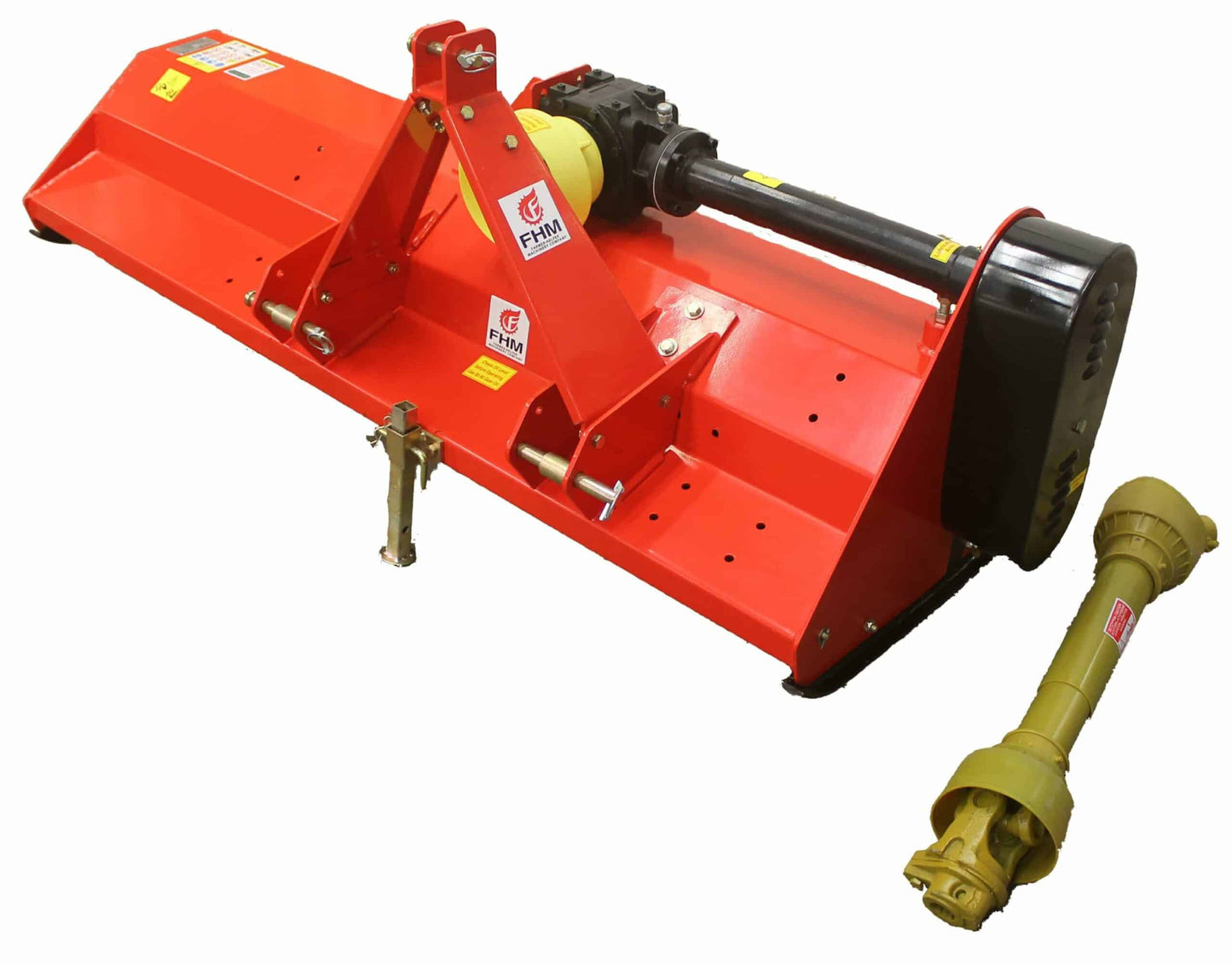

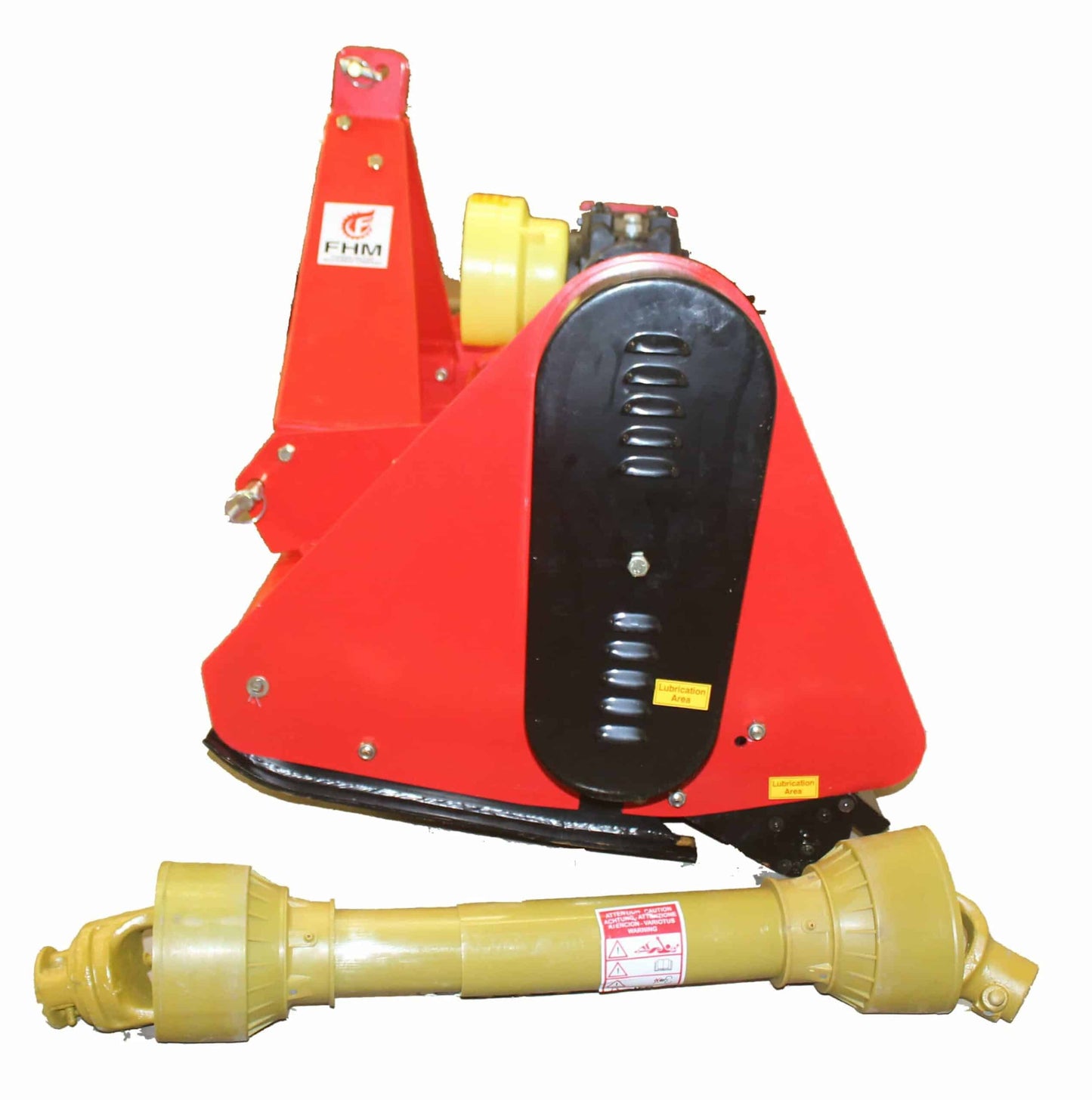

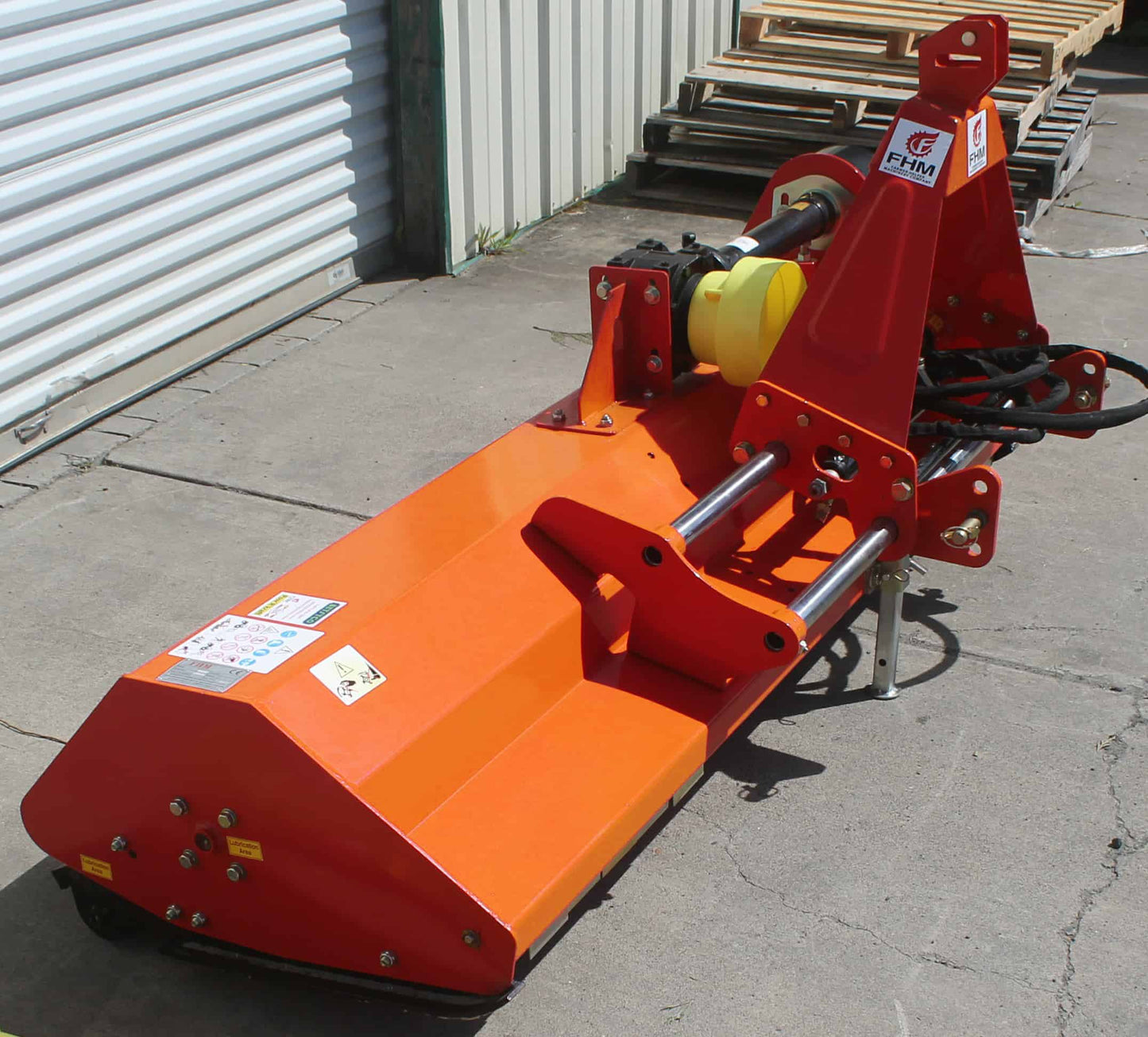

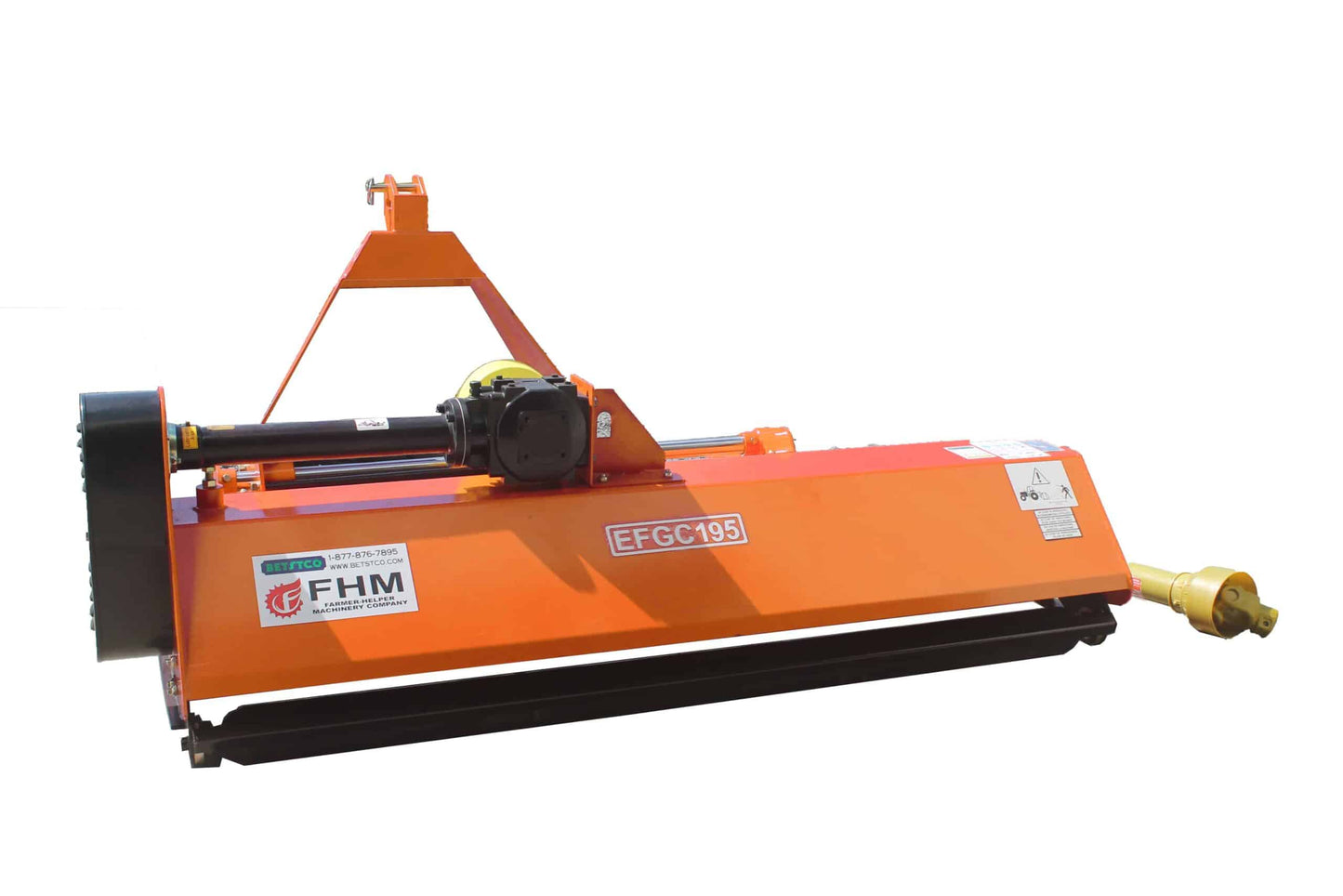

| Feature | FH-EFGC195 |
|---|---|
| Working Width | 77" |
| Overall Width | 83" |
| Min. HP Requirement | 35 HP |
| Gear Box Rating | 65 HP |
| Hammer Blades | 32 |
| Weight | 790 lbs |
| Offset Right of Center | 47.25" or 51.50" |
| Number of Belts | 4 |
| Rotor Diameter | 4" |
| 3pt Connection Width | Series 5 Quick Connect, 6-Spline |
| Crated Weight | 830 lbs |
General Specifications
| Specification | Details |
|---|---|
| Overall Width | 47" to 83" depending on the size of the unit. |
| Cutting Width | 41" to 77" depending on the size of the unit. |
| HP Requirements at PTO | 20 65 PTO horsepower depending on the size. |
| Weight | 540 lbs to 790 lbs depending on the size. |
| Cutting Height | 0" 6" Adjustable |
| Housing Material Thickness | 4mm |
| Side Plate Thickness | 1/4" |
| Blade Type | Standard Hammer Blade (Cast Steel) |
| Rotor Rotation | Reverse |
| Rotor Tube Diameter | 4" |
| Balanced Rotor Tube | Yes |
| Rotor Swing Diameter | 14 1/2" |
| Hitch Type | Category 1 Standard 3-point |
| Offset From Center Mount | 19" to 47 1/4" depending on size |
| Drive Belts | 2 4 belts depending on size |
| Gearbox Rating | Up to 65 HP |
| Driveline / PTO Shaft | Shear Bolt PTO Shaft, Standard 1-3/8” 6-Spline |
| Finish | Baked-on powder coat |
