Product Description
Fecon Bull Hog Excavator / Boom Mulching Head | FMX Series | Working Width 28", 36" & 50" | Machine Size 3.5-10 Tons | For Excavators
DESCRIPTION

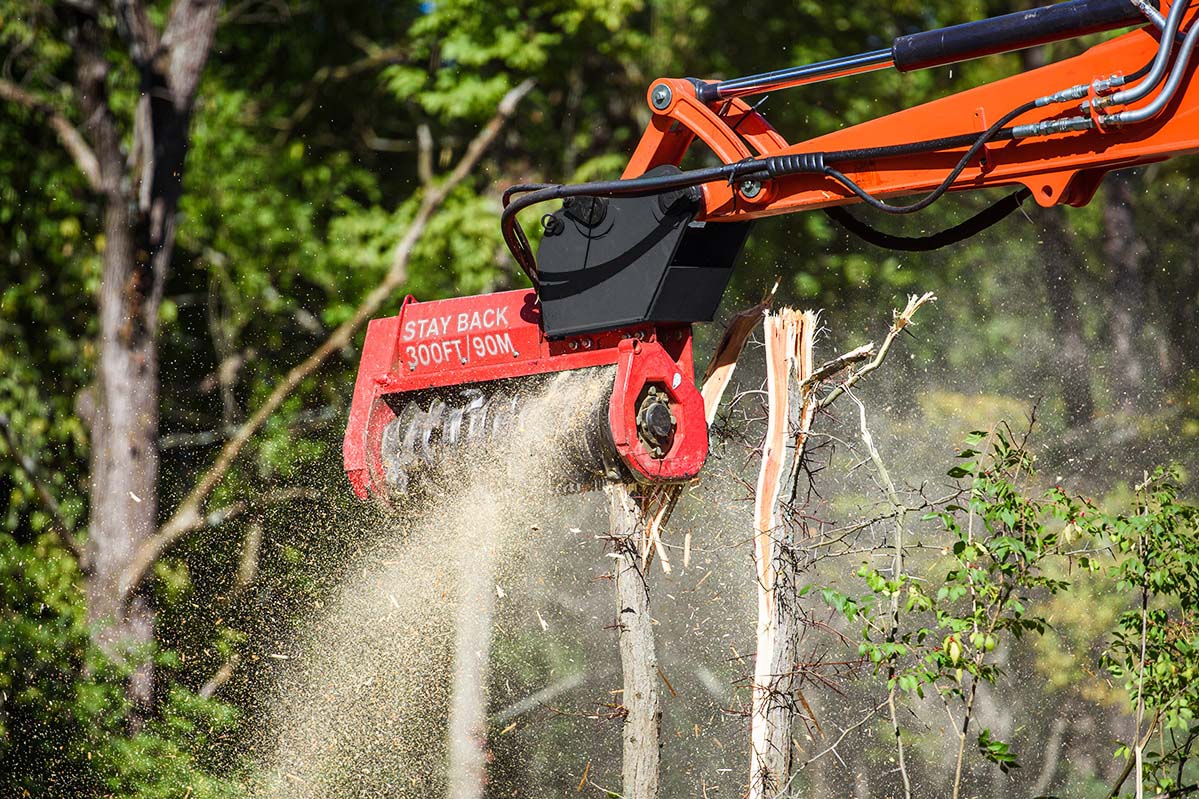

Add instant versatility to your excavator or boom arm with the Fecon FMX Series Mulching Heads, engineered for carriers in the 3.5–10 ton class. Featuring a split ring rotor with Cubit knife tools and a variable displacement 45cc hydraulic motor, these attachments efficiently mulch material up to 5″ in diameter. Built from 100 ksi high‑strength steel and backed by Fecon’s 12‑month / 1,000‑hour warranty, the FMX Series combines durability, performance, and compact design for use on excavators, backhoes, and side‑arm booms.
Key Features
- Excavator Class → Configurable for 3.5–10 ton excavators and boom arms
- Working Width → 28″ (FMX28), 36″ (FMX36), 50″ (FMX50)
- Overall Width → 40″, 44″, 58″ depending on model
- Weight → 750 lbs (FMX28), 850 lbs (FMX36), 1050 lbs (FMX50)
- Hydraulic Flow (GPM) → Adjustable hydraulics, 12–40 GPM flow range
- Max Pressure → Rated up to 4,000 PSI
- Max Cutting Capacity → Efficiently mulches material up to 5″ diameter
- Rotor System → Split Ring Rotor with Cubit Knife Tools
- Tool Count → 14 (FMX28), 18 (FMX36), 20 (FMX50)
- Motor → Variable displacement 45cc hydraulic motor
- Durability → Built with 100 ksi high‑strength steel for severe‑duty use
- Versatility → Lighter design allows mounting on backhoes and side‑arm booms
- Warranty → Fecon standard warranty: 12 months / 1,000 hours
Detailed Specifications
| Feature | FMX28 | FMX36 | FMX50 |
|---|---|---|---|
| Excavator Class (tons) | 3.5–8 | 5–10 | 5–10 |
| Working Width | 28″ / 711.2 mm | 36″ / 914 mm | 50″ / 1270 mm |
| Overall Width | 40″ / 1016 mm | 44″ / 1118 mm | 58″ / 1473 mm |
| Weight (lbs / kg) | 750 lbs / 340 kg | 850 lbs / 386 kg | 1,050 lbs / 476 kg |
| Flow Range (GPM / LPM) | 12–40 / 45–151 | 12–40 / 45–151 | 12–40 / 45–151 |
| Max Pressure (PSI) | 4,000 | 4,000 | 4,000 |
| Number of Tools | 14 | 18 | 22 |
| Rotor Diameter | 15″ / 381 mm | 15″ / 381 mm | 15″ / 381 mm |
| Rotor Speed (RPM) | 2400 | 2400 | 2400 |
| Rotor Bearing Size (mm) | ST65 | ST65 | ST65 |
| Motor(s) | 1 × 45V | 1 × 45V | 1 × 45V |
