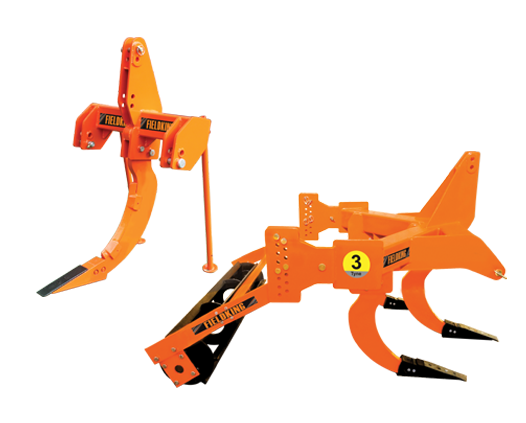

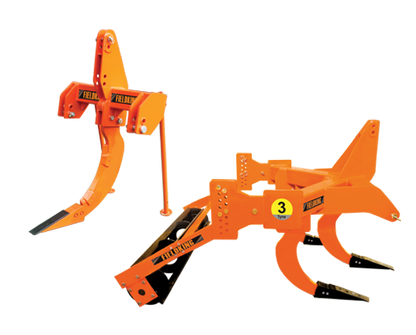

FieldKing Heavy Series Sub Soiler | Single Tyne, Double Tyne & Triple Tyne | Models FKHDSS-1, FKHDSS-2 & FKHDSS-3 | Widths 31" To 60" | Horsepower 40 To 115 HP | For Tractor

FieldKing Heavy Series Sub Soiler | Single Tyne, Double Tyne & Triple Tyne | Models FKHDSS-1, FKHDSS-2 & FKHDSS-3 | Widths 31" To 60" | Horsepower 40 To 115 HP | For Tractor

Regular price $983.00
Regular price Sale price $983.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Tractor Power: 40–115 HP, depending on model.
  • Working Width: 31" (Single Tyne), 42" (Double Tyne), 60" (Triple Tyne).
  • Overall Height: 48" (Single Tyne), 57" (Double & Triple Tyne).
  • Weight: 300 lbs (Single Tyne), 500 lbs (Double Tyne), 700 lbs (Triple Tyne).
  • Purpose: For breaking compacted soil, improving drainage, and enhancing root growth.
View full details

Product Description

FieldKing Heavy Series Sub Soiler | Single Tyne, Double Tyne & Triple Tyne | Models FKHDSS-1, FKHDSS-2 & FKHDSS-3 | Widths 31" To 60" | Horsepower 40 To 115 HP | For Tractor



DESCRIPTION

Unlock the full potential of your land with the FieldKing Heavy Series Sub Soiler – a powerful deep tillage implement designed for serious agricultural tasks. Whether you're dealing with compacted soil, hard pan layers, or poor drainage, this versatile subsoiler helps you break through tough ground, making way for better water absorption, root growth, and improved crop yields.

Available in Single, Double, and Triple Tyne models, the FieldKing Heavy Series Sub Soiler is compatible with tractors ranging from 40 HP to 115 HP, offering flexibility for various farm sizes and soil types. Each model is crafted from high-quality, wear-resistant steel, ensuring durability through years of hard use. With adjustable depth and width settings, you can customize the subsoiling depth to match your needs, while the shear bolt protection safeguards the equipment from damage caused by hidden rocks or obstacles.

Whether you're looking to improve soil health, break up compacted layers, or enhance drainage, the FieldKing Sub Soiler is engineered to deliver long-term results. It’s time to give your soil the attention it deserves and make your land more productive with this rugged, easy-to-use tillage solution.

Key Features

  • Adjustable Depth & Width: Customize the depth and width of your ploughing for optimal soil disruption.
  • Heavy-Duty Construction: Built with high-quality wear-resistant steel, ensuring long-lasting durability even in the toughest conditions.
  • Increased Soil Turnover: The deep tillage process enhances soil aeration, leading to better root growth, water retention, and mineral osmosis.
  • Shear Bolt Protection: Safeguards the subsoiler from hidden obstacles, protecting the implement and your tractor.
  • Pointed Chisel Tip: Shatters hard soil deep below the surface to break up compacted layers, increasing soil health and drainage.
  • Multiple Tyne Options: Available in Single, Double, and Triple Tyne configurations to suit different soil conditions and tractor sizes.
  • Compatible with Tractors: Designed for tractors with 40-115 HP, ensuring broad compatibility.
  • Improved Drainage: By breaking up the subsoil, the subsoiler improves water flow and prevents waterlogging.
  • Enhanced Root Growth: By loosening compacted soil, it allows plant roots to grow deeper and stronger.
  • Versatile Applications: Ideal for a wide range of agricultural tasks, including tillage, breaking hardpan, and improving soil structure.
  • Long-Lasting Performance: The heavy-duty pointed chisels are designed to withstand continuous use in harsh conditions.
  • Easy to Operate: Simple to attach and adjust for a variety of soil types and conditions.
  • Perfect for Larger Tractors: Designed for tractors with 40-115 HP, making it an excellent tool for large-scale farms.
  • Increases Yield Potential: Proper tillage leads to healthier crops and higher yields over time.
  • Built for Tough Conditions: Handles the most challenging soil, from compacted clay to rocky ground.

Detailed Specifications

Specification Detail
Model FKHDSS-1

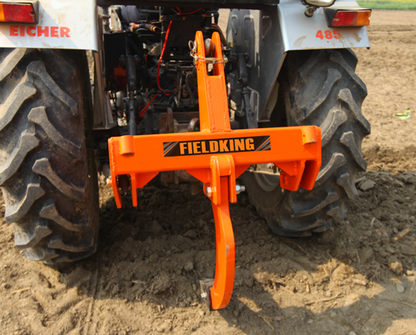

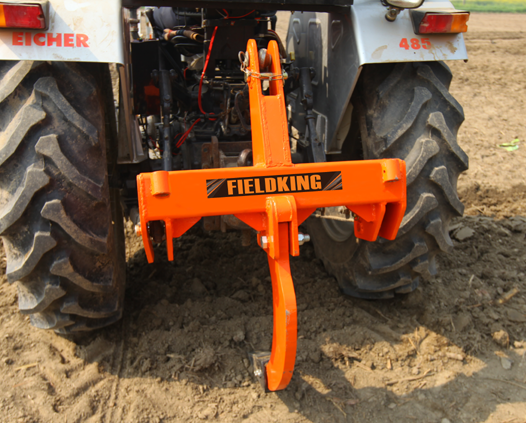

Tyne Configuration Single Tyne
Tractor Power (HP) 40-65 HP
Working Width 31"
Overall Length 27"
Overall Height 48"
Overall Width 31"
Weight Approx. 300 lbs



Specification Detail
Model FKHDSS-2

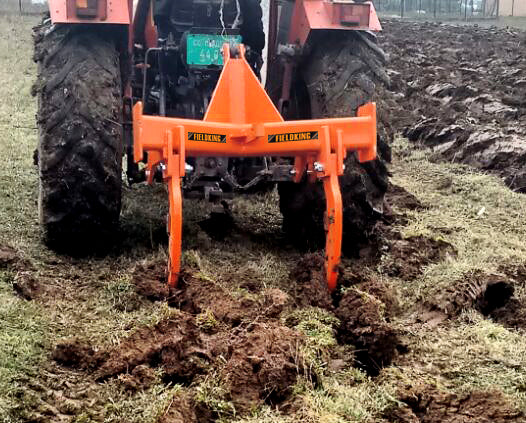

Tyne Configuration Double Tyne
Tractor Power (HP) 60-75 HP
Working Width 42"
Overall Length 48"
Overall Height 57"
Overall Width 48"
Weight Approx. 500 lbs



Specification Detail
Model FKHDSS-3
Tyne Configuration Triple Tyne
Tractor Power (HP) 90-115 HP
Working Width 60"
Overall Length 42"
Overall Height 57"
Overall Width 60"
Weight Approx. 700 lbs
