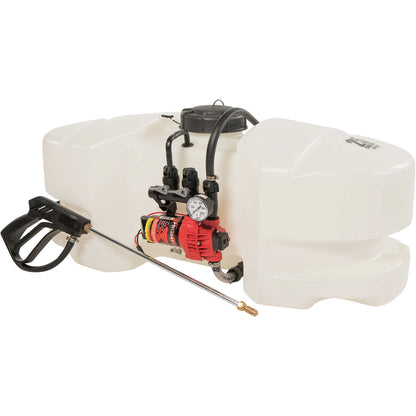

Fimco Deluxe Manifold Spot Sprayer | Tank Capacity 25 Gallons | Output 2.4 Gallons Per Minute | For ATVs

Fimco Deluxe Manifold Spot Sprayer | Tank Capacity 25 Gallons | Output 2.4 Gallons Per Minute | For ATVs

Regular price $339.99
Regular price Sale price $339.99
Sale Sold out
Customizable
Fast
24/7 Support
  • 25-Gallon Polyethylene Tank: UV-resistant, low-profile design with molded recesses for hose storage and easy handling.
  • 18" Aluminum Spray Gun: Deluxe model with trigger lock for controlled spraying and extended reach.
  • 12V Diaphragm Pump: Draws 10 amps with adjustable pressure range from 0–60 PSI for calibrated output.
  • High-Flow Output: Delivers up to 2.4 gallons per minute for efficient coverage.
View full details

Product Description

Fimco Deluxe Manifold Spot Sprayer | Tank Capacity 25 Gallons | Output 2.4 Gallons Per Minute | For ATVs



DESCRIPTION

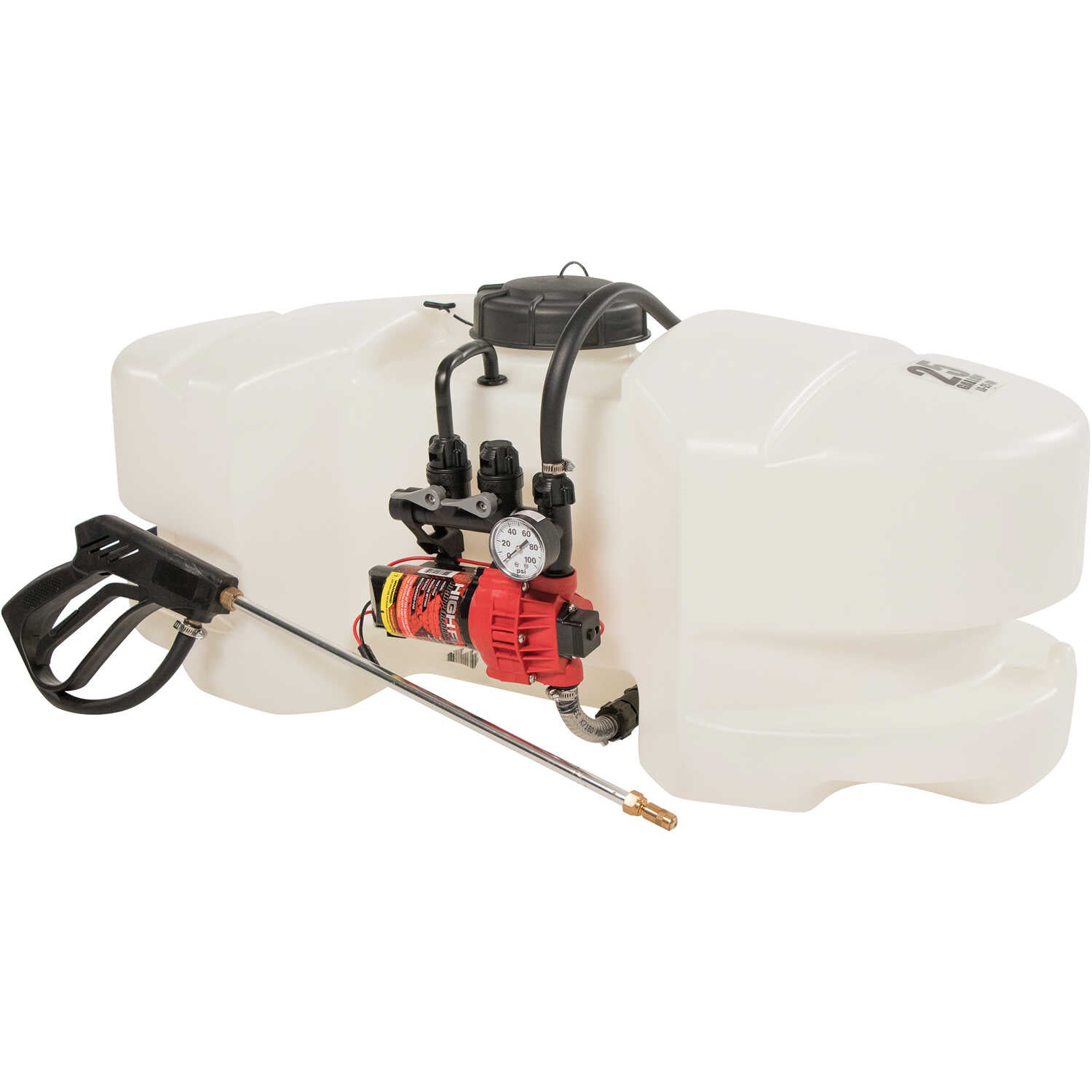

Fimco Deluxe Manifold Spot Sprayer, 25 Gal. Pressure gauge, 15´ of 3/8˝ hose and low-profile polyethylene tank with molded recesses on tank ends for handles or hose storage. Tanks feature a 5˝ screw-on cap for easy filling, molded gallon marks and six molded inserts on the bottom for easy installation. A 12V diaphragm pump draws 10 amps. Adjustable pressure range of 0-60 psi for easy calibration. Handgun maximum vertical throw is 26´, and handgun maximum horizontal throw is 35´. 9´ lead wire with on/off switch and alligator clips included for battery connection. Output: 2.4 gpm. Features a 36˝L x 18˝W x 17˝H tank and a standard 18˝ aluminum spray gun with trigger lock. May be operated with an optional five-nozzle boom kit with a 100” swath (sold separately). Permanently mount sprayer to an ATV and/or attach optional spray booms with an optional ATV mounting kit also available. Fits most ATVs.

Key Features

  • 25-Gallon Polyethylene Tank: UV-resistant, low-profile design with molded recesses for hose storage and easy handling.
  • 18" Aluminum Spray Gun: Deluxe model with trigger lock for controlled spraying and extended reach.
  • 12V Diaphragm Pump: Draws 10 amps with adjustable pressure range from 0–60 PSI for calibrated output.
  • High-Flow Output: Delivers up to 2.4 gallons per minute for efficient coverage.
  • Pressure Gauge & Inline Fuse Protection: Built-in safety and monitoring for reliable operation.
  • 15' of 3/8" Hose: Flexible reach for maneuvering around target areas.
  • 9' Lead Wire with On/Off Switch & Clips: Quick battery connection for field use.
  • Spray Distance: Up to 26' vertical and 35' horizontal throw for broad coverage.

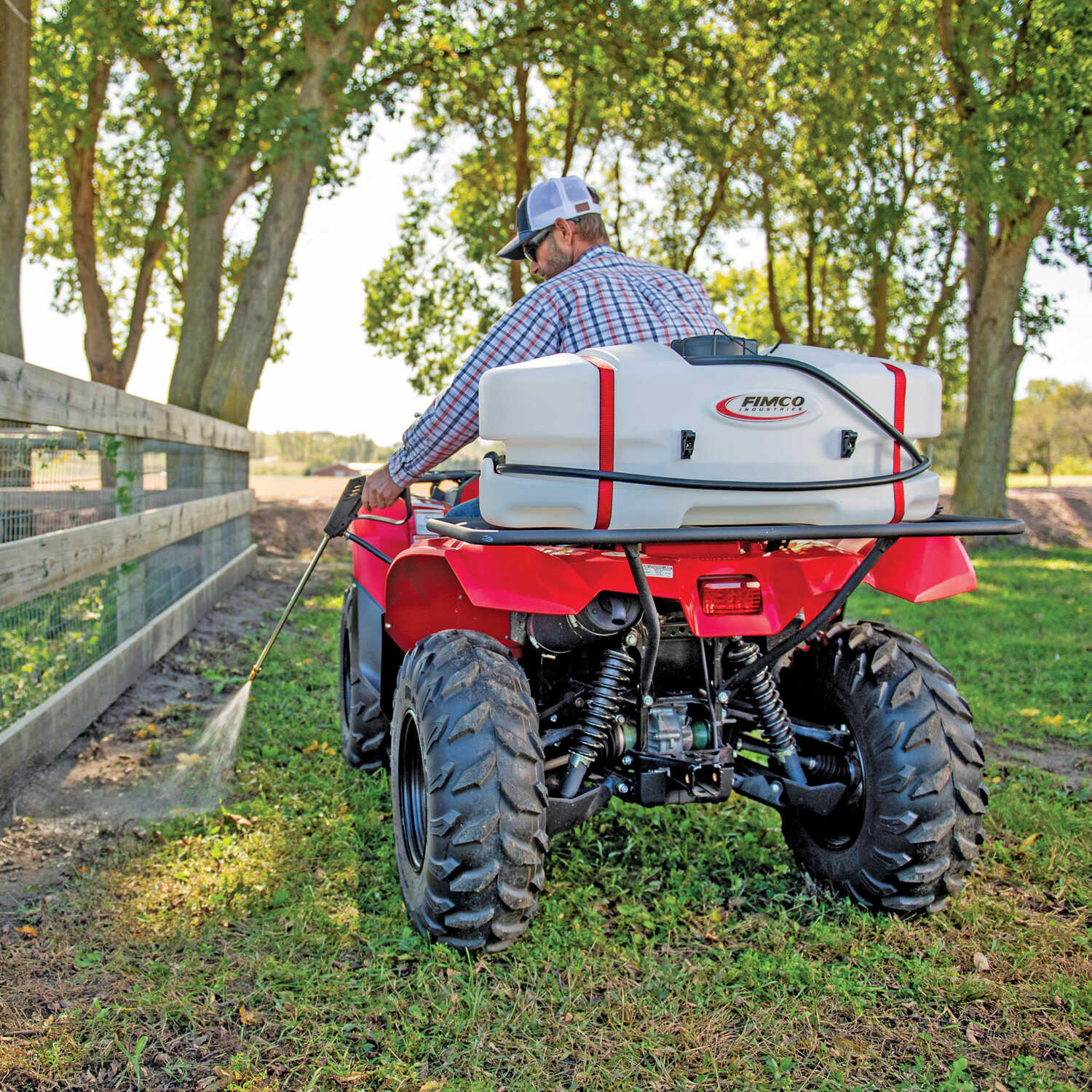

  • ATV-Compatible Mounting: Permanently mounts to most ATVs; supports optional boom and mounting kits.
  • Boom Kit Ready: Operates with optional 5-nozzle boom kit (100" swath, sold separately).

Detailed Specifications

Specification Details
Brand Fimco
Model Deluxe Manifold Spot Sprayer
Tank Capacity 25 gallons
Tank Dimensions 36" L × 18" W × 17" H
Tank Material Low-profile polyethylene
Lid Type 5" screw-on cap
Hose Length 15 feet (3/8" diameter)
Spray Gun 18" aluminum with trigger lock
Pump Type 12V diaphragm
Pump Draw 10 amps
Pressure Range 0–60 PSI (adjustable)
Output 2.4 gallons per minute
Vertical Spray Distance Up to 26 feet
Horizontal Spray Distance Up to 35 feet
Lead Wire 9 feet with on/off switch & clips
Mounting Permanent ATV mount
Boom Compatibility Optional 5-nozzle boom (100" swath)
MPN 5301147
UPC 733029002570
UNSPSC 21101800
