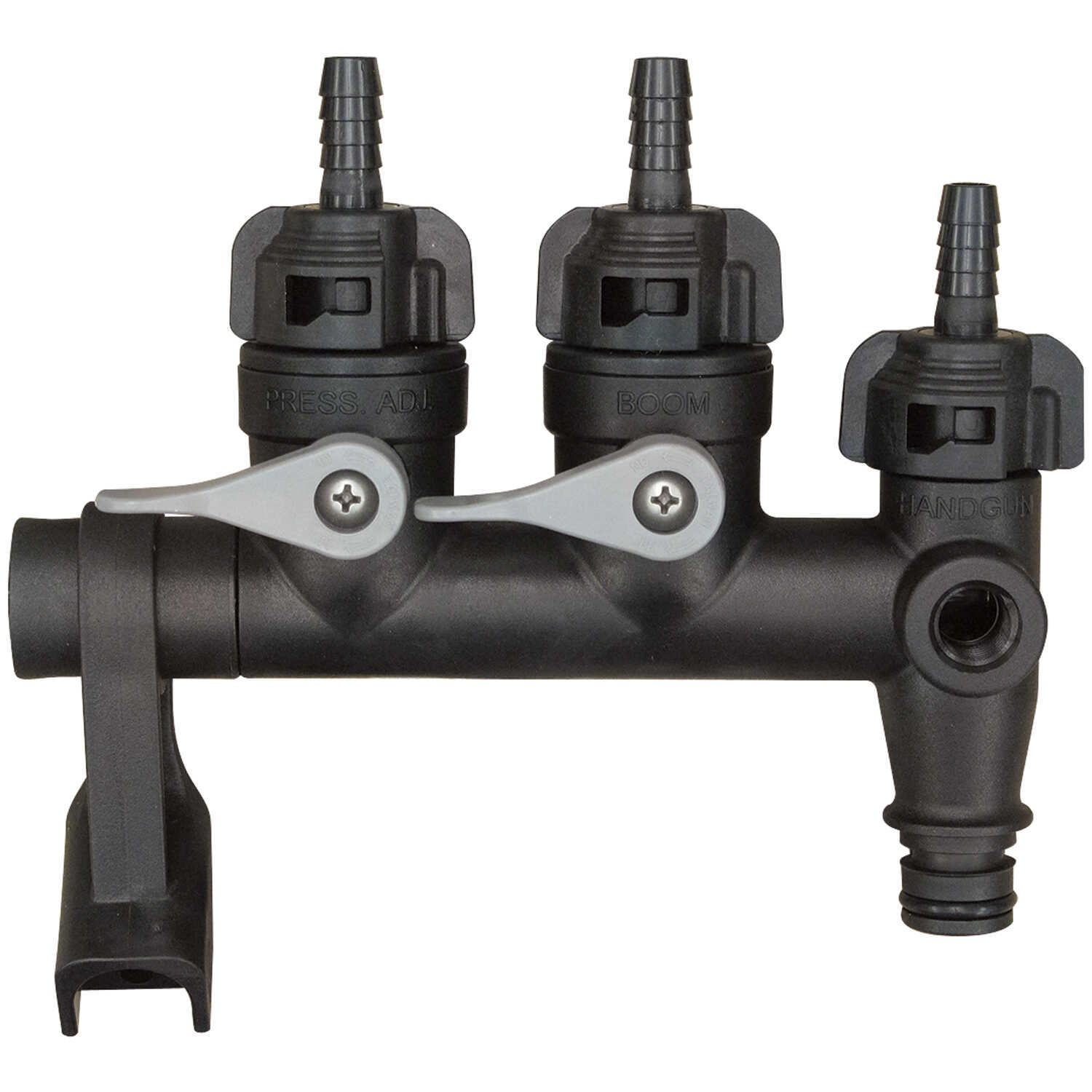

Fimco Deluxe Manifold Spot Sprayer with Spray Gun | Tank Capacity 15-Gallon | 31" L × 14" W × 14" H | Spray Gun 18" | For ATVs

Product Description

Fimco Deluxe Manifold Spot Sprayer with Spray Gun | Tank Capacity 15-Gallon | 31" L × 14" W × 14" H | Spray Gun 18" | For ATVs

DESCRIPTION

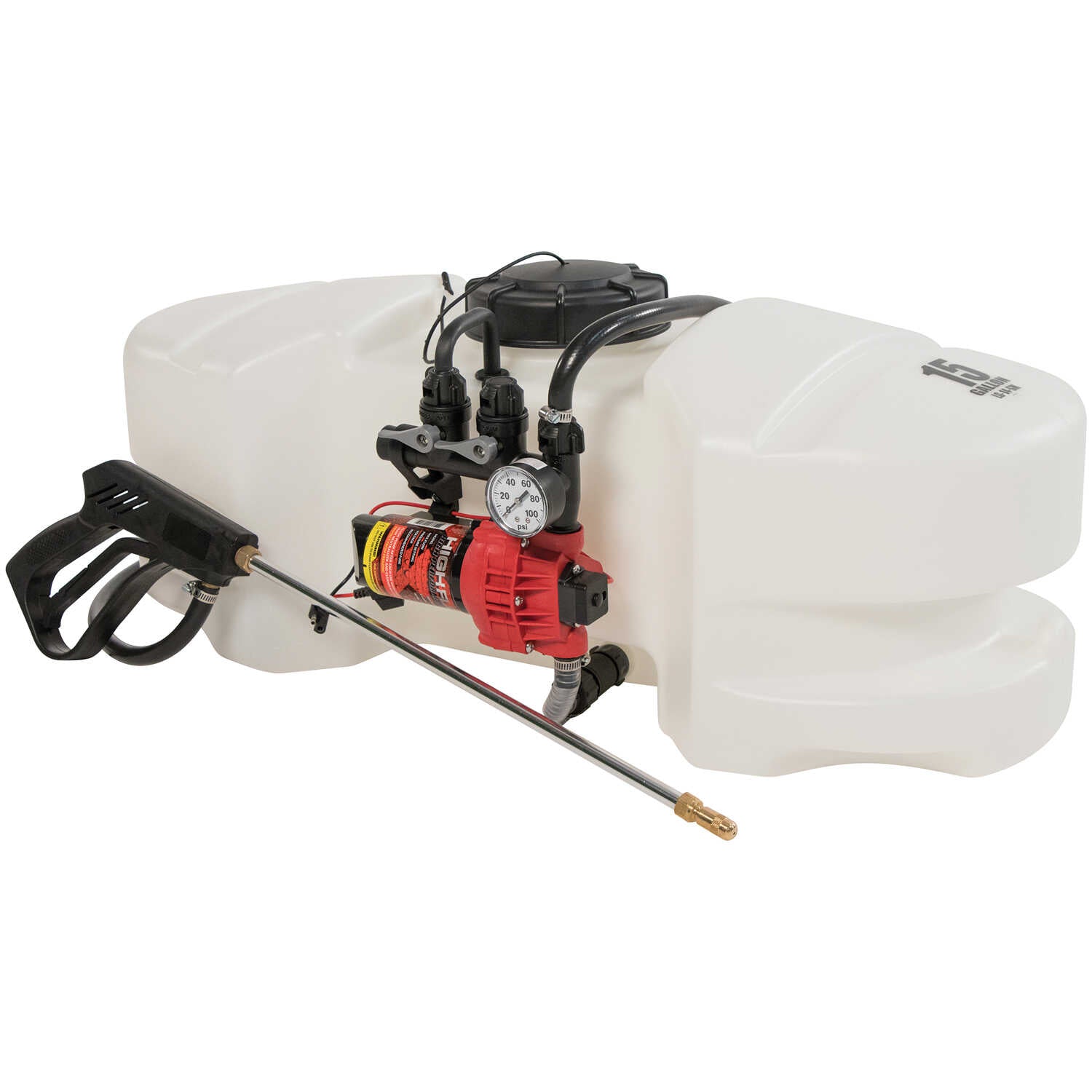

Fimco Deluxe Manifold Spot Sprayer, 15 Gal. Deluxe model features a standard 18” aluminum spray gun with trigger lock. Pressure gauge, 15’ of 3/8” hose and low-profile polyethylene tank with molded recesses on tank ends for handles or hose storage. Tanks feature a 5” screw-on cap for easy filling, molded gallon marks and six molded inserts on the bottom for easy installation. A 12V diaphragm pump draws 10 amps., with an adjustable pressure range of 0-60 psi for easy calibration. Handgun maximum vertical throw is 26´, and handgun maximum horizontal throw is 35´. 9’ lead wire with on/off switch and alligator clips included for battery connection. Output: 2.4 gpm. Features a 31”L x 14”W x 14”H tank which can be operated with an optional 5-nozzle boom kit with a 100” swath (sold separately). Permanently mounts to an ATV. Spray booms are accommodated with an optional ATV mounting kit (sold separately). Fits most ATVs.

Key Features

• 15-Gallon Polyethylene Tank: Low-profile design with molded recesses for hose storage and easy handling.
• 18" Aluminum Spray Gun: Deluxe model with trigger lock for controlled spraying and extended reach.
• 12V Diaphragm Pump: Draws 10 amps with adjustable pressure from 0–60 psi for calibrated output.
• 2.4 GPM Output: High-flow performance for efficient spot spraying.
• 15' of 3/8" Hose: Flexible reach for maneuvering around target areas.
• Pressure Gauge & On/Off Switch: Integrated controls for real-time monitoring and easy operation.
• 9' Lead Wire with Alligator Clips: Quick battery connection for field use.
• Vertical Throw: 26' / Horizontal Throw: 35': Extended spray range for hard-to-reach areas.

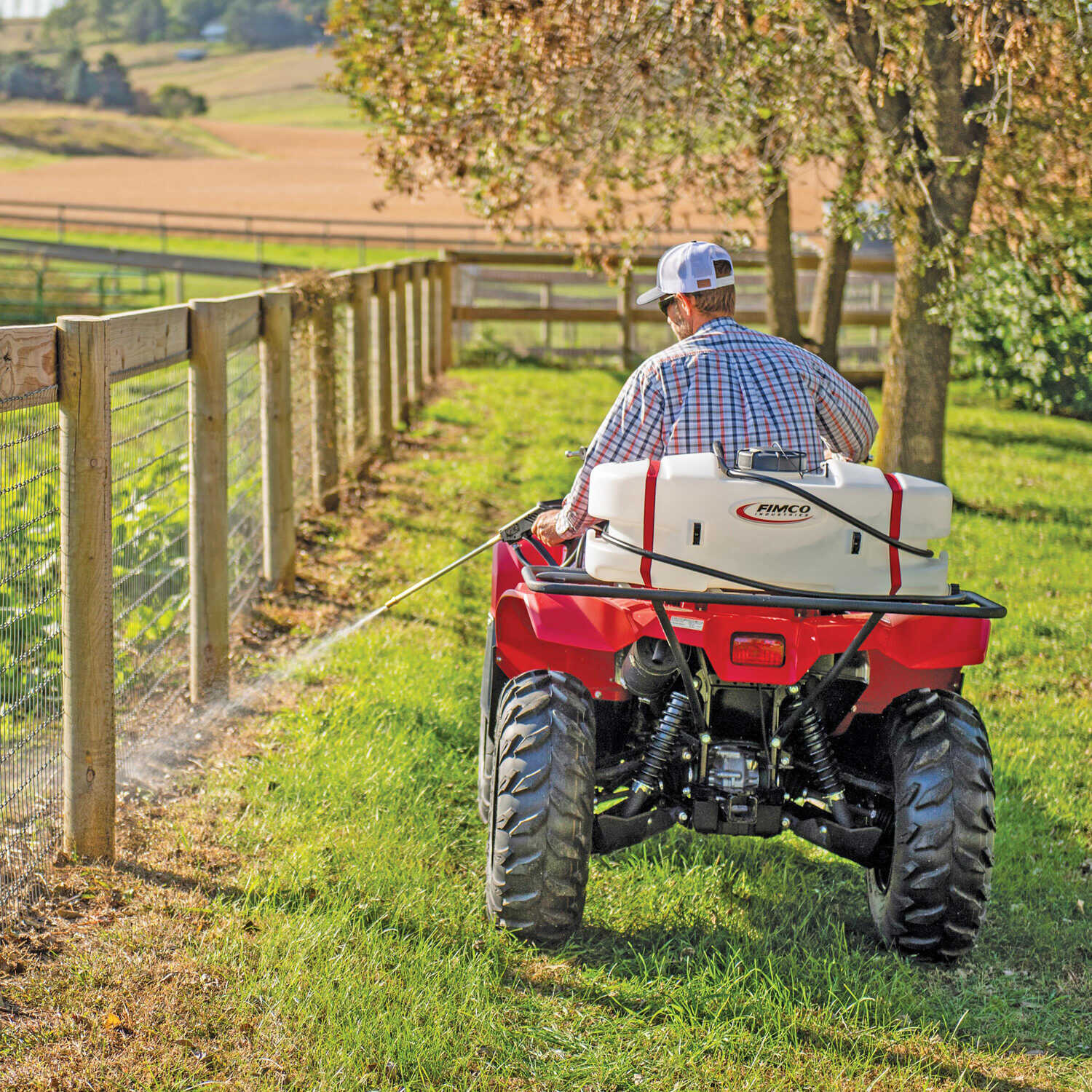

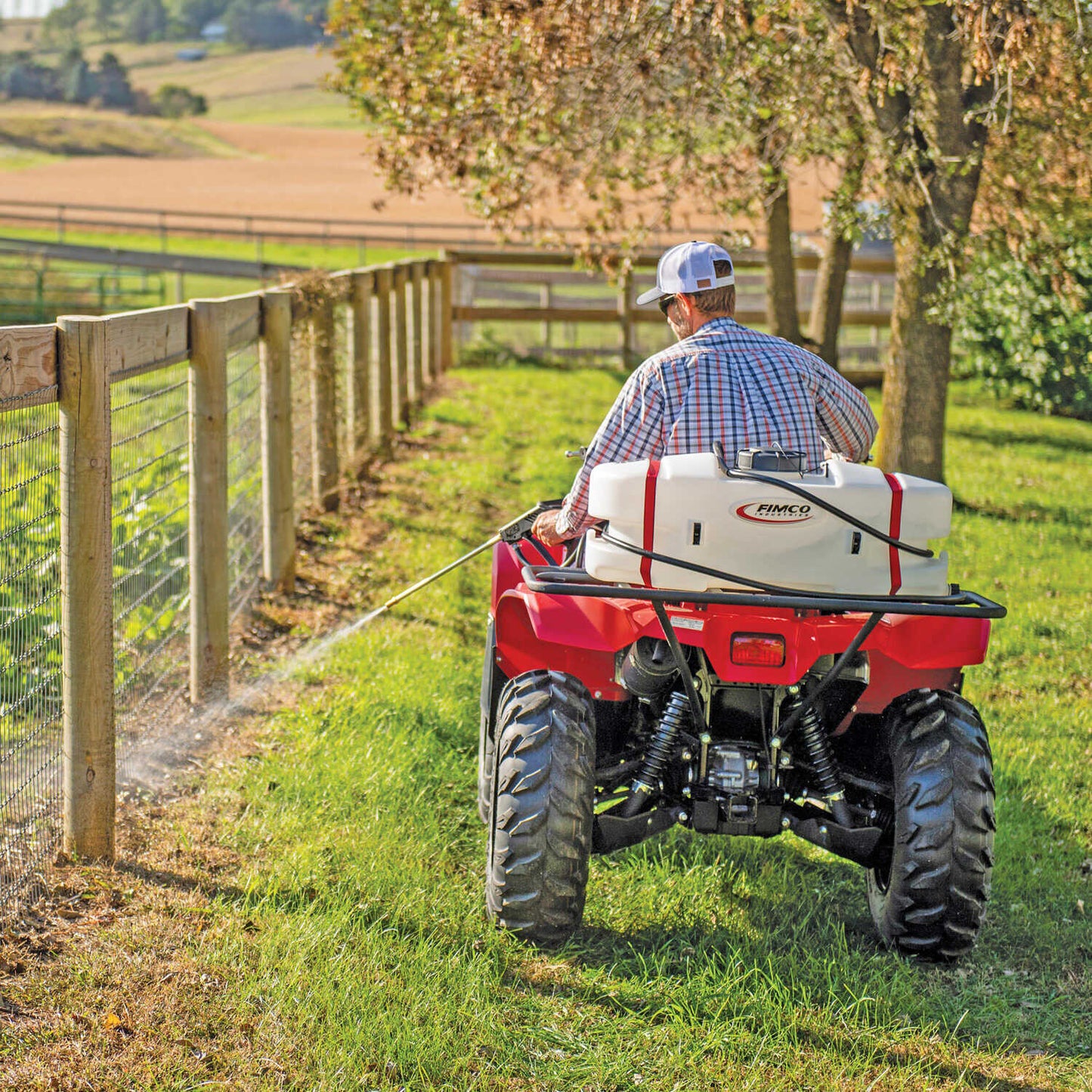

• ATV-Compatible Mounting: Permanently mounts to most ATVs; optional boom and mounting kits available.
• Boom Kit Ready: Supports optional 5-nozzle boom with 100" swath (sold separately).
