Product Description
Fimco Fire Fighting Skid Sprayer With Manual Hose Reel | Tank Capacity 150-Gallon | Max Flow Rate 7.2 GPM
DESCRIPTION

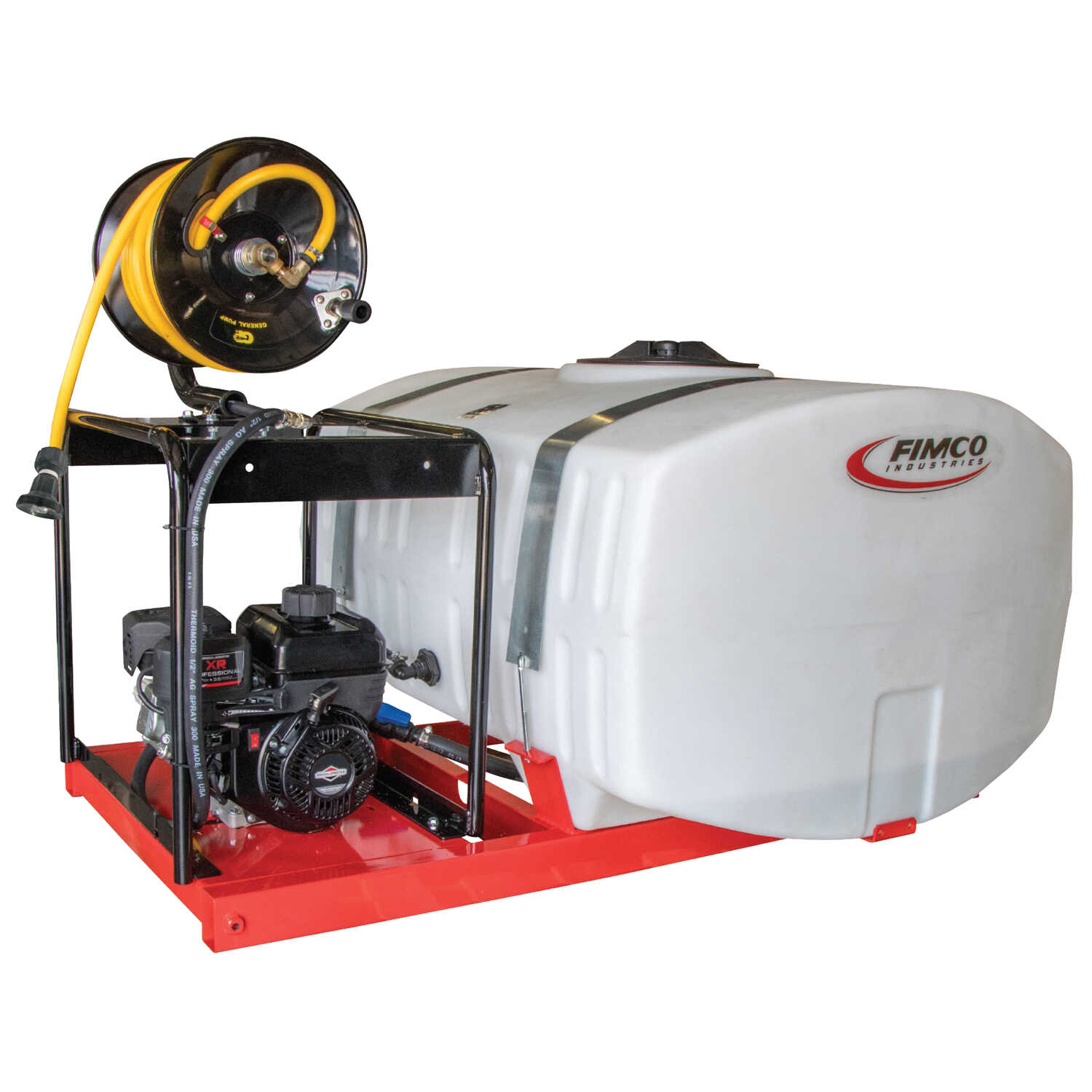

The Fimco 150-Gallon Fire Fighting Skid Sprayer is a high-performance water delivery system designed for fire suppression, dust control, and emergency washdown. Built on a rugged laser-cut steel skid frame, this unit is powered by a Briggs & Stratton XR550 engine and a Hypro 4-roller direct drive pump, delivering up to 7.2 GPM at 150 PSI for powerful, targeted spray coverage.
Ideal for mounting in truck beds or trailers, the sprayer includes a manual hose reel with 100 feet of ½" PVC hose rated to 600 PSI, giving operators extended reach in remote or hazardous areas. The heavy-duty adjustable spray nozzle allows for precise control, while the anti-vortex suction bulkhead ensures smooth flow and protects the pump from air intake. With a maximum spray throw of 38 feet horizontally and 27 feet vertically, this unit is built for rapid response and reliable performance in demanding conditions.
Key Features
- 150-Gallon Polyethylene Tank Corrosion-resistant, high-capacity tank with molded gallon marks and full sump for complete draining.
- Laser-Cut Steel Skid Frame Heavy-duty base for secure mounting in trucks, trailers, or utility platforms.
- Briggs & Stratton XR550 Engine 127cc engine with 5.5 ft-lbs gross torque for reliable pump power and field performance.
- Hypro 4-Roller Direct Drive Pump Delivers up to 7.2 GPM at 150 PSI for high-pressure water delivery.
- Manual Hose Reel Includes 100' of ½" PVC hose rated to 600 PSI for extended reach and maneuverability.
- Heavy-Duty Adjustable Spray Nozzle Allows precise control of spray pattern and distance for targeted application.
- Anti-Vortex Suction Bulkhead Prevents air intake and ensures smooth, uninterrupted water flow to the pump.
- High-Pressure Spray Capability Achieves up to 38' horizontal and 27' vertical throw for long-range coverage.
- One-Year Manufacturer’s Warranty Backed by Fimco for peace of mind and product reliability.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Fimco |
| Model | 150-Gallon Fire Fighting Skid Sprayer |
| Tank Capacity | 150 gallons |
| Tank Material | Polyethylene |
| Frame Type | Laser-cut steel skid |
| Engine | Briggs & Stratton XR550 (127cc) |
| Engine Torque | 5.5 ft-lbs gross torque |
| Pump Type | Hypro 4-roller direct drive |
| Max Flow Rate | 7.2 GPM |
| Max Pressure | 150 PSI |
| Hose Reel | Manual |
| Hose Specs | 100' of ½" PVC hose (600 PSI rated) |
| Spray Nozzle | Heavy-duty adjustable |
| Max Horizontal Spray | 38 feet |
| Max Vertical Spray | 27 feet |
| Suction Bulkhead | Anti-vortex |
| Dimensions | 60" L × 49" W × 46" H |
| Dry Weight | 175 lbs |
| Wet Weight | 1,400 lbs |
| MPN | 5303066 |
| UPC | 733029119421 |
| UNSPSC | 46191600 |
| Warranty | 1 year manufacturer’s warranty |
