Fleming

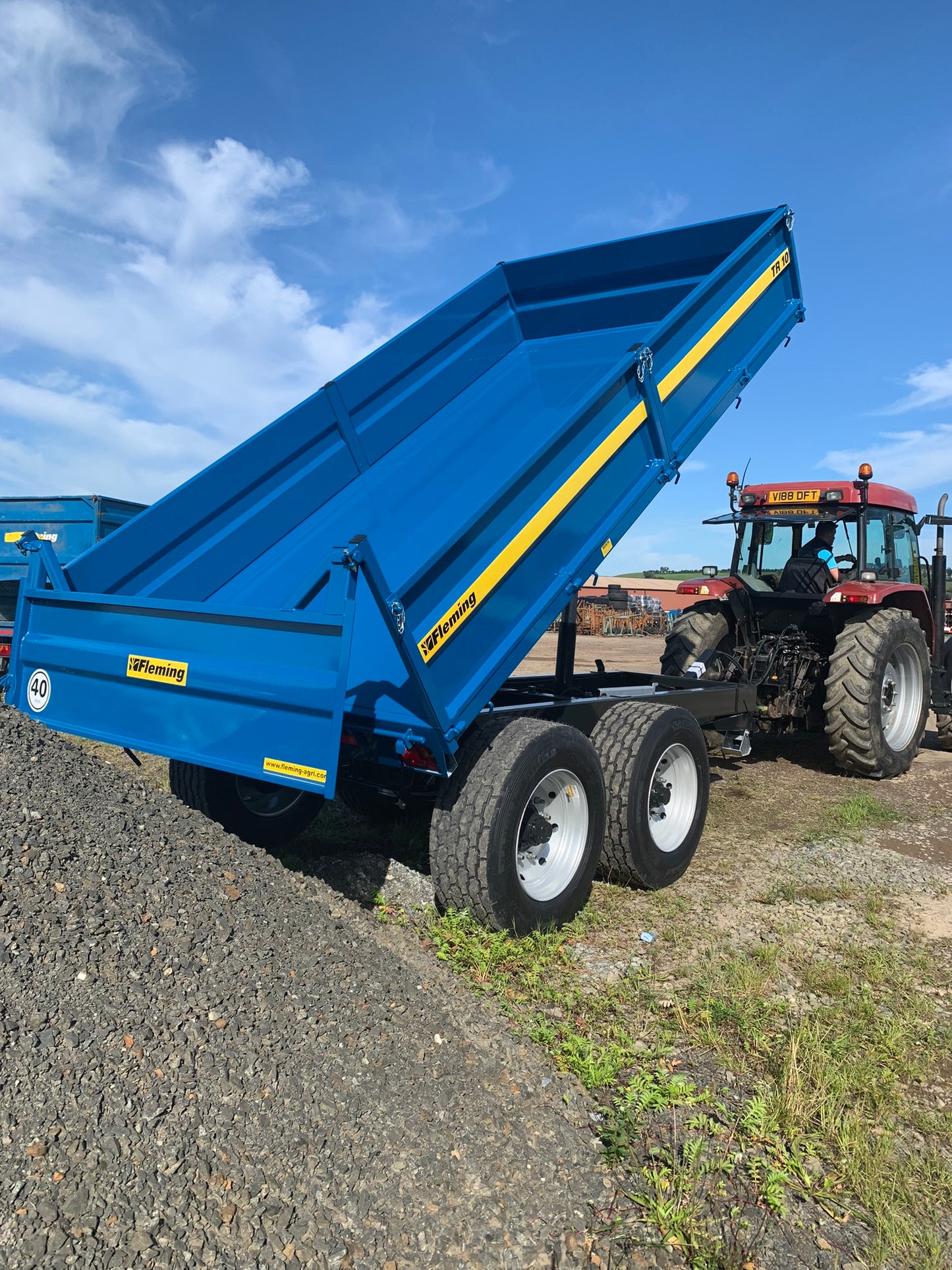

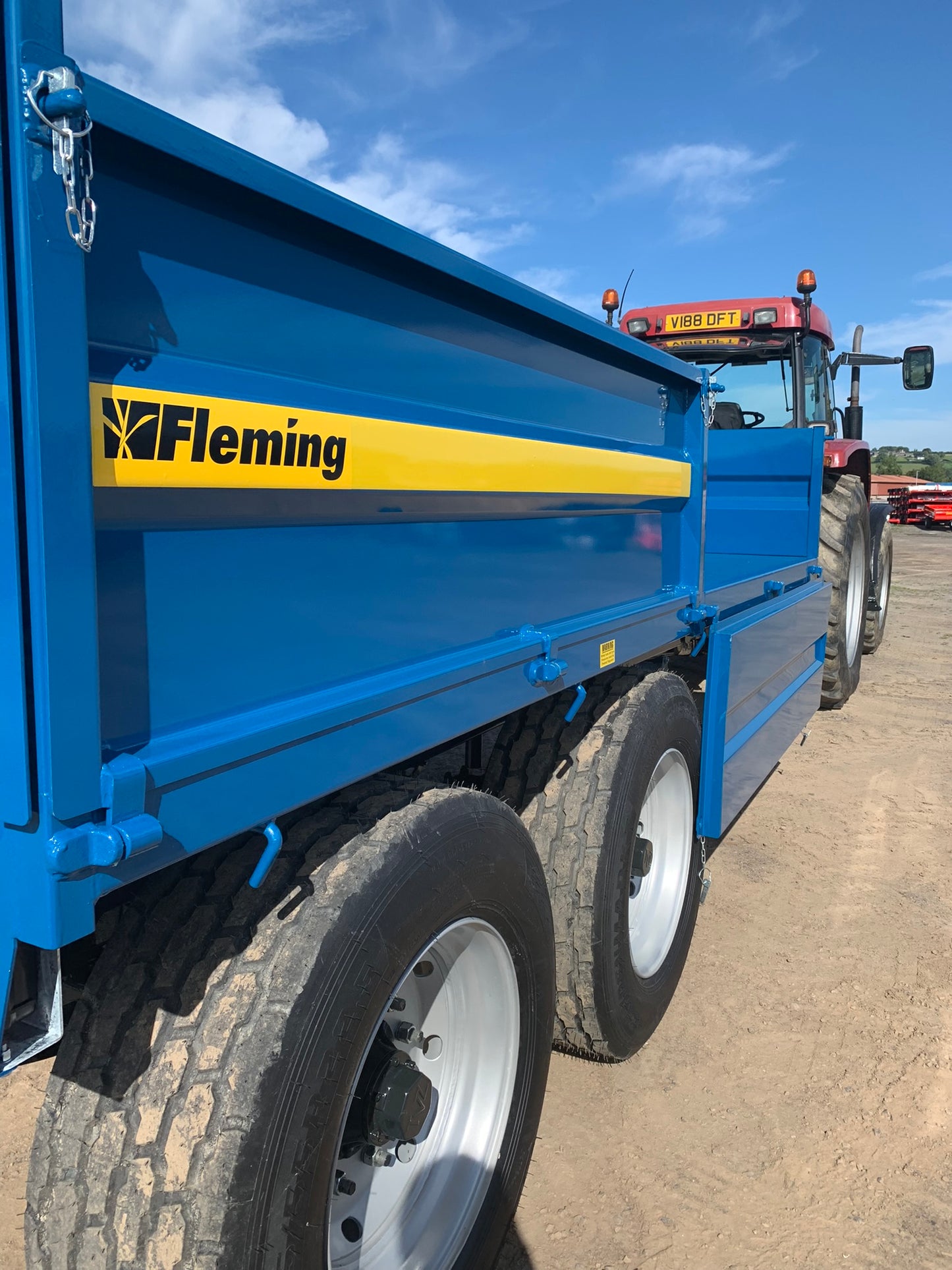

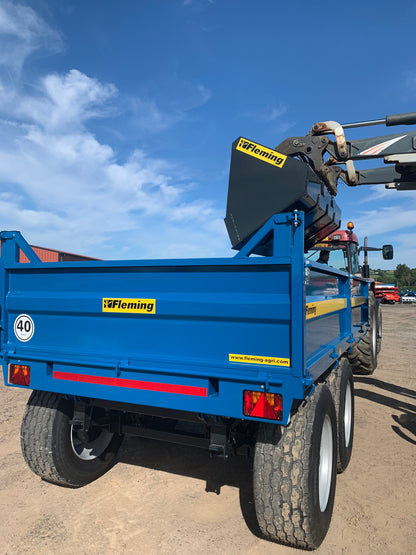

Fleming 10-Ton Tipping Trailer | Model TR10 | Width 89" | 40-60 HP | 8-12 GPM | For Skid Steer, Tractor & Loaders

Fleming 10-Ton Tipping Trailer | Model TR10 | Width 89" | 40-60 HP | 8-12 GPM | For Skid Steer, Tractor & Loaders

Regular price $23,850.00
Regular price Sale price $23,850.00
Sale Sold out
Machine Compatibility
Customizable
Fast
24/7 Support
  • Capacity: 5 Ton (22,046 lbs).
  • Dimensions: 14' 3" L x 7' 5" W.
  • Hydraulic Flow: 8–12 GPM.
  • Horsepower: 40–60 HP required.
  • For Skid Steers, Tractors & Loaders.
View full details

Product Description

Fleming 10-Ton Tipping Trailer | Model TR10 | Width 89" | 40-60 HP | 8-12 GPM | For Skid Steer, Tractor & Loaders

DESCRIPTION

The Fleming 10 Ton Tipping Trailer (TR10) is the ideal solution for those seeking a high-performance, heavy-duty trailer built for agricultural and construction tasks. With a 10,000 kg capacity, this versatile trailer handles everything from bulk materials to heavy machinery. Featuring a highly efficient 3-stage tipping ram, it offers smooth, quick unloading, saving you time on the job. Designed to work seamlessly with Skid Steers, Tractors, and Loaders, it requires 40-60 HP engine power and 8-12 GPM hydraulic flow to ensure optimal performance. Built for durability, this trailer comes equipped with spring suspension, hydraulic brakes, and reflective safety lights. Whether you're transporting soil, debris, or equipment, the Fleming TR10 provides superior strength, ease of use, and minimal maintenance.

Key Features

  • 3-stage tipping ram delivers clean and efficient unloading for quick turnaround times.
  • 10,000 kg capacity makes it perfect for heavy-duty hauling of bulk materials and machinery.
  • Removable sides offer flexibility for different load types and easy loading/unloading.
  • Reinforced half sides and heavy-duty hinge points for added durability.
  • Hydraulic brakes and reflective triangles enhance safety during transport.
  • Spring suspension system minimizes strain on the trailer, ensuring longevity.
  • Lights in protective channels ensure visibility in all weather conditions.
  • 8-stud axles on 385/55/22.5 tires for stability and smooth transport over rough terrains.
  • Structural steel box-section chassis provides exceptional strength and reliability.
  • Slim-line, reinforced drawbar with galvanized parking shoe for easy towing.
  • Capacity with extension sides boosts load capacity to 11m³ for larger jobs.
  • Optional grain sides (TR10GS) ideal for transporting crops or bulk grains.
  • Bale extension option (TR10E) extends trailer length to 17.25 ft for larger bales.
  • Maintenance-free operation thanks to a robust, low-maintenance design.
  • Compatible with Skid Steers, Tractors, and Loaders requiring 40-60 HP and 8-12 GPM hydraulic flow.

Detailed Specifications

Specification TR10
Body Length 4.35m (14ft 3in)
Width 2.23m (7ft 5in)
Floor Thickness 5mm
Hydraulic Flow Required 8-12 GPM
Minimum Horsepower 40-60 HP
Side Height 600mm (23.6in)
Loading Height to Top of Sides 1200mm (47.2in)
Unladen Weight 2900kg (6,393 lbs)
Cubic Capacity 5.64m³ (199.5 cu.ft)
Capacity with Extension Sides 11m³ (389.5 cu.ft)
Wheel Size (Standard) 385/55/22.5
Wheel Size (Optional) 500/50/17 (additional charge)
Brakes Hydraulic brakes
Suspension Type Spring suspension
Chassis Construction Structural steel 200mm x 100mm box-section
Lights & Safety Protective channel, Reflective triangles
Trailer Length with Bale Extension 4.88m (16ft 1in)
Side Height with Optional Grain Sides 47in (1194mm)
