Fleming Compact Tipping Trailer | Model TR1 & TR2 | Width 47" & 54" | 20-50 HP | 5-12 GPM | For Tractors, ATVs, UTVs, & Loaders
DESCRIPTION

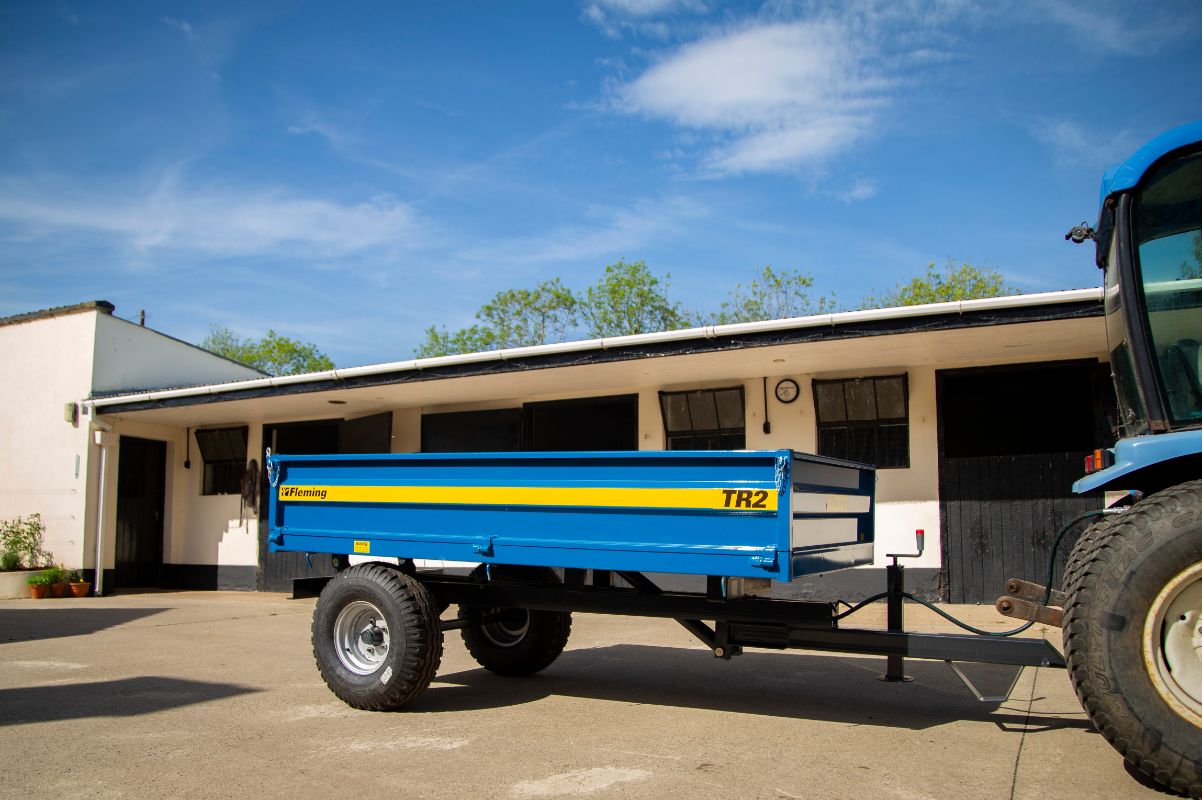

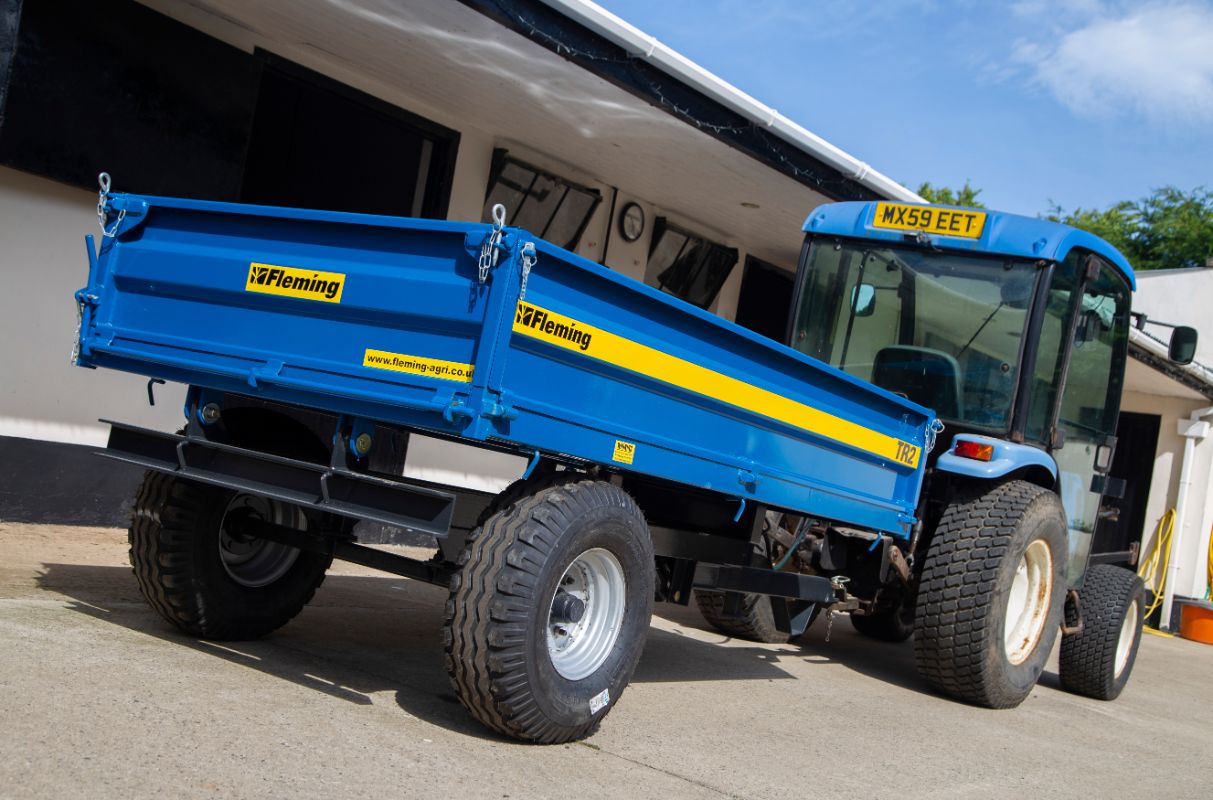

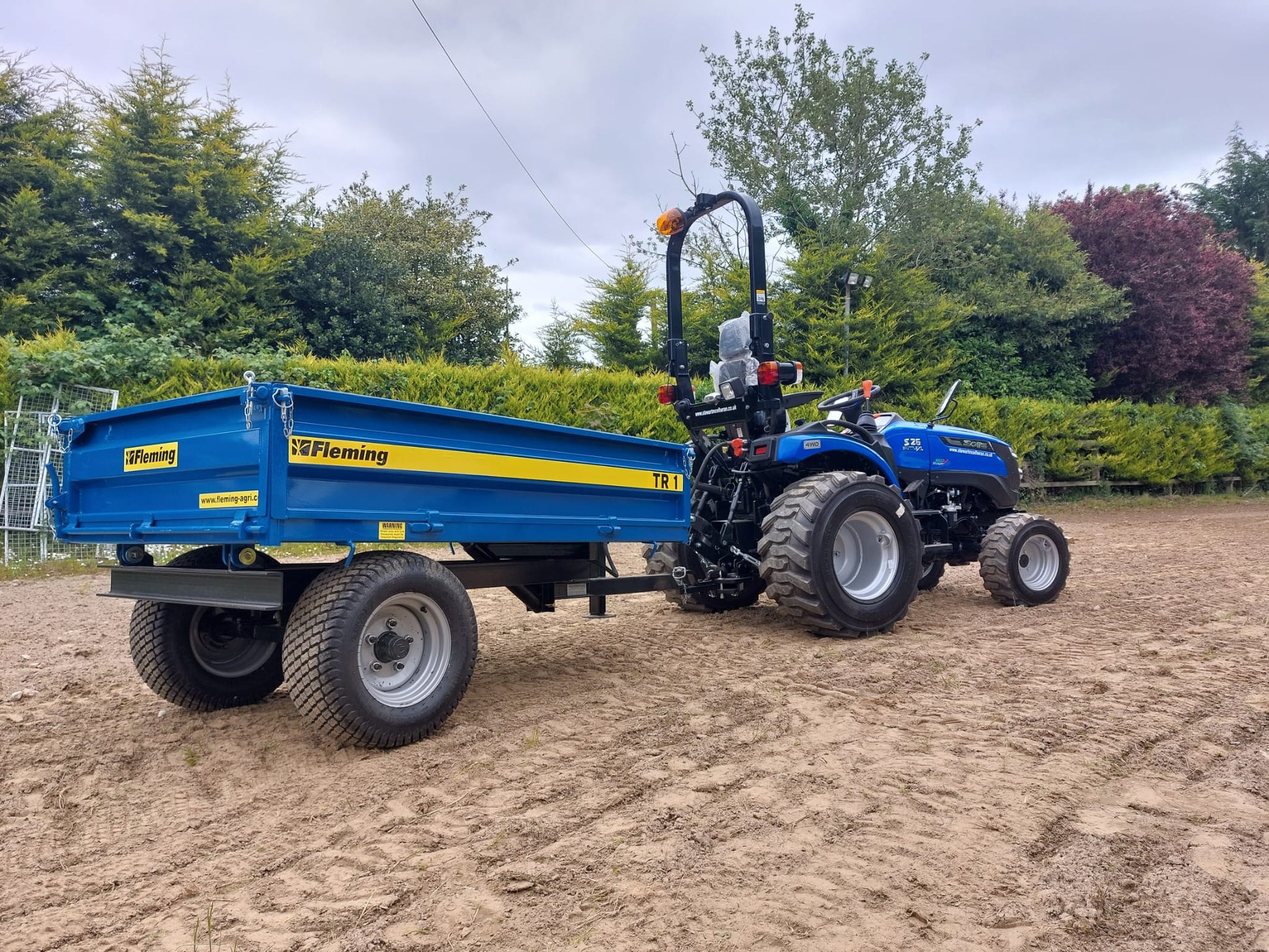

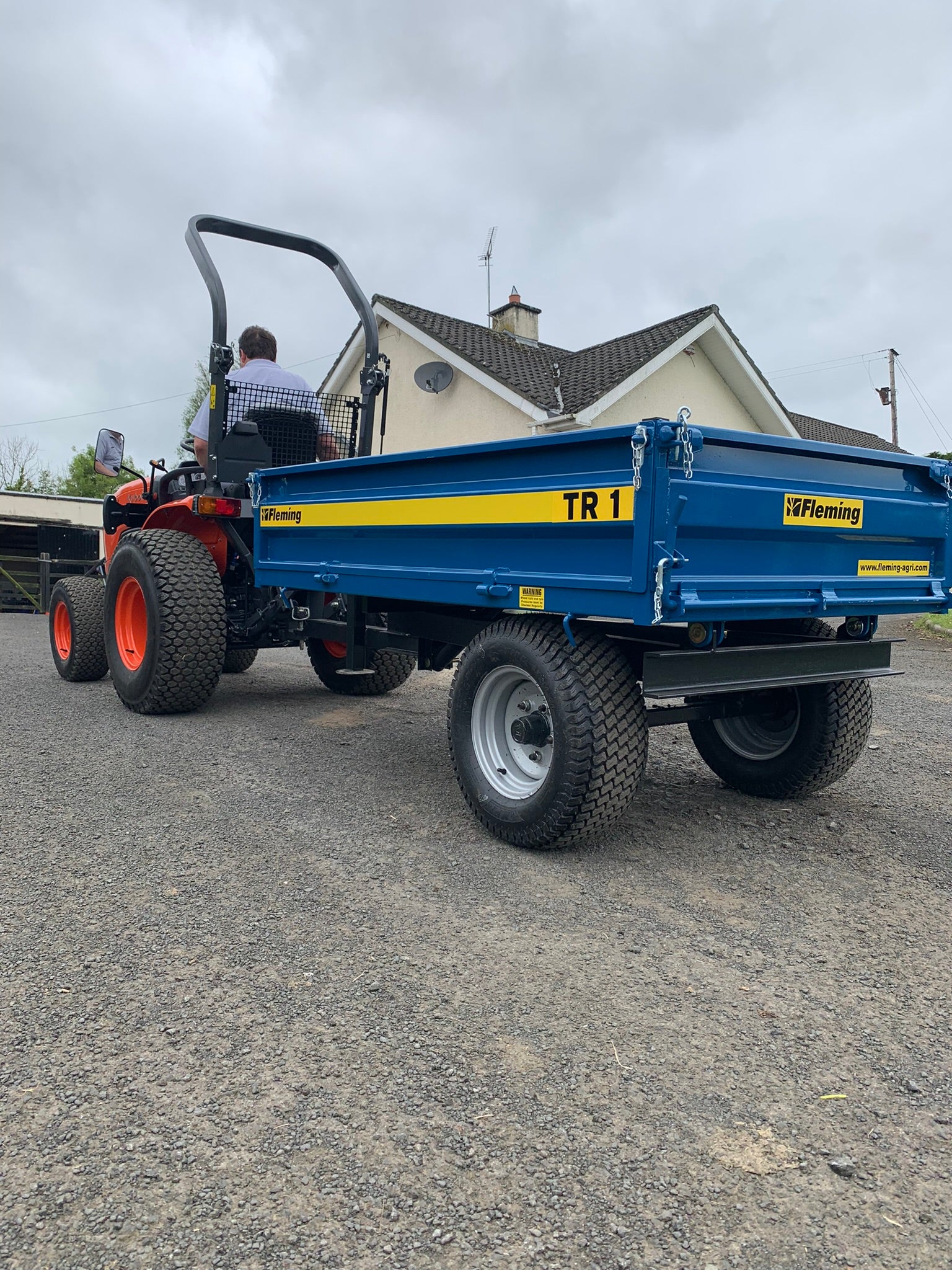

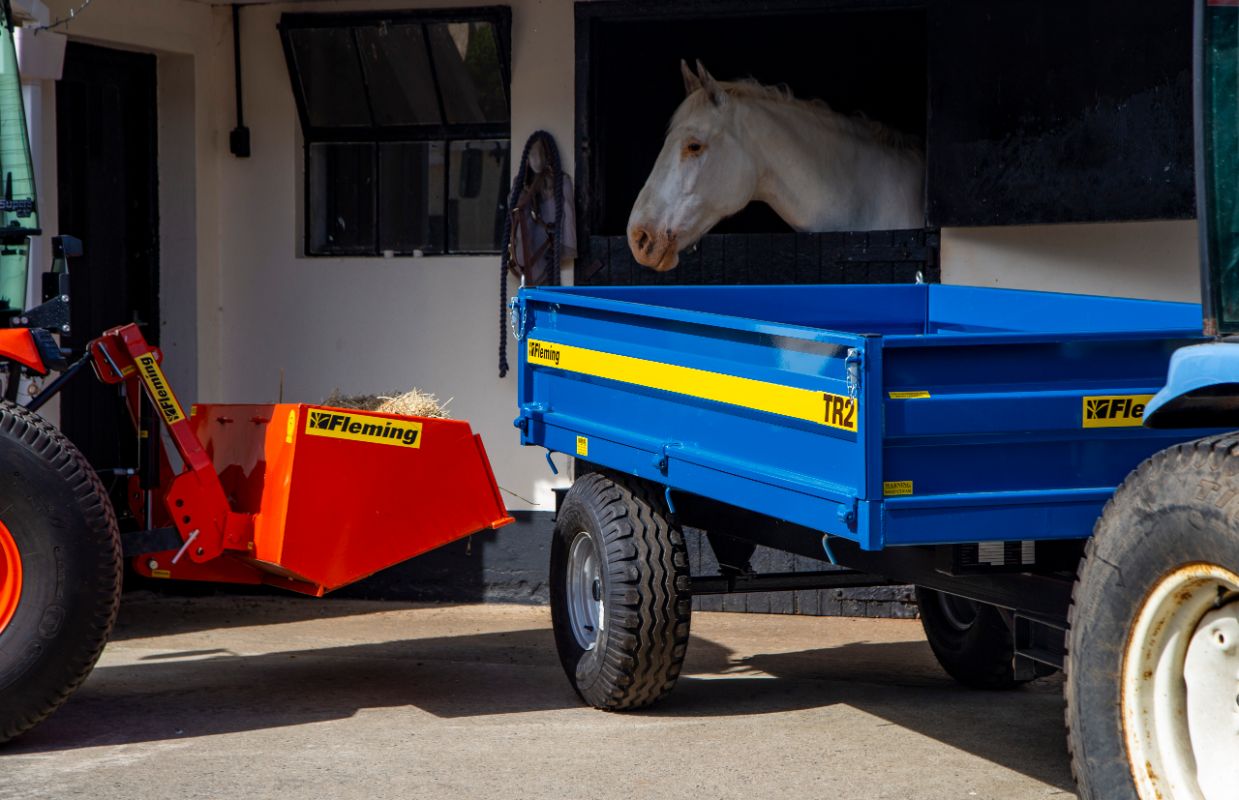

The Fleming Compact Tipping Trailers TR1 & TR2 are built for operators who need reliable hauling, clean unloading, and long-term durability in a compact footprint. Ideal for tractors, ATVs, UTVs, and loaders, these trailers are engineered with a high-tip tipping angle that ensures fast, residue-free unloading of soil, gravel, feed, and general materials.
Designed for machines in the 20 to 50 horsepower range and compatible with 5 to 12 GPM hydraulic systems (when hydraulic tipping is used), the TR1 and TR2 deliver professional-grade performance on farms, estates, and worksites. Featuring fully removable sides, a reinforced one-piece floor, and a structural steel chassis with 5-stud axle, these trailers handle demanding workloads with ease. Choose the TR1 with 3,307 lbs capacity or step up to the TR2 with 4,409 lbs capacity for heavier tasks all backed by Fleming’s proven build quality.
Key Features

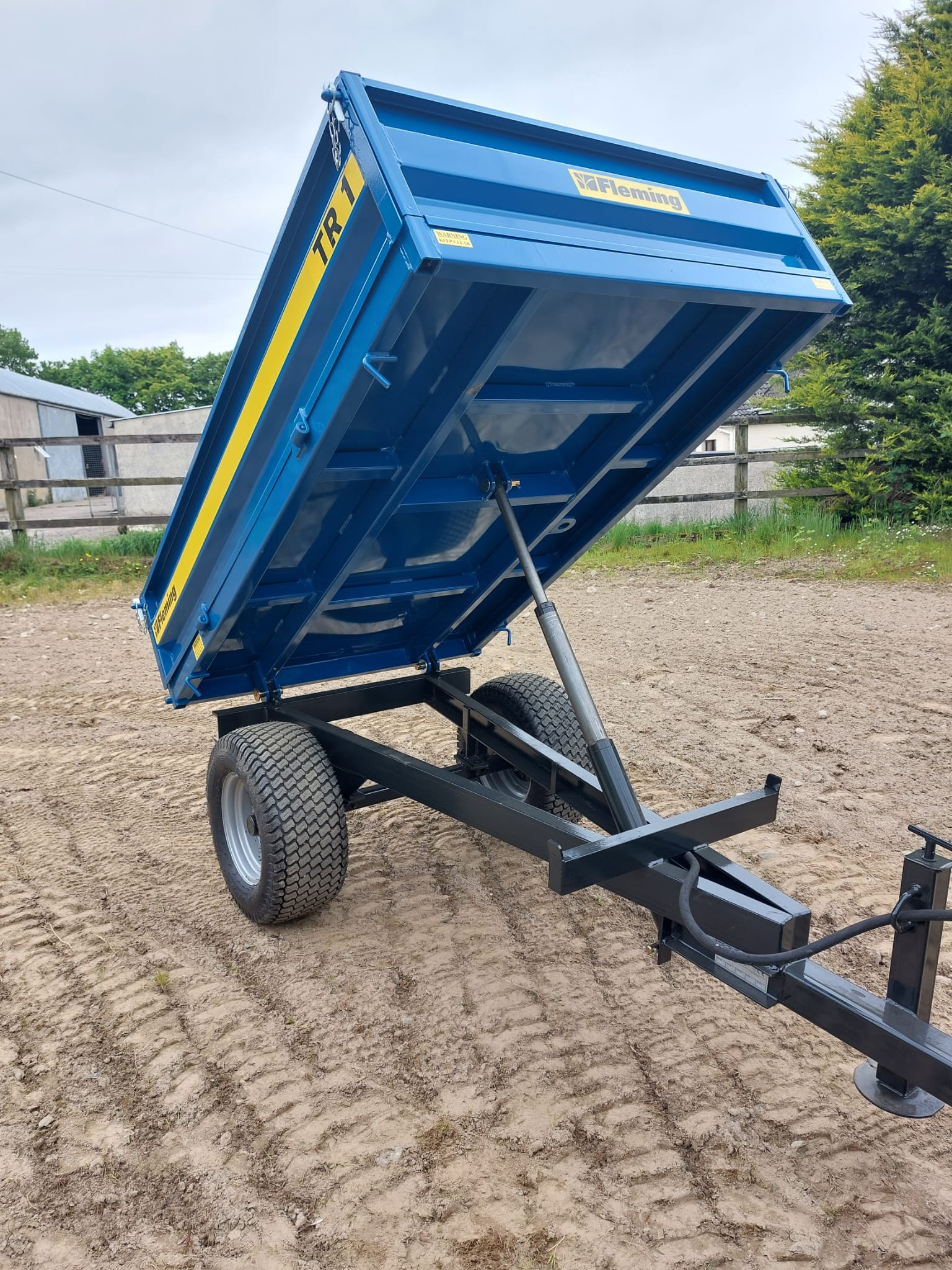

- Heavy-duty tipping design delivers a high tip angle for clean unloading of soil, gravel, and farm materials with minimal manual effort.
- Fully removable steel sides allow fast conversion from bulk hauling to flatbed-style transport for maximum jobsite versatility.
- Reinforced one-piece floor and side chimes increase structural strength, reduce flex, and extend trailer service life.
- Designed for 20–50 HP machines, making it ideal for tractors, ATVs, UTVs, and compact loaders across agriculture and landscaping.
- Hydraulic-compatible operation supports systems rated at 5–12 GPM, ensuring smooth tipping performance when hydraulics are used.
- Structural steel chassis with a rugged 5-stud axle provides stability and durability on uneven or rough terrain.
- High payload capacities with TR1 rated at 3,307 lbs and TR2 rated at 4,409 lbs for demanding material handling.
- Compact overall width of 47"–54" allows easy maneuvering in tight farmyards, barns, and confined workspaces.
- Optional galvanized mesh sides increase side height for loose or lightweight materials while boosting cubic capacity.
- Parking jack included standard for easier hitching, unhitching, and stable parking when disconnected from the machine.
- Optional light kit available for safe road transport and improved visibility during low-light or early-morning operations.
- Optional handbrake on TR2 enhances safety when loading or parking on slopes or uneven ground.
- Optimized loading height reduces strain during loading while maintaining excellent tipping clearance during unloading.
- Standard agricultural wheels provide dependable traction across grass, gravel, dirt, and farm surfaces.
- Ideal for farming, landscaping, and property maintenance, making it a versatile solution for year-round material transport.
Detailed Specifications
| Specification | TR1 Compact Tipping Trailer | TR2 Compact Tipping Trailer |
|---|---|---|
| Required Machine Power | 20–40 HP | 30–50 HP |
| Hydraulic Flow (If Equipped) | 5–12 GPM | 5–12 GPM |
| Maximum Payload Capacity | 3,307 lbs | 4,409 lbs |
| Body Length | 75.2" | 102.4" |
| Body Width | 47.2" | 53.9" |
| Floor Thickness | 1/8" | 1/8" |
| Side Height | 12.5" | 14" |
| Loading Height to Floor | 26.75" | 31.5" |
| Loading Height to Top of Sides | 39" | 46" |
| Unladen Weight | 765 lbs | 1,093.5 lbs |
| Cubic Capacity | 0.74 m³ | 1.29 m³ |
| Wheel Size (Standard) | 23×10.5×12 | 10×80×12 |
| Wheel Size (Optional) | N/A | 26×12×12.5 |
| Axle Type | 5-Stud Steel Axle | 5-Stud Steel Axle |
| Intended Use | Tractors, ATVs, UTVs, Loaders | Tractors, ATVs, UTVs, Loaders |
