FP Drone Orchard Automatic Spraying Vehicle U300 | 25Ah | Tracked | Box Capacity 300 L
Description

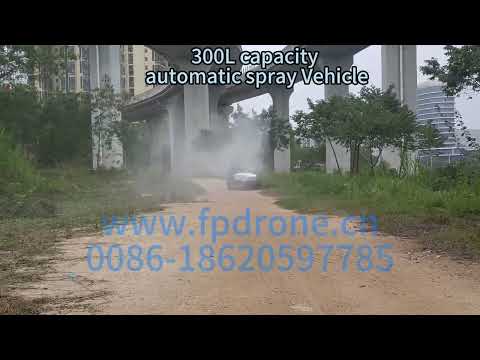

The Orchard Automatic Spraying Vehicle U300 integrates advanced Beidou navigation and vision technologies to achieve centimeter-level positioning and obstacle avoidance. This vehicle features an innovative encircling distribution of nozzles with an oblique spraying angle design, combined with a new-generation air-driven atomization system. The U300 ensures uniform atomization and comprehensive coverage.
It supports both manual remote control and fully autonomous operation modes, allowing for unmanned precision spraying in various scenarios, such as orchards. The U300 also records operational data in real time.
Features:
- Intelligent Obstacle Avoidance: Automatically stops when an obstacle is detected during operation.
- Return Without Medicine: If the U300 runs out of chemicals or battery, it records the interruption point and returns to the dosing point or charging station, resuming operations once refueled.
- Night Work Capability: The U300 can operate autonomously even at night.
U300 Parameters and Indicators
No. | Item | Unit | Technical Parameters | Remarks |
---|---|---|---|---|
1 | Structure Type | - | Tracked | |
2 | Dimensions (L×W×H) | m | 2000×1100×1200 | |
3 | Total Weight | kg | 200 | |
4 | Air Blower Speed | min | 3000 | |
5 | Medicine Box Capacity | L | 300 | |
6 | Battery Capacity | Ah | 25 | Accommodates 4 batteries |
8 | Walking Speed | m/s | 3 | |
9 | Liquid Pump/Motor Pump Rated Pressure | MPa | 3 | |
10 | Nozzle Type | - | Fan Pressure Nozzle | |
11 | Number of Nozzles | pcs | 10 | |
12 | Engine/Electric Motor Structure Type | - | DC Brushless | |
13 | Engine/Motor Operating Voltage | V | 60 | |
14 | Intelligent Management and Control | - | Remote real-time monitoring and safety control | |
15 | Track Width | m | 180 | |
16 | Spray Width/Horizontal Range | m | 15 | |
18 | Machine Working Pressure | MPa |
Parts Diagram:
- Nozzle
- RTK Antenna
- Switch and Battery Display
- Medicine Box
- Track
- Light
- Air Blower
- High-Pressure Pumps
Function Switch Correspondence
- Lever (Switch Mode): Middle position for GPS mode, top position for Attitude mode.
- Forward/Backward Paddle: Move forward by pushing the lever forward, move backward by pushing it backward.
- Main Power Switch: Short press followed by long press to power on/off.
- Blower Switch: Press to toggle the blower on/off.
- Water Pump Switch: Middle position to close, top position to open.
- Left/Right Steering Lever: Push left to steer left, push right to steer right.
- Light Switch Key: Press to toggle lights on/off.
- USB-C: Charge port.
- TF Card Slot: For memory storage.
Specifications
- Structure Type: Tracked
- Dimensions: 2000×1100×1200 mm
- Total Weight: 200 kg
- Blower Speed: 3000 RPM
- Medicine Box Capacity: 300 L
- Battery Capacity: 25 Ah (60V DC brushless motor)
- Walking Speed: 3 m/s
- Pump Pressure: 1-3 MPa
- Nozzles: 10 fan pressure nozzles
- Spray Width: 15 m
- Control Platform: Remote real-time monitoring and safety control
What's Included
- Orchard Automatic Spraying Vehicle U300
- Remote Control
- 25 Ah Battery
- Charger
- Repair Tool Kit
- Product Manual
- Certificate of Conformity
- Three Guarantees Certificate
Daily Maintenance
- Post-Operation Cleaning: Clean the body, track, and suspension of any dirt after each operation.
- Lubrication: Spray lubricating and anti-rust oil on the drive axle and bearings. Check screws regularly to ensure they are tightened.
Take control of your orchard's health with the Orchard Automatic Spraying Vehicle U300. Ensure precision, efficiency, and safety in every spraying task. Order now and revolutionize your agricultural practices with the latest in unmanned technology!
