Multivator FPSRXA Frame Assemblies | 66"-240" Working Width | 12"-32" Tillage Heads | 150 HP | 32" Ground Clearance
DESCRIPTION
The Multivator FPSRXA High Clearance Frame Assembly is the ideal rotary-powered cultivation solution for large-scale agricultural operations. Designed to work with high-horsepower tractors up to 125 HP, this unit features an impressive 32-inch ground clearance, ensuring smooth and efficient weed control in taller crops and rougher terrain.
With multiple frame widths and tillage head options, the FPSRXA is fully customizable to meet the unique needs of specialty crop growers. Its heavy-duty Comer gearbox (540 RPM standard, 1,000 RPM optional) provides efficient power transfer, while the oil-bath chaincase and steel gauge wheels offer durability and longevity in tough farming conditions.
Backed by Italian engineering and decades of North American expertise, the Multivator FPSRXA ensures superior weed control, soil aeration, and enhanced crop yields.
Key Features
- 32” High Ground Clearance – Allows for efficient operation in tall crops and uneven terrain.
- Heavy-Duty Construction – Designed for use with high-horsepower tractors up to 125 HP.
- 540 RPM PTO Standard (1,000 RPM Optional) – Versatile gearbox options for enhanced performance.
- Robust Steel Gauge Wheels – Provides stability and precise depth control for consistent cultivation.
- Durable #100 Roller Chain in Oil-Bath Chaincase – Ensures smooth operation and reduced maintenance.
- Multiple Frame Widths Available – Customizable to fit different row configurations and crop layouts.
- Configurable Tillage Head Widths – Available in sizes from 12” to 32” for tailored cultivation.

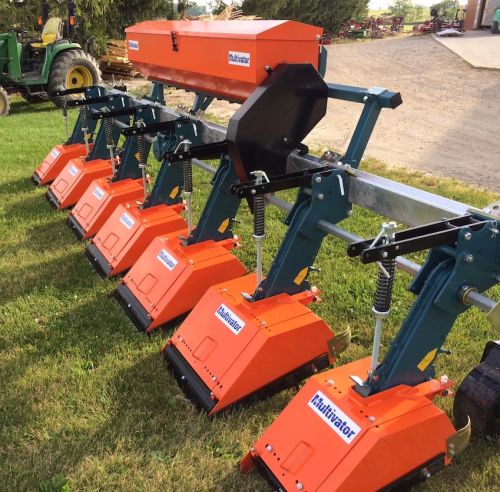

- Optional Granular Fertilizer Box – Available in 40”, 60”, and 80” capacities for integrated soil nourishment.
- Optional FPSRXA Ridger Assembly – Enhances soil mounding and row shaping for specific crop requirements.
Detailed Specifications
| Feature | Details |
|---|---|
| Brand | Multivator |
| Model | FPSRXA |
| Ground Clearance | 32” under the hex drive shaft |
| Compatible Tractors | Up to 125 HP with 540 RPM PTO (Optional 1,000 RPM Gearbox) |
| Frame Widths Available | 66” (455 lbs.), 90” (500 lbs.), 132” (667 lbs.), 180” (833 lbs.), 192” (890 lbs.), 240” (993 lbs.) |
| Tillage Head Widths | 12”-16” (275 lbs., 8 blades), 18”-22” (310 lbs., 16 blades), 24”-32” (350 lbs., 24 blades) |
| Drive Shaft | 30mm Hexagonal |
| Gearbox | Comer Gearbox (540 RPM Standard, Optional 1,000 RPM) |
| Gauge Wheels | Heavy-duty steel construction |
| Hitch Type | 3-Point Hitch |
| Customization Available | Yes |
In Package
- FPSRXA Tool Bar
- 30mm Hexagonal Drive Shaft
- Steel Gauge Wheels
- Comer Gearbox (540 RPM Standard, Optional 1,000 RPM)
- 3-Point Hitch & Mounting Hardware

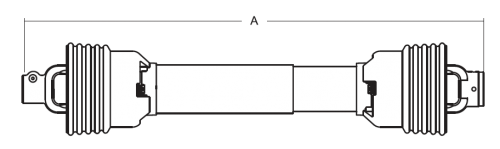

- PTO Shaft (Standard Size 6, Size 6 with Slip Clutch, or Size 8 with Slip Clutch for 1,000 RPM)
- Assembly & User Manual
Enhance your cultivation efficiency and field performance with the Multivator FPSRXA High Clearance Frame Assembly. Contact us today to customize your Multivator package and experience the superior quality and reliability trusted by specialty crop growers worldwide. Take your agricultural operations to the next level with the Multivator FPSRXA.
