Products Description
MultiIvator FPSR Frame Assemblies | 66"-240" Working Width | 12"-32" Tillage Heads | Up to 125 HP | 20" Ground Clearance
DESCRIPTION

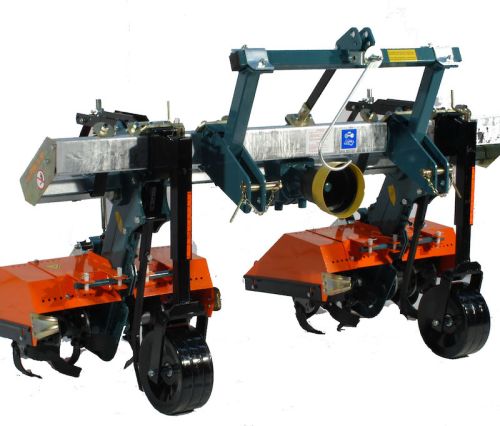

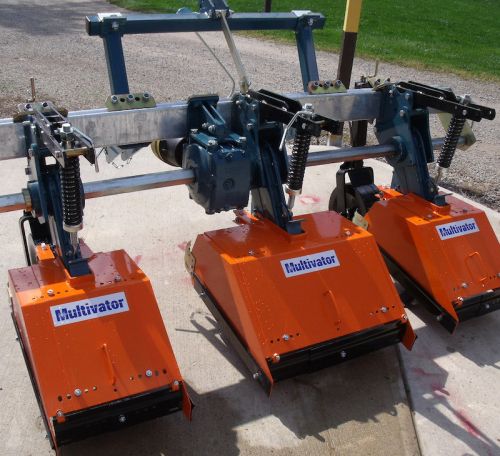

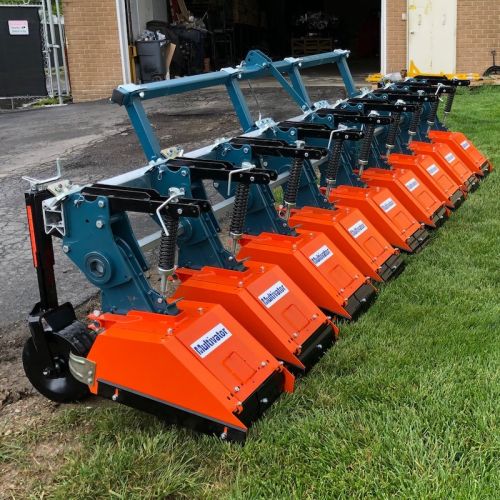

The Multivator FPSRXA Frame Assemblies are designed for high-performance weed control and soil cultivation in large-scale farming operations. With exceptional ground clearance (32”) and compatibility with tractors up to 125 HP, these heavy-duty machines are built to handle demanding agricultural tasks.
Featuring a reinforced frame, durable steel gauge wheels, and customizable tillage heads, the FPSRXA maximizes efficiency while reducing the need for chemical weed control. For enhanced versatility, an optional 1,000 RPM gearbox is available, allowing for even greater adaptability across various farming applications.
Backed by over 30 years of North American expertise, the Multivator FPSRXA continues to set the standard for rotary-powered cultivation in specialty crops.
Key Features
- Optimized for Large Field Operations – 32” ground clearance provides unmatched crop protection and soil aeration.
- High Horsepower Compatibility – Designed for tractors up to 125 HP, with an optional upgrade to a 1,000 RPM gearbox.
- Comer Gearbox (540 RPM Standard) – Reliable power transfer for smooth operation in all soil conditions.
- Steel Gauge Wheels – Ensures consistent depth control and precise cultivation.
- Multiple Frame Widths Available – Customizable for various field sizes and row configurations.
- Configurable Tillage Head Widths – Choose from different sizes for tailored cultivation.
- Optional Granular Fertilizer Box – Available in 40”, 60”, and 80” capacities for integrated fertilization.
- Optional FPSRXA Ridger Assembly – Enhances soil mounding and row shaping for specific crop needs.
Detailed Specifications
| Feature | FPSRXA Model Details |
|---|---|
| Brand | Multivator |
| Ground Clearance | 32” |
| Compatible Applications | Large-scale farming, specialty crop cultivation |
| Frame Widths Available | 66” (455 lbs.), 90” (500 lbs.), 132” (667 lbs.), 180” (833 lbs.), 192” (890 lbs.), 240” (993 lbs.) |
| Tillage Head Widths | 12”-16” (275 lbs., 8 blades), 18”-22” (310 lbs., 16 blades), 24”-32” (350 lbs., 24 blades) |
| Drive Shaft | Hexagonal |
| Gearbox | Comer (540 RPM Standard, 1,000 RPM Optional) |
| Gauge Wheels | Heavy-duty steel construction |
| Hitch Type | 3-Point Hitch |
| Customization Available | Yes |
In Package
- FPSRXA Tool Bar
- Hex Drive Bar
- Steel Gauge Wheels
- Comer Gearbox (540 rpm)
- 3-Point Hitch and Hardware

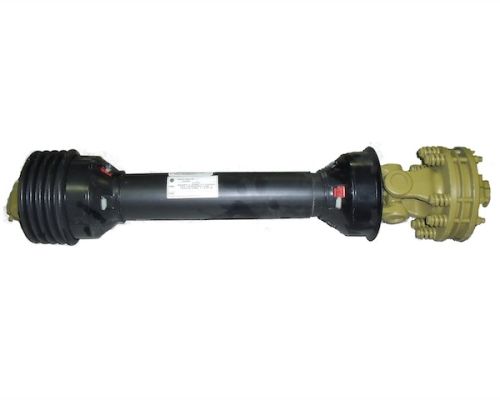

- PTO Shaft (standard size 6, size 6 with slip clutch, or size 8 with slip clutch)
- Optional Granular Fertilizer Box (40", 60", 80" capacity)
- Optional FPSRXA Ridger Assembly
Elevate your agricultural operations with the Multivator FPSRXA Frame Assemblies, engineered for heavy-duty cultivation and optimal performance with higher horsepower tractors. Contact us today to customize your Multivator package and enhance your field productivity. Don’t delay—boost your crop care efficiency now!
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

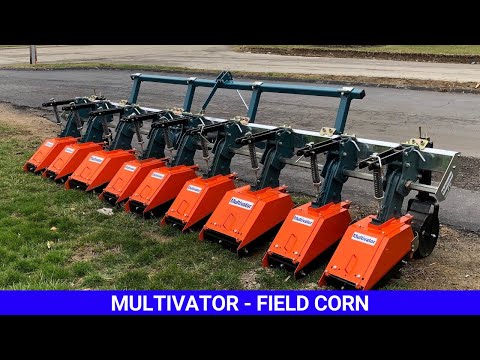

Videos
