Freefly Astro Max Aircraft | Flight Time 20-43 Min | Payload Capacity Max 3 Kg

Freefly Astro Max Aircraft | Flight Time 20-43 Min | Payload Capacity Max 3 Kg

$22,995.00
$22,995.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Compact industrial drone platform – Designed for professional payloads and flexible integration
  • Flight endurance – Up to 43 minutes (no payload), 31 minutes (LR1 payload), 20 minutes (max payload 3 kg)
  • Payload capacity – Supports up to 3 kg for LiDAR, thermal, RGB, and multispectral sensors
View full details

Product Description

Freefly Astro Max Aircraft | Flight Time 20-43 Min | Payload Capacity Max 3 Kg

DESCRIPTION

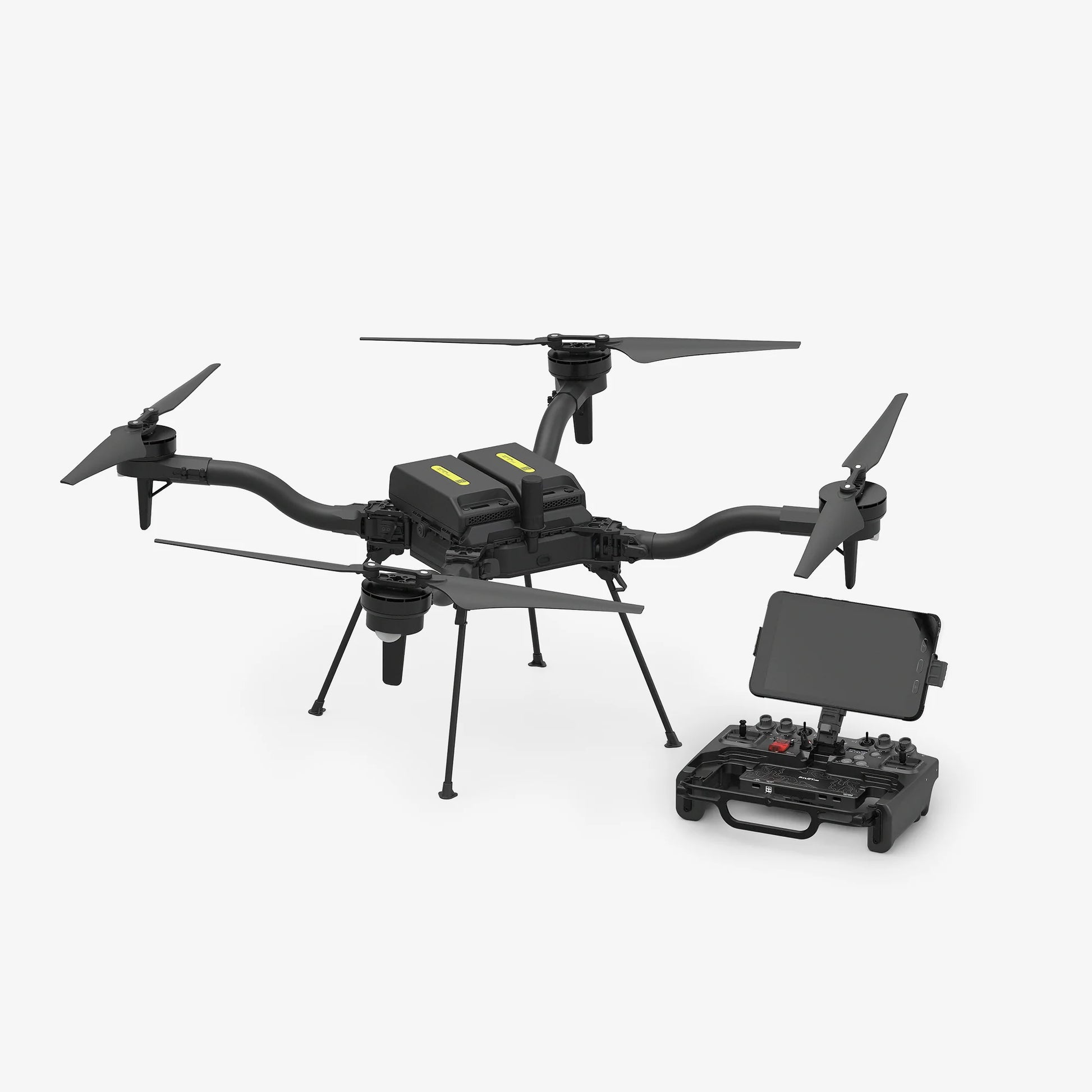

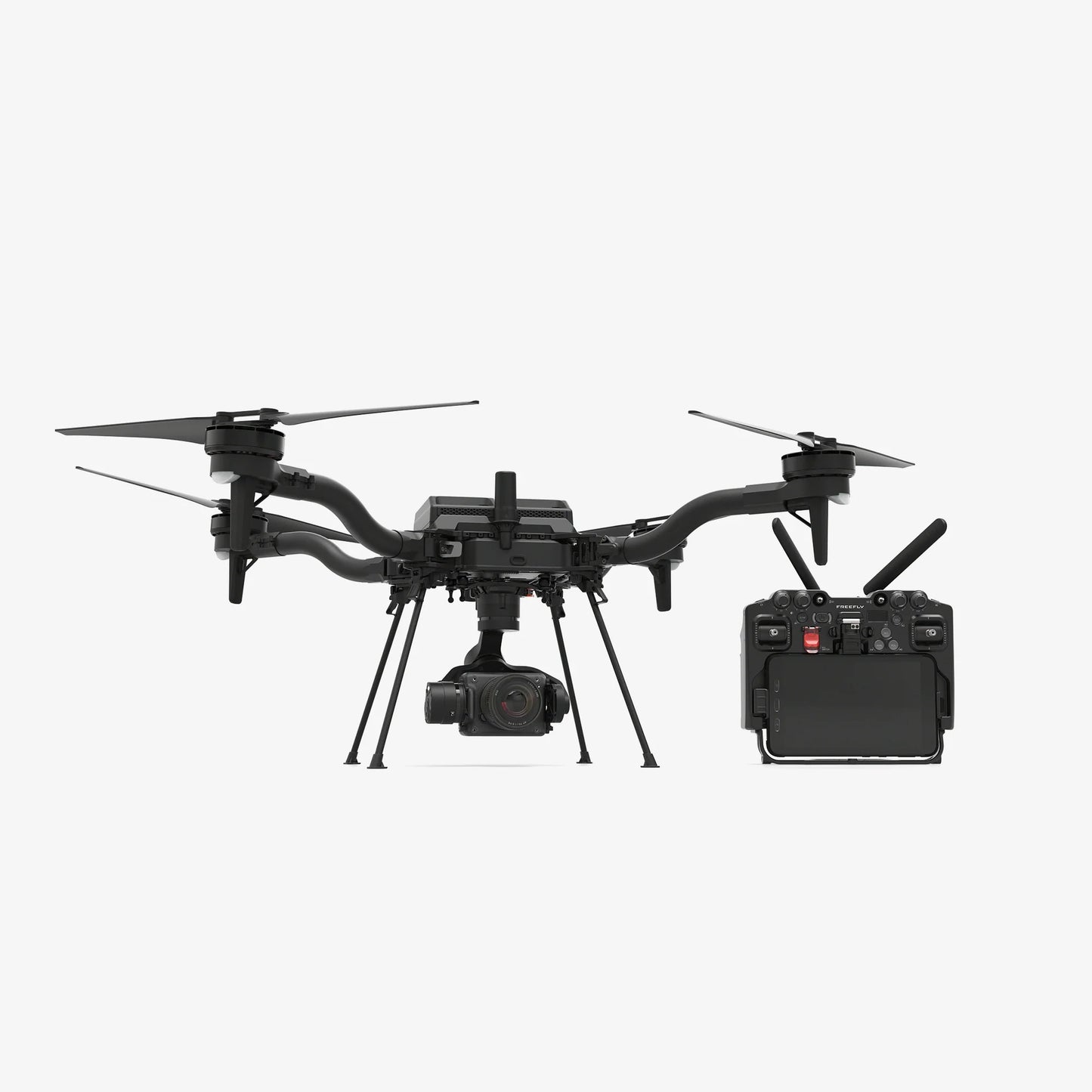

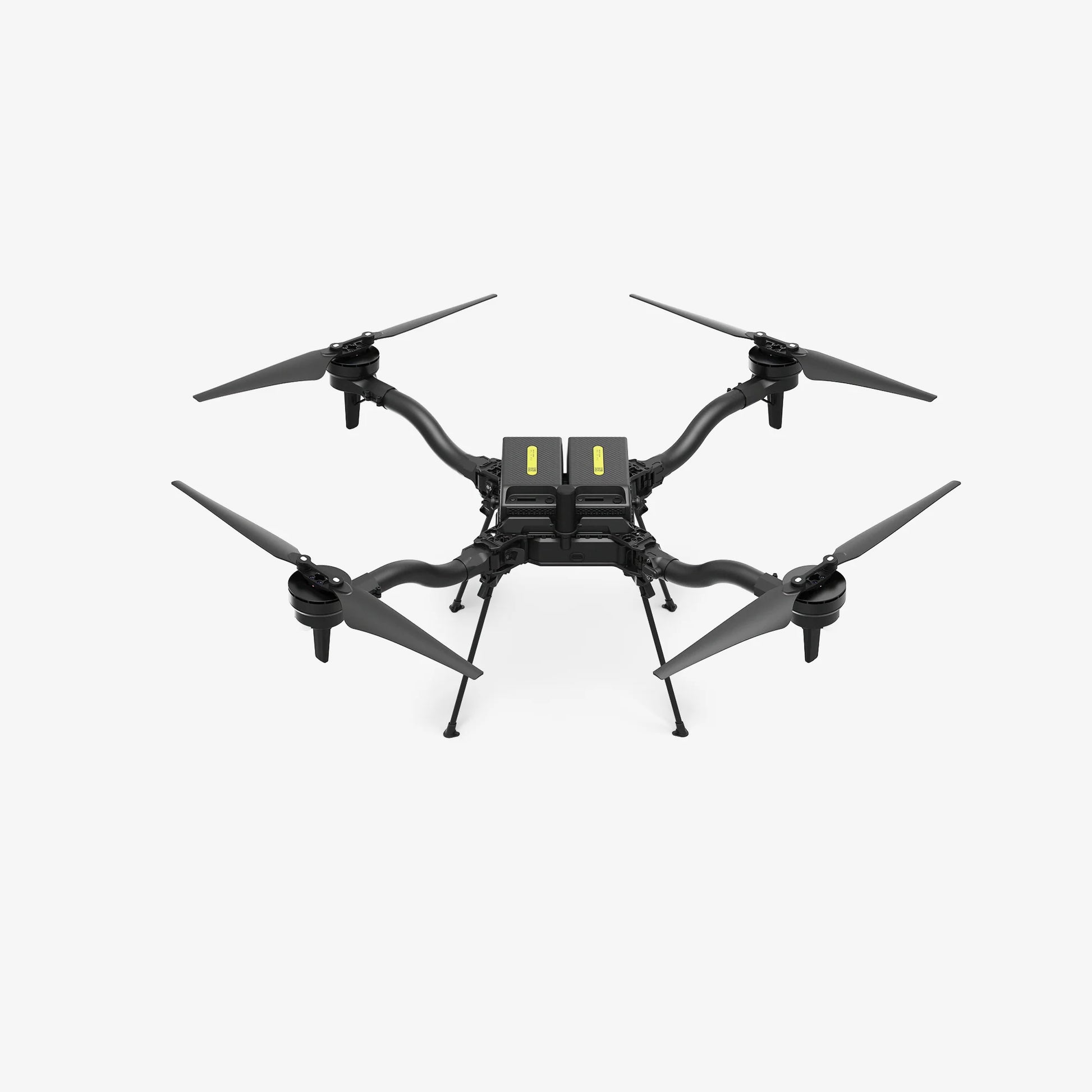

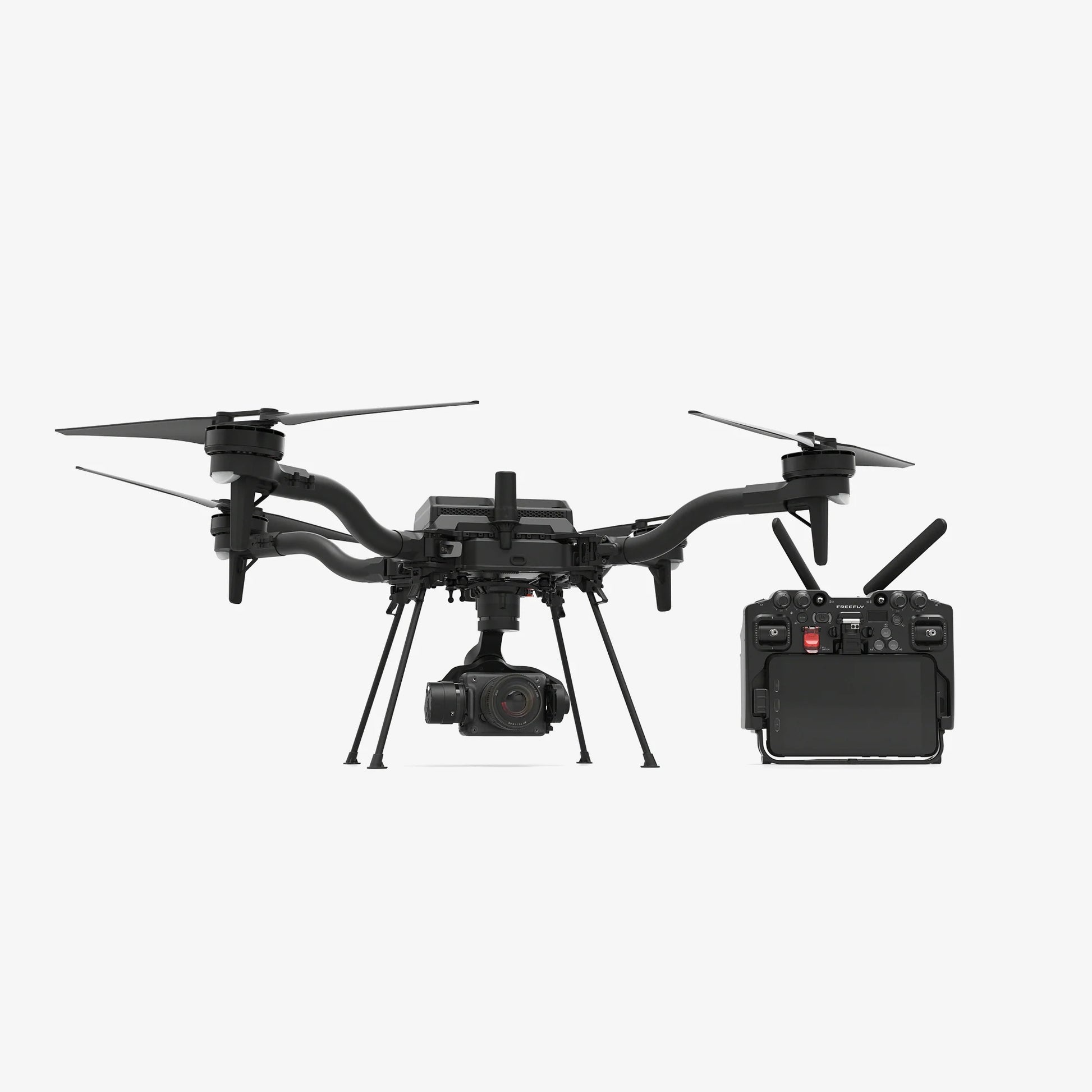

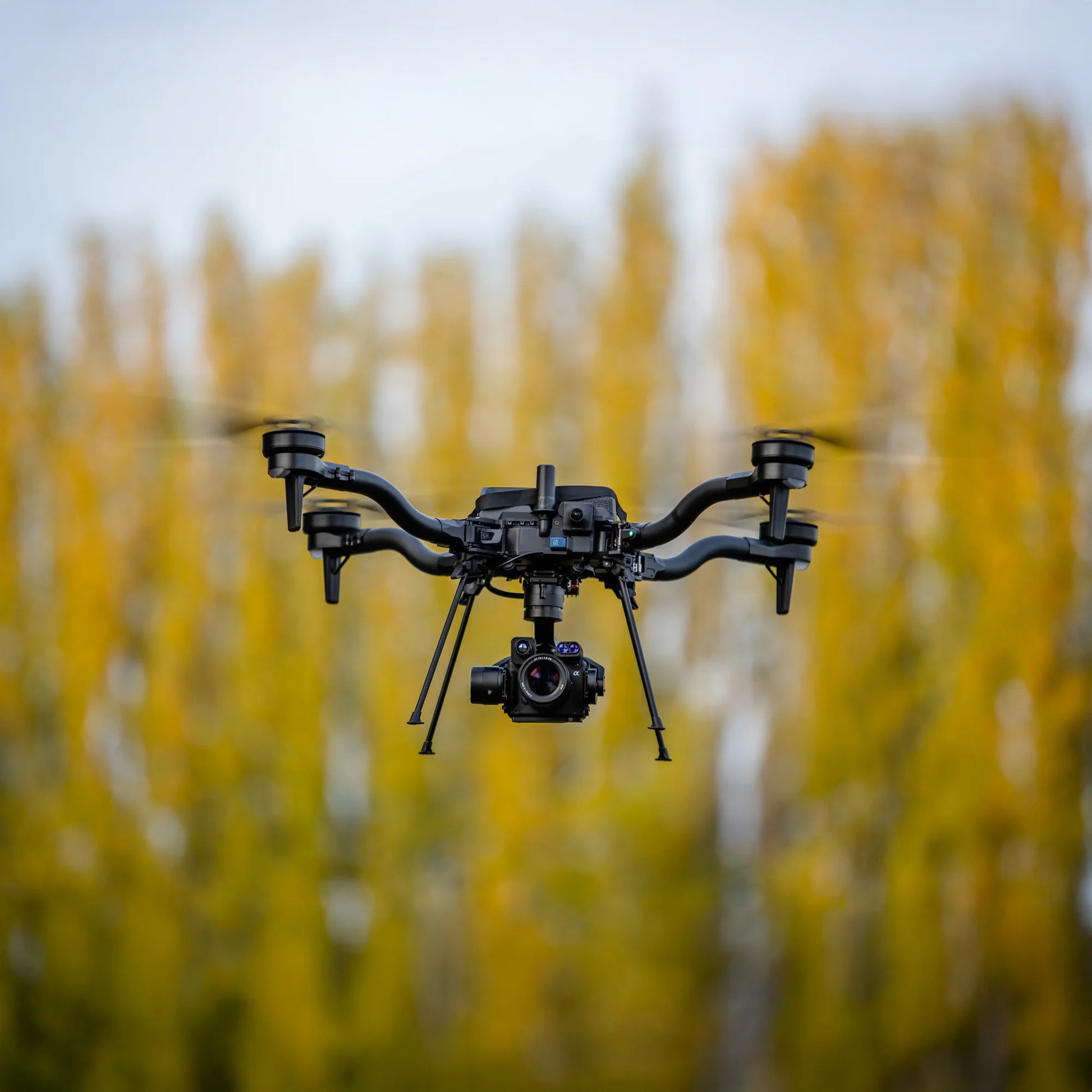

The Freefly Astro Max is a compact industrial drone platform engineered for professional aerial operations. Leveraging over a decade of Freefly’s expertise in cinema and industrial aircraft, Astro Max is designed to carry valuable payloads in demanding environments with reliability and flexibility. Its open interface specifications allow seamless integration of sensors and payloads, making it a versatile solution for mapping, inspection, research, and creative applications.

Astro Max ships ready to fly in its Astro Compact Travel Case, complete with pre‑installed isolator, folding landing gear, and high‑efficiency props. Paired with the Pilot Pro controller, robust long‑range radio hardware, and optional payload upgrades, Astro Max delivers endurance, precision, and adaptability for mission‑critical operations.

What’s in the Box:

  • Astro Compact Travel Case
  • Astro Max Drone (with folding landing gear, high‑efficiency props, Astro Isolator)
  • Hex drivers (1.5 mm, 2 mm, 2.5 mm)
  • Proptectors ×4
  • Spare parts (extra proptector, isolator balls ×4, rubber grommets ×2)
  • Pilot Pro Controller
  • Samsung Active Tab (pre‑configured)
  • Herelink 1.1 RF (2.4 GHz)
  • Custom padded neck strap (Note: Batteries and chargers required for flight are sold separately)

Key Features

  • Compact industrial drone platform – Designed for professional payloads and flexible integration
  • Flight endurance – Up to 43 minutes (no payload), 31 minutes (LR1 payload), 20 minutes (max payload 3 kg)
  • Payload capacity – Supports up to 3 kg for LiDAR, thermal, RGB, and multispectral sensors

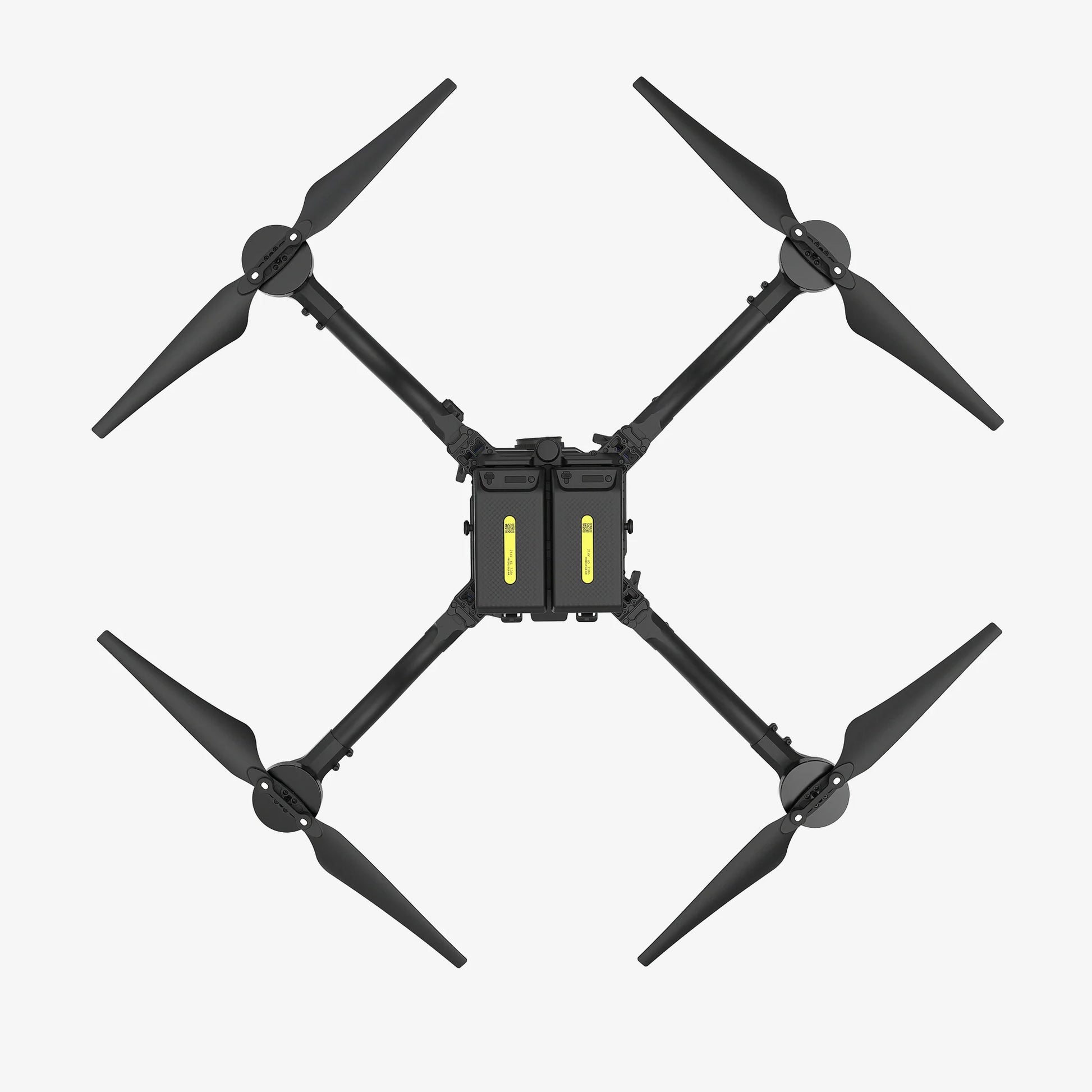

  • Carbon‑fiber foldable frame – Portable and durable, booms fold to half diameter
  • Astro Isolator (pre‑installed) – Quick‑release powered payload attachment

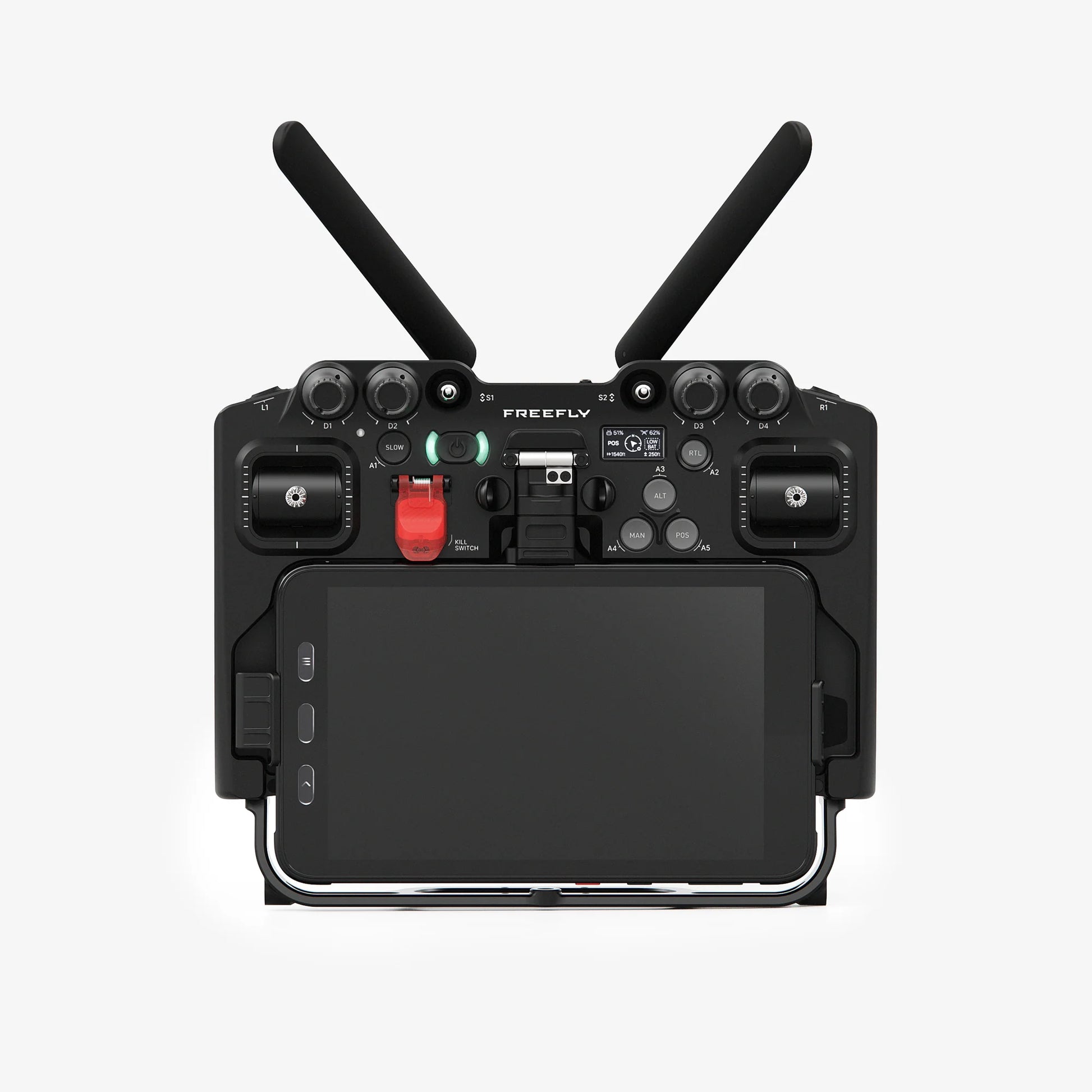

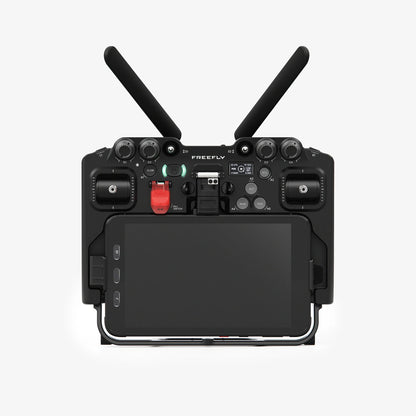

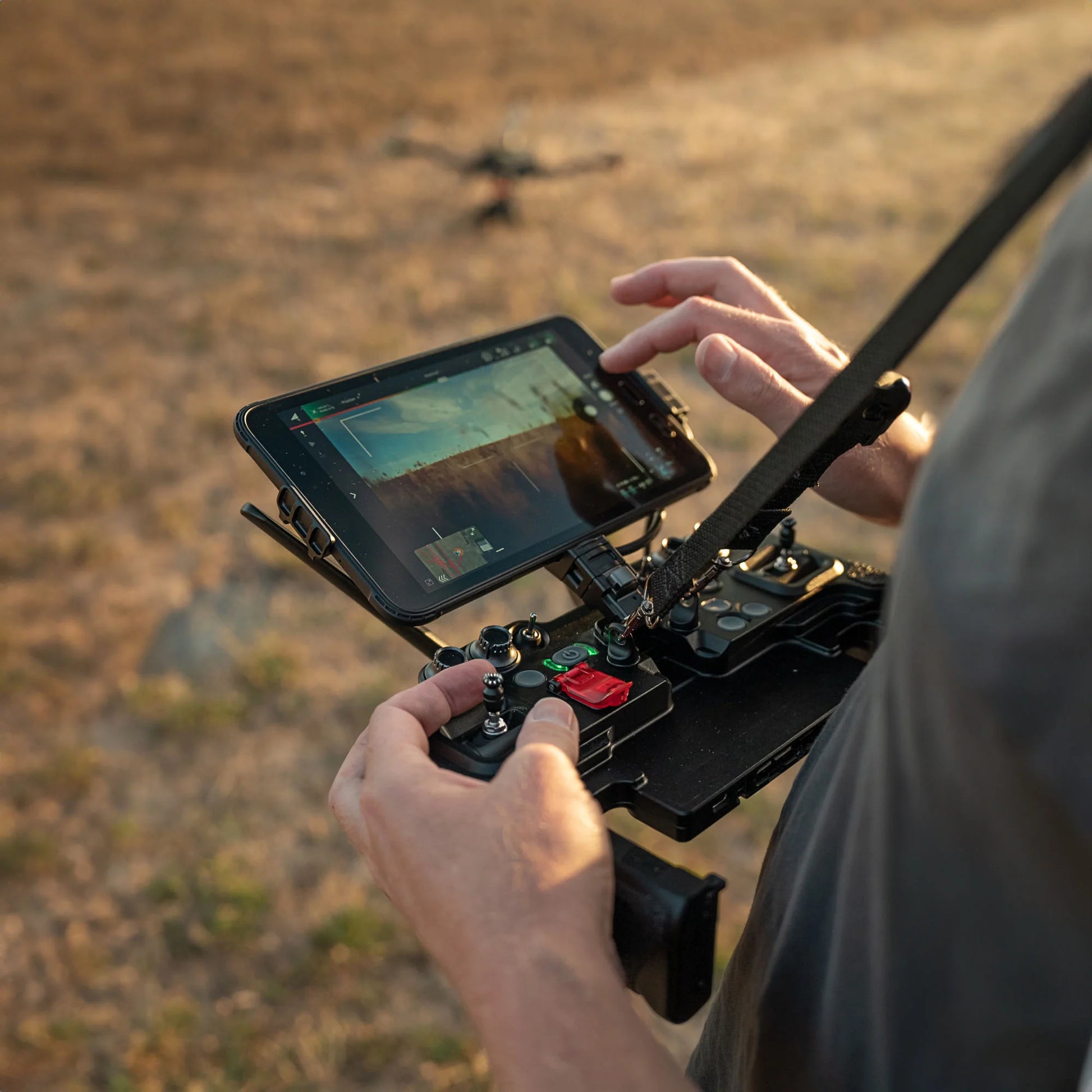

  • Pilot Pro controller – Secure telemetry, precise gimbal/camera control, hot‑swappable battery, emergency kill‑switch
  • High‑efficiency props – Marked “2270 CW/CCW” for improved lift and endurance
  • Dual SL8‑Air batteries – 21.6 V (6S), 7.3 Ah, 157 Wh each (sold separately)
  • SL8 Fast Charger – 200 W, 90‑minute charge time per battery (sold separately)

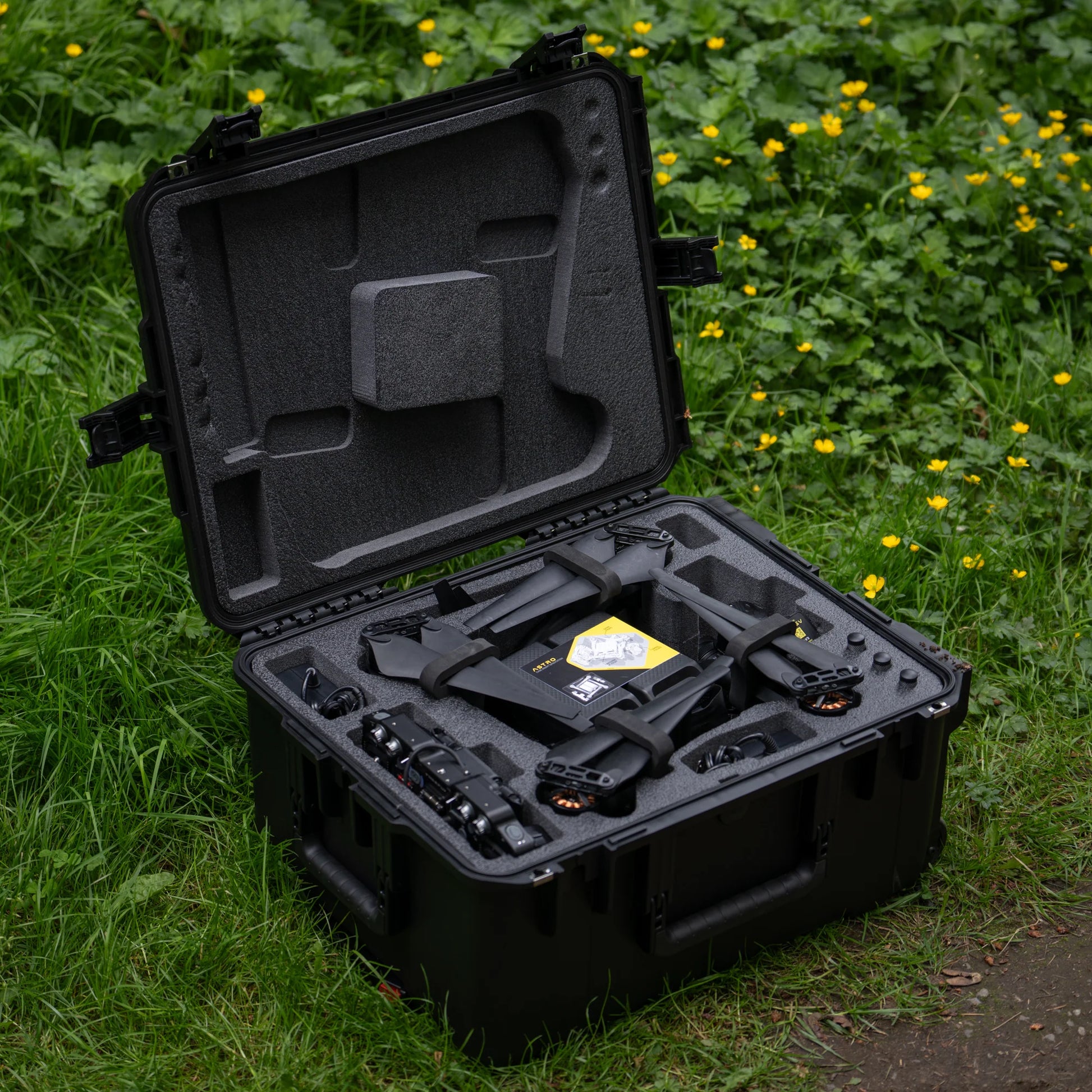

  • Astro Compact Travel Case – MIL‑STD 810G tested, submersible, dust‑tight, airline‑checkable
  • Compatibility – Supports RGB, thermal, multispectral, LiDAR, and distance sensors (LR1, Sentera, Freefly Flux series, Emesent Hovermap, etc.)

Detailed Specifications


Category Specification
Flight Time 43 min (no payload), 31 min (LR1 payload), 20 min (max payload 3 kg)
Payload Capacity 3 kg max
Frame Carbon‑fiber foldable airframe, booms fold to ½ diameter
Props High‑efficiency props (2270 CW/CCW)
Motors 7010 motors
Controller Pilot Pro controller with Herelink 1.1 Radio (2.4 GHz), 8" Samsung Galaxy Active5 tablet
Controller Features High‑resolution rockers, emergency kill‑switch, hot‑swappable battery, padded neck strap
Battery System Dual SL8‑Air batteries (21.6 V, 6S, 7.3 Ah, 157 Wh, 2.25 lbs each)
Battery Charger SL8 Fast Charger (200 W, 90 min charge time, 100–240 VAC input)
Case Astro Compact Travel Case (SKB 3i‑2217‑10, MIL‑STD 810G, airline checkable)
Case Dimensions 24.52" × 19.5" × 12.22" (62.28 × 49.53 × 31.04 cm)
Case Weight 36.16 lbs (no batteries), 40.66 lbs (with 2 SL8 batteries)
Compatibility RGB (LR1, Sentera 65R), Thermal (Wiris Pro, Sentera 6X), Multispectral (Sentera 6X), LiDAR (Freefly Flux L1/O1/H1, Emesent Hovermap ST‑X), Distance sensors
Upgrades RTK GPS Ground Station, Astro Max Isolator (50A/70A), extended landing gear, Skyview Payload Mount
Not Compatible Mixing standard props (2170 CW/CCW) with high‑efficiency props (2270 CW/CCW)
Country of Origin Designed and assembled in USA
