Freefly Astro Max Aircraft (NDAA/Blue) | Flight Time 20-43 Min | Payload Capacity Max 3 Kg

Freefly Astro Max Aircraft (NDAA/Blue) | Flight Time 20-43 Min | Payload Capacity Max 3 Kg

$28,995.00
$28,995.00
Sale Sold out
Customizable
Fast
24/7 Support
  • NDAA/Blue UAS compliant – Meets DoD-approved sourcing and security standards
  • Compact industrial drone platform – Designed for professional payloads and flexible integration
  • Flight endurance – Up to 43 minutes (no payload), 31 minutes (LR1 payload), 20 minutes (max payload 3 kg)
  • Payload capacity – Supports up to 3 kg for LiDAR, thermal, RGB, and multispectral sensors
View full details

Product Description

Freefly Astro Max Aircraft (NDAA/Blue) | Flight Time 20-43 Min | Payload Capacity Max 3 Kg

DESCRIPTION

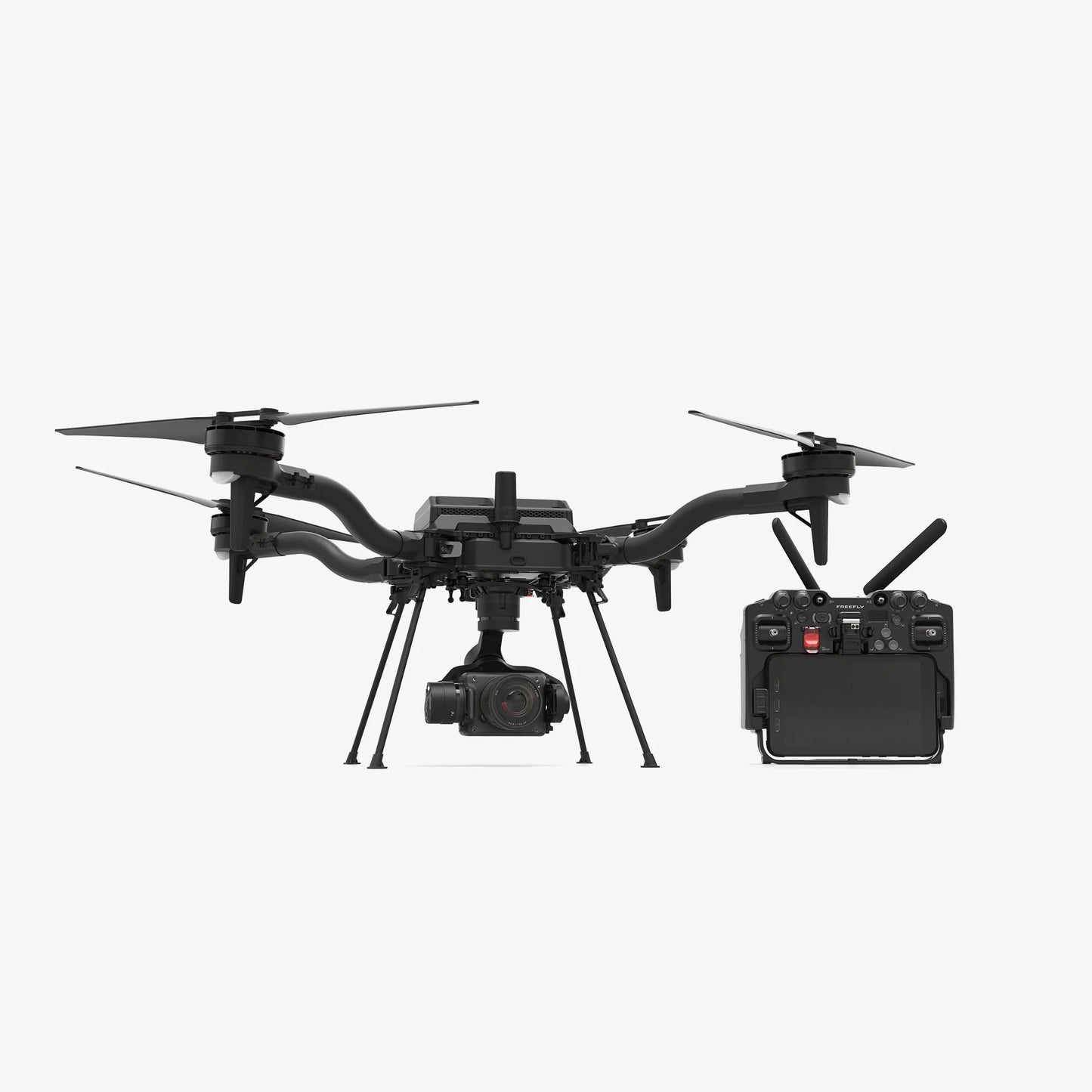

The Freefly Astro Max Aircraft (NDAA/Blue) is a secure, U.S.-assembled industrial drone platform built under the Department of Defense Blue UAS framework. Designed with NDAA-compliant components, it ensures mission confidence for government, defense, and enterprise operations. With a 3 kg maximum payload capacity, 7010 motors, and 21-inch propellers, the Astro Max delivers powerful lift, stability, and precision. Its carbon-fiber foldable frame, dual SL8 Air batteries, and Smart Dovetail quick-mount system make it highly portable, adaptable, and reliable in the field.

Supporting advanced payloads such as LiDAR, thermal, and mapping sensors, the Astro Max provides centimeter-level accuracy with its RTK-ready GPS system. The Pilot Pro controller ensures secure telemetry, precise mission control, and real-time data monitoring. With up to 43 minutes of flight time (no payload) and robust compliance standards, the Astro Max is the go-to aerial solution for secure, professional-grade operations.

What’s in the Box:

  • 1x Astro Max (with folding landing gear, high efficiency props, and Astro Isolator)*
  • 1x Astro compact travel case
  • 1x each hex driver (1.5 mm, 2 mm, 2.5 mm)
  • 4x Proptectors
  • Spare parts:
  • 1x Extra Proptector
  • 4x Spare isolator balls
  • 2x Rubber hole grommet
  • 1x Pilot Pro controller
  • 1x Samsung Active Tab (pre-configured and installed into controller)
  • 1x Herelink 1.1 RF (2.4 GHz)
  • 1x Custom padded neck strap

Key Features

  • NDAA/Blue UAS compliant – Meets DoD-approved sourcing and security standards
  • U.S.-assembled – Designed and built with NDAA-compliant components
  • Payload capacity – Supports up to 3 kg for LiDAR, thermal, and mapping systems
  • Flight endurance – Up to 43 minutes (no payload), 31 minutes (LR1 payload), 20 minutes (max payload)
  • Powerful propulsion – 7010 motors with 21-inch propellers for strong lift and stability
  • Dual SL8 Air batteries – Extended mission endurance and redundancy

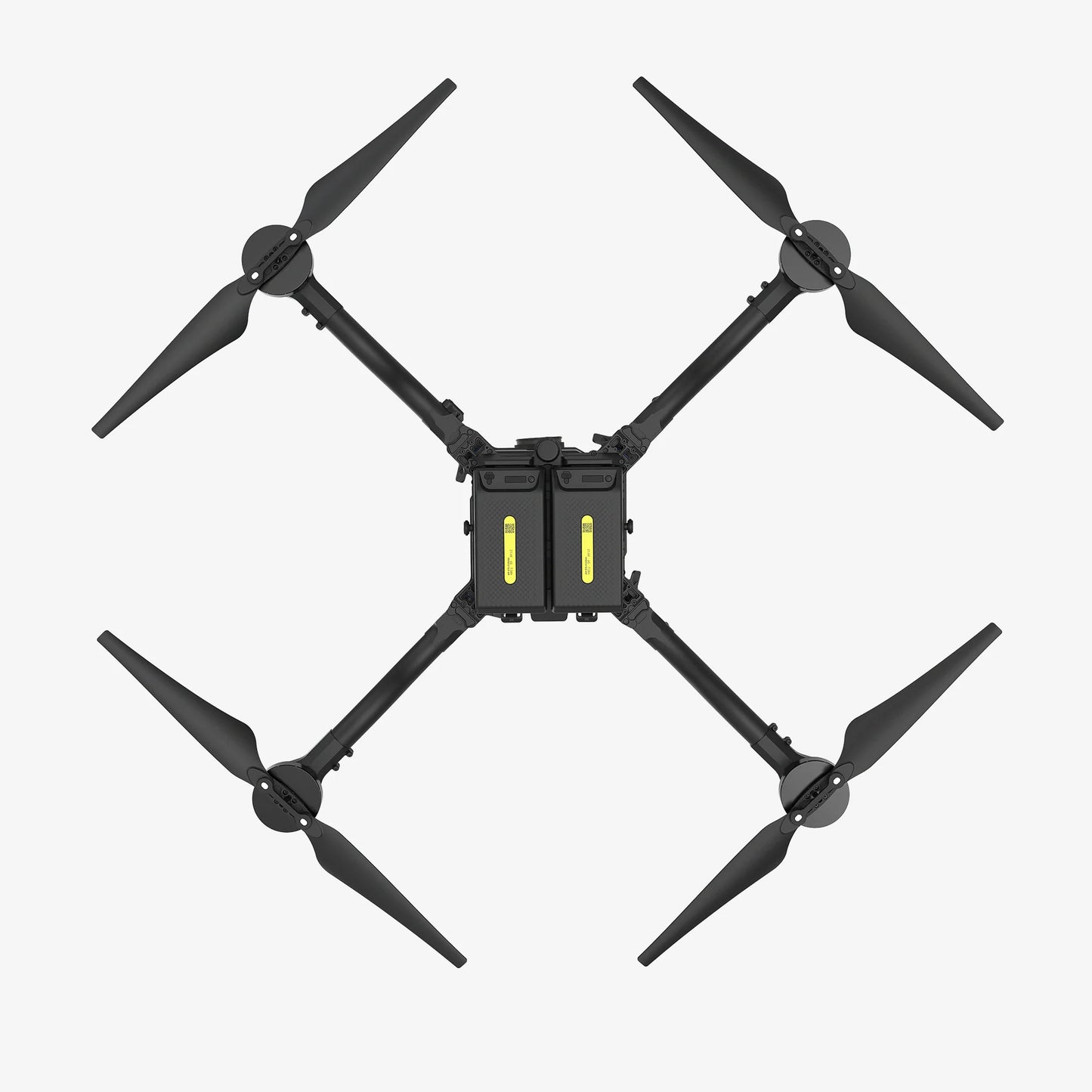

  • Carbon-fiber foldable frame – Compact, durable, and portable for field deployment
  • Smart Dovetail quick-mount – Tool-free sensor replacement and payload flexibility
  • RTK-ready GPS – Centimeter-level positioning accuracy
  • Pilot Pro controller – Secure telemetry, precise gimbal/camera control, and real-time mission data
  • Astro Compact Travel Case – Rugged, airline-checkable case with MIL-STD 810G protection
  • Applications – Government, defense, infrastructure inspection, public safety, LiDAR mapping, utilities, construction, research, and industrial monitoring

Detailed Specifications

Category Specification
Compliance NDAA/Blue UAS listed, DoD-approved components
Country of Origin Designed and assembled in the USA
Payload Capacity 3 kg max payload (supports LiDAR, thermal, mapping sensors)
Flight Time 43 min (no payload), 31 min (LR1 payload), 20 min (max payload)
Motors & Propellers 7010 motors with 21-inch propellers
Frame Carbon-fiber foldable airframe
Payload Mounts Smart Dovetail quick-mount, Astro Isolator (pre-installed), optional isolators
Batteries Dual SL8-Air batteries (21.6 V, 6S, 7.3 Ah, 157 Wh, 2.25 lbs each)
Battery Charger SL8 Fast Charger (200W, 90 min charge time, 100–240 VAC input)

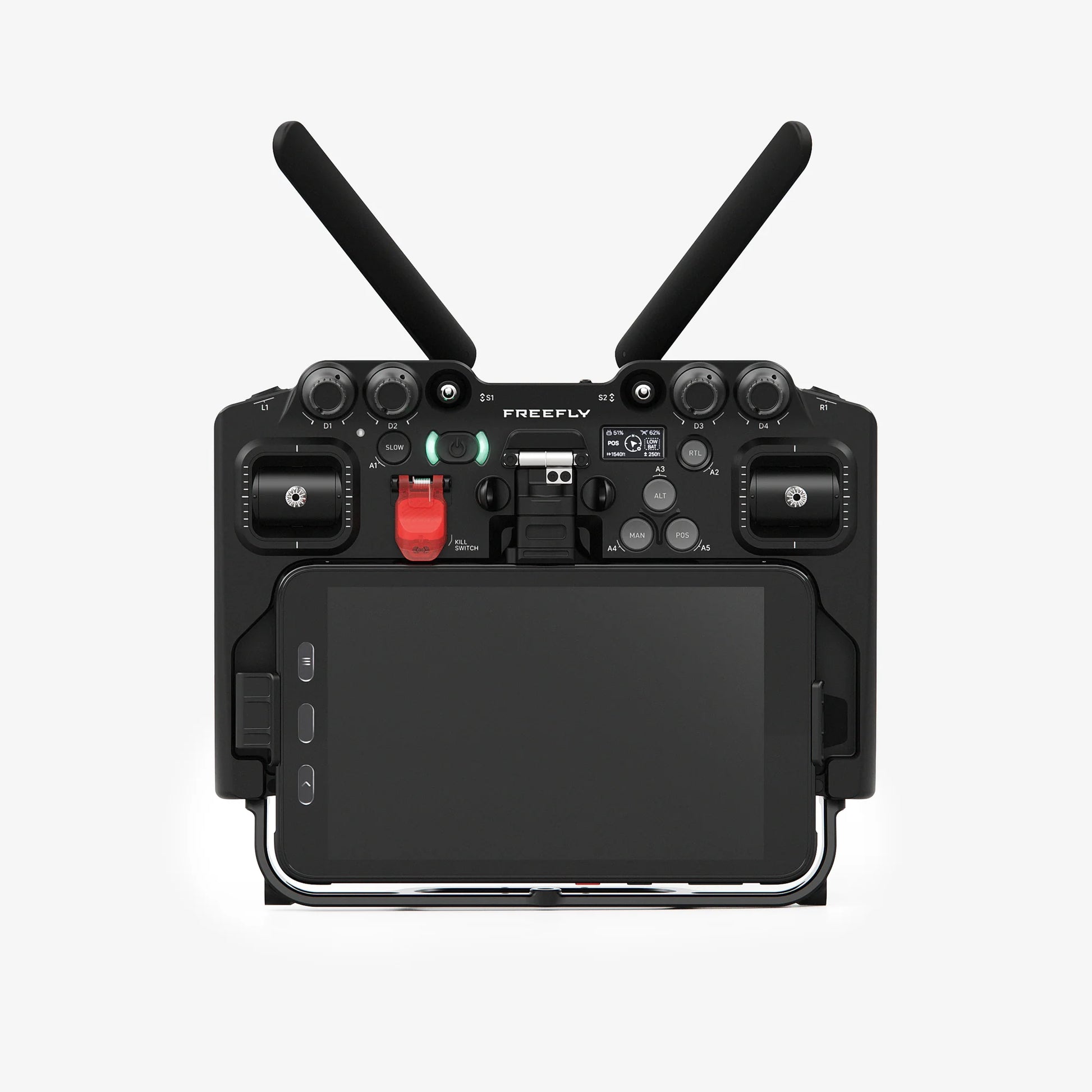

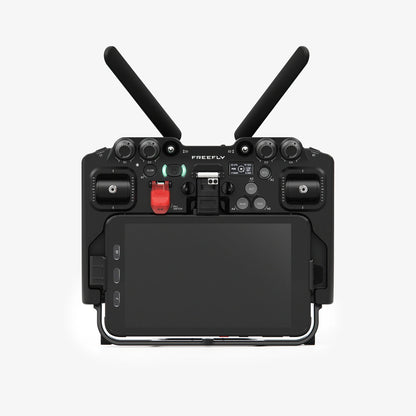

Controller Pilot Pro Controller with Herelink 1.1 Radio (2.4 GHz), 8" Samsung Galaxy Active5 tablet
Controller Features High-resolution rockers, emergency kill-switch, hot-swappable battery, secure telemetry
Case Astro Compact Travel Case (SKB 3i-2217-10, MIL-STD 810G, airline checkable)
Case Dimensions 24.52" × 19.5" × 12.22" (62.28 × 49.53 × 31.04 cm)
Case Weight 36.16 lbs (no batteries), 40.66 lbs (with 2 SL8 batteries)
GPS RTK-ready GPS system for centimeter-level accuracy
Applications Government/defense, infrastructure inspection, public safety, LiDAR mapping, utilities, construction, research, industrial monitoring
