Freefly Astro Max Mapping Bundle | Flight Time Up-To 43 Min | Payload Capacity 3 Kg

Freefly Astro Max Mapping Bundle | Flight Time Up-To 43 Min | Payload Capacity 3 Kg

$39,190.00
$39,190.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Complete mapping bundle – Aircraft, camera, gimbal, controller, batteries, chargers, and spares
  • Astro Max aircraft – Compact industrial platform with open interface specs
  • Payload capacity – Up to 3 kg, supports LiDAR, thermal, RGB, and mapping sensors
  • Sony ILX‑LR1 camera – 61 MP full‑frame clarity, NDAA/DIU approved
View full details

Product Description

Freefly Astro Max Mapping Bundle | Flight Time Up-To 43 Min | Payload Capacity 3 Kg

DESCRIPTION

The Freefly Astro Max Mapping Bundle is a turnkey aerial survey kit designed for precision, endurance, and efficiency. This professional‑grade system combines the Astro Max aircraft, Sony ILX‑LR1 61 MP full‑frame camera, Sigma 24 mm f/3.5 lens, Freefly gimbal, and the Pilot Pro Controller with pre‑installed Galaxy Active5 tablet. It includes six SL8‑Air batteries, four SL8 Fast Chargers, spare parts, and a rugged travel case for field deployment.

While the aircraft in this bundle is not NDAA approved, an NDAA/Blue version is available separately. The included Sony ILX‑LR1 payload is NDAA and DIU approved, ensuring compliance for professional survey projects. With RTK‑ready capability, high‑efficiency 2270 propellers, and a complete power system, the Astro Max Mapping Bundle delivers reliable, centimeter‑level accuracy for demanding mapping missions.

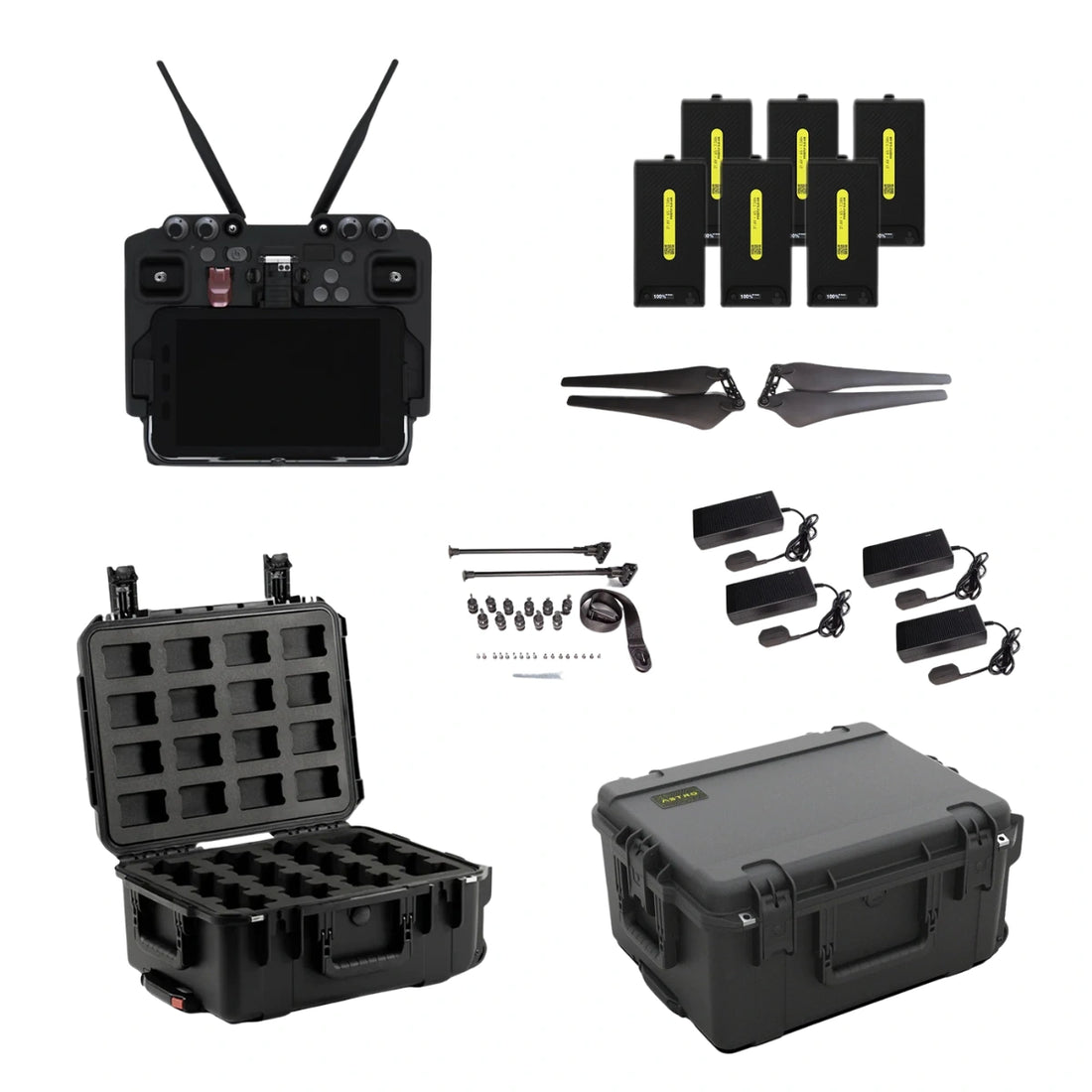

What’s in the Box:

  • 1x Astro drone (with pre-installed landing gear, high efficiency props, and Astro Isolator)
  • 1x Astro compact travel case
  • 1x LR1 payload
  • 1x Freefly gimbal
  • 1x Sony ILX-LR1 61MP camera body
  • 1x Sigma 24mm f3.5 mapping lens (p/n 404965)
  • 1x USB-C thumb drive
  • 1x Foam insert set for Astro travel case
  • 1x each hex driver (1.5 mm, 2 mm, 2.5 mm)
  • 4x Proptectors
  • 1x Extra Proptector
  • 4x Spare isolators
  • 2x Rubber hole grommet
  • 1x Pilot Pro controller
  • 1x 8" Samsung Galaxy Tablet Active5 (pre-configured and installed into controller)
  • 1x Herelink 1.1 RF, 2.4 GHz radio (not NDAA approved)
  • 1x Custom padded neck strap
  • 6x SL8-Air batteries (3 pairs)
  • 4x SL8 fast chargers
  • 1x SL8 travel case
  • 1x Astro Max replacement props (2270 high efficiency, set with CW & CCW)
  • 1x Astro spare parts kit

Key Features

  • Complete mapping bundle – Aircraft, camera, gimbal, controller, batteries, chargers, and spares
  • Astro Max aircraft – Compact industrial platform with open interface specs
  • Payload capacity – Up to 3 kg, supports LiDAR, thermal, RGB, and mapping sensors
  • Sony ILX‑LR1 camera – 61 MP full‑frame clarity, NDAA/DIU approved
  • Sigma 24 mm f/3.5 lens – Optimized for distortion‑free mapping capture
  • Freefly gimbal – Quick‑detach, vibration‑isolated mount for smooth imaging
  • Pilot Pro Controller – Integrated Galaxy Active5 tablet, Herelink 1.1 radio, hot‑swappable battery
  • Flight endurance – Up to 43 minutes (no payload), 31 minutes (LR1 payload), 20 minutes (max payload)
  • Six SL8‑Air batteries – Three flight sets for extended operations
  • Four SL8 Fast Chargers – Parallel charging for rapid turnaround
  • 2270 high‑efficiency props – Extend flight time by ~10%
  • RTK ready – Works with user‑supplied ground‑station computer
  • Standard Remote ID enabled – FAA compliance for U.S. operations
  • Astro Compact Travel Case – MIL‑STD 810G tested, waterproof, dust‑tight, airline‑checkable
  • Spare parts kit – Prop protectors, isolator balls, grommets, replacement props

Detailed Specifications

Category Specification
SKU B‑FF‑ASTRO‑MAP
Aircraft Freefly Astro Max (not NDAA approved; NDAA/Blue version available separately)
Payload Sony ILX‑LR1 61 MP full‑frame camera, Sigma 24 mm f/3.5 lens, Freefly gimbal
Flight Time 43 min (no payload), 31 min (LR1 payload), 20 min (max payload 3 kg)
Payload Capacity 3 kg max
Props 2270 high‑efficiency props (~10% longer flight time)
Frame Carbon‑fiber foldable airframe, booms fold to half diameter
Controller Pilot Pro Controller with Herelink 1.1 Radio (2.4 GHz), 8" Samsung Galaxy Active5 tablet
Controller Features High‑resolution rockers, emergency kill‑switch, hot‑swappable battery, padded neck strap
Batteries Six SL8‑Air batteries (21.6 V, 6S, 7.3 Ah, 157 Wh, 2.25 lbs each)
Chargers Four SL8 Fast Chargers (200 W, 90 min charge time, 100–240 VAC input)
Battery Case SL8 Travel Case (holds 8 batteries + 2 chargers, lockable, waterproof, MIL‑STD 810H)
Aircraft Case Astro Compact Travel Case (SKB 3i‑2217‑10, MIL‑STD 810G, airline‑checkable)
Case Dimensions 24.52" × 19.5" × 12.22" (62.28 × 49.53 × 31.04 cm)
Case Weight 38.30 lbs (no batteries), 42.80 lbs (with 2 SL8 batteries)
Compatibility RTK GPS Ground Station (user‑supplied), LTE modem (U.S. only), major mapping software
Applications Surveying, construction monitoring, asset inspection, urban planning, mining, agriculture, disaster response, research
