Freefly Astro Max Mapping Bundle (NDAA/Blue) | Flight Time Up-To 43 Min | Payload Capacity 3 Kg

Freefly Astro Max Mapping Bundle (NDAA/Blue) | Flight Time Up-To 43 Min | Payload Capacity 3 Kg

$45,190.00
$45,190.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Fully NDAA & DIU Blue approved – Aircraft, controller, and radio link
  • Sony ILX‑LR1 61 MP camera – Full‑frame clarity with Sigma 24 mm f/3.5 lens
  • Freefly Astro Max aircraft – Compact industrial platform with open interface specs
  • Freefly Mapping Gimbal – Quick‑detach, vibration‑isolated mount for sharp imagery
  • Pilot Pro Controller – Integrated Galaxy Active5 tablet, secure Blue radio, hot‑swappable battery
View full details

Product Description

Freefly Astro Max Mapping Bundle (NDAA/Blue) | Flight Time Up-To 43 Min | Payload Capacity 3 Kg

DESCRIPTION

The Freefly Astro Max Mapping Bundle (NDAA/Blue) delivers unmatched precision, compliance, and reliability for government and enterprise mapping operations. Every component—aircraft, payload, controller, and radio link—is NDAA and DIU Blue approved, meeting the highest standards for secure U.S. operations. Designed for demanding field missions, this bundle combines the Astro Max aircraft with the Sony ILX-LR1 61 MP camera, Sigma 24 mm f/3.5 mapping lens, Doodle Labs 2.4 GHz Blue-certified radio, and a complete SL8 power suite for sustained, survey-grade performance.

The Astro Max NDAA/Blue is built for organizations requiring dependable U.S.-made components and certified systems. Its aircraft, Pilot Pro Controller, and radio link are all NDAA and DIU Blue compliant. The system ships with Standard Remote ID preconfigured for FAA compliance and can be disabled upon submission of proper exemption documentation. With open interface specifications and RTK readiness, it ensures accurate, consistent data capture while meeting strict procurement and operational security requirements.

This bundle is configured for continuous mission cycles, with six SL8-Air batteries, four SL8 Fast Chargers, and a durable travel case for organized transport. The Pilot Pro Controller includes a preinstalled Samsung Active Tab 3 and a Doodle Labs 2.4 GHz Blue radio, offering secure and robust control links. The vibration-isolated Freefly Gimbal ensures sharp imaging, while the Sony ILX-LR1 delivers 61 MP geotagged photos ready for professional mapping software. Standard Remote ID and BVLOS compliance expand operational flexibility for qualified teams.

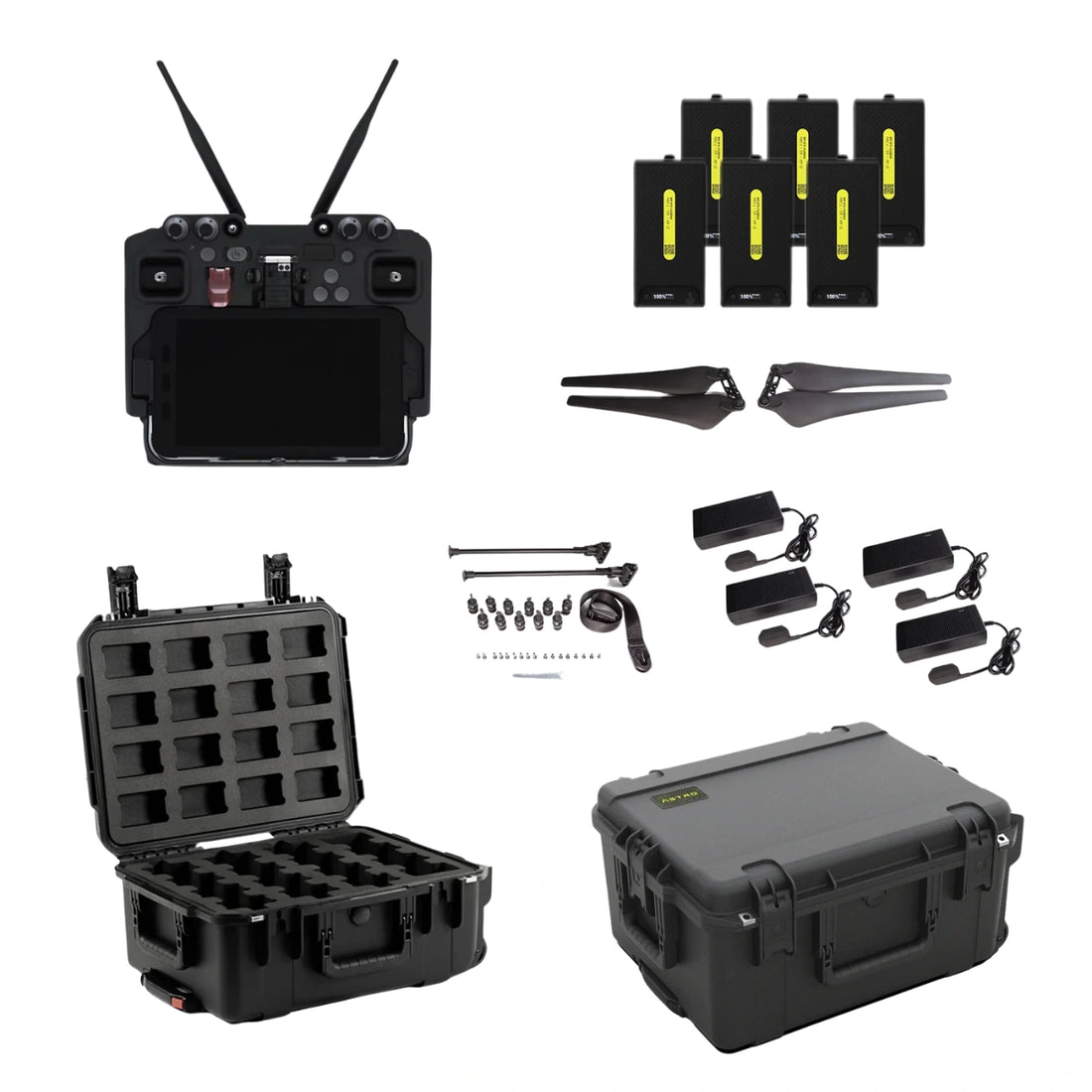

What’s in the Box:

  • 1x Astro drone (with pre-installed landing gear, high efficiency props, and Astro Isolator)
  • 1x Astro compact travel case
  • 1x LR1 payload
  • 1x Freefly gimbal
  • 1x Sony ILX-LR1 61MP camera body
  • 1x Sigma 24mm f3.5 mapping lens (p/n 404965)
  • 1x USB-C thumb drive
  • 1x Foam insert set for Astro travel case
  • 1x each hex driver (1.5 mm, 2 mm, 2.5 mm)
  • 4x Proptectors
  • 1x Extra Proptector
  • 4x Spare isolators
  • 2x Rubber hole grommet
  • 1x Pilot Pro controller
  • 1x 8" Samsung Galaxy Tablet Active5 (pre-configured and installed into controller)
  • 1x Herelink 1.1 RF, 2.4 GHz radio (not NDAA approved)
  • 1x Custom padded neck strap
  • 6x SL8-Air batteries (3 pairs)
  • 4x SL8 fast chargers
  • 1x SL8 travel case
  • 1x Astro Max replacement props (2270 high efficiency, set with CW & CCW)
  • 1x Astro spare parts kit

Key Features

  • Complete mapping bundle – Aircraft, camera, gimbal, controller, batteries, chargers, and spares
  • Astro Max aircraft – Compact industrial platform with open interface specs
  • Payload capacity – Up to 3 kg, supports LiDAR, thermal, RGB, and mapping sensors
  • Sony ILX‑LR1 camera – 61 MP full‑frame clarity, NDAA/DIU approved
  • Sigma 24 mm f/3.5 lens – Optimized for distortion‑free mapping capture
  • Freefly gimbal – Quick‑detach, vibration‑isolated mount for smooth imaging
  • Pilot Pro Controller – Integrated Galaxy Active5 tablet, Herelink 1.1 radio, hot‑swappable battery
  • Flight endurance – Up to 43 minutes (no payload), 31 minutes (LR1 payload), 20 minutes (max payload)
  • Six SL8‑Air batteries – Three flight sets for extended operations
  • Four SL8 Fast Chargers – Parallel charging for rapid turnaround
  • 2270 high‑efficiency props – Extend flight time by ~10%
  • RTK ready – Works with user‑supplied ground‑station computer
  • Standard Remote ID enabled – FAA compliance for U.S. operations
  • Astro Compact Travel Case – MIL‑STD 810G tested, waterproof, dust‑tight, airline‑checkable
  • Spare parts kit – Prop protectors, isolator balls, grommets, replacement props

Detailed Specifications

Category Specification
SKU B‑FF‑ASTRO‑MAP
Aircraft Freefly Astro Max (not NDAA approved; NDAA/Blue version available separately)
Payload Sony ILX‑LR1 61 MP full‑frame camera, Sigma 24 mm f/3.5 lens, Freefly gimbal
Flight Time 43 min (no payload), 31 min (LR1 payload), 20 min (max payload 3 kg)
Payload Capacity 3 kg max
Props 2270 high‑efficiency props (~10% longer flight time)
Frame Carbon‑fiber foldable airframe, booms fold to half diameter
Controller Pilot Pro Controller with Herelink 1.1 Radio (2.4 GHz), 8" Samsung Galaxy Active5 tablet
Controller Features High‑resolution rockers, emergency kill‑switch, hot‑swappable battery, padded neck strap
Batteries Six SL8‑Air batteries (21.6 V, 6S, 7.3 Ah, 157 Wh, 2.25 lbs each)
Chargers Four SL8 Fast Chargers (200 W, 90 min charge time, 100–240 VAC input)
Battery Case SL8 Travel Case (holds 8 batteries + 2 chargers, lockable, waterproof, MIL‑STD 810H)
Aircraft Case Astro Compact Travel Case (SKB 3i‑2217‑10, MIL‑STD 810G, airline‑checkable)
Case Dimensions 24.52" × 19.5" × 12.22" (62.28 × 49.53 × 31.04 cm)
Case Weight 38.30 lbs (no batteries), 42.80 lbs (with 2 SL8 batteries)
Compatibility RTK GPS Ground Station (user‑supplied), LTE modem (U.S. only), major mapping software
Applications Surveying, construction monitoring, asset inspection, urban planning, mining, agriculture, disaster response, research
