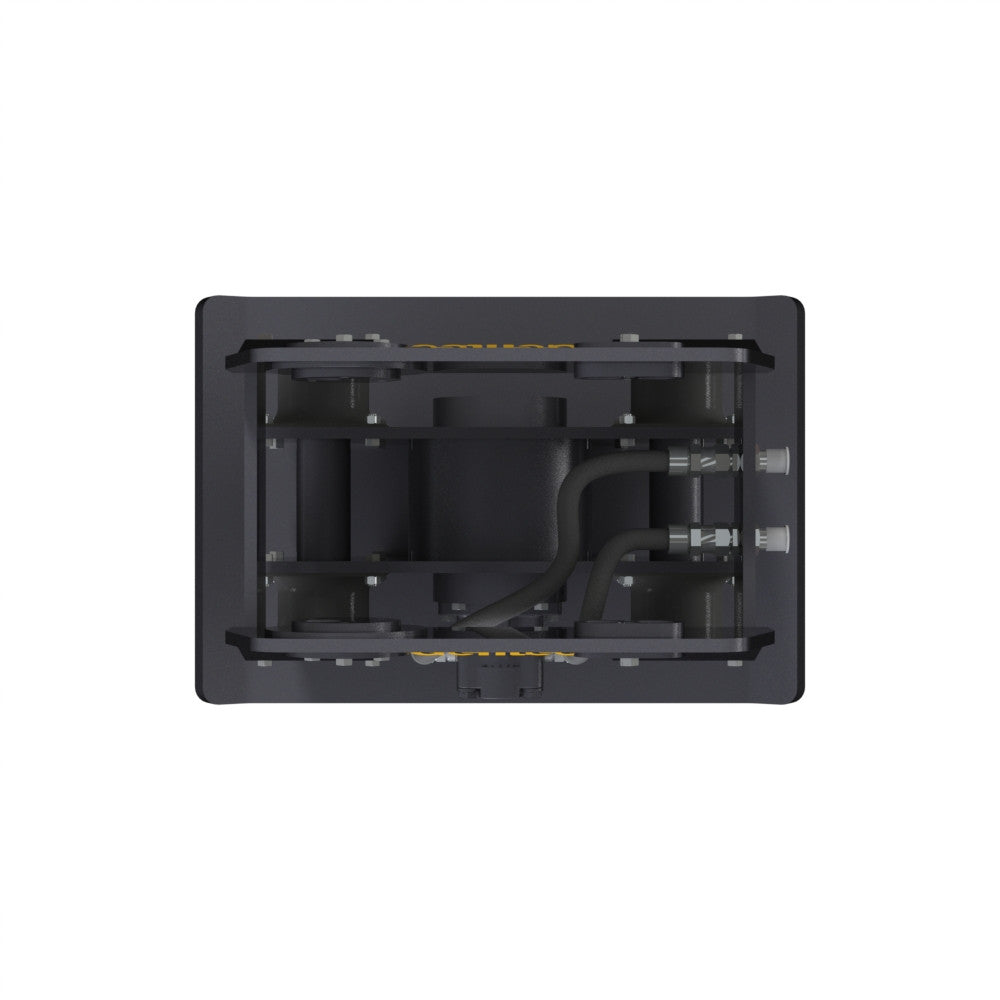

Gentec Equipment Hydraulic Plate Vibratory Compactors | Model GE3000 | Bottom Plate 24" x 36" | Machine Size 6–15 Tons | For Excavators
DESCRIPTION
The GE3000 is designed to compact granular and moderately cohesive soils. It utilizes a unique operating system that combines maximum eccentric weight with precise proportions of amplitude and vibration frequency, resulting in exceptional centrifugal force. This enables it to compact soil to a Mod Proctor Density of 95% or better, making it highly effective for various applications such as compacting soil in trenches, foundations, and slopes.
The GE3000 can be used as a vibratory pile driver or post driver in suitable granular soil. It provides a faster and more cost-effective technique for driving materials such as wood, steel, vinyl, and aluminum sheeting, H and I beams, piling, posts, and seawalls. The GE3000 transmits vibrations along the length of the item being driven, breaking the skin friction that slows down the driving process. The vibration, combined with the impulse force of the G3000 and the down pressure from the carrier, makes it an efficient driver of beams, posts, seawalls, and piling.
The GE3000 requires minimal maintenance, maximizing uptime and productivity. Its baseplate and eccentric housing are integrally mounted, eliminating the need for frequent bolt tightening. Heavy rubber isolators are used to prevent vibrations from reaching the carrier boom.
Key Features
Designed for machines between 15,000 and 33,500 lbs.
Maximum eccentric weight with precise proportions of amplitude and vibration frequency.
Capable of compacting granular and moderately cohesive soils to a Mod Proctor Density of 95% or better.
Doubles as a vibratory pile driver in suitable granular soil.
Requires a separate pin kit for proper fitment.
Minimal maintenance with integrally mounted baseplate and eccentric housing.
Heavy rubber isolators prevent vibrations from reaching the carrier boom.
Comes with a 1-year warranty.
Replacement parts are available
Adjustable pin center to center from 11" to 16"
Detailed Specifications
Attribute
Value
Carrier Weight Class
15,000–33,500 lbs
Pressure
2200 psi
Frequency
2200 cpm
Hydraulic Flow
22 gpm
Impulse Force
14,500 lbsf
Bottom Plate
24" x 36"
Net Weight
850 lbs
Availability
6 weeks
Weight Class (Metric Tons)
6.0–15
