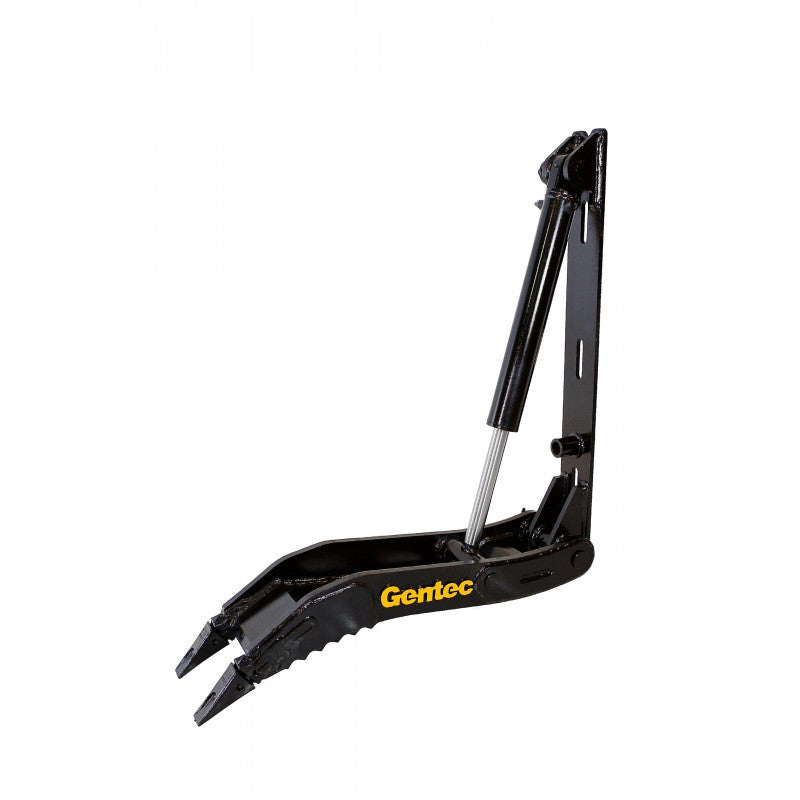

Gentec Equipment Hydraulic Weld-On Thumb | Model HT1462 | Size 14" x 62" | Machine Size 20-27 Tons | For Excavators
DESCRIPTION
Boost the efficiency of your excavator with the Gentec Equipment Hydraulic Weld-On Thumb (Model HT1462). Designed to maximize handling performance, this heavy-duty hydraulic thumb is ideal for excavators weighing between 20 to 27 tons (40,000 to 54,000 lbs). Its 14" width and 62" length make it perfect for grabbing, lifting, and moving large objects like rocks, debris, and concrete. Constructed from 1 ½" AR 400 steel, this thumb is equipped with serrated edges for improved grip. With a heavy-duty hydraulic cylinder, the thumb ensures seamless and reliable operation. Crafted with precision using CNC laser cutting, its fully gusseted frame offers exceptional durability and strength for challenging tasks. Whether you're moving rocks, concrete, or debris, this weld-on thumb is built to withstand harsh environments while increasing your excavator's versatility and productivity.
Key Features
Heavy-duty construction: Made with 1 ½" AR 400 steel, the Gentec hydraulic weld-on thumb is built to last in tough environments.
Serrated edges: Provides a strong grip for improved handling of rocks, branches, concrete, and other debris.
High precision CNC laser cutting: Ensures perfect fit and exceptional accuracy for seamless integration with your excavator.
Hydraulic operation: Features a heavy-duty hydraulic cylinder that enhances functionality and simplifies your work.
Versatile use: Ideal for excavators weighing 20 to 27 tons (40,000 to 54,000 lbs) – adaptable for various heavy-duty tasks.
Fully gusseted design: Increases structural strength to handle the most demanding jobs with ease.
Weld-on installation: Simplifies mounting with a secure weld-on design, ensuring a strong and permanent connection.
Increased productivity: Optimizes handling performance and reduces time spent on each project.
Compatible with most machines: Fits excavators in the 20-27 ton weight class, making it versatile for various models.
Reliable performance: Built to withstand harsh working conditions for long-lasting durability and dependability.
Maximum capacity: Designed for max operating weight up to 27 tons (54,000 lbs), ideal for handling large debris.
Tough frame: Heavy-duty frame construction delivers superior durability during demanding tasks.
Hydraulic fittings included: 1-1/16 JIC x 12 SAE-ORB fittings included for seamless hydraulic connections.
No hoses included: Hose kit must be sourced locally, allowing customization for your specific needs.
Detailed Specifications
Feature
Detail
Model
HT1462
Width
14 inches
Length
62 inches
Net Weight
800 lbs
Tine Thickness
1 ½ inches
Tine Material
Hardox 400 steel
Max Operating Weight
27 Tons (54,000 lbs)
Min Operating Weight
20 Tons (40,000 lbs)
Excavator Weight Class
20 To 27 Tons (40,000 lbs to 54,000 lbs)
Operation Type
Hydraulic
Mounting Type
Weld-On
Hydraulic Fittings
1-1/16 JIC x 12 SAE-ORB
Frame Construction
Fully gusseted for strength
Material
1 ½" AR 400 steel plate
Cylinder
Heavy-duty hydraulic cylinder included
Installation
Weld-on (hoses not included)
