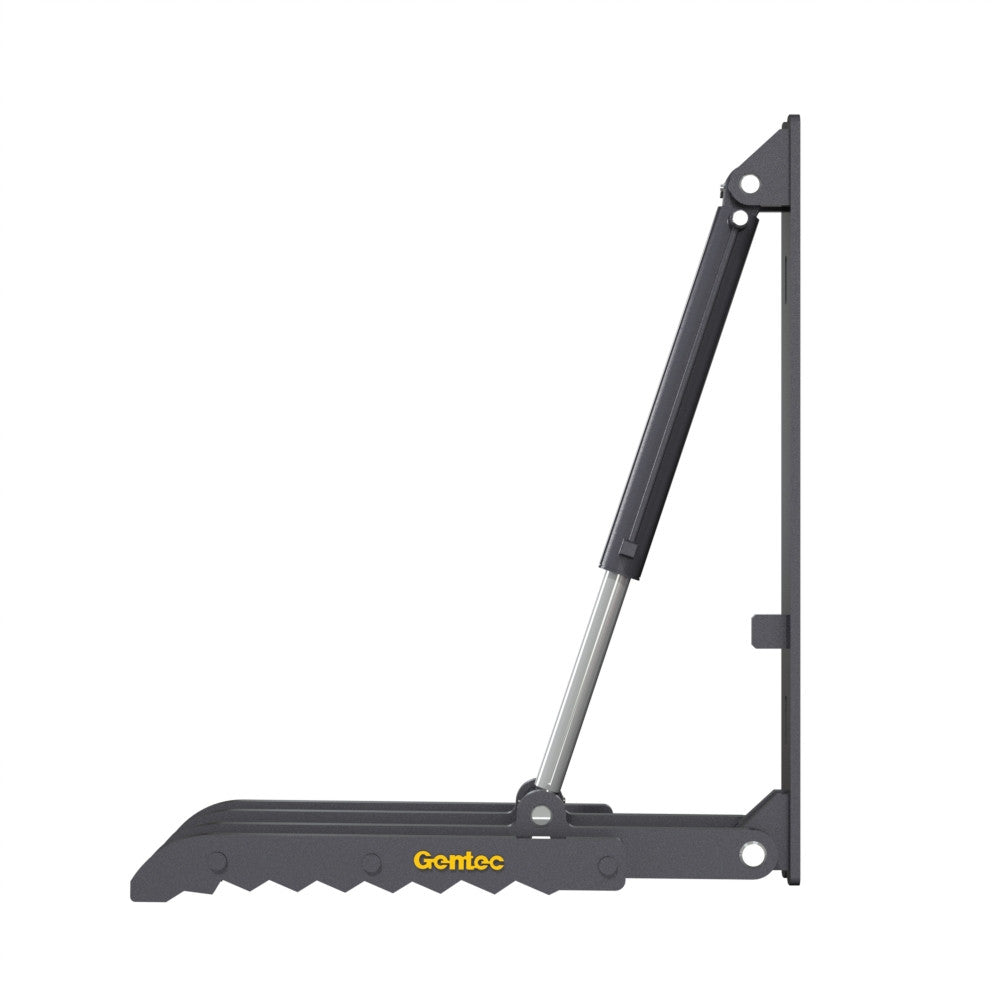

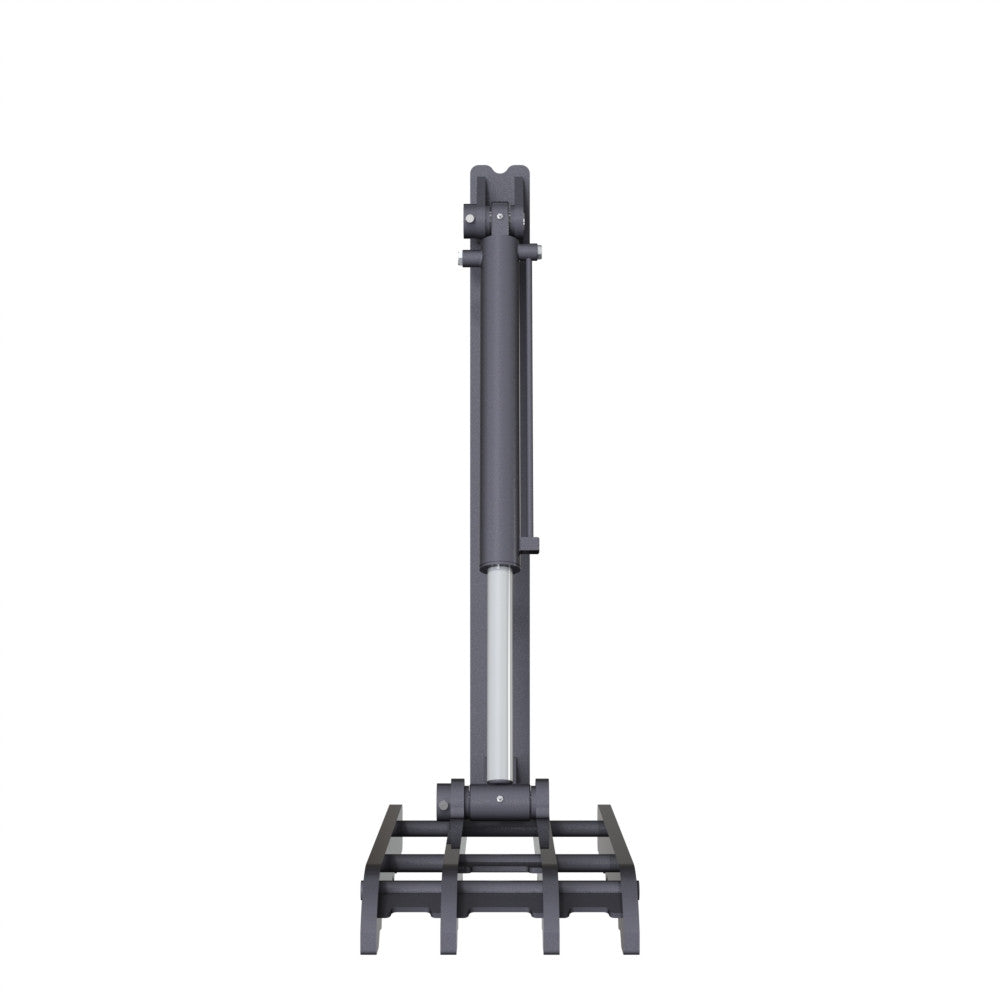

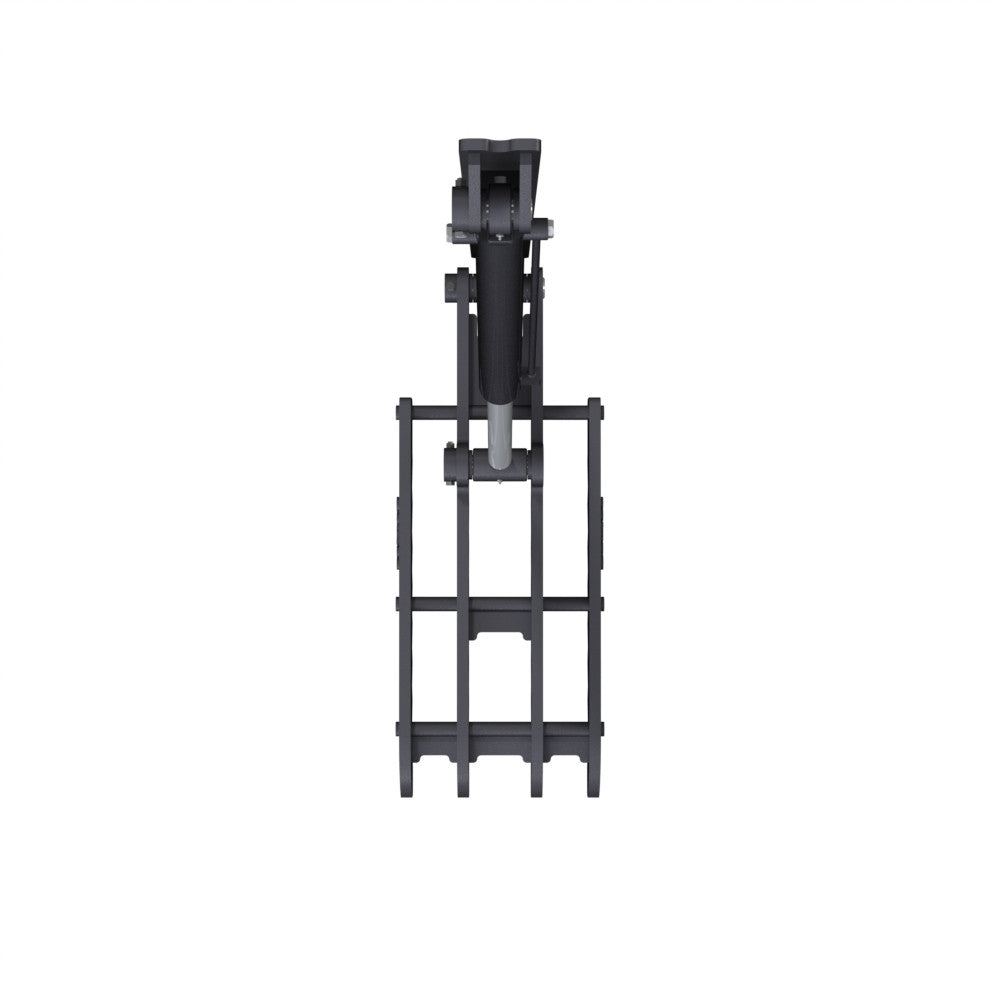

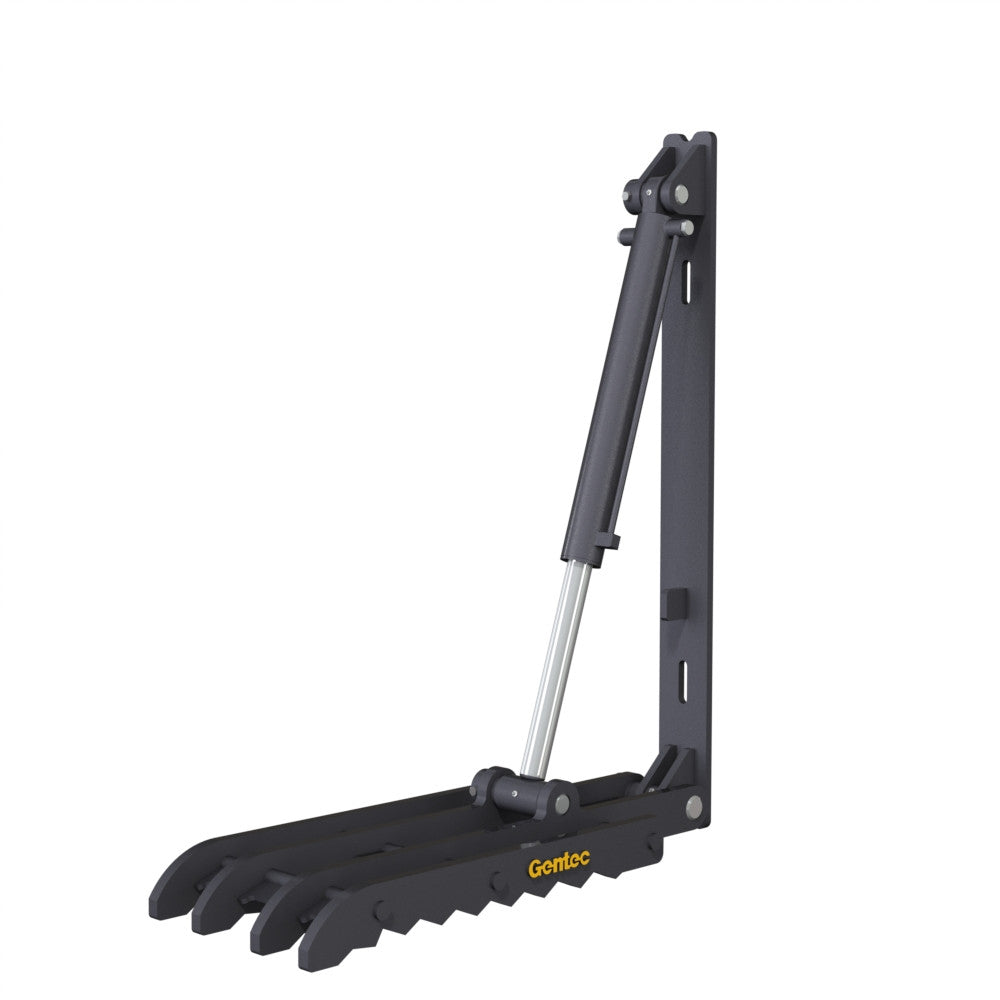

Gentec Equipment Hydraulic Weld-On Thumb | Model HT2466 | Size 24"x66" | Machine Size 20-27 Ton | For Excavators

Product Description

Gentec Equipment Hydraulic Weld-On Thumb | Model HT2466 | Size 24"x66" | Machine Size 20-27 Ton | For Excavators

DESCRIPTION

The Gentec Equipment HT2466 Hydraulic Weld-On Thumb is a heavy-duty excavator attachment engineered for 20–27 ton machines (40,000–54,000 lbs), delivering exceptional strength, precision, and durability for demanding job sites. Built with four 1 1/2" AR400 steel tines in a reinforced ladder-frame design, it ensures superior gripping power for handling rocks, debris, demolition materials, and logs with ease.

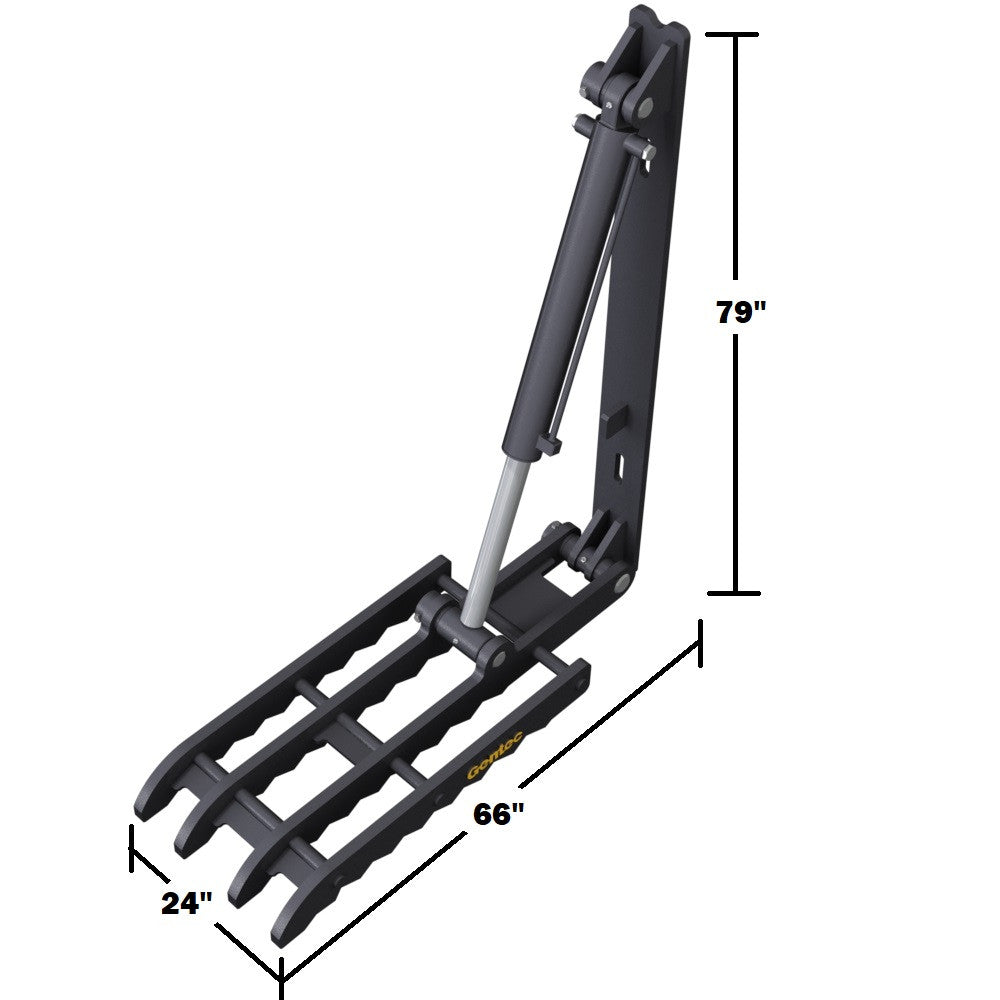

Featuring a 24" width and 66" length, this hydraulic thumb offers a 113° maximum extension angle, providing optimal control and versatility during operation. Its double-sealed hydraulic cylinder, spherical bushings, and greaseable pins enhance long-term reliability while minimizing maintenance downtime. The intelligently engineered geometry reduces stowed interference, ensuring smooth digging performance without obstruction.

Designed for efficiency and longevity, the HT2466 is a professional-grade solution that maximizes excavator productivity and transforms material handling performance on any construction or demolition site.

Key Features

• Heavy-Duty AR400 Steel Construction Built with 1 1/2" AR400 hardened steel tines, the HT2466 delivers extreme resistance to wear, bending, and impact. Ideal for demolition, forestry, and heavy material handling applications requiring maximum durability and long-term structural integrity.
• High-Capacity Excavator Compatibility Engineered for 20–27 ton excavators (40,000–54,000 lbs), this hydraulic thumb ensures optimal performance and balance. It enhances machine versatility, allowing operators to securely grip and manipulate oversized materials with precision and confidence.
• Precision Hydraulic Operation Equipped with a double-sealed hydraulic cylinder, the thumb ensures smooth, controlled movement. Enhanced hydraulic efficiency provides faster cycling, improved responsiveness, and reliable performance under continuous heavy-duty working conditions.

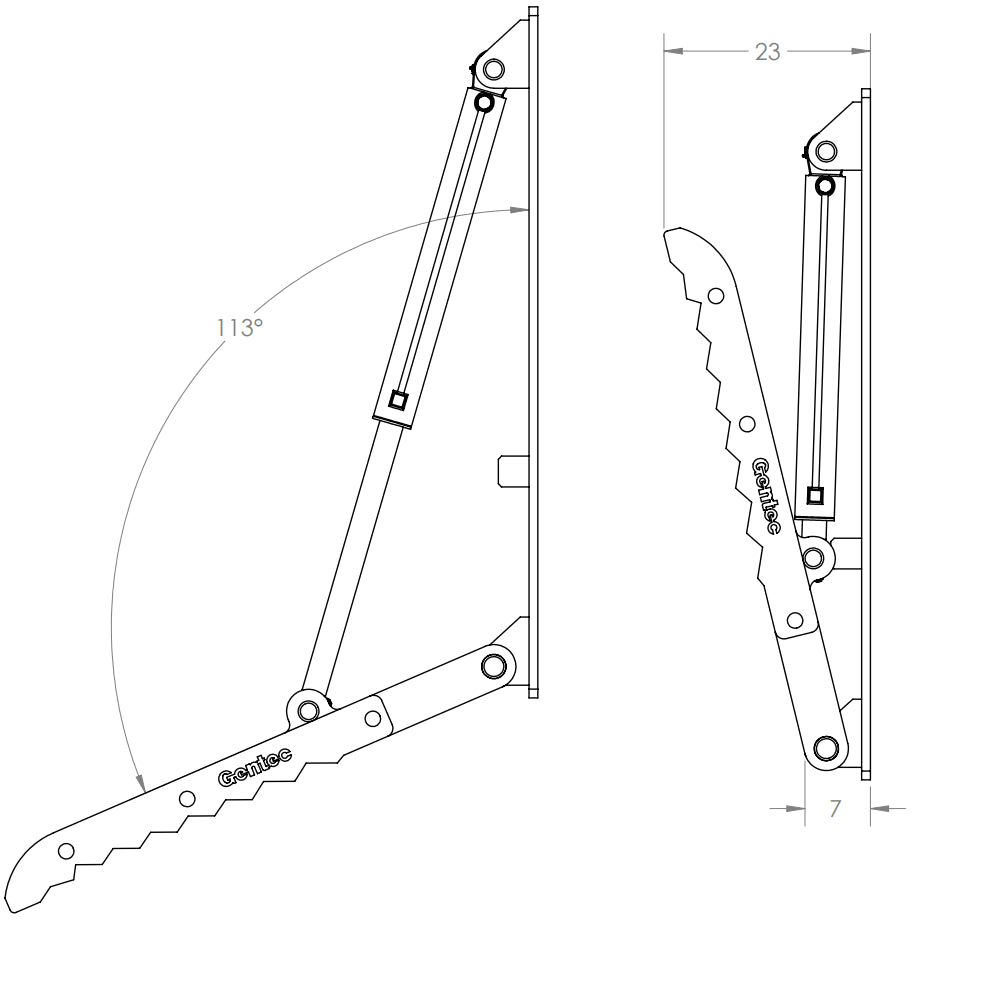

• 113° Maximum Extension Angle The optimized 113-degree articulation range allows superior gripping flexibility. Operators can securely clamp irregular loads while maintaining precise control, improving productivity and reducing repositioning time during demanding excavation tasks.
• Reinforced Ladder Frame Design The structural ladder-frame configuration with heavy gusset reinforcement maximizes strength and load distribution. This design prevents deformation under stress, ensuring long-lasting durability in extreme construction and demolition environments.
• Greaseable Maintenance System All critical pivot points feature greaseable pins and hardened bushings, reducing friction and extending service life. This simplifies maintenance routines while ensuring smooth, consistent operation over extended use cycles.
• Optimized Stowed Geometry Designed with a compact stowed profile, the thumb minimizes interference during digging. Its reduced footprint improves excavation efficiency by preventing obstruction between the thumb and bucket during operation.
• High-Strength Weld-On Mounting The weld-on mounting system provides a permanent, high-strength connection to the excavator stick. This ensures maximum stability and eliminates movement or flex during high-load lifting operations.
• Heavy-Duty Hydraulic Cushioning Integrated hydraulic cushioning at cylinder stroke ends protects internal components from shock loads. This extends cylinder life and reduces wear caused by sudden pressure changes during operation.
• Precision Hydraulic Port Placement Top-mounted SAE-12 (ORB-12) hydraulic ports protect hoses from damage and improve routing safety. This design reduces downtime caused by hose wear or accidental snagging on job sites.
• High-Strength Main Pin System The 2 3/4" hardened main pin system delivers superior load-bearing capability. Engineered for durability, it ensures stable operation under extreme stress conditions in rugged environments.
• Large Backplate Reinforcement A 78.625" reinforced backplate enhances structural stability and load distribution. This improves overall attachment strength, ensuring reliable performance during heavy lifting and material handling tasks.
• Fast Hydraulic Cycling System Oversized hydraulic porting improves oil flow efficiency, enabling faster cycle times and smoother operation. This increases productivity by reducing downtime between grip and release cycles.
• Professional-Grade Excavation Performance Designed for contractors, demolition crews, and heavy equipment operators, the HT2466 enhances excavator capability, enabling safer, faster, and more efficient material handling across multiple applications.
