Gentec Equipment Hydraulic Weld-On Thumb | Model HT3272 | Width 32" | Machine Size 32.5-50 Tons | For Excavators
DESCRIPTION
Upgrade your heavy-duty excavator with the Gentec Equipment Hydraulic Weld-On Thumb (HT3272), engineered for maximum strength, reliability, and performance. With a 32" width and 72" length, this thumb is designed for excavators in the 65,000lbs to 100,000lbs weight class. Crafted with 4x 2” thick AR400 Steel Tines and reinforced with gussets, it ensures durability on even the most demanding jobs. The double-sealed hydraulic cylinder, spherical bushings, and large hydraulic ports ensure smoother operation and minimal maintenance. With a 134-degree extension angle, this thumb maximizes your reach and efficiency while staying out of the way when retracting. Perfect for enhancing your excavator’s versatility, the HT3272 offers seamless compatibility with your machine. Whether you're digging, gripping, or lifting, this thumb ensures your project gets done faster and more efficiently. Boost productivity with this essential tool from Gentec, backed by 35 years of experience.
Key Features

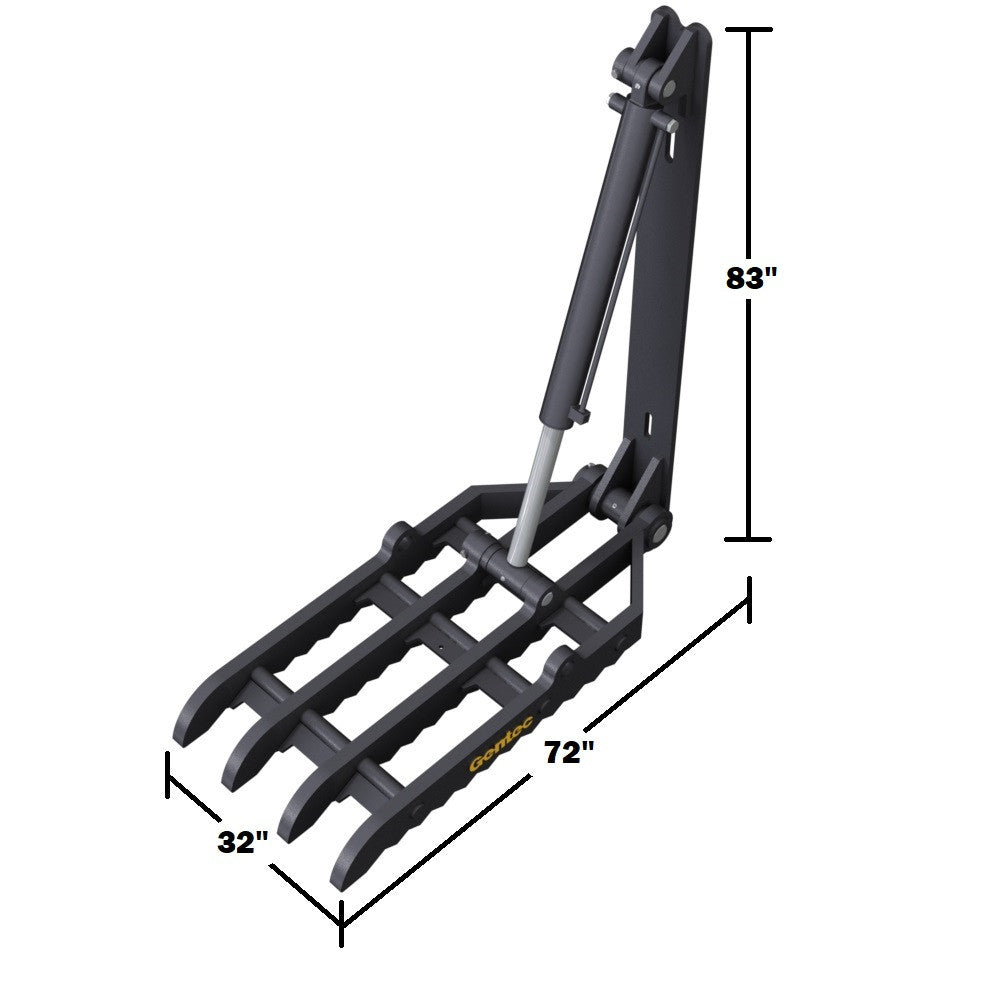

32" wide and 72" long hydraulic thumb designed for excavators between 65,000lbs and 100,000lbs.
4x 2” thick AR400 steel tines in a ladder frame layout with reinforced gussets for superior strength and durability.
Double-sealed welded hydraulic cylinder for increased reliability and longer-lasting performance.
Spherical bushings at the top of the cylinder prevent side loading, ensuring smoother operation.
Hydraulic ports located at the top of the cylinder keep hoses protected from damage during use.
Hydraulic cushion at the top of the stroke reduces impact and protects cylinder during retraction.
Greaseable pins on both the cylinder and main pin allow for easy maintenance and longer service life.
Hardened main pin and bushings for added durability, extending the thumb’s useful life.

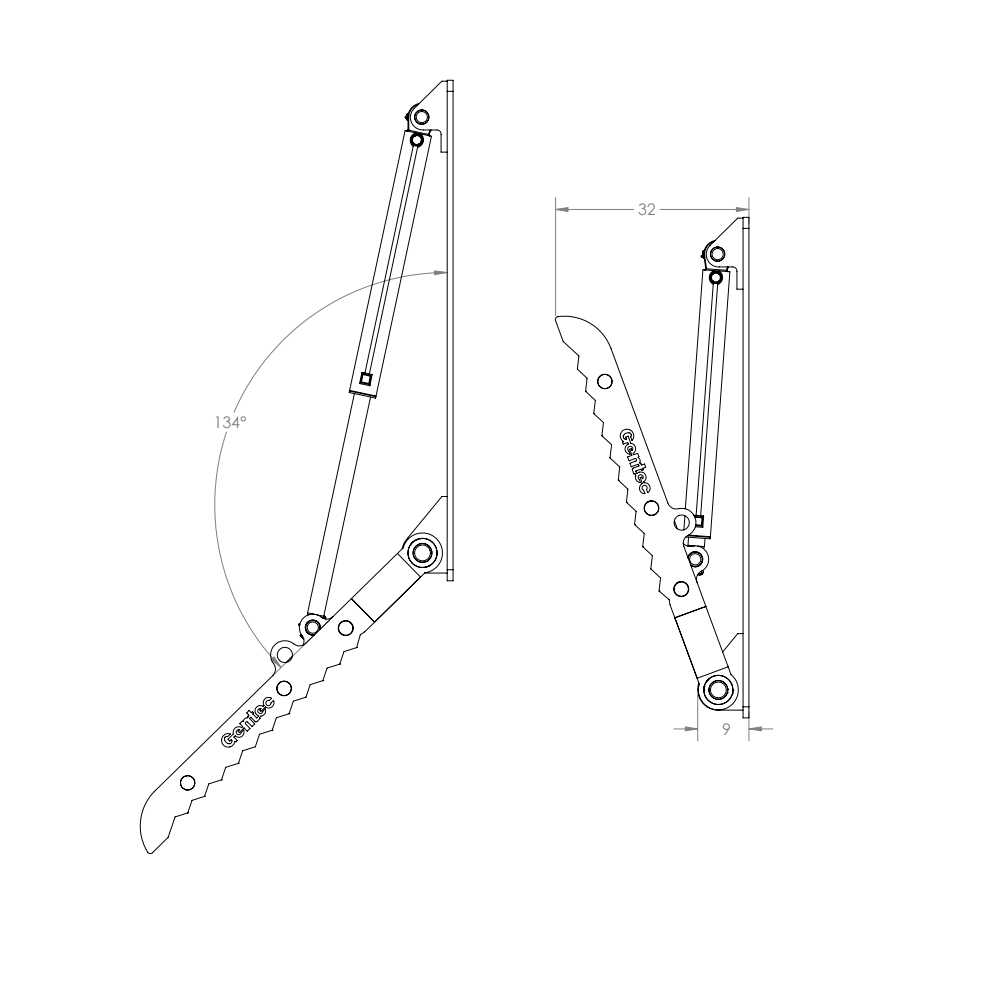

134-degree maximum extension angle for a wider range of motion and better gripping power.
Minimized stowed dimensions for efficient digging without interference when fully retracted.
83 3/8” backplate ensures secure attachment and stability for your excavator.
Faster hydraulic cycling with the larger port size in the included hydraulic cylinder.
Weld-on mounting for a sturdy, permanent attachment to your excavator, reducing the risk of wear.
Efficient and reliable performance that helps reduce machine downtime, maximizing your investment.
Detailed Specifications
Specification
Details
Brand
Gentec Equipment
Model
HT3272
Mounting Type
Weld-On
Width
32"
Length
72"
Tine Material
Hardox 400 Steel
Tine Thickness
2"
Backplate Width
8.5"
Backplate Height
83.375"
Main Pin Diameter
3 1/8"
Max. Extension Angle
134 Degrees
Max. Operating Weight
50 Tons (100,000lbs)
Min. Operating Weight
32.5 Tons (65,000lbs)
Excavator Weight Class
27.5 to 50 Tons (55,000lbs to 100,000lbs)
Stowed-Position Height
83.375"
Hydraulic Port Size
SAE-12 (ORB-12)
Weight Class (Metric Tons)
24-29, 30-39, 40-49
Weight
1,725 lbs
Hydraulic Operation
Yes
Cylinder Included
Yes
Greaseable Pins
Yes
