Product Description
Gentec Equipment Mechanical Weld-On Thumb | Model MT3262 | Size 32"x62" | Machine Size 27.5-37.5 Tons | For Excavators
DESCRIPTION
The Gentec Equipment Mechanical Weld-On Thumb (Model MT3262) is engineered to enhance your excavator's versatility and performance, providing robust support for tough digging, material handling, and demolition tasks. Built for machines weighing between 27.5 to 37.5 tons, this thumb features four 2-inch thick AR400 steel tines, ensuring durability and strength. With a 32" width and 62" length, it’s designed for seamless attachment, boasting three-position adjustability (90°, 99°, and 112°), allowing for superior flexibility in operation. When not in use, it stows away compactly, occupying only 71" of vertical space. The thumb’s A-frame construction and gusset-reinforced frame provide excellent torsional rigidity, making it an ideal tool for farmers, landscapers, and demolition contractors. Hardened pins and bushings extend its lifespan, while its quick-stowing capability ensures minimal interference with your excavator's primary tasks. Maximize your machine’s utility with the Gentec MT3262 Mechanical Weld-On Thumb for unmatched performance.
Key Features
- Four 2" thick AR400 steel tines Offers superior strength and longevity for heavy-duty tasks like digging and material handling.

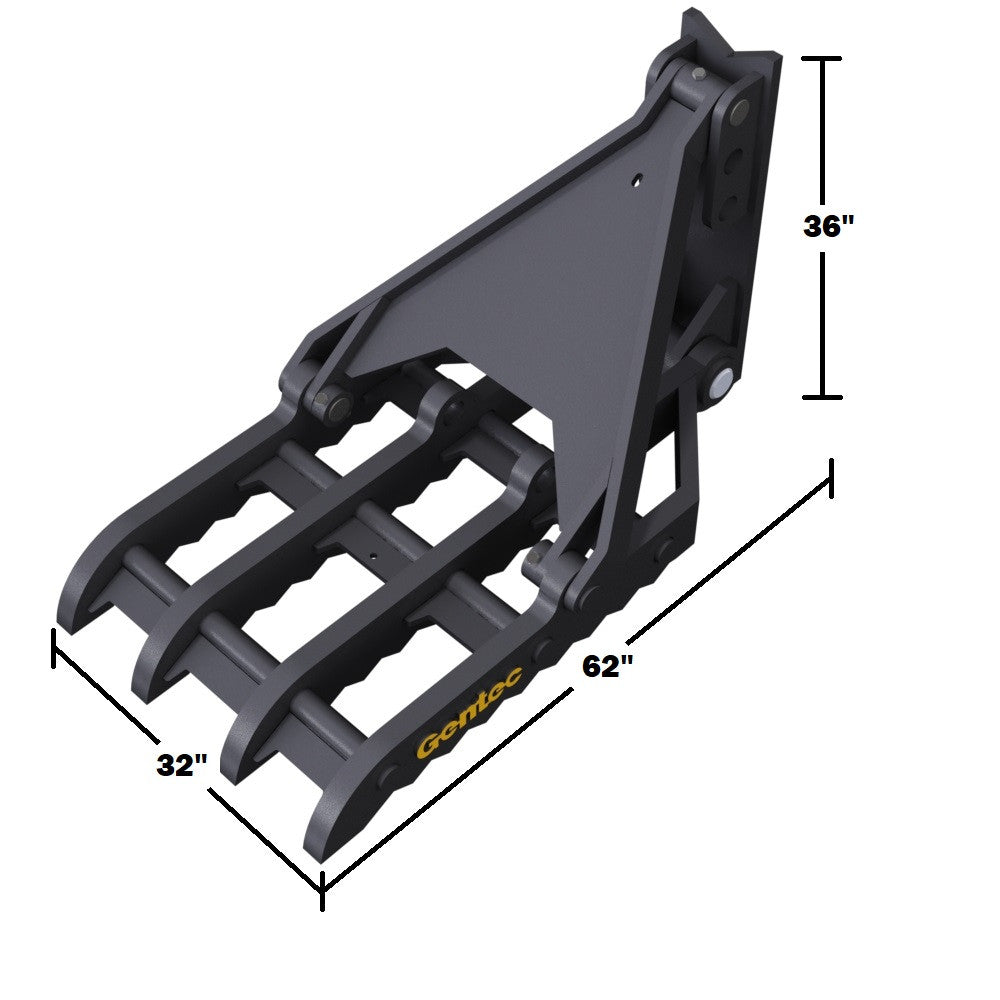

- 32" width and 62" length Large enough to handle a wide range of materials while maintaining a compact profile.
- Ladder-frame layout with gussets Adds extra reinforcement, ensuring durability during intense operations.
- A-frame construction for enhanced torsional rigidity Designed to provide superior strength and stability, even under heavy loads.

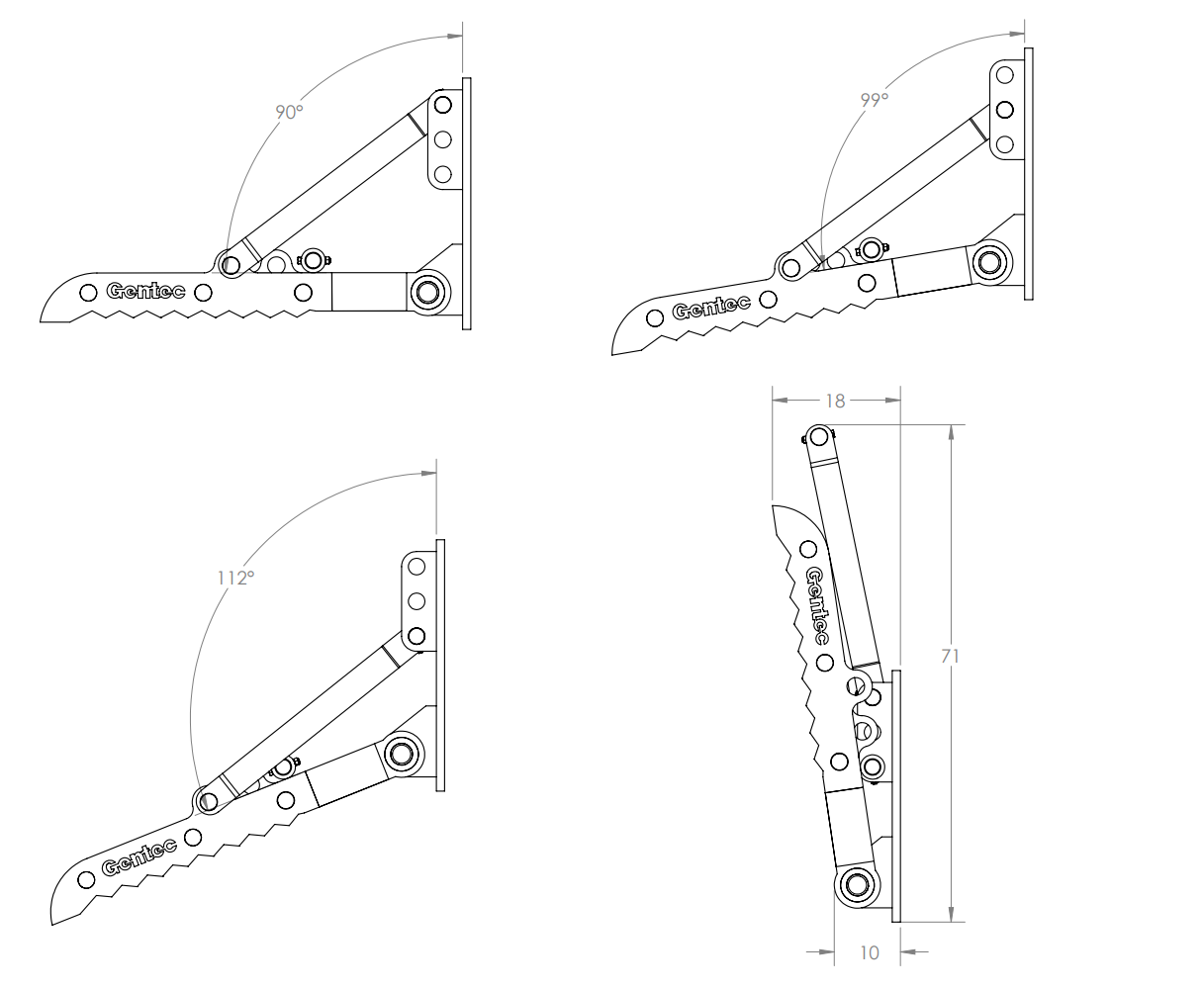

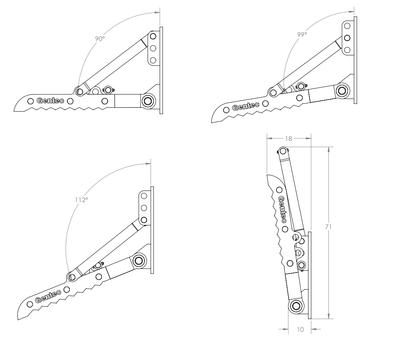

- Three-position adjustability (90°, 99°, 112°) Flexible positioning for more versatile operations, adapting to different task requirements.
- Quick stowing design Stows compactly in just 71" of vertical space, making it ideal for situations where space is limited.
- Hardened main pin and bushings Increases durability and reduces wear over time, contributing to long-term operational efficiency.
- No loose parts when stowed Ensures your excavator remains secure and reduces the risk of losing components during operations.
- Greaseable main pin Facilitates smooth movement and reduces friction, extending the lifespan of the thumb.
- Compatible with machines between 27.5 and 37.5 tons Specifically designed for excavators in this weight class, ensuring optimal performance and fit.
- Heavy-duty Hardox 400 tines Excellent wear resistance ensures the thumb stays functional even under the toughest conditions.
- Reinforced frame construction Designed to handle demanding work environments, providing extra protection against impact damage.
- Max operating weight of 37.5 tons Capable of handling powerful excavators, making it ideal for large-scale projects.
- Stows compactly Takes up minimal space when not in use, ensuring maximum efficiency for your machine.
Detailed Specifications
| Specification | Detail |
|---|---|
| Brand | Gentec Equipment |
| Model | MT3262 |
| Type | Mechanical Weld-On Thumb |
| Tine Material | Hardox 400 |
| Tine Thickness | 2" |
| Width | 32" |
| Length | 62" |
| Max. Operating Weight | 37.5 Tons (75,000 lbs) |
| Min. Operating Weight | 27.5 Tons (55,000 lbs) |
| Excavator Weight Class | 27.5 to 50 Tons (55,000 lbs to 100,000 lbs) |
| Main Pin Diameter | 3 1/8" |
| Max Extension Angle | 112 Degrees |
| Stowed-Position Height | 71.5" |
| Mounting Type | Weld-On |
| Frame Construction | Ladder Frame with Gussets |
| Adjustability | 3 Positions (90°, 99°, 112°) |
| Weight | 1,400 lbs |
| Greaseable Pin | Yes |
