Gilbert Grizzly Multigrip Side-Grip Vibratory Hammer | Model MG-60 & MG-90 | Height 83" & 92" | Machine Size 22-45 Ton | For Excavators

Gilbert Grizzly Multigrip Side-Grip Vibratory Hammer | Model MG-60 & MG-90 | Height 83" & 92" | Machine Size 22-45 Ton | For Excavators

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Excavator Compatibility – MG‑60 fits 22–30 t machines; MG‑90 fits 30–45 t machines
  • Heavy‑Duty Build – Net weights of 5,620 lbs (MG‑60) and 7,220 lbs (MG‑90) for stability and durability
  • Compact Height – 83 in (MG‑60) and 92 in (MG‑90) for maneuverability in tight job sites
  • Consistent Pressure – Maximum pressure setting of 4,500 PSI for reliable performance across applications
View full details

How To Get A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Gilbert Grizzly Multigrip Side-Grip Vibratory Hammer | Model MG-60 & MG-90 | Height 83" & 92" | Machine Size 22-45 Ton | For Excavators

DESCRIPTION

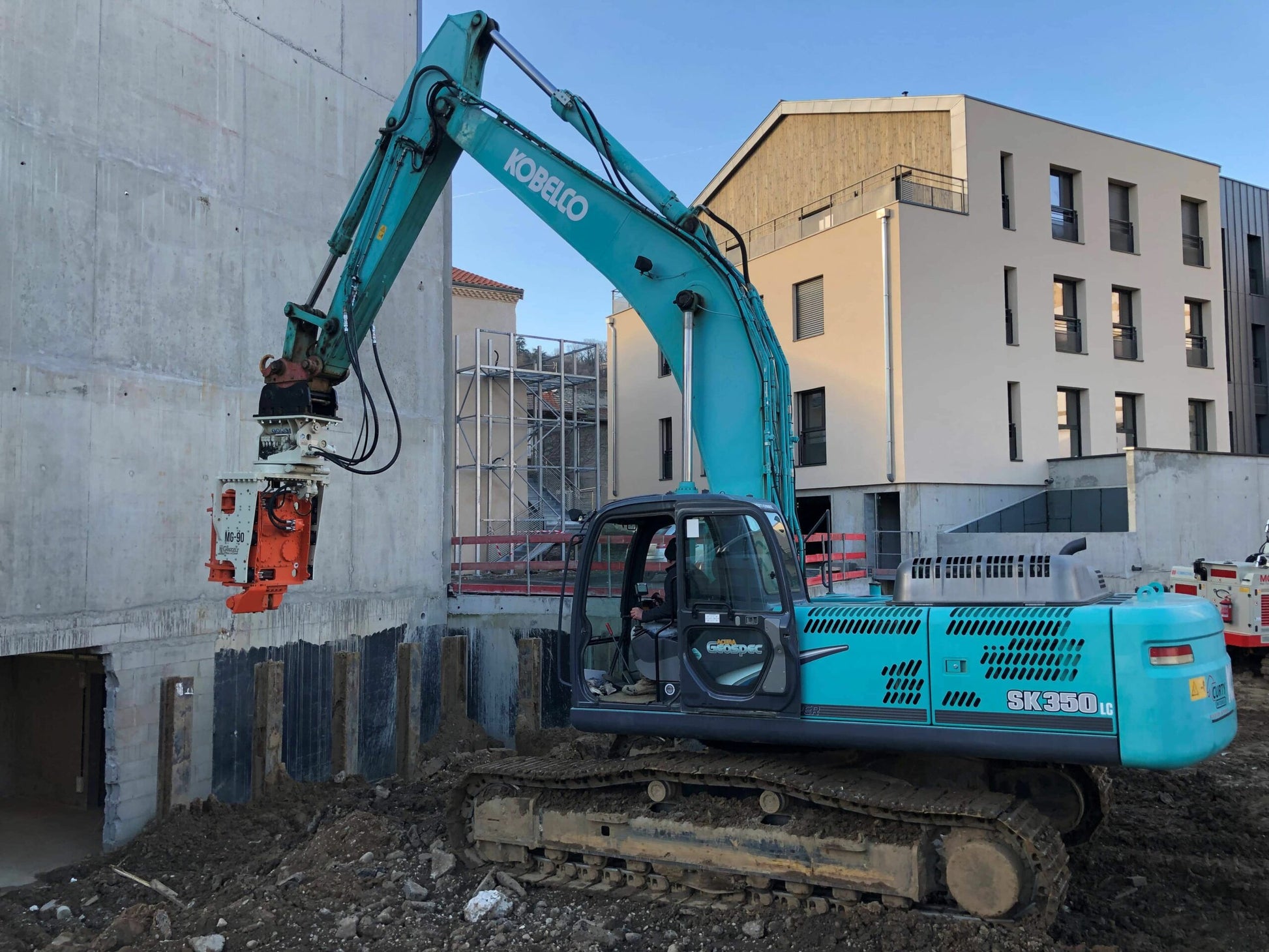

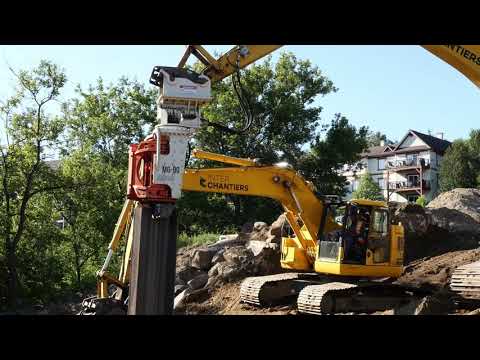

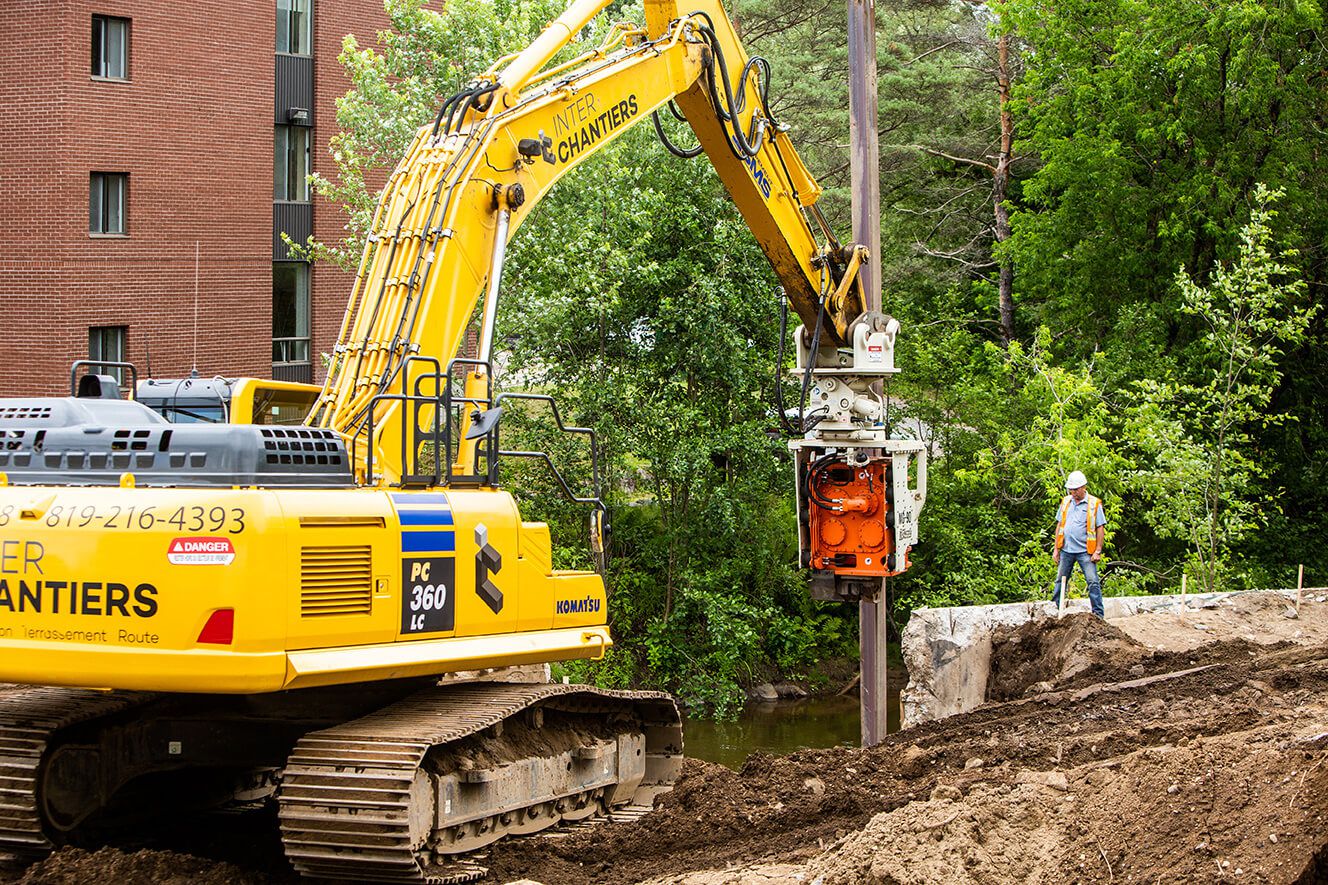

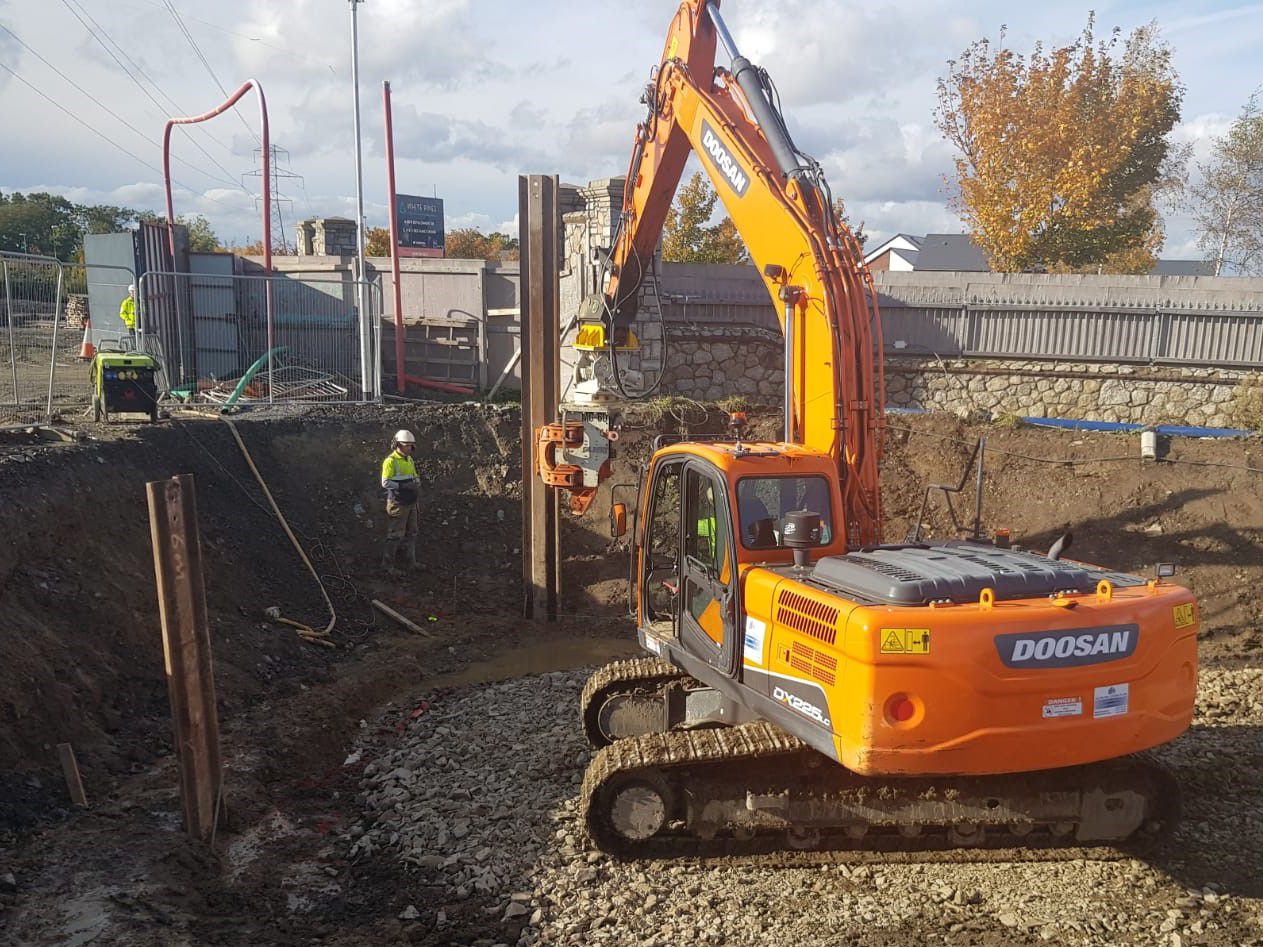

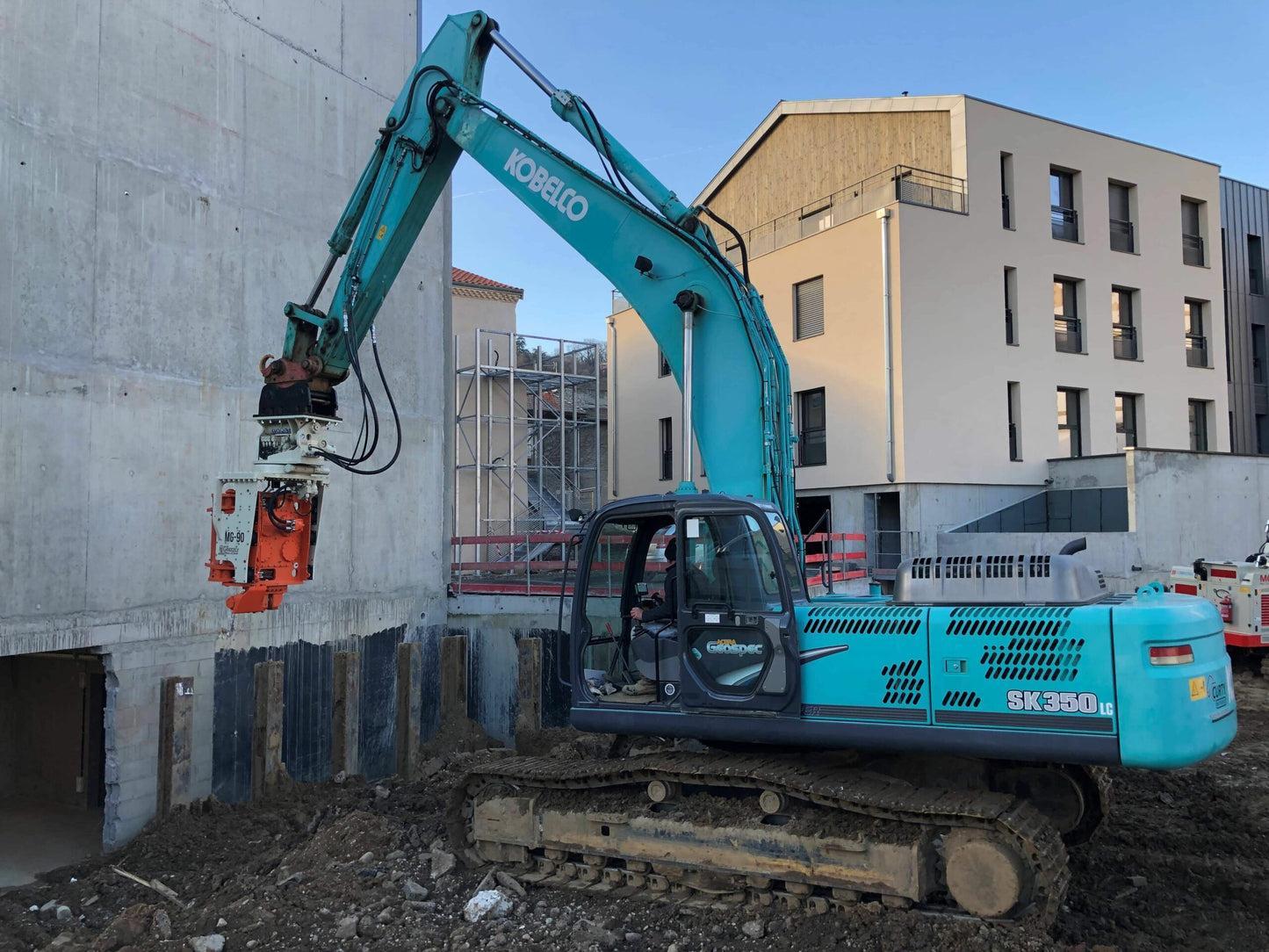

The Gilbert Grizzly Multigrip Side‑Grip Vibratory Hammer is a high‑performance pile‑driving attachment engineered for excavators in the 22–45 ton class. Designed for speed, precision, and versatility, it allows operators to handle, position, and drive piles from the side or top without additional handling equipment.

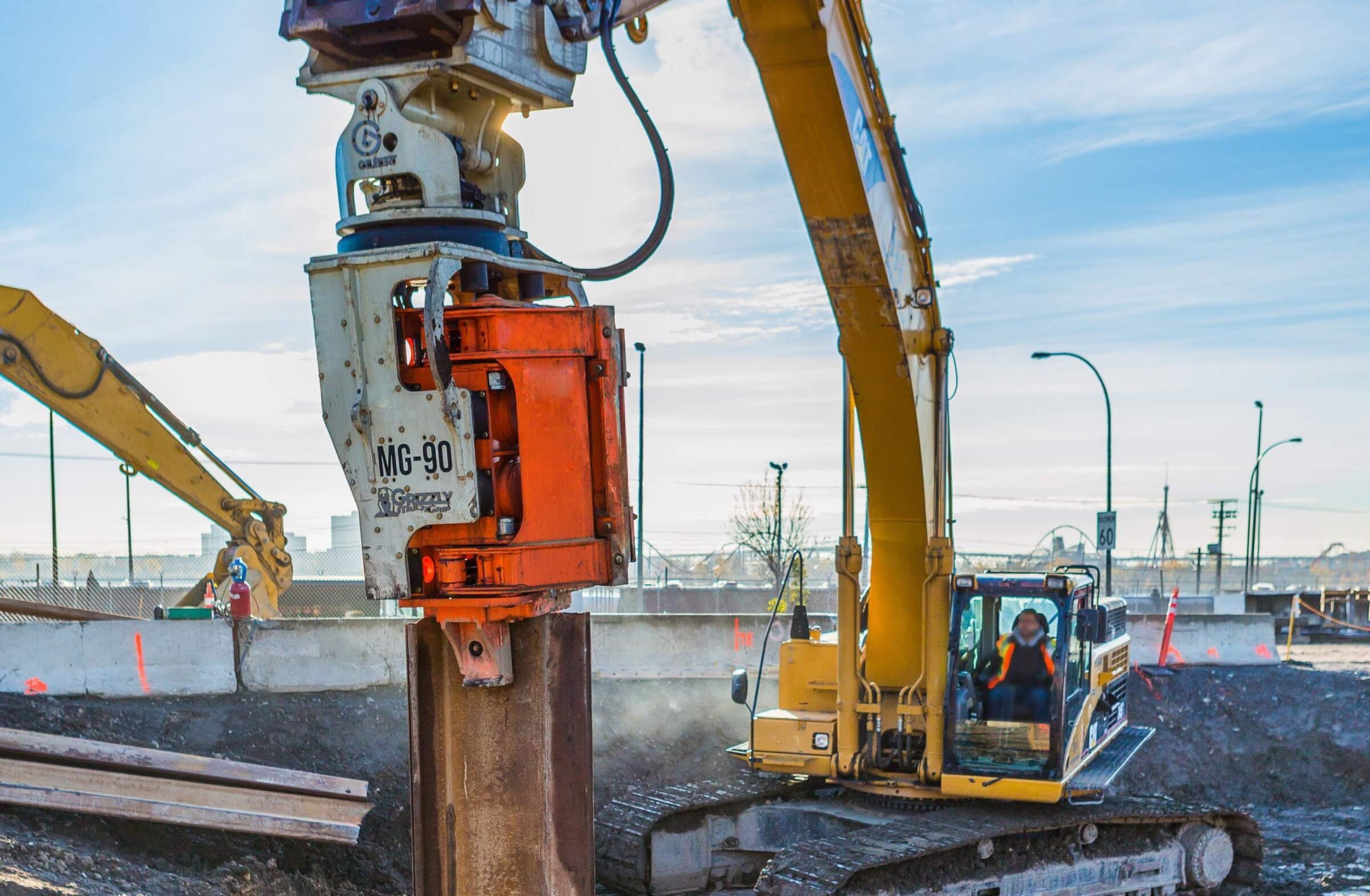

The MG‑60 delivers 60 tons of centrifugal force for mid‑range excavators, while the MG‑90 pushes performance further with 90 tons of force for heavy‑duty applications. Both models feature a robust, high‑rotation design, powerful eccentric systems, and optimized oil flow for maximum driving efficiency. Whether working in construction, marine, or foundation projects, the Grizzly Multigrip ensures faster cycle times, reduced labor, and superior control in challenging conditions.

Key Features

  • Excavator Compatibility – MG‑60 fits 22–30 t machines; MG‑90 fits 30–45 t machines
  • High Driving Power – 60 tons (MG‑60) or 90 tons (MG‑90) centrifugal force for demanding pile‑driving tasks
  • Efficient Eccentric Systems – Dual eccentrics (MG‑60) or quad eccentrics (MG‑90) for balanced, high‑impact performance
  • Optimized Oil Flow – 45 GPM (MG‑60) and 60 GPM (MG‑90) for smooth, consistent operation
  • Heavy‑Duty Build – Net weights of 5,620 lbs (MG‑60) and 7,220 lbs (MG‑90) for stability and durability

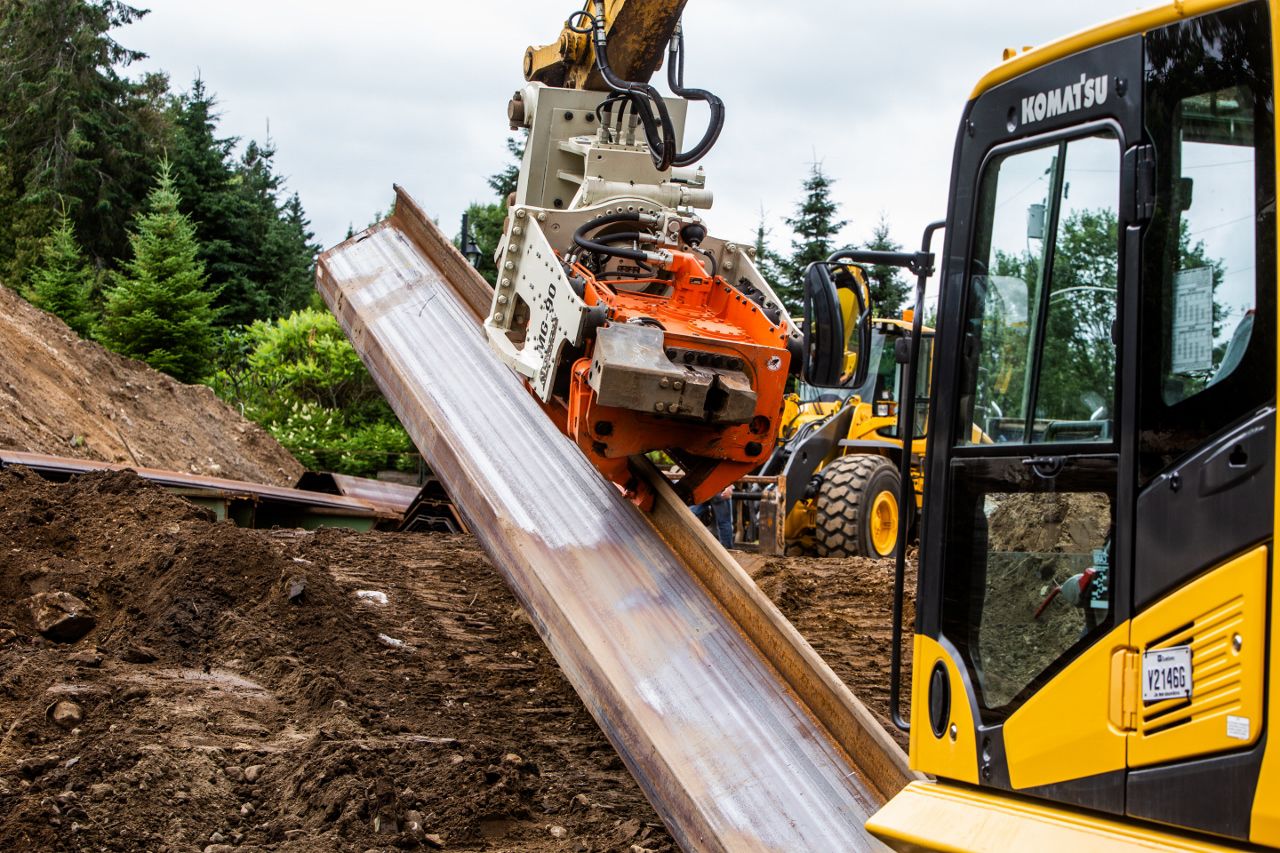

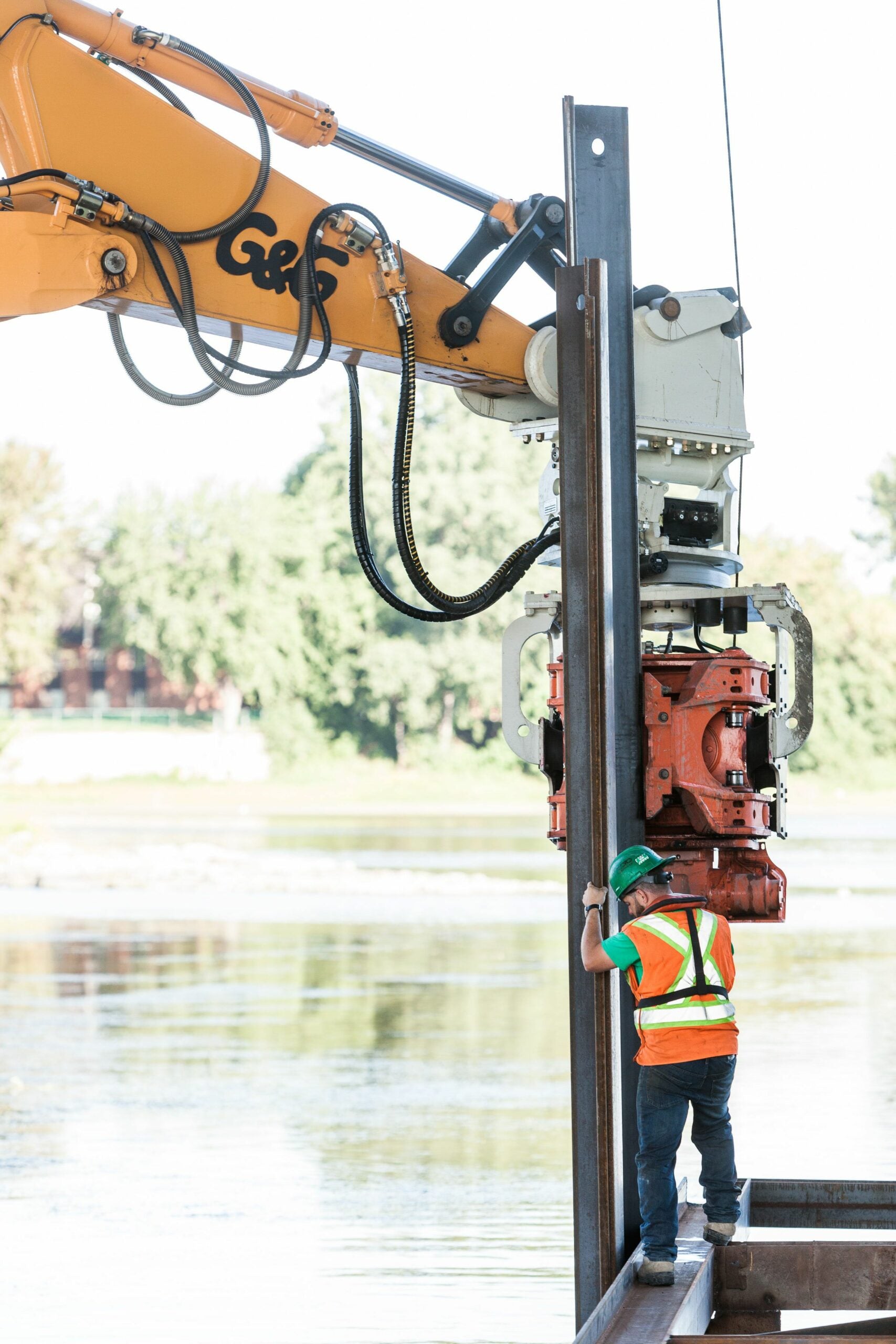

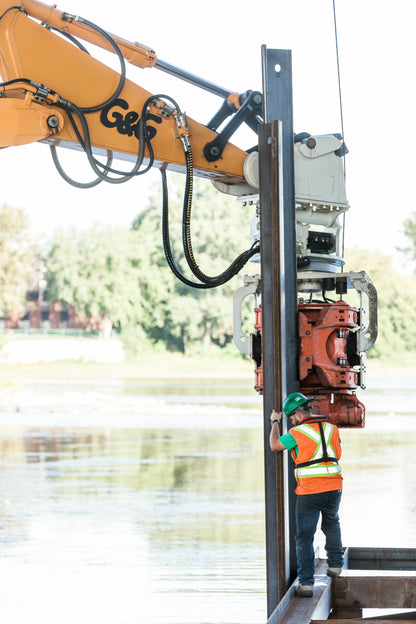

  • Precision Control – Side‑grip design enables accurate pile handling and placement without cranes or additional rigging
  • Compact Height – 83 in (MG‑60) and 92 in (MG‑90) for maneuverability in tight job sites
  • Consistent Pressure – Maximum pressure setting of 4,500 PSI for reliable performance across applications

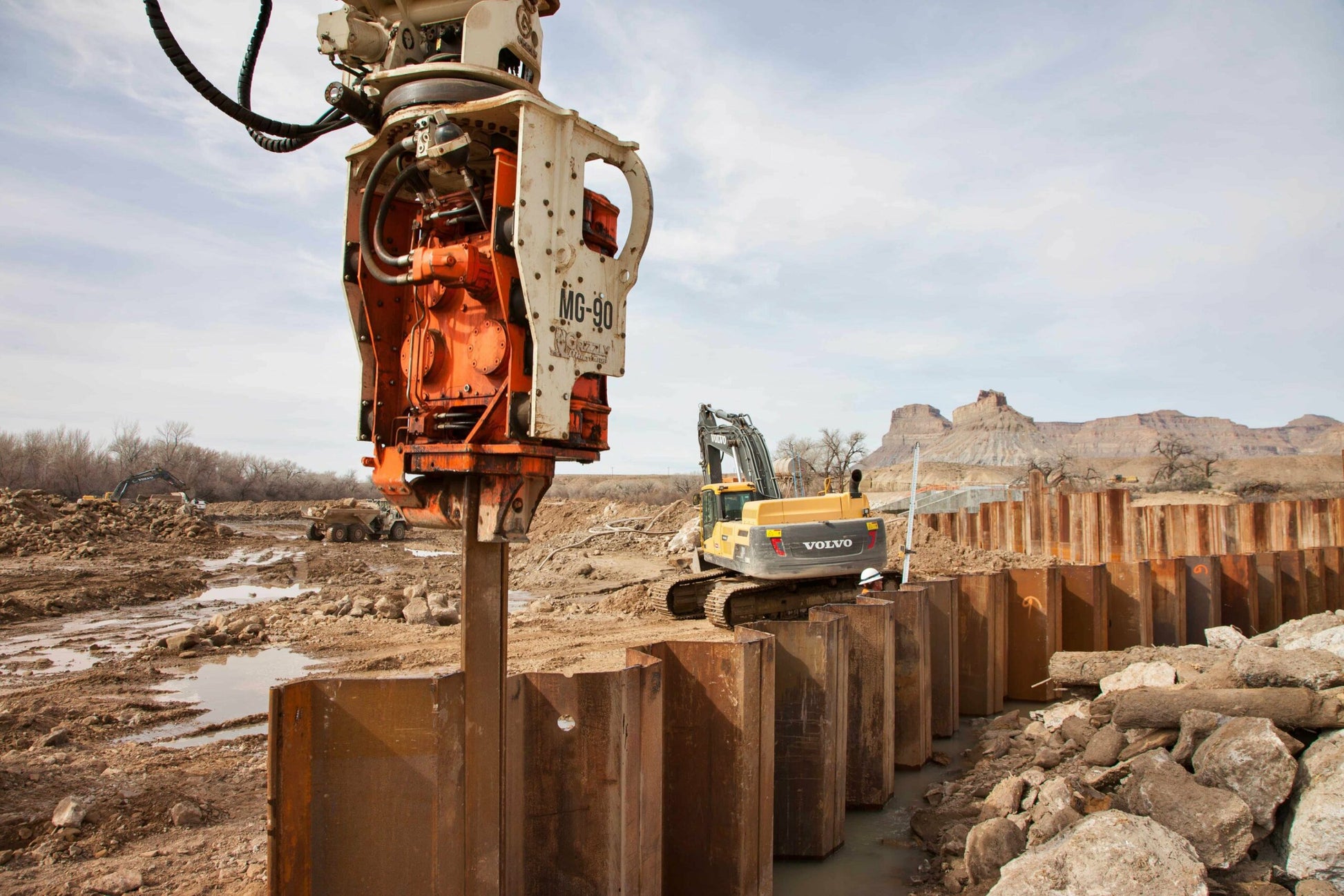

  • Versatile Applications – Ideal for sheet piles, H‑beams, timber piles, and pipe piles in construction, marine, and civil works

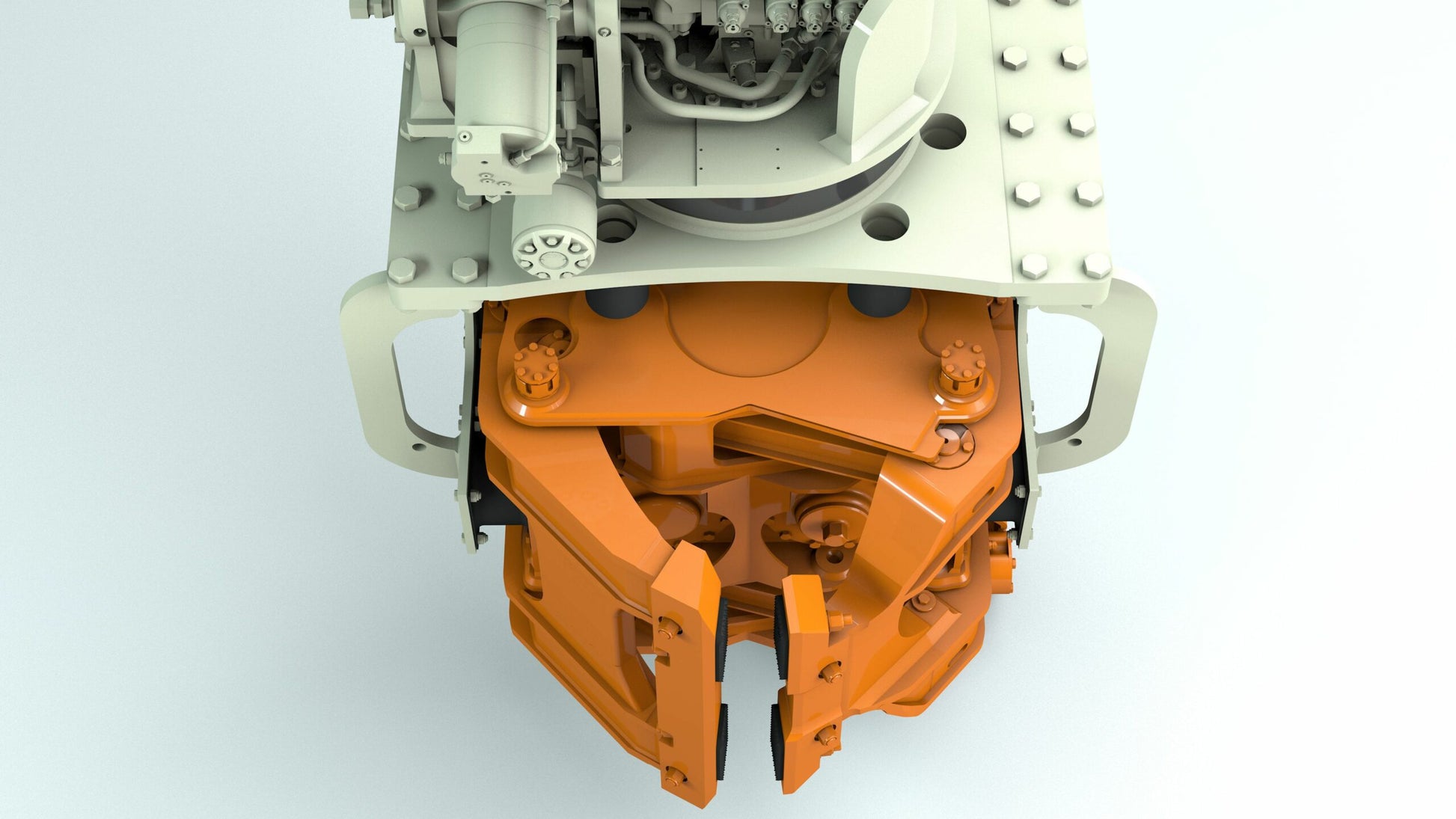

  • Side-Grip System: Allows easy handling of all types of piles, including sheet piles, beams, and tubes.
  • Removable Jaws: Enhances versatility, making it suitable for various applications.
  • Control and Assistance System: Simple and intuitive, enabling operators to easily position piles.
  • Versatility: Combines versatility, power, and simplicity, making it an ideal attachment for excavators.
  • Productivity and Profitability: Designed to increase both productivity and profitability in foundation work.

Detailed Specifications

MG‑60

Specification Details
Excavator Class 22 – 30 t
Centrifugal Force 60 tons
Eccentric Moment 538 in‑lbs
Oil Flow 45 GPM
Maximum Pressure Setting 4,500 PSI
Amplitude – Max. 0.35 in
Net Weight 5,620 lbs
Number of Eccentrics 2
Height 83 in

MG‑90

Specification Details
Excavator Class 30 – 45 t
Centrifugal Force 90 tons
Eccentric Moment 810 in‑lbs
Oil Flow 60 GPM
Maximum Pressure Setting 4,500 PSI
Amplitude – Max. 0.41 in
Net Weight 7,220 lbs
Number of Eccentrics 4
Height 92 in
