Product Description

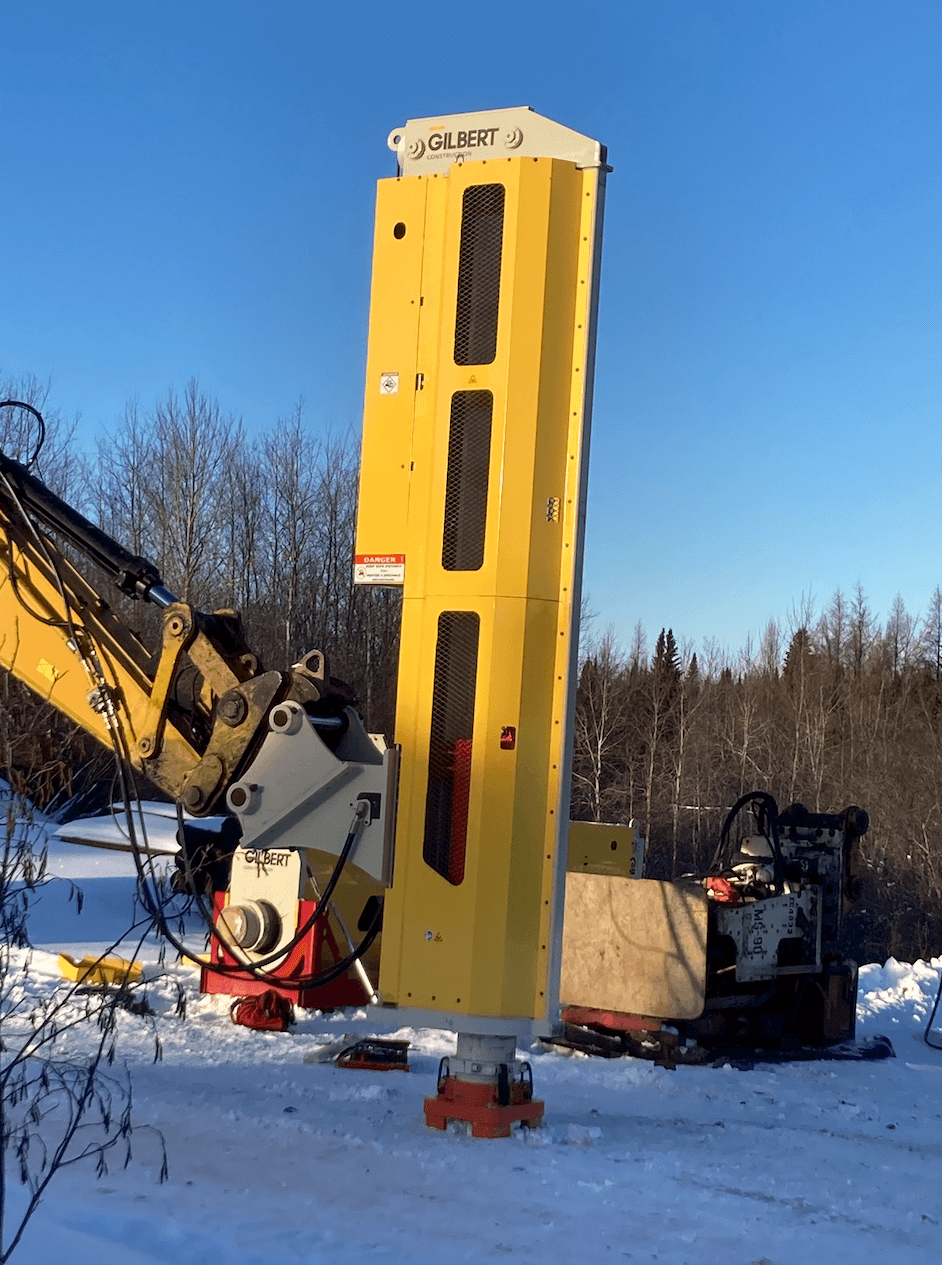

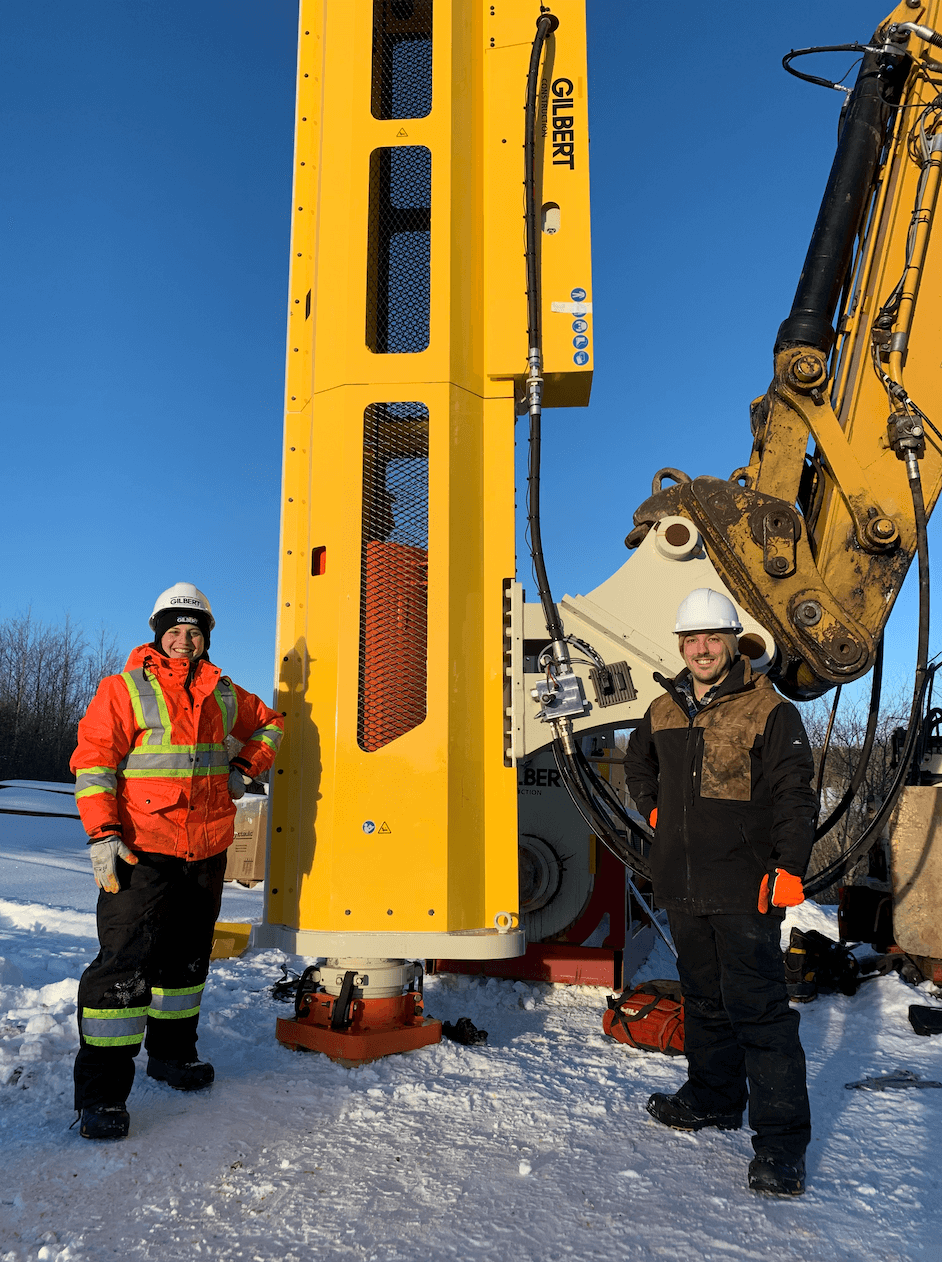

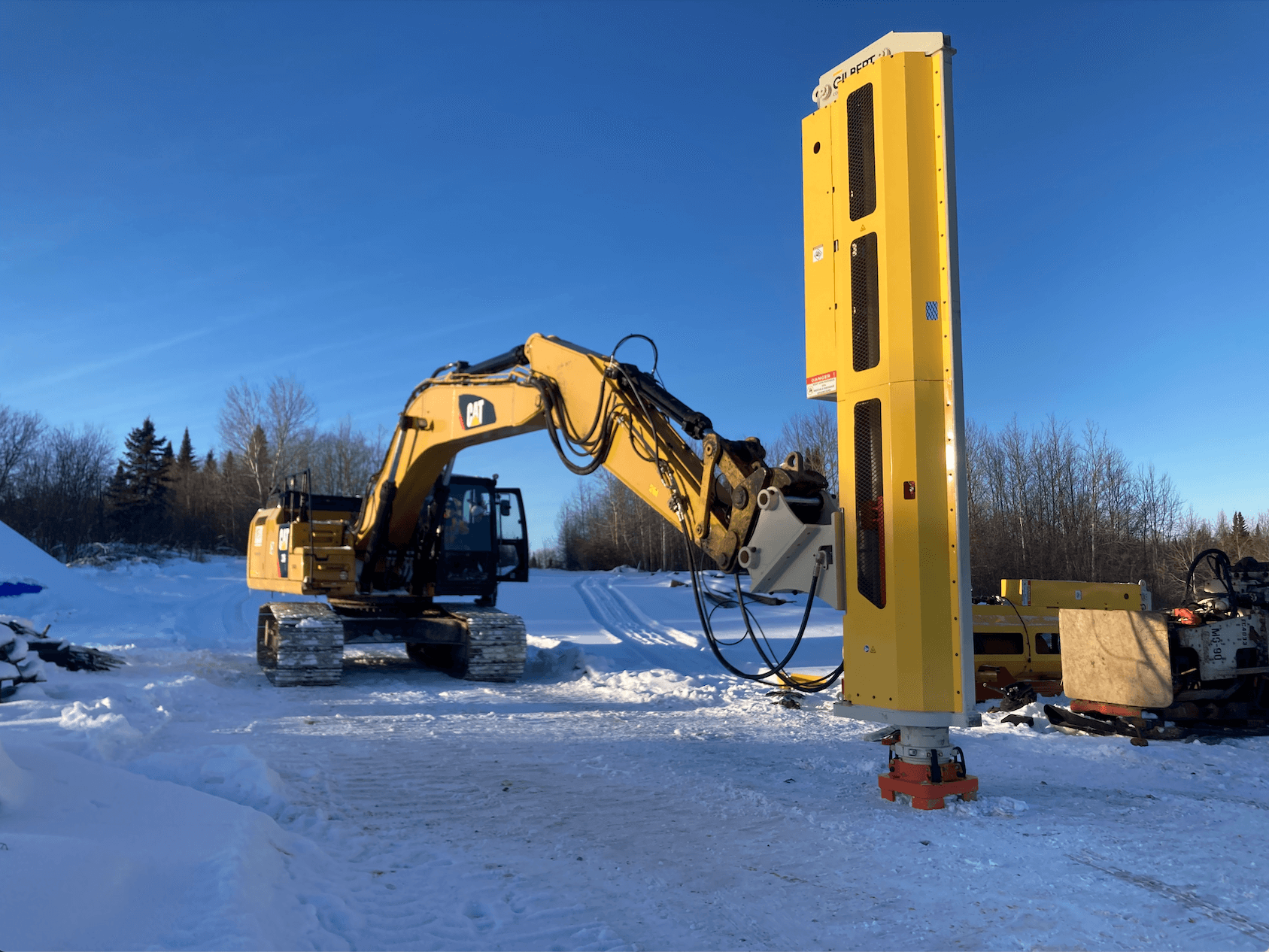

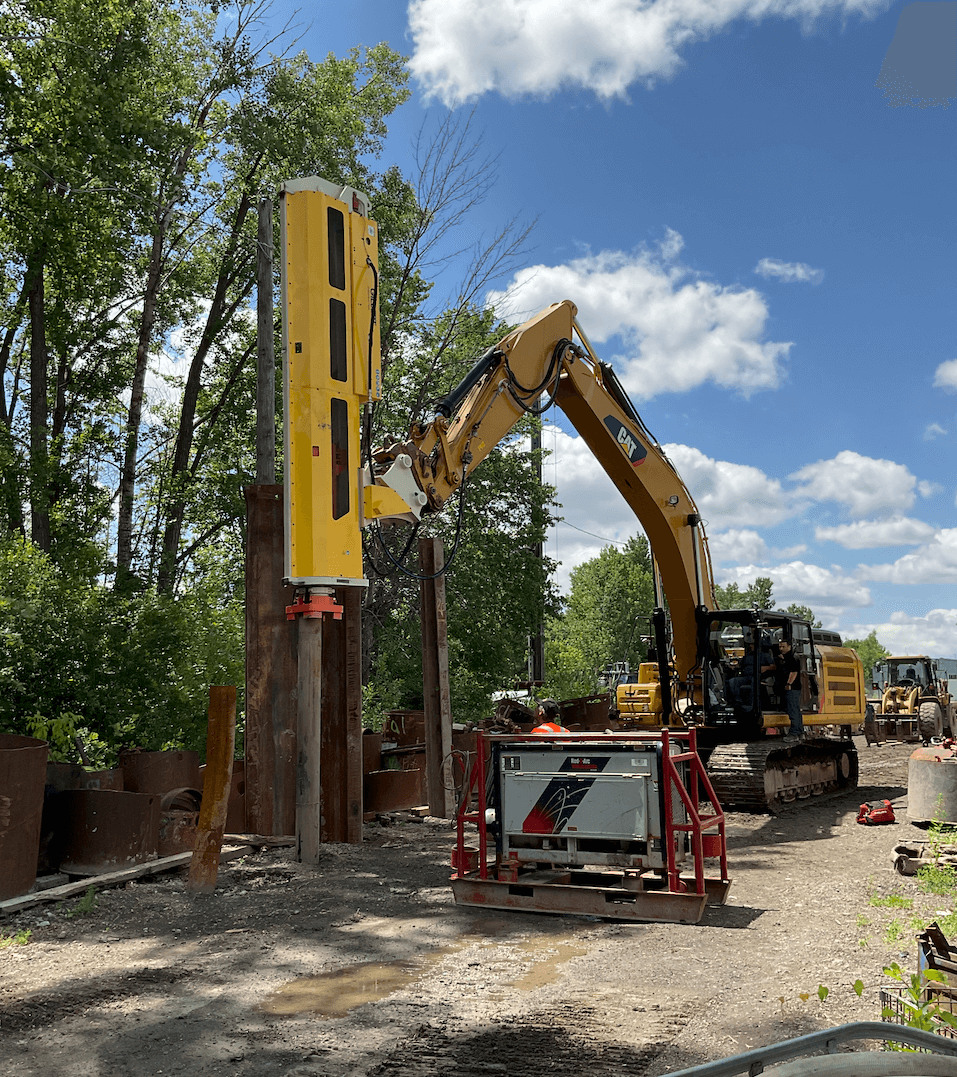

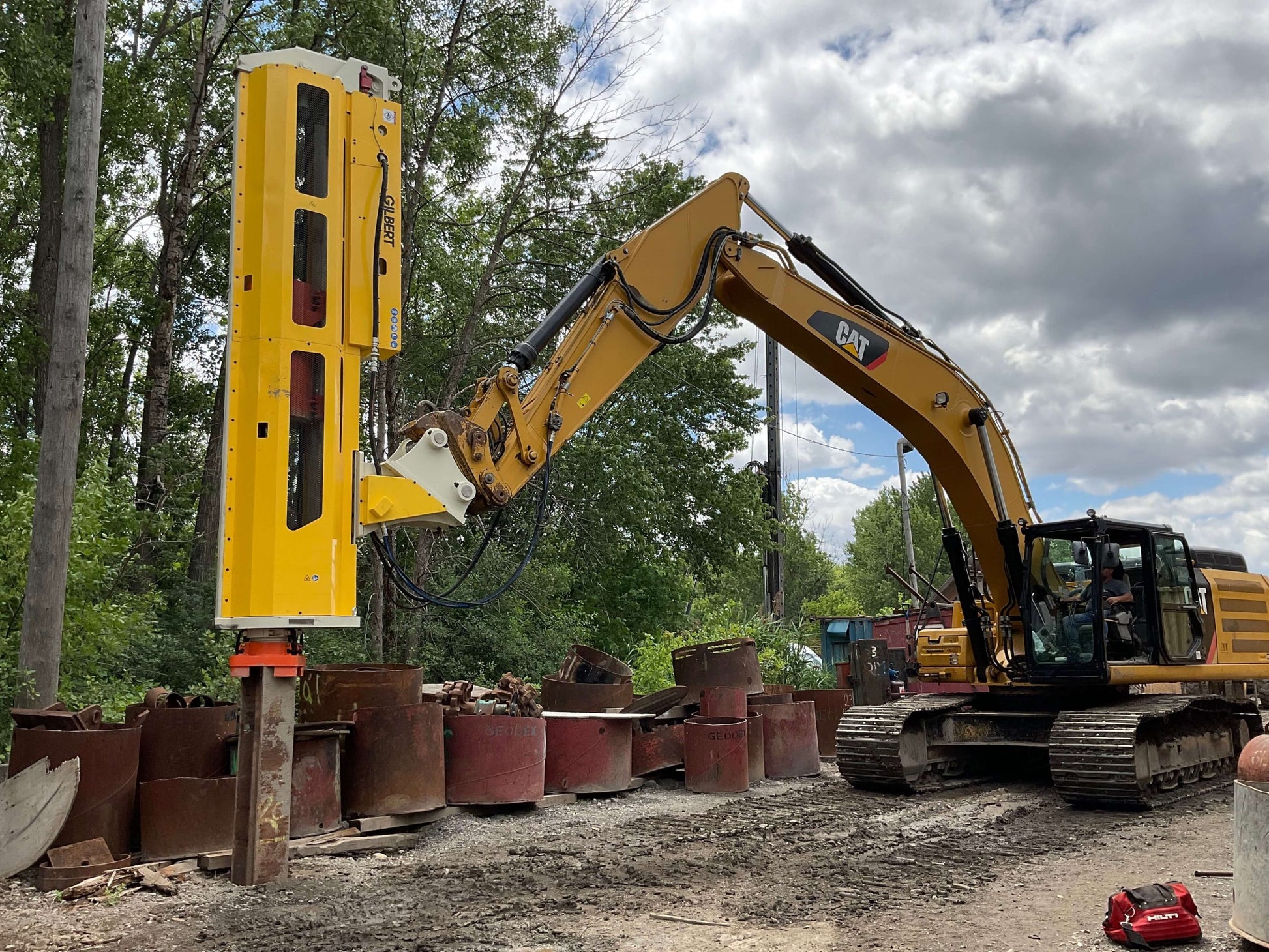

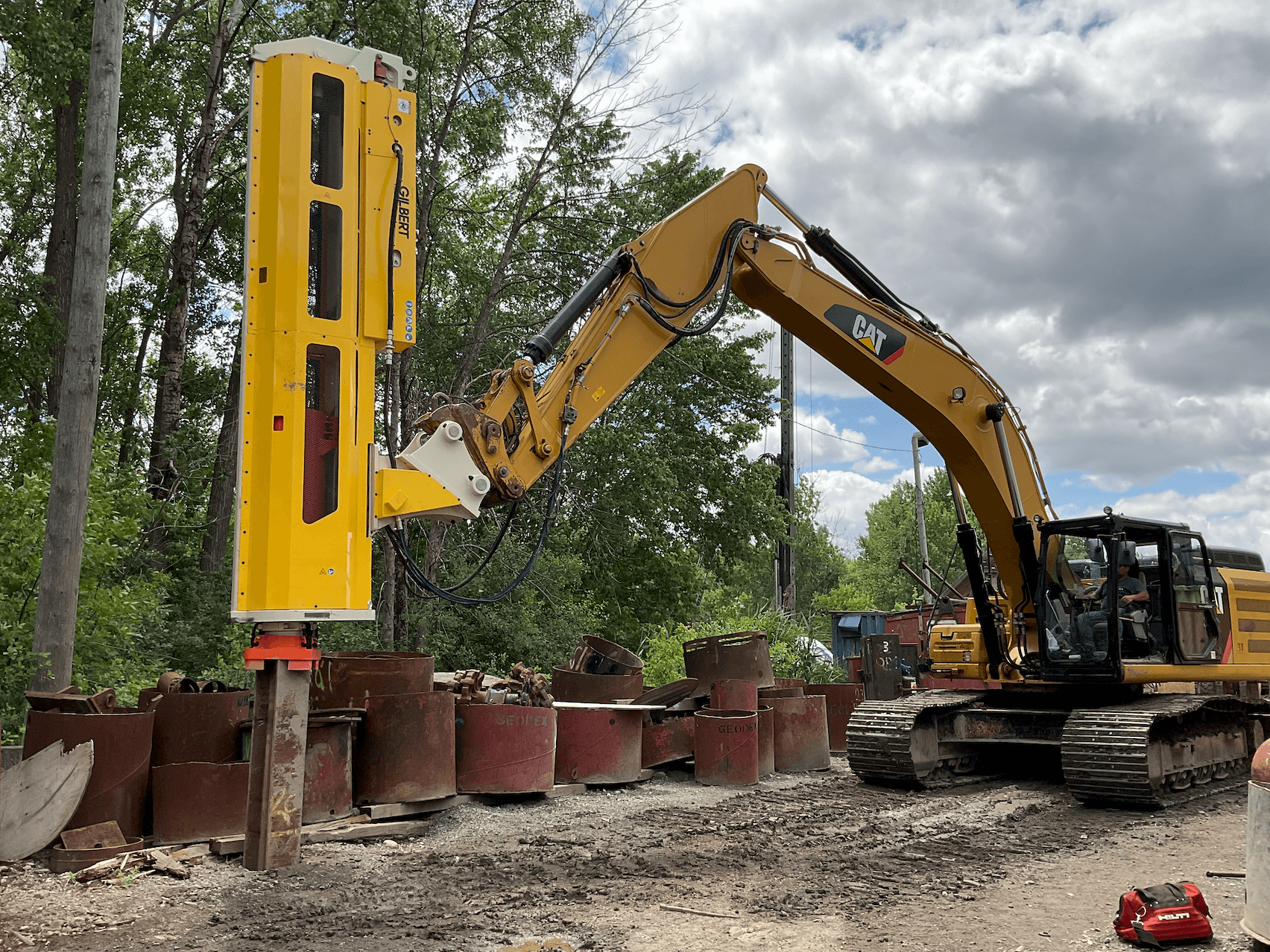

Gilbert Pile Driver Hydraulic Drop Hammer | Height 211" | Machine Size 22-45 Ton | For Excavators
DESCRIPTION
The Gilbert Pile Driver is renowned for its power, precision, and simplicity.
The Gilbert Pile Driver Hydraulic Drop Hammer is the industry-leading solution for precision-driven pile installation. Designed for 22-45 ton excavators, this powerful attachment is equipped with a sledgehammer drop of 8 feet, providing a robust impact force. The hydraulic system powers this drop hammer, positioning it as the most powerful excavator-mounted hammer available today.
A standout feature of the Gilbert Pile Driver is its laser measurer, which gives real-time feedback on the hammer’s height, ensuring accuracy in every strike. This eliminates the guesswork involved in pile driving and allows for precise control over the depth and placement of the pile. The intuitive control system makes operating the pile driver straightforward, whether in manual or automatic mode, ensuring versatility and ease of use.
Designed for compatibility with the DUO system, this pile driver increases operational efficiency by adapting seamlessly to various tasks and applications. Whether you're installing sheet piles, wood posts, or concrete piles, the impact adapter ensures the hammer accommodates a wide range of pile types. This powerful, versatile tool enhances your project’s speed and precision, taking pile driving to the next level.
Key Features
- Excavator Compatibility – Designed for 30–45 t excavators for heavy‑duty pile‑driving applications
- Massive Impact Energy – Delivers up to 27,200 ft‑lb of striking force for demanding foundation work
- Long Vertical Stroke – 8 ft maximum drop height for powerful, efficient driving
- Heavy Mass Weight – 4,000 lb drop mass for deep penetration and high productivity
- Consistent Striking Rate – 22 bpm for steady, controlled operation
- Robust Build – 9,964 lb net weight for stability and durability in tough jobsite conditions
- Tall, High‑Reach Design – 211 in overall height for optimal pile engagement
- Efficient Hydraulic Requirements – Operates at 20 GPM oil flow and 4,500 PSI max pressure
- Precision Control – Compatible with advanced control systems for accurate, repeatable strikes
- Versatile Applications – Suitable for sheet piles, H‑beams, timber piles, pipe piles, and concrete piles
- Sledgehammer Drop: 8 feet, making it a powerful excavator attachment.
- Hydraulic System: Provides unmatched performance, claiming the title of the most powerful excavator-mounted hammer in the industry.
- Laser Measurer: Equipped with a precision laser measurer that gives the exact height of the sledgehammer in real time, ensuring unmatched accuracy with every strike.
- Control System: Uses the same intuitive control system as the vibratory hammer, making it simple and quick to operate.
- DUO Compatibility: Easy to work with the DUO system for enhanced efficiency.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | Gilbert Hydraulic Hammer |
| Excavator Class (Ton) | 30-45 |
| Maximum Energy (ft.lb) | 27,200 |
| Maximum Vertical Displacement (ft.) | 8 |
| Mass Weight (lb) | 4,000 |
| Beats per Minute (bpm) | 22 |
| Net Weight (lb) | 9,964 |
| Height (in.) | 211 |
| Oil Flow (gal/min) | 20 |
| Maximum Operating Pressure (PSI) | 4,500 |
| Angle Sensor | Included |
| Mass Height Sensor | Included |
| Mode of Operations | Automatic or Manual (adjustable rest times and strike height) |
